Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)
1794-2. Driving procedures
4
Driving

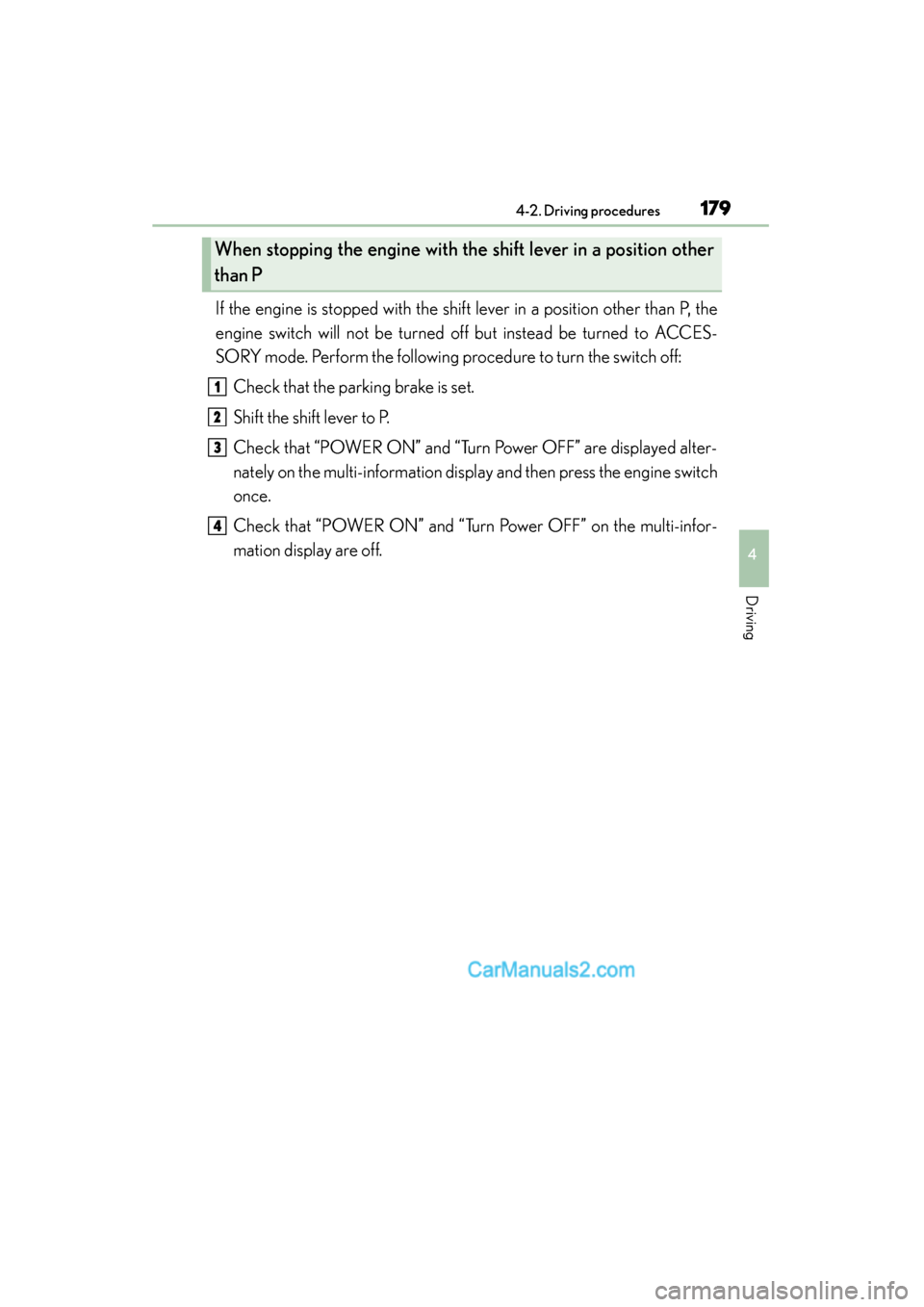

If the engine is stopped with the shift lever in a position other than P, the
engine switch will not be turned off but instead be turned to ACCES-
SORY mode. Perform the following procedure to turn the switch off:Check that the parking brake is set.
Shift the shift lever to P.
Check that “POWER ON” and “Turn Power OFF” are displayed alter-
nately on the multi-information display and then press the engine switch
once.
Check that “POWER ON” and “Turn Power OFF” on the multi-infor-
mation display are off.
When stopping the engine with th e shift lever in a position other
than P
1
2
3
4
GS350_OM_OM30F69U_(U).book Page 179 Monday, January 19, 2015 2:53 PM

180
GS350_OM_OM30F69U_(U)
4-2. Driving procedures

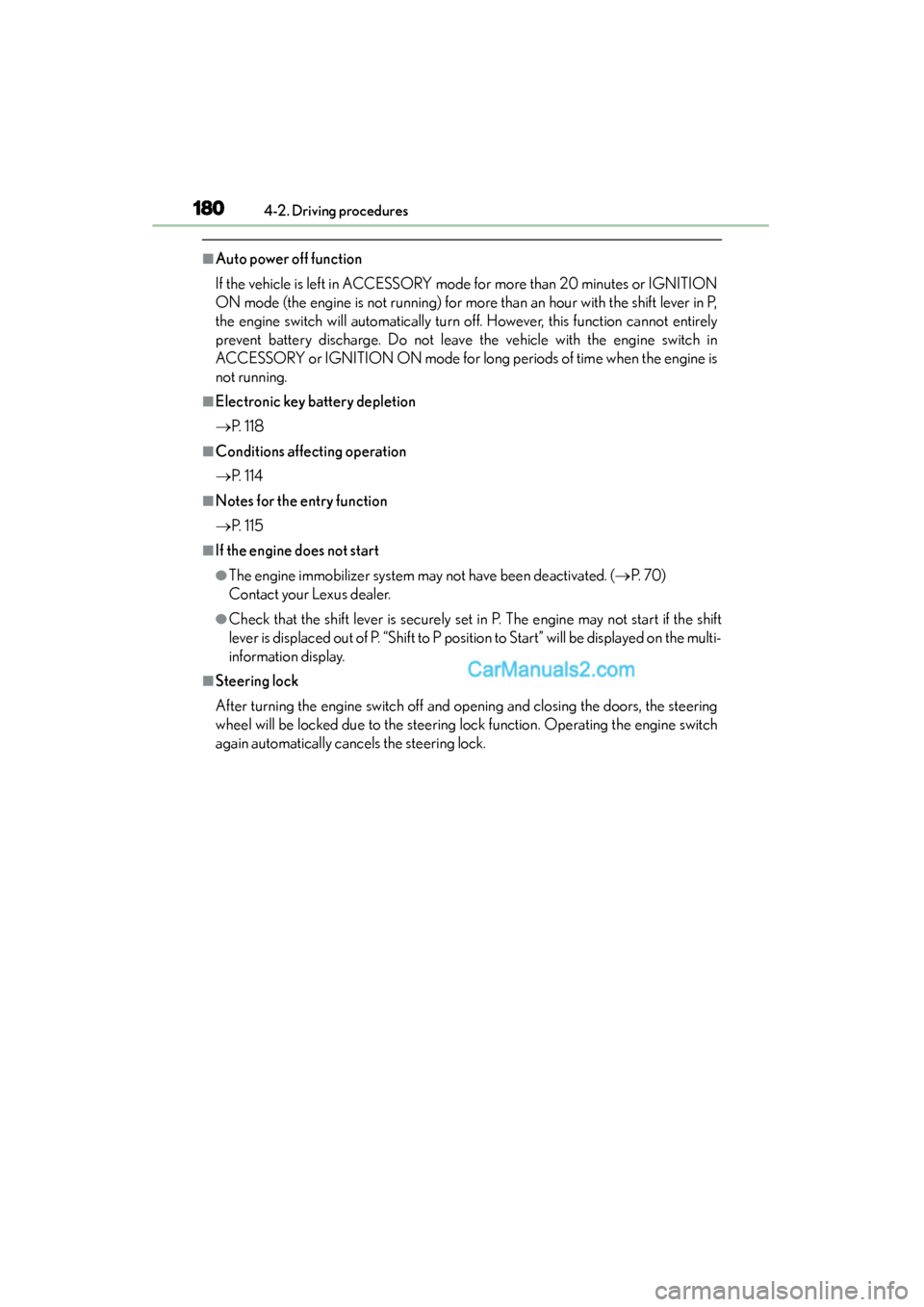

■Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or IGNITION
ON mode (the engine is not running) for more than an hour with the shift lever in P,
the engine switch will automatically turn off. However, this function cannot entirely
prevent battery discharge. Do not leave the vehicle with the engine switch in
ACCESSORY or IGNITION ON mode for long periods of time when the engine is
not running.
■Electronic key battery depletion
→P. 118
■Conditions affecting operation
→P. 114
■Notes for the entry function
→P. 115
■If the engine does not start
●The engine immobilizer system may not have been deactivated. ( →P. 7 0 )
Contact your Lexus dealer.
●Check that the shift lever is securely set in P. The engine may not start if the shift
lever is displaced out of P. “Shift to P position to Start” will be displayed on the multi-
information display.
■Steering lock
After turning the engine switch off and opening and closing the doors, the steering
wheel will be locked due to the steering lock function. Operating the engine switch
again automatically cancels the steering lock.
GS350_OM_OM30F69U_(U).book Page 180 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1814-2. Driving procedures
4
Driving

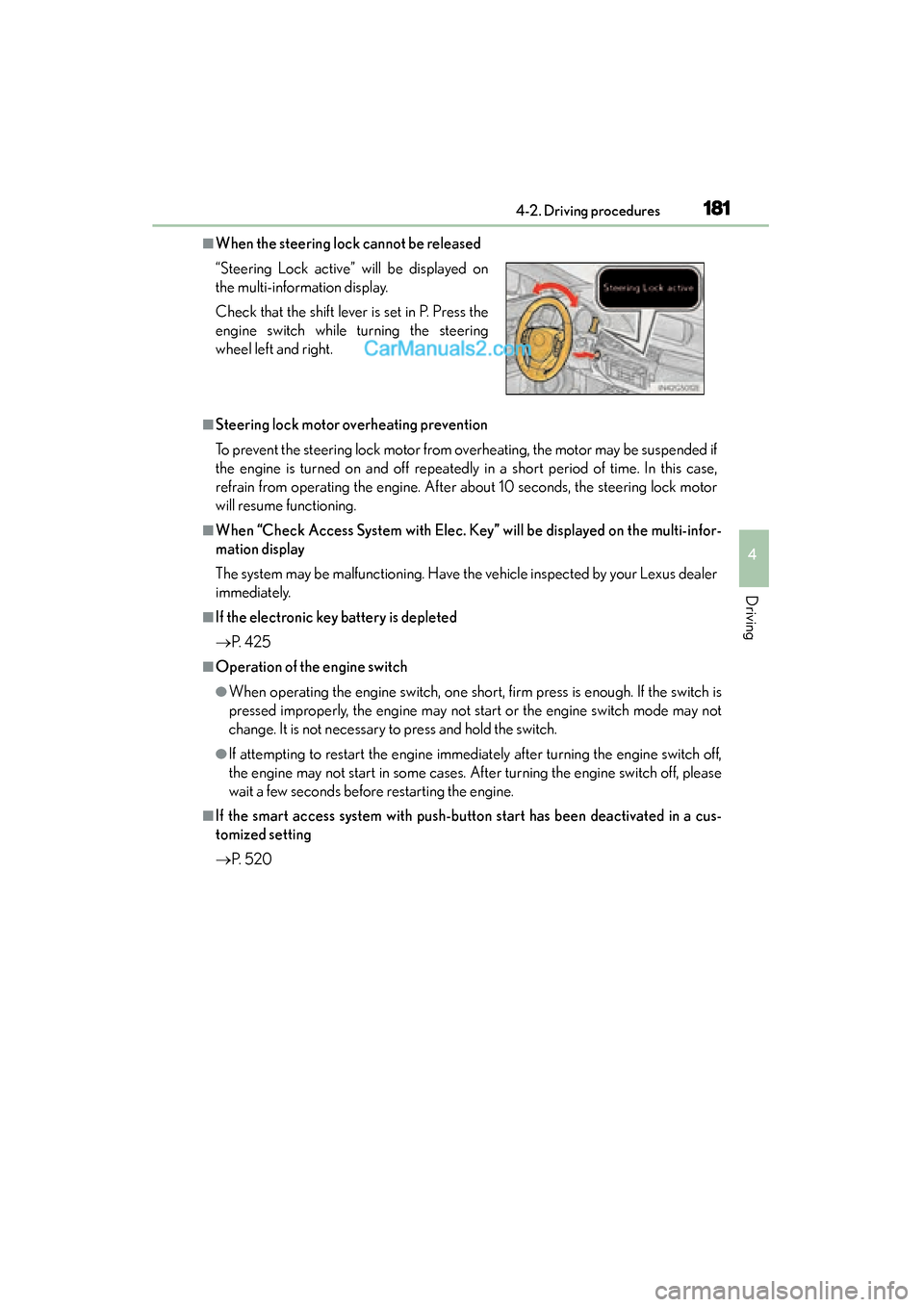

■When the steering lock cannot be released
■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be suspended if
the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine. After about 10 seconds, the steering lock motor
will resume functioning.
■When “Check Access System with Elec. Key” will be displayed on the multi-infor-
mation display
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately.
■If the electronic key battery is depleted
→P. 4 2 5
■Operation of the engine switch
●When operating the engine switch, one short, firm press is enough. If the switch is
pressed improperly, the engine may not start or the engine switch mode may not
change. It is not necessary to press and hold the switch.
●If attempting to restart the engine immediately after turning the engine switch off,
the engine may not start in some cases. After turning the engine switch off, please
wait a few seconds before restarting the engine.
■If the smart access system with push-button start has been deactivated in a cus-
tomized setting
→P. 5 2 0
“Steering Lock active” will be displayed on
the multi-information display.
Check that the shift lever is set in P. Press the
engine switch while turning the steering
wheel left and right.
GS350_OM_OM30F69U_(U).book Page 181 Monday, January 19, 2015 2:53 PM

182
GS350_OM_OM30F69U_(U)
4-2. Driving procedures

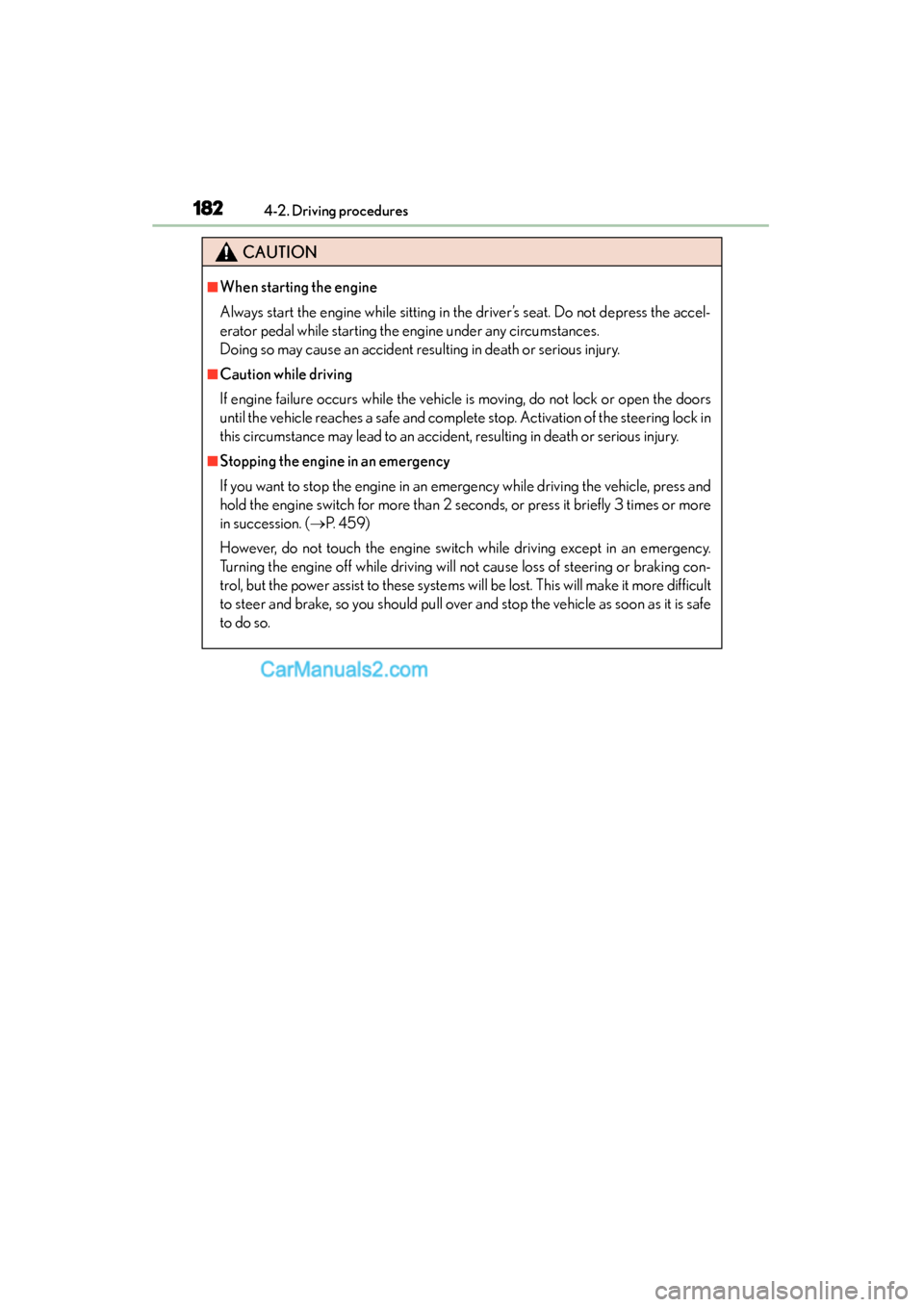

CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the accel-
erator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the doors
until the vehicle reaches a safe and complete stop. Activation of the steering lock in
this circumstance may lead to an accident, resulting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, press and
hold the engine switch for more than 2 seconds, or press it briefly 3 times or more
in succession. (→P. 4 5 9 )
However, do not touch the engine switch while driving except in an emergency.
Turning the engine off while driving will not cause loss of steering or braking con-
trol, but the power assist to these systems will be lost. This will make it more difficult
to steer and brake, so you should pull over and stop the vehicle as soon as it is safe
to do so.
GS350_OM_OM30F69U_(U).book Page 182 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1834-2. Driving procedures
4
Driving

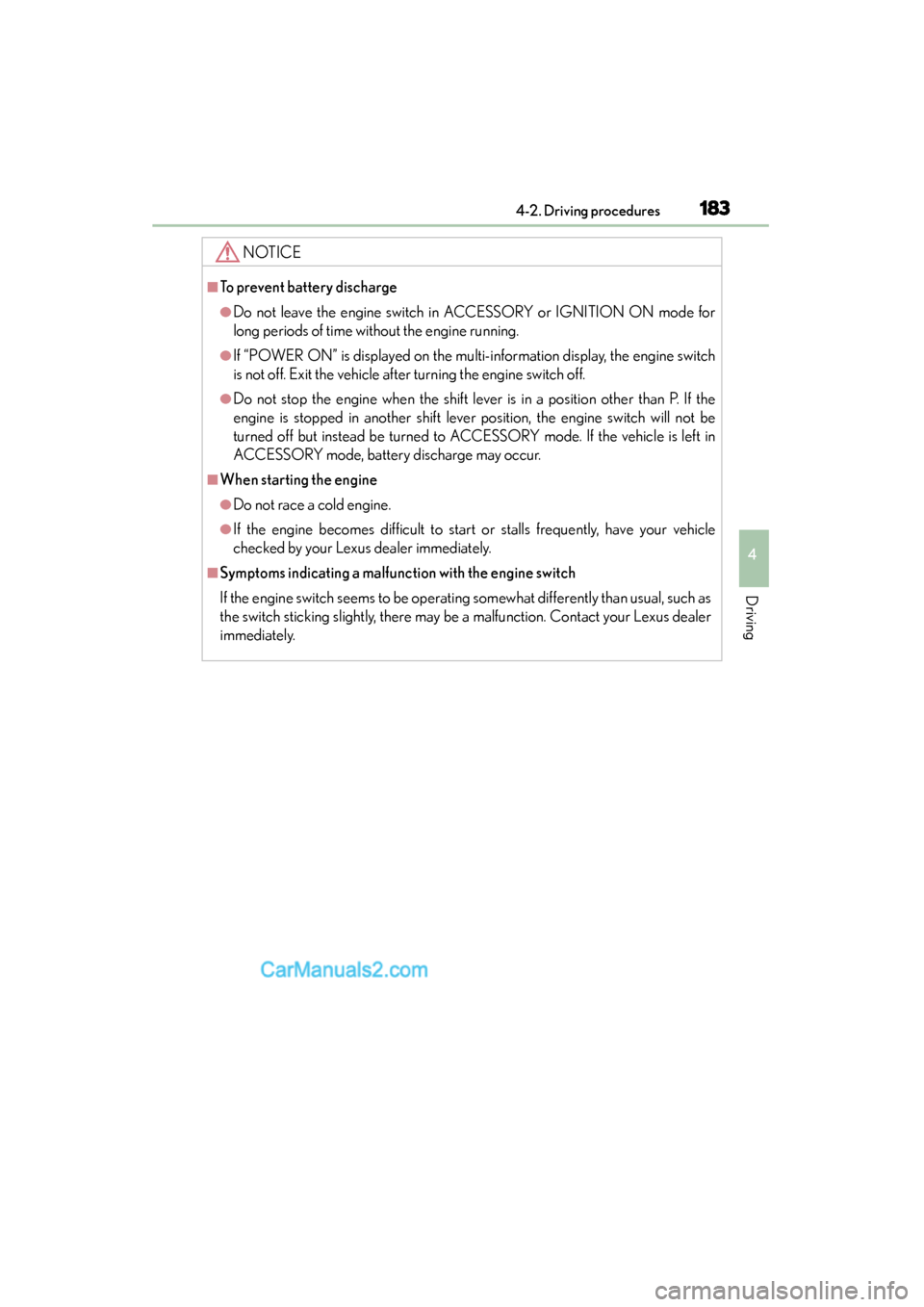

NOTICE
■To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time without the engine running.
●If “POWER ON” is displayed on the multi-information display, the engine switch
is not off. Exit the vehicle after turning the engine switch off.
●Do not stop the engine when the shift lever is in a position other than P. If the
engine is stopped in another shift lever position, the engine switch will not be
turned off but instead be turned to ACCESSORY mode. If the vehicle is left in
ACCESSORY mode, battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle
checked by your Lexus dealer immediately.
■Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual, such as
the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer
immediately.
GS350_OM_OM30F69U_(U).book Page 183 Monday, January 19, 2015 2:53 PM

184
GS350_OM_OM30F69U_(U)
4-2. Driving procedures
Automatic transmission
While the engine switch is in IGNITION ON mode, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
Shifting the shift lever
GS350_OM_OM30F69U_(U).book Page 184 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1854-2. Driving procedures
4
Driving

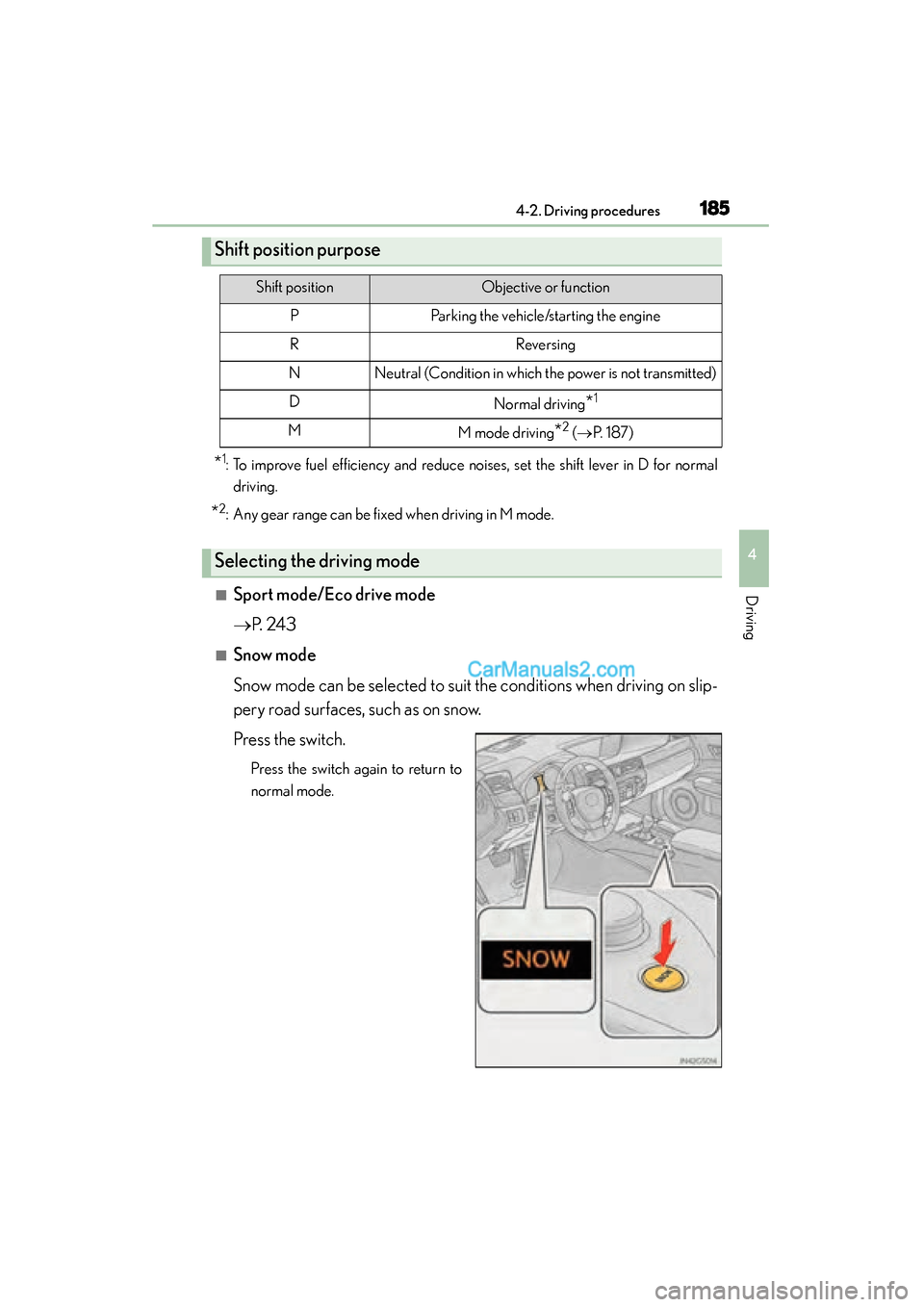

*1: To improve fuel efficiency and reduce noises, set the shift lever in D for normaldriving.
*2: Any gear range can be fixed when driving in M mode.
■Sport mode/Eco drive mode
→ P. 2 4 3
■Snow mode
Snow mode can be selected to suit the conditions when driving on slip-
pery road surfaces, such as on snow.
Press the switch.
Press the switch again to return to
normal mode.
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral (Condition in which the power is not transmitted)
DNormal driving*1
MM mode driving*2 (→ P. 1 8 7 )
Selecting the driving mode
GS350_OM_OM30F69U_(U).book Page 185 Monday, January 19, 2015 2:53 PM

186
GS350_OM_OM30F69U_(U)
4-2. Driving procedures

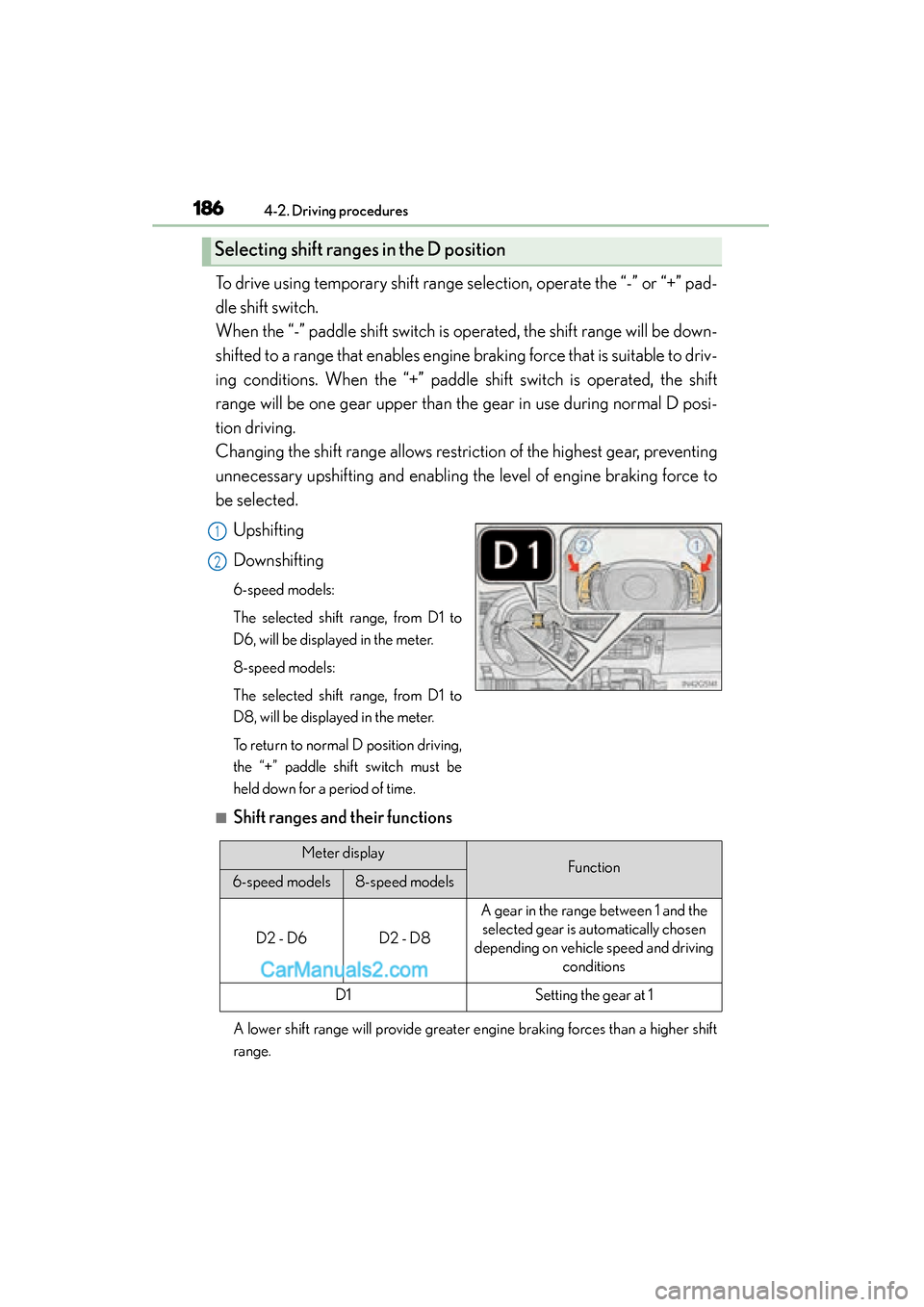

To drive using temporary shift range selection, operate the “-” or “+” pad-
dle shift switch.
When the “-” paddle shift switch is operated, the shift range will be down-
shifted to a range that enables engine braking force that is suitable to driv-
ing conditions. When the “+” paddle shift switch is operated, the shift
range will be one gear upper than the gear in use during normal D posi-
tion driving.
Changing the shift range allows restriction of the highest gear, preventing
unnecessary upshifting and enabling the level of engine braking force to
be selected.
Upshifting
Downshifting
6-speed models:
The selected shift range, from D1 to
D6, will be displayed in the meter.
8-speed models:
The selected shift range, from D1 to
D8, will be displayed in the meter.
To return to normal D position driving,
the “+” paddle shift switch must be
held down for a period of time.
■Shift ranges and their functions
A lower shift range will provide greater engine braking forces than a higher shift
range.
Selecting shift ranges in the D position
1
2
Meter displayFunction6-speed models8-speed models
D2 - D6D2 - D8
A gear in the range between 1 and the selected gear is automatically chosen
depending on vehicle speed and driving conditions
D1Setting the gear at 1
GS350_OM_OM30F69U_(U).book Page 186 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1874-2. Driving procedures
4
Driving

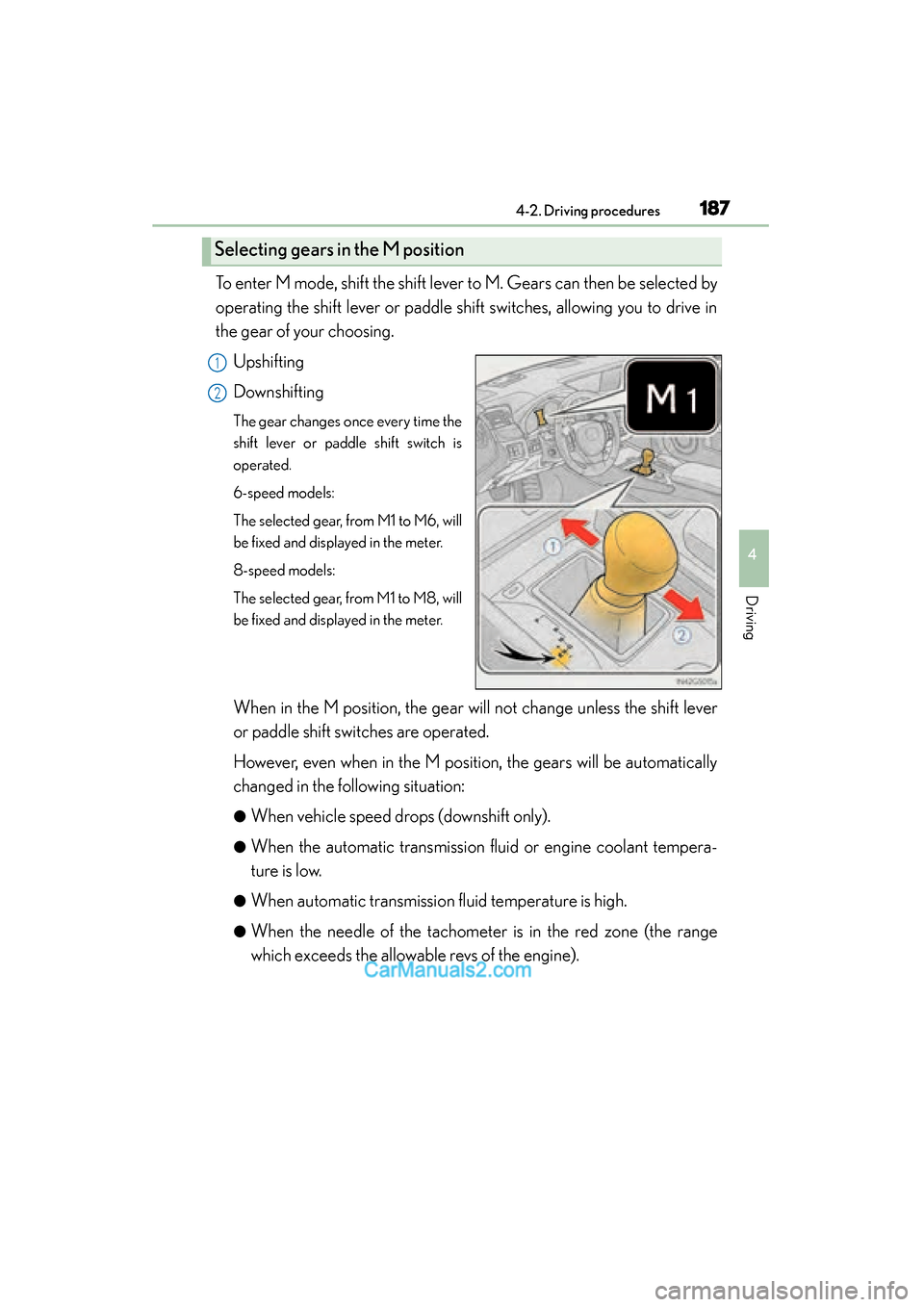

To enter M mode, shift the shift lever to M. Gears can then be selected by
operating the shift lever or paddle shift switches, allowing you to drive in
the gear of your choosing.Upshifting
Downshifting
The gear changes once every time the
shift lever or paddle shift switch is
operated.
6-speed models:
The selected gear, from M1 to M6, will
be fixed and displayed in the meter.
8-speed models:
The selected gear, from M1 to M8, will
be fixed and displayed in the meter.
When in the M position, the gear will not change unless the shift lever
or paddle shift switches are operated.
However, even when in the M position, the gears will be automatically
changed in the following situation:
●When vehicle speed drops (downshift only).
●When the automatic transmission fluid or engine coolant tempera-
ture is low.
●When automatic transmission fluid temperature is high.
●When the needle of the tachometer is in the red zone (the range
which exceeds the allowable revs of the engine).
Selecting gears in the M position
1
2
GS350_OM_OM30F69U_(U).book Page 187 Monday, January 19, 2015 2:53 PM

188
GS350_OM_OM30F69U_(U)
4-2. Driving procedures

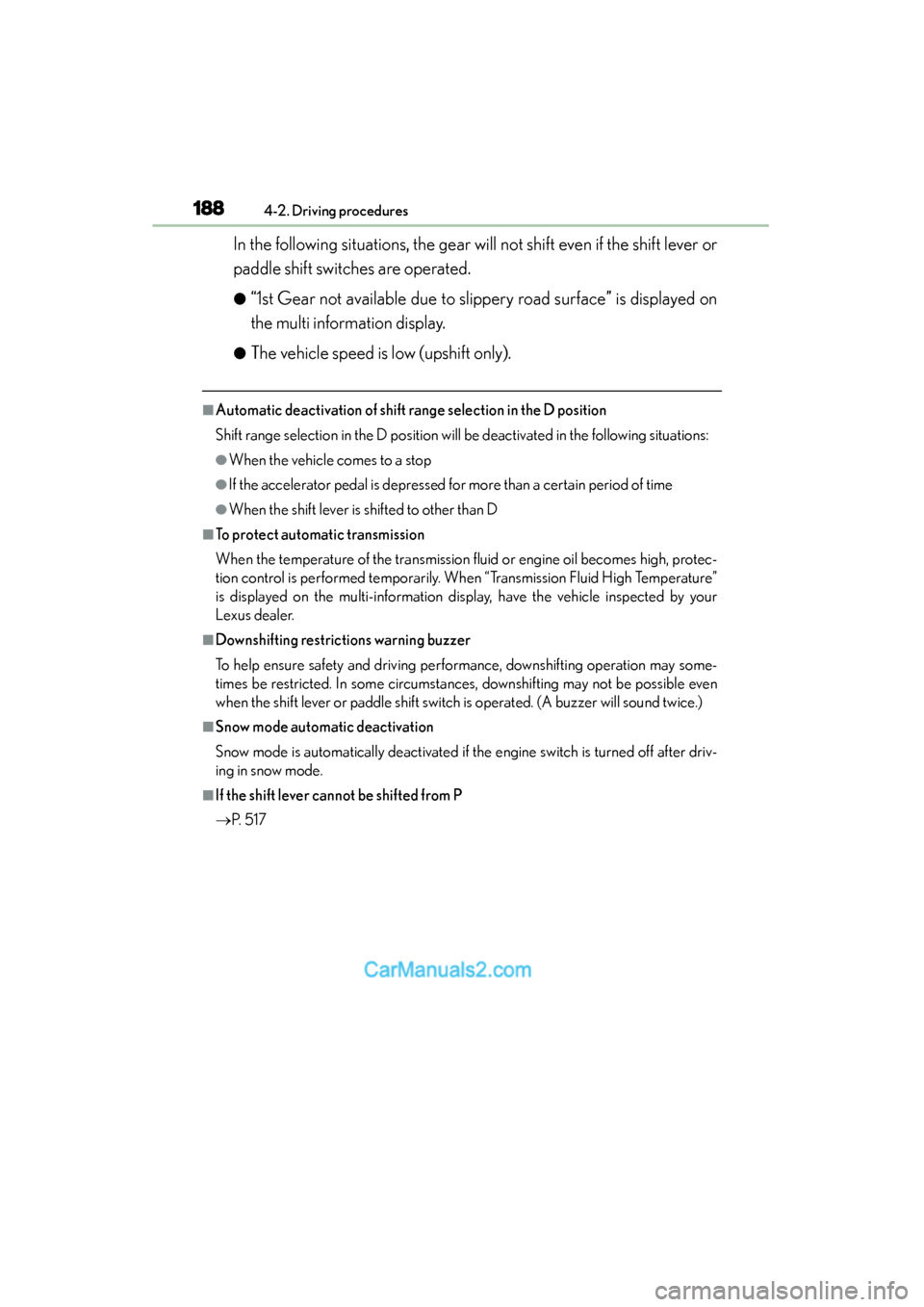

In the following situations, the gear will not shift even if the shift lever or
paddle shift switches are operated.
●“1st Gear not available due to slippery road surface” is displayed on
the multi information display.
●The vehicle speed is low (upshift only).
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●When the shift lever is shifted to other than D
■To protect automatic transmission
When the temperature of the transmission fluid or engine oil becomes high, protec-
tion control is performed temporarily. When “Transmission Fluid High Temperature”
is displayed on the multi-information display, have the vehicle inspected by your
Lexus dealer.
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever or paddle shift switch is operated. (A buzzer will sound twice.)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the engine switch is turned off after driv-
ing in snow mode.
■If the shift lever cannot be shifted from P
→P. 5 1 7
GS350_OM_OM30F69U_(U).book Page 188 Monday, January 19, 2015 2:53 PM
