Lexus GS350 2015 Owner's Manual

209
GS350_OM_OM30F69U_(U)4-4. Refueling
4
Driving

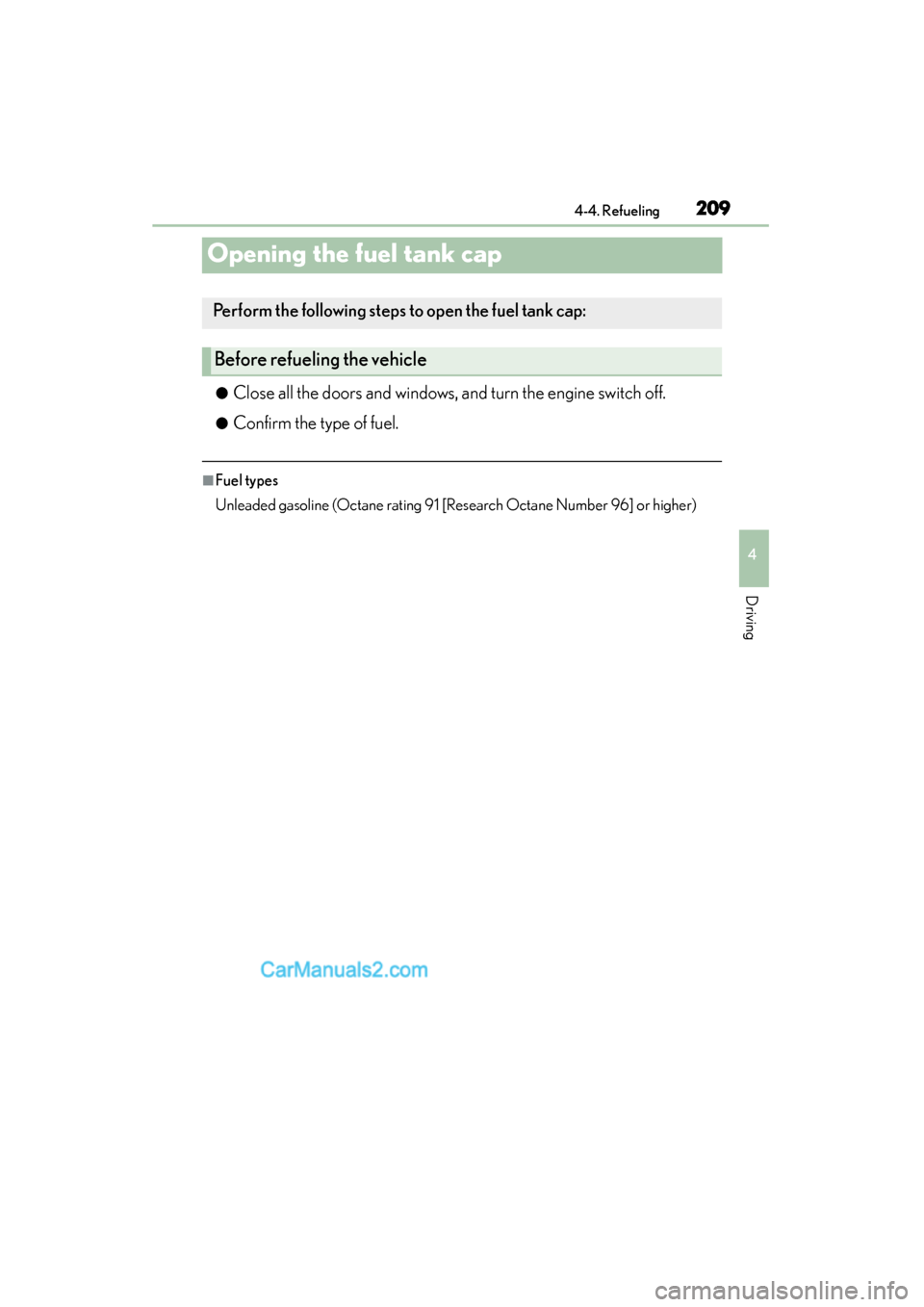

Opening the fuel tank cap
●Close all the doors and windows, and turn the engine switch off.
●Confirm the type of fuel.
■Fuel types
Unleaded gasoline (Octane rating 91 [Research Octane Number 96] or higher)
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
GS350_OM_OM30F69U_(U).book Page 209 Monday, January 19, 2015 2:53 PM

210
GS350_OM_OM30F69U_(U)
4-4. Refueling
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle’s painted
surface.
GS350_OM_OM30F69U_(U).book Page 210 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2114-4. Refueling
4
Driving

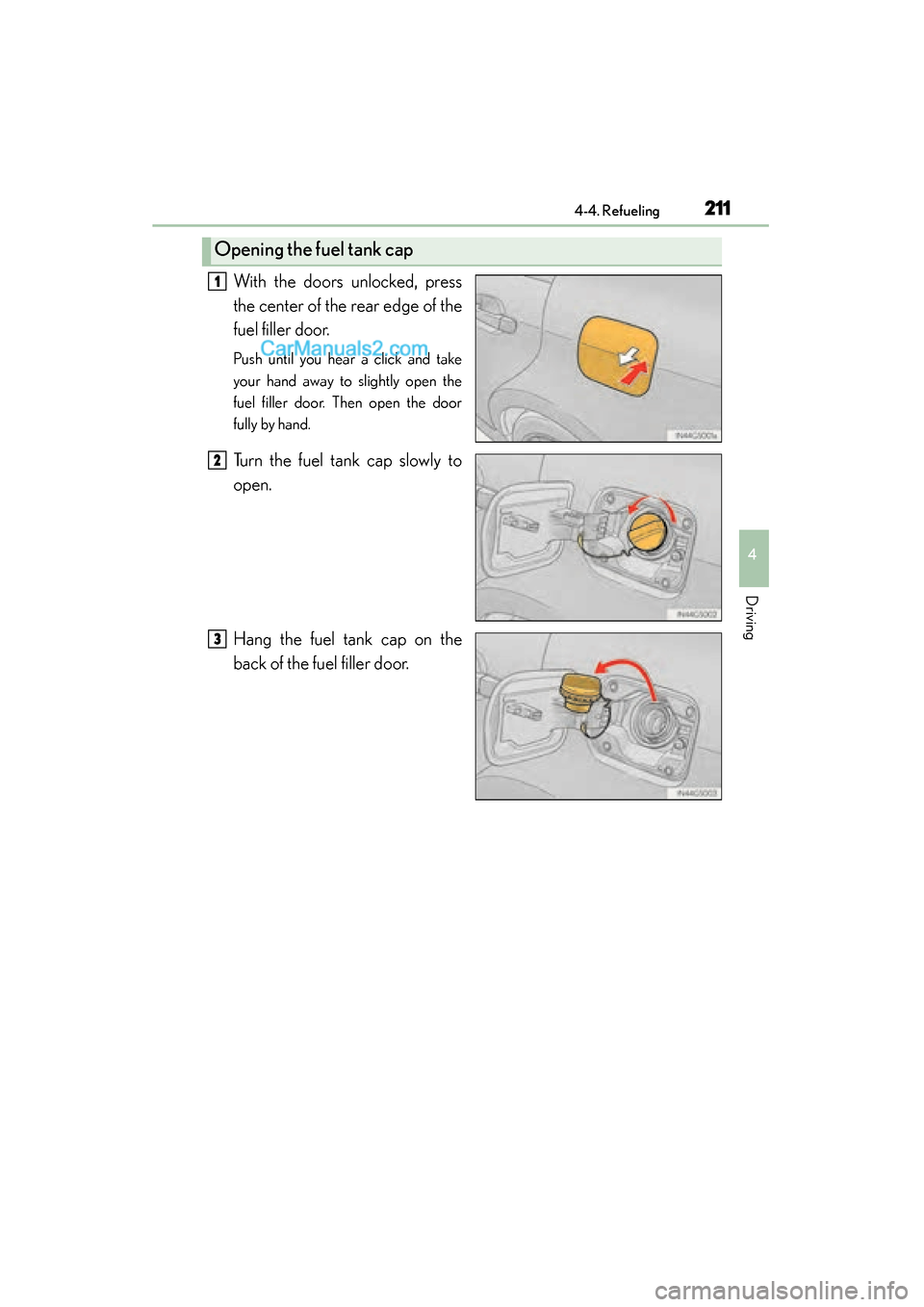

With the doors unlocked, press
the center of the rear edge of the
fuel filler door.
Push until you hear a click and take
your hand away to slightly open the
fuel filler door. Then open the door
fully by hand.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
3
GS350_OM_OM30F69U_(U).book Page 211 Monday, January 19, 2015 2:53 PM

212
GS350_OM_OM30F69U_(U)
4-4. Refueling

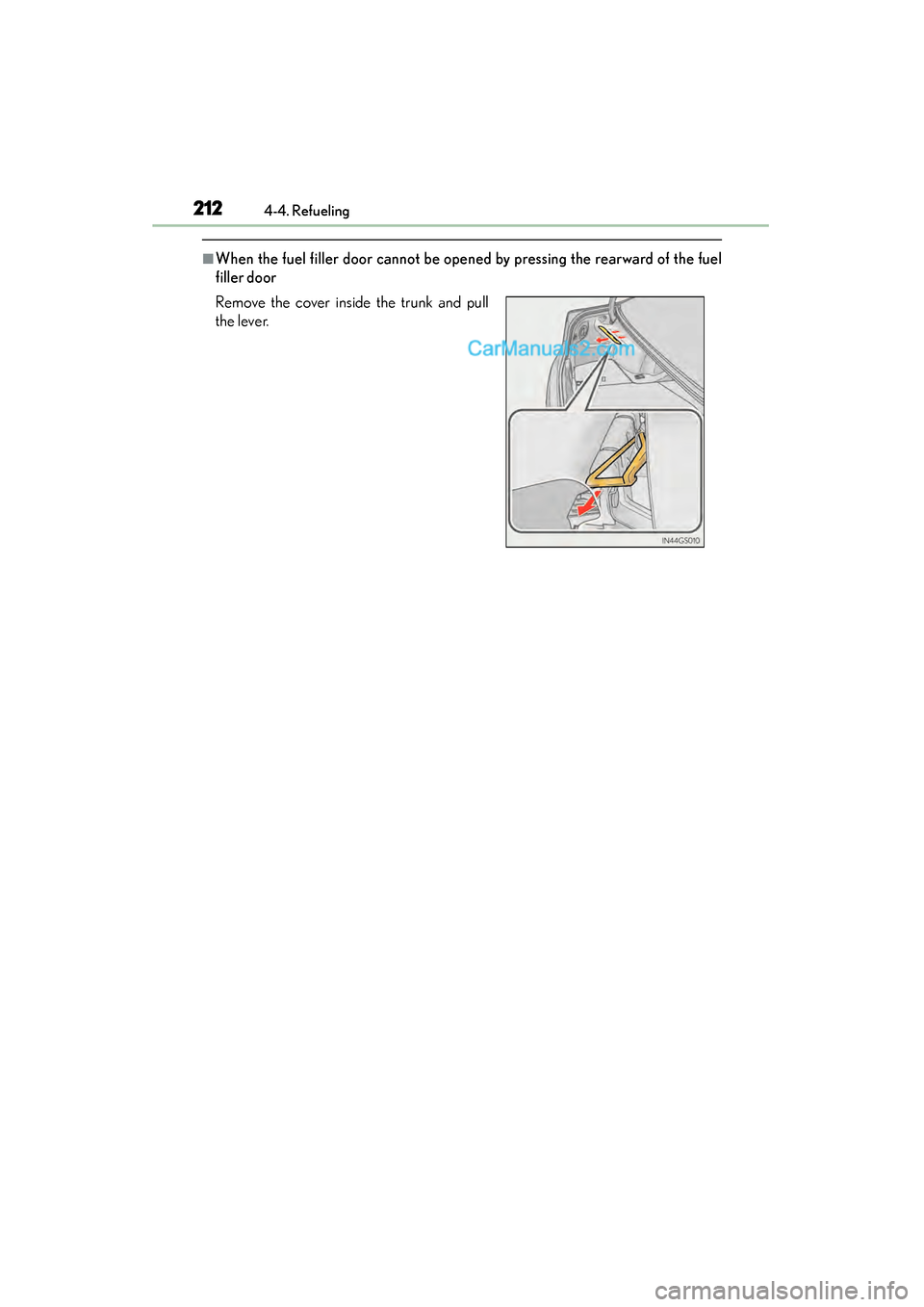

■When the fuel filler door cannot be opened by pressing the rearward of the fuel
filler door
Remove the cover inside the trunk and pull
the lever.
GS350_OM_OM30F69U_(U).book Page 212 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2134-4. Refueling
4
Driving

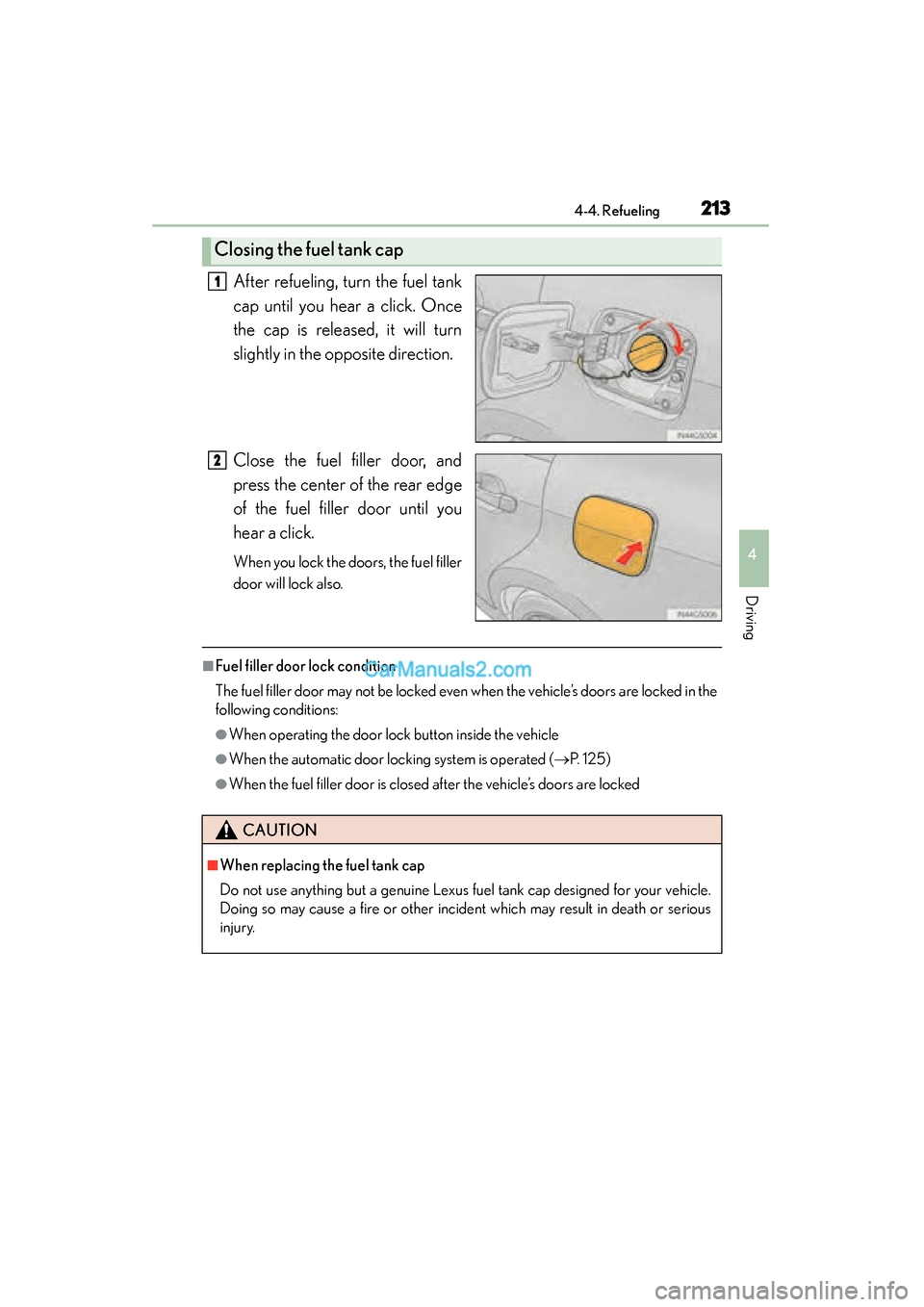

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Close the fuel filler door, and
press the center of the rear edge
of the fuel filler door until you
hear a click.
When you lock the doors, the fuel filler
door will lock also.
■Fuel filler door lock condition
The fuel filler door may not be locked even when the vehicle’s doors are locked in the
following conditions:
●When operating the door lock button inside the vehicle
●When the automatic door locking system is operated (→P. 1 2 5 )
●When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
CAUTION
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
GS350_OM_OM30F69U_(U).book Page 213 Monday, January 19, 2015 2:53 PM

214
GS350_OM_OM30F69U_(U)
4-5. Using the driving support systems

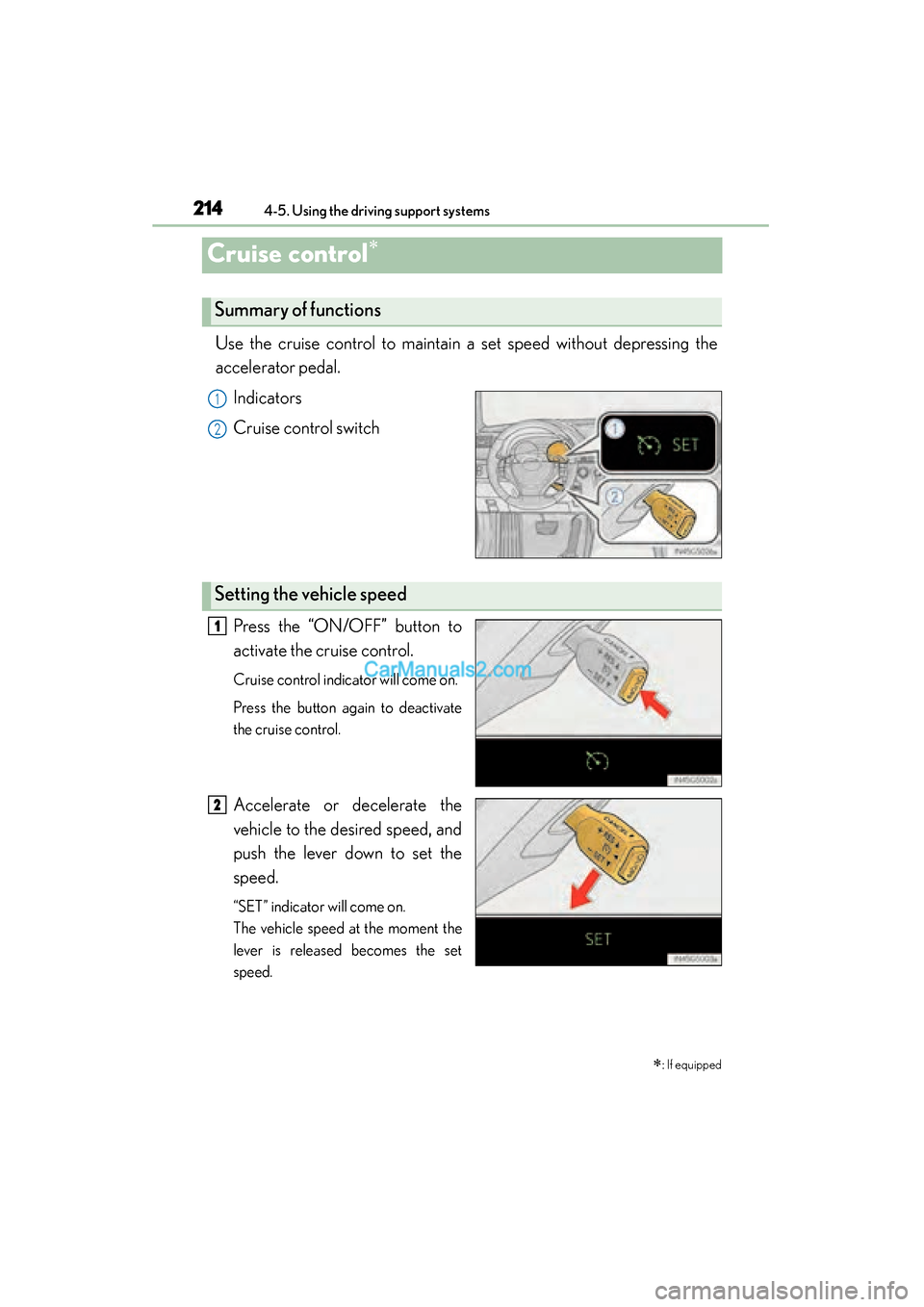

Cruise control∗
Use the cruise control to maintain a set speed without depressing the
accelerator pedal. Indicators
Cruise control switch
Press the “ON/OFF” button to
activate the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the
vehicle to the desired speed, and
push the lever down to set the
speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
∗: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
GS350_OM_OM30F69U_(U).book Page 214 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2154-5. Using the driving support systems
4
Driving

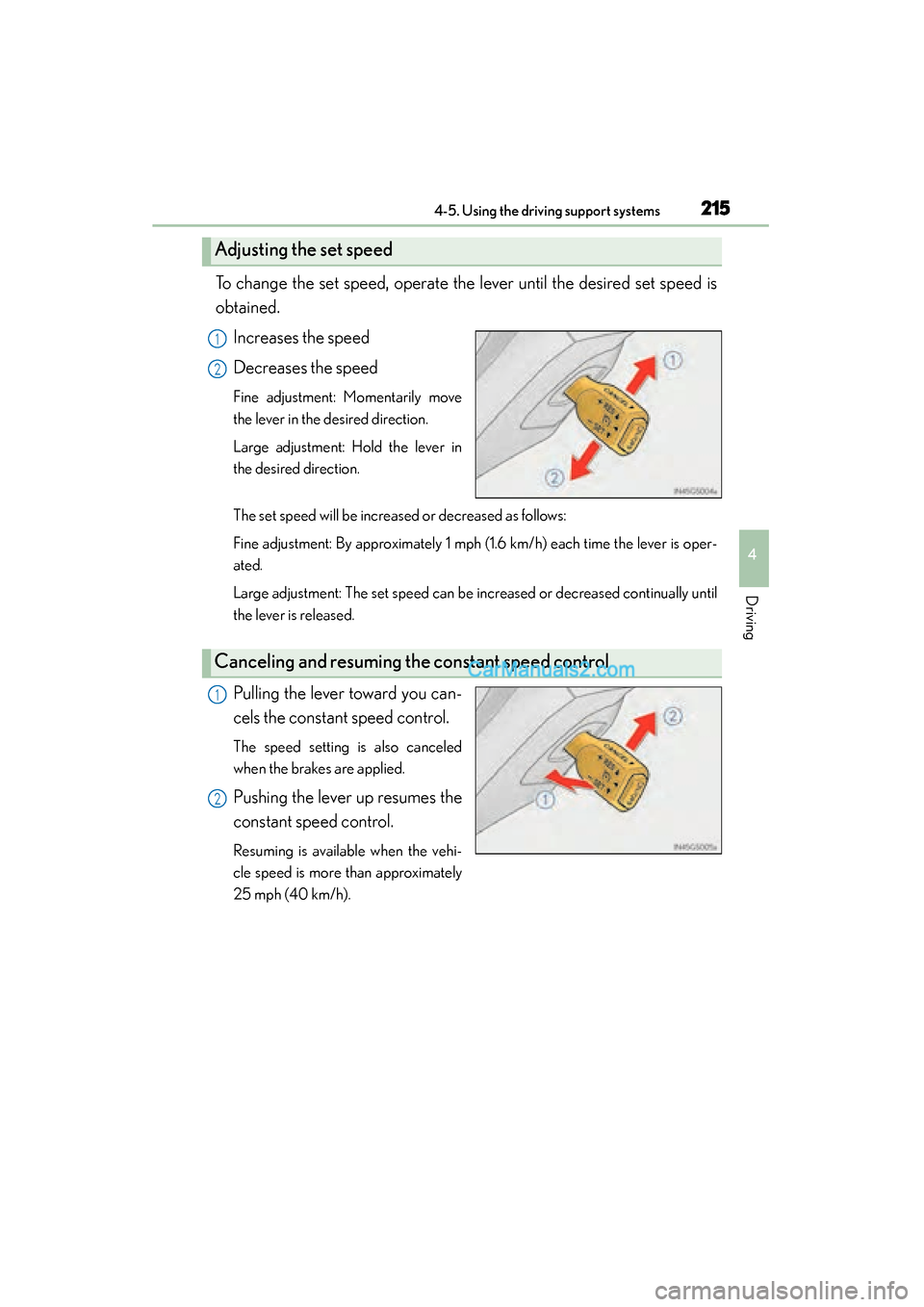

To change the set speed, operate the lever until the desired set speed is
obtained.Increases the speed
Decreases the speed
Fine adjustment: Momentarily move
the lever in the desired direction.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is oper-
ated.
Large adjustment: The set speed can be increased or decreased continually until
the lever is released.
Pulling the lever toward you can-
cels the constant speed control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes the
constant speed control.
Resuming is available when the vehi-
cle speed is more than approximately
25 mph (40 km/h).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2
GS350_OM_OM30F69U_(U).book Page 215 Monday, January 19, 2015 2:53 PM

216
GS350_OM_OM30F69U_(U)
4-5. Using the driving support systems

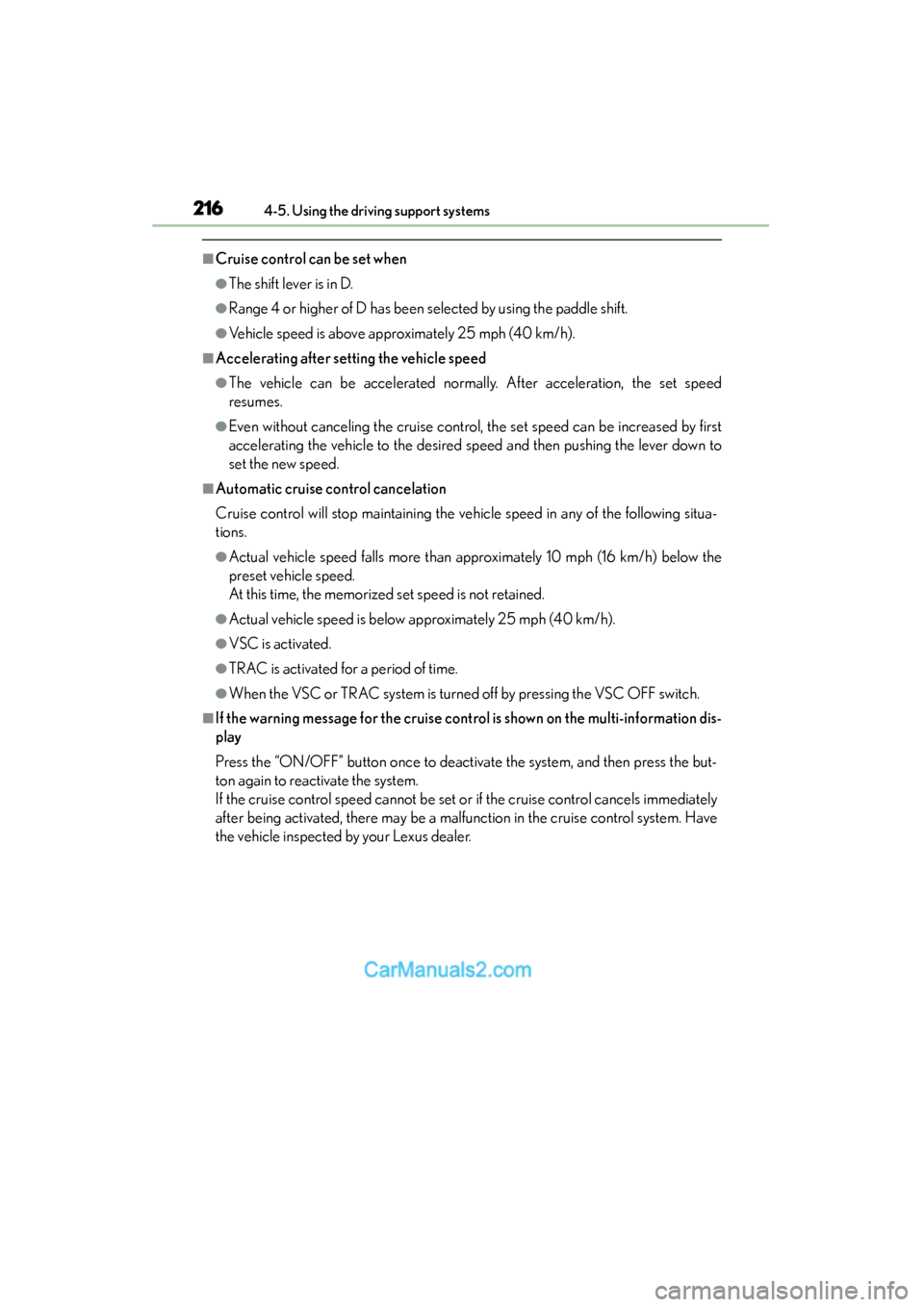

■Cruise control can be set when
●The shift lever is in D.
●Range 4 or higher of D has been selected by using the paddle shift.
●Vehicle speed is above approximately 25 mph (40 km/h).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
●Even without canceling the cruise control, the set speed can be increased by first
accelerating the vehicle to the desired speed and then pushing the lever down to
set the new speed.
■Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following situa-
tions.
●Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the
preset vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
■If the warning message for the cruise control is shown on the multi-information dis-
play
Press the “ON/OFF” button once to deactivate the system, and then press the but-
ton again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfunction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.
GS350_OM_OM30F69U_(U).book Page 216 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2174-5. Using the driving support systems
4
Driving

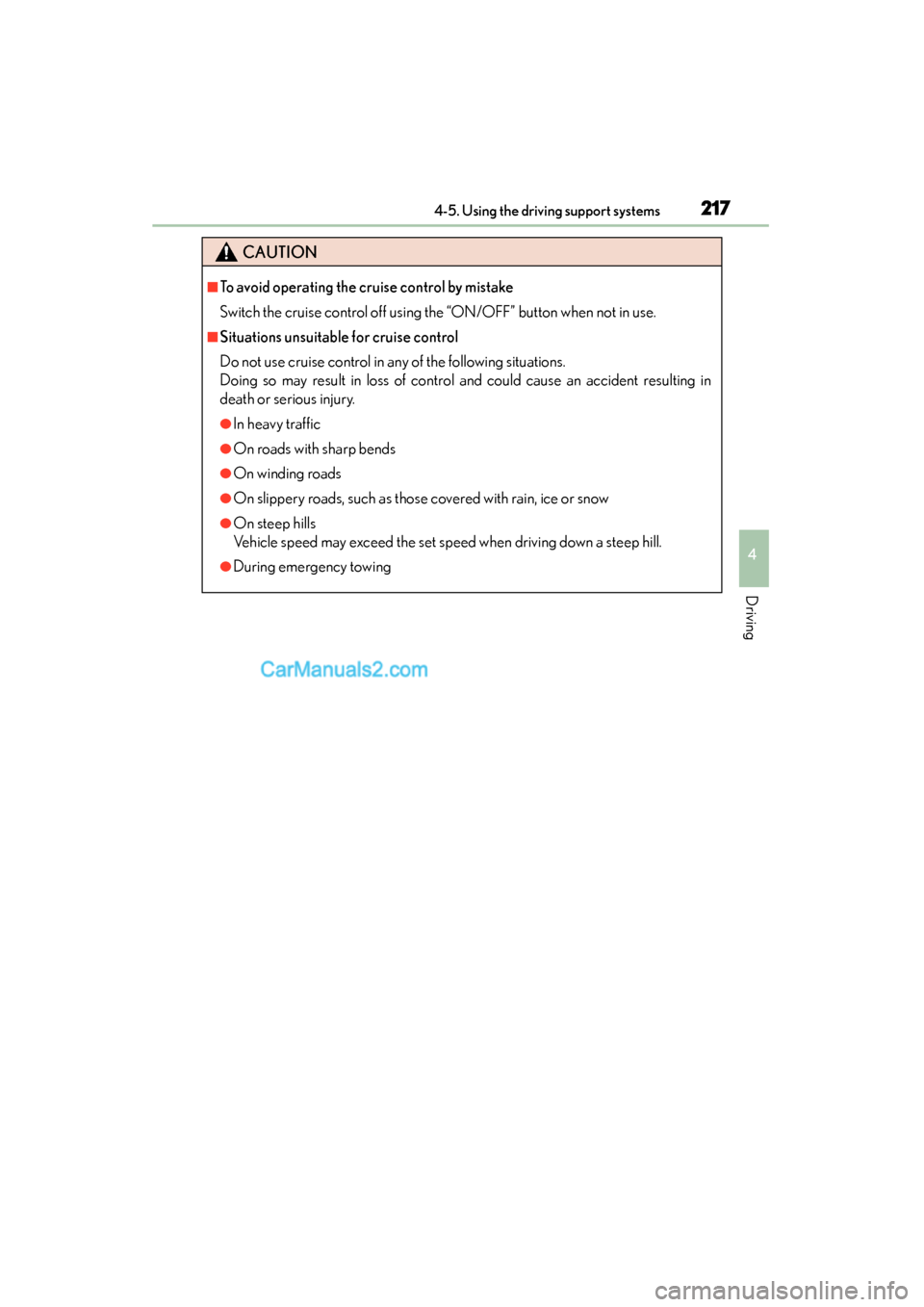

CAUTION
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON/OFF” button when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting in
death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
●During emergency towing
GS350_OM_OM30F69U_(U).book Page 217 Monday, January 19, 2015 2:53 PM

218
GS350_OM_OM30F69U_(U)
4-5. Using the driving support systems

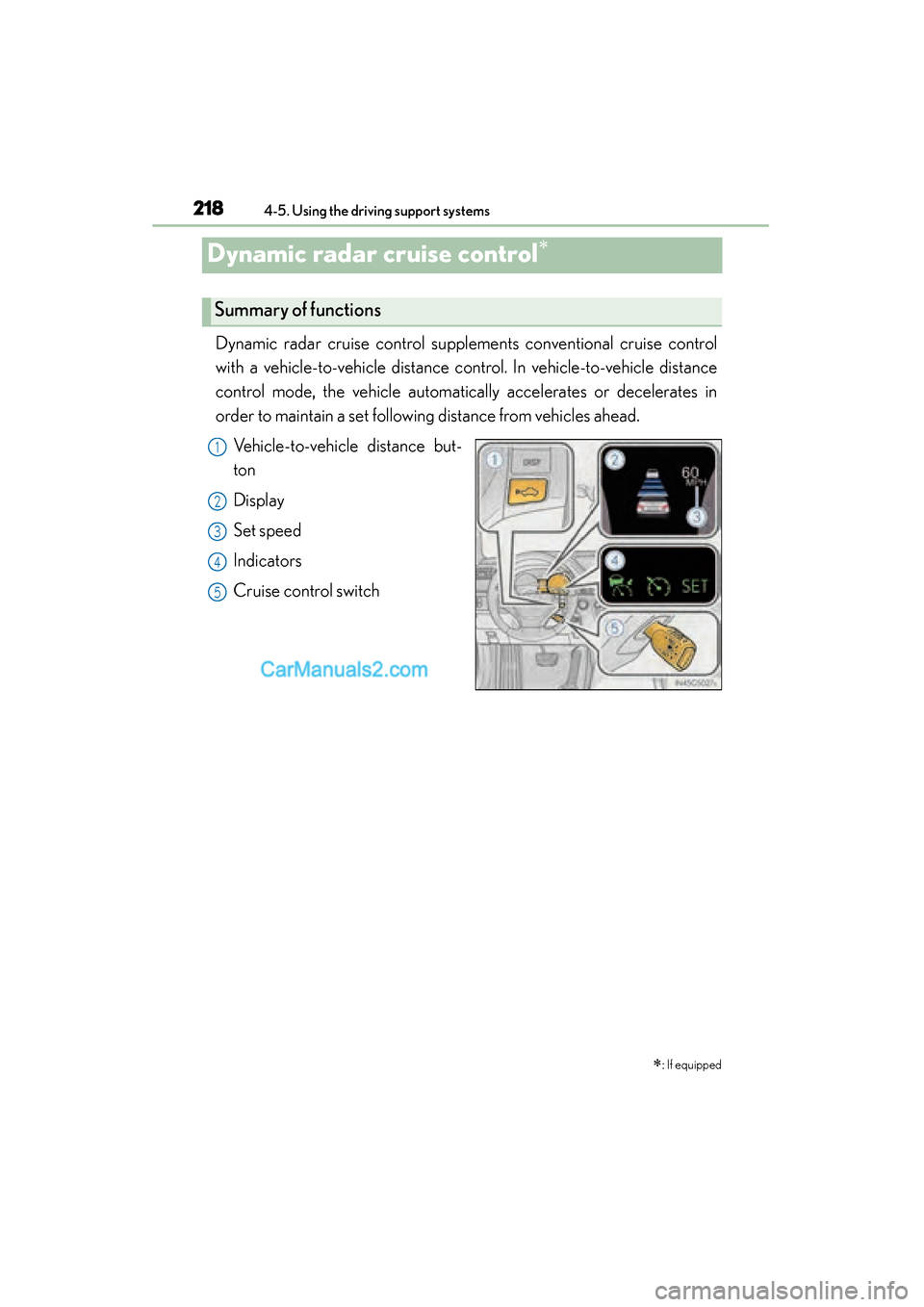

Dynamic radar cruise control∗
Dynamic radar cruise control supplements conventional cruise control
with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance
control mode, the vehicle automatically accelerates or decelerates in
order to maintain a set following distance from vehicles ahead. Vehicle-to-vehicle distance but-
ton
Display
Set speed
Indicators
Cruise control switch
∗
: If equipped
Summary of functions
1
2
3
4
5
GS350_OM_OM30F69U_(U).book Page 218 Monday, January 19, 2015 2:53 PM
