Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)

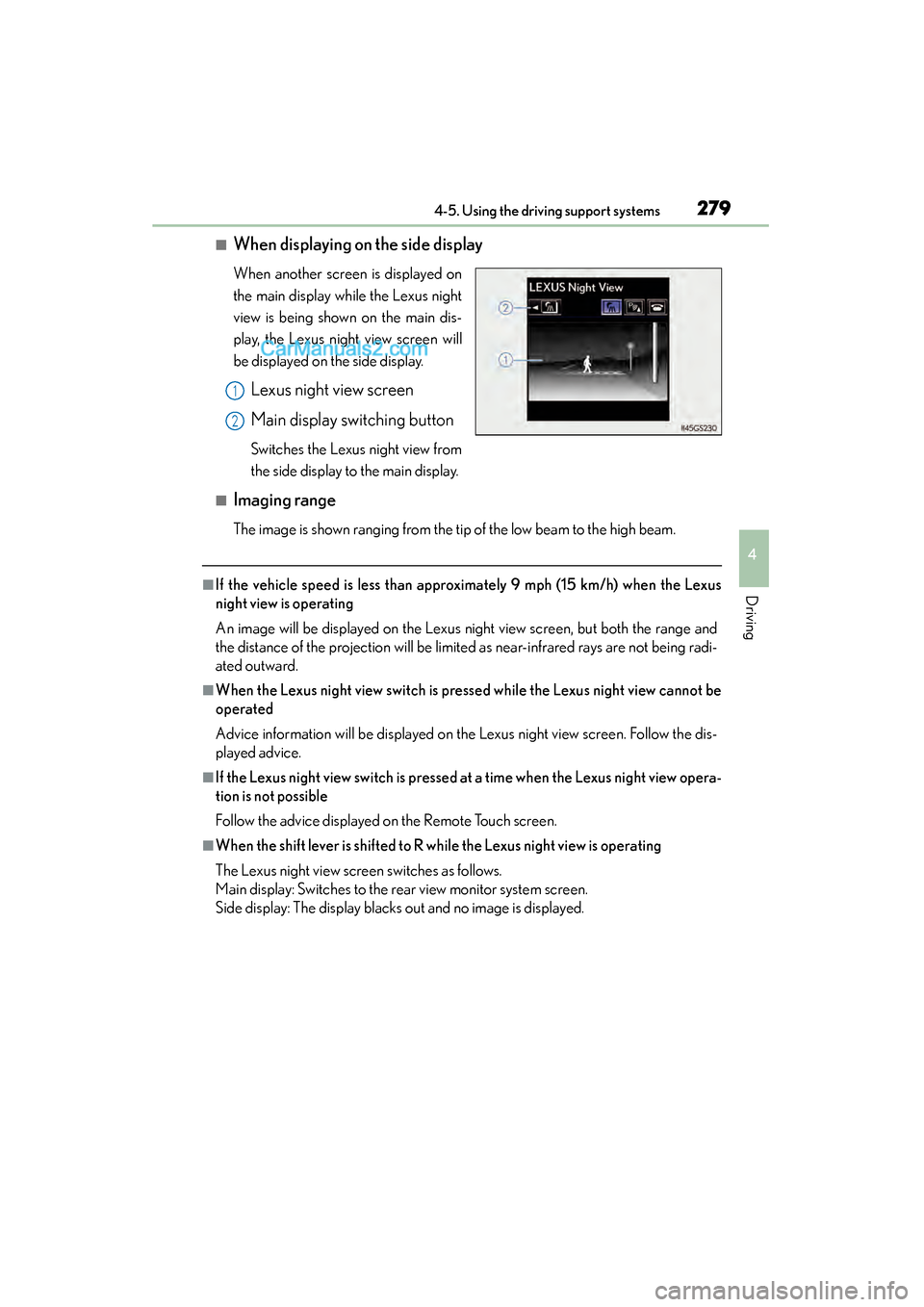

2794-5. Using the driving support systems
4
Driving
■When displaying on the side display
When another screen is displayed on
the main display while the Lexus night
view is being shown on the main dis-
play, the Lexus night view screen will
be displayed on the side display.
Lexus night view screen
Main display switching button
Switches the Lexus night view from
the side display to the main display.
■Imaging range
The image is shown ranging from the tip of the low beam to the high beam.
■If the vehicle speed is less than approximately 9 mph (15 km/h) when the Lexus
night view is operating
An image will be displayed on the Lexus night view screen, but both the range and
the distance of the projection will be limited as near-infrared rays are not being radi-
ated outward.
■When the Lexus night view switch is pressed while the Lexus night view cannot be
operated
Advice information will be displayed on the Lexus night view screen. Follow the dis-
played advice.
■If the Lexus night view switch is pressed at a time when the Lexus night view opera-
tion is not possible
Follow the advice displayed on the Remote Touch screen.
■When the shift lever is shifted to R while the Lexus night view is operating
The Lexus night view screen switches as follows.
Main display: Switches to the rear view monitor system screen.
Side display: The display blacks out and no image is displayed.
1
2
GS350_OM_OM30F69U_(U).book Page 279 Monday, January 19, 2015 2:53 PM

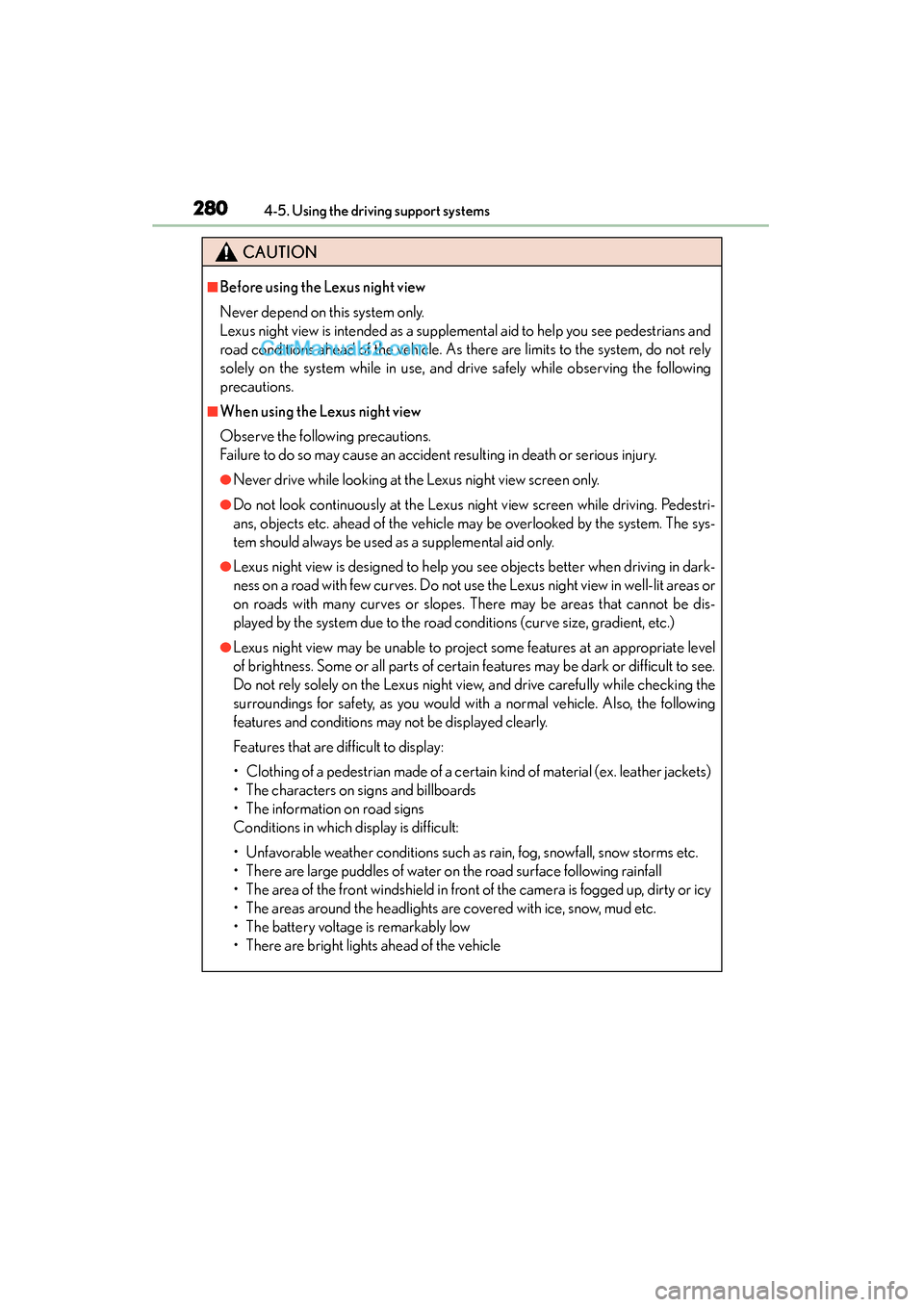

280
GS350_OM_OM30F69U_(U)
4-5. Using the driving support systems
CAUTION
■Before using the Lexus night view
Never depend on this system only.
Lexus night view is intended as a supplemental aid to help you see pedestrians and
road conditions ahead of the vehicle. As there are limits to the system, do not rely
solely on the system while in use, and drive safely while observing the following
precautions.
■When using the Lexus night view
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Never drive while looking at the Lexus night view screen only.
●Do not look continuously at the Lexus night view screen while driving. Pedestri-
ans, objects etc. ahead of the vehicle may be overlooked by the system. The sys-
tem should always be used as a supplemental aid only.
●Lexus night view is designed to help you see objects better when driving in dark-
ness on a road with few curves. Do not use the Lexus night view in well-lit areas or
on roads with many curves or slopes. There may be areas that cannot be dis-
played by the system due to the road conditions (curve size, gradient, etc.)
●Lexus night view may be unable to project some features at an appropriate level
of brightness. Some or all parts of certain features may be dark or difficult to see.
Do not rely solely on the Lexus night view, and drive carefully while checking the
surroundings for safety, as you would with a normal vehicle. Also, the following
features and conditions may not be displayed clearly.
Features that are difficult to display:
• Clothing of a pedestrian made of a certain kind of material (ex. leather jackets)
• The characters on signs and billboards
• The information on road signs
Conditions in which display is difficult:
• Unfavorable weather conditions such as rain, fog, snowfall, snow storms etc.
• There are large puddles of water on the road surface following rainfall
• The area of the front windshield in front of the camera is fogged up, dirty or icy
• The areas around the headlights are covered with ice, snow, mud etc.
• The battery voltage is remarkably low
• There are bright lights ahead of the vehicle
GS350_OM_OM30F69U_(U).book Page 280 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2814-5. Using the driving support systems
4
Driving
NOTICE
■The near-infrared camera
●Make sure the front windshield is kept clean.
●System performance may deteriorate if rain water, condensation or ice adheres
to the camera. If you notice the inner lens of the camera is dirty, the garnish will
have to be replaced. Consult your Lexus dealer.
●Do not subject the camera to strong impacts, or disassemble the camera.
●As the alignment of the camera has been very finely adjusted, do not change or
remove the mounting.
●If the front windshield fogs up, defog the windshield using the front defroster.
●Do not dirty or scratch the camera lens.
●Night view may not function properly if an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to the windshield.
Follow these precautions to avoid damage to
or incorrect operation of the Lexus night
view.
GS350_OM_OM30F69U_(U).book Page 281 Monday, January 19, 2015 2:53 PM

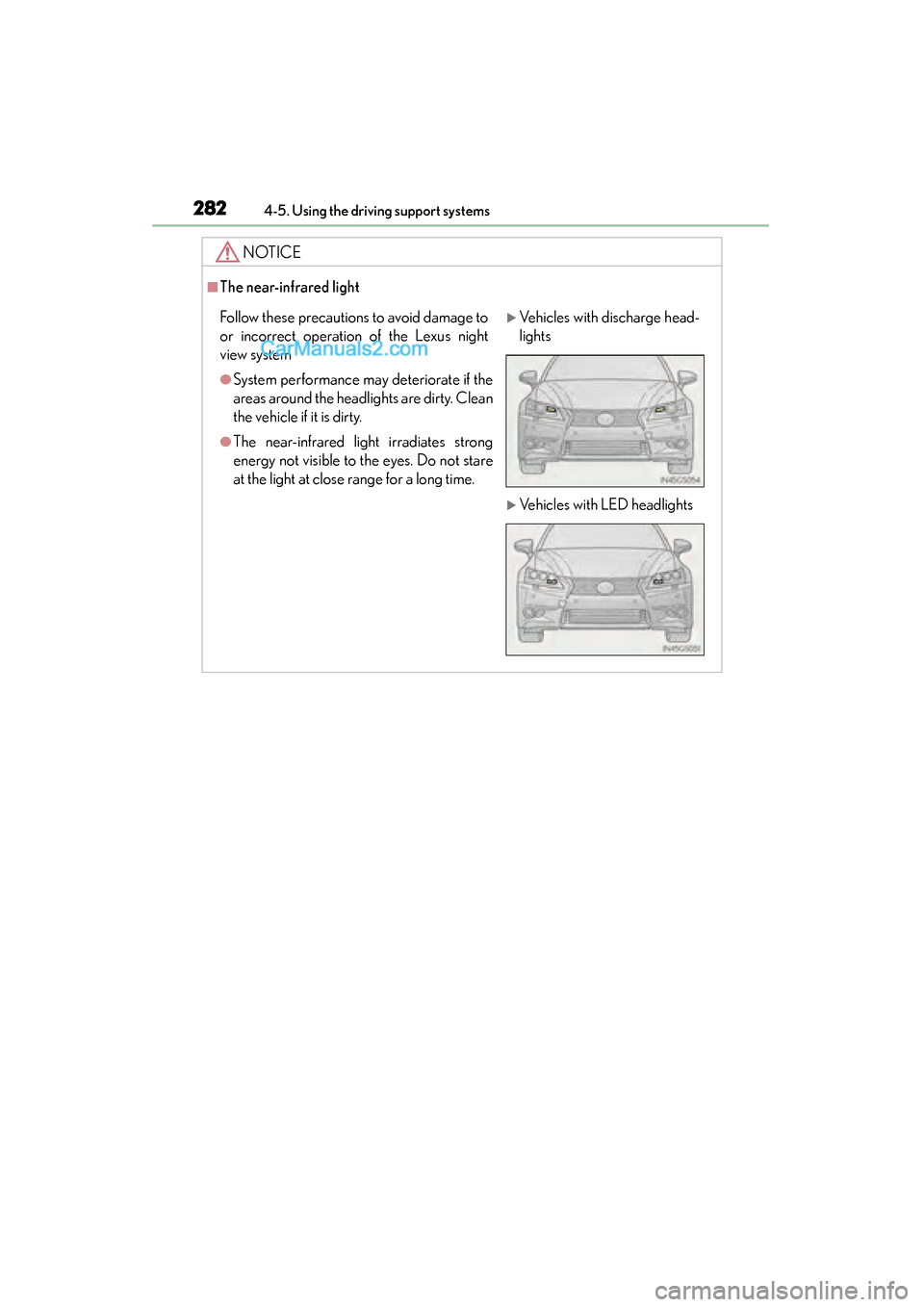

282
GS350_OM_OM30F69U_(U)
4-5. Using the driving support systems
NOTICE
■The near-infrared light
Follow these precautions to avoid damage to
or incorrect operation of the Lexus night
view system
●System performance may deteriorate if the
areas around the headlights are dirty. Clean
the vehicle if it is dirty.
●The near-infrared light irradiates strong
energy not visible to the eyes. Do not stare
at the light at close range for a long time.
XVehicles with discharge head-
lights
XVehicles with LED headlights
GS350_OM_OM30F69U_(U).book Page 282 Monday, January 19, 2015 2:53 PM

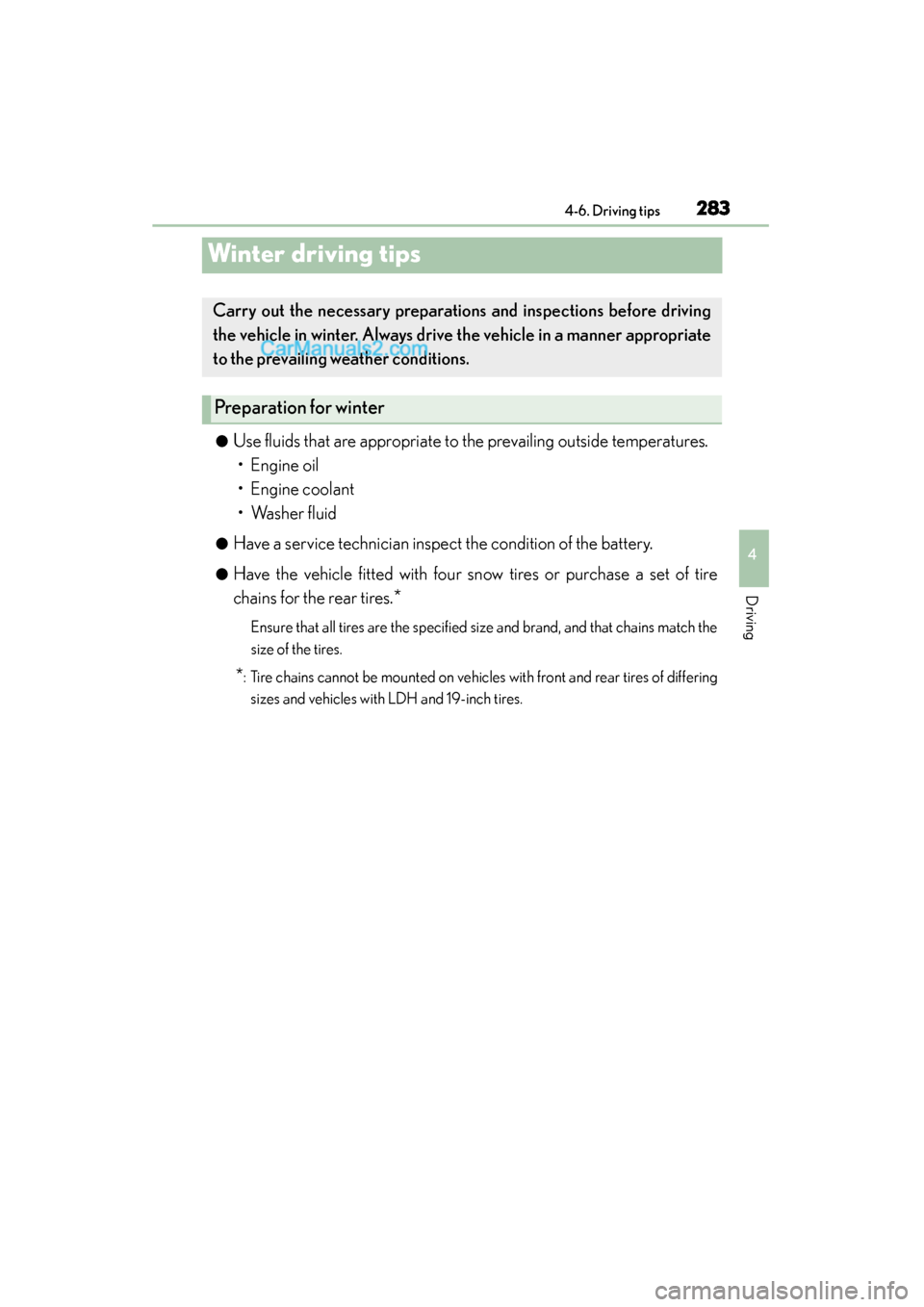

283
GS350_OM_OM30F69U_(U)4-6. Driving tips
4
Driving
Winter driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
• Engine oil
• Engine coolant
•Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
*
Ensure that all tires are the specified size and brand, and that chains match the
size of the tires.
*: Tire chains cannot be mounted on vehicles with front and rear tires of differing
sizes and vehicles with LDH and 19-inch tires.
Carry out the necessary preparatio ns and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Preparation for winter
GS350_OM_OM30F69U_(U).book Page 283 Monday, January 19, 2015 2:53 PM

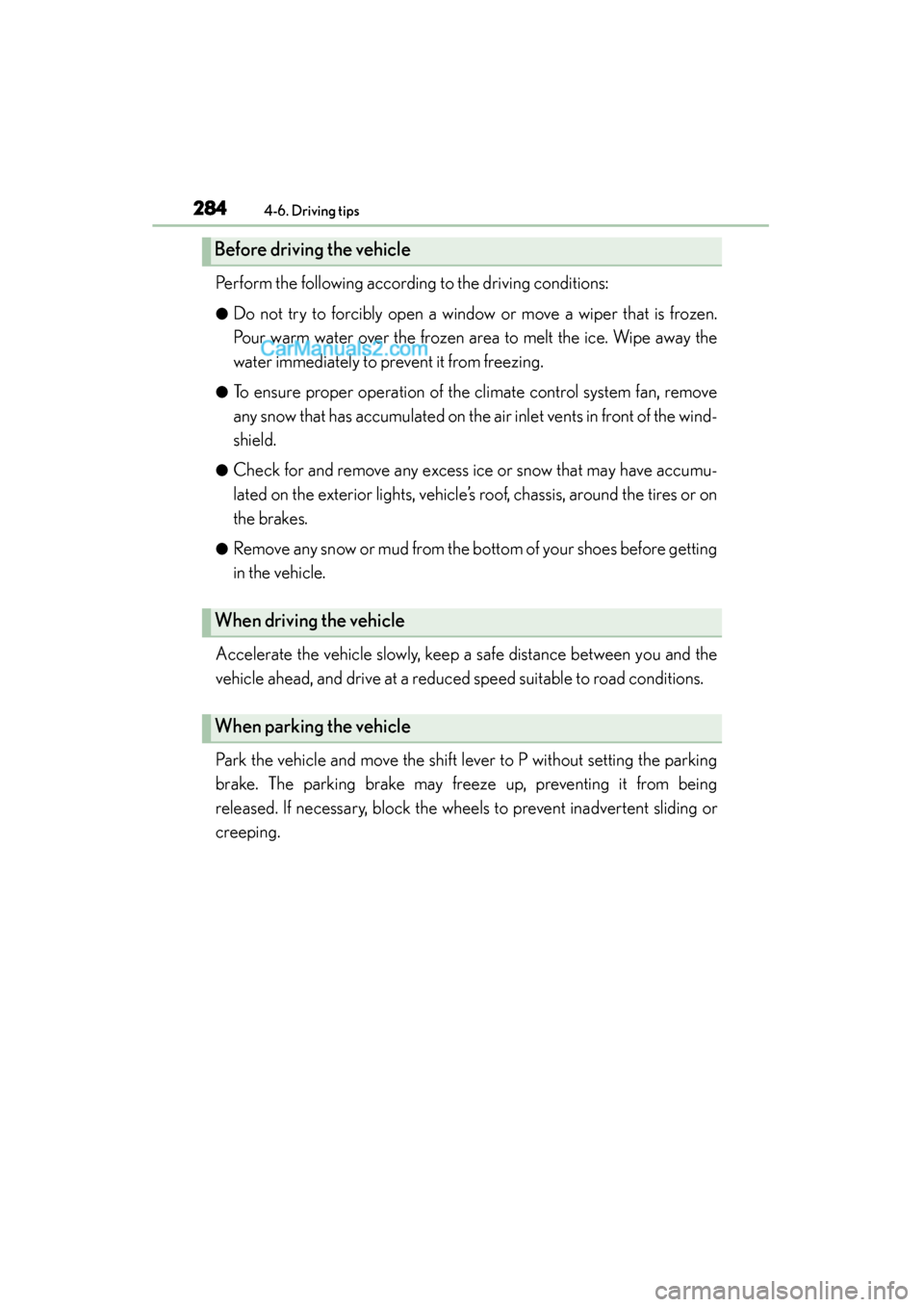

284
GS350_OM_OM30F69U_(U)
4-6. Driving tips
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away the
water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove
any snow that has accumulated on the air inlet vents in front of the wind-
shield.
●Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, chassis, around the tires or on
the brakes.
●Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the
vehicle ahead, and drive at a reduced speed suitable to road conditions.
Park the vehicle and move the shift lever to P without setting the parking
brake. The parking brake may freeze up, preventing it from being
released. If necessary, block the wheels to prevent inadvertent sliding or
creeping.
Before driving the vehicle
When driving the vehicle
When parking the vehicle
GS350_OM_OM30F69U_(U).book Page 284 Monday, January 19, 2015 2:53 PM

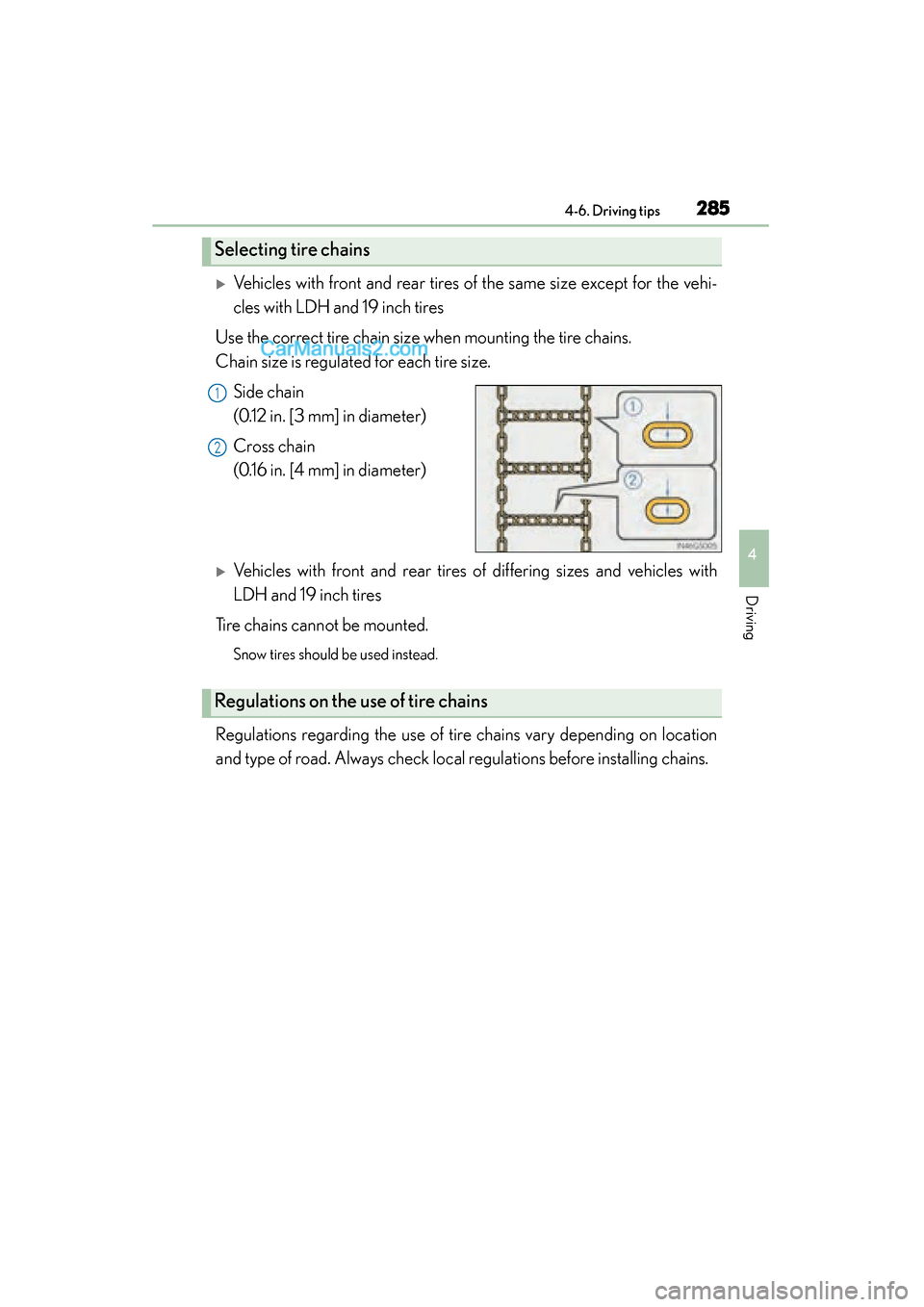

GS350_OM_OM30F69U_(U)
2854-6. Driving tips
4
Driving
XVehicles with front and rear tires of the same size except for the vehi-
cles with LDH and 19 inch tires
Use the correct tire chain size wh en mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(0.12 in. [3 mm] in diameter)
Cross chain
(0.16 in. [4 mm] in diameter)
XVehicles with front and rear tires of differing sizes and vehicles with
LDH and 19 inch tires
Tire chains cannot be mounted.
Snow tires should be used instead.
Regulations regarding the use of tire chains vary depending on location
and type of road. Always check loca l regulations before installing chains.
Selecting tire chains
1
2
Regulations on the use of tire chains
GS350_OM_OM30F69U_(U).book Page 285 Monday, January 19, 2015 2:53 PM

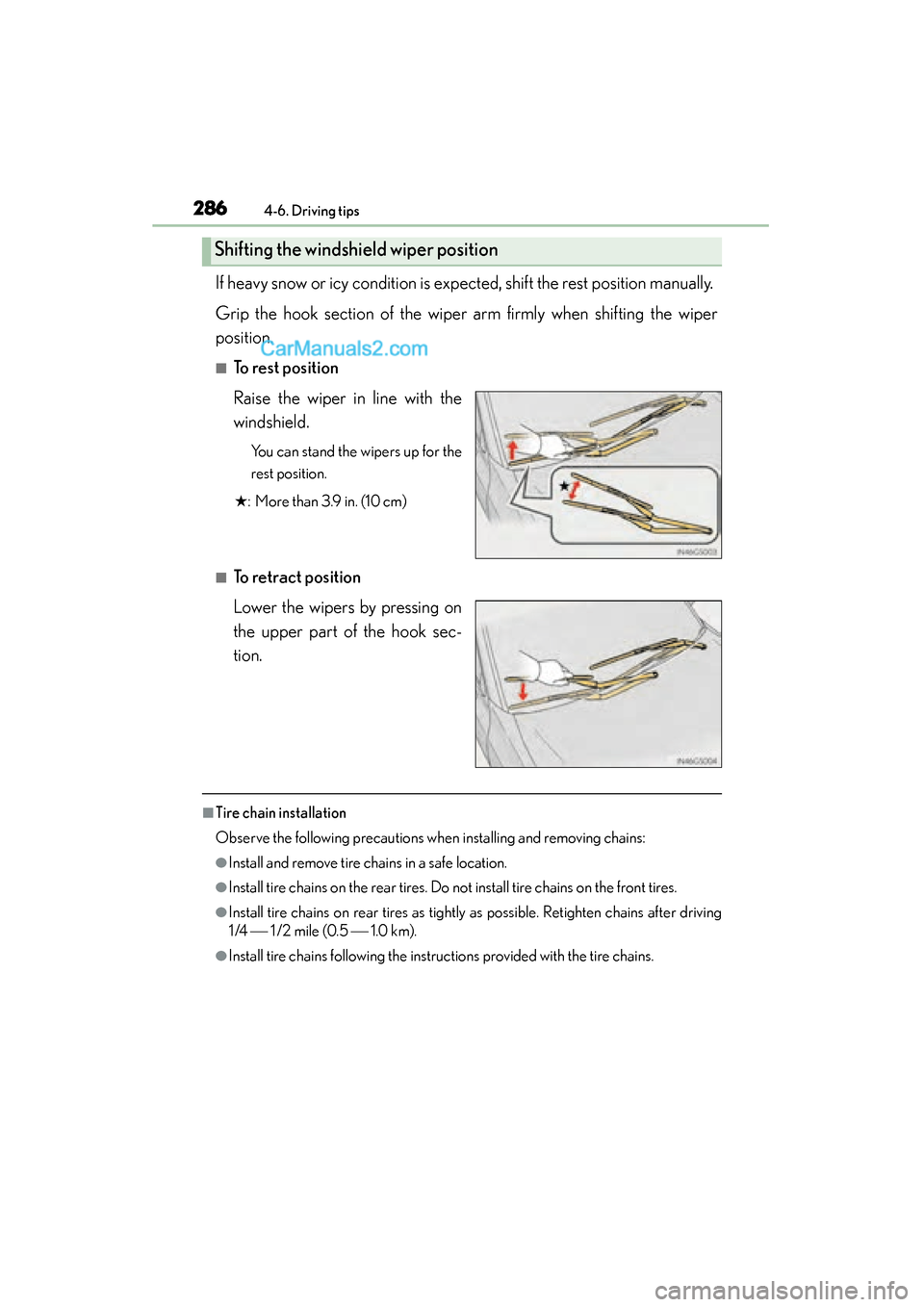

286
GS350_OM_OM30F69U_(U)
4-6. Driving tips
If heavy snow or icy condition is expected, shift the rest position manually.
Grip the hook section of the wiper arm firmly when shifting the wiper
position.
■To rest position
Raise the wiper in line with the
windshield.
You can stand the wipers up for the
rest position.
★ : More than 3.9 in. (10 cm)
■To retract position
Lower the wipers by pressing on
the upper part of the hook sec-
tion.
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on the front tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains after driving
1/4  1/2 mile (0.5  1.0 km).
●Install tire chains following the instructions provided with the tire chains.
Shifting the windshield wiper position
GS350_OM_OM30F69U_(U).book Page 286 Monday, January 19, 2015 2:53 PM

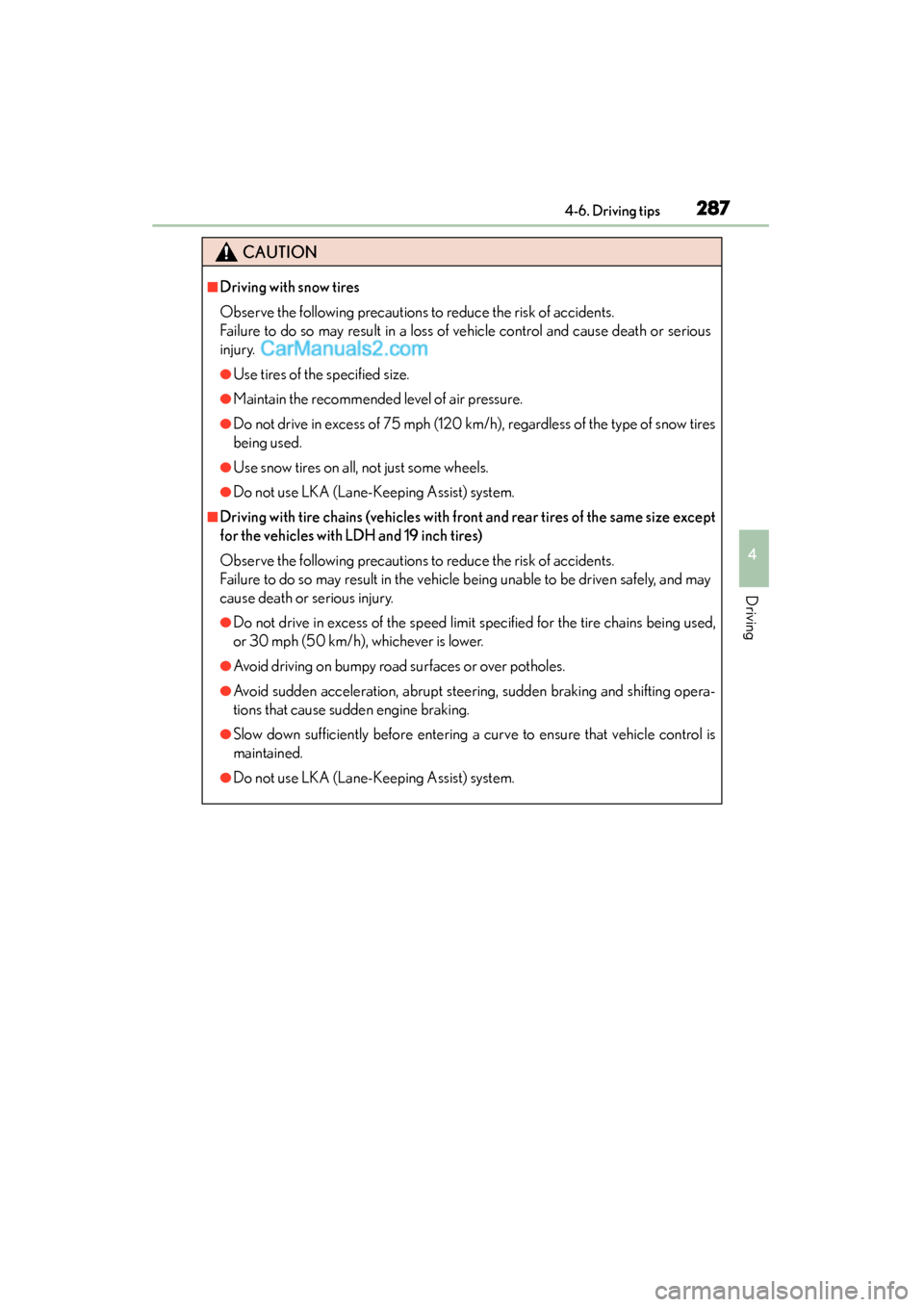

GS350_OM_OM30F69U_(U)
2874-6. Driving tips
4
Driving
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
●Do not use LKA (Lane-Keeping Assist) system.
■Driving with tire chains (vehicles with front and rear tires of the same size except
for the vehicles with LDH and 19 inch tires)
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.
●Do not use LKA (Lane-Keeping Assist) system.
GS350_OM_OM30F69U_(U).book Page 287 Monday, January 19, 2015 2:53 PM

288
GS350_OM_OM30F69U_(U)
4-6. Driving tips

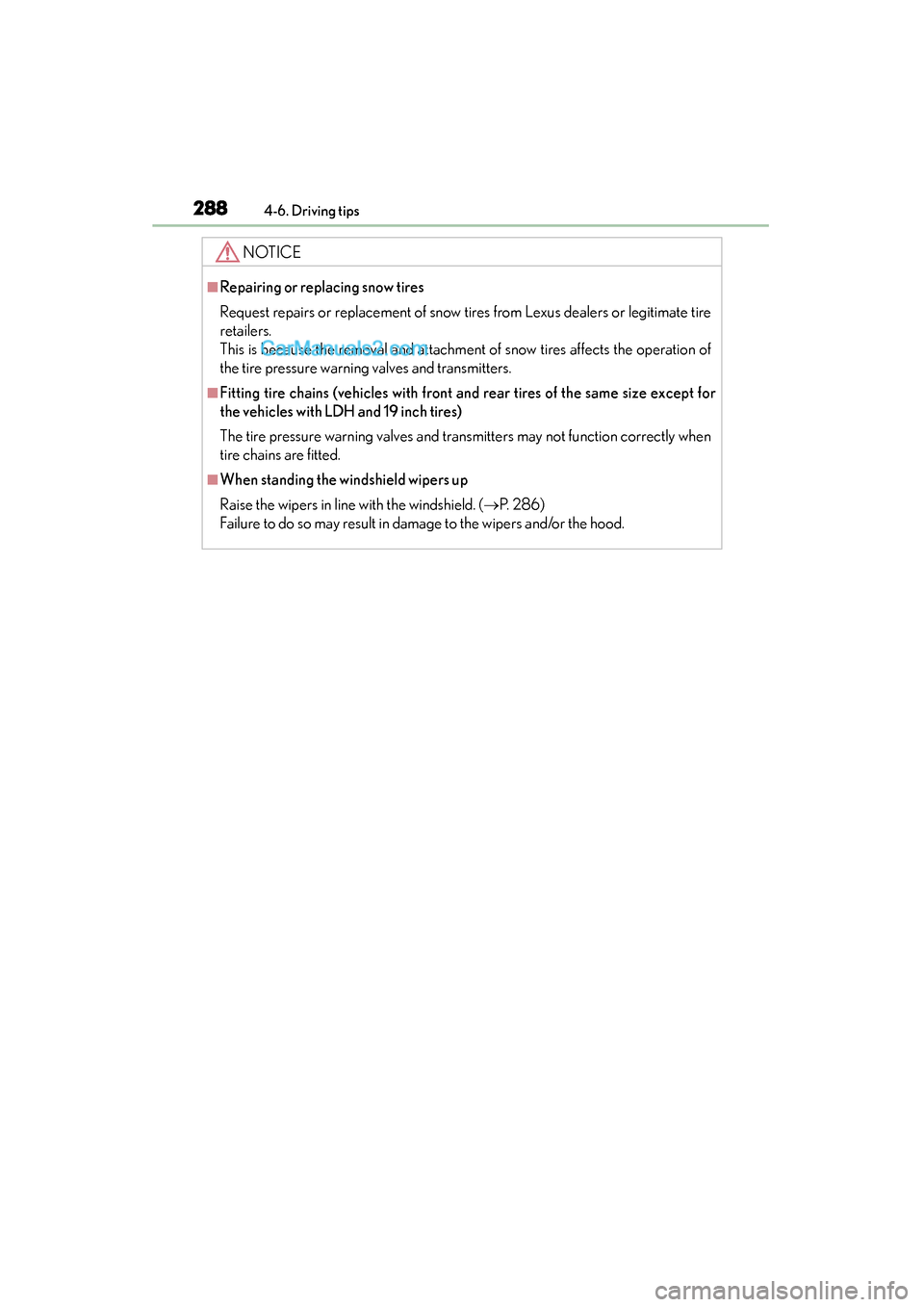

NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■Fitting tire chains (vehicles with front and rear tires of the same size except for
the vehicles with LDH and 19 inch tires)
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. (→P. 2 8 6 )
Failure to do so may result in damage to the wipers and/or the hood.
GS350_OM_OM30F69U_(U).book Page 288 Monday, January 19, 2015 2:53 PM
