Lexus GS350 2015 Owner's Manual

319
GS350_OM_OM30F69U_(U)5-2. Using the air conditioning system and defogger
5
Interior features

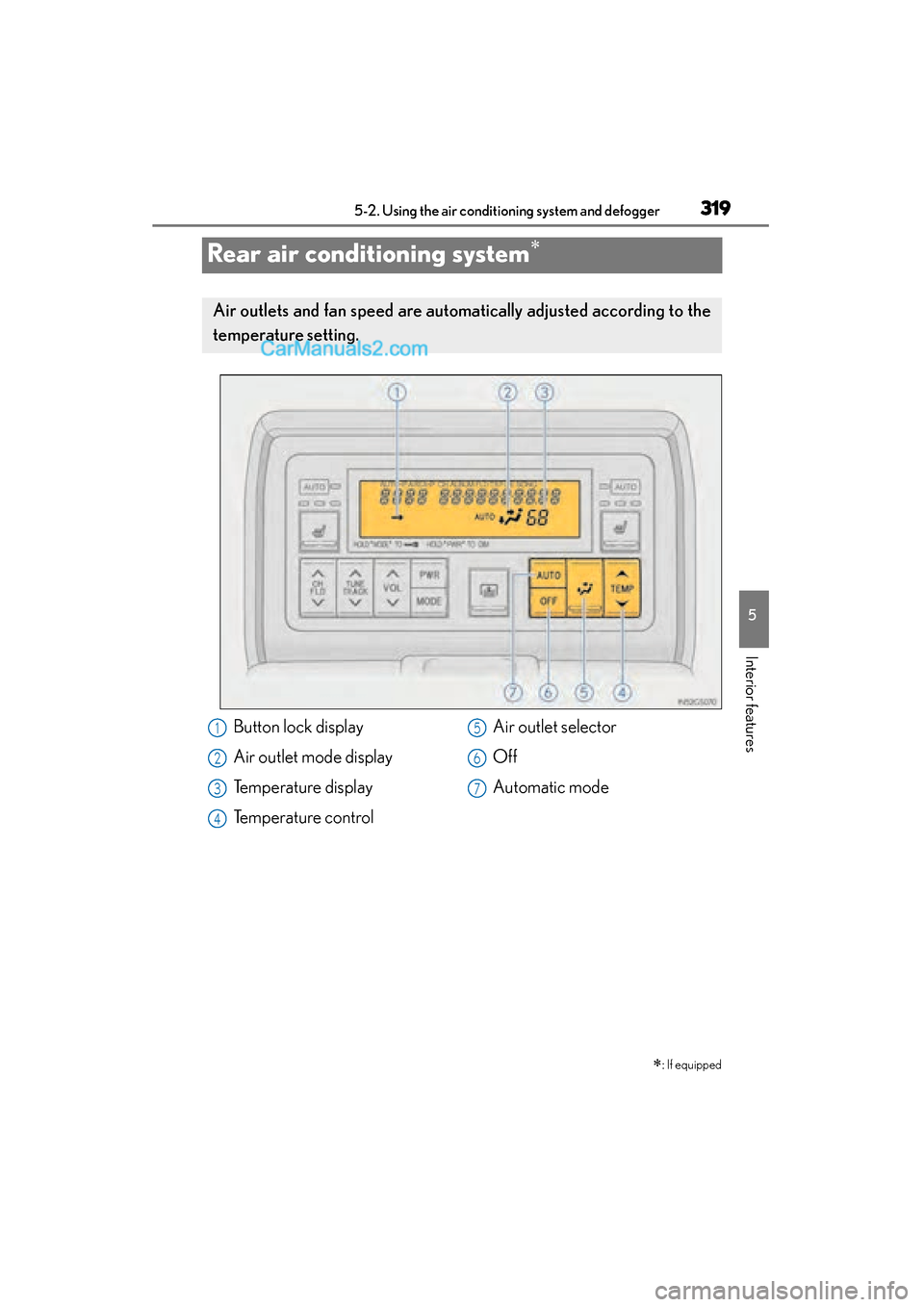

Rear air conditioning system∗
∗: If equipped
Air outlets and fan speed are automat ically adjusted according to the
temperature setting.
Button lock display
Air outlet mode display
Temperature display
Temperature control Air outlet selector
Off
Automatic mode1
2
3
4
5
6
7
GS350_OM_OM30F69U_(U).book Page 319 Monday, January 19, 2015 2:53 PM

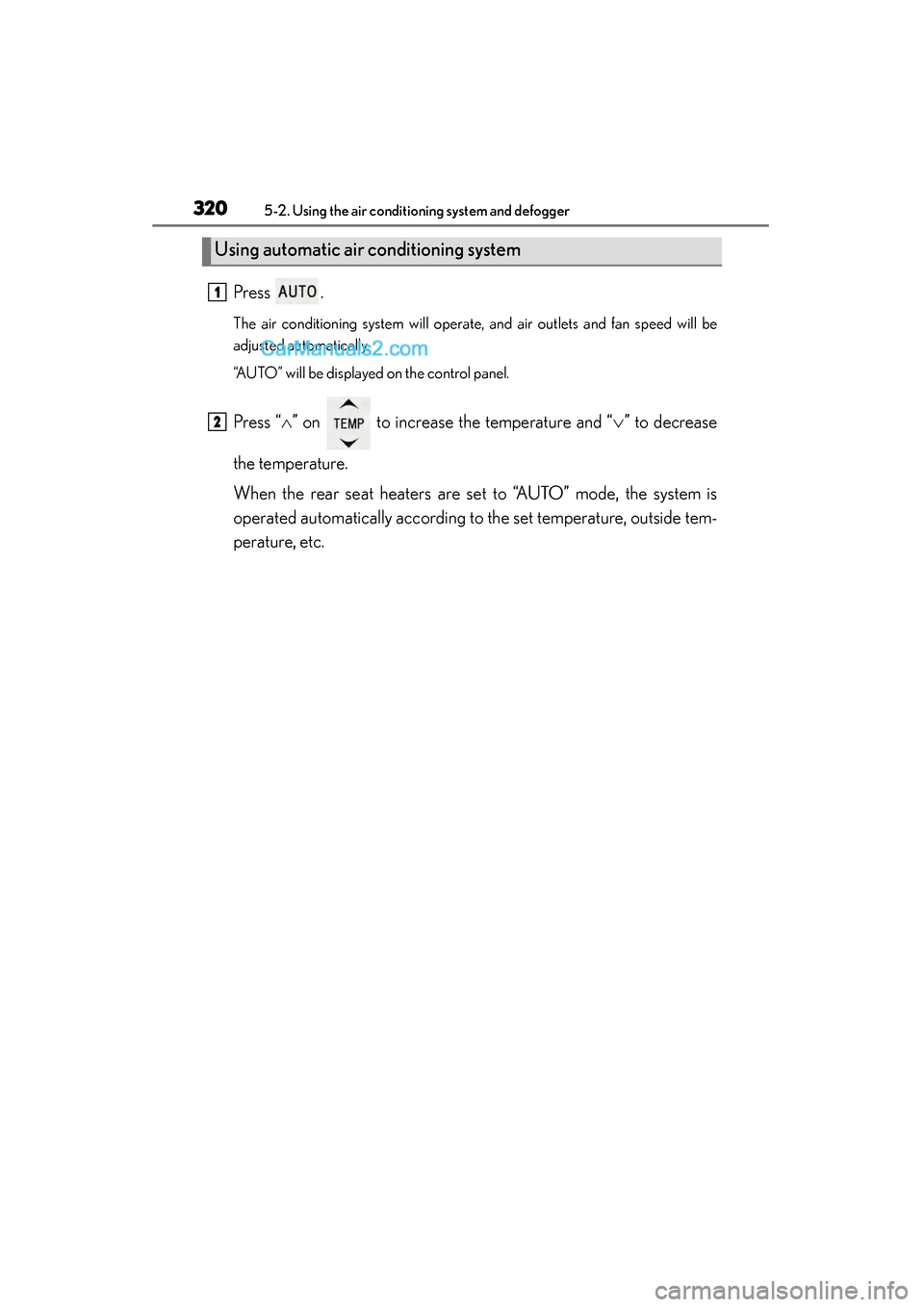

320
GS350_OM_OM30F69U_(U)
5-2. Using the air conditioning system and defogger
Press .
The air conditioning system will operate, and air outlets and fan speed will be
adjusted automatically.
“AUTO” will be displayed on the control panel.
Press “∧” on to increase the temperature and “ ∨” to decrease
the temperature.
When the rear seat heaters are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tem-
perature, etc.
Using automatic air conditioning system
1
2
GS350_OM_OM30F69U_(U).book Page 320 Monday, January 19, 2015 2:53 PM

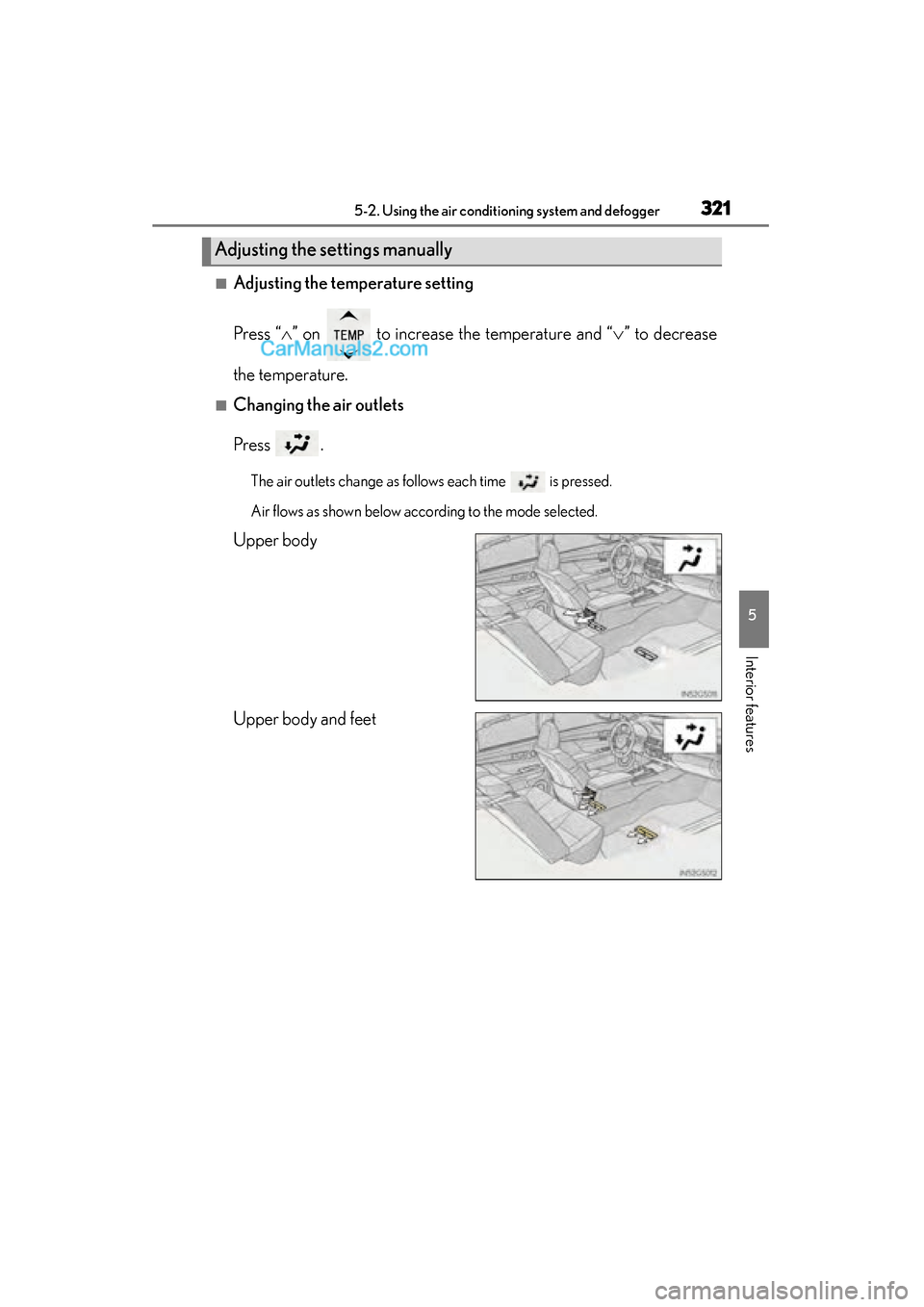

GS350_OM_OM30F69U_(U)
3215-2. Using the air conditioning system and defogger
5
Interior features
■Adjusting the temperature setting
Press “∧” on to increase the temperature and “ ∨” to decrease
the temperature.
■Changing the air outlets
Press .
The air outlets change as follows each time is pressed.
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet
Adjusting the settings manually
GS350_OM_OM30F69U_(U).book Page 321 Monday, January 19, 2015 2:53 PM

322
GS350_OM_OM30F69U_(U)
5-2. Using the air conditioning system and defogger

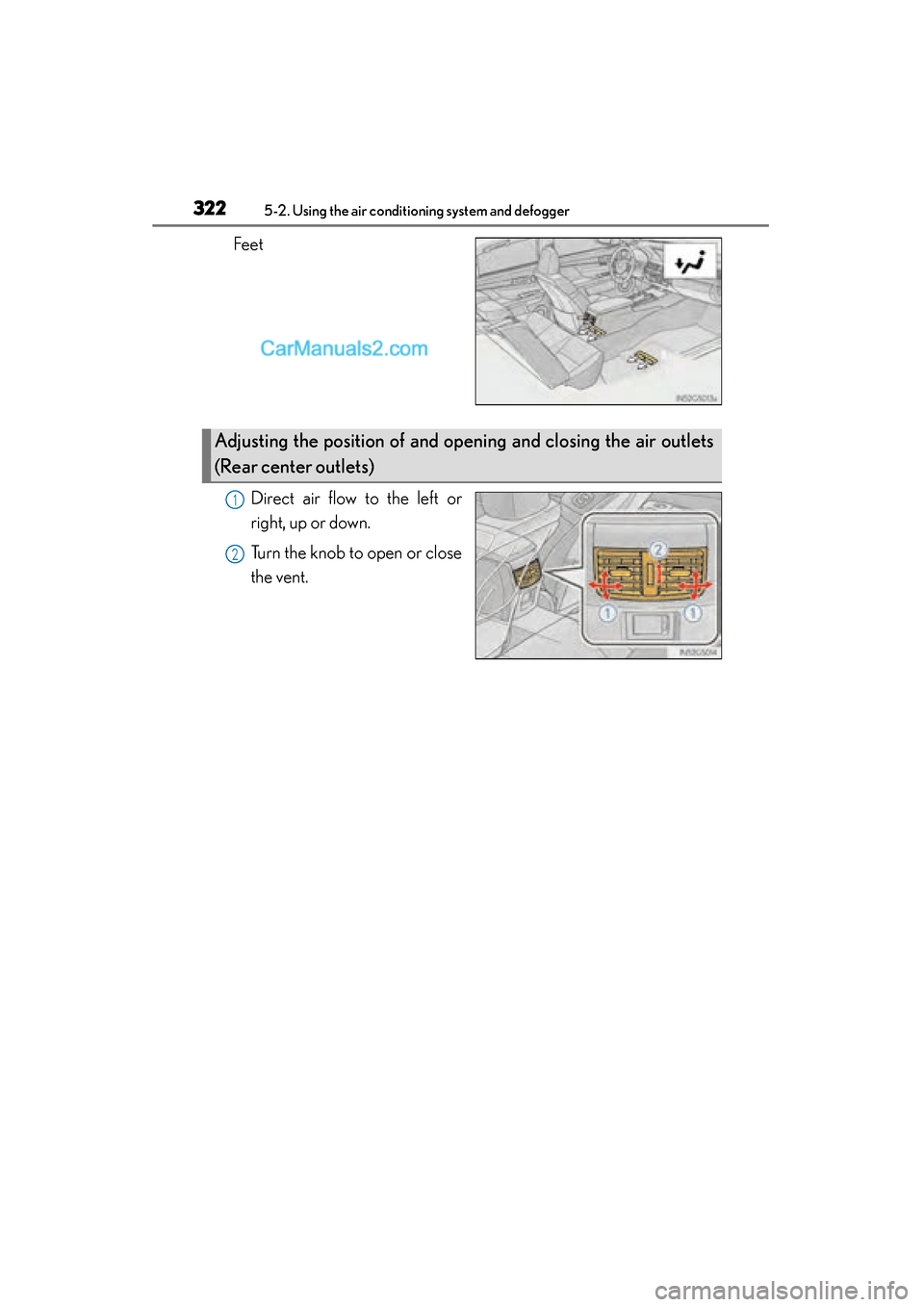

FeetDirect air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Adjusting the position of and opening and closing the air outlets
(Rear center outlets)
1
2
GS350_OM_OM30F69U_(U).book Page 322 Monday, January 19, 2015 2:53 PM

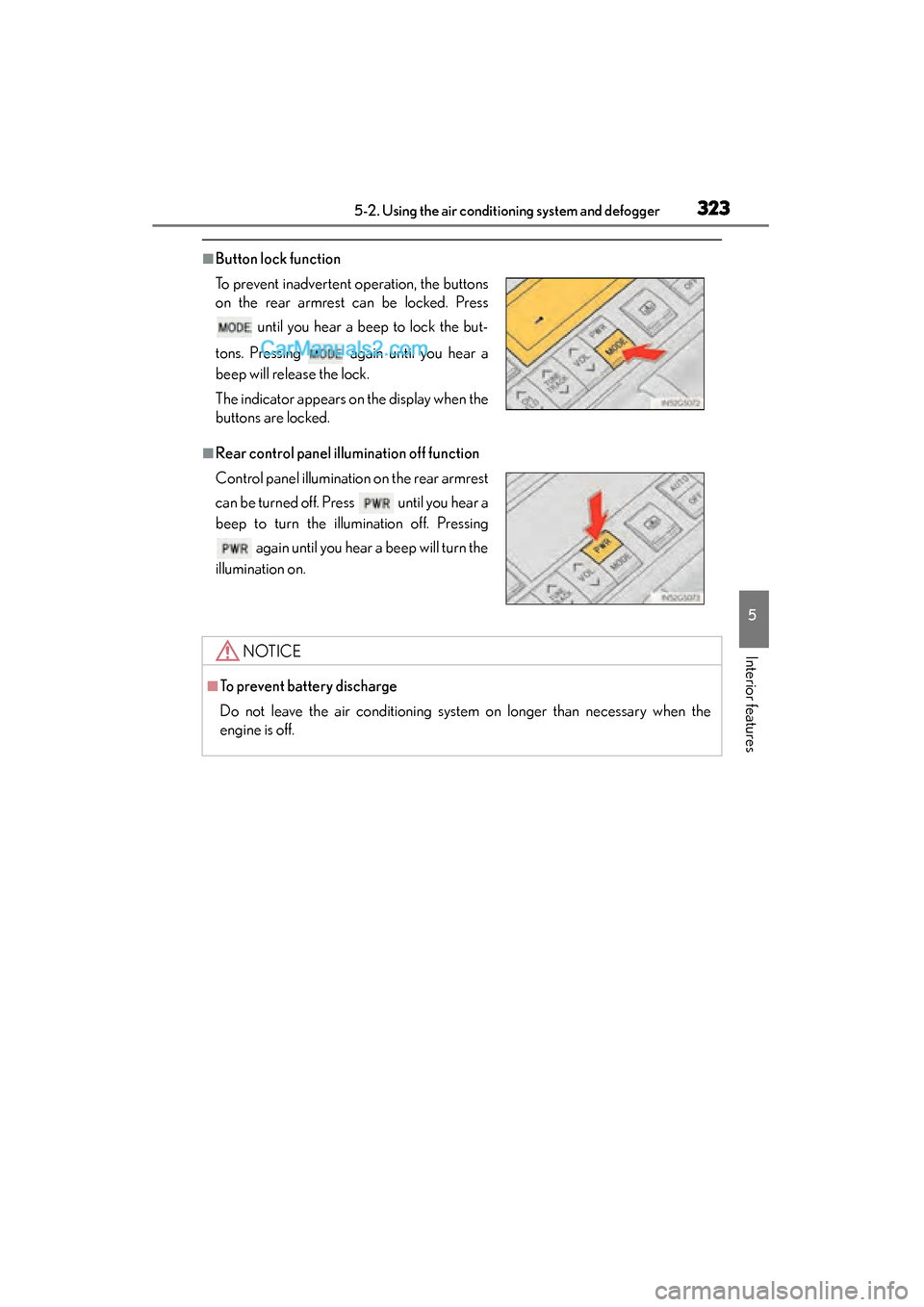

GS350_OM_OM30F69U_(U)
3235-2. Using the air conditioning system and defogger
5
Interior features
■Button lock function
■Rear control panel illumination off function To prevent inadvertent operation, the buttons
on the rear armrest can be locked. Press until you hear a beep to lock the but-
tons. Pressing again until you hear a
beep will release the lock.
The indicator appears on the display when the
buttons are locked.
Control panel illumination on the rear armrest
can be turned off. Press until you hear a
beep to turn the illumination off. Pressing again until you hear a beep will turn the
illumination on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
GS350_OM_OM30F69U_(U).book Page 323 Monday, January 19, 2015 2:53 PM

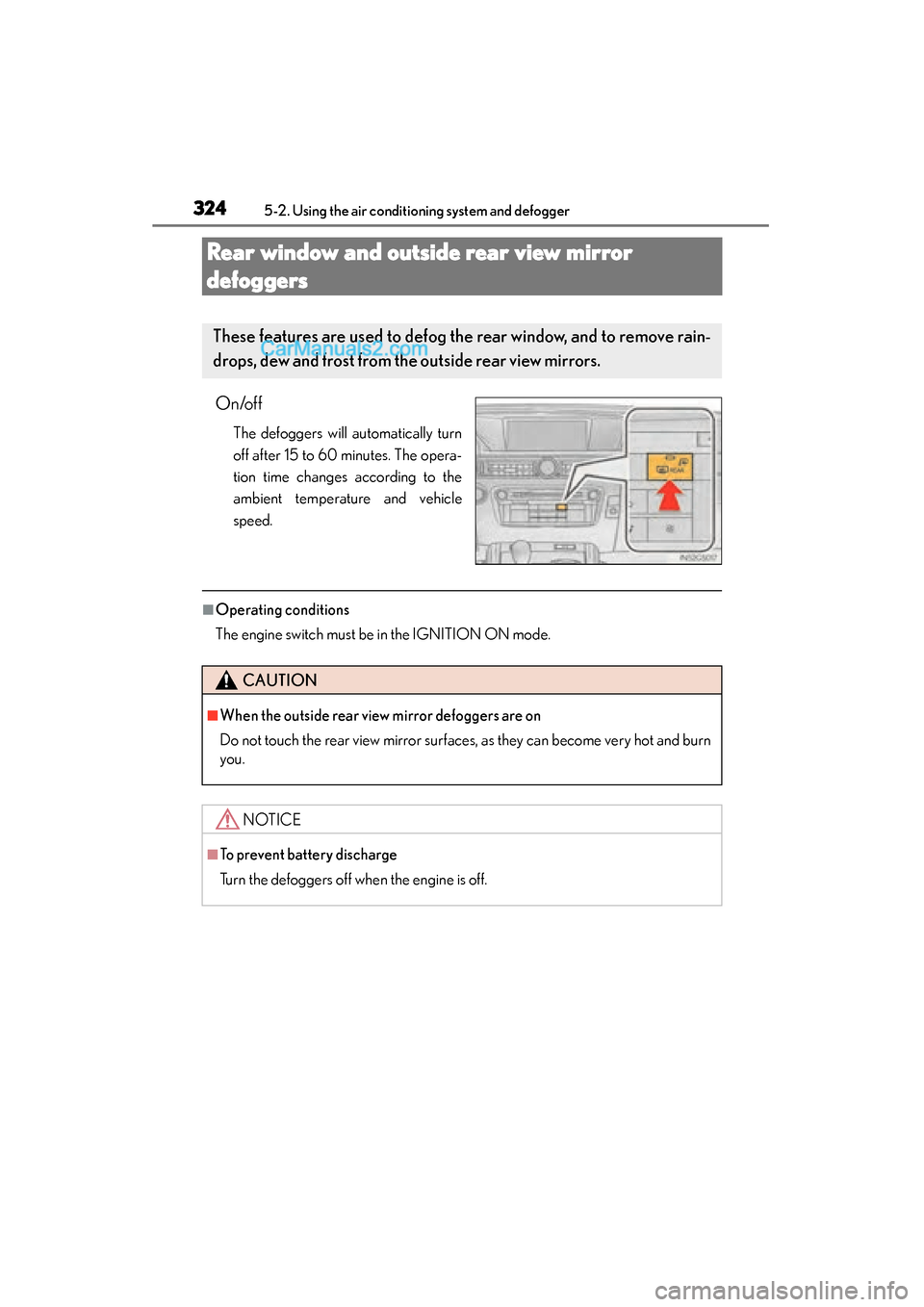

324
GS350_OM_OM30F69U_(U)
5-2. Using the air conditioning system and defogger
Rear window and outside rear view mirror
defoggers
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.
GS350_OM_OM30F69U_(U).book Page 324 Monday, January 19, 2015 2:53 PM

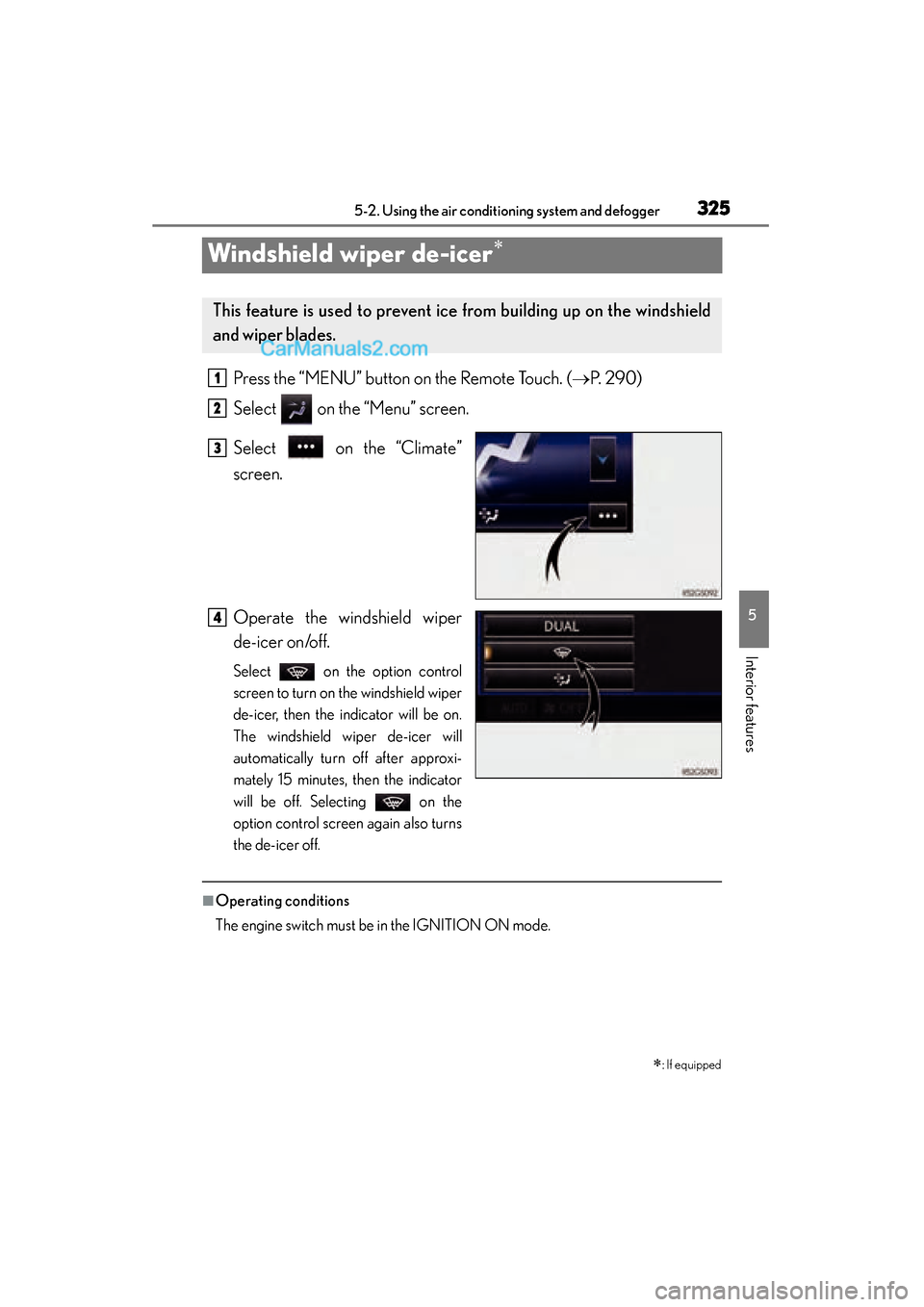

325
GS350_OM_OM30F69U_(U)5-2. Using the air conditioning system and defogger
5
Interior features
Windshield wiper de-icer∗
Press the “MENU” button on the Remote Touch. ( →P. 2 9 0 )
Select on the “Menu” screen.
Select on the “Climate”
screen.
Operate the windshield wiper
de-icer on/off.
Select on the option control
screen to turn on the windshield wiper
de-icer, then the indicator will be on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes, then the indicator
will be off. Selecting on the
option control screen again also turns
the de-icer off.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
∗: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2
3
4
GS350_OM_OM30F69U_(U).book Page 325 Monday, January 19, 2015 2:53 PM

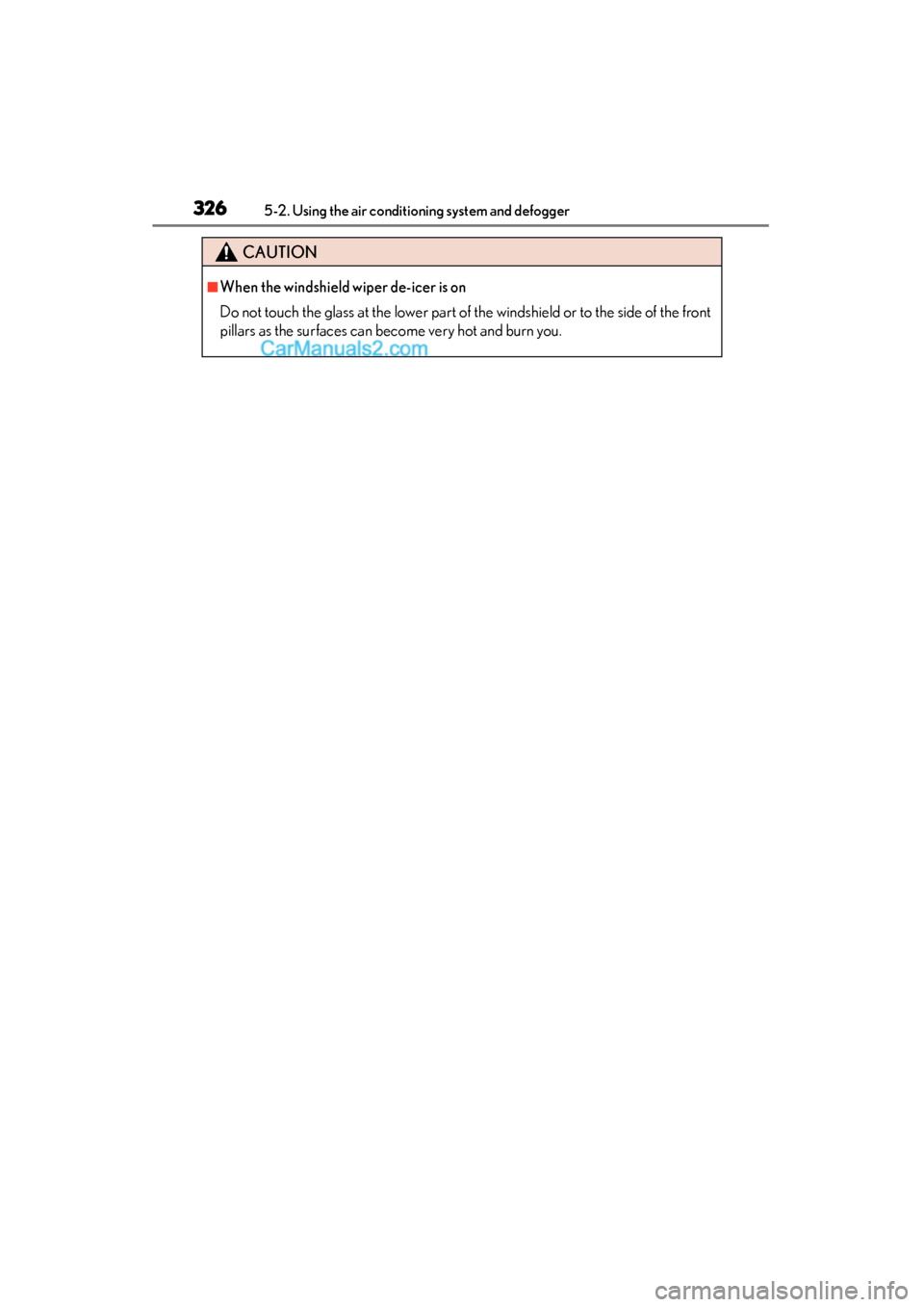

326
GS350_OM_OM30F69U_(U)
5-2. Using the air conditioning system and defogger
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.
GS350_OM_OM30F69U_(U).book Page 326 Monday, January 19, 2015 2:53 PM

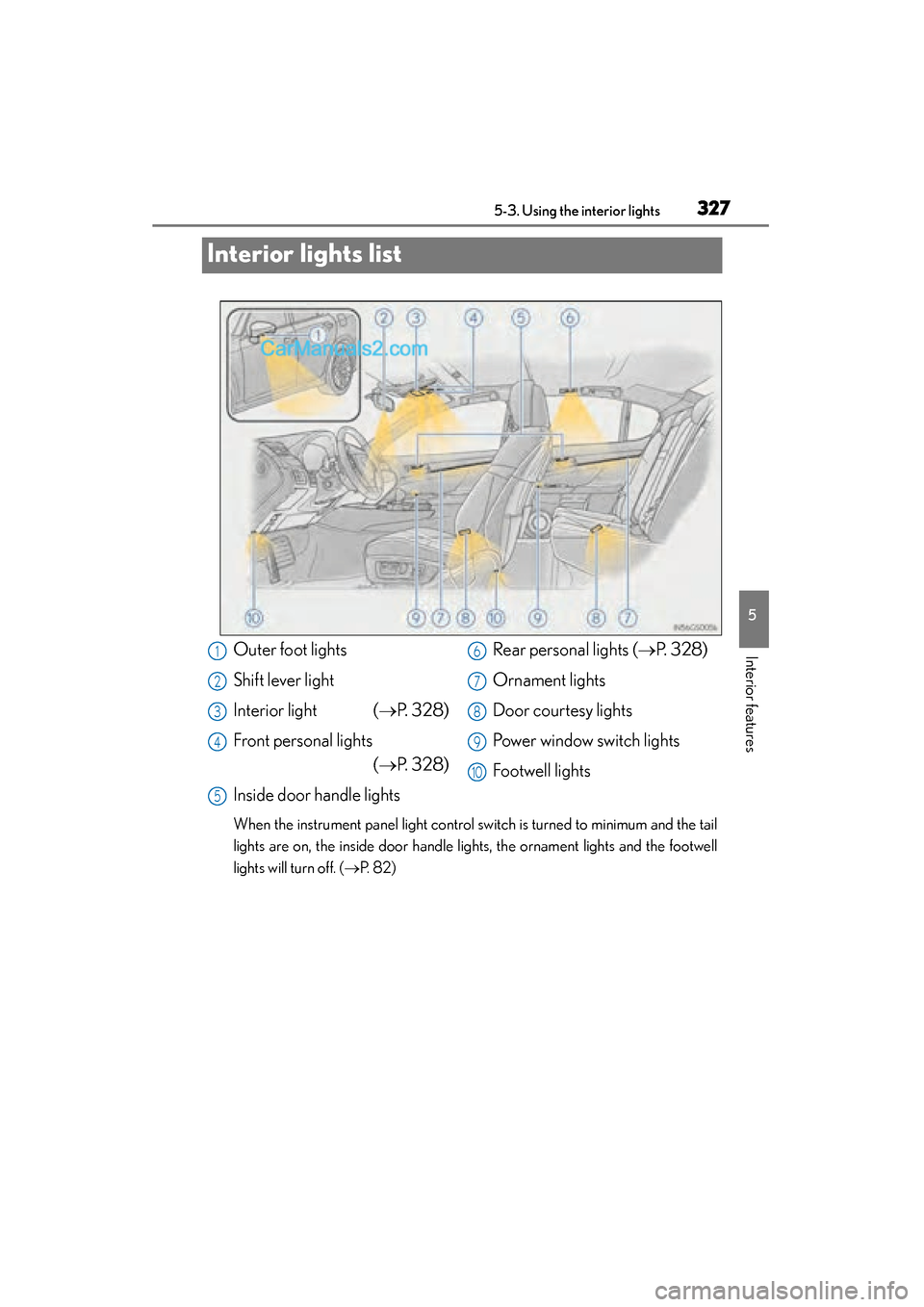

327
GS350_OM_OM30F69U_(U)5-3. Using the interior lights
5
Interior features
Interior lights list
When the instrument panel light control switch is turned to minimum and the tail
lights are on, the inside door handle lights, the ornament lights and the footwell
lights will turn off. ( →P. 8 2 )
Outer foot lights
Shift lever light
Interior light ( →P. 328)
Front personal lights (→P. 328)
Inside door handle lights Rear personal lights (
→P. 328)
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10
GS350_OM_OM30F69U_(U).book Page 327 Monday, January 19, 2015 2:53 PM

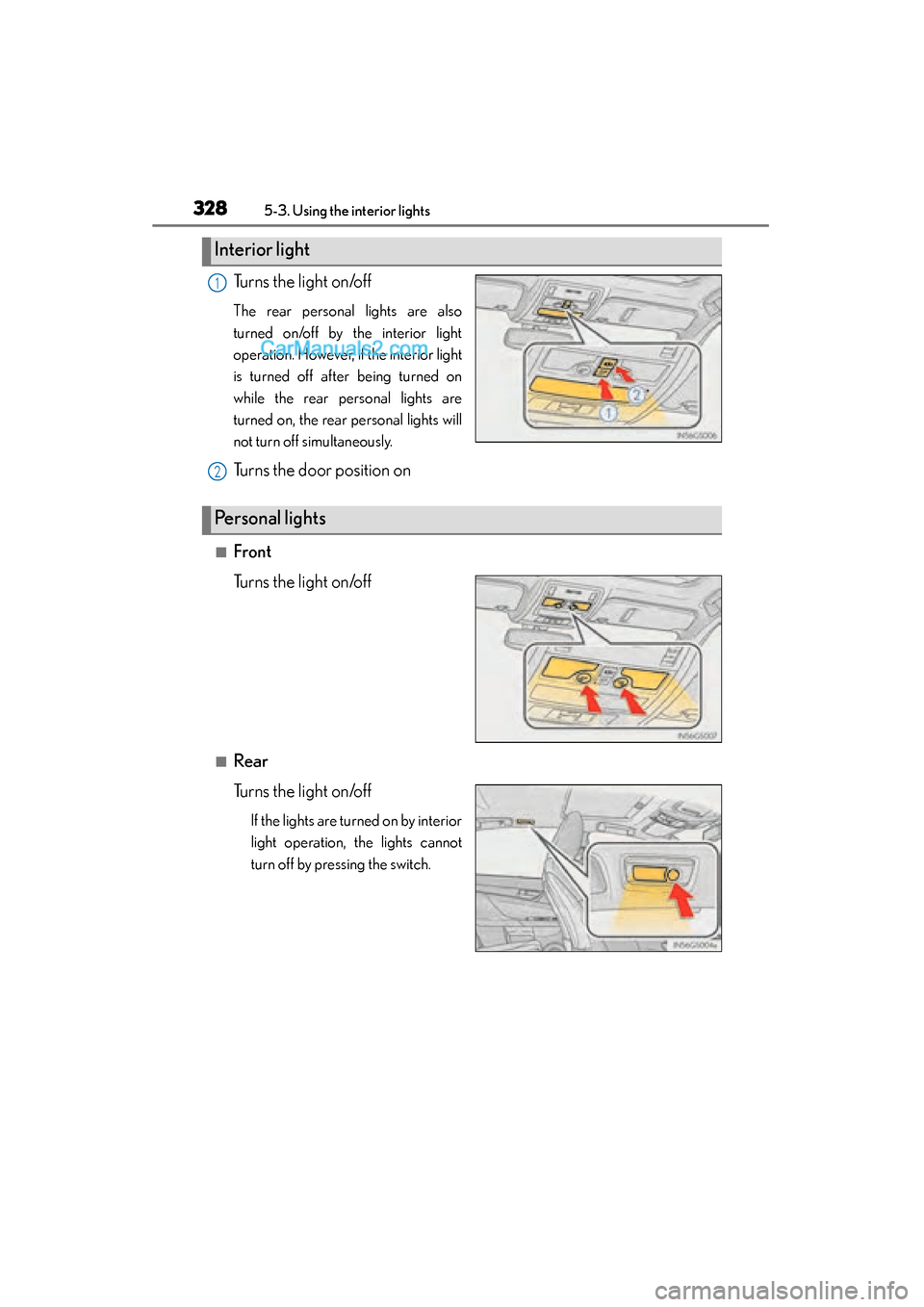

328
GS350_OM_OM30F69U_(U)
5-3. Using the interior lights
Turns the light on/off
The rear personal lights are also
turned on/off by the interior light
operation. However, if the interior light
is turned off after being turned on
while the rear personal lights are
turned on, the rear personal lights will
not turn off simultaneously.
Turns the door position on
■Front
Turns the light on/off
■Rear
Turns the light on/off
If the lights are turned on by interior
light operation, the lights cannot
turn off by pressing the switch.
Interior light
1
2
Personal lights
GS350_OM_OM30F69U_(U).book Page 328 Monday, January 19, 2015 2:53 PM
