Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)
3395-4. Using the storage features
5
Interior features
Loosen the belt
Tighten the belt

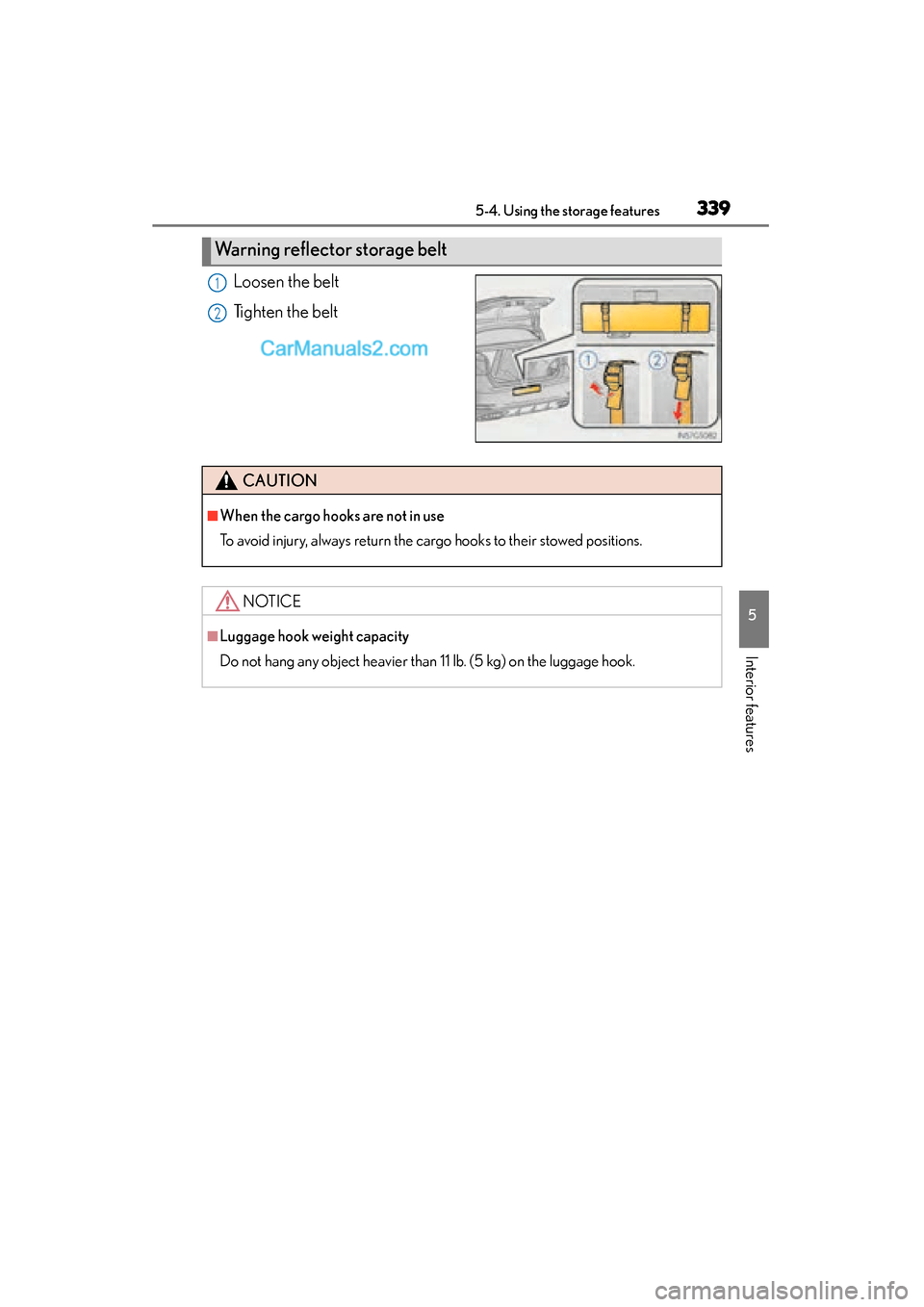

Warning reflector storage belt
1
2
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
■Luggage hook weight capacity
Do not hang any object heavier than 11 lb. (5 kg) on the luggage hook.
GS350_OM_OM30F69U_(U).book Page 339 Monday, January 19, 2015 2:53 PM

340
GS350_OM_OM30F69U_(U)
5-5. Other interior features

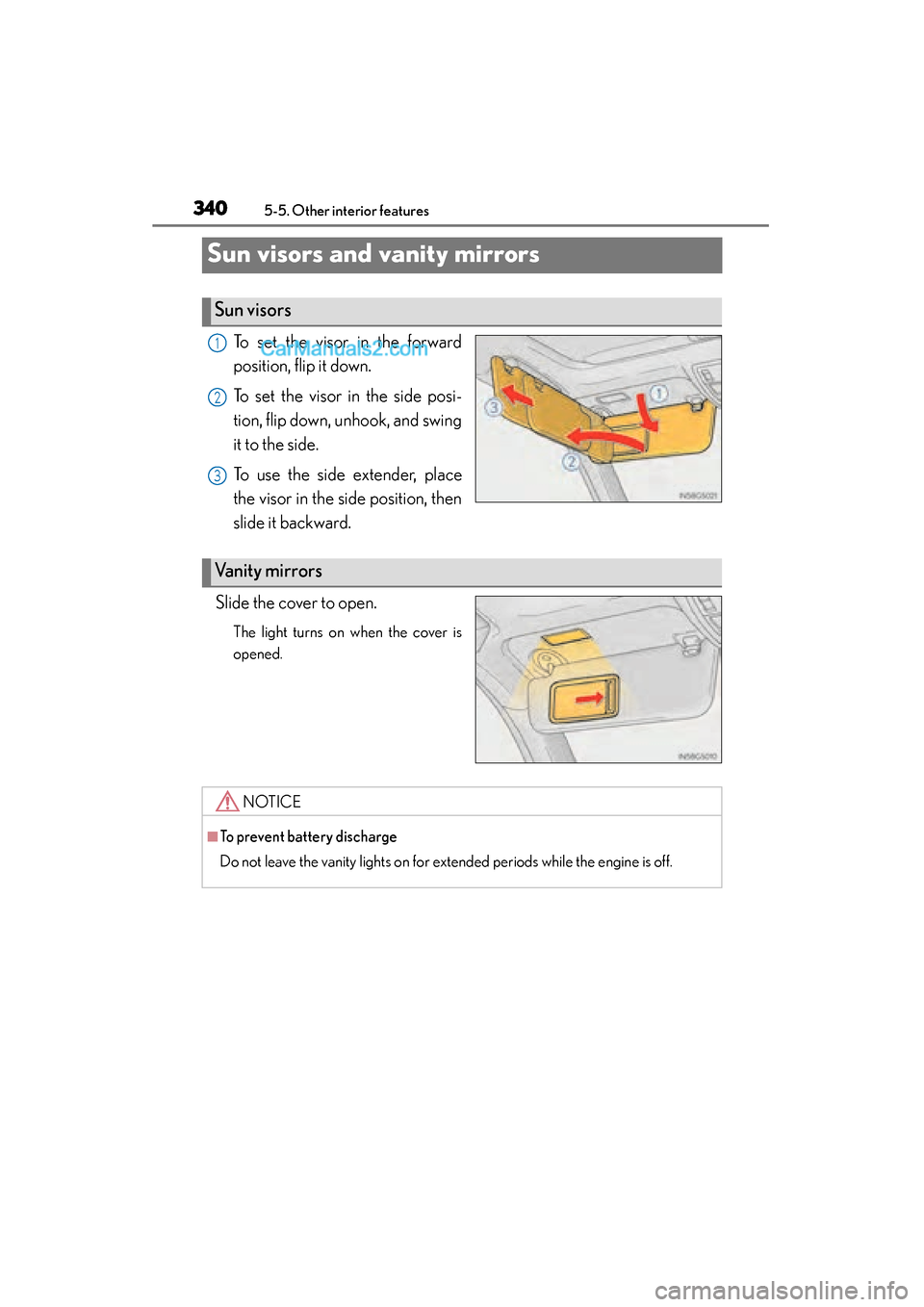

Sun visors and vanity mirrors
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and swing
it to the side.
To use the side extender, place
the visor in the side position, then
slide it backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Va n i t y m i r r o r s
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.
GS350_OM_OM30F69U_(U).book Page 340 Monday, January 19, 2015 2:53 PM

341
GS350_OM_OM30F69U_(U)5-5. Other interior features
5
Interior features

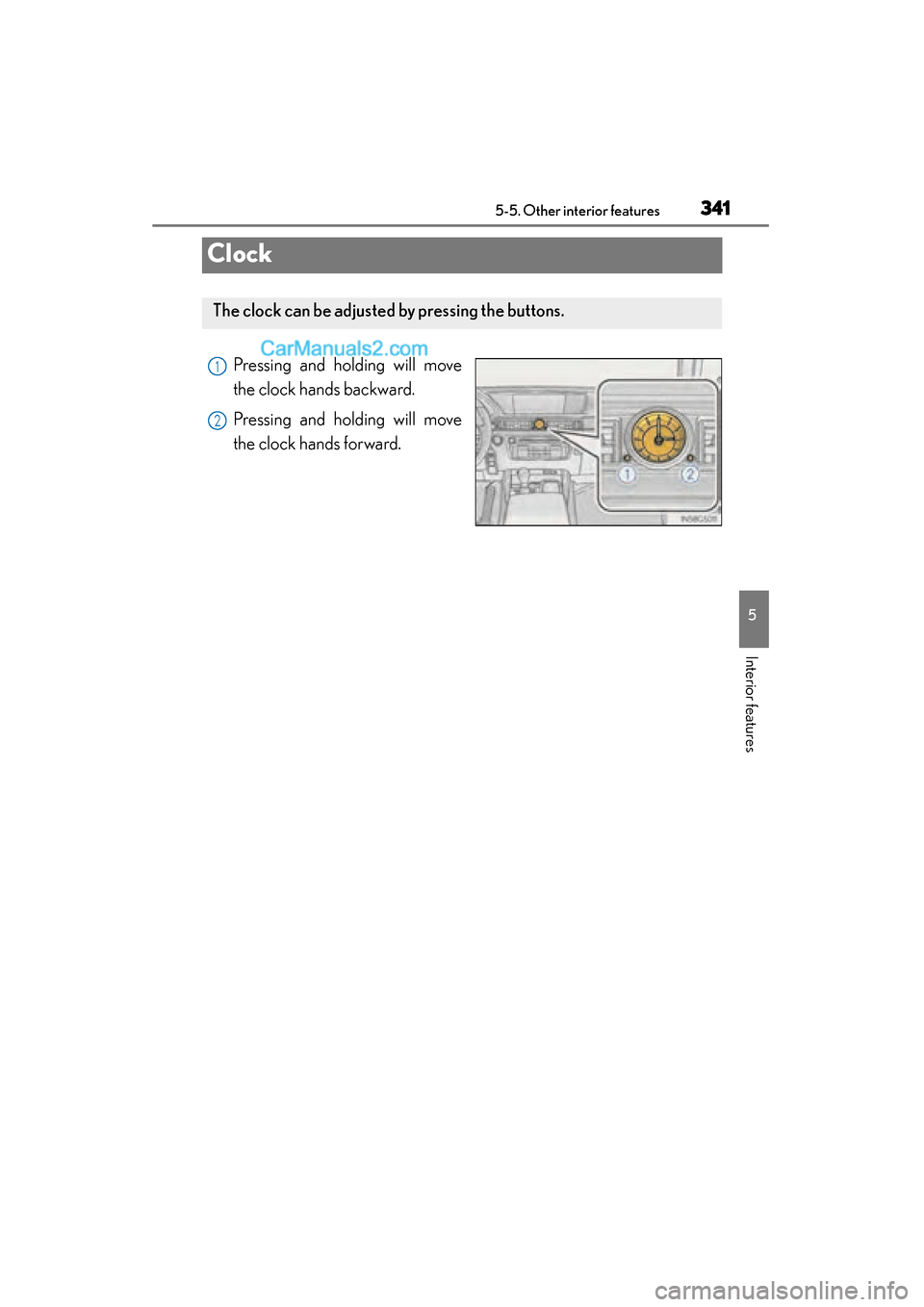

Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2
GS350_OM_OM30F69U_(U).book Page 341 Monday, January 19, 2015 2:53 PM

342
GS350_OM_OM30F69U_(U)
5-5. Other interior features

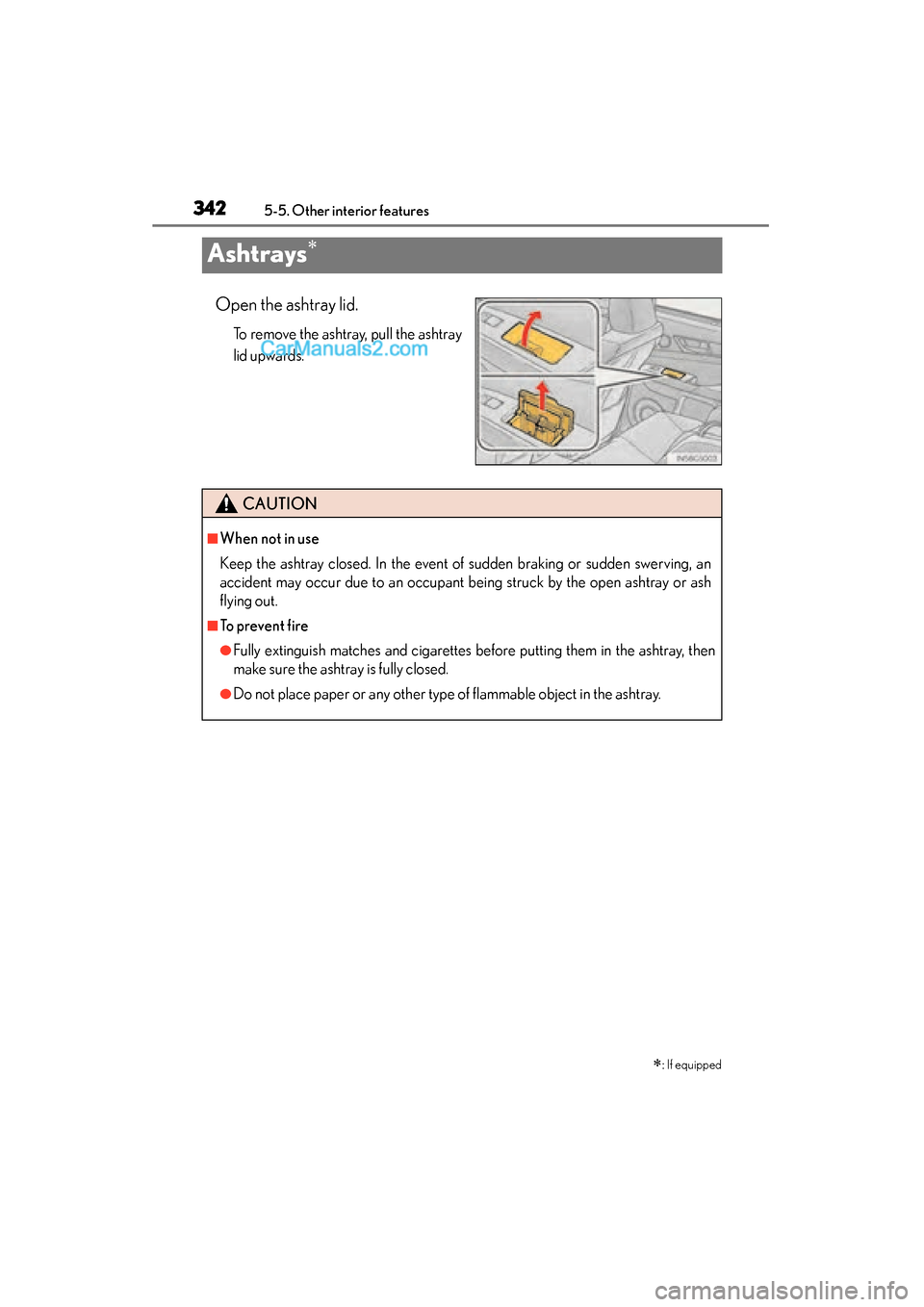

Ashtrays∗
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
∗: If equipped
CAUTION
■When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open ashtray or ash
flying out.
■To p r e v e n t f i r e
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
GS350_OM_OM30F69U_(U).book Page 342 Monday, January 19, 2015 2:53 PM

343
GS350_OM_OM30F69U_(U)5-5. Other interior features
5
Interior features
Powe r o u t l e t s
■Front
Open the lid.
■Rear
Open the lid.
■The power outlets can be used when
The engine switch is in ACCESSORY or IGNITION ON mode.
The power outlets can be used for 12V accessories that run on less than
10A.
GS350_OM_OM30F69U_(U).book Page 343 Monday, January 19, 2015 2:53 PM

344
GS350_OM_OM30F69U_(U)
5-5. Other interior features

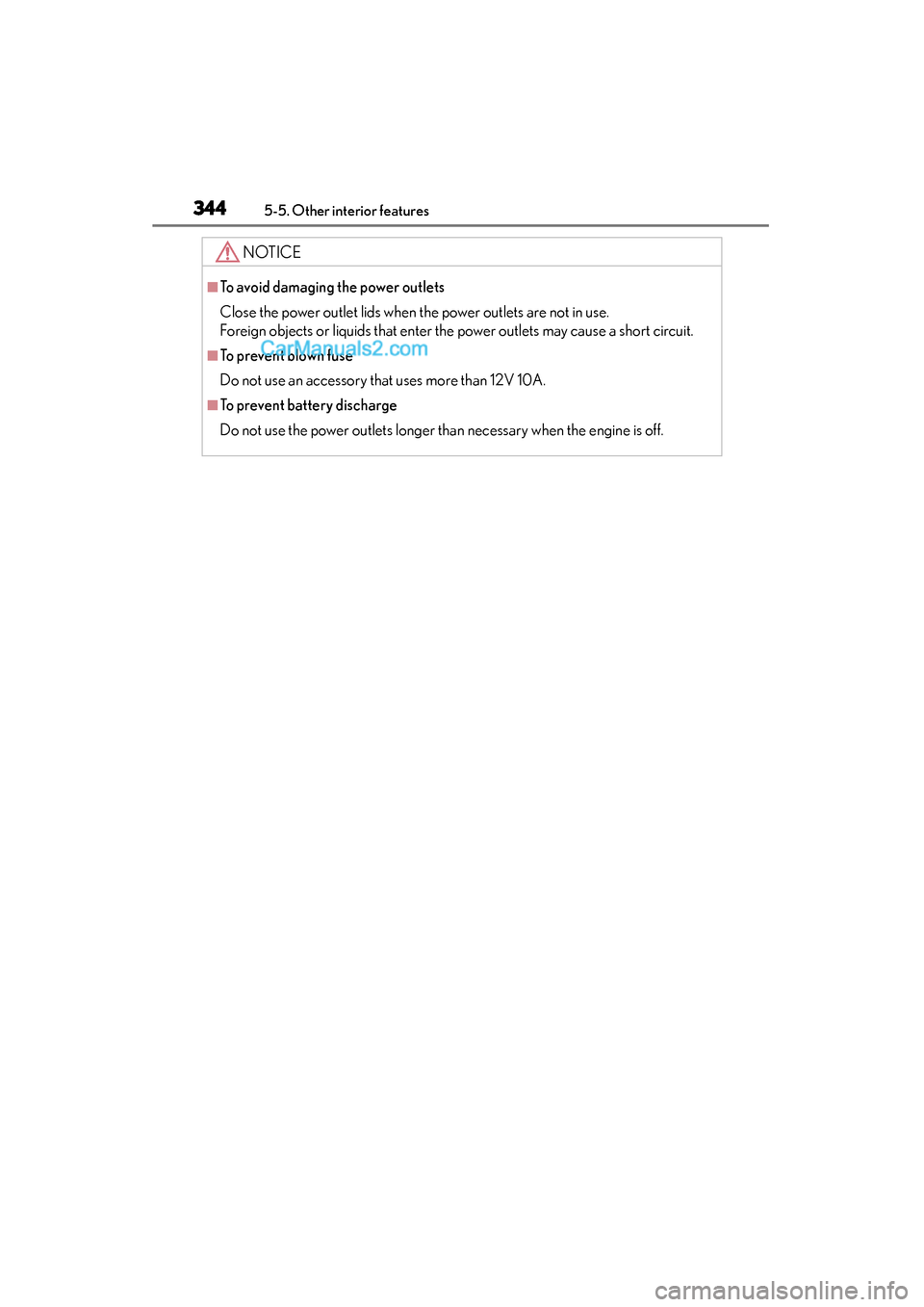

NOTICE
■To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12V 10A.
■To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is off.
GS350_OM_OM30F69U_(U).book Page 344 Monday, January 19, 2015 2:53 PM

345
GS350_OM_OM30F69U_(U)5-5. Other interior features
5
Interior features

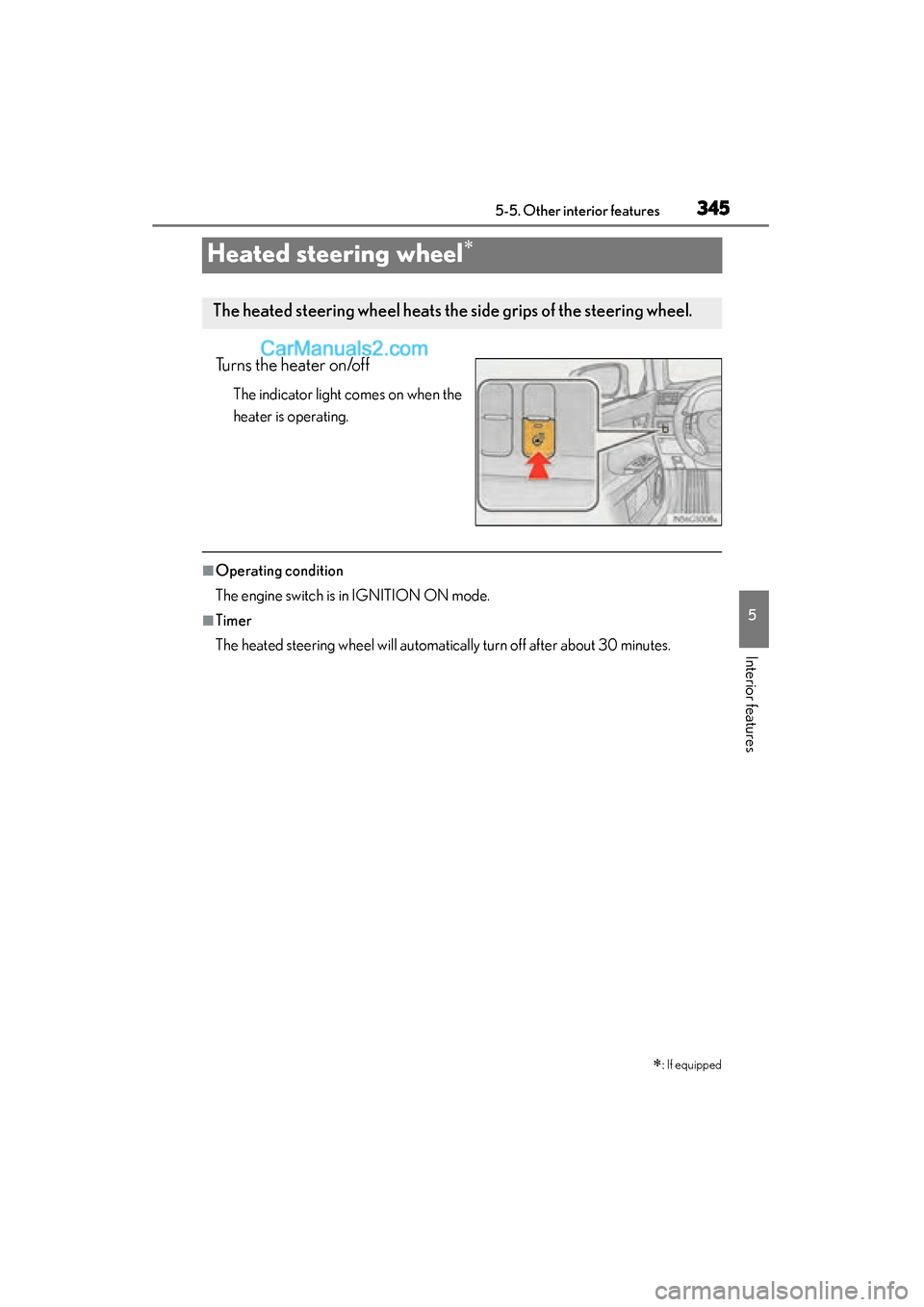

Heated steering wheel∗
Turns the heater on/off
The indicator light comes on when the
heater is operating.
■Operating condition
The engine switch is in IGNITION ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
∗: If equipped
The heated steering wheel heats the side grips of the steering wheel.
GS350_OM_OM30F69U_(U).book Page 345 Monday, January 19, 2015 2:53 PM

346
GS350_OM_OM30F69U_(U)
5-5. Other interior features

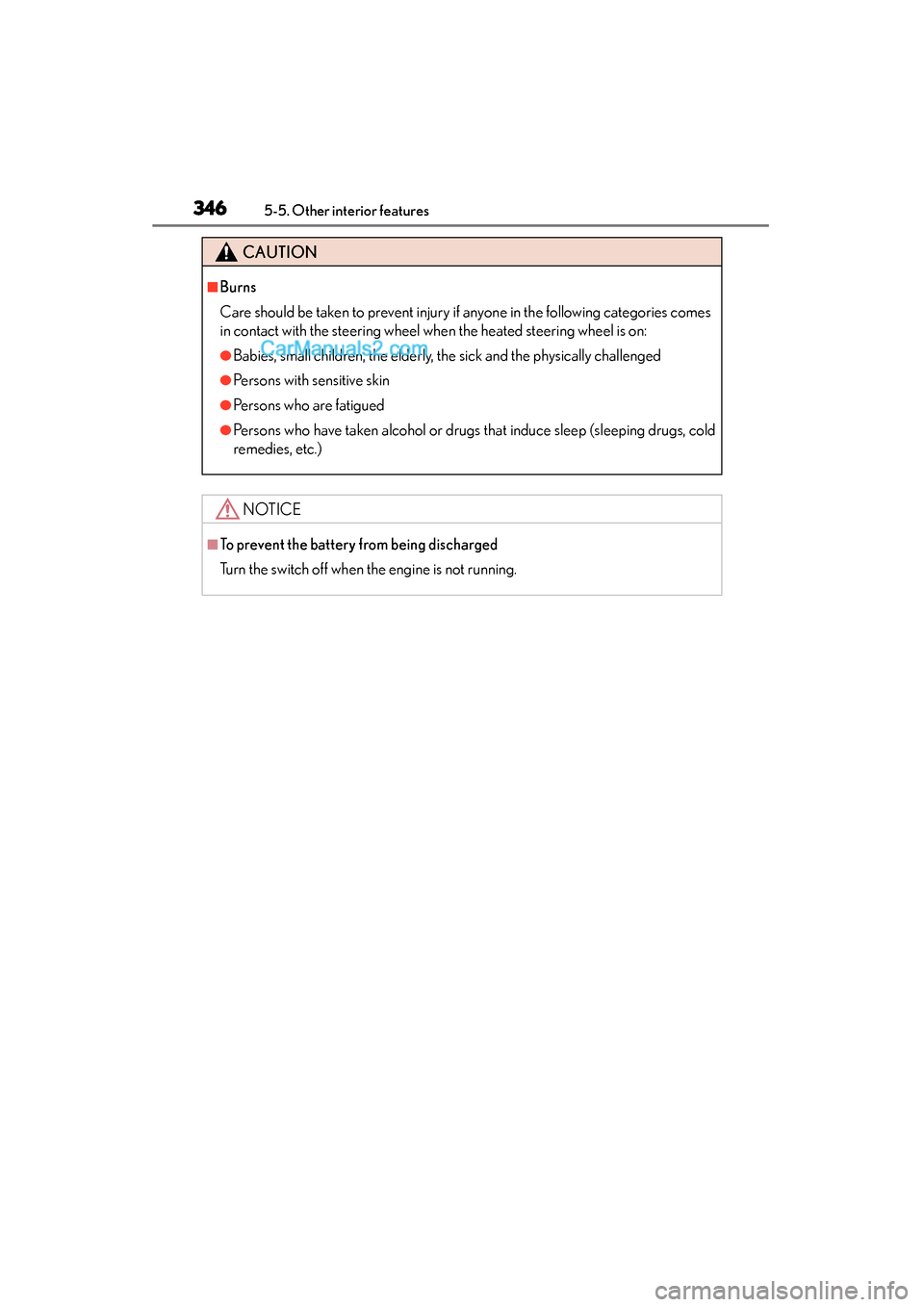

CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the battery from being discharged
Turn the switch off when the engine is not running.
GS350_OM_OM30F69U_(U).book Page 346 Monday, January 19, 2015 2:53 PM

347
GS350_OM_OM30F69U_(U)5-5. Other interior features
5
Interior features

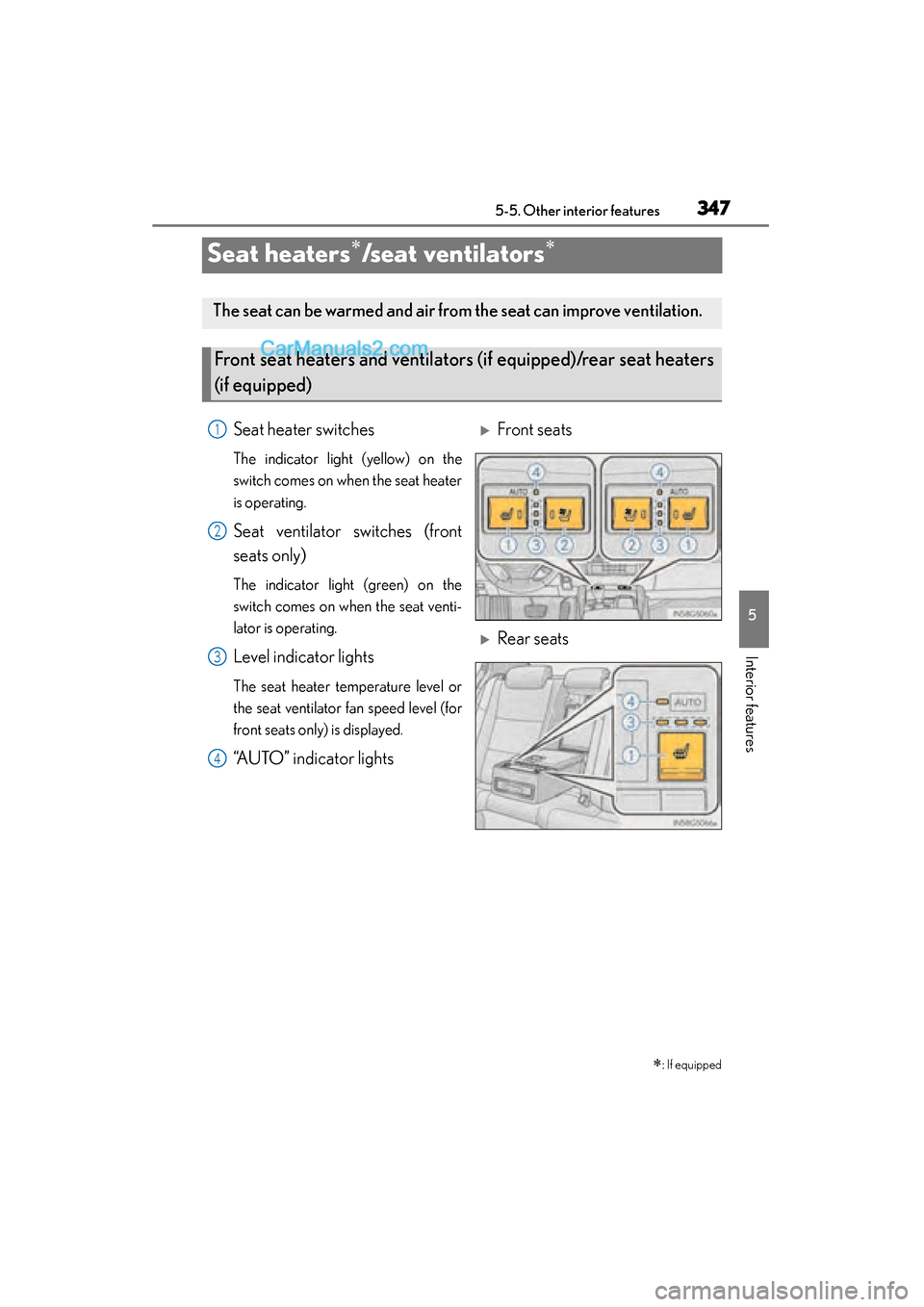

Seat heaters∗/s e a t v e n t i l a t o r s∗
∗: If equipped
The seat can be warmed and air from the seat can improve ventilation.
Front seat heaters and ventilators (if equipped)/rear seat heaters
(if equipped)
Seat heater switches
The indicator light (yellow) on the
switch comes on when the seat heater
is operating.
Seat ventilator switches (front
seats only)
The indicator light (green) on the
switch comes on when the seat venti-
lator is operating.
Level indicator lights
The seat heater temperature level or
the seat ventilator fan speed level (for
front seats only) is displayed.
“AUTO” indicator lights
XFront seats
XRear seats
1
2
3
4
GS350_OM_OM30F69U_(U).book Page 347 Monday, January 19, 2015 2:53 PM

348
GS350_OM_OM30F69U_(U)
5-5. Other interior features

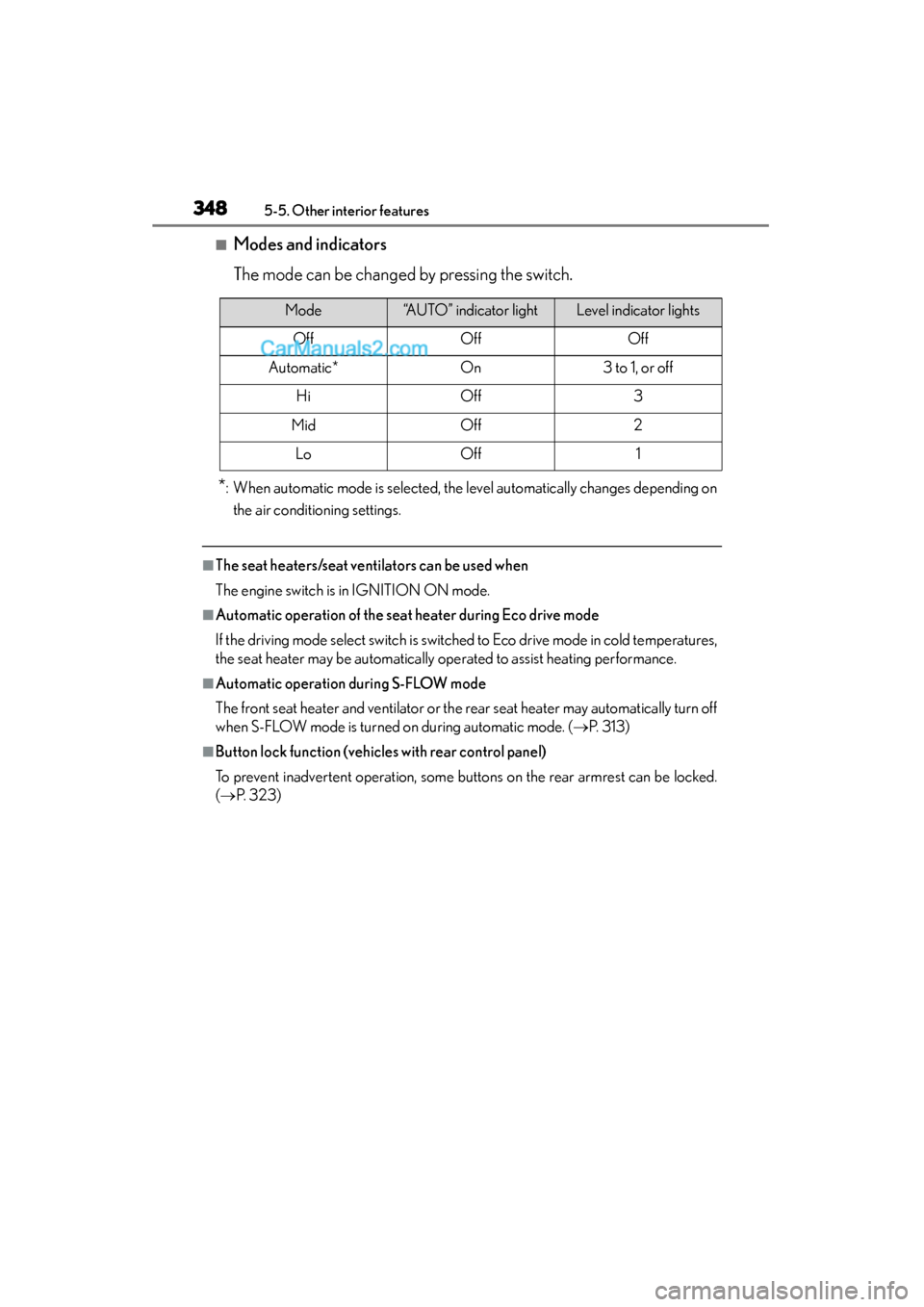

■Modes and indicators
The mode can be changed by pressing the switch.
*: When automatic mode is selected, the level automatically changes depending onthe air conditioning settings.
■The seat heaters/seat ventilators can be used when
The engine switch is in IGNITION ON mode.
■Automatic operation of the seat heater during Eco drive mode
If the driving mode select switch is switched to Eco drive mode in cold temperatures,
the seat heater may be automatically operated to assist heating performance.
■Automatic operation during S-FLOW mode
The front seat heater and ventilator or the rear seat heater may automatically turn off
when S-FLOW mode is turned on during automatic mode. ( →P. 313)
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 323)
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic*On3 to 1, or off
HiOff3
MidOff2
LoOff1
GS350_OM_OM30F69U_(U).book Page 348 Monday, January 19, 2015 2:53 PM
