Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)
3695-5. Other interior features
5
Interior features

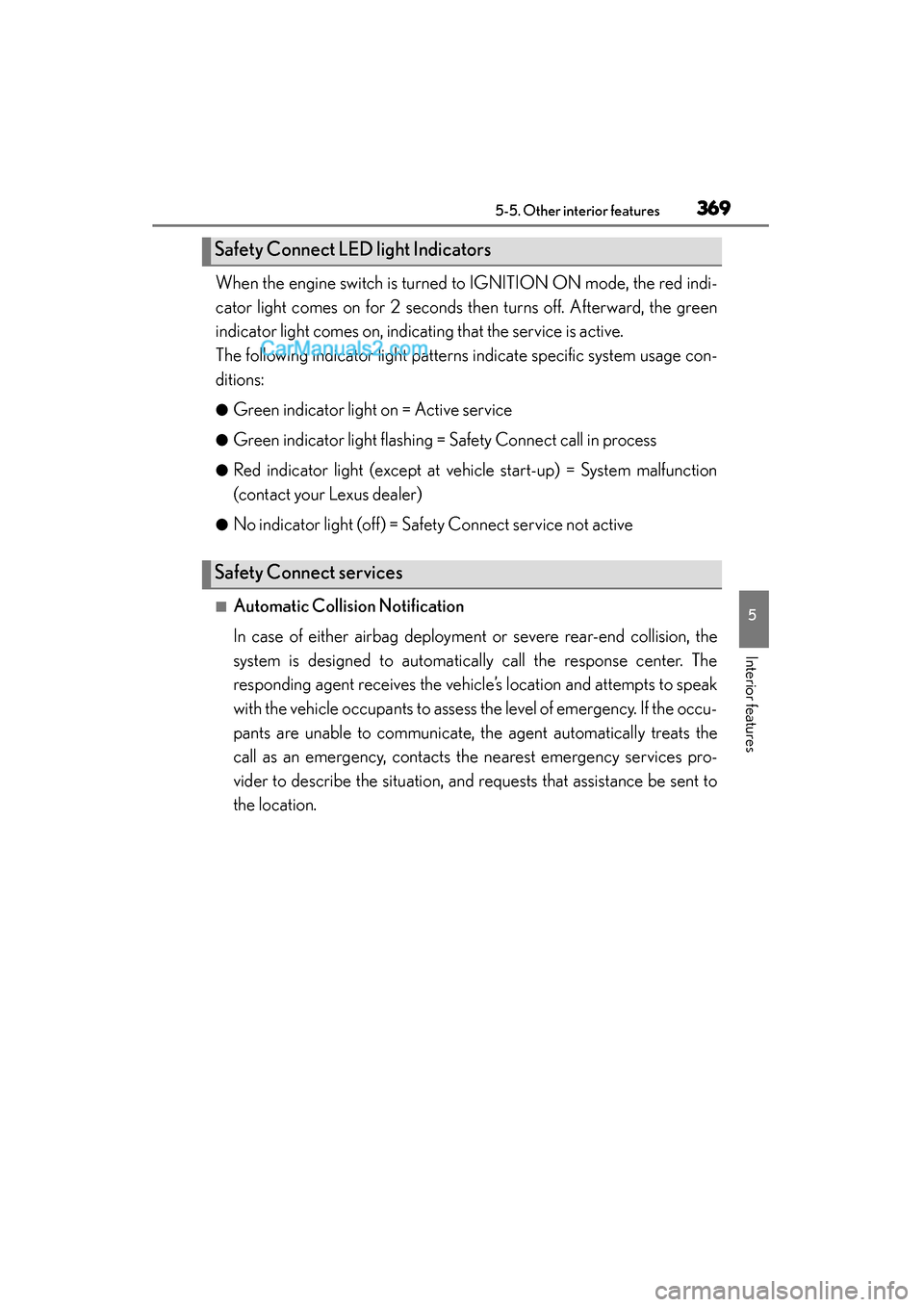

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage con-
ditions:
●Green indicator light on = Active service
●Green indicator light flashing = Safety Connect call in process
●Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
●No indicator light (off) = Safety Connect service not active
■Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the occu-
pants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services pro-
vider to describe the situation, and requests that assistance be sent to
the location.
Safety Connect LED light Indicators
Safety Connect services
GS350_OM_OM30F69U_(U).book Page 369 Monday, January 19, 2015 2:53 PM

370
GS350_OM_OM30F69U_(U)
5-5. Other interior features

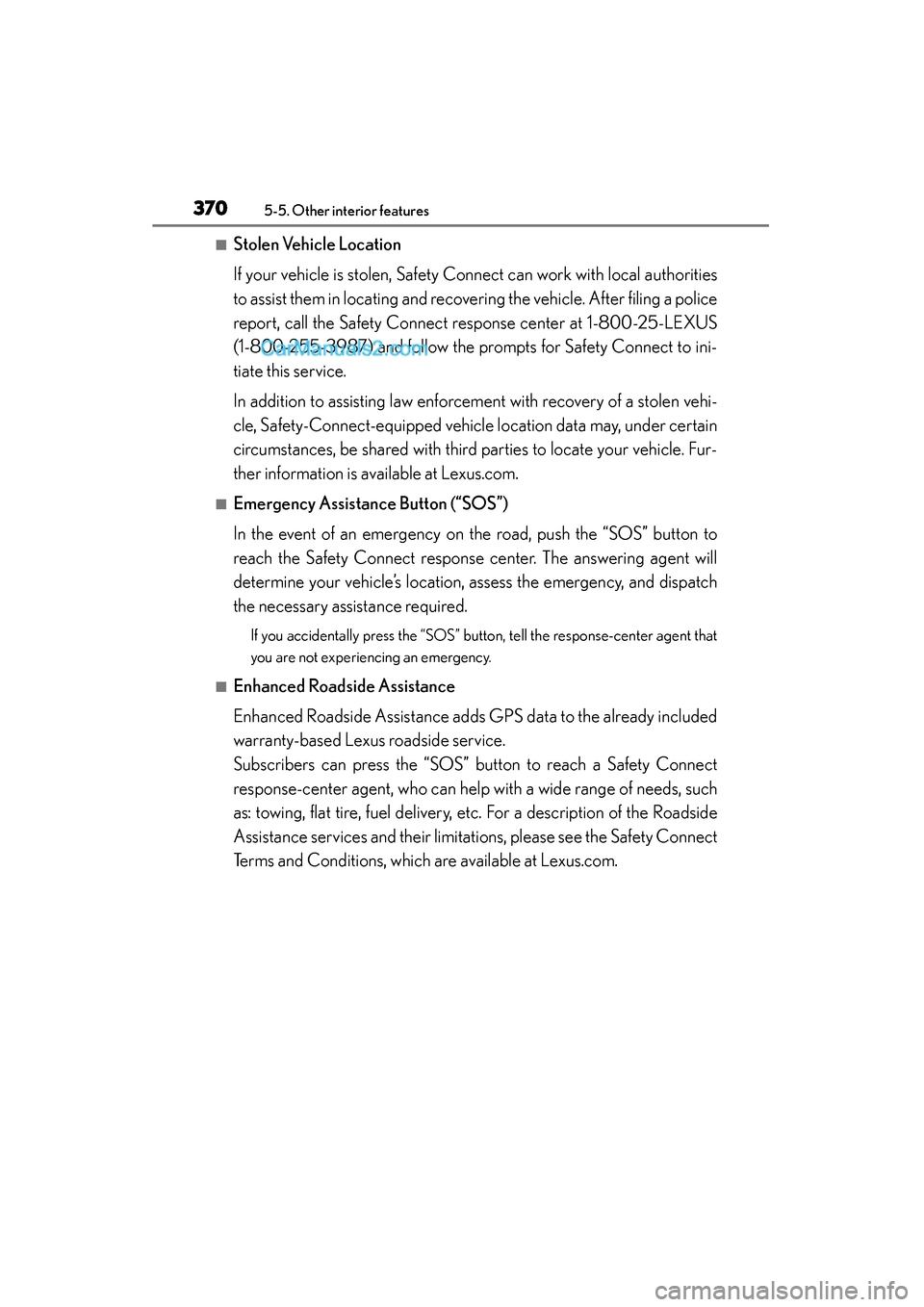

■Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities
to assist them in locating and recovering the vehicle. After filing a police
report, call the Safety Connect response center at 1-800-25-LEXUS
(1-800-255-3987) and follow the prompts for Safety Connect to ini-
tiate this service.
In addition to assisting law enforcement with recovery of a stolen vehi-
cle, Safety-Connect-equipped vehicle location data may, under certain
circumstances, be shared with third parties to locate your vehicle. Fur-
ther information is available at Lexus.com.
■Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent will
determine your vehicle’s location, assess the emergency, and dispatch
the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that
you are not experiencing an emergency.
■Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included
warranty-based Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs, such
as: towing, flat tire, fuel delivery, etc. For a description of the Roadside
Assistance services and their limitations, please see the Safety Connect
Terms and Conditions, which are available at Lexus.com.
GS350_OM_OM30F69U_(U).book Page 370 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
3715-5. Other interior features
5
Interior features

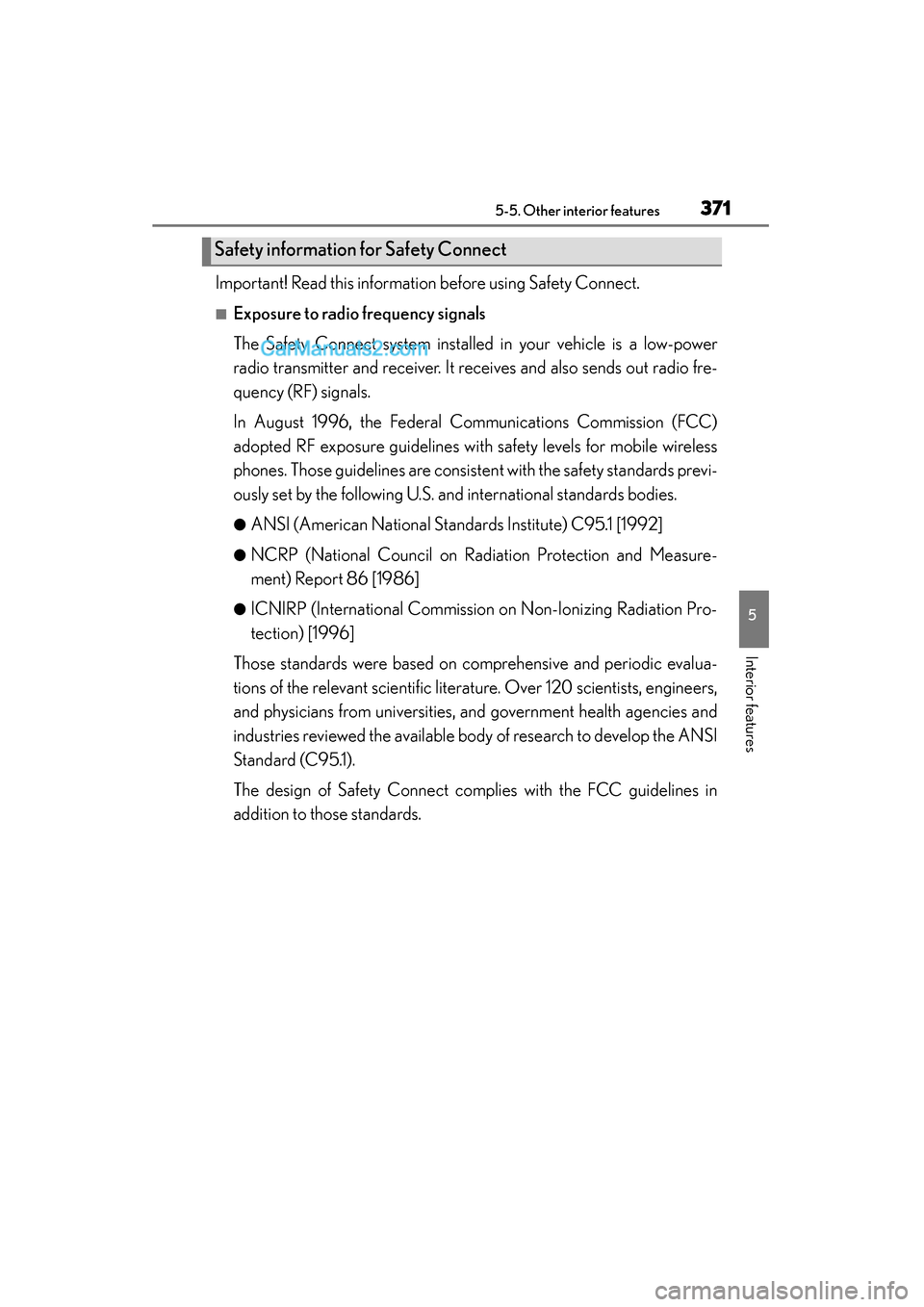

Important! Read this information before using Safety Connect.
■Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio fre-
quency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wireless
phones. Those guidelines are consistent with the safety standards previ-
ously set by the following U.S. and international standards bodies.
●ANSI (American National Standards Institute) C95.1 [1992]
●NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
●ICNIRP (International Commission on Non-Ionizing Radiation Pro-
tection) [1996]
Those standards were based on comprehensive and periodic evalua-
tions of the relevant scientific literature. Over 120 scientists, engineers,
and physicians from universities, and government health agencies and
industries reviewed the available body of research to develop the ANSI
Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
Safety information for Safety Connect
GS350_OM_OM30F69U_(U).book Page 371 Monday, January 19, 2015 2:53 PM

372
GS350_OM_OM30F69U_(U)
5-5. Other interior features

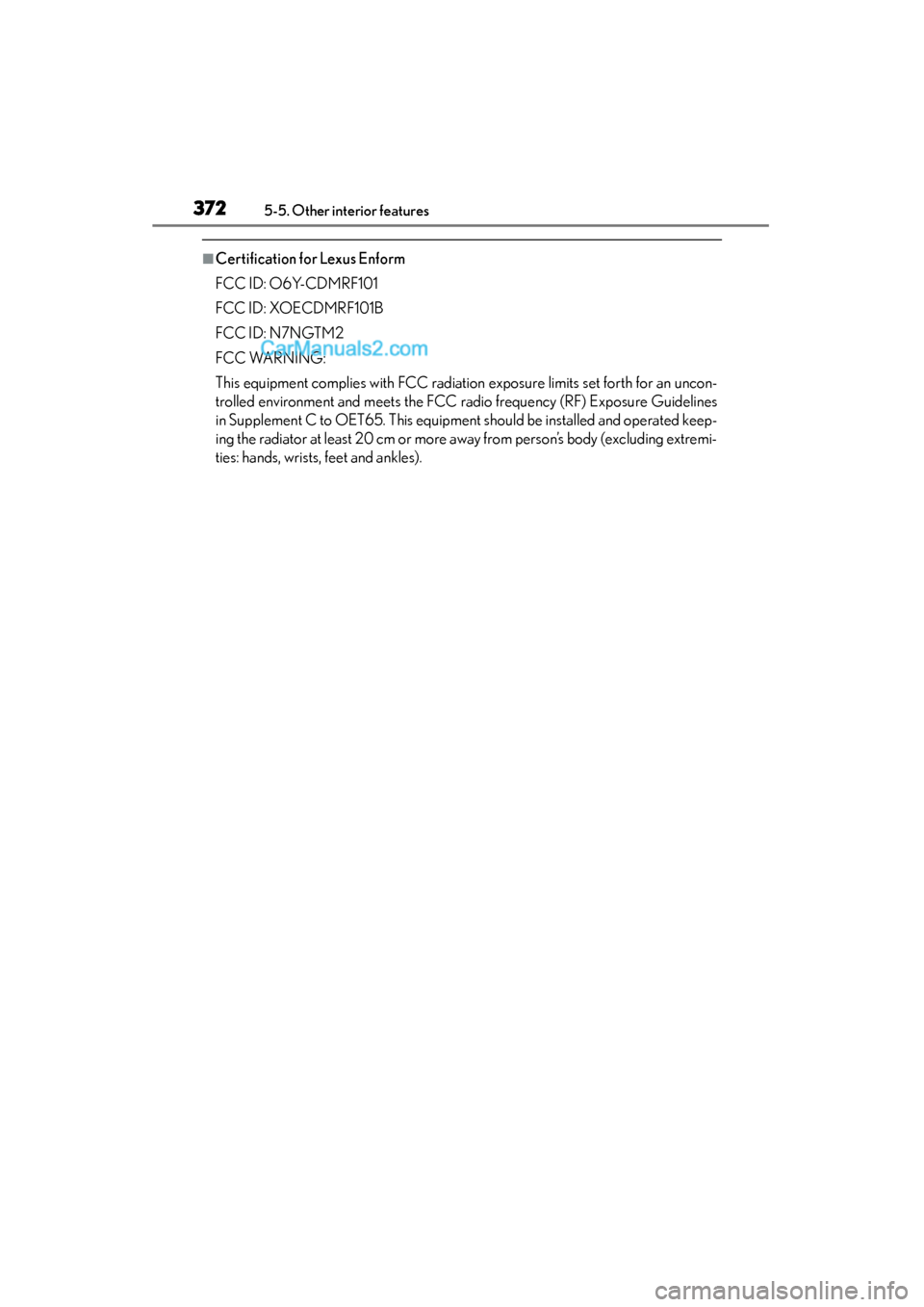

■Certification for Lexus Enform
FCC ID: O6Y-CDMRF101
FCC ID: XOECDMRF101B
FCC ID: N7NGTM2
FCC WARNING:
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment and meets the FCC radio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equipment should be installed and operated keep-
ing the radiator at least 20 cm or more away from person’s body (excluding extremi-
ties: hands, wrists, feet and ankles).
GS350_OM_OM30F69U_(U).book Page 372 Monday, January 19, 2015 2:53 PM

373
GS350_OM_OM30F69U_(U)

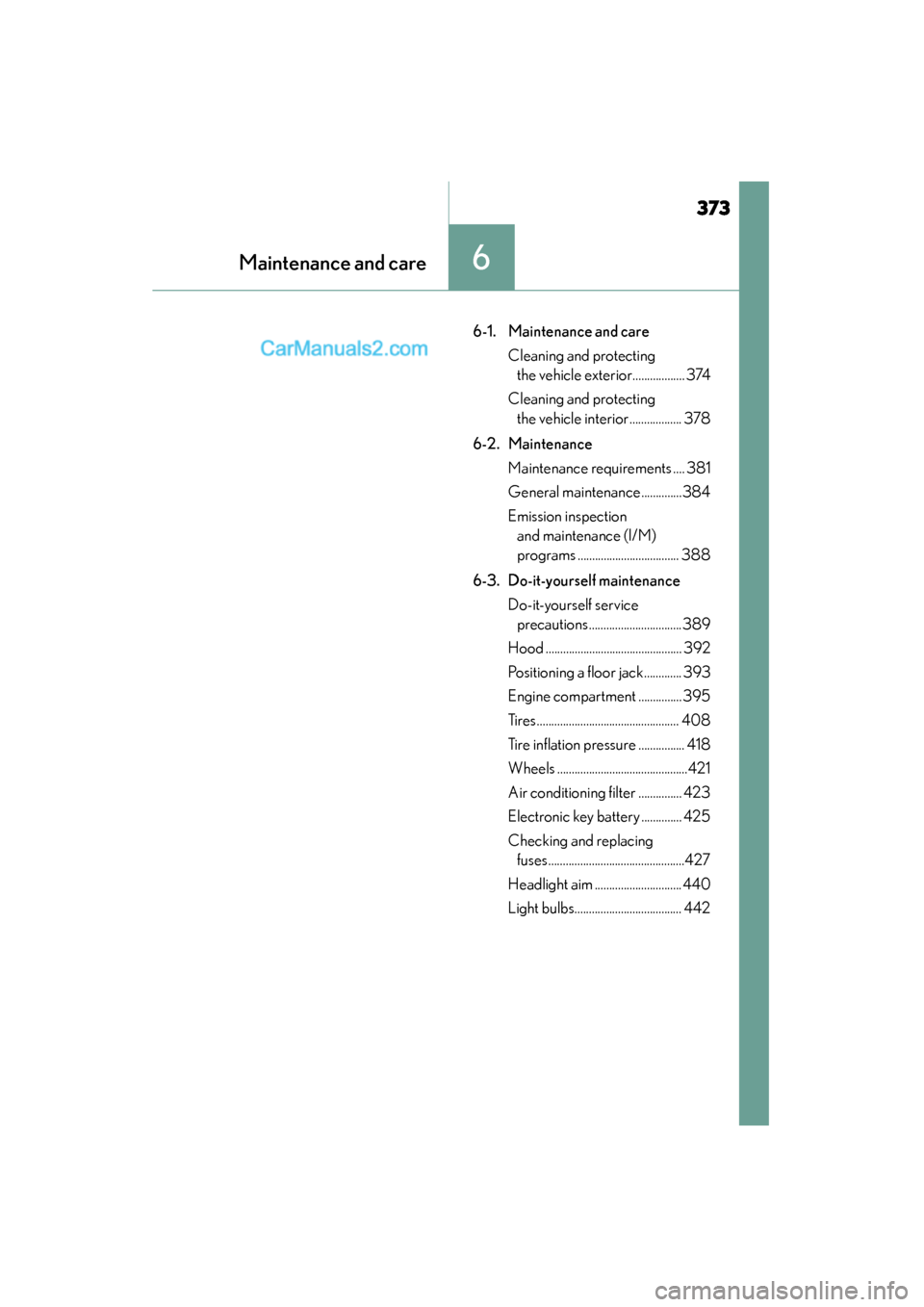

Maintenance and care6
6-1. Maintenance and care Cleaning and protecting the vehicle exterior.................. 374
Cleaning and protecting the vehicle interior .................. 378
6-2. Maintenance Maintenance requirements .... 381
General maintenance ..............384
Emission inspection and maintenance (I/M)
programs ................................... 388
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................389
Hood ............................................... 392
Positioning a floor jack ............. 393
Engine compartment ............... 395
Tires................................................. 408
Tire inflation pressure ................ 418
Wheels .............................................421
Air conditioning filter ............... 423
Electronic key battery .............. 425
Checking and replacing fuses...............................................427
Headlight aim .............................. 440
Light bulbs..................................... 442
GS350_OM_OM30F69U_(U).book Page 373 Monday, January 19, 2015 2:53 PM

374
GS350_OM_OM30F69U_(U)
6-1. Maintenance and care

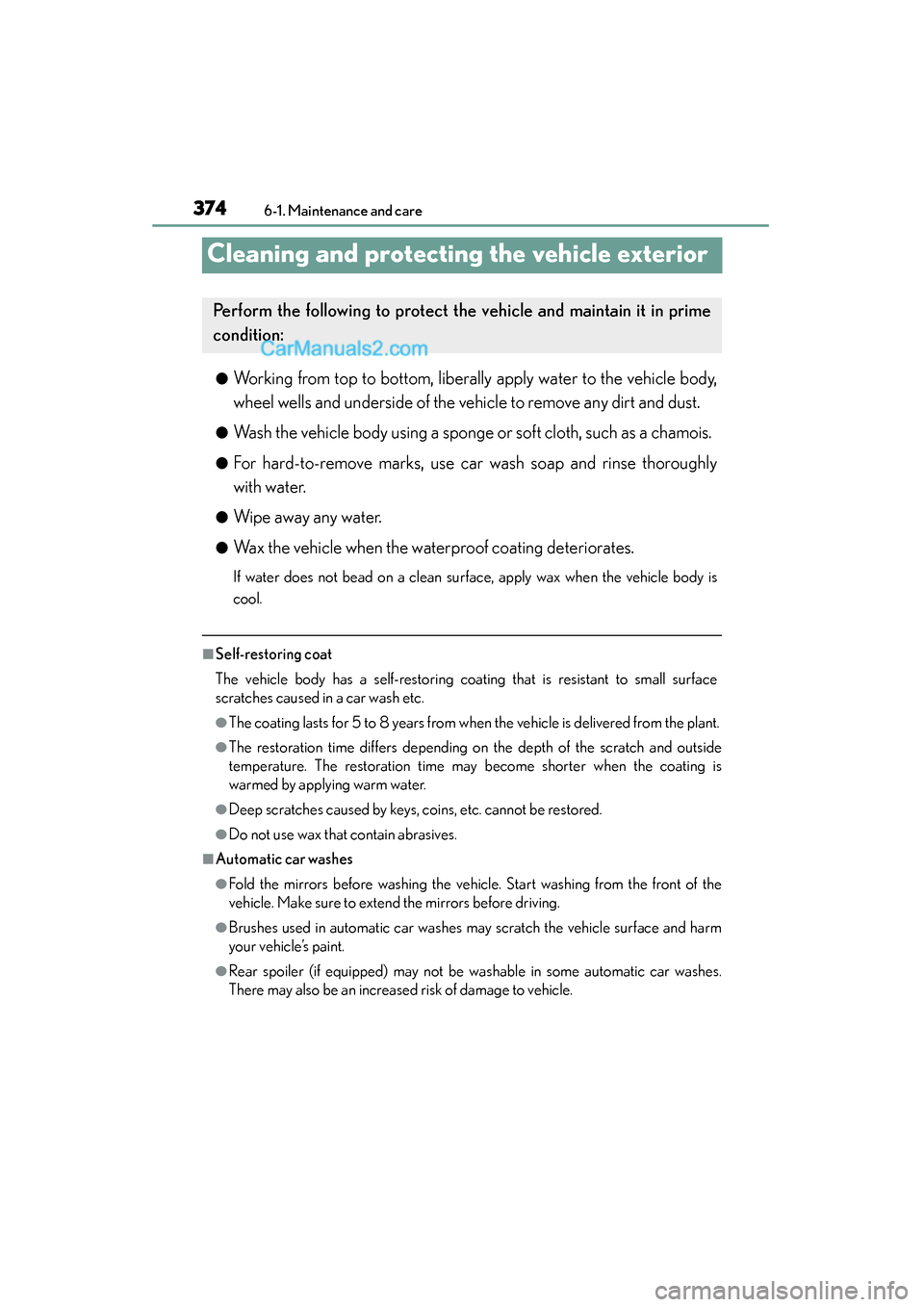

Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle body,
wheel wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is
cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface
scratches caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside
temperature. The restoration time may become shorter when the coating is
warmed by applying warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm
your vehicle’s paint.
●Rear spoiler (if equipped) may not be washable in some automatic car washes.
There may also be an increased risk of damage to vehicle.
Perform the following to protect the vehicle and maintain it in prime
condition:
GS350_OM_OM30F69U_(U).book Page 374 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
3756-1. Maintenance and care
6
Maintenance and care

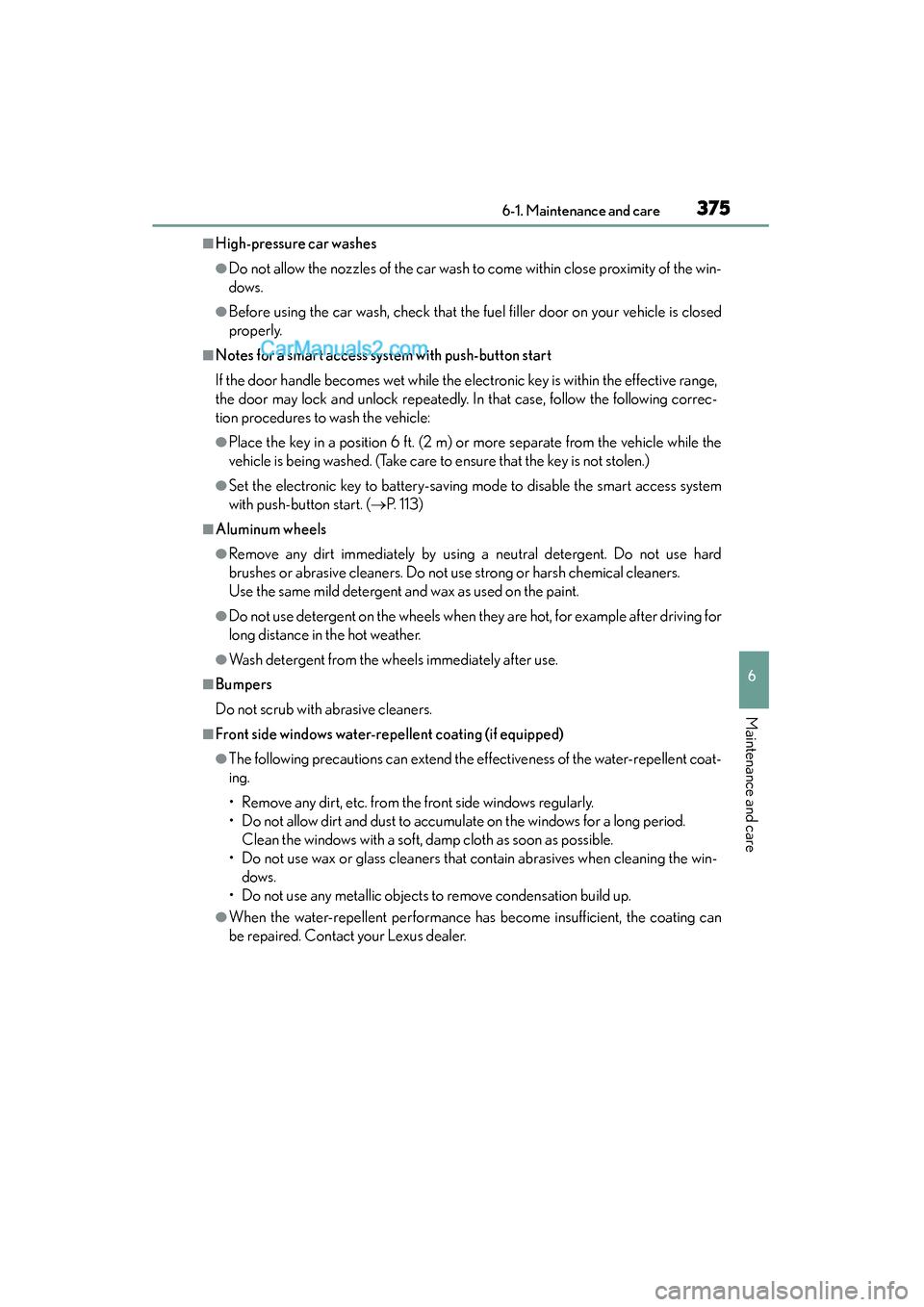

■High-pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the win-
dows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed
properly.
■Notes for a smart access system with push-button start
If the door handle becomes wet while the electronic key is within the effective range,
the door may lock and unlock repeatedly. In that case, follow the following correc-
tion procedures to wash the vehicle:
●Place the key in a position 6 ft. (2 m) or more separate from the vehicle while the
vehicle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart access system
with push-button start. (→P. 1 1 3 )
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when th ey are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating (if equipped)
●The following precautions can extend the effectiveness of the water-repellent coat-
ing.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period. Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the win- dows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can
be repaired. Contact your Lexus dealer.
GS350_OM_OM30F69U_(U).book Page 375 Monday, January 19, 2015 2:53 PM

376
GS350_OM_OM30F69U_(U)
6-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become quite
hot.
When washing the vehicle, be careful not to touch the pipes and diffusers until they
have cooled sufficiently, as touching hot exhaust pipes and rear bumper diffusers
can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus dealer.
Turn off AUTO mode of the wiper to prevent
the wiper from operating. ( →P. 206)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
GS350_OM_OM30F69U_(U).book Page 376 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
3776-1. Maintenance and care
6
Maintenance and care

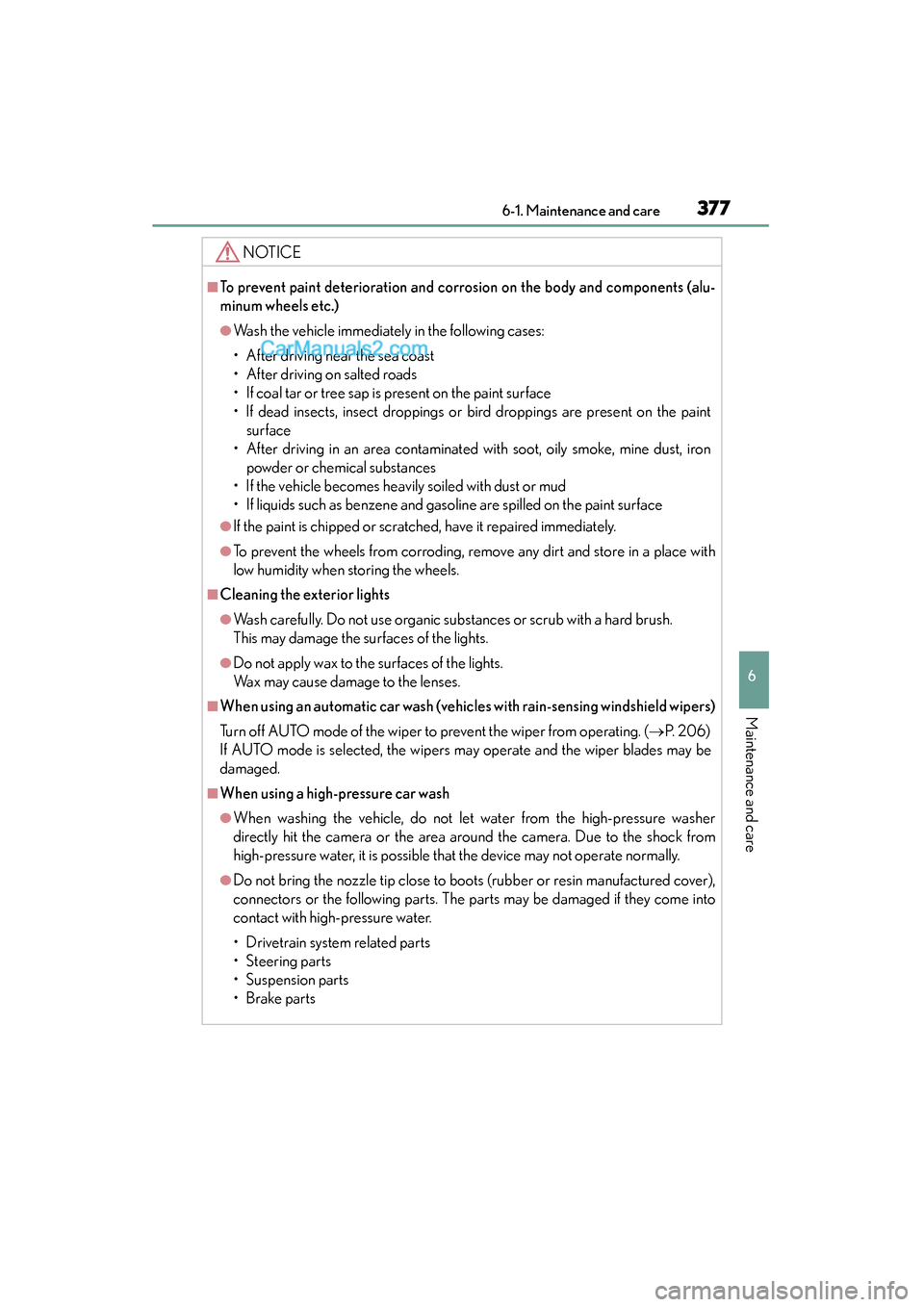

NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paintsurface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicles with rain-sensing windshield wipers)
Turn off AUTO mode of the wiper to prevent the wiper from operating. ( →P. 206)
If AUTO mode is selected, the wipers may operate and the wiper blades may be
damaged.
■When using a high-pressure car wash
●When washing the vehicle, do not let water from the high-pressure washer
directly hit the camera or the area around the camera. Due to the shock from
high-pressure water, it is possible that the device may not operate normally.
●Do not bring the nozzle tip close to boots (rubber or resin manufactured cover),
connectors or the following parts. The parts may be damaged if they come into
contact with high-pressure water.
• Drivetrain system related parts
•Steering parts
• Suspension parts
•Brake parts
GS350_OM_OM30F69U_(U).book Page 377 Monday, January 19, 2015 2:53 PM

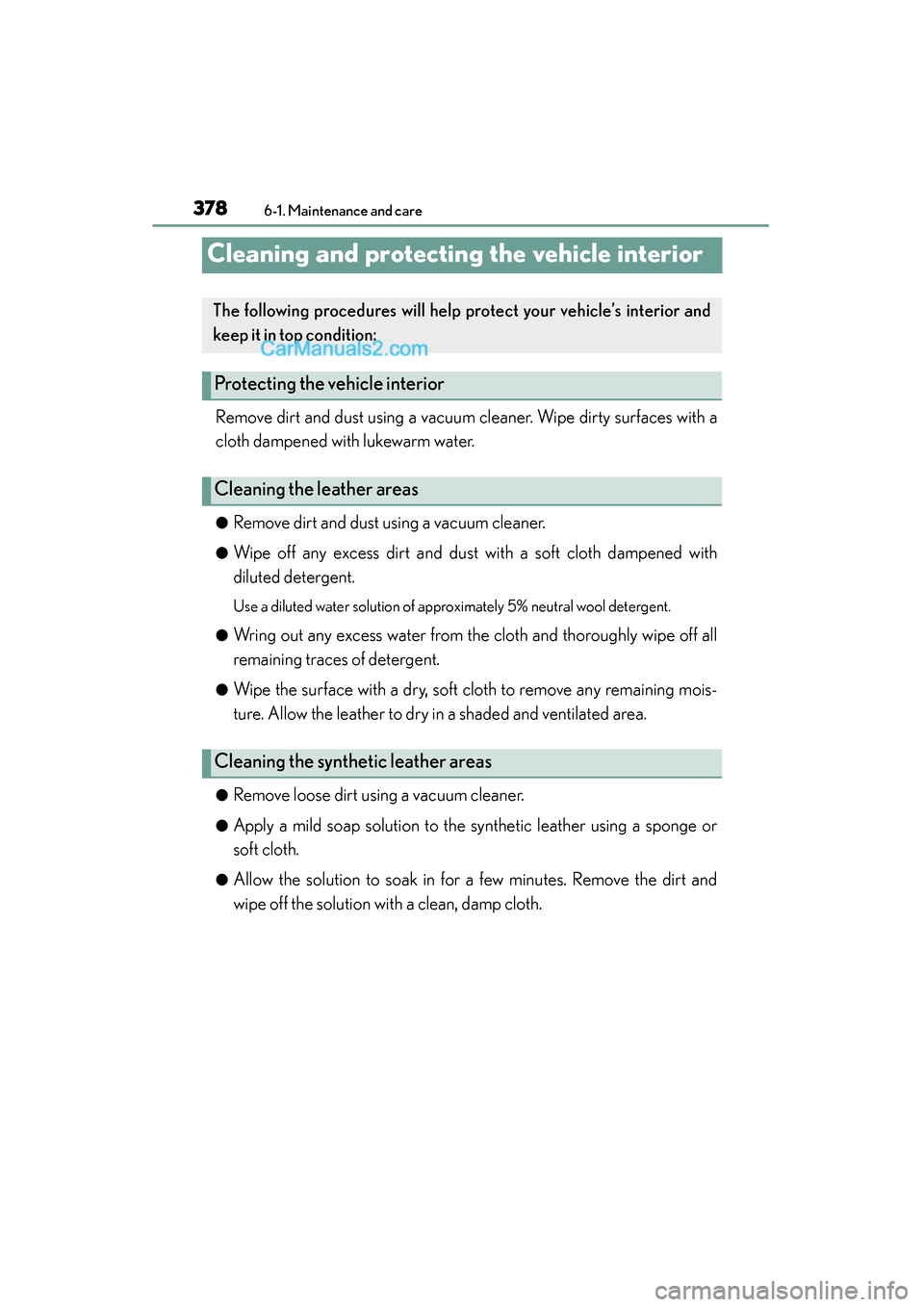

378
GS350_OM_OM30F69U_(U)
6-1. Maintenance and care
Cleaning and protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a
cloth dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●
Wring out any excess water from the cloth and thoroughly wipe off all
remaining traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining mois-
ture. Allow the leather to dry in a shaded and ventilated area.
●Remove loose dirt using a vacuum cleaner.
●Apply a mild soap solution to the synthetic leather using a sponge or
soft cloth.
●Allow the solution to soak in for a few minutes. Remove the dirt and
wipe off the solution with a clean, damp cloth.
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
GS350_OM_OM30F69U_(U).book Page 378 Monday, January 19, 2015 2:53 PM
