Page 391 of 615

389
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

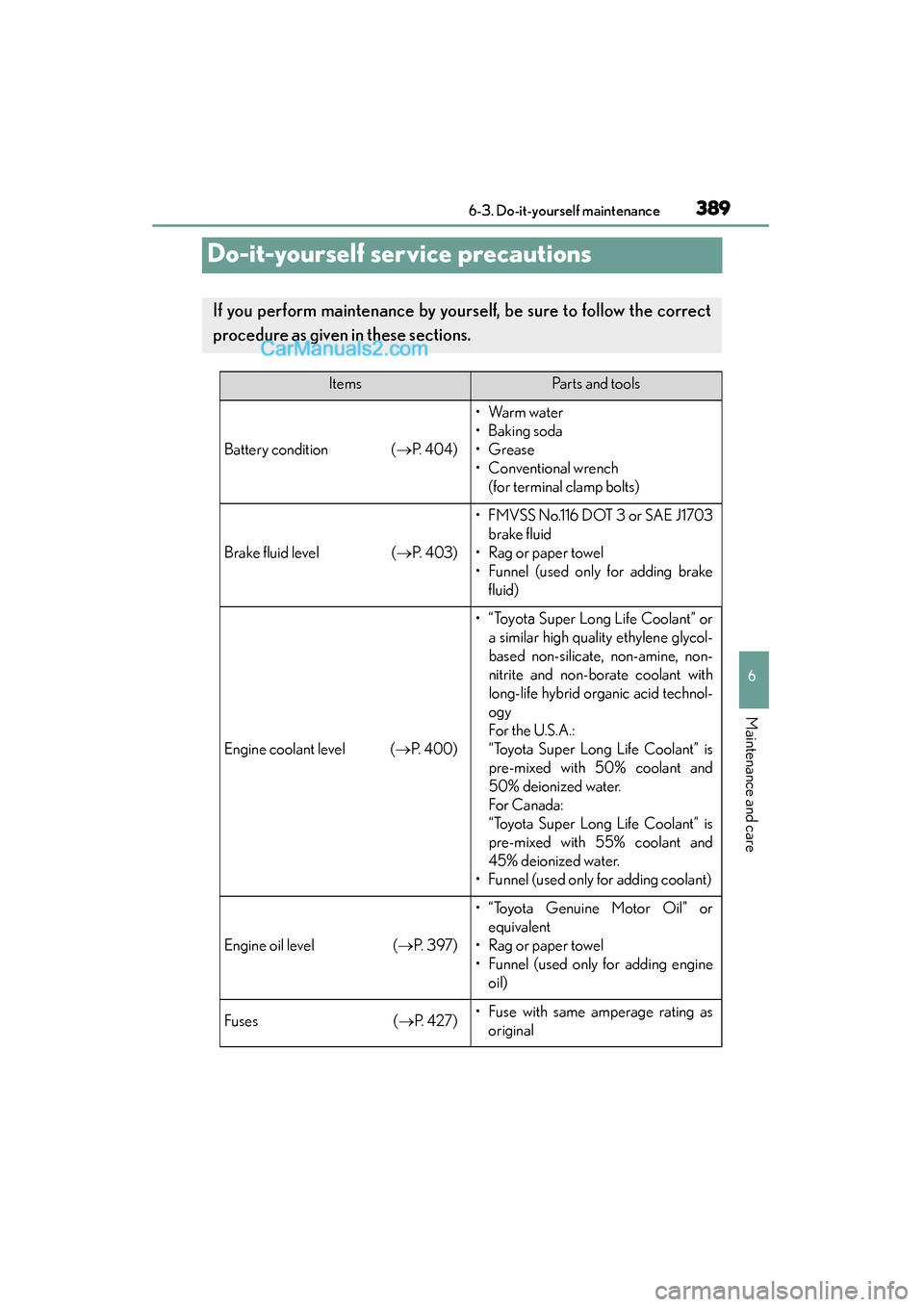

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsPa r t s a n d t o o l s
Battery condition ( →P. 404)
•Warm water
•Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 4 0 3 )
•FMVSS No.116 DOT 3 or SAE J1703
brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( →P. 4 0 0 )
•“To y o t a Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
For the U.S.A.:
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is
pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( →P. 3 9 7 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (→ P. 4 2 7 )• Fuse with same amperage rating as
original
GS350_OM_OM30F69U_(U).book Page 389 Monday, January 19, 2015 2:53 PM
Page 392 of 615

390
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

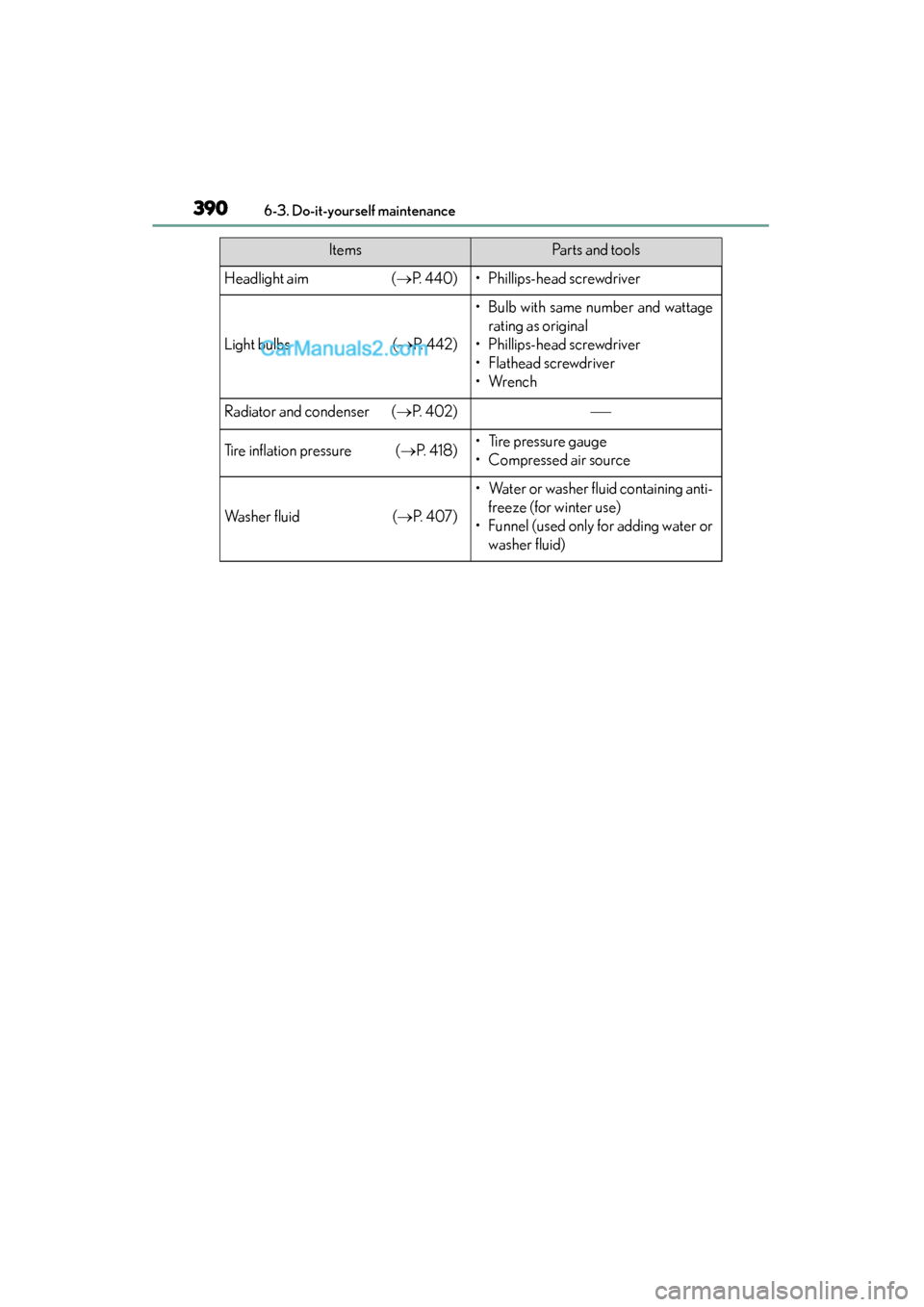

Headlight aim(→ P. 440)• Phillips-head screwdriver
Light bulbs (→ P. 4 4 2 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser ( →P. 4 0 2 )
Tire inflation pressure ( →P. 4 1 8 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d (→ P. 4 0 7 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s
GS350_OM_OM30F69U_(U).book Page 390 Monday, January 19, 2015 2:53 PM
Page 393 of 615

GS350_OM_OM30F69U_(U)
3916-3. Do-it-yourself maintenance
6
Maintenance and care

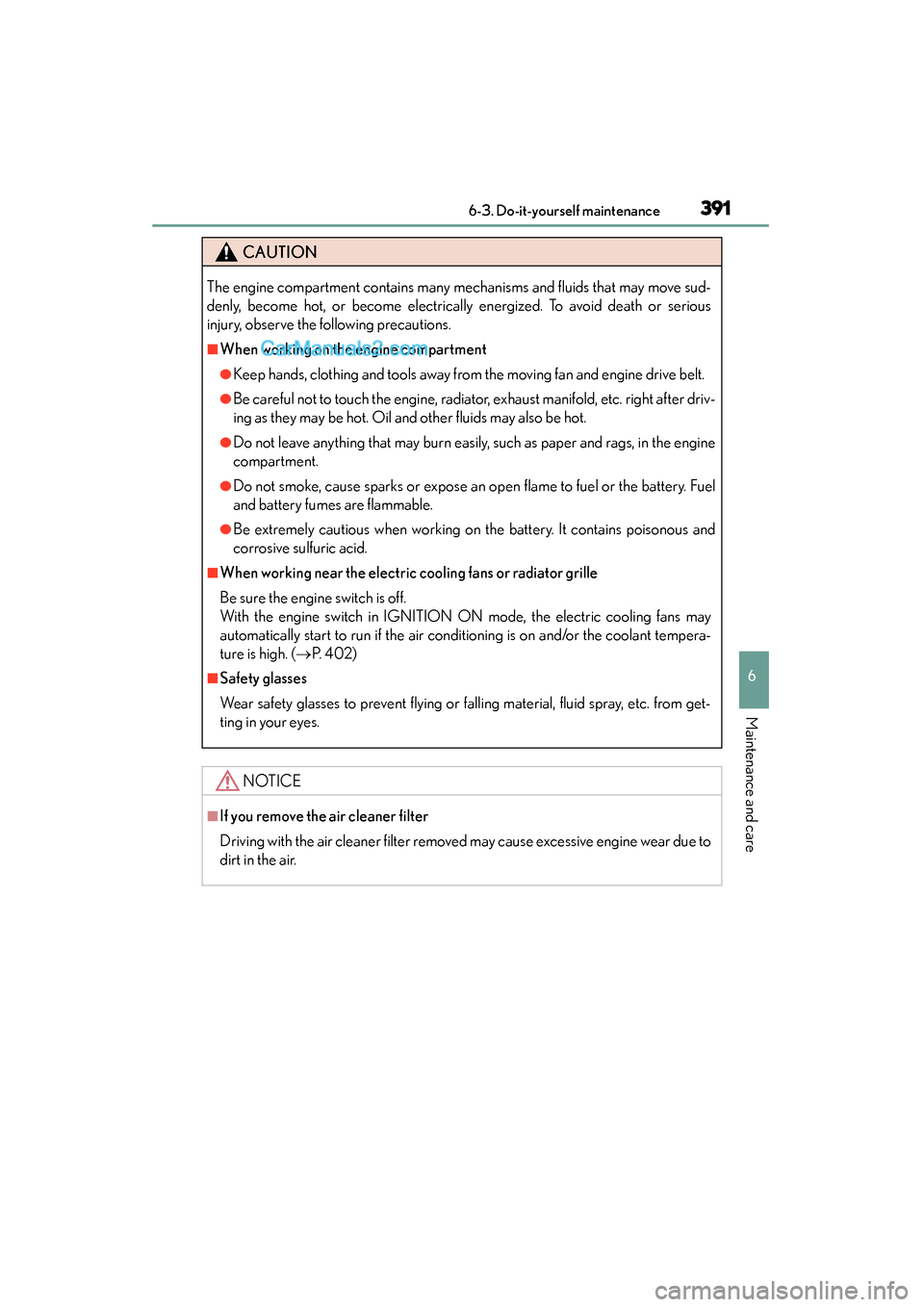

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (→P. 4 0 2 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
GS350_OM_OM30F69U_(U).book Page 391 Monday, January 19, 2015 2:53 PM
Page 394 of 615

392
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

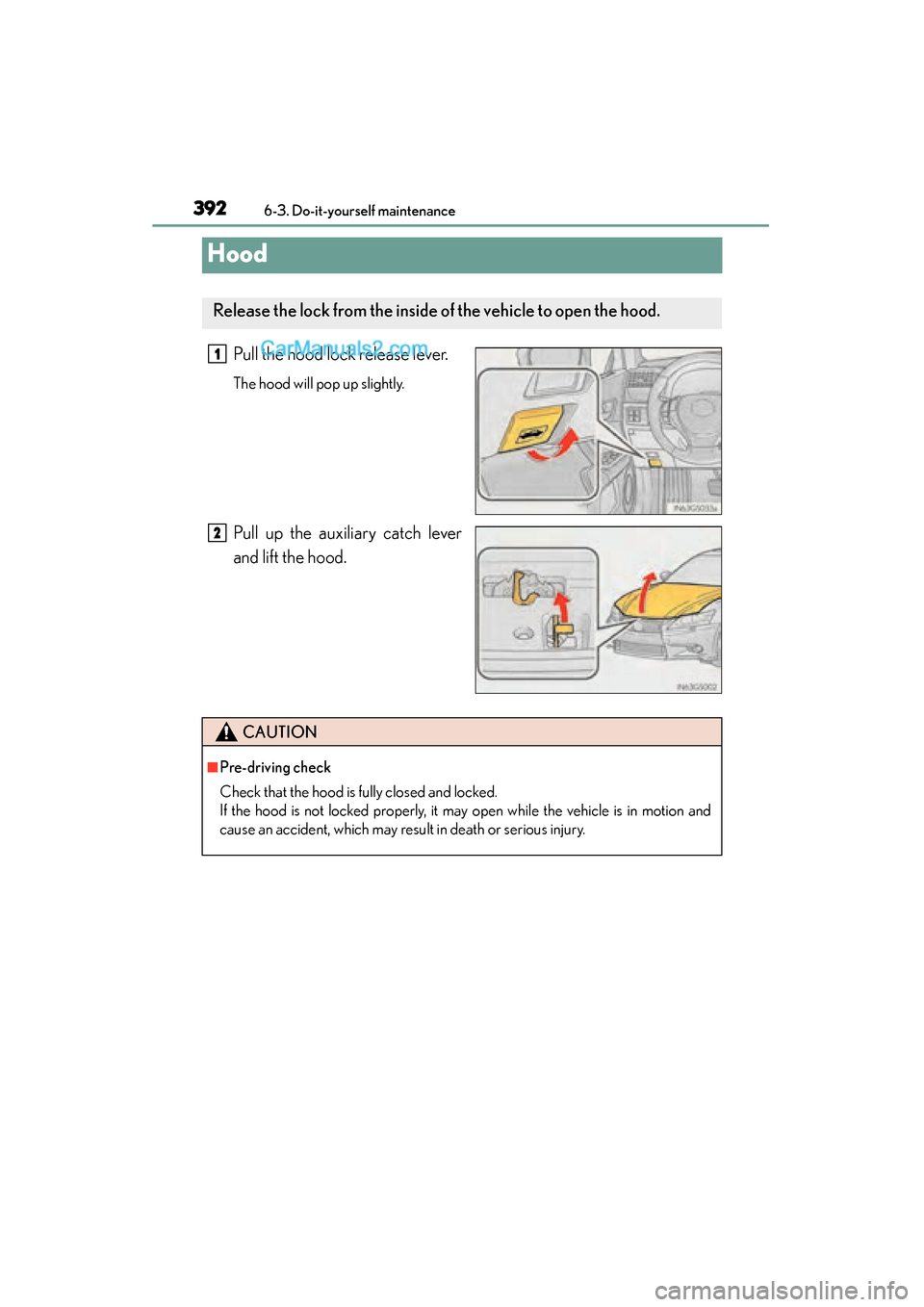

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
