Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)
4196-3. Do-it-yourself maintenance
6
Maintenance and care

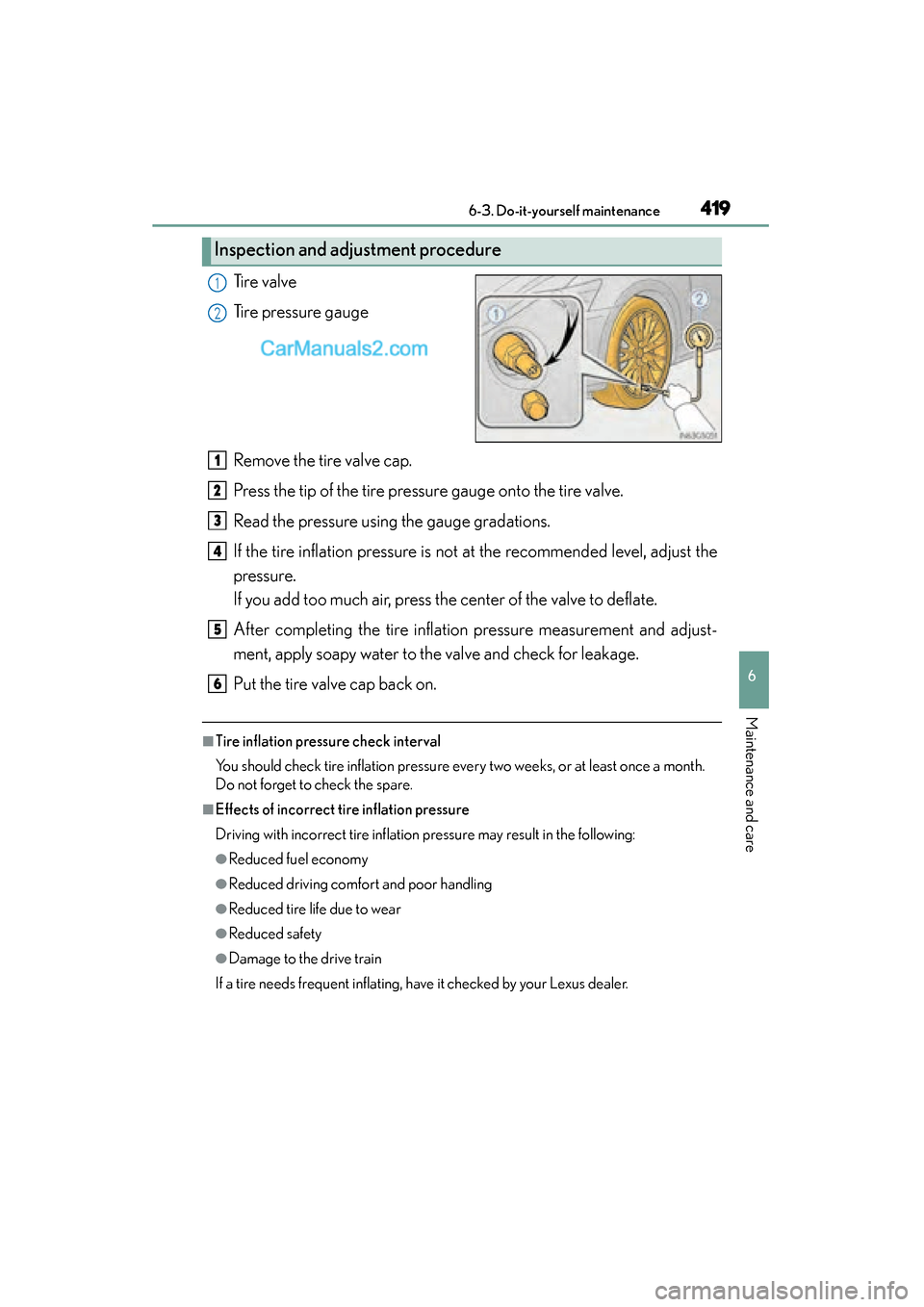

Ti r e v a l v e
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust the
pressure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measurement and adjust-
ment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.
■Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month.
Do not forget to check the spare.
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.
Inspection and adjustment procedure
1
2
1
2
3
4
5
6
GS350_OM_OM30F69U_(U).book Page 419 Monday, January 19, 2015 2:53 PM

420
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

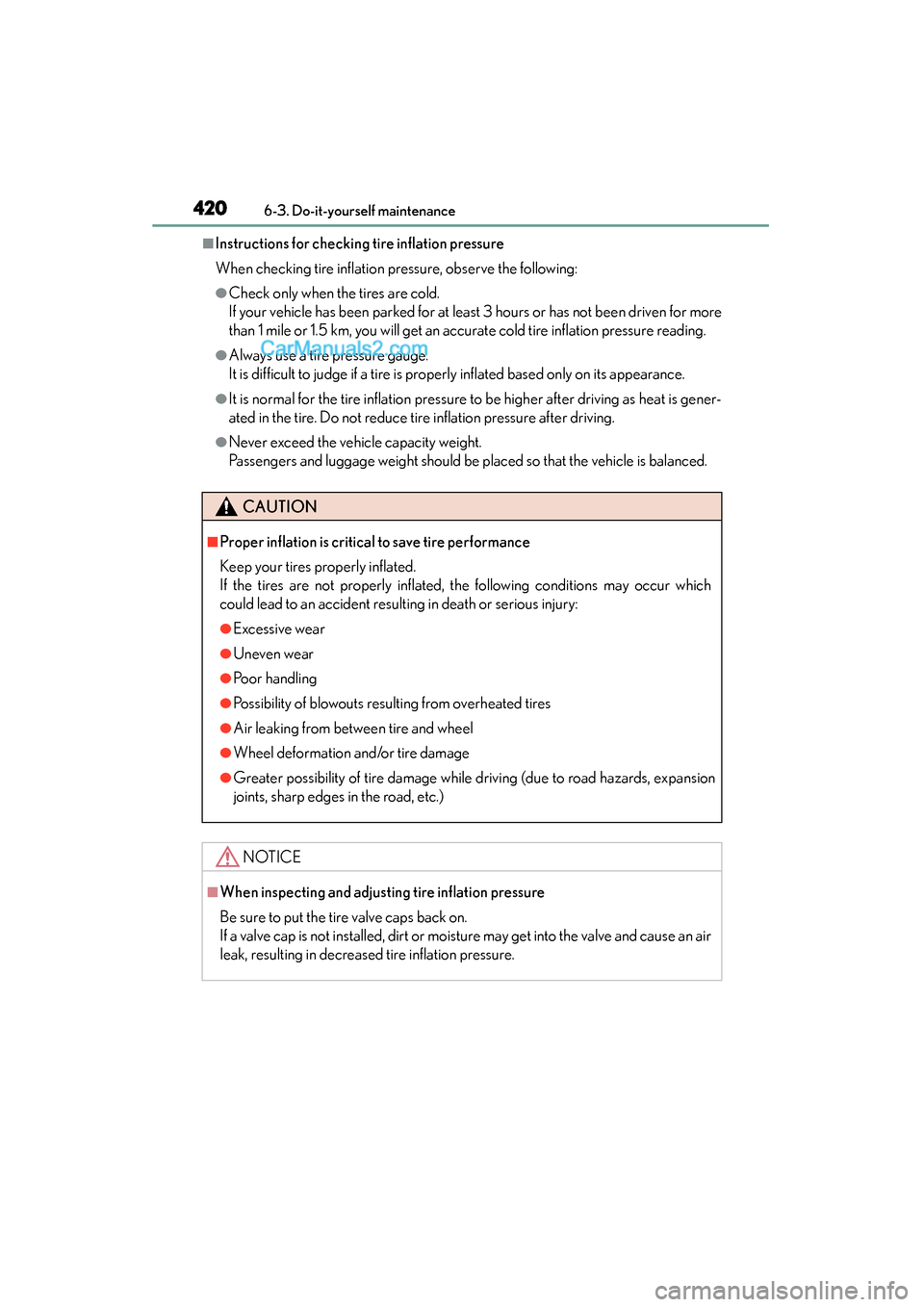

■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more
than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving as heat is gener-
ated in the tire. Do not reduce tire inflation pressure after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.
CAUTION
■Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which
could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire damage
●Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges in the road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and cause an air
leak, resulting in decreased tire inflation pressure.
GS350_OM_OM30F69U_(U).book Page 420 Monday, January 19, 2015 2:53 PM

421
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

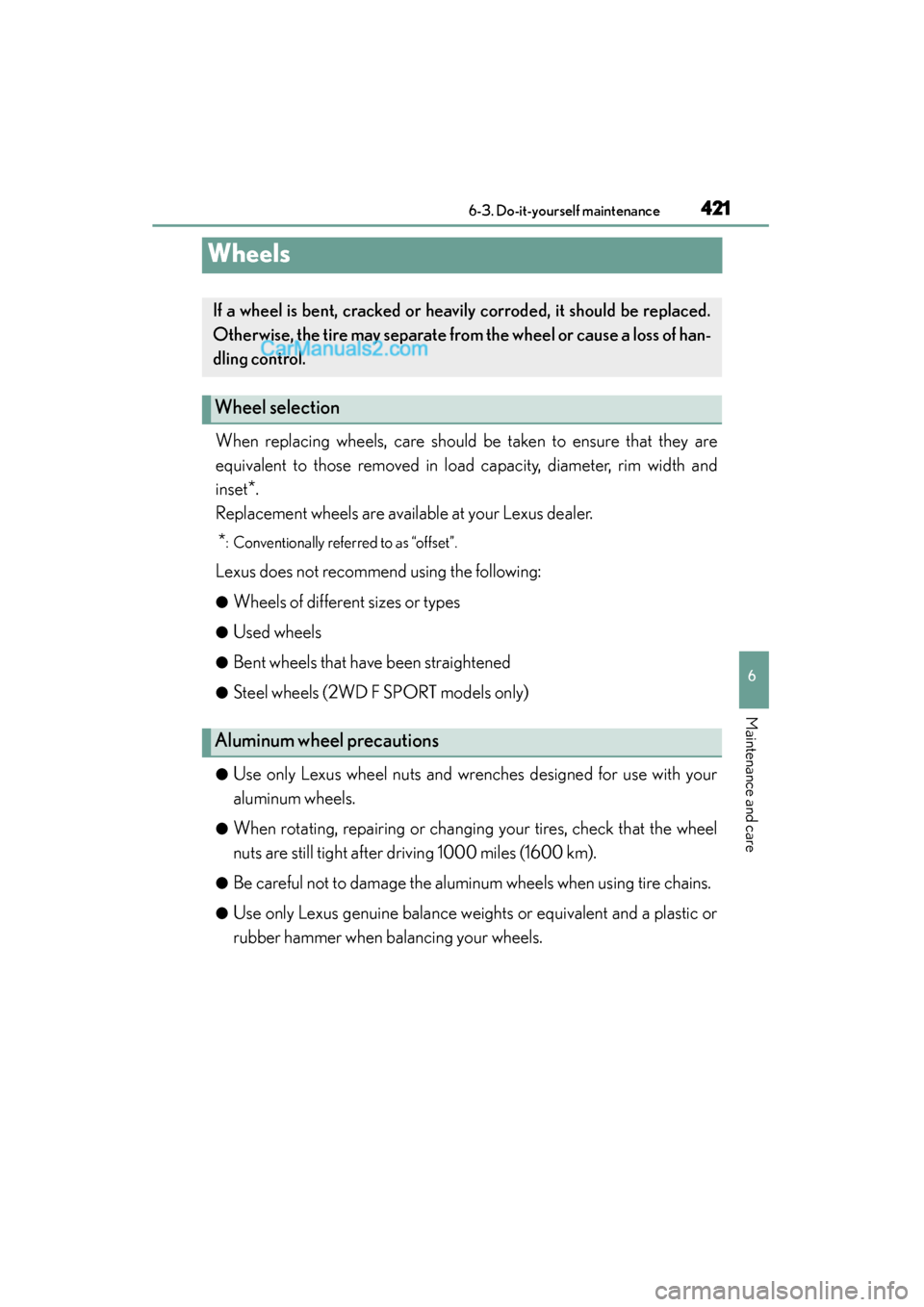

Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at your Lexus dealer.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Steel wheels (2WD F SPORT models only)
●Use only Lexus wheel nuts and wrenches designed for use with your
aluminum wheels.
●When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1000 miles (1600 km).
●Be careful not to damage the aluminum wheels when using tire chains.
●Use only Lexus genuine balance weights or equivalent and a plastic or
rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
Wheel selection
Aluminum wheel precautions
GS350_OM_OM30F69U_(U).book Page 421 Monday, January 19, 2015 2:53 PM

422
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

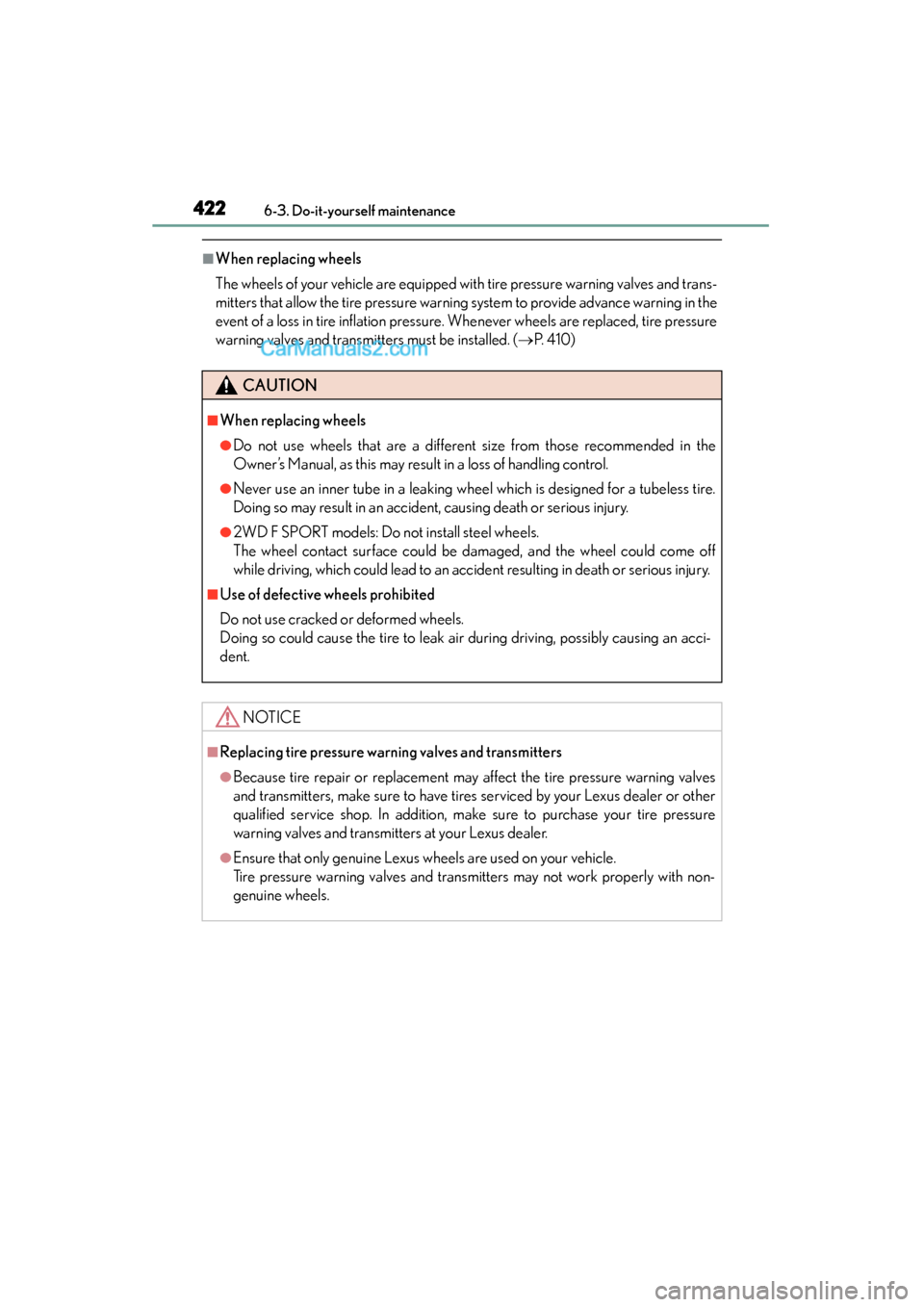

■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advance warning in the
event of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure
warning valves and transmitters must be installed. (→P. 4 1 0 )
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
●2WD F SPORT models: Do not install steel wheels.
The wheel contact surface could be damaged, and the wheel could come off
while driving, which could lead to an accident resulting in death or serious injury.
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an acci-
dent.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.
GS350_OM_OM30F69U_(U).book Page 422 Monday, January 19, 2015 2:53 PM

423
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

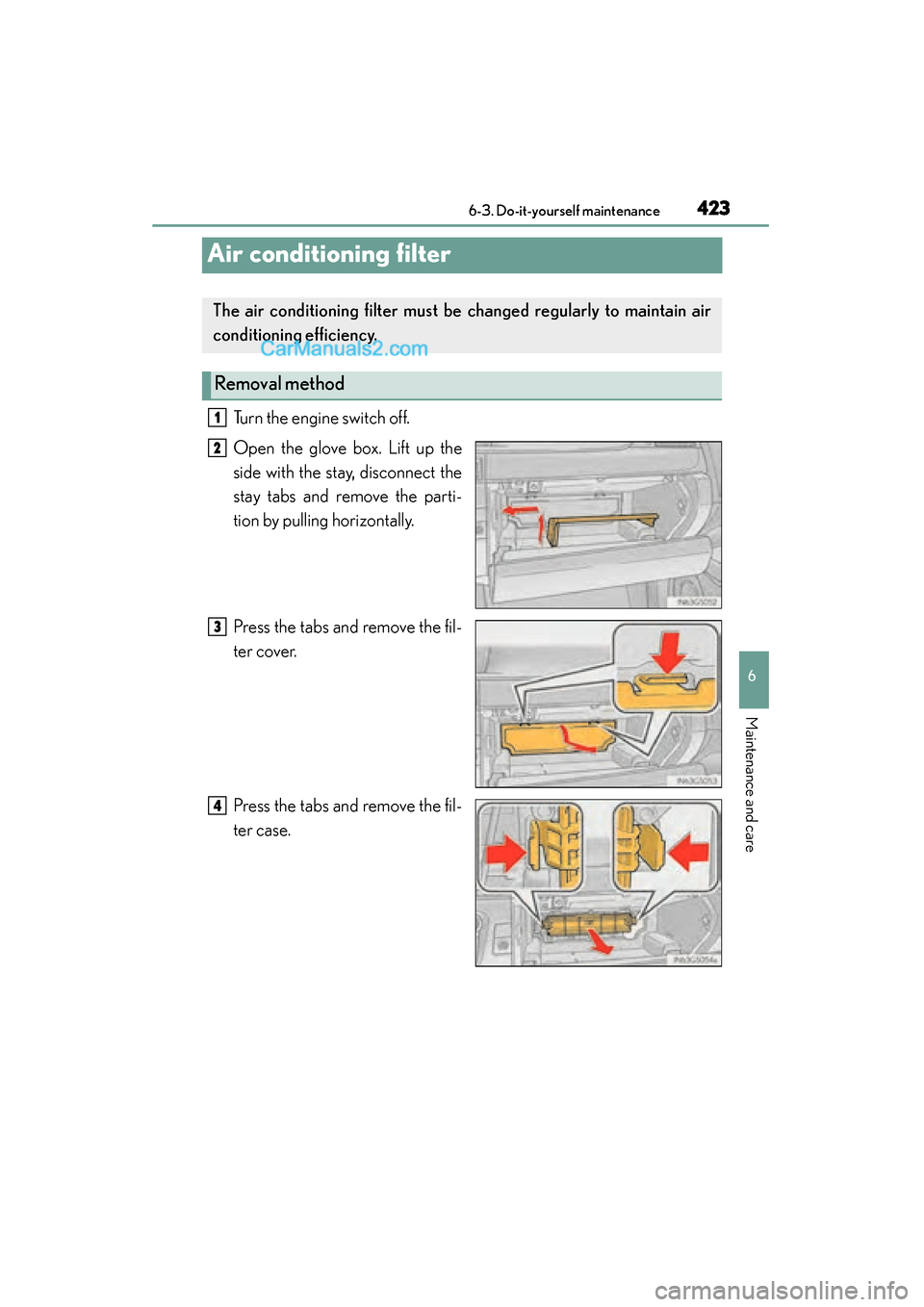

Air conditioning filter
Turn the engine switch off.
Open the glove box. Lift up the
side with the stay, disconnect the
stay tabs and remove the parti-
tion by pulling horizontally.
Press the tabs and remove the fil-
ter cover.
Press the tabs and remove the fil-
ter case.
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Removal method
1
2
3
4
GS350_OM_OM30F69U_(U).book Page 423 Monday, January 19, 2015 2:53 PM

424
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

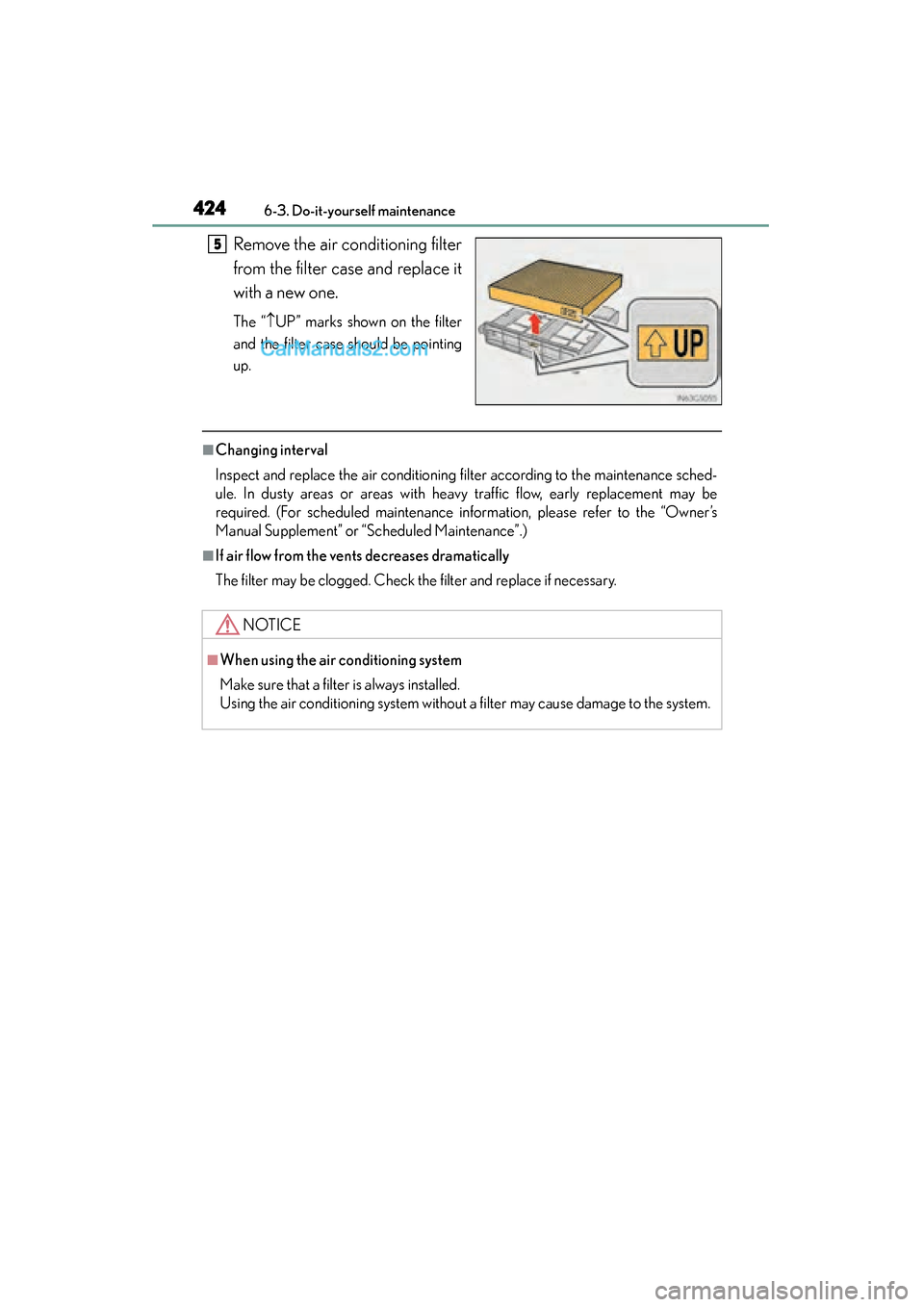

Remove the air conditioning filter
from the filter case and replace it
with a new one.
The “↑UP” marks shown on the filter
and the filter case should be pointing
up.
■Changing interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner’s
Manual Supplement” or “Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
GS350_OM_OM30F69U_(U).book Page 424 Monday, January 19, 2015 2:53 PM

425
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

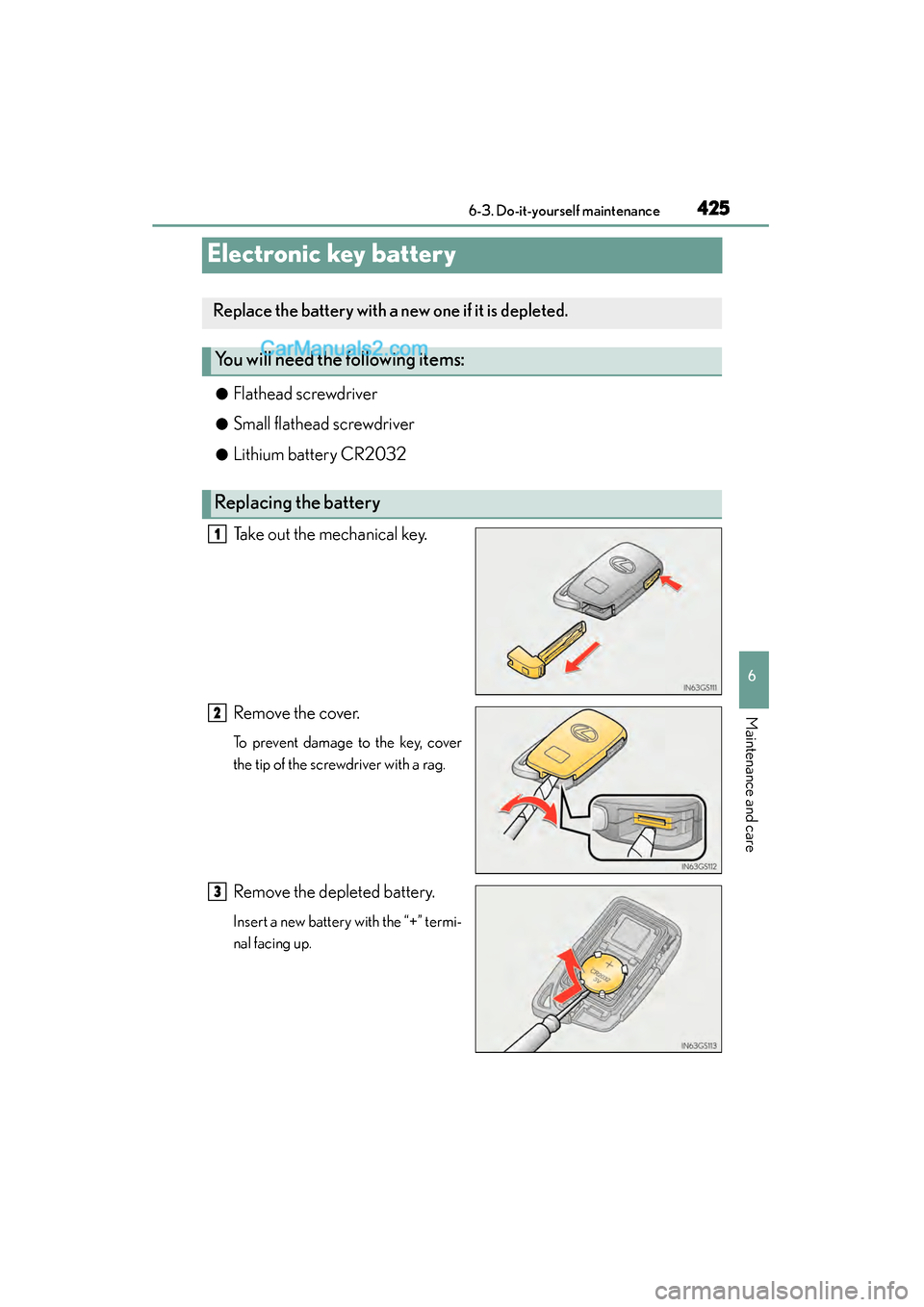

Electronic key battery
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover
the tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3
GS350_OM_OM30F69U_(U).book Page 425 Monday, January 19, 2015 2:53 PM

426
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

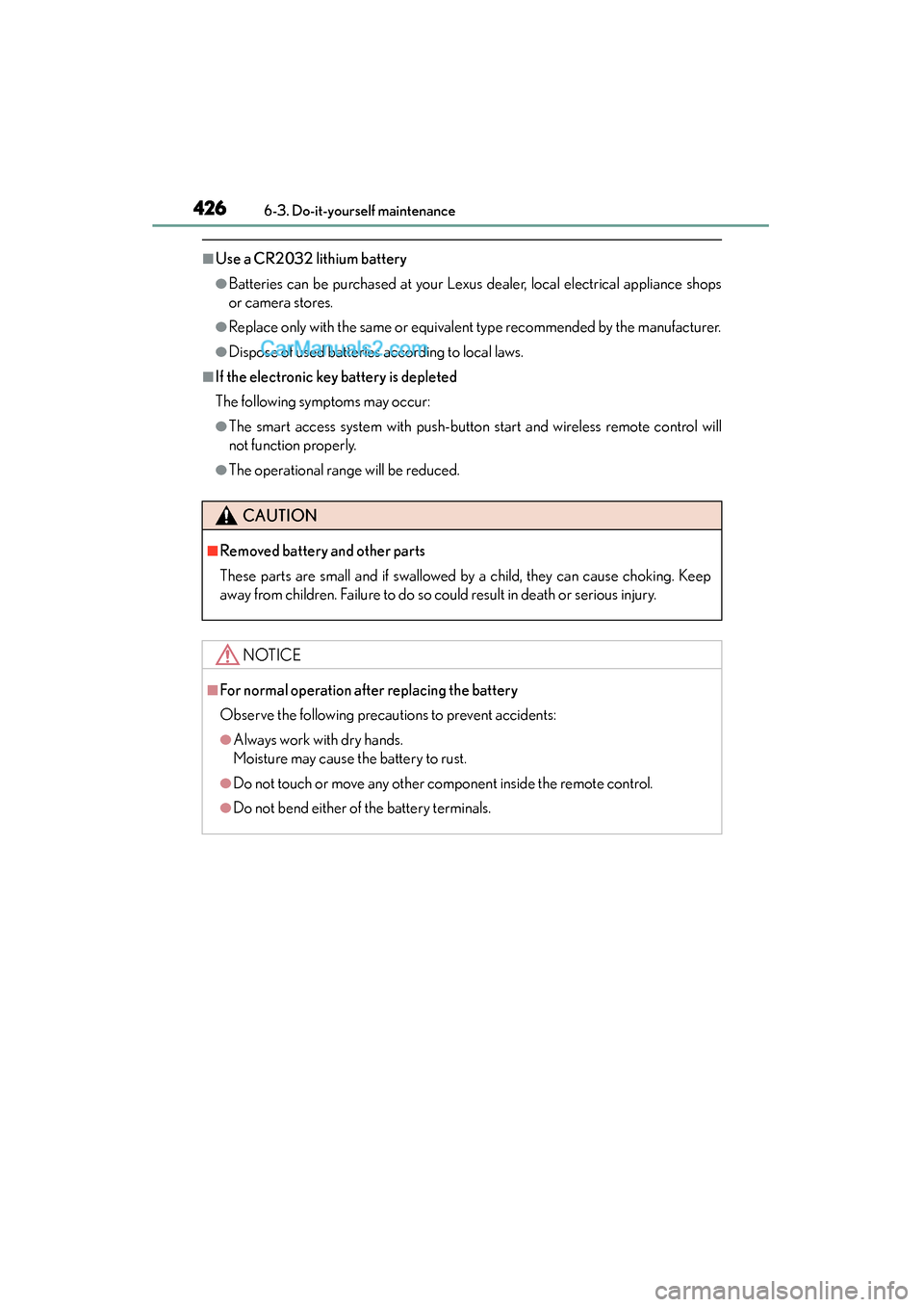

■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops
or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep
away from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
GS350_OM_OM30F69U_(U).book Page 426 Monday, January 19, 2015 2:53 PM

427
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

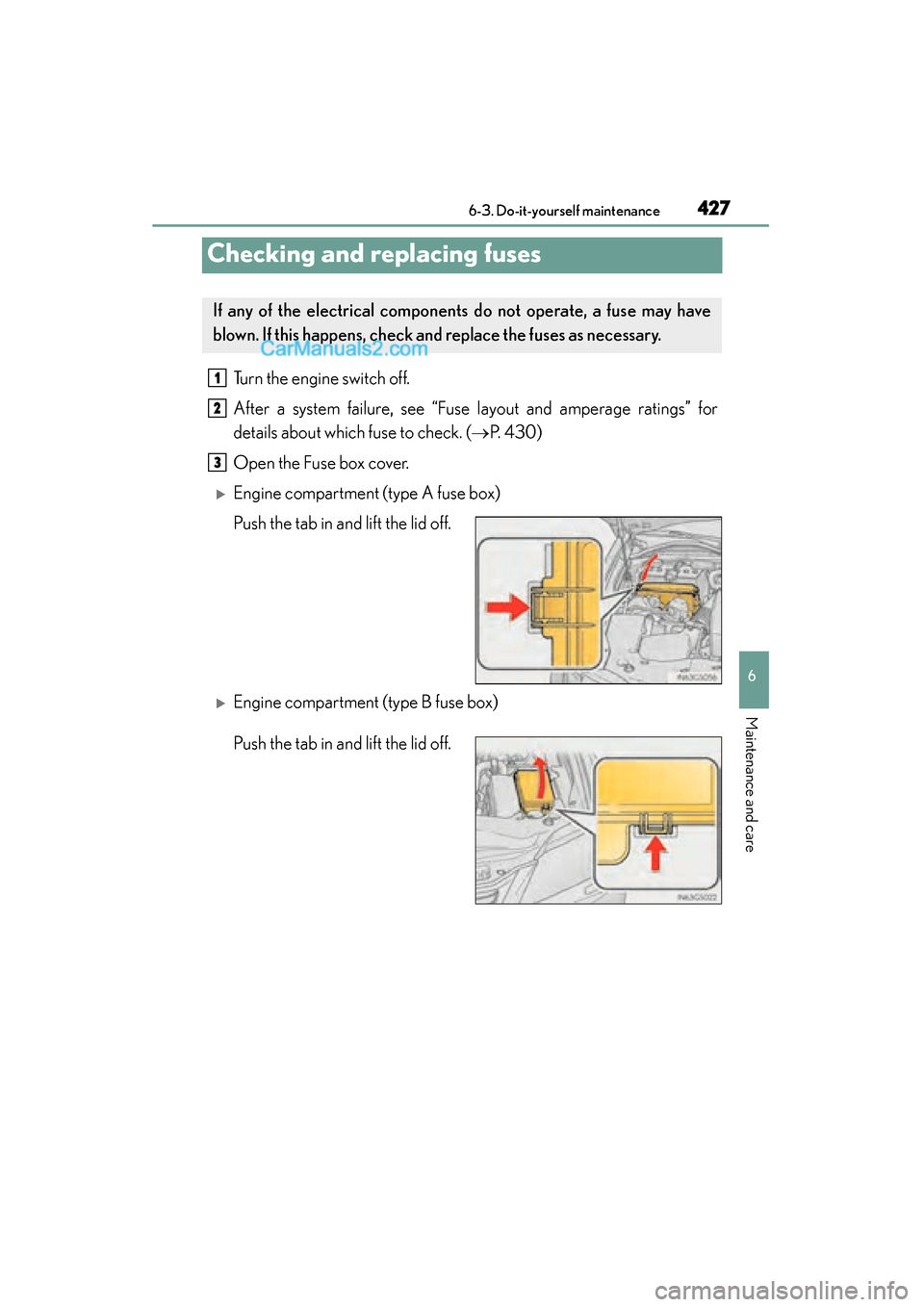

Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (→ P. 4 3 0 )
Open the Fuse box cover.
XEngine compartment (type A fuse box)
Push the tab in and lift the lid off.
XEngine compartment (type B fuse box)
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2
3
GS350_OM_OM30F69U_(U).book Page 427 Monday, January 19, 2015 2:53 PM

428
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

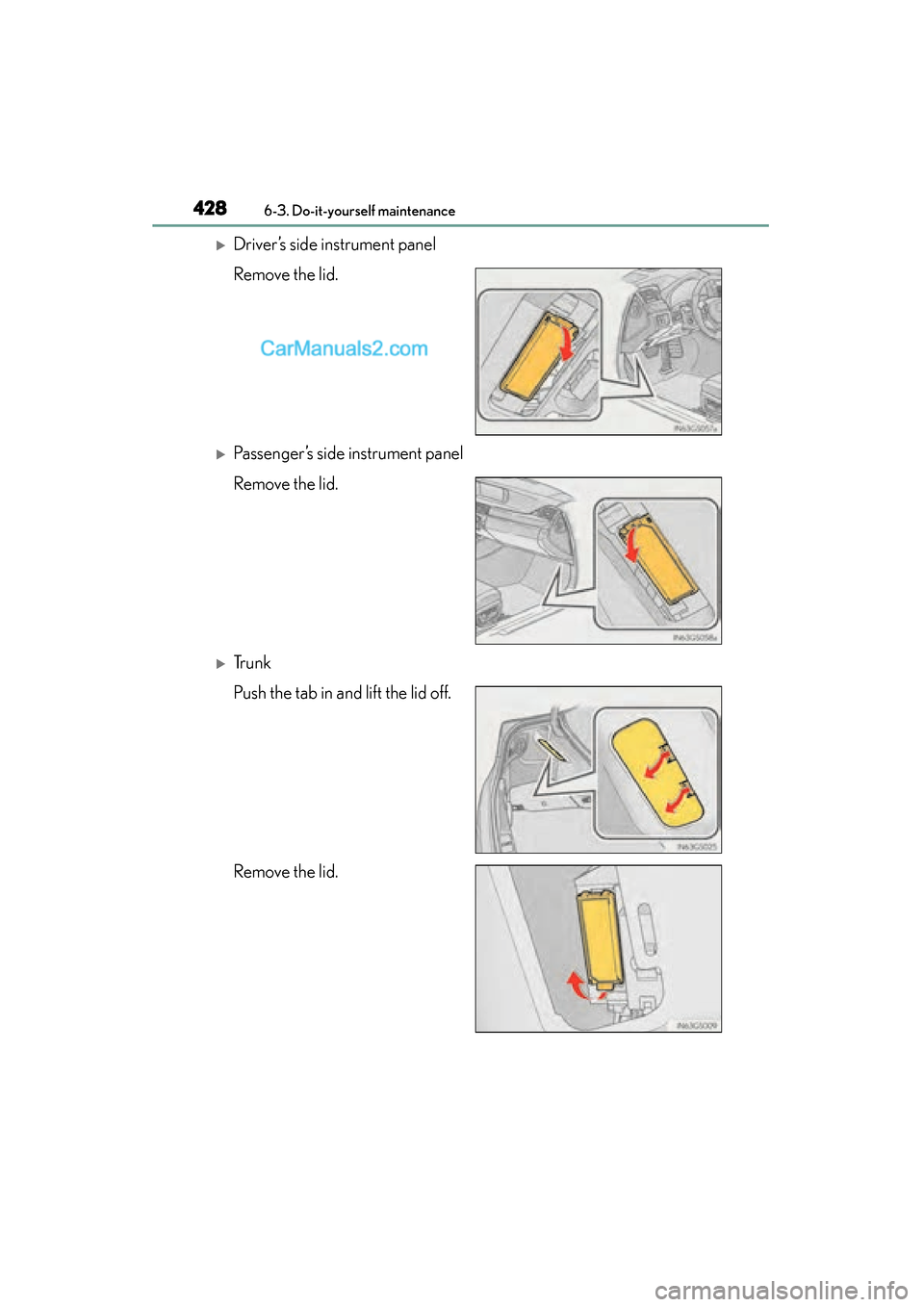

XDriver’s side instrument panel
Remove the lid.
XPassenger’s side instrument panel
Remove the lid.
XTr u n k
Push the tab in and lift the lid off.
Remove the lid.
