Lexus GS350 2015 Owner's Manual

4897-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
(If equipped)
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
collision braking function
is operatingAt the same time,
will appear
on the head-up dis-
play.
Slow the vehicle by
applying the brakes.
(If equipped)
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
(If equipped)
Alerts the driver that the
vehicle is out of the lanes
(while the LKA [Lane-
Keeping Assist] system is
operating)The warning buzzer
sounds continuously.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear
on the head-up dis-
play (part of the image
flashes).
Check around the vehi-
cle and back to inside of
the lane markings.
Warning messageDetailsCorrection procedure
(Flashes
rapidly)
GS350_OM_OM30F69U_(U).book Page 489 Monday, January 19, 2015 2:53 PM

4907-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
(If equipped)
Indicates that the LKA
(Lane-Keeping Assist)
system detects no-
handed driving (while the
lane keeping assist func-
tion is operating)The warning buzzer
sounds twice.
Grip the steering wheel
firmly.
(If equipped)
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Indicates that remaining
fuel is approximately 2.6
gal. (10.0 L, 2.2 Imp.gal.)
or less
Refuel the vehicle.
Indicates that the engine
switch is turned off or
turned to ACCESSORY
mode and the driver’s
door is opened while the
lights are turned on
Turn the lights off.
Indicates that the driver’s
door was opened with the
shift position in any posi-
tion other than P
Shift the shift position to P.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 490 Monday, January 19, 2015 2:53 PM

4917-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

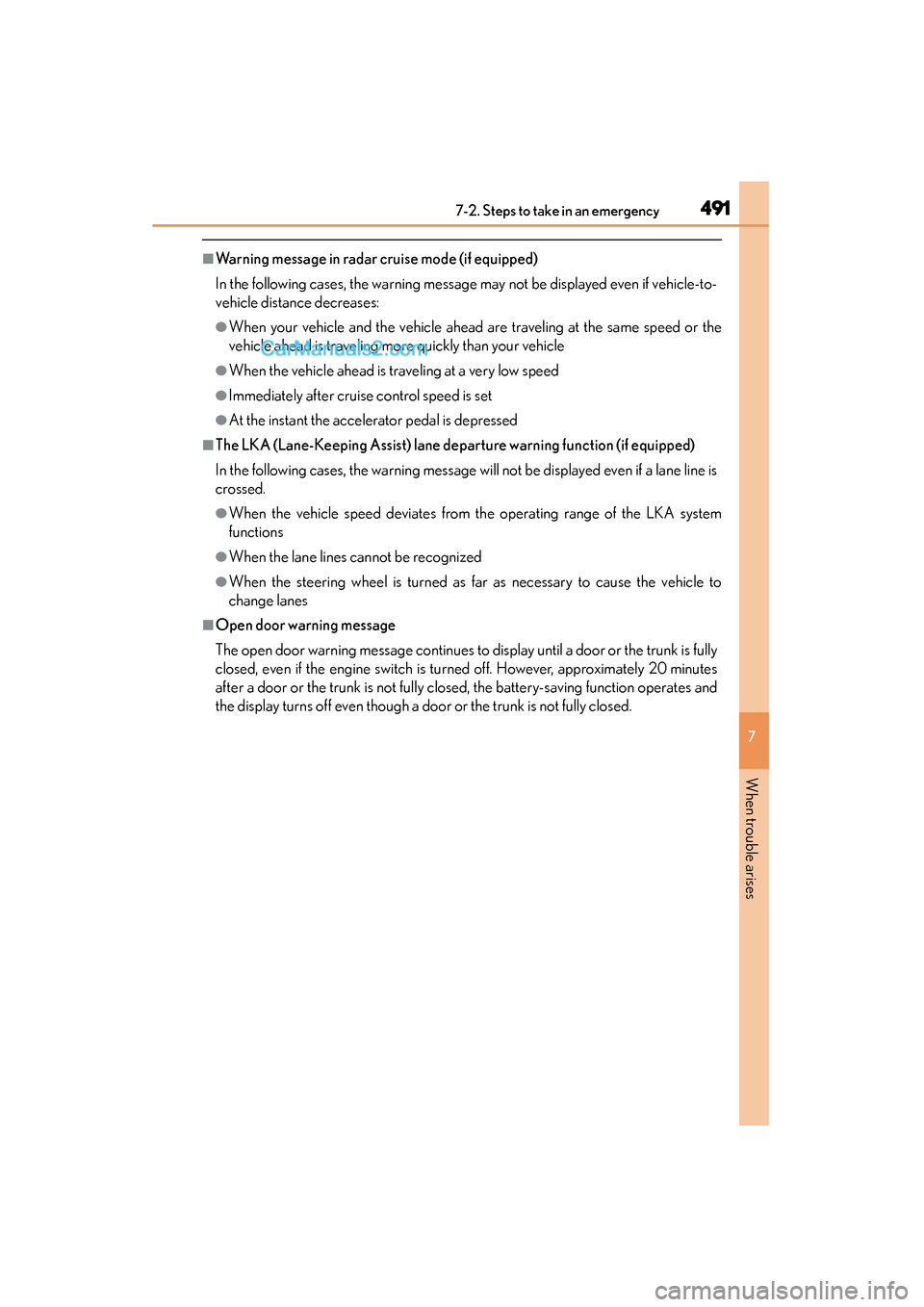

■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane departure warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■Open door warning message
The open door warning message continues to display until a door or the trunk is fully
closed, even if the engine switch is turned off. However, approximately 20 minutes
after a door or the trunk is not fully closed, the battery-saving function operates and
the display turns off even though a door or the trunk is not fully closed.
GS350_OM_OM30F69U_(U).book Page 491 Monday, January 19, 2015 2:53 PM

4927-2. Steps to take in an emergency

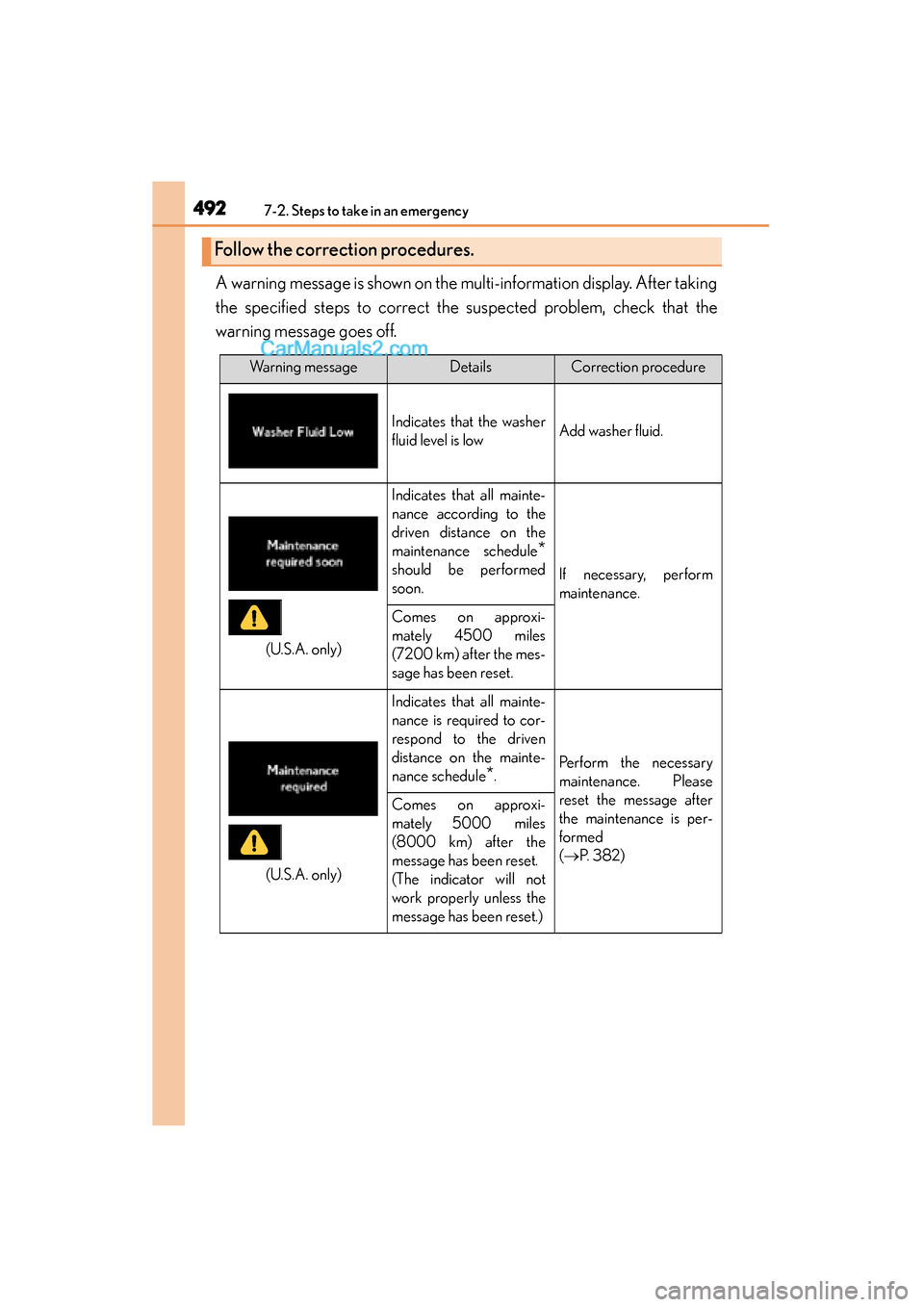

GS350_OM_OM30F69U_(U)A warning message is shown on the multi-information display. After taking
the specified steps to correct the suspected problem, check that the
warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that the washer
fluid level is lowAdd washer fluid.
(U.S.A. only)
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule
*
should be performed
soon.If necessary, perform
maintenance.
Comes on approxi-
mately 4500 miles
(7200 km) after the mes-
sage has been reset.
(U.S.A. only)
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule
*.Perform the necessary
maintenance. Please
reset the message after
the maintenance is per-
formed
(
→ P. 3 8 2 )
Comes on approxi-
mately 5000 miles
(8000 km) after the
message has been reset.
(The indicator will not
work properly unless the
message has been reset.)
GS350_OM_OM30F69U_(U).book Page 492 Monday, January 19, 2015 2:53 PM

4937-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

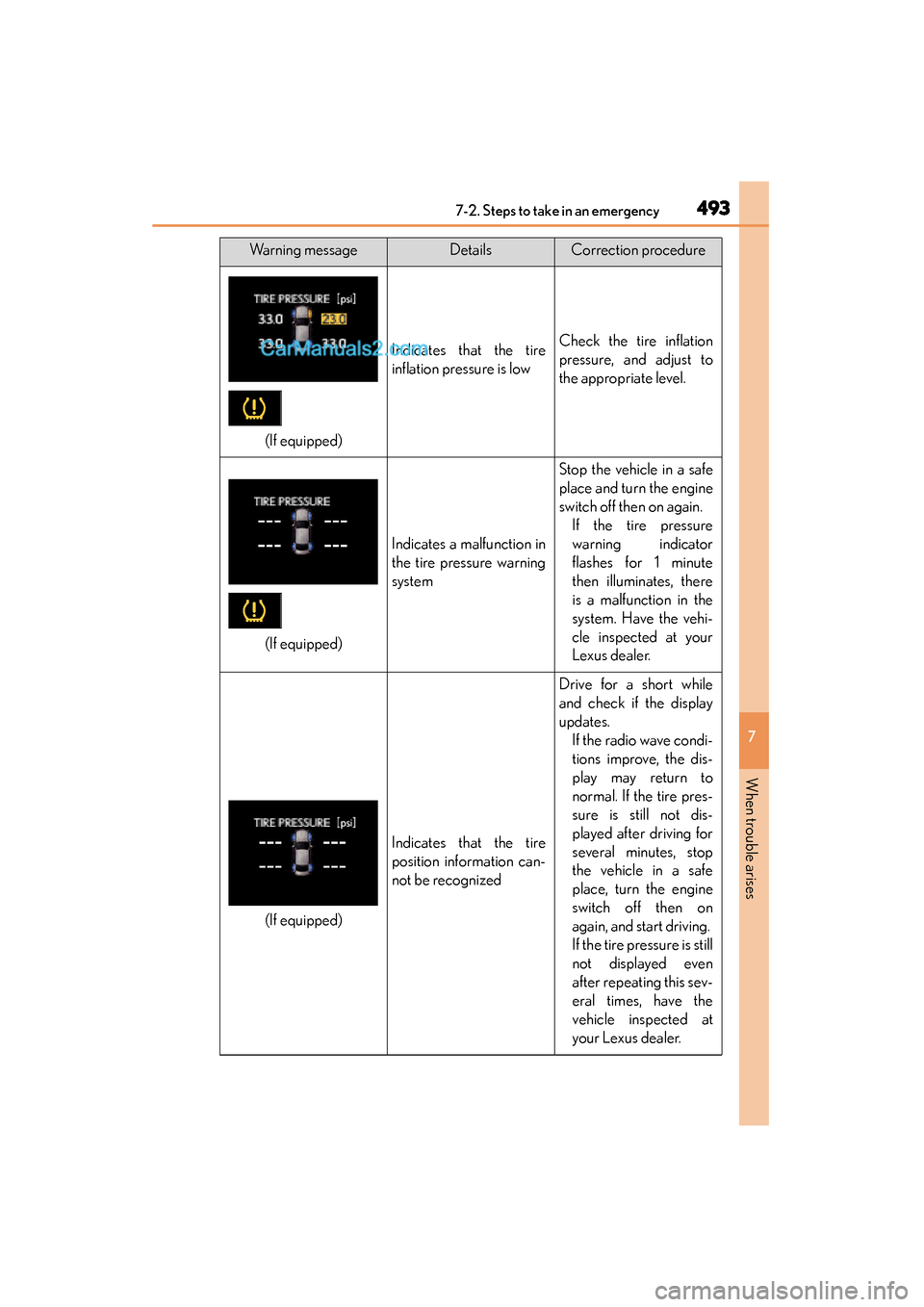

Warning messageDetailsCorrection procedure
(If equipped)
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to
the appropriate level.
(If equipped)
Indicates a malfunction in
the tire pressure warning
system
Stop the vehicle in a safe
place and turn the engine
switch off then on again.If the tire pressure
warning indicator
flashes for 1 minute
then illuminates, there
is a malfunction in the
system. Have the vehi-
cle inspected at your
Lexus dealer.
(If equipped)
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates.If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the engine
switch off then on
again, and start driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
GS350_OM_OM30F69U_(U).book Page 493 Monday, January 19, 2015 2:53 PM

4947-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
(If equipped)
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirty This message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
Indicates that operation
of large electricity con-
suming systems such as
the air conditioning sys-
tem are suspended
Stop using unnecessary
electric components to
reduce electricity con-
sumption until the warn-
ing message disappears.If the warning message
is displayed frequently,
have the vehicle
inspected by your
Lexus dealer.
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 494 Monday, January 19, 2015 2:53 PM

4957-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

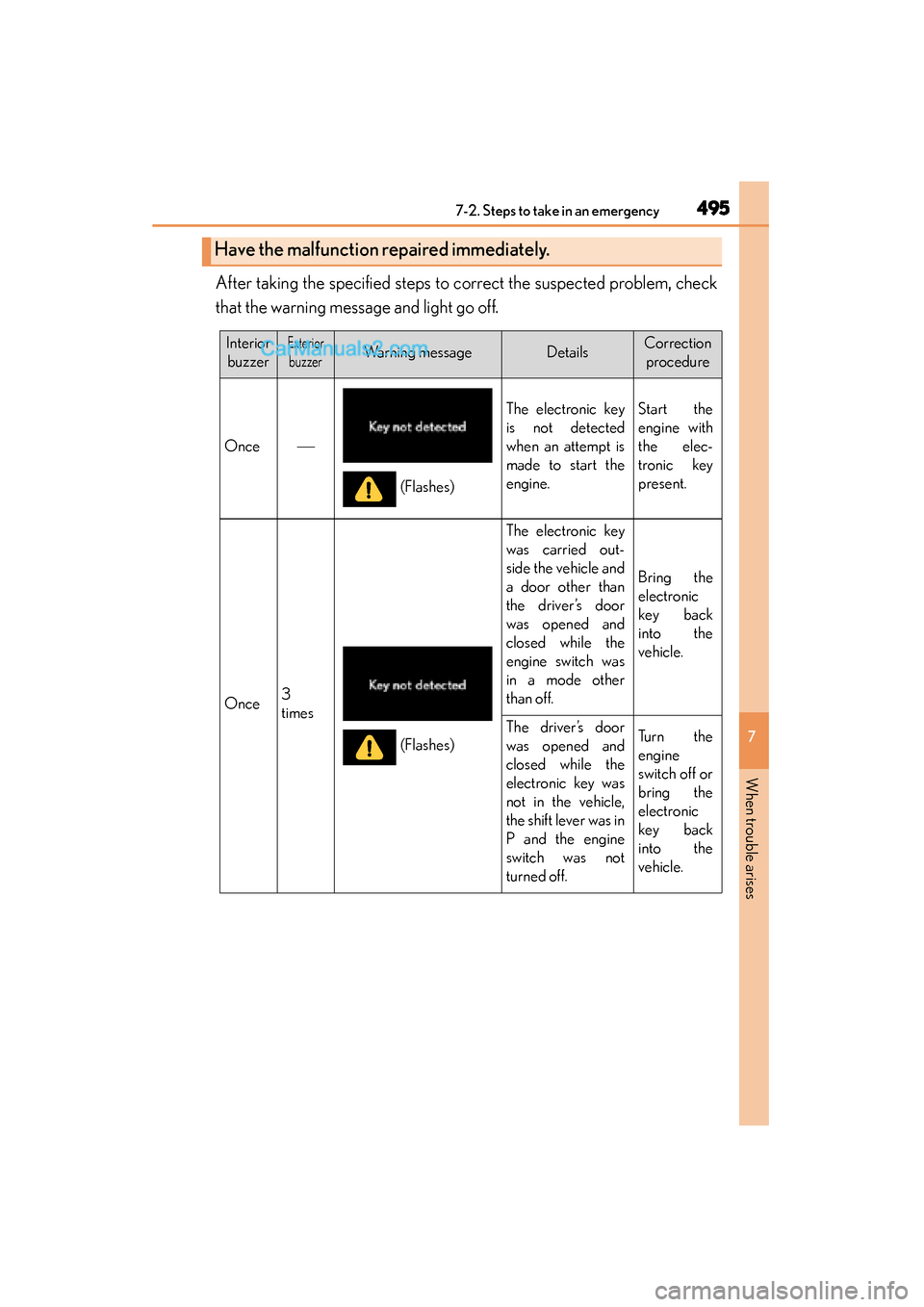

After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine.Start the
engine with
the elec-
tronic key
present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
engine switch was
in a mode other
than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the engine
switch was not
turned off.Tu r n t h e
engine
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 495 Monday, January 19, 2015 2:53 PM

4967-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)

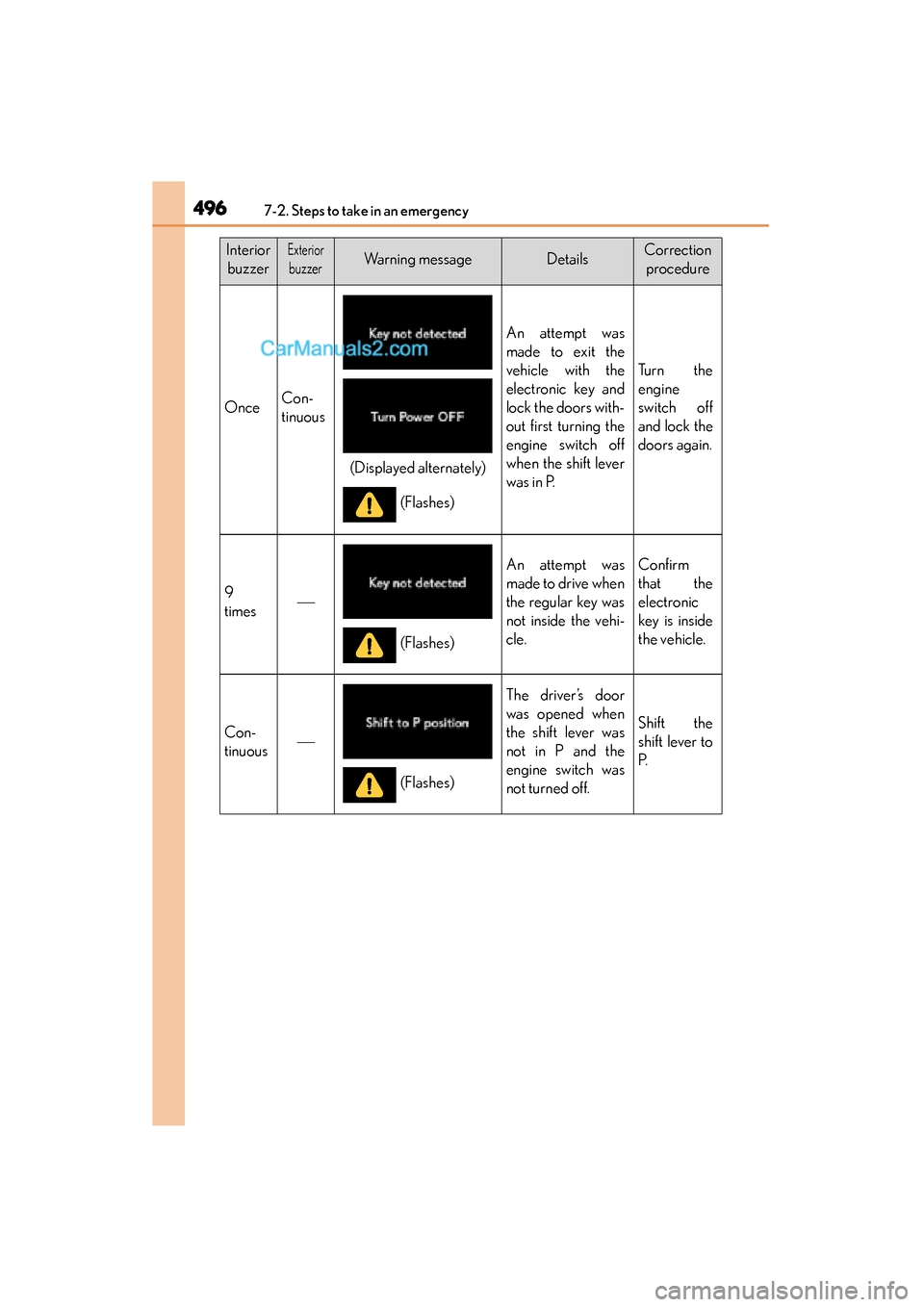

InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors with-
out first turning the
engine switch off
when the shift lever
was in P.
Tu r n t h e
engine
switch off
and lock the
doors again.
9
times
An attempt was
made to drive when
the regular key was
not inside the vehi-
cle.Confirm
that the
electronic
key is inside
the vehicle.
Con-
tinuous
The driver’s door
was opened when
the shift lever was
not in P and the
engine switch was
not turned off.
Shift the
shift lever to
P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 496 Monday, January 19, 2015 2:53 PM

4977-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

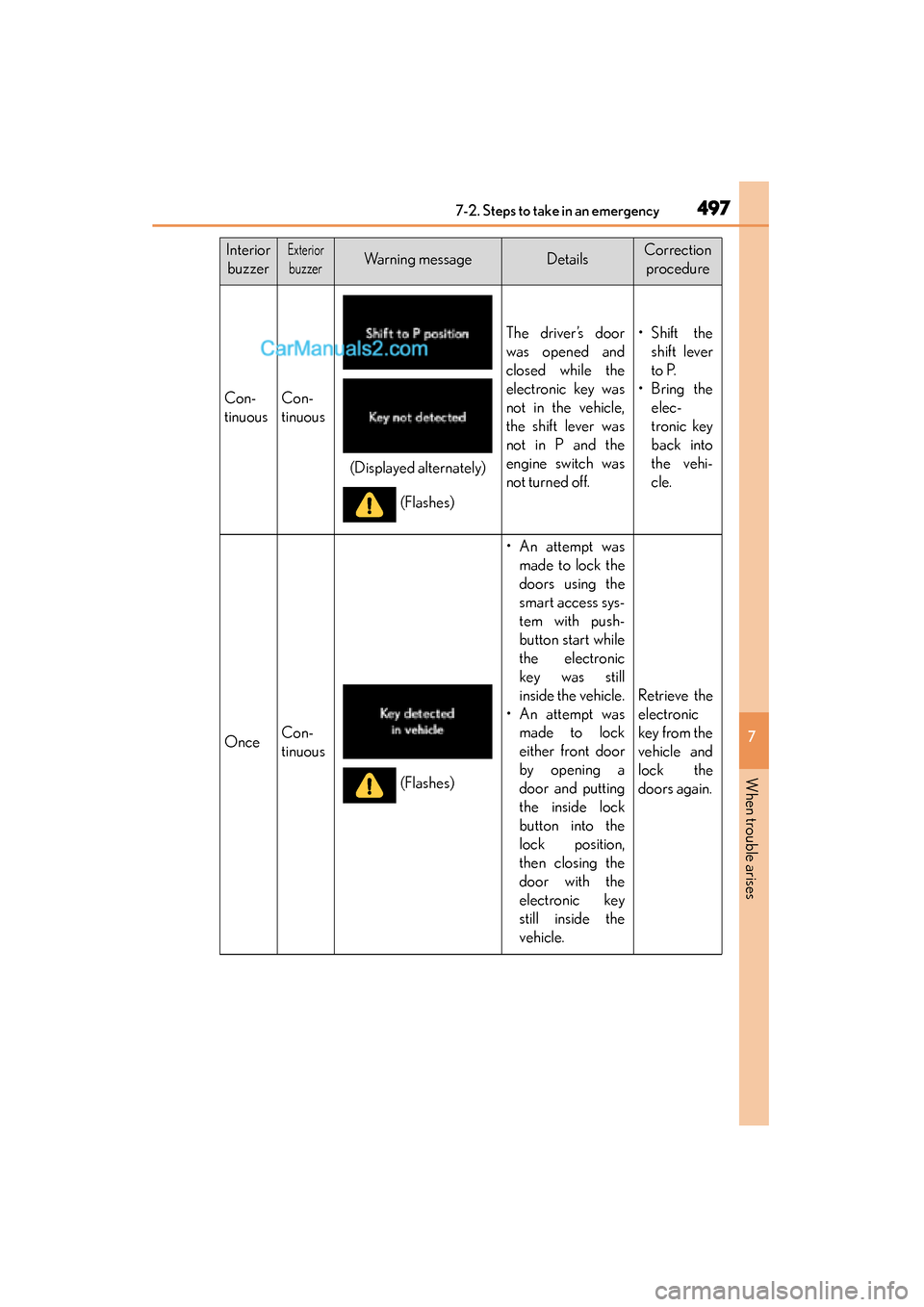

InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
engine switch was
not turned off.•Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
OnceCon-
tinuous
• An attempt wasmade to lock the
doors using the
smart access sys-
tem with push-
button start while
the electronic
key was still
inside the vehicle.
• An attempt was made to lock
either front door
by opening a
door and putting
the inside lock
button into the
lock position,
then closing the
door with the
electronic key
still inside the
vehicle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 497 Monday, January 19, 2015 2:53 PM

4987-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)

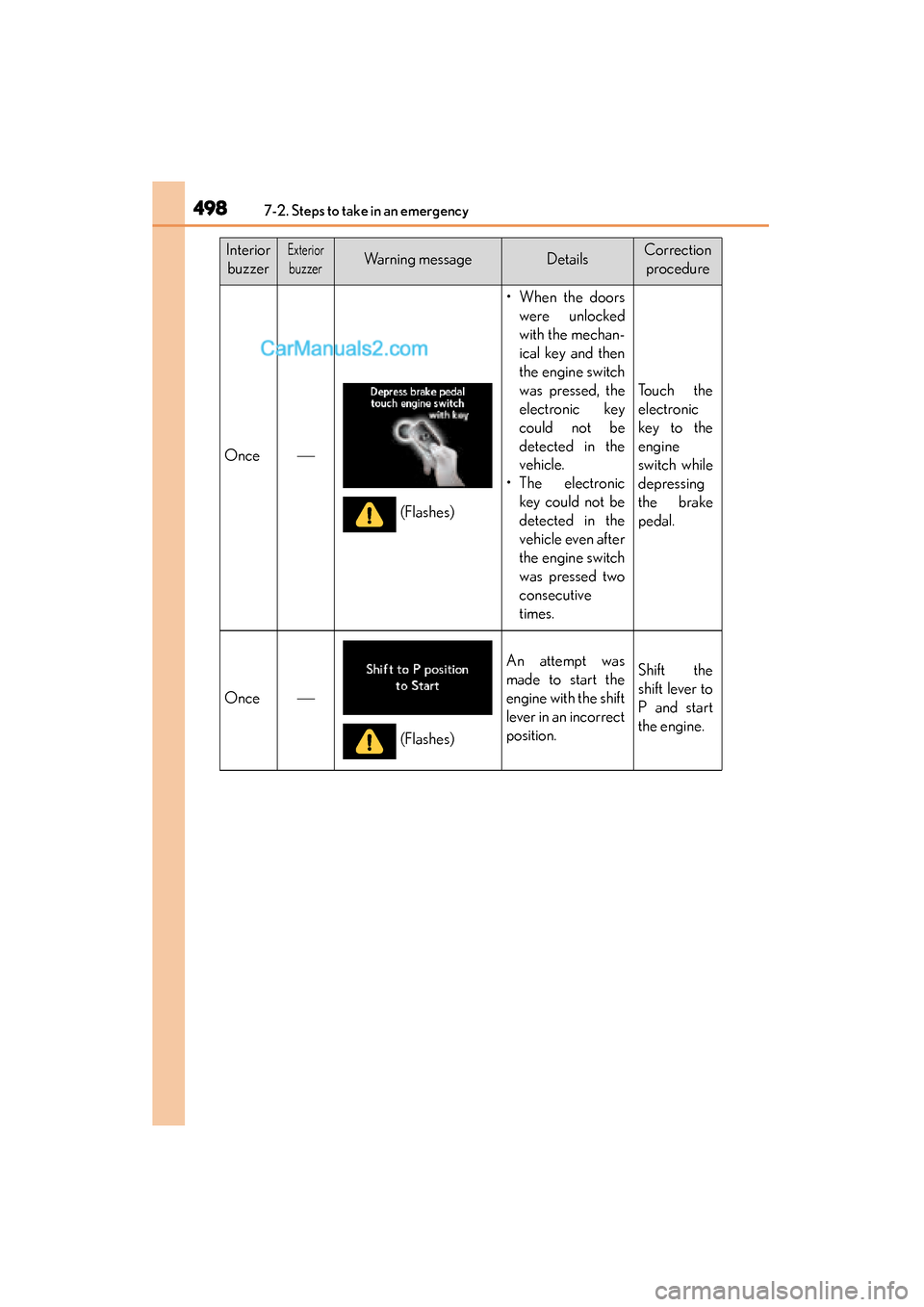

InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once
• When the doors were unlocked
with the mechan-
ical key and then
the engine switch
was pressed, the
electronic key
could not be
detected in the
vehicle.
•The electronic key could not be
detected in the
vehicle even after
the engine switch
was pressed two
consecutive
times.
To u c h t h e
electronic
key to the
engine
switch while
depressing
the brake
pedal.
Once
An attempt was
made to start the
engine with the shift
lever in an incorrect
position.Shift the
shift lever to
P and start
the engine.
(Flashes)
(Flashes)
