Lexus GS350 2015 Owner's Manual

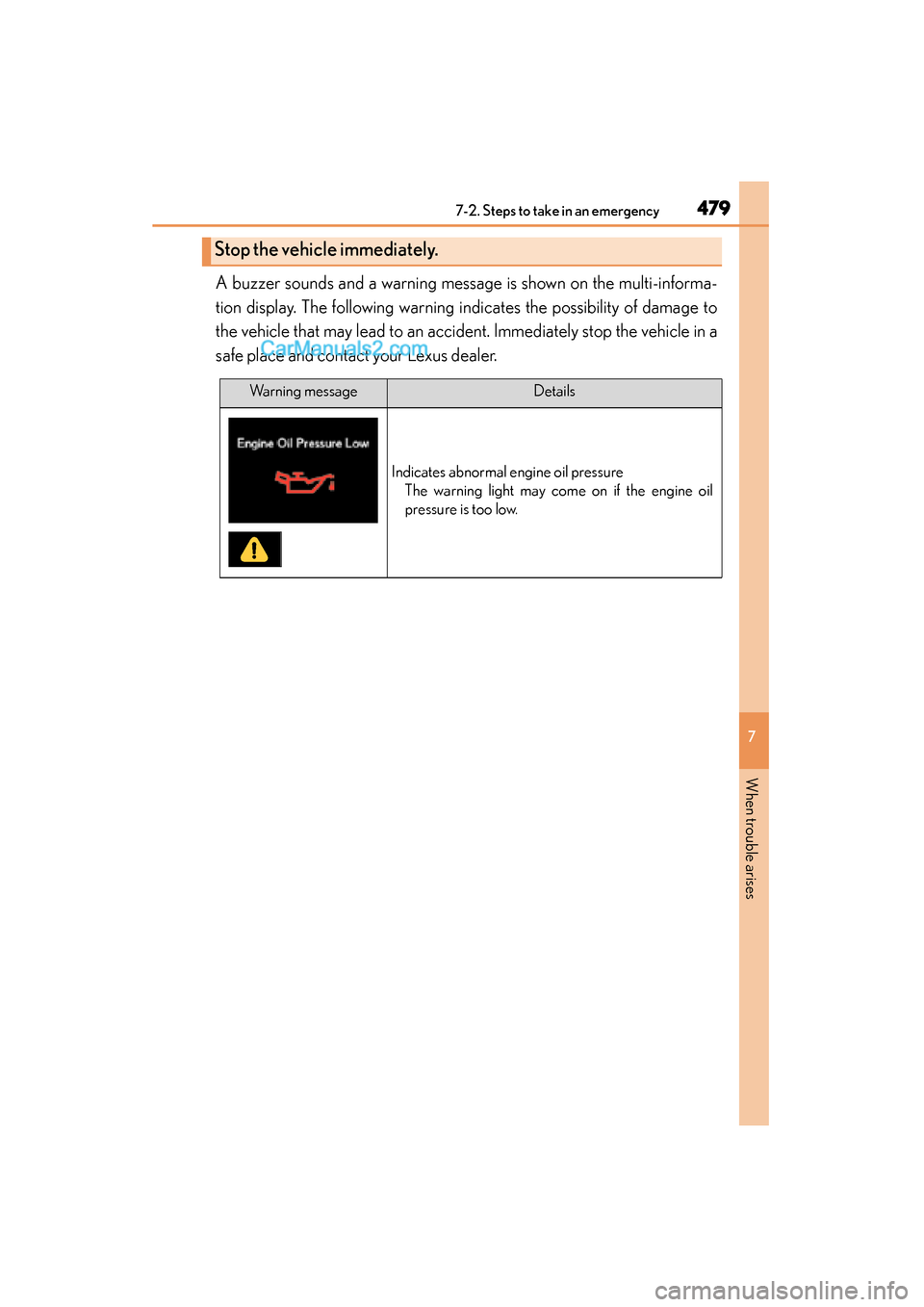

4797-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Stop the vehicle immediately.
Warning messageDetails
Indicates abnormal engine oil pressure The warning light may come on if the engine oil
pressure is too low.
GS350_OM_OM30F69U_(U).book Page 479 Monday, January 19, 2015 2:53 PM

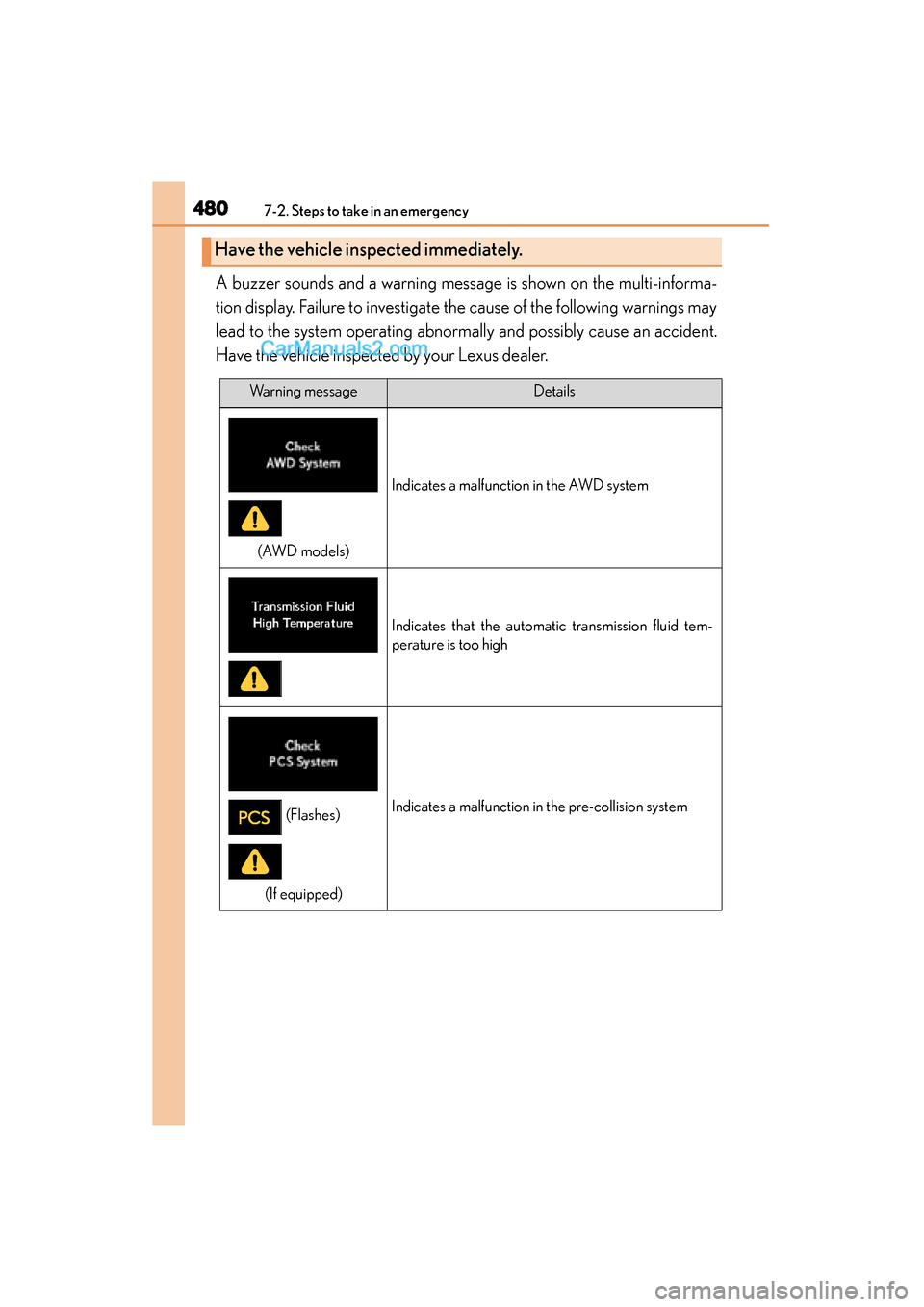

4807-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer.
Have the vehicle inspected immediately.
Warning messageDetails
(AWD models)
Indicates a malfunction in the AWD system
Indicates that the automatic transmission fluid tem-
perature is too high
(If equipped)
Indicates a malfunction in the pre-collision system(Flashes)
GS350_OM_OM30F69U_(U).book Page 480 Monday, January 19, 2015 2:53 PM

4817-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
(If equipped)
Indicates a malfunction in the intuitive parking assistAll assist-sensors flash.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
temPress the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist)
(If equipped)
Indicates a malfunction in the LED headlight system
Warning messageDetails
(Flashes)
GS350_OM_OM30F69U_(U).book Page 481 Monday, January 19, 2015 2:53 PM

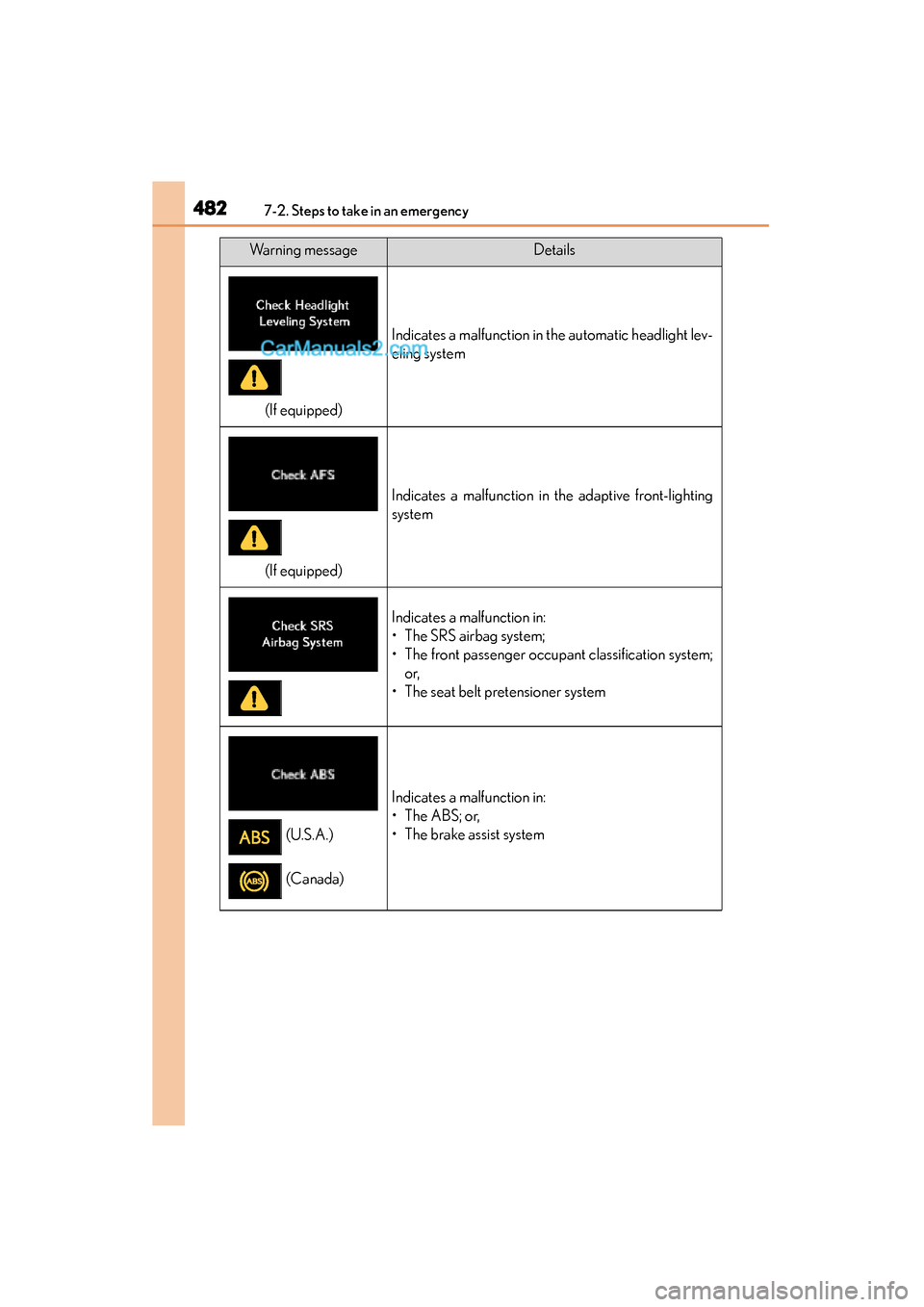

4827-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
(If equipped)
Indicates a malfunction in the automatic headlight lev-
eling system
(If equipped)
Indicates a malfunction in the adaptive front-lighting
system
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;or,
• The seat belt pretensioner system
Indicates a malfunction in:
•The ABS; or,
• The brake assist system
Warning messageDetails
(U.S.A.)
(Canada)
GS350_OM_OM30F69U_(U).book Page 482 Monday, January 19, 2015 2:53 PM

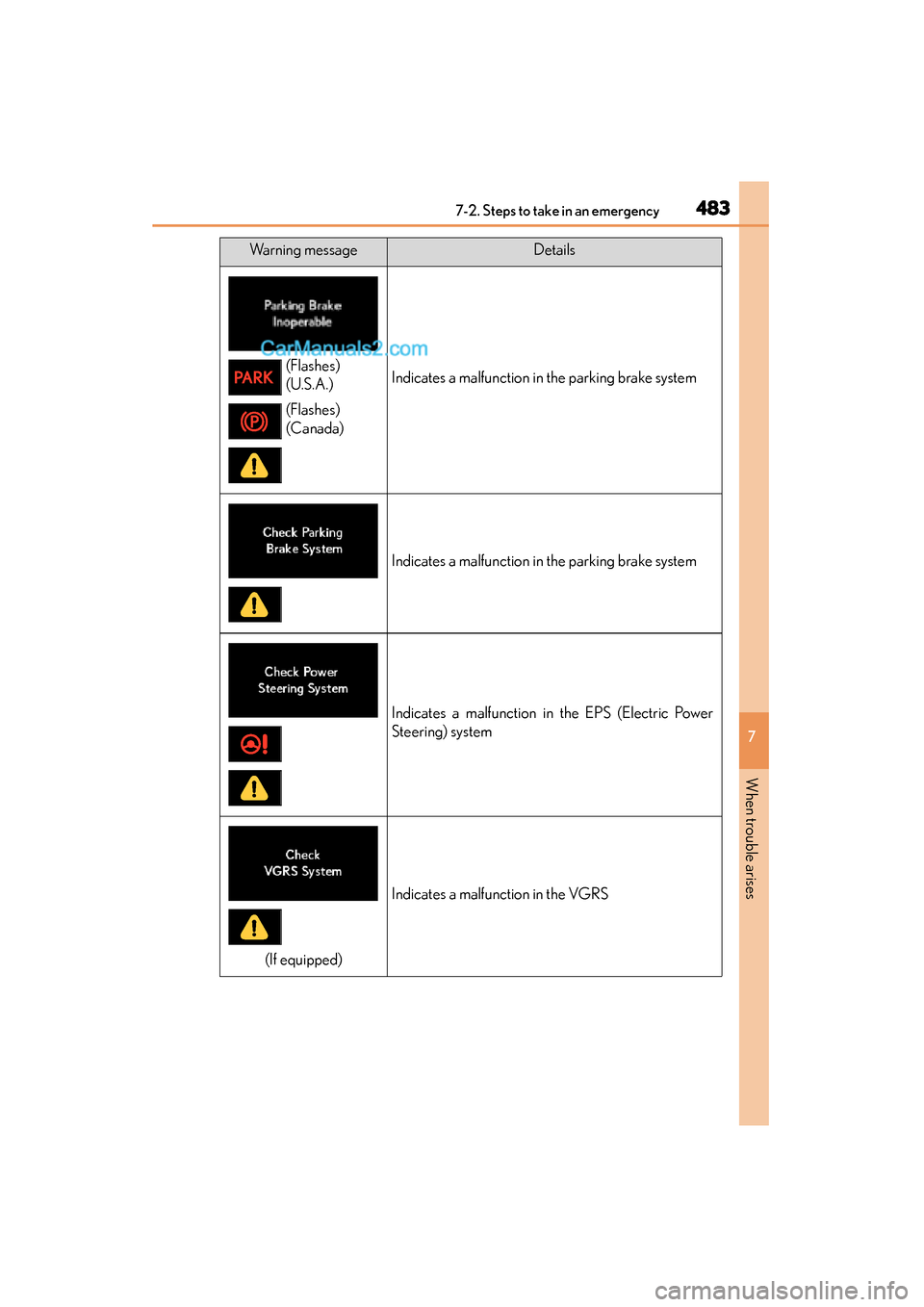

4837-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
Indicates a malfunction in the parking brake system
Indicates a malfunction in the parking brake system
Indicates a malfunction in the EPS (Electric Power
Steering) system
(If equipped)
Indicates a malfunction in the VGRS
Warning messageDetails
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
GS350_OM_OM30F69U_(U).book Page 483 Monday, January 19, 2015 2:53 PM

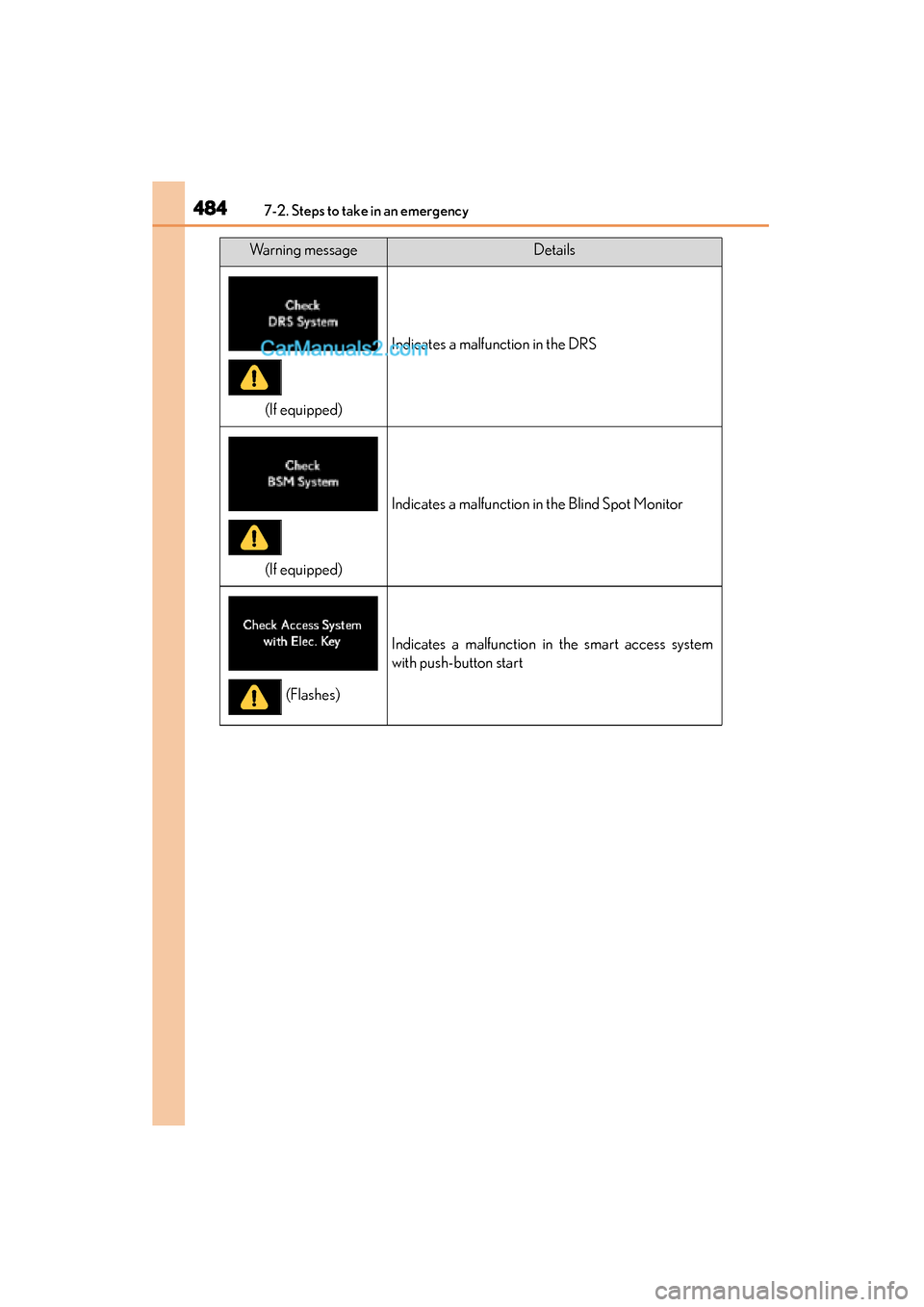

4847-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
(If equipped)
Indicates a malfunction in the DRS
(If equipped)
Indicates a malfunction in the Blind Spot Monitor
Indicates a malfunction in the smart access system
with push-button start
Warning messageDetails
(Flashes)
GS350_OM_OM30F69U_(U).book Page 484 Monday, January 19, 2015 2:53 PM

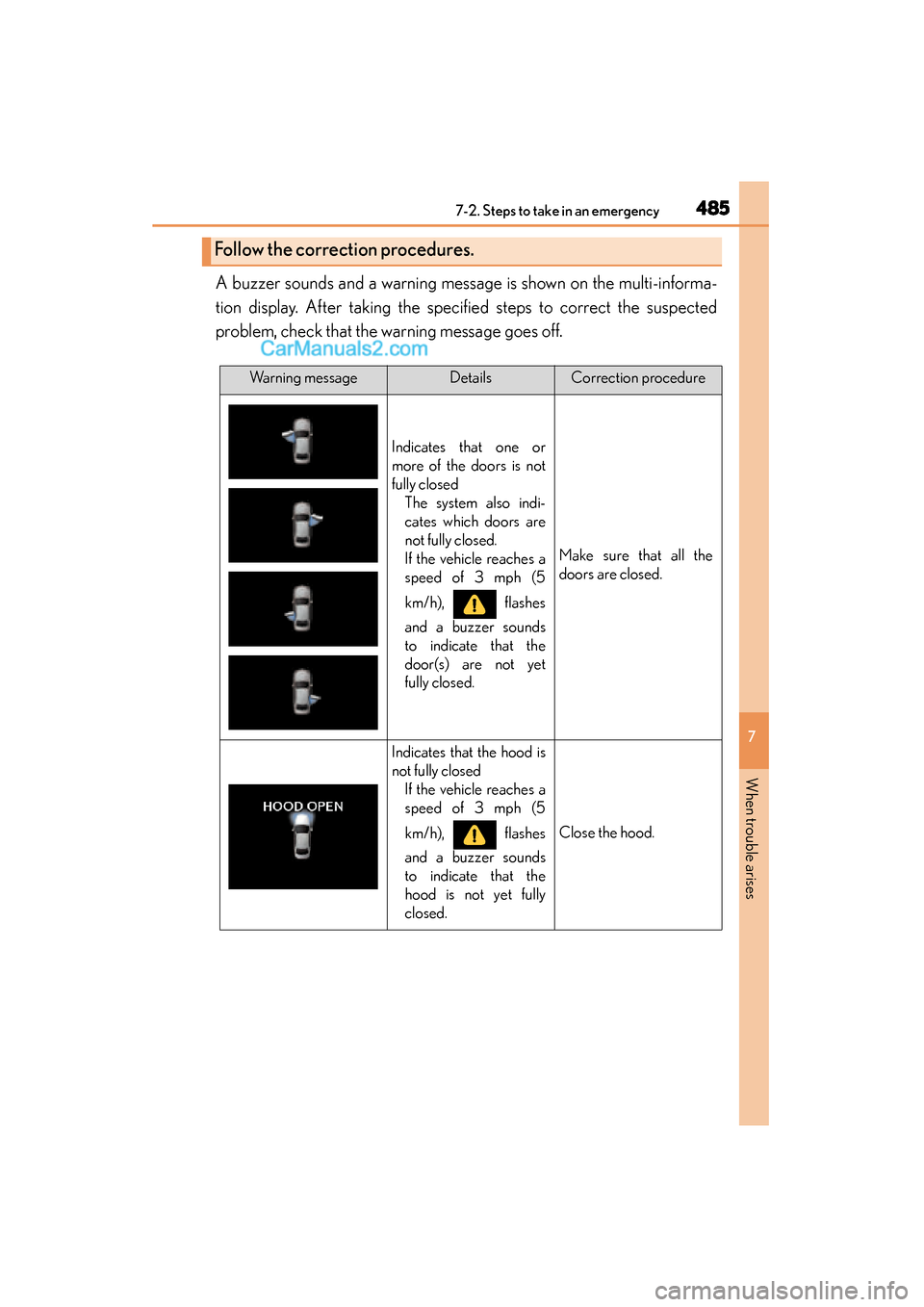

4857-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the specified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
hood is not yet fully
closed.
Close the hood.
GS350_OM_OM30F69U_(U).book Page 485 Monday, January 19, 2015 2:53 PM

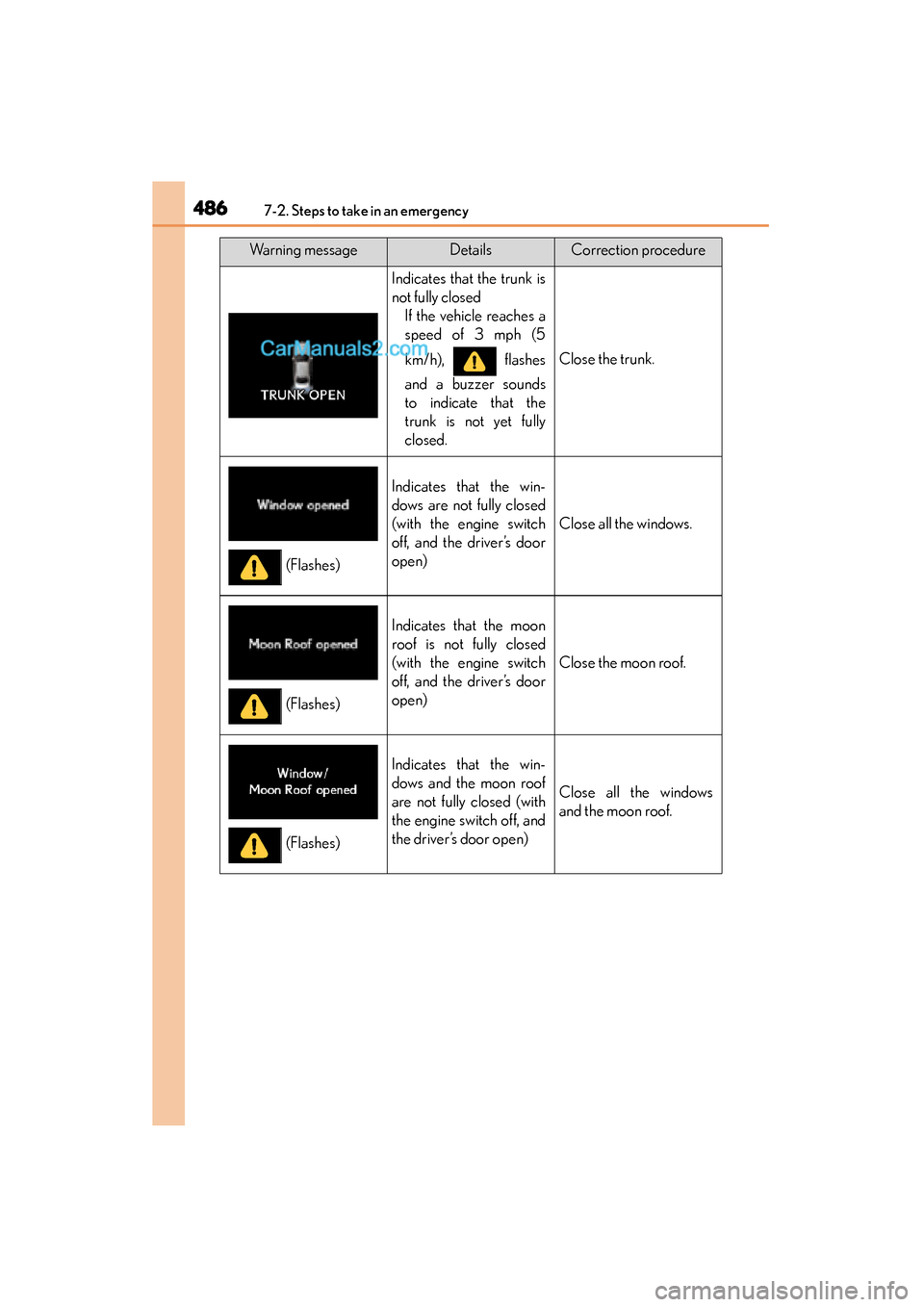

4867-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the engine switch
off, and the driver’s door
open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the engine switch
off, and the driver’s door
open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the engine switch off, and
the driver’s door open)
Close all the windows
and the moon roof.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 486 Monday, January 19, 2015 2:53 PM

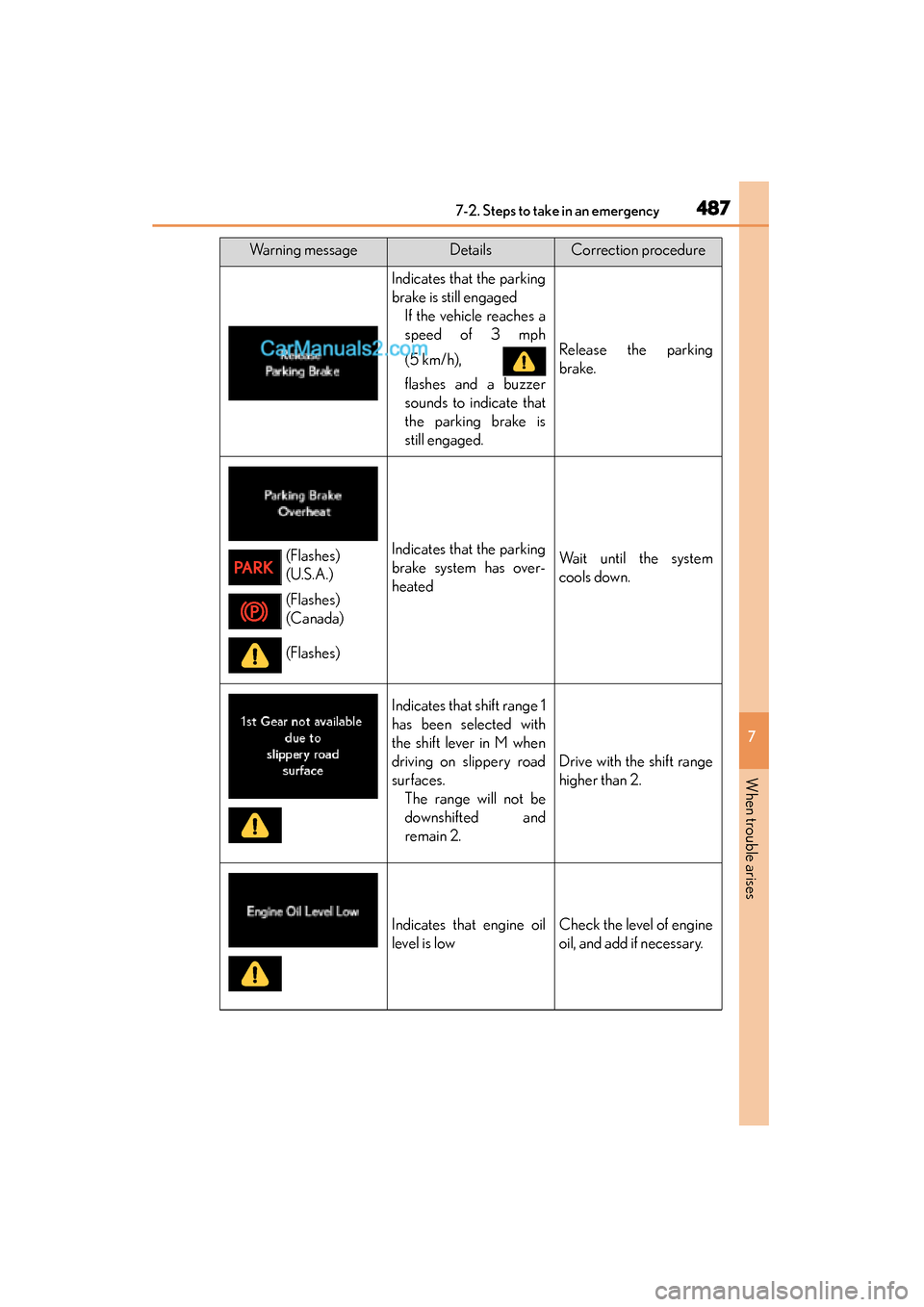

4877-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the parking
brake system has over-
heatedWait until the system
cools down.
Indicates that shift range 1
has been selected with
the shift lever in M when
driving on slippery road
surfaces.The range will not be
downshifted and
remain 2.
Drive with the shift range
higher than 2.
Indicates that engine oil
level is lowCheck the level of engine
oil, and add if necessary.
Warning messageDetailsCorrection procedure
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
(Flashes)
GS350_OM_OM30F69U_(U).book Page 487 Monday, January 19, 2015 2:53 PM

4887-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
(If equipped)
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
Clean the sensor.
(If equipped)
Indicates that the radar
sensor is dirty or covered
with ice
Clean the sensor.
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
•Turn off the snowmode.
• If the windshield wip- ers are on, turn them
off or set them to a
mode other than
AUTO or high speed
wiper operation.
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)At the same time,
will appear on
the head-up display
(the image flashes).
Slow the vehicle by
applying the brakes.
Warning messageDetailsCorrection procedure
GS350_OM_OM30F69U_(U).book Page 488 Monday, January 19, 2015 2:53 PM
