Lexus GS350 2015 Owner's Manual

459
GS350_OM_OM30F69U_(U)
7
When trouble arises
7-1. Essential information

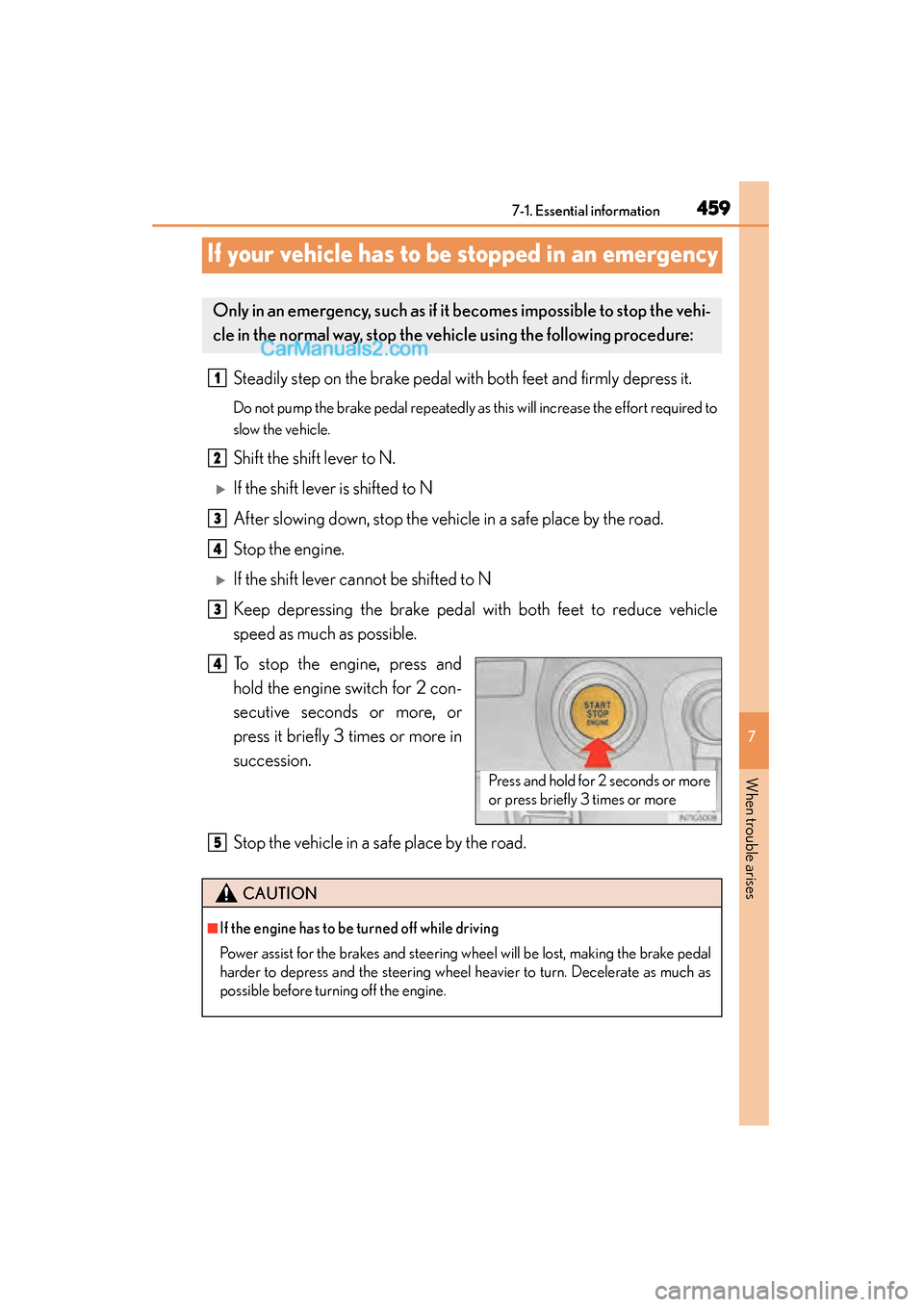

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the engine, press and
hold the engine switch for 2 con-
secutive seconds or more, or
press it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the ve hicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
5
GS350_OM_OM30F69U_(U).book Page 459 Monday, January 19, 2015 2:53 PM

460
GS350_OM_OM30F69U_(U)
7-2. Steps to take in an emergency

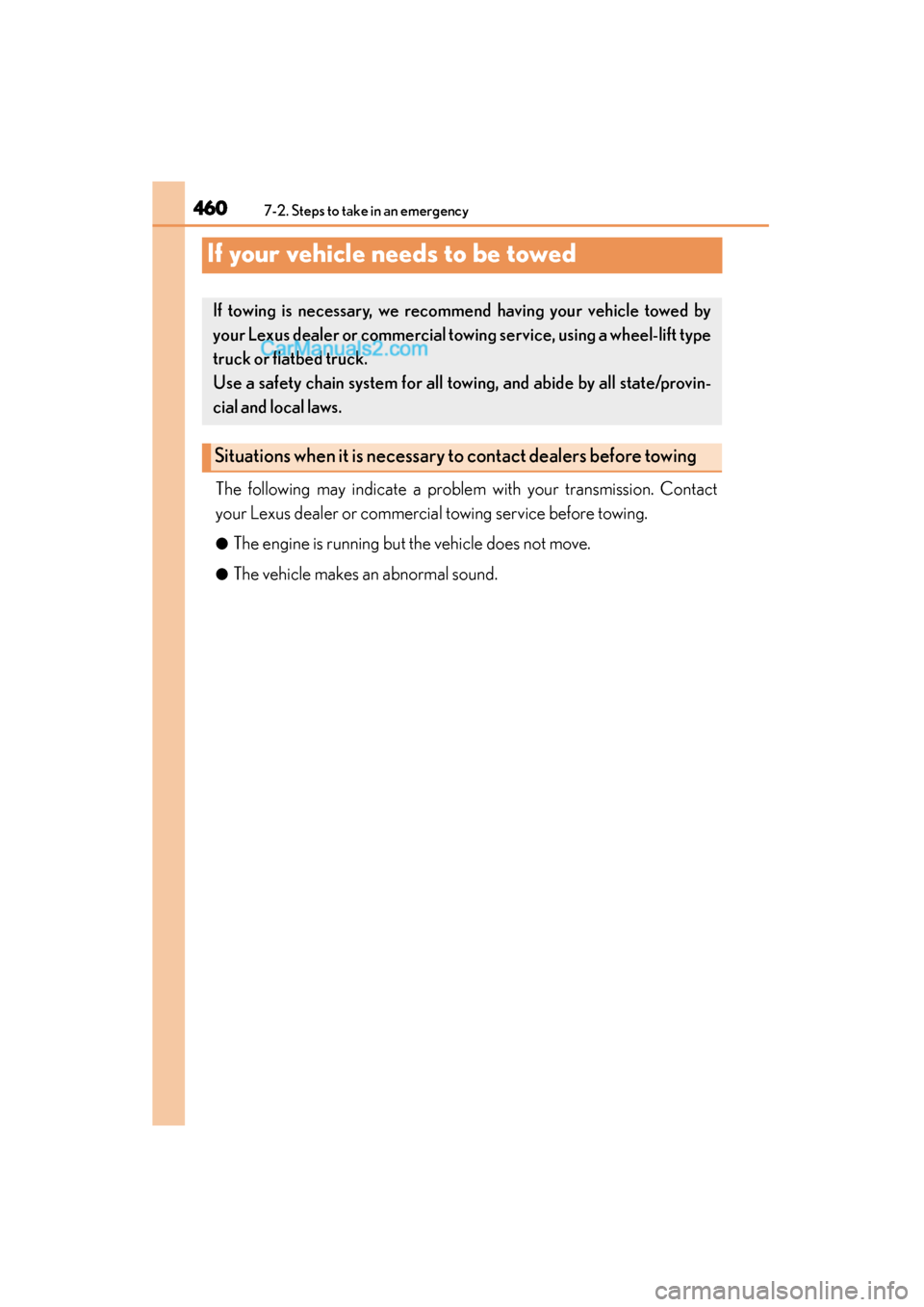

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
your Lexus dealer or commercial towing service before towing.
●The engine is running but the vehicle does not move.
●The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Lexus dealer or commercial towing service, using a wheel-lift type
truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/provin-
cial and local laws.
Situations when it is necessary to contact dealers before towing
GS350_OM_OM30F69U_(U).book Page 460 Monday, January 19, 2015 2:53 PM

4617-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

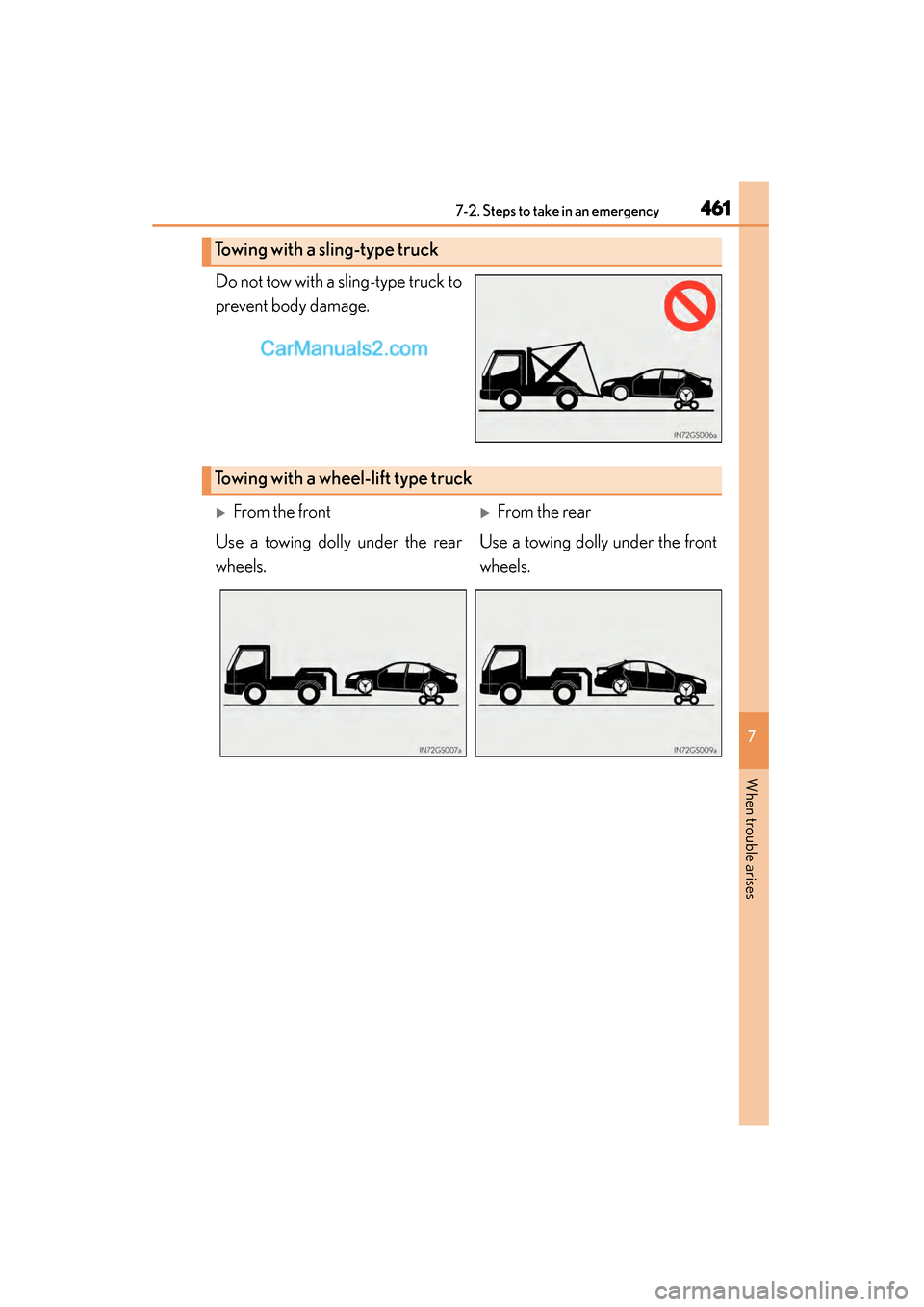

Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Use a towing dolly under the rear
wheels. Use a towing dolly under the front
wheels.
GS350_OM_OM30F69U_(U).book Page 461 Monday, January 19, 2015 2:53 PM

4627-2. Steps to take in an emergency

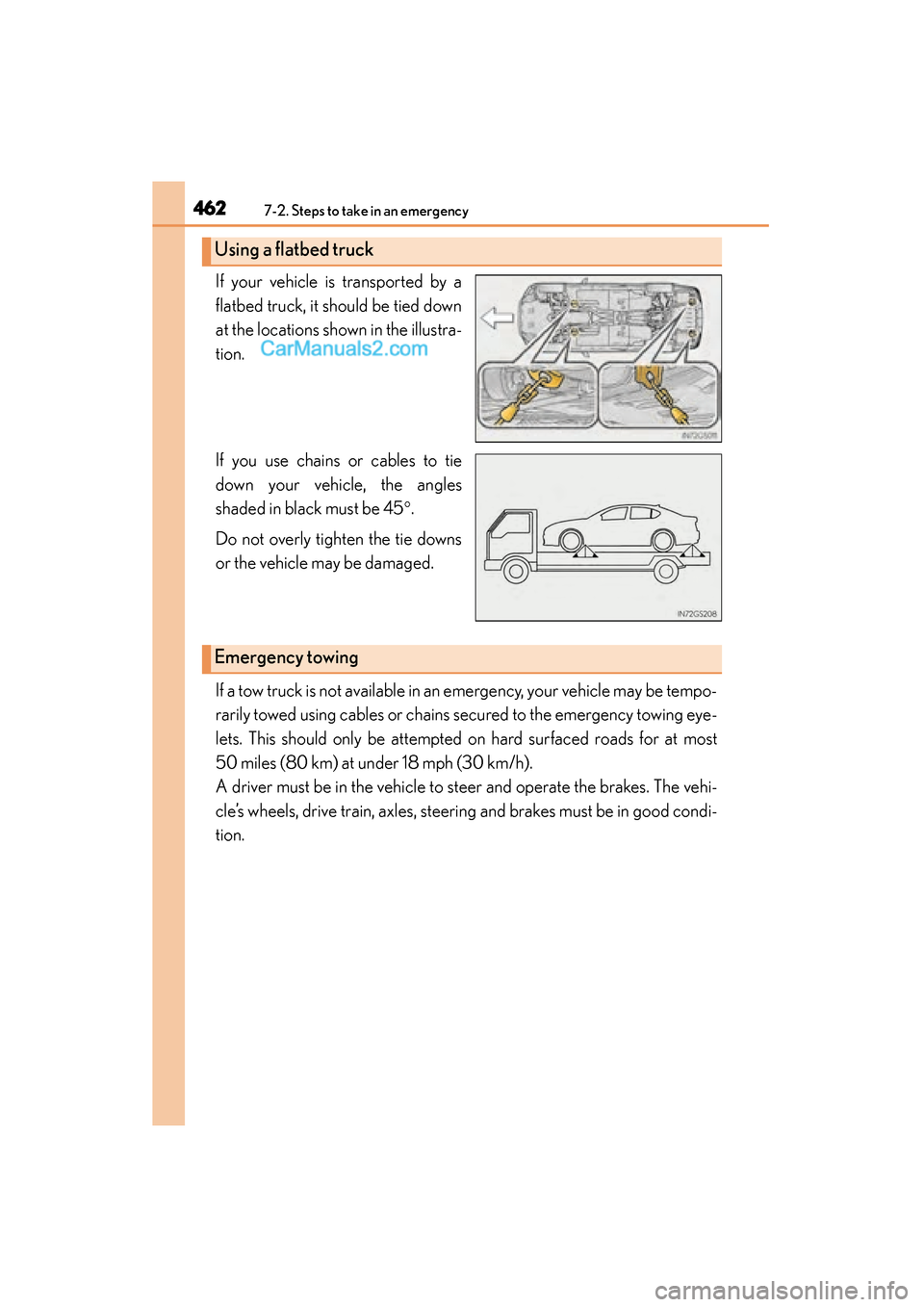

GS350_OM_OM30F69U_(U)If your vehicle is transported by a
flatbed truck, it should be tied down
at the locations shown in the illustra-
tion.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45
°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be tempo-
rarily towed using cables or chains secured to the emergency towing eye-
lets. This should only be attempted on hard surfaced roads for at most
50 miles (80 km) at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Using a flatbed truck
Emergency towing
GS350_OM_OM30F69U_(U).book Page 462 Monday, January 19, 2015 2:53 PM

4637-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

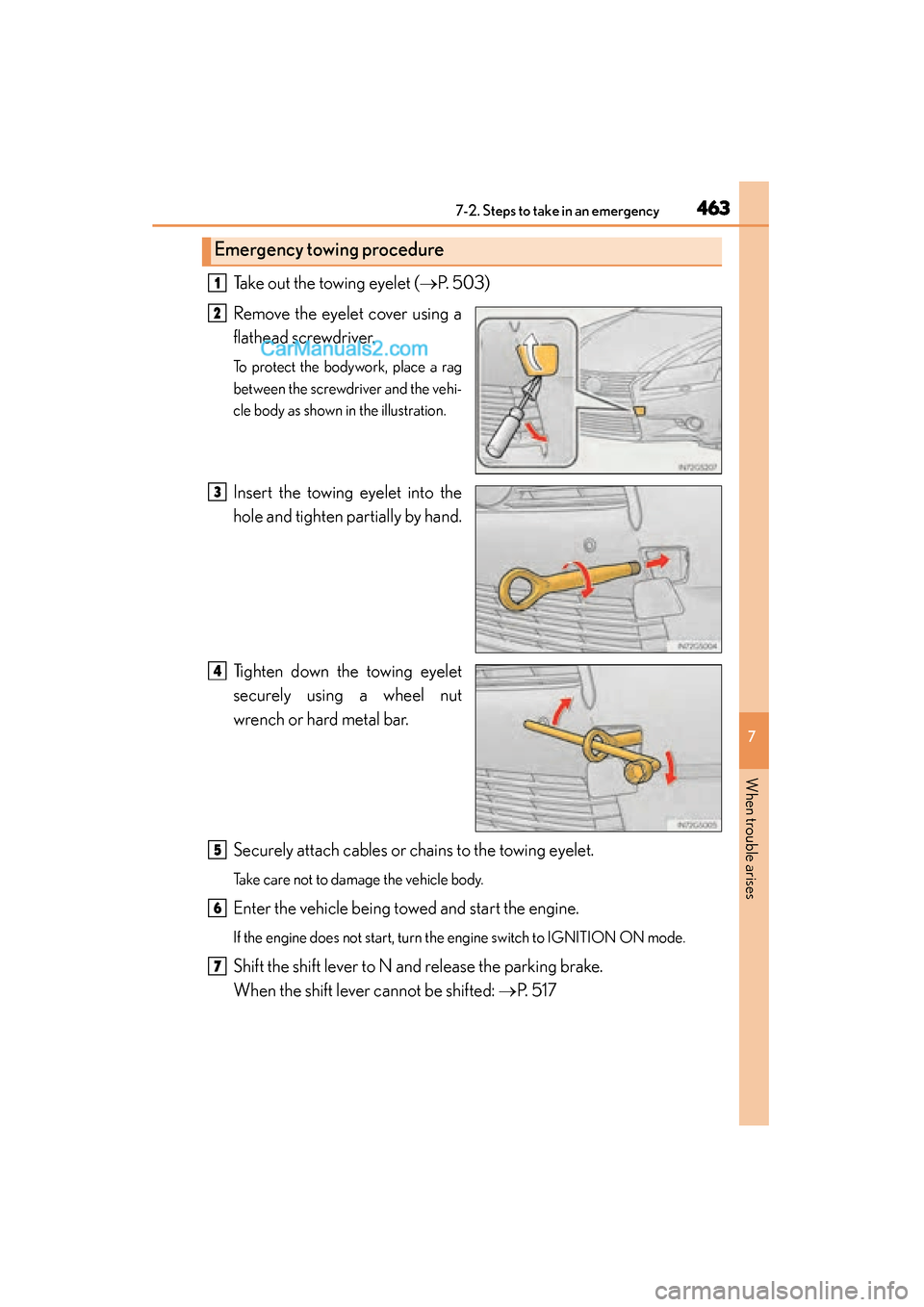

Take out the towing eyelet (→P. 503)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: →P. 5 1 7
Emergency towing procedure
1
2
3
4
5
6
7
GS350_OM_OM30F69U_(U).book Page 463 Monday, January 19, 2015 2:53 PM

4647-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)

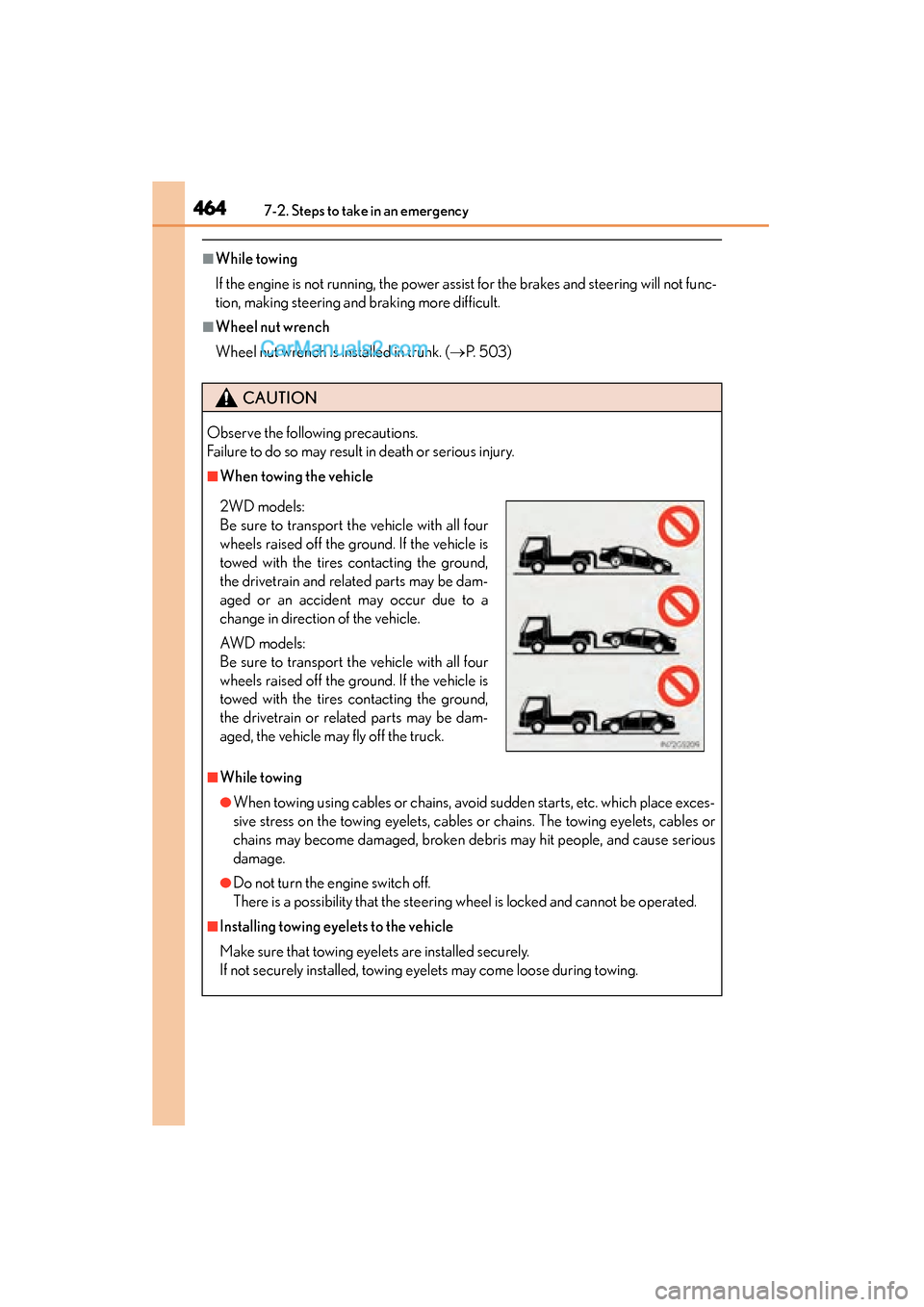

■While towing
If the engine is not running, the power assist for the brakes and steering will not func-
tion, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in trunk. (→P. 5 0 3 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place exces-
sive stress on the towing eyelets, cables or chains. The towing eyelets, cables or
chains may become damaged, broken debris may hit people, and cause serious
damage.
●Do not turn the engine switch off.
There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
2WD models:
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground,
the drivetrain and related parts may be dam-
aged or an accident may occur due to a
change in direction of the vehicle.
AW D m o d e l s :
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground,
the drivetrain or related parts may be dam-
aged, the vehicle may fly off the truck.
GS350_OM_OM30F69U_(U).book Page 464 Monday, January 19, 2015 2:53 PM

4657-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises

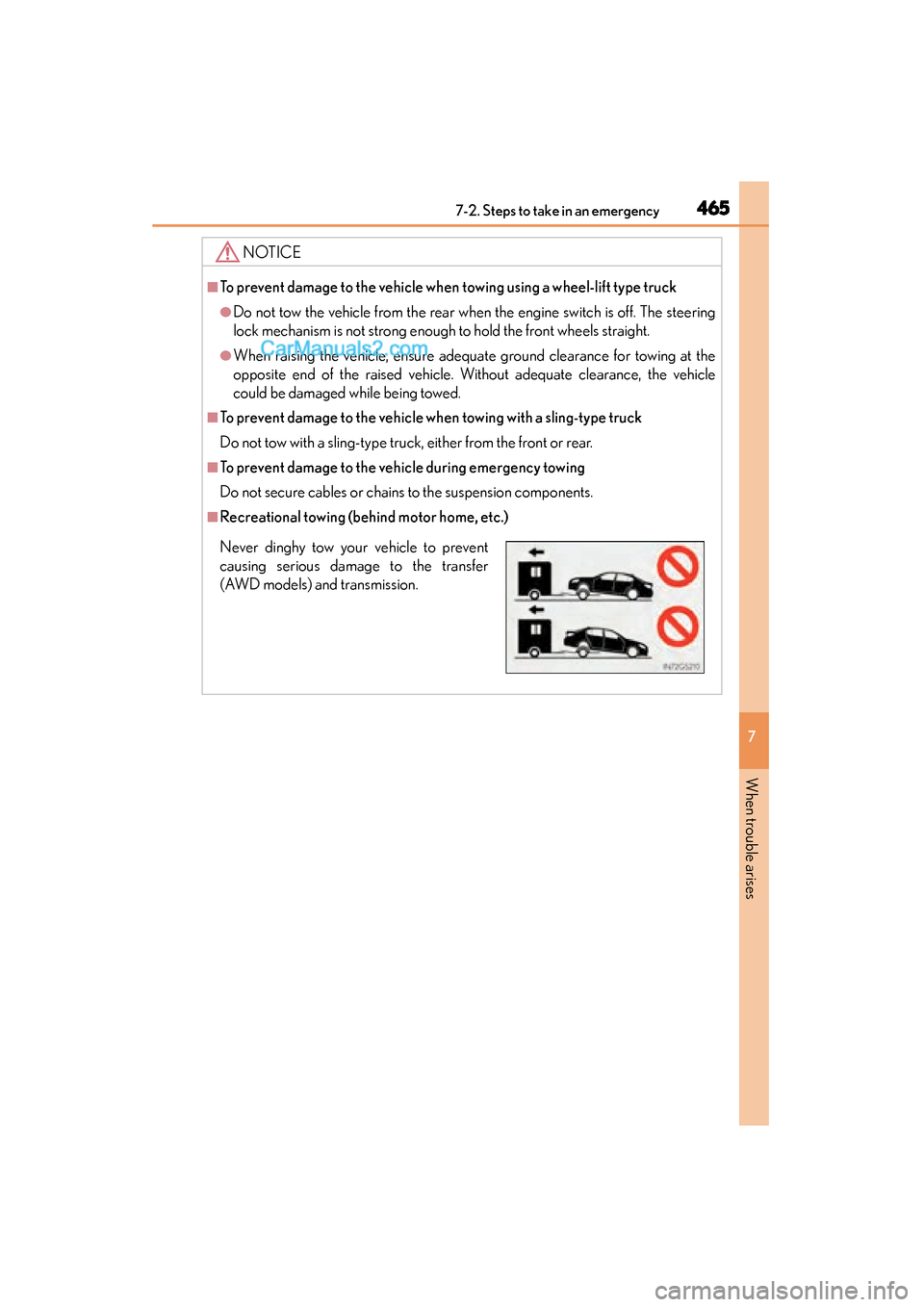

NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the engine switch is off. The steering
lock mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
■Recreational towing (behind motor home, etc.)
Never dinghy tow your vehicle to prevent
causing serious damage to the transfer
(AWD models) and transmission.
GS350_OM_OM30F69U_(U).book Page 465 Monday, January 19, 2015 2:53 PM

466
GS350_OM_OM30F69U_(U)
7-2. Steps to take in an emergency

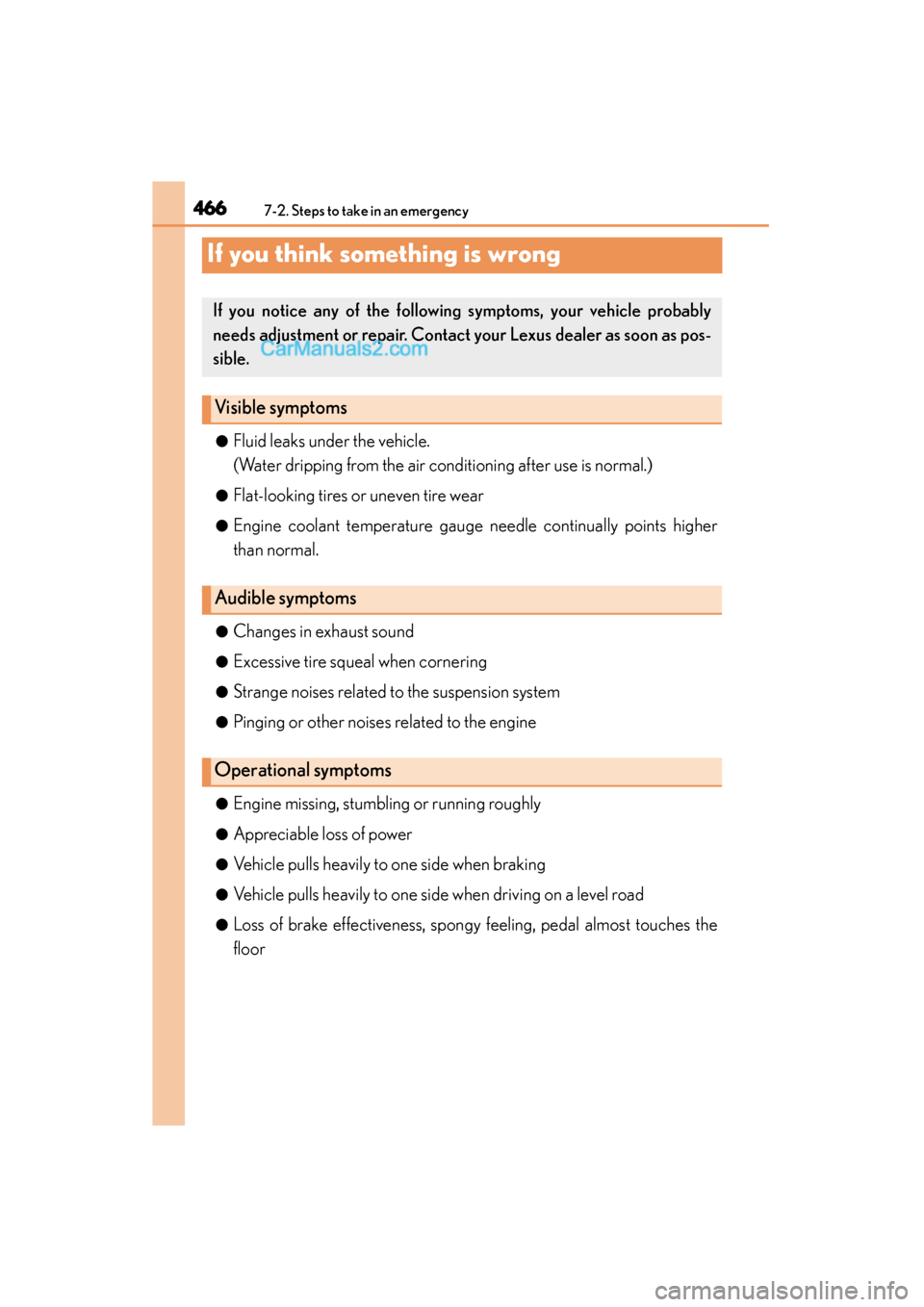

If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms
GS350_OM_OM30F69U_(U).book Page 466 Monday, January 19, 2015 2:53 PM

467
GS350_OM_OM30F69U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

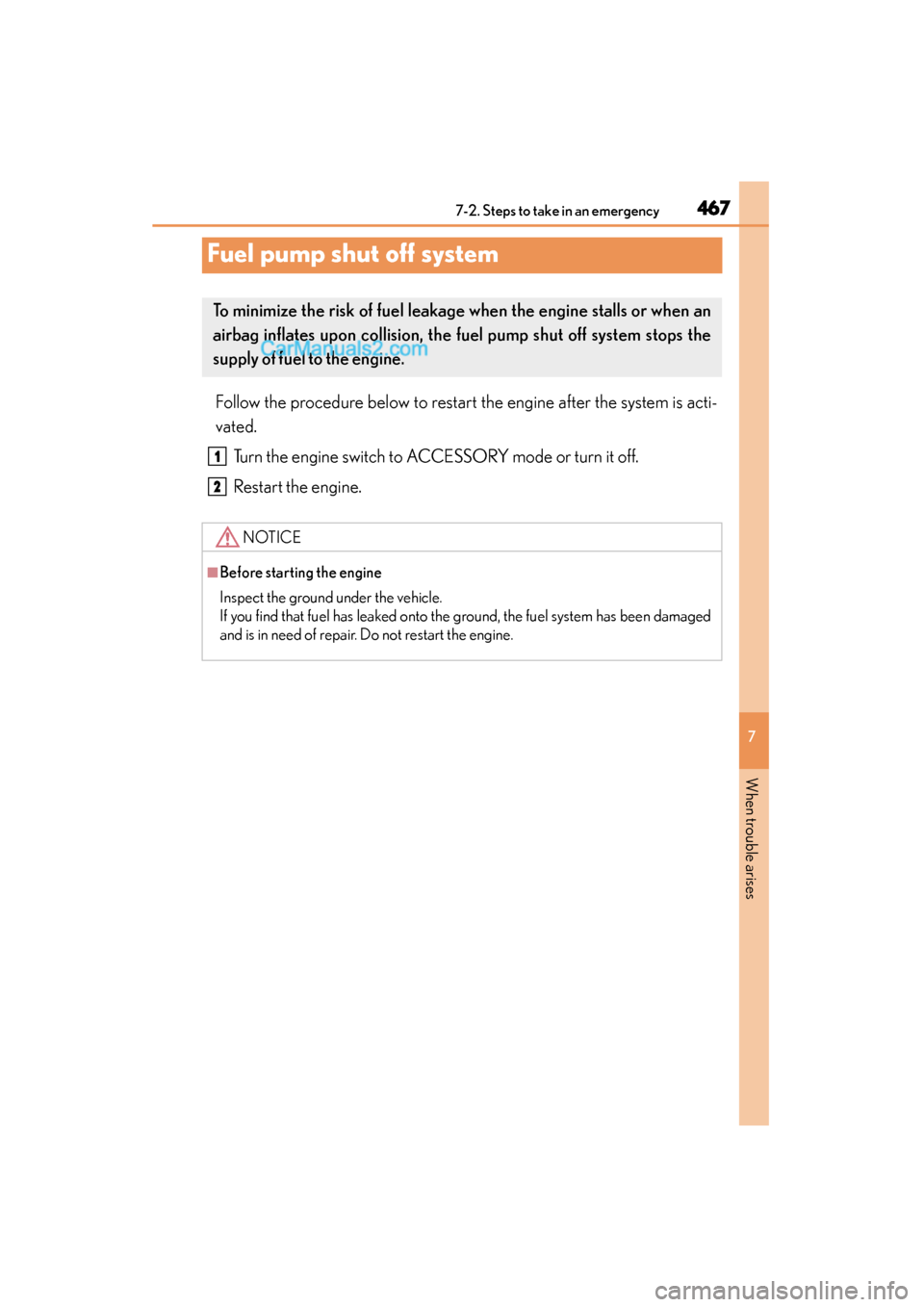

Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated. Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when an
airbag inflates upon coll ision, the fuel pump shut off system stops the
supply of fuel to the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
1
2
GS350_OM_OM30F69U_(U).book Page 467 Monday, January 19, 2015 2:53 PM

468
GS350_OM_OM30F69U_(U)
7-2. Steps to take in an emergency

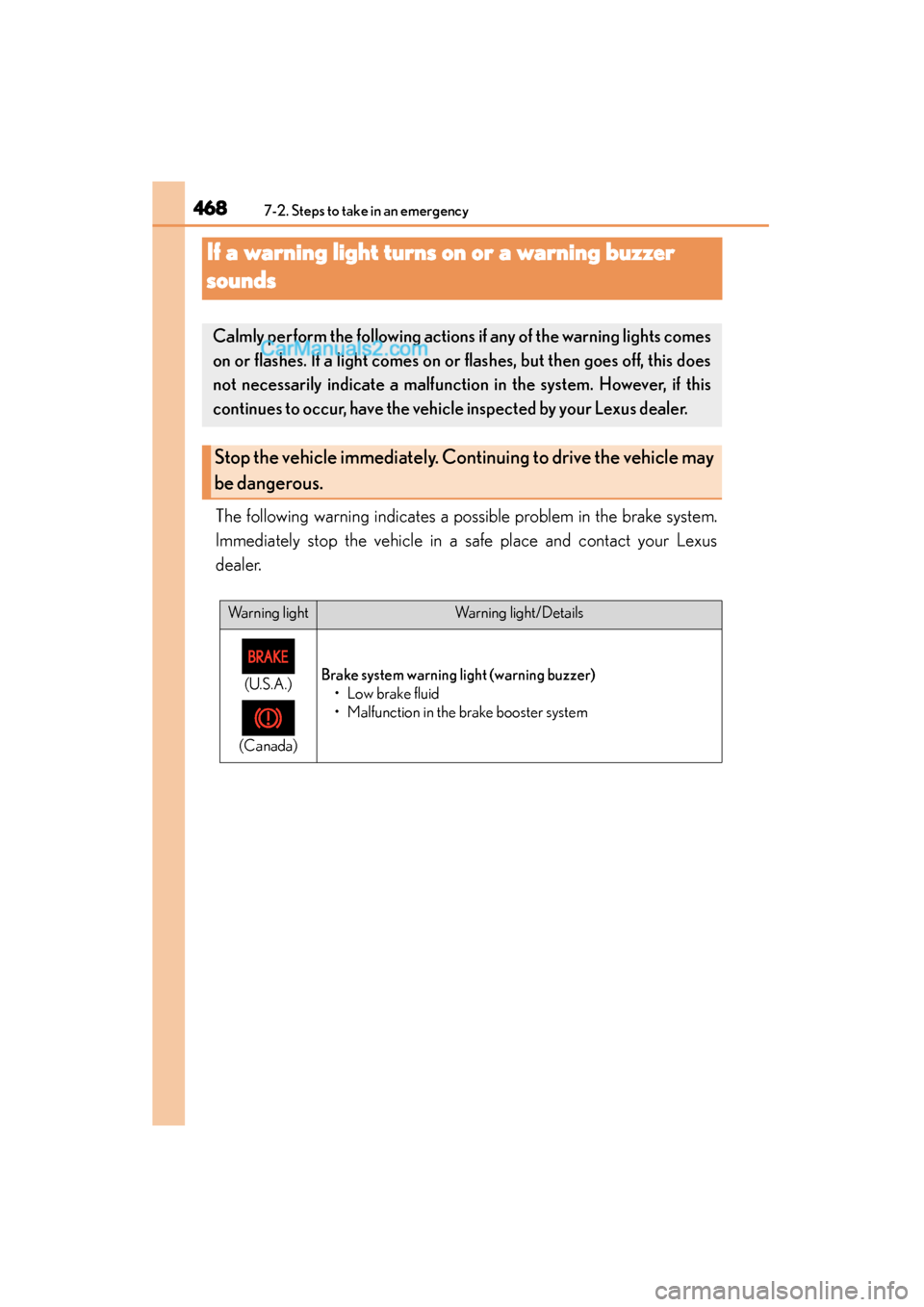

If a warning light turns on or a warning buzzer
sounds
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by your Lexus dealer.
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
Warning lightWarning light/Details
(U.S.A.)
(Canada)Brake system warning light (warning buzzer) • Low brake fluid
• Malfunction in the brake booster system
GS350_OM_OM30F69U_(U).book Page 468 Monday, January 19, 2015 2:53 PM
