273

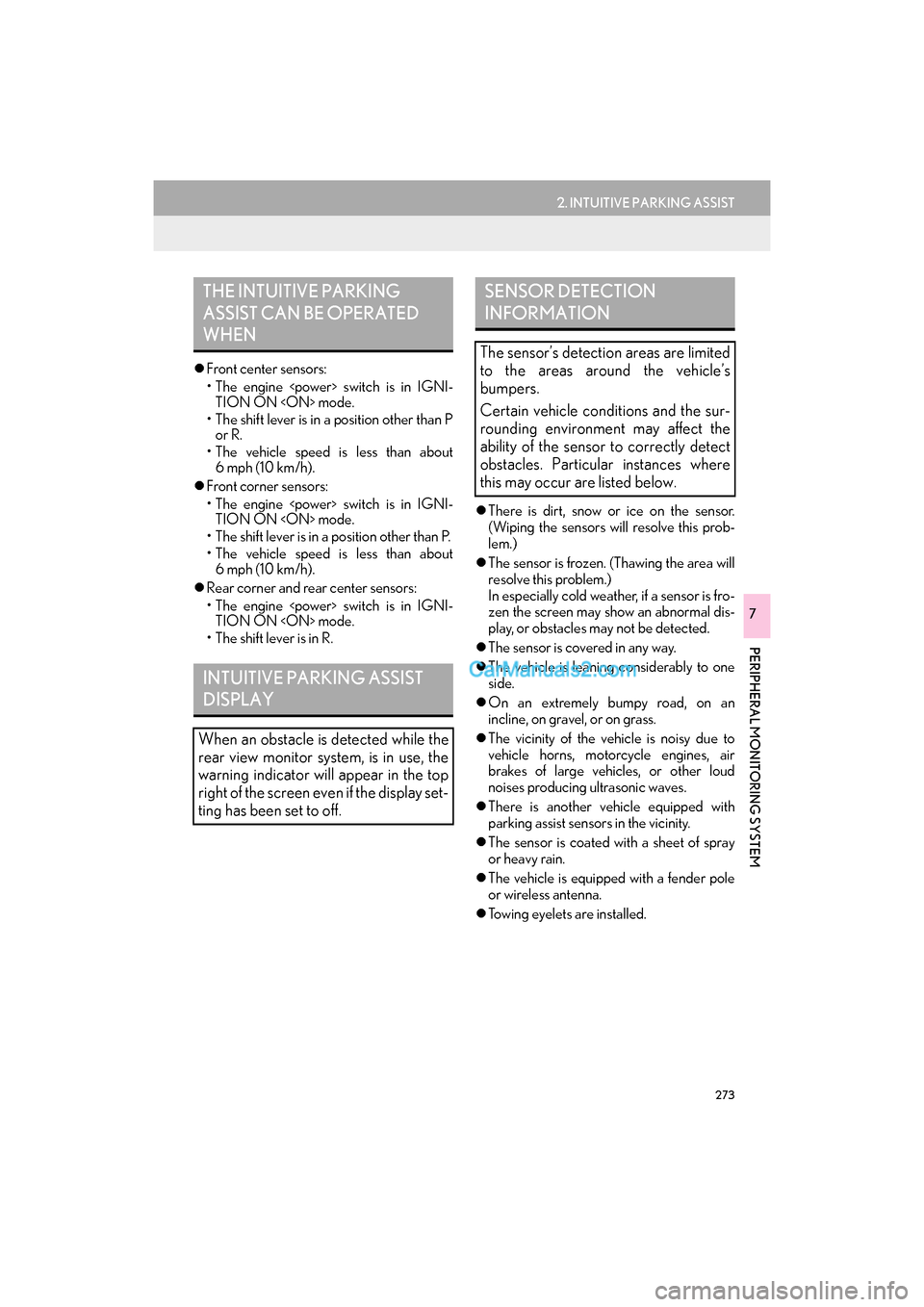

2. INTUITIVE PARKING ASSIST
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7
zFront center sensors:
• The engine switch is in IGNI-
TION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 6mph (10 km/h).
z Front corner sensors:
• The engine switch is in IGNI-
TION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than about 6mph (10 km/h).
z Rear corner and rear center sensors:
• The engine switch is in IGNI-
TION ON mode.
• The shift lever is in R. z
There is dirt, snow or ice on the sensor.
(Wiping the sensors will resolve this prob-
lem.)
z The sensor is frozen. (Thawing the area will
resolve this problem.)
In especially cold weather, if a sensor is fro-
zen the screen may show an abnormal dis-
play, or obstacles may not be detected.
z The sensor is covered in any way.
z The vehicle is leaning considerably to one
side.
z On an extremely bumpy road, on an
incline, on gravel, or on grass.
z The vicinity of the vehicle is noisy due to
vehicle horns, motorcycle engines, air
brakes of large vehicles, or other loud
noises producing ultrasonic waves.
z There is another vehicle equipped with
parking assist sensors in the vicinity.
z The sensor is coated with a sheet of spray
or heavy rain.
z The vehicle is equipped with a fender pole
or wireless antenna.
z Towing eyelets are installed.
THE INTUITIVE PARKING
ASSIST CAN BE OPERATED
WHEN
INTUITIVE PARKING ASSIST
DISPLAY
When an obstacle is detected while the
rear view monitor system, is in use, the
warning indicator will appear in the top
right of the screen even if the display set-
ting has been set to off.
SENSOR DETECTION
INFORMATION
The sensor’s detection areas are limited
to the areas around the vehicle’s
bumpers.
Certain vehicle conditions and the sur-
rounding environment may affect the
ability of the sensor to correctly detect
obstacles. Particular instances where
this may occur are listed below.

275
2. INTUITIVE PARKING ASSIST
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
PERIPHERAL MONITORING SYSTEM
7
WA R N I N G
●When using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle
being unable to be driven safely and pos-
sibly cause an accident.
• Do not use the sensor at speeds in excess of 6 mph (10 km/h).
• The sensors’ detection areas and reac- tion times are limited. When moving
forward or reversing, check the areas
surrounding the vehicle (especially the
sides of the vehicle) for safety, and drive
slowly, using the brake to control the
vehicle’s speed.
• Do not install accessories within the sensors’ detection areas.
NOTICE
●When using intuitive parking assist-sen-
sor
In the following situations, the system may
not function correctly due to a sensor
malfunction etc. Have the vehicle
checked by your Lexus dealer.
• The intuitive parking assist operation display flashes, and a beep sounds when
no obstacles are detected.
• If the area around a sensor collides with something, or is subjected to strong
impact.
• If the bumper collides with something.
• If the display shows continuously with- out a beep (except when mute is turned
on).
• If a display error occurs, first check the sensor.
If the error occurs even if there is no ice,
snow or mud on the sensor, it is likely
that the sensor is malfunctioning.
●Notes when washing the vehicle
Do not apply intensive bursts of water or
steam to the sensor area.
Doing so may result in the sensor mal-
functioning.
