Lexus GS350 2017 Owner's Manual

471
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)

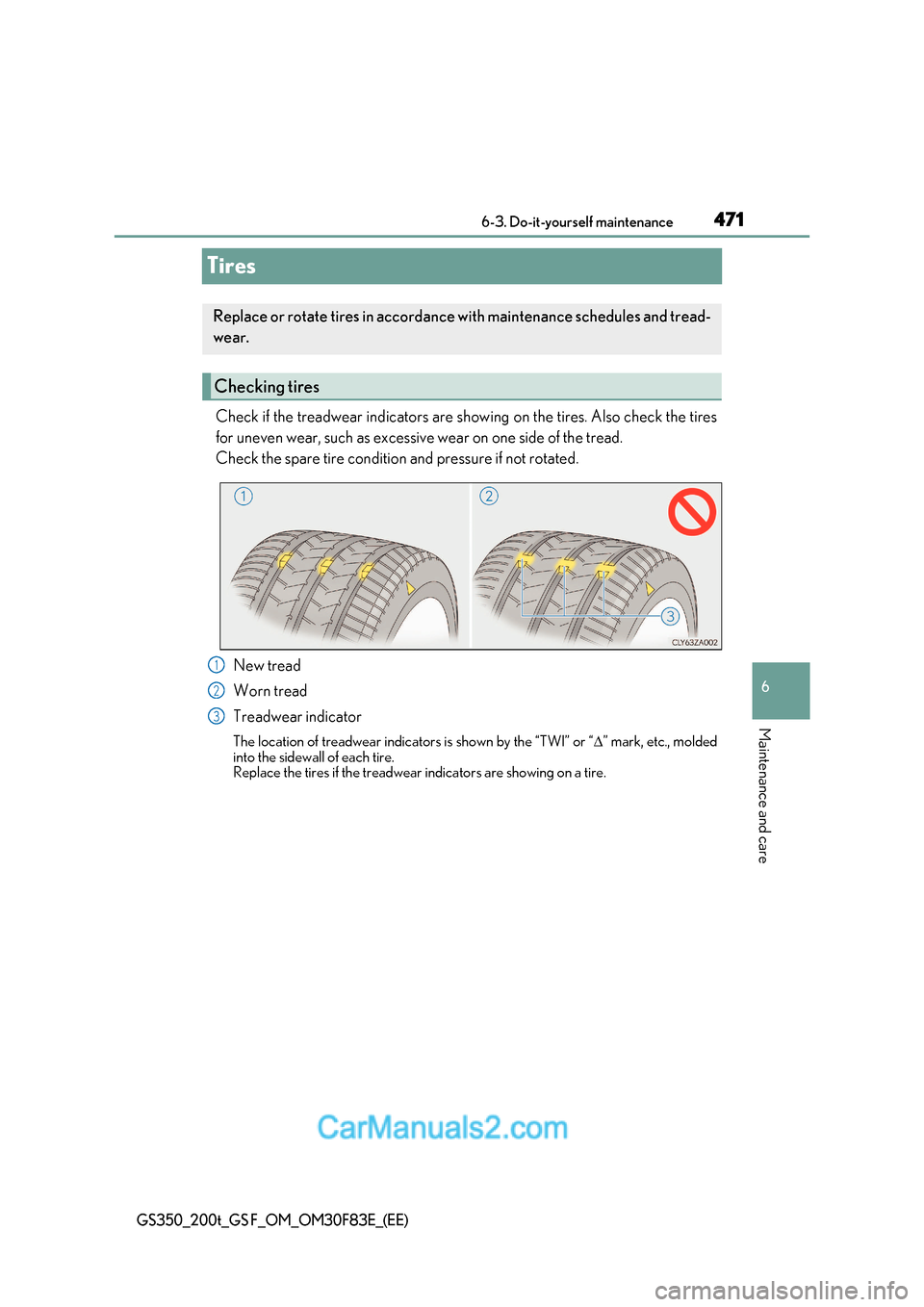

Tires
Check if the treadwear indicators are showing on the tires. Also check the tires
for uneven wear, such as excessive wear on one side of the tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by the “TWI” or “ ” mark, etc., molded
into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Replace or rotate tires in accordance with maintenance schedules and trea d-
wear.
Checking tires
1
2
3

4726-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)

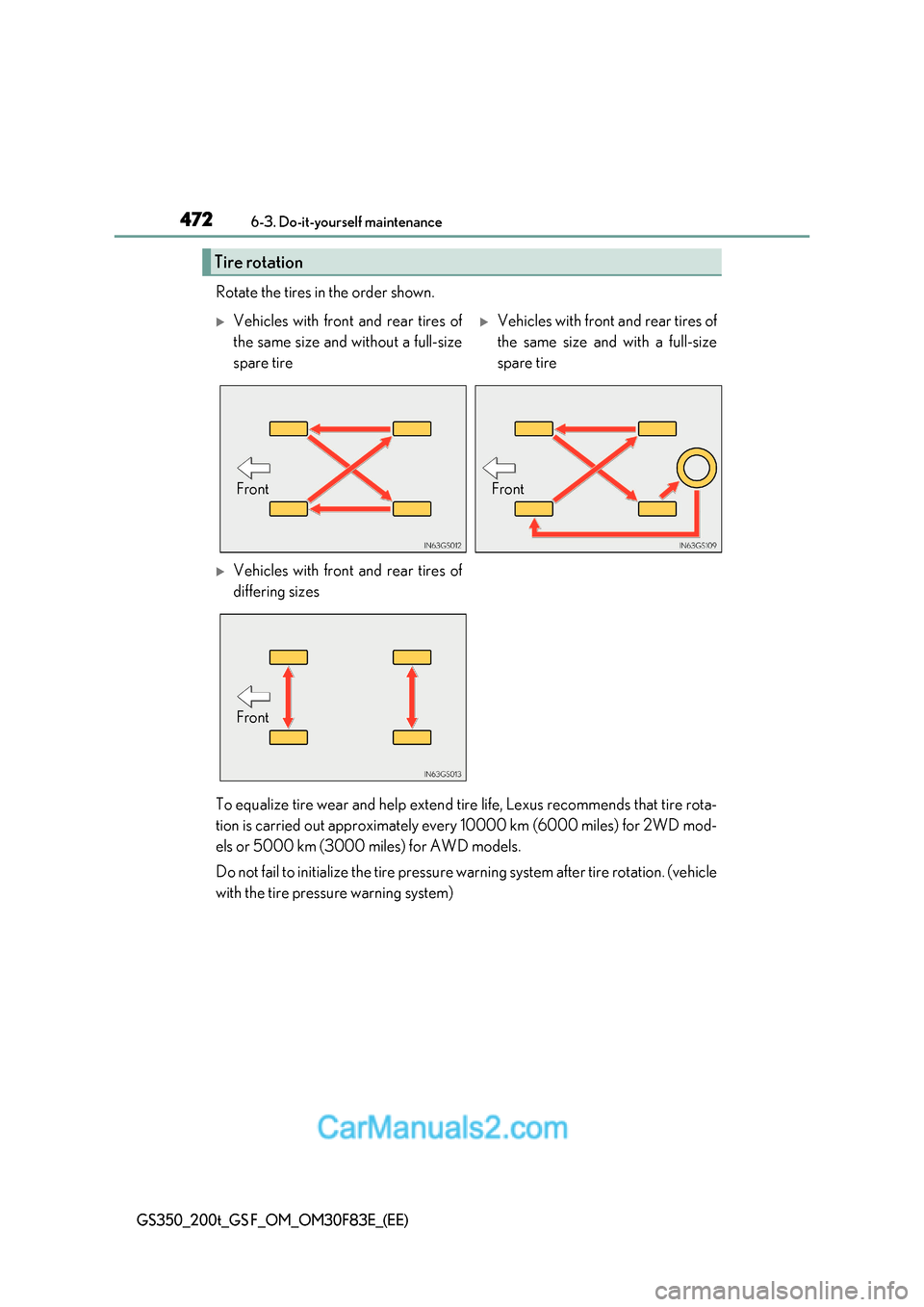

Rotate the tires in the order shown.
To equalize tire wear and help extend tire life, Lexus recommends that tire rota-
tion is carried out approximately every 10000 km (6000 miles) for 2WD mod-
els or 5000 km (3000 miles) for AWD models.
Do not fail to initialize the tire pressure warning system after tire rotation . (vehicle
with the tire pressure warning system)
Tire rotation
Vehicles with front and rear tires of
the same size and without a full-size
spare tireVehicles with front and rear tires of
the same size and with a full-size
spare tire
Vehicles with front and rear tires of
differing sizes
FrontFront
Front

473
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)

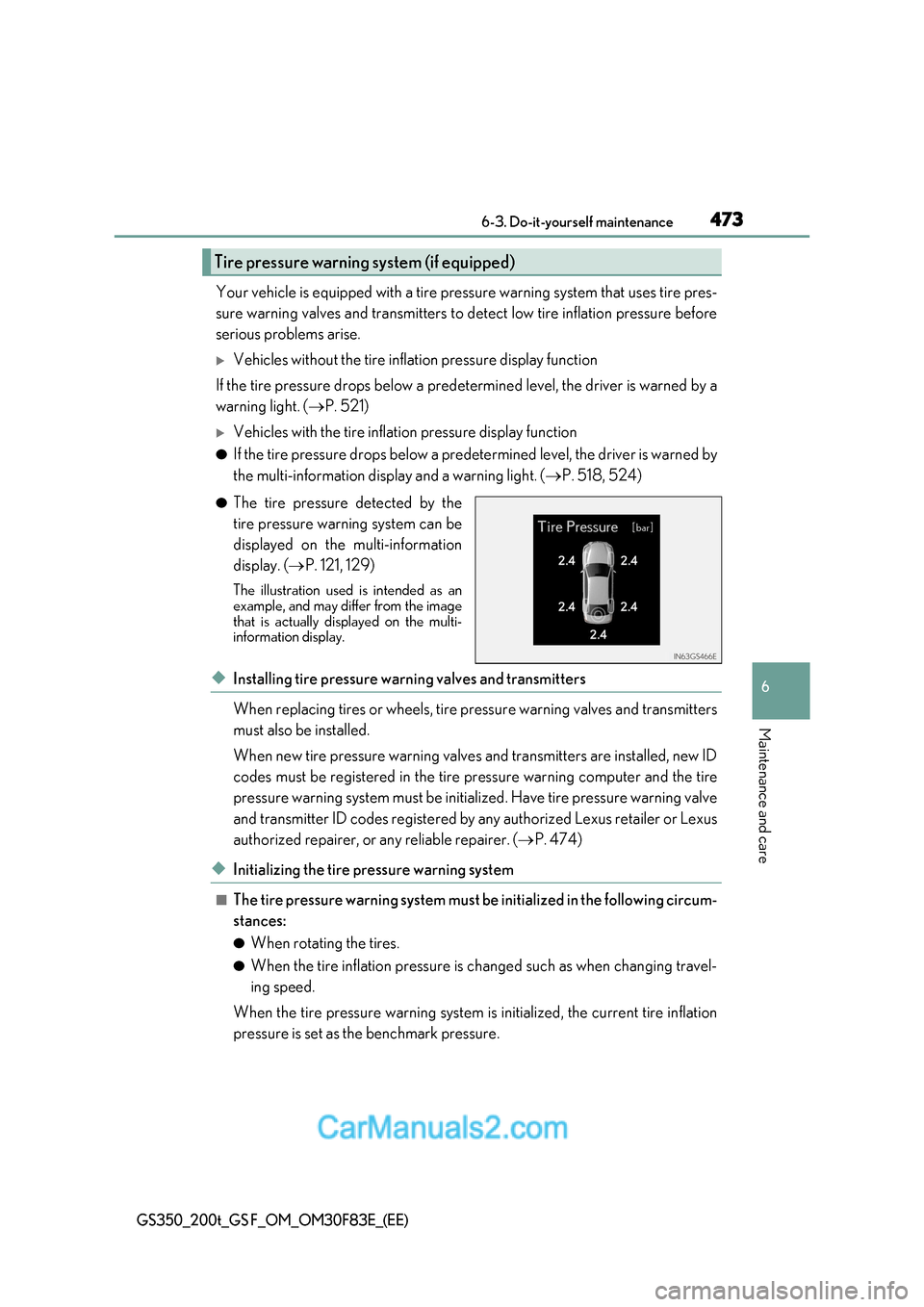

Your vehicle is equipped with a tire pressu re warning system that uses tire pres-
sure warning valves and transmitters to detect low tire inflation pressure bef ore
serious problems arise.
Vehicles without the tire inflation pressure display function
If the tire pressure drops below a predetermined level, the driver is warned by a
warning light. ( P. 521)
Vehicles with the tire inflation pressure display function
● If the tire pressure drops below a predetermined level, the driver is warned b y
the multi-information display and a warning light. ( P. 518, 524)
● The tire pressure detected by the
tire pressure warning system can be
displayed on the multi-information
display. ( P. 121, 129)
The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-
information display.
◆Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and transmitters
must also be installed.
When new tire pressure warning valves and transmitters are installed, new ID
codes must be registered in the tire pressure warning computer and the tire
pressure warning system must be initialized. Have tire pressure war ning valve
and transmitter ID codes registered by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. ( P. 474)
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following circum-
stances: ● When rotating the tires.
● When the tire inflation pressure is changed such as when changing travel-
ing speed.
When the tire pressure warning system is initialized, the current tire inflation
pressure is set as the benchmark pressure.
Tire pressure warning system (if equipped)

4746-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)

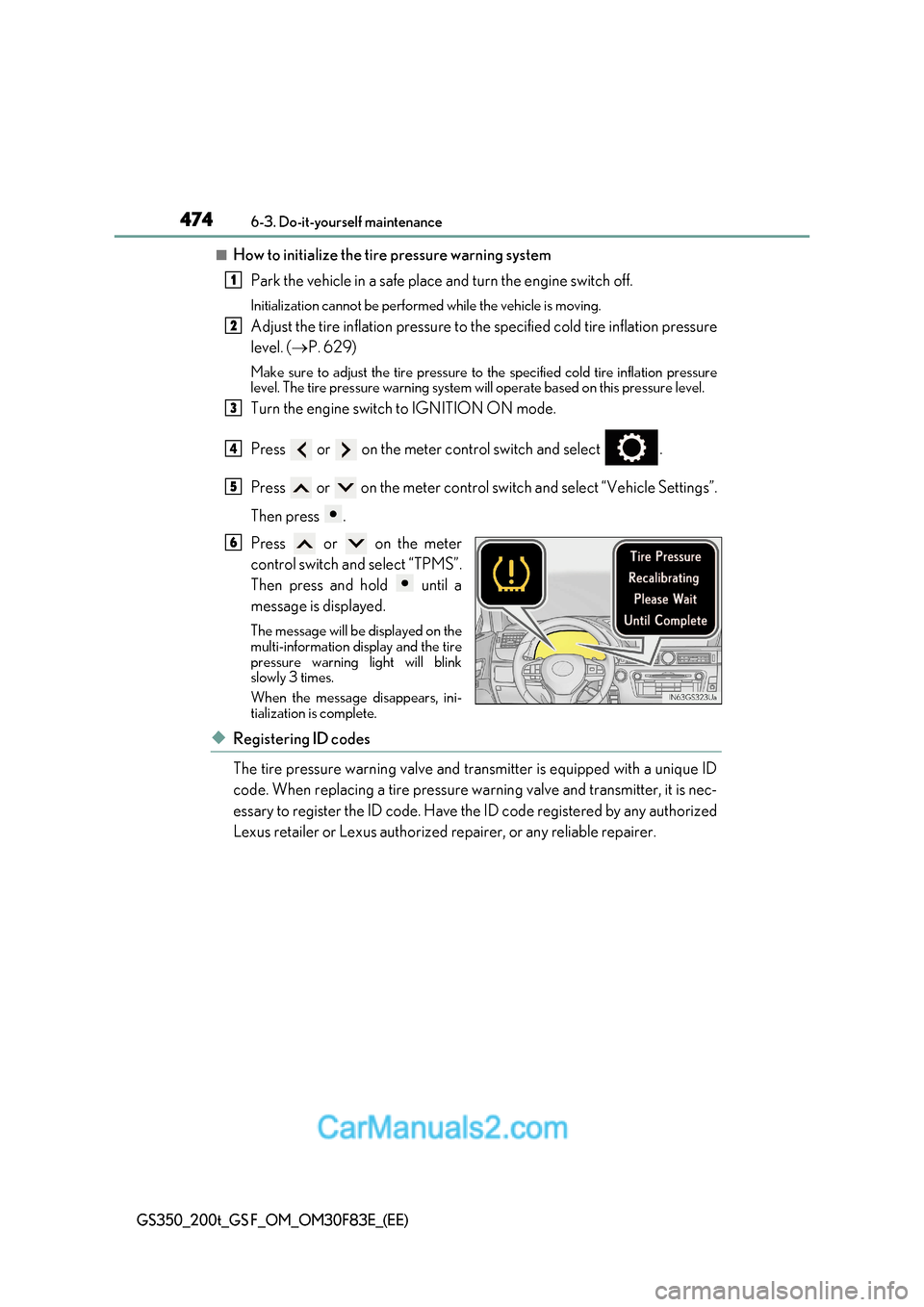

■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performe d while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation pressure
level. ( P. 629)
Make sure to adjust the tire pressure to the specified cold tire inflation pressure
level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Press or on the meter control switch and select .
Press or on the meter control switch and select “Vehicle Settings”.
Then press .
Press or on the meter
control switch and select “TPMS”.
Then press and hold until a
message is displayed.
The message will be displayed on the
multi-information display and the tire
pressure warning light will blink
slowly 3 times.
When the message disappears, ini- tialization is complete.
◆Registering ID codes
The tire pressure warning valve and tran smitter is equipped with a unique ID
code. When replacing a tire pressure wa rning valve and transmitter, it is nec-
essary to register the ID code. Have the ID code registered by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
1
2
3
4
5
6

475
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
■When to replace your vehicle’s tires
Tires should be replaced if:
●The treadwear indicators are showing on a tire.
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and
bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or location of
a cut or other damage
If you are not sure, consult with any auth orized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
■Replacing tires and wheels (vehicles with the tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not registered, the tire
pressure warning system will not work proper ly. After driving for about 10 minutes, the
tire pressure warning light blinks for 1 minu te and stays on to indicate a system malfunc-
tion.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has seldom
or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not re place routine tire inflation pressure checks.
Make sure to check tire inflation pressure as part of your routine of daily vehicle checks.
■When rotating the tires (vehicles with the tire pressure warning system featuring a tire
inflation pressure display function)
Make sure that the engine switch is off. If the tires are rotated while the engine switch is in
IGNITION ON mode, the tire position information will not be updated.
If this accidentally occurs, either turn the engine switch to off and then to IGNITION ON
mode, or initialize the system after checking th at the tire pressure is properly adjusted.
■Low profile tires (except 225/50R17 tires)
Generally, low profile tires will wear more rapidly and tire grip performance will be
reduced on snowy and/or icy roads when comp ared to standard tires. Be sure to use
snow tires or tire chains on snowy and/or icy roads and drive carefully at a speed appro-
priate for road and weather conditions. ( P. 385)
■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.

4766-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)

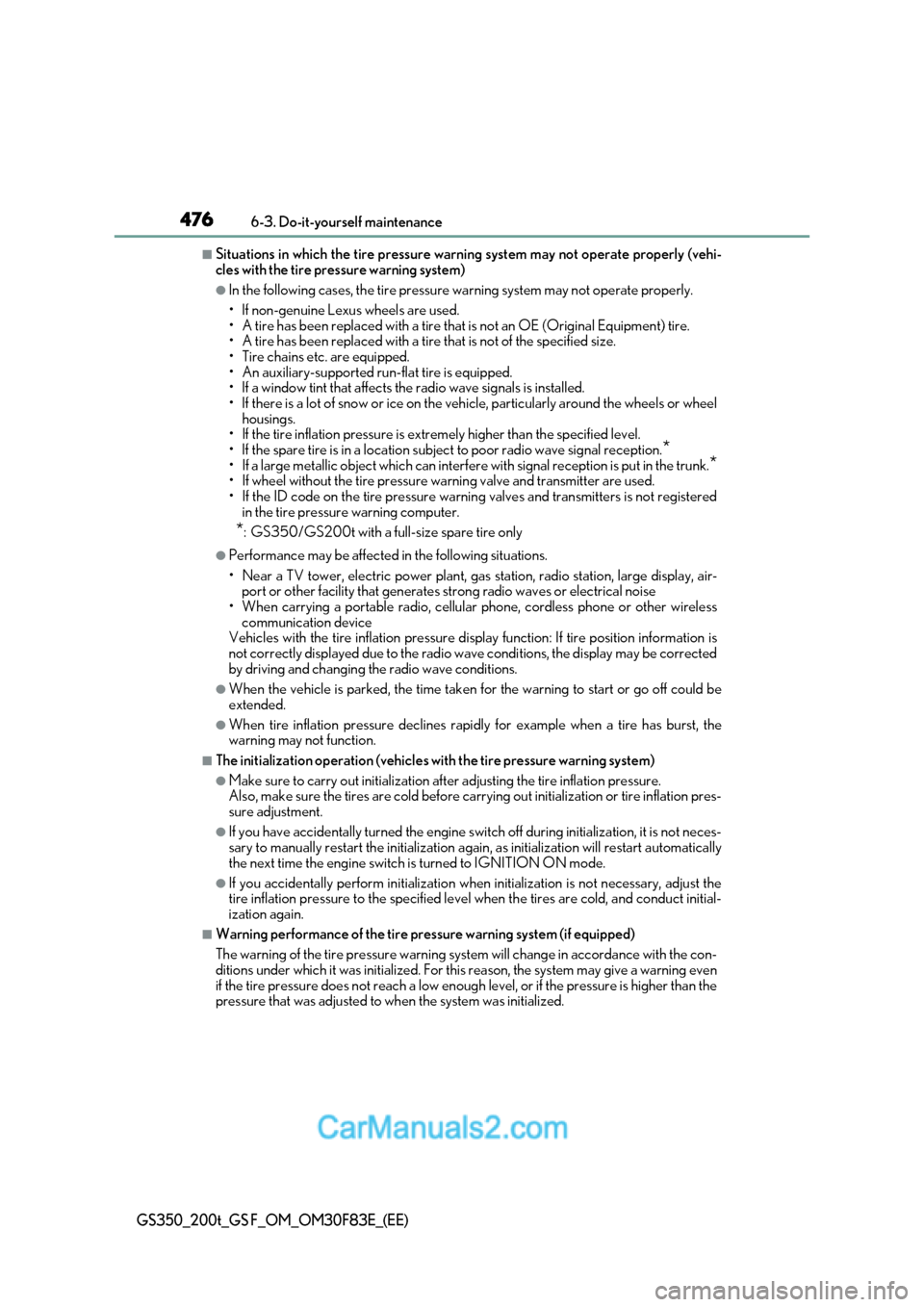

■Situations in which the tire pressure warning system may not operate properly (vehi-
cles with the tire pressure warning system)
●In the following cases, the tire pressure warning system may not operate properly.

477
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)

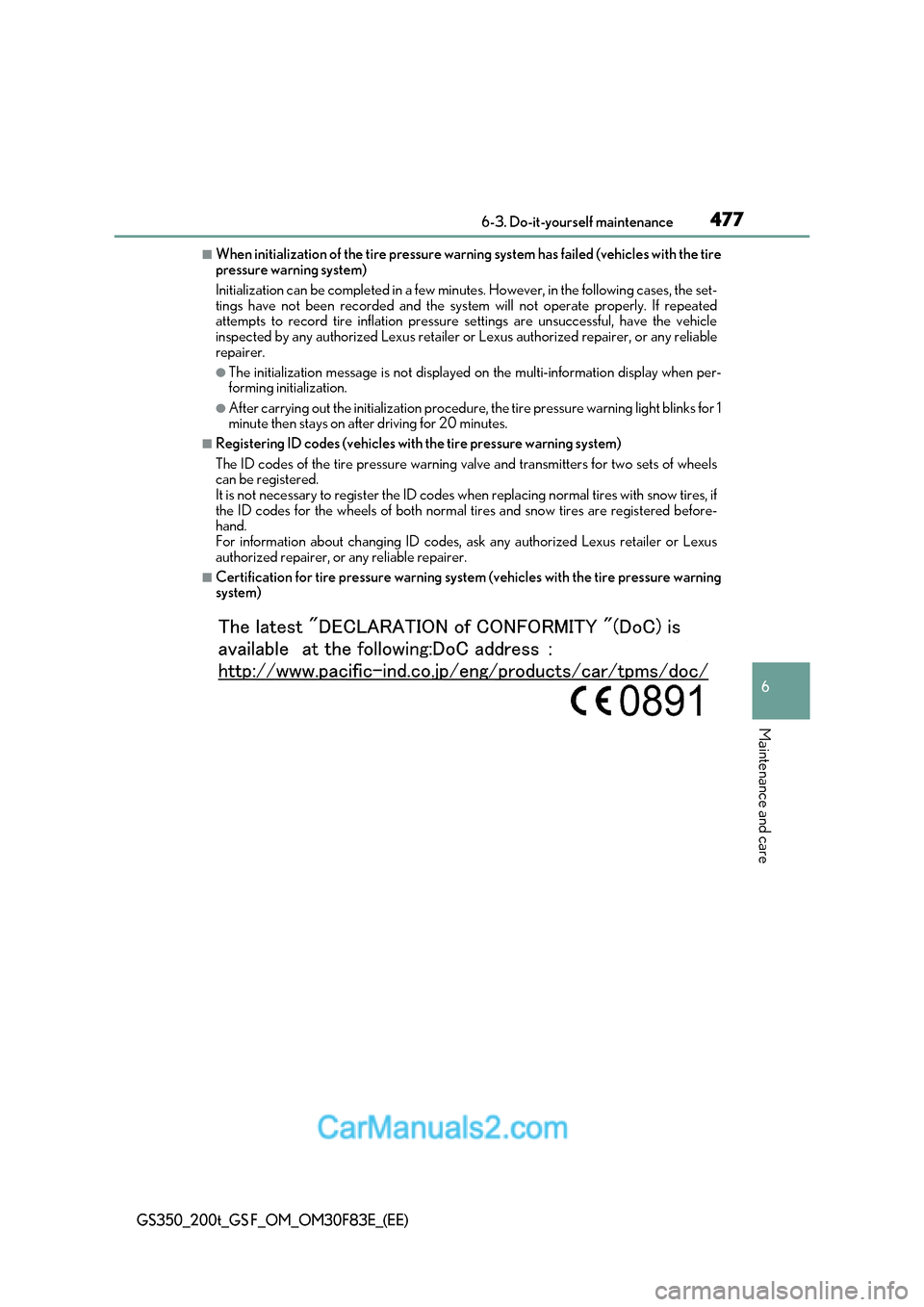

■When initialization of the tire pressure warn ing system has failed (vehicles with the tire
pressure warning system)
Initialization can be co mpleted in a few minutes. However, in the following cases, the set-
tings have not been recorded and the syst em will not operate properly. If repeated
attempts to record tire inflation pressure settings are unsuccessful, have the vehicle
inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
●The initialization message is not displayed on the multi-information display when per-
forming initialization.
●After carrying out the initializat ion procedure, the tire pressure warning light blinks for 1
minute then stays on after driving for 20 minutes.
■Registering ID codes (vehicles with the tire pressure warning system)
The ID codes of the tire pressure warning valve and transmitters for two sets of wheels
can be registered.
It is not necessary to register the ID codes when replacing normal tires with snow tires, if
the ID codes for the wheels of both normal tires and snow tires are registered before-
hand.
For information about changing ID codes, ask any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

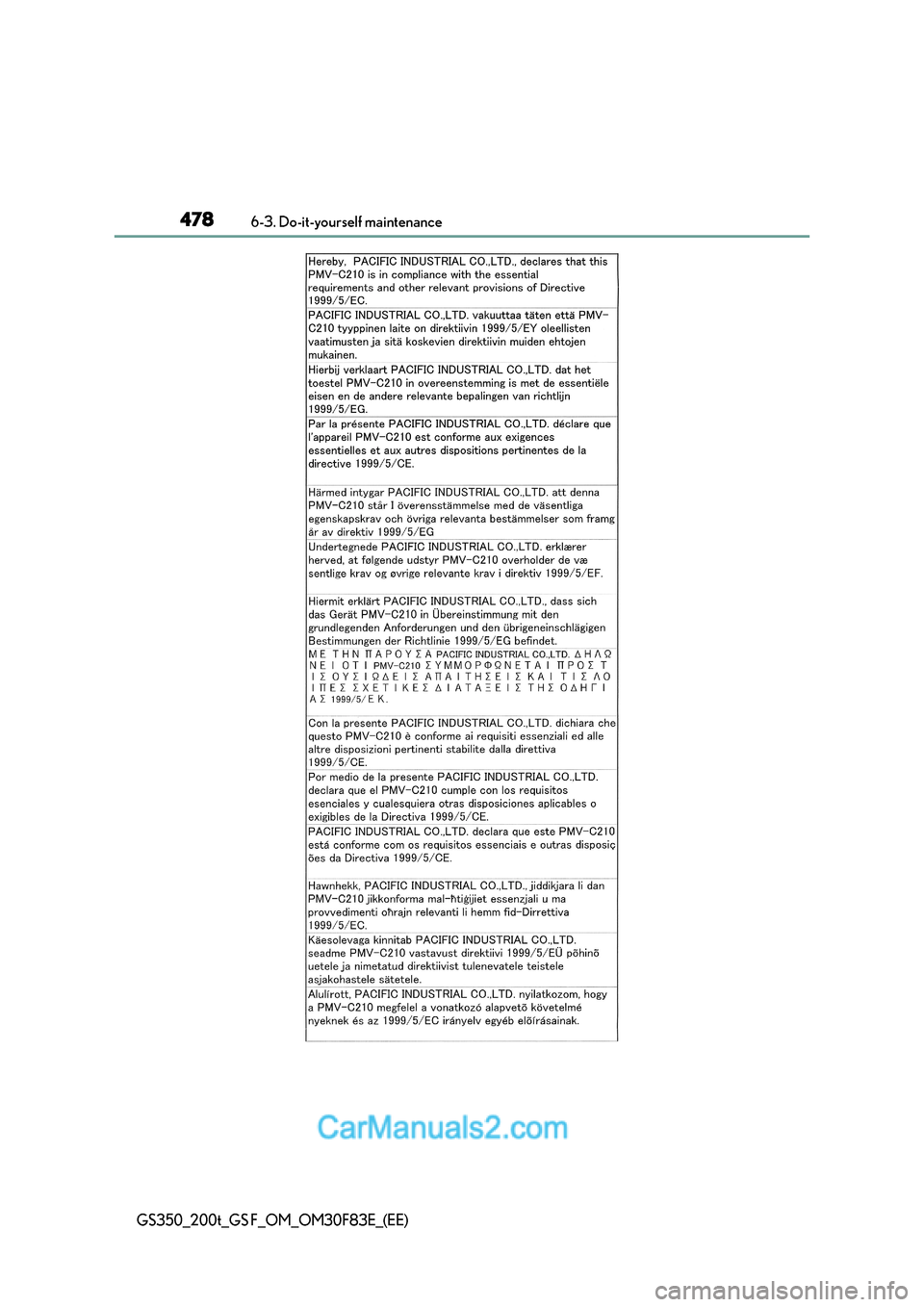

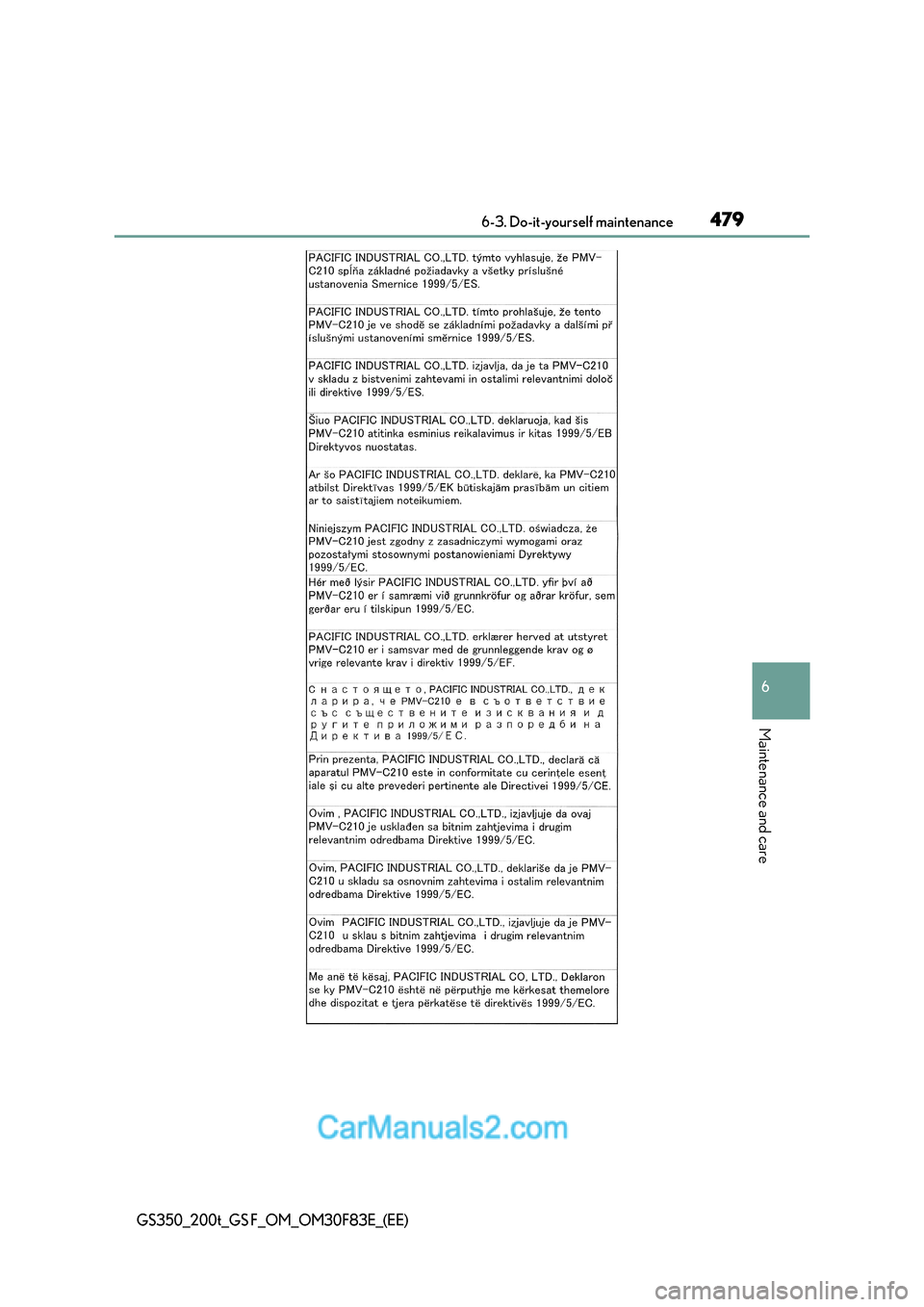

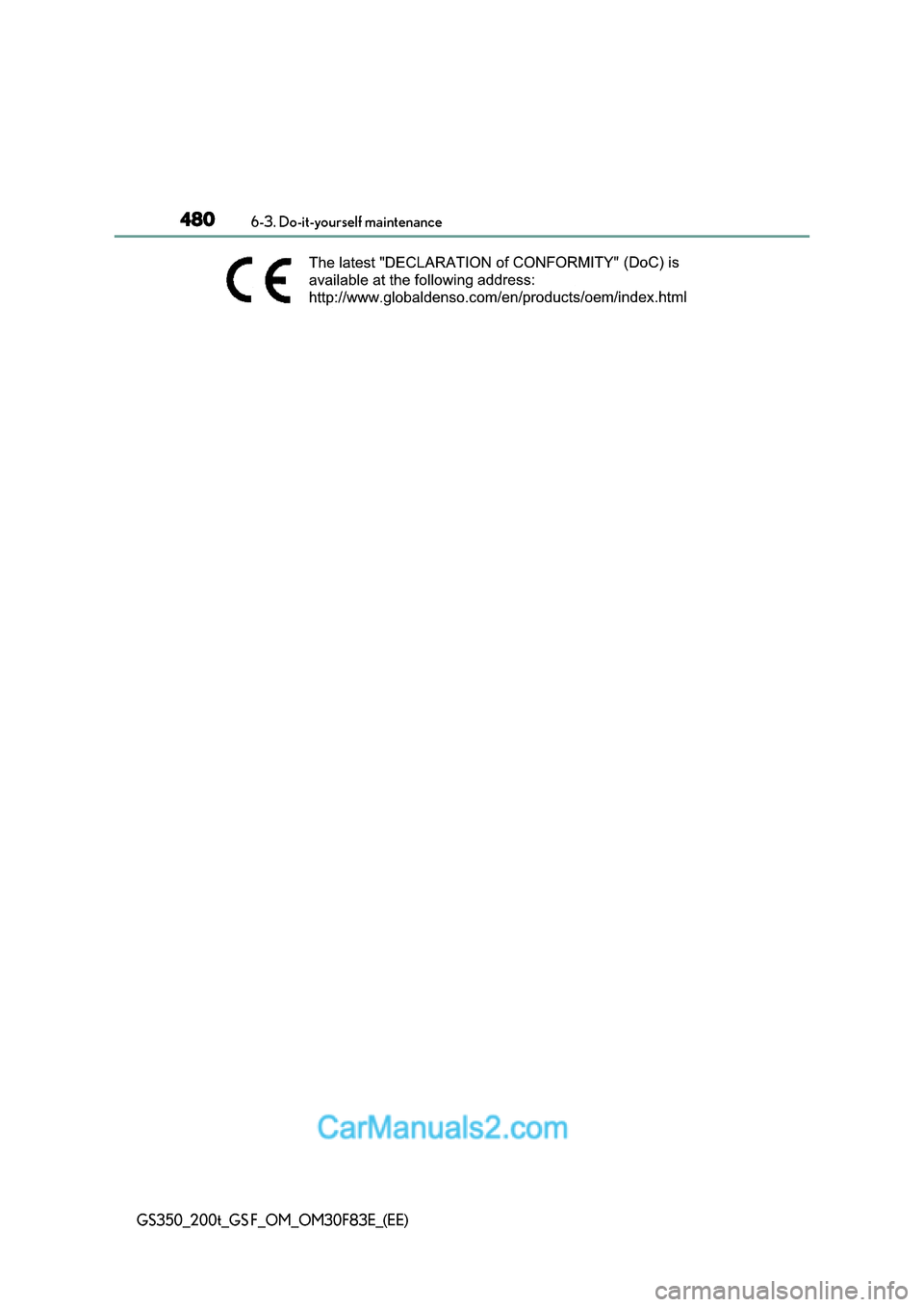

■Certification for tire pressure warning system (vehicles with the tire pressu re warning
system)

4786-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)

479
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)

4806-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
