Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

CHASSIS
550
Tire related termMeaning
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second \
column of
Table 1 that follows
Production options weight
the combined weight of those installed regular production options weighi\
ng over
2.3 kg (5 lb.) in excess of those standard items which they replace, n\
ot previously
considered in curb weight or accessory weight, including heavy duty brak\
es, ride
levelers, roof rack, heavy duty battery, and special trim
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicl\
e’s
designated seating capacity
Intended outboard
sidewall
(a) the sidewall that contains a whitewall, bears white lettering or bearsmanufacturer, brand, and/or model name molding that is higher or deeper than
the same molding on the other sidewall of the tire, or
(b) the outward facing sidewall of an asymmetrical tire that has a particula\
r side that must always face outward when mounted on a vehicle
Occupant distributiondistribution of occupants in a vehicle as specified in the third column \
of Table 1 that
follows
Rima metal support for a tire or a tire and tube assembly upon which the ti\
re beads are
seated
Rim diameter
(Wheel diameter)nominal diameter of the bead seat

CHASSIS
551
Tire related termMeaning
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer’s designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle maximum load on
the tirethe load on an individual tire that is determined by distributing to eac\
h axle its
share of the maximum loaded vehicle weight and dividing by two
Vehicle normal load on
the tirethe load on an individual tire that is determined by distributing to eac\
h axle its
share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sidethe surface area of the rim not covered by the inflated tire
Table 1 – Occupant loading and distribution for vehicle normal load for various designated seating capacities
Designated seating capacity, Number of occupants
Vehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat

CHASSIS
552
RUNFLAT TIRES
This vehicle can be equipped with either runflat
tires (RFT) or standard tires. You may continue
driving on the vehicle with runflat tires even if any
tire goes flat. It may be able to run for a maximum
of 160 km (100 miles) at a speed below 90 km/h (55
mph) after the low tire pressure warning light comes
on. When you drive your vehicle after the low tire
pressure warning light comes on, the tire must be
replaced. Do not use the repaired tire.
G63004
A “RFT” or “DSST” mark is molded on the sidewall of the
run−flat tire.
If you cannot distinguish between the standard tire and
run−flat tire, consult Lexus dealer.
If you have a flat tire, you have to take a different action
depending on whether the tires are standard tires or
run−flat tires.
Runflat tires characteristics:
The vehicle with run −flat tires helps you to continue
driving for up to 160 km (100 miles) at the moderate
speed and do not ever exceed 90 km/h (55 mph) even
with a flat tire. After such usage, the tire must be
replaced. If you are not sure, consult your Lexus dealer.
If you have a flat tire, decrease the speed and drive at
lower speed to reduce the extent to which the tire is
damaged.
However, in some conditions (such as at high
temperatures), you could not continue driving for up to
160 km (100 miles).
The use of non−genuine wheels may prohibit optimum
performance.
The run −flat tires equipped on this vehicle are ones
dedicated for GS430/300. Do not use them on another
model.
Do not mix run− flat tires with standard tires.
The tire warranty book covers the detailed information
on run− flat tires. For details, see the tire warranty book.
Tire pressure warning system
The tire pressure warning system is equipped to warn
you of the low tire inflation pressure. For details, see
“Tire pressure warning system” on page 433.

CHASSIS
553
TYPES OF TIRES
Determine what kind of tires your vehicle is originally
equipped with.
1. Summer tires
Summer tires are high −speed capability tires best suited
to highway driving under dry conditions.
Since summer tires do not have the same traction
performance as snow tires, summer tires are
inadequate for driving on snow −covered or icy roads.
For driving on snow− covered or icy roads, we
recommend using snow tires. If installing snow tires, be
sure to replace all four tires.
2. All season tires
All season tires are designed to provide better traction
in snow and to be adequate for driving in most winter
conditions, as well as for use all year round.
All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose
snow. Also, all season tires fall short in acceleration and
handling performance compared with summer tires in
highway driving.
CAUTION
 Do not mix summer and all season tires on your
vehicle as this can cause dangerous handling
characteristics, resulting in loss of control.
 Do not use tires other than the manufacturer’s
designated tires, and never mix tires or wheels
of the sizes different from the originals as this
could result in loss of control and could cause
death or serious injury.

CHASSIS
554
ROTATING TIRES
G63008
To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires according to
the maintenance schedule. (For scheduled
maintenance information, please refer to the
“Owner’s Manual Supplement / Scheduled
Maintenance”.) However, the most appropriate
timing for tire rotation may vary according to your
driving habits and road surface conditions.
The wheel assemblies must be rotated as illustrated
above.
When rotating tires, check for uneven wear and
damage. Abnormal wear is usually caused by incorrect
tire inflation pressure, improper wheel alignment,
out−of−balance wheels, or severe braking. Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the
same
direction when using them again. Tires should be
stored in a cool dry place.
CHECKING AND REPLACING TIRES
When to replace your tires
G63003
 1New tread 2Tread wear indicator
3Worn tread
Replace the tires when the tread wear indicators
show. The location of tread wear indicators is
shown by the ”TWI” or ”
Δ” marks, etc., molded on
the sidewall of each tire.

CHASSIS
555
The tires on your Lexus have built−in tread wear
indicators to help you know when the tires need
replacement. When the tread depth wears to 1.6 mm
(0.06 in.) or less, the indicators will appear. If you can
see the indicators in two or more adjacent grooves, the
tire should be replaced. Vehicles equipped with 245/40R18 93Y or
P245/40R18
93V tires: Your Lexus has been fitted with
specially developed tires which provide exceptional
dynamic performance under general road conditions.
However your riding comfort may worsen a little and
road noise may increase during driving. You may also
notice that your tires will wear more rapidly and tire grip
performance will be reduced on the snowy and/or icy
roads when compared to standard tires. Be sure to have
snow tires or tire chains on the snowy and/or icy roads
and drive carefully with the speed appropriate for road
conditions.
NOTICE
Low profile tire like 245/40R18 93Y or P245/40R18
93V may have greater damage than usual tires to
its tire wheel when receiving impact from the road
surface. Therefore, pay attention to the following.
 Be sure to use with proper tire inflation
pressure. If the tire inflation pressure is low, the
tire may have greater damage. For detailed
information about tire inflation pressure, see
page 534.
 Avoid driving onto high, sharpedged objects
and other road hazards. Failure to do so can
lead to severe tire damage.

CHASSIS
556
The effectiveness of snow tires is lost if the tread
wears down below 4 mm (0.16 in.).
If you have tire damage such as cuts, splits, cracks
deep enough to expose the fabric, or bulges
indicating internal damage, the tire should be
replaced.
If a tire often goes flat or cannot be properly repaired due
to the size or location of a cut or other damage, it should
be replaced. If you are not sure, consult with your Lexus
dealer.
If air loss occurs while driving, do not continue driving.
Driving even a short distance can damage a tire beyond
repair.
Any tires which are over 6 years old must be
checked by a qualified technician even if damage is
not obvious.
Tires deteriorate with age even if they have never or
seldom been used.
This applies also to the spare tire and tires stored for
future use.NOTICE
 When you purchase new tires, consult your
Lexus dealer. If you change from runflat tires
to standard tires, a spare tire should also be
equipped.
 When the tires must be repaired or replaced,
have them repaired or replaced by Lexus dealer
or authorized dealer. The tire pressure sensors
will be affected by the installation or removal of
tires.
 When the tires must be replaced, replace the
grommets for tire pressure sensors as well.

CHASSIS
557
Tire selection
When replacing a tire, use a tire of the same size and
construction, and the same or greater maximum
load as the originally installed tires. Also, all the
tires must be the same brand and have the same
tread patterns.
Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration,
ground clearance, and clearance between the body and
tires or snow chains.
Check that the maximum load of the replaced tire is
greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle,
whichever is greater. As for the maximum load of the
tire, see the load limit at maximum cold tire inflation
pressure mentioned on the sidewall of the tire, and as for
the Gross Axle Weight Ratings (GAWR), see the
Certification Label. For details about the Certification

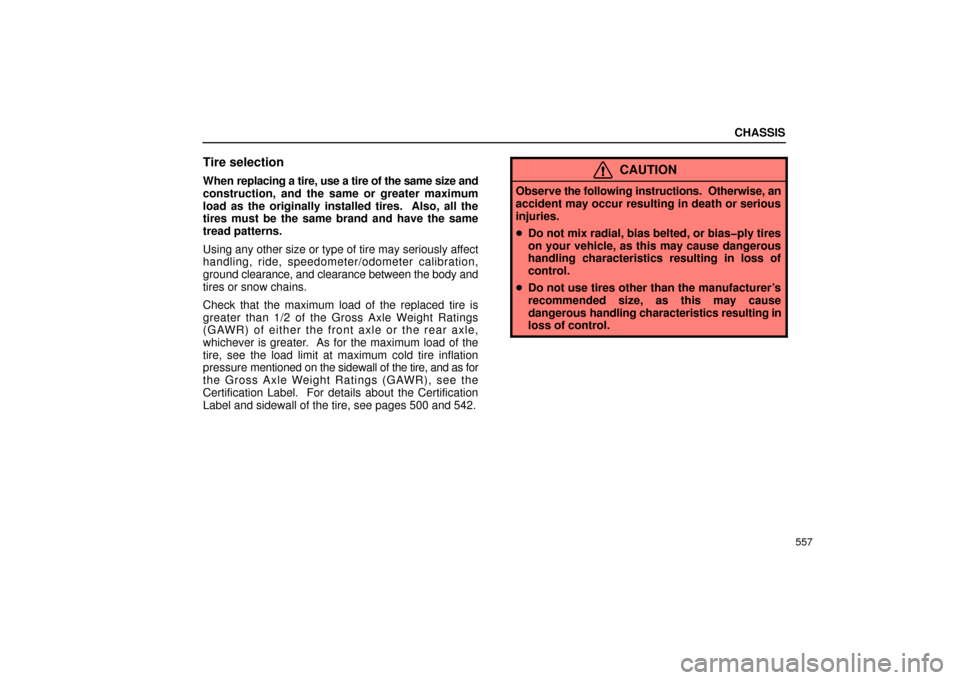

Label and sidewall of the tire, see pages 500 and 542.CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
 Do not mix radial, bias belted, or biasply tires
on your vehicle, as this may cause dangerous
handling characteristics resulting in loss of
control.
 Do not use tires other than the manufacturer’s
recommended size, as this may cause
dangerous handling characteristics resulting in
loss of control.

CHASSIS
558
INSTALLING SNOW TIRES ANDCHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select tires of the same size,
construction and load capacity as the originally installed
tires. Also, all the tires must be the same brand and have
the same tread patterns.

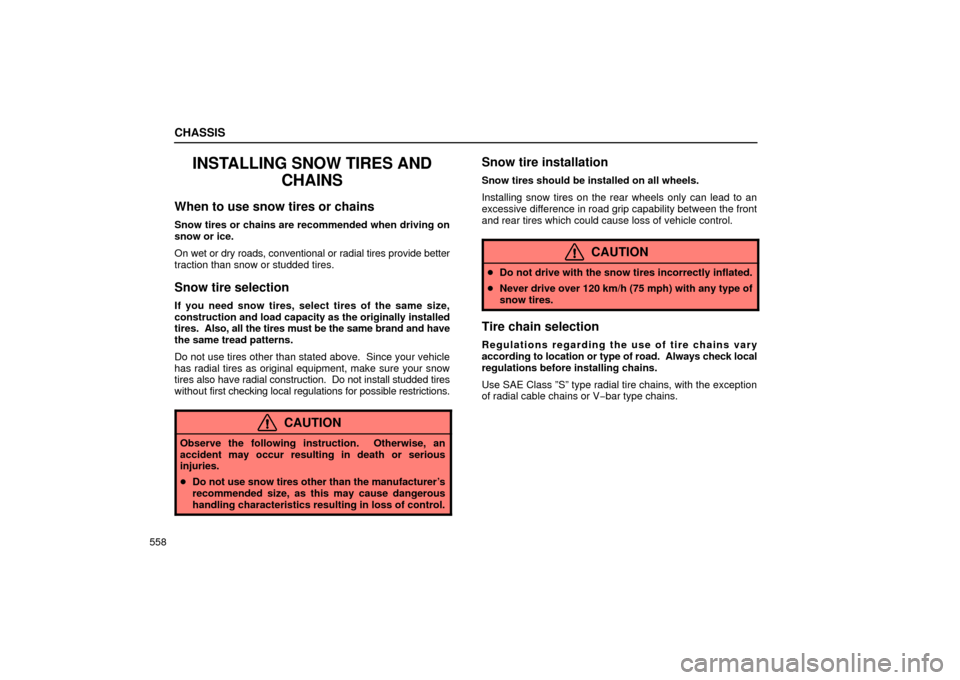

Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
CAUTION
Observe the following instruction. Otherwise, an
accident may occur resulting in death or serious
injuries.
Do not use snow tires other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.
CAUTION
Do not drive with the snow tires incorrectly inflated.
 Never drive over 120 km/h (75 mph) with any type of
snow tires.
Tire chain selection
Regulations regarding the use of tire chains vary
according to location or type of road. Always check local
regulations before installing chains.
Use SAE Class ”S” type radial tire chains, with the exception
of radial cable chains or V− bar type chains.

CHASSIS
559
Chain installation
Install the chains on the rear tires as tightly as possible.
Do not use tire chains on the front tires. Retighten chains
after driving 0.5 1.0 km (1/4 1/2 mile).
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
CAUTION
Do not exceed 50 km/h (30 mph) or the chain
manufacturer’s recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or lockedwheel braking, as use of
chains may adversely affect vehicle handling.
 When driving with chains installed, be sure to drive
carefully. Slow down before entering curves to avoid
losing control of the vehicle. Otherwise an accident
may occur.
NOTICE
When the snow tires must be repaired or replaced,
have them repaired or replaced by Lexus dealer or
authorized tire dealer. The tire pressure sensor will
be affected by the installation or removal of snow
tires.
 When the snow tires must be replaced, replace the
grommets for tire pressure sensors as well.
 Do not attempt to use a tire chain on the compact
spare tire, as it may result in damage to the vehicle as
well as the tire.
If the chains are installed, the tire pressure warning
system may not operate properly. See “Tire pressure
warning system” on page 433.
