ELECTRICAL COMPONENTS
570
No.FUSEAMPERECIRCUIT
70 A/F15Multi−port fuel injection
system/sequential multiport fuel
injection system
71 ETCS10Multi−port fuel injection
system/sequential multiport fuel
injection system
72 ALTS7.5Charging system
73 EM VLV10No circuit
74 HLP CLN30Headlight cleaner system
75 A/C COMP7.5Air conditioning system
76 DEICER25No circuit
77 FR
CTRLAM30“FR TAIL”, “FR FOG” and
“WASHER”
78 IG210Starting system
79 EFI NO.210
Multi− port fuel injection
system/sequential multiport fuel
injection system, Evaporative
system
80 HLP R
LW R15Right− hand headlight (low
beam)
81 HLP L
LW R15Left− hand headlight (low beam)
82 F/PMP25Fuel pump
No.FUSEAMPERECIRCUIT
83 EFI
GS430:
25
GS300: 25Multi− port fuel injection
system/sequential multiport fuel
injection system
84 INJ20Multi− port fuel injection
system/sequential multiport fuel
injection system
85 HLP UPR15Headlights (high beam)
86 HORN10Horn
87 WASHER20Windshield wipers and washer
88 FR TAIL10Parking lights, Side marker
lights
89 FR FOG15Front fog lights
90 RR
S/SHADE7.5Rear electric sunshade
91 PSB30Pre− collision system
92 RRIG210No circuit
93 RRIG110Pre− collision system, Rear
electric sunshade, Seat belt
pretensioners
94 RRB10Luggage compartment light,
Noise filter
95 RR FOG7.5Rear fog lights
96 STOP LP L10Stoplights, Back up lights

ELECTRICAL COMPONENTS
571
No.FUSEAMPERECIRCUIT
97 STOP LP R10High mounted stoplights
98 RR TAIL10License plate lights, Tail lights,
Rear side marker lights
CHECKING BATTERY CONDITION
Precautions
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.

ELECTRICAL COMPONENTS
572
If electrolyte gets on your skin, thoroughly wash the
contacted area. If you feel a pain or burn, get medical
attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.
 If you accidentally swallow electrolyte, drink a large
quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go

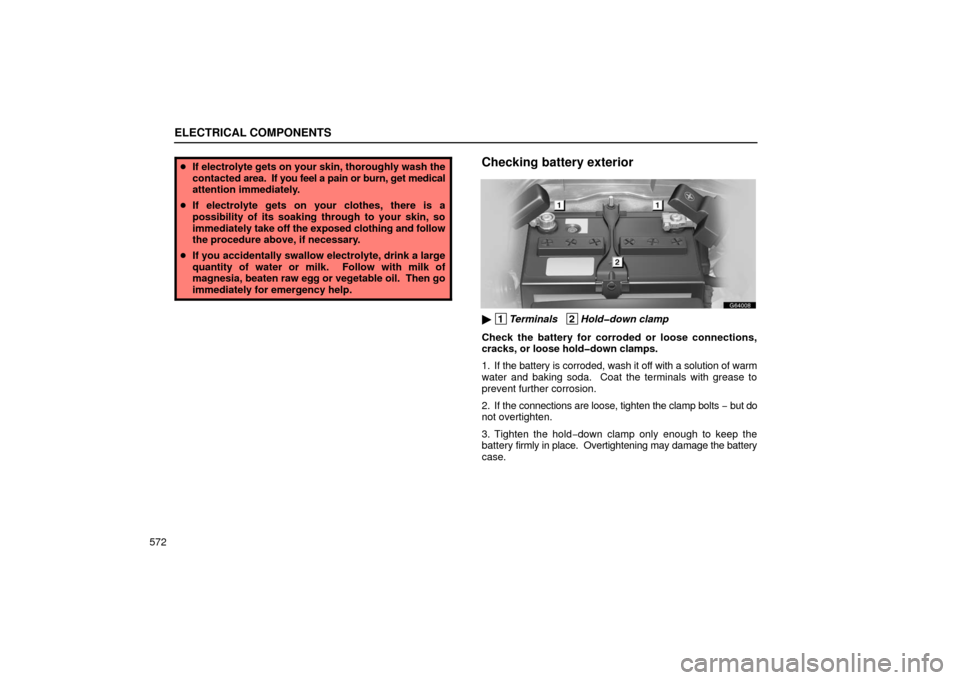

immediately for emergency help.Checking battery exterior
G64008
 1 Terminals 2Holddown clamp
Check the battery for corroded or loose connections,
cracks, or loose holddown clamps.
1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts − but do
not overtighten.
3. Tighten the hold −down clamp only e nough to keep the
battery firmly in place. Overtightening may damage the battery
case.

ELECTRICAL COMPONENTS
573
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
 When checking the battery, remove the ground cable
first and reinstall it last.
 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when
washing it.
If the battery is disconnected or run down
The following functions may not operate correctly when you
reconnect or replace the battery. In these cases, you should
normalize each system referring to the following pages.
Power windows (See page 59.)
 Moon roof (See page 134.)
 Variable gear ratio steering system (See page 424.)
 Intuitive parking assist (See page 380.)
Checking battery condition
Checking by indicator
G64009
Check the battery condition by the indicator color.
1
BLUE − Good condition.
2
WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3 RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.

ELECTRICAL COMPONENTS
574
BATTERY RECHARGINGPRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, be sure all accessories are turned off.
CHECKING AND REPLACING THE
BLADE TYPE FUSES
G64010
Left side kick panel
G64011
Right side kick panel

ELECTRICAL COMPONENTS
575
G64012
Engine compartment
G64013
Engine compartment 1
Pullout tool 2Spare fuses
G64014
Trunk
1. Turn the engine switch off and open the fuse box lid.
Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.

ELECTRICAL COMPONENTS
576
64L013
2. Make sure the inoperative component is turned off. Pull
the suspected fuse straight out with the pullout tool and
check it. If it has blown, push a new fuse into the clips.
64G008a
 Good Blown
a. Look carefully at the fuse. If the thin wire is broken, the fuse
has blown. If you are not sure or if it is too dark to see, try
replacing the suspected fuse with one of the same value that
you know is good.
b. Install only a fuse with the amperage rating designated on
the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull
out the ”CIG”, ”RAD NO.1” or ”OBD” fuse, which may be
dispensable for normal driving, and use it if its amperage rating
is the same.
If you cannot use one of the same amperage, use one lower
than, but as close to the amperage as possible. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to get
the correct fuse as soon as possible and return the substitute
to its original clips.

ELECTRICAL COMPONENTS
577
It is a good idea to purchase a
set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.
CHECKING THE CARTRIDGE TYPE FUSES
G64015
Engine compartment

ELECTRICAL COMPONENTS
578

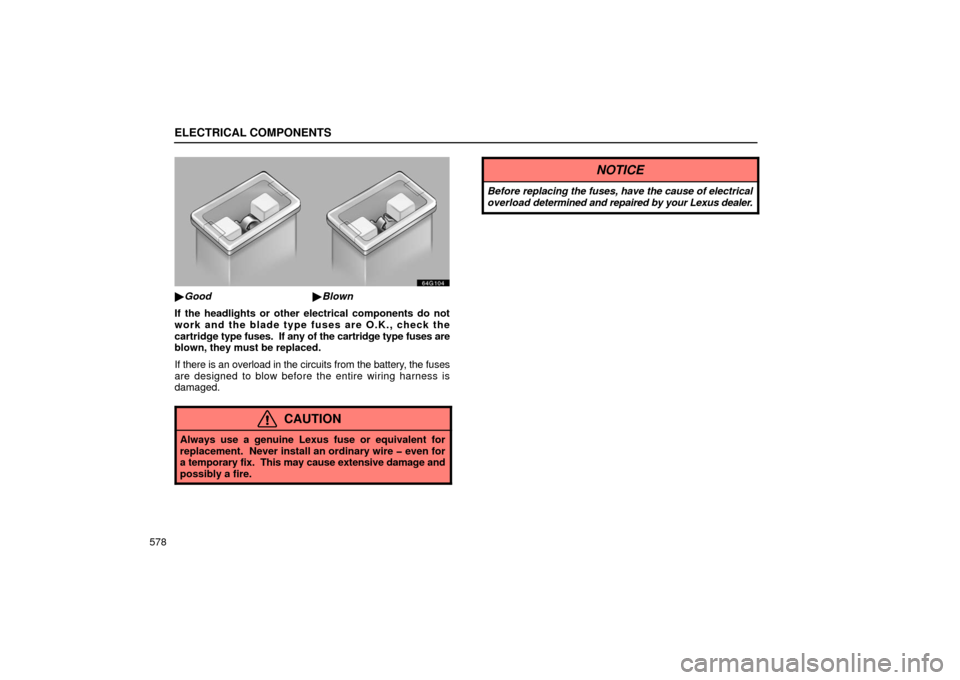

64g104
Good Blown
If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire even for
a temporary fix. This may cause extensive damage and
possibly a fire.
NOTICE
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.

ELECTRICAL COMPONENTS
579
ADDING WASHER FLUID
If the washer tank becomes nearly empty, add washer
fluid.
You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available at
your Lexus dealer and most auto parts stores. Follow the
manufacturer’s directions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.
CHECKING THE HEADLIGHT AIM
G64020
 1 Beam angle gauge
(horizontal movement for high beam)
2 Beam angle gauge
(vertical movement for high beam)
3 Beam angle gauge
(vertical movement for low beam)
4 Beam angle gauge
(horizontal movement for low beam)
Before checking the headlight aim:
1. Be sure that the body around the headlight is not deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver’s seat and puts the vehicle in
a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.
