KEYS AND DOORS
40
Locking with rear door childprotector
G11004
 1Unlock 2Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open by the inside door handle.
To do this, turn the knob to the lock position as shown and
then close the door.
THEFT DETERRENT SYSTEM
G11005
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or opened, or the battery terminal is
disconnected and then reconnected while the vehicle is
locked.
The alarm blows the horn intermittently, flashes the headlights,
tail lights, turn signal lights and other exterior lights. When the
interior light switch is in the “DOOR” position, the interior lights
also turn on.
After the alarm is activated, when you unlock any door or the
trunk using a entry function, wireless remote control or
mechanical key, the tail lights turn on for about 2 seconds to
inform you that the system was activated.

KEYS AND DOORS
41
G11006
Security indicator light
Setting the system
1. Turn the engine switch off.
The engine immobilizer causes the indicator light to flash.
2. Close and lock all the doors, trunk and hood using entry
function, wireless remote control or a mechanical key.
If you lock them with entry function or wireless remote control,
the turn signal lights flash once and one beep will sound.*
NOTE:
* The turn signal lights can be set not to flash and beep can
be set not to sound.
Ask your Lexus dealer for details.
3. At this time, the system is set.
Cancelling the system
When you unlock any door or trunk using entry function,
wireless remote control or a mechanical key, the system
is cancelled.
If you unlock them with entry function or wireless remote
control, the turn signal lights flash twice and two beeps will
sound.* NOTE:
* The turn signal lights can be set not to flash and beep can
be set not to sound.
Ask your Lexus dealer for details.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using entry function,
wireless remote control or a mechanical key.
 Opening the hood forcibly.
 Reconnecting the battery.
If any door is unlocked during the alarm sounding, its door is
automatically locked.
To stop the alarm: Use either of the following methods.
 Unlock the door or trunk using entry function, wireless
remote control or a mechanical key.
 Turn the engine switch to “IG− ON” mode.

KEYS AND DOORS
42
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with entry function, wireless
remote control or a mechanical key. Make sure the indicator
light flashes.
3. Unlock one of the doors from the inside through one of
the opened windows.
The system should activate the alarm.
4. Unlock any of the doors with entry function, the
wireless remote control or a mechanical key to cancel the
system.
5. Repeat this operation for the other doors, trunk and
hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
When disconnecting the battery, be sure to cancel the
theft deterrent system. Otherwise, the system could
activate an alarm and lock the unlocked door(s)
automatically.

SECTION 1 – 2
43
INSTRUMENTS AND CONTROLS
Switches
Headlight switch44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Headlight dimmer and turn signal switches 47
. . . . . . . . . . . . . . . . . . .
Fog light switch 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switches 49
. . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger switch 56
. . . . .
Power window switches 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Seat ventilator/heater switches 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
44

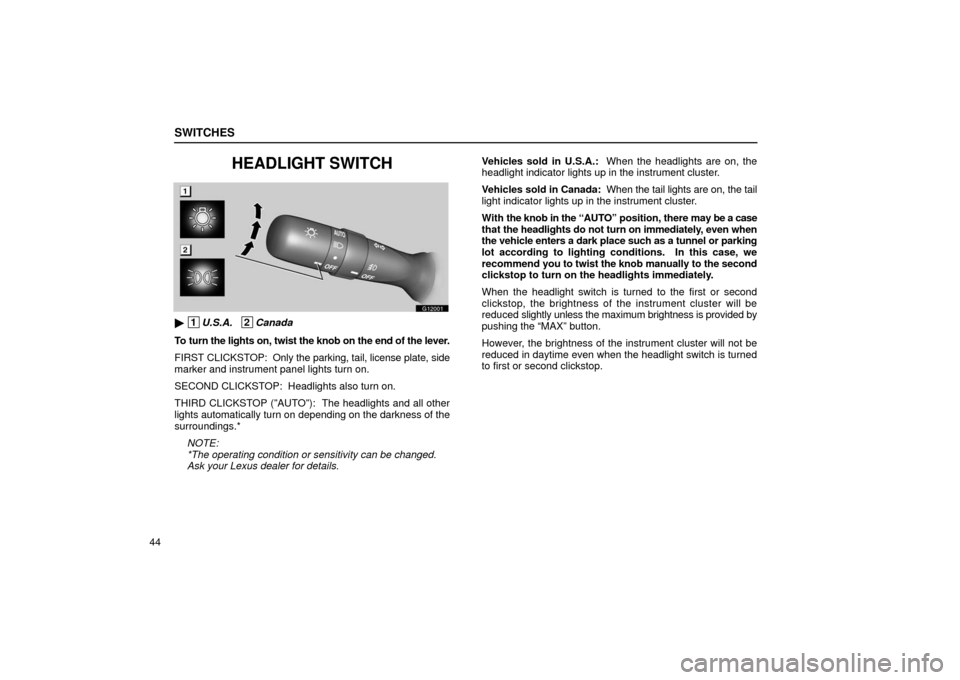

HEADLIGHT SWITCH
G12001
 1U.S.A. 2Canada
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKST OP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (”AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
*The operating condition or sensitivity can be changed.
Ask your Lexus dealer for details. Vehicles sold in U.S.A.: When the headlights are on, the
headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada:
When the tail lights are on, the tail
light indicator lights up in the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the maximum brightness is provided by
pushing the “MAX” button.
However, the brightness of the instrument cluster will not be
reduced in daytime even when the headlight switch is turned
to first or second clickstop.

SWITCHES
45
G12002
The automatic light control sensor is on top center of the
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off
about 30 seconds after any of the doors is opened and closed
with the engine switch off.* To turn them on again, select the
engine switch in “IG− ON” mode, or turn the headlight switch off
and then twist the knob until the first or second clickstop.
If you are going to park for over one week, make sure the
headlight switch is off.
When the headlight switch is on with all the doors locked and
the trunk closed, pushing the ”LOCK” button on the electronic
key turns off the headlights.
NOTE:
*The time before turning off the lights can be changed.
Ask your Lexus dealer for details. Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ”OFF” position. They will not
go off until the engine
switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (”AUTO”), the
headlights will automatic ally adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

SWITCHES
46
Automatic headlight leveling system
The headlight beam level is always maintained automatically
at the proper level in all loading conditions so that your
headlights do not dazzle other road users.
If there is a problem somewhere in this system, the message
“CHECK HEADLIGHT” appears on the multi−information
display. At this time, the master warning light comes on and a
warning tone sounds. If the warning message appears, have
your vehicle checked by your Lexus dealer as soon as
possible.
Adaptive Front Lighting System (AFS)
Adaptive Front Lighting System (AFS) provides the proper
headlight beam level according to the current driving
conditions. T his system moves the headlight beam left or right
according to the turning angle of the tires. The synergy of this
system and the automatic headlight leveling system improves
visibility at the intersections and curves.
The system operates when the vehicle speed increases above
10 km/h (6 mph), and stops when the vehicle speed drops
below 10 km/h (6 mph).
The system can operate within the limited range of the tires
turning angle. If you do not want to activate the system, you can cancel
the system.
Adaptive Front Lighting System cancel switch is located in the
switch box.
G12017
Push the button to use the switch box. To cancel the
system, push the “AFS” switch. To turn it on, push it
again.
When the system is canceled, the “AFS OFF” indicator lights
up in the instrument cluster.
If the system fails, the indicator light in the instrument cluster
will flash. If this occurs, have your vehicle checked by your
Lexus dealer.
After operation, be sure to close the switch box to its original
position.

SWITCHES
47

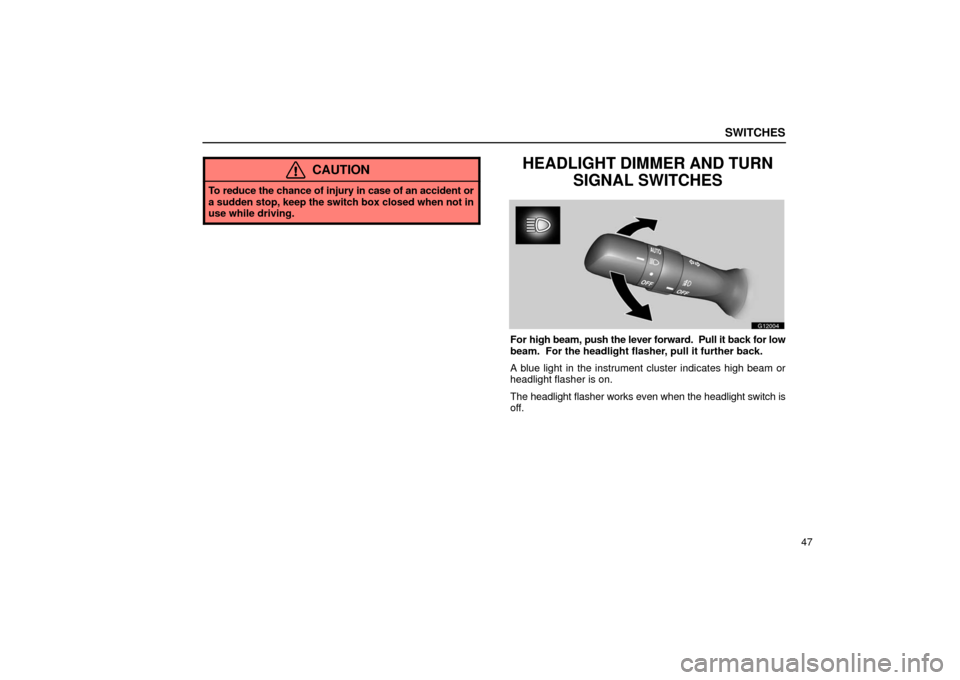

CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.
HEADLIGHT DIMMER AND TURNSIGNAL SWITCHES
G12004
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.

SWITCHES
48

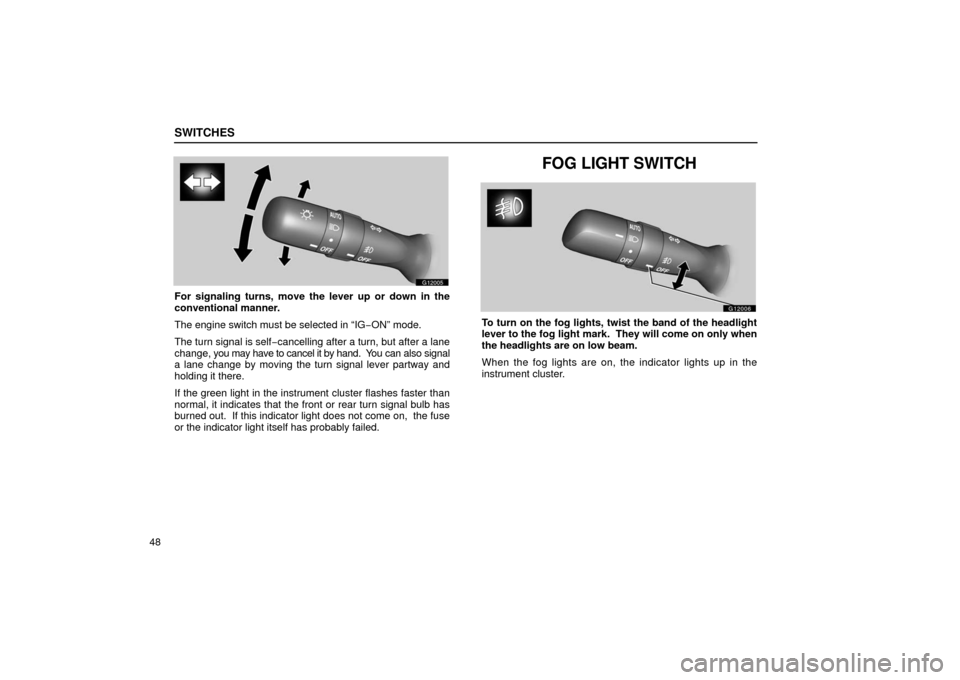

G12005
For signaling turns, move the lever up or down in the
conventional manner.
The engine switch must be selected in “IG−ON” mode.
The turn signal is self −cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
FOG LIGHT SWITCH
G12006
To turn on the fog lights, twist the band of the headlight
lever to the fog light mark. They will come on only when
the headlights are on low beam.
When the fog lights are on, the indicator lights up in the
instrument cluster.

SWITCHES
49

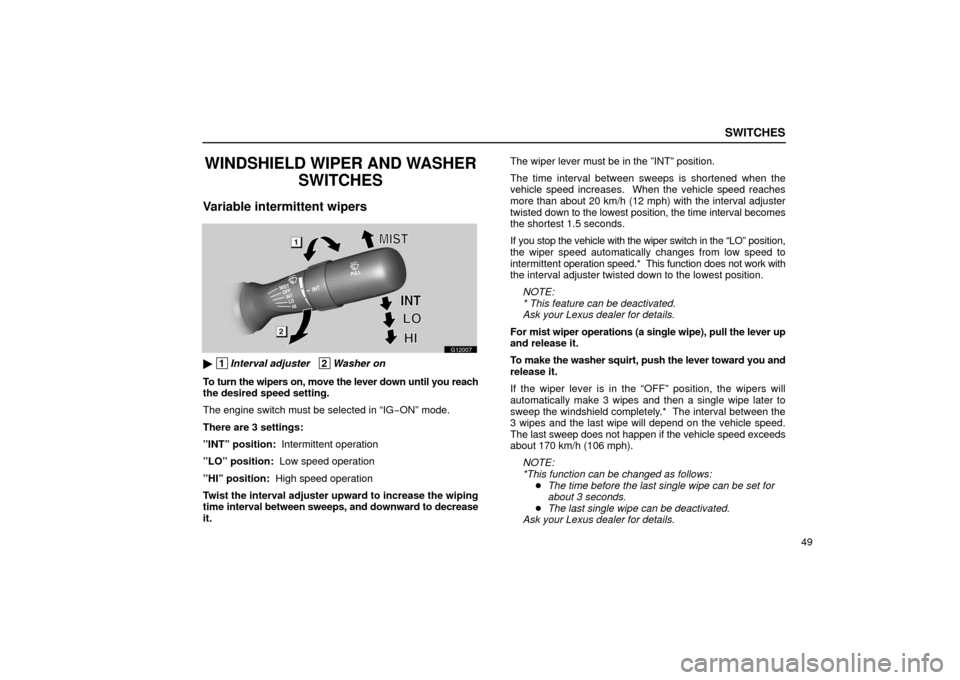

WINDSHIELD WIPER AND WASHERSWITCHES
Variable intermittent wipers
G12007
 1Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The engine switch must be selected in “IG −ON” mode.
There are 3 settings:
”INT” position: Intermittent operation
”LO” position: Low speed operation
”HI” position: High speed operation
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it. The wiper lever must be in the ”INT” position.
The time interval between sw
eeps is shortened when the
vehicle speed increases. When the vehicle speed reaches
more than about 20 km/h (12 mph) with the interval adjuster
twisted down to the lowest position, the time interval becomes
the shortest 1.5 seconds.
If you stop the vehicle with the wiper switch in the “LO” position,
the wiper speed automatically changes from low speed to
intermittent operation speed.* This function does not work with
the interval adjuster twisted down to the lowest position.
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
For mist wiper operations (a single wipe), pull the lever up
and release it.
To make the washer squirt, push the lever toward you and
release it.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph). NOTE:
*This function can be changed as follows: The time before the last single wipe can be set for
about 3 seconds.
 The last single wipe can be deactivated.
Ask your Lexus dealer for details.
