51
1-4. Adjustable components
1
Before driving
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■One-touch adjustment of the mirror angle 
(vehicles with driving position memory)
A desired mirror face angle can be entere d to memory and adjusted with the touch
of a button. ( P. 3 6 )
CAUTION
■Caution while driving
Observe the following precautions. 
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors.
●Do not drive with the mirrors folded back.
●Before driving, be sure to extend mirrors and make an adjustment properly.
■When the mirror heaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
And do not touch the mirror surface also wh en the wiper switch is on at lower than
77 F (25 C) of the outside temperature.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mi rror face. Use a spray de-icer to free the
mirror.

52
1-5. Opening and closing the windows and moon roof
Power windows
Lock switch
Press the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos -
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*:Pushing the switch in the
opposite direction will stop
window travel partway.

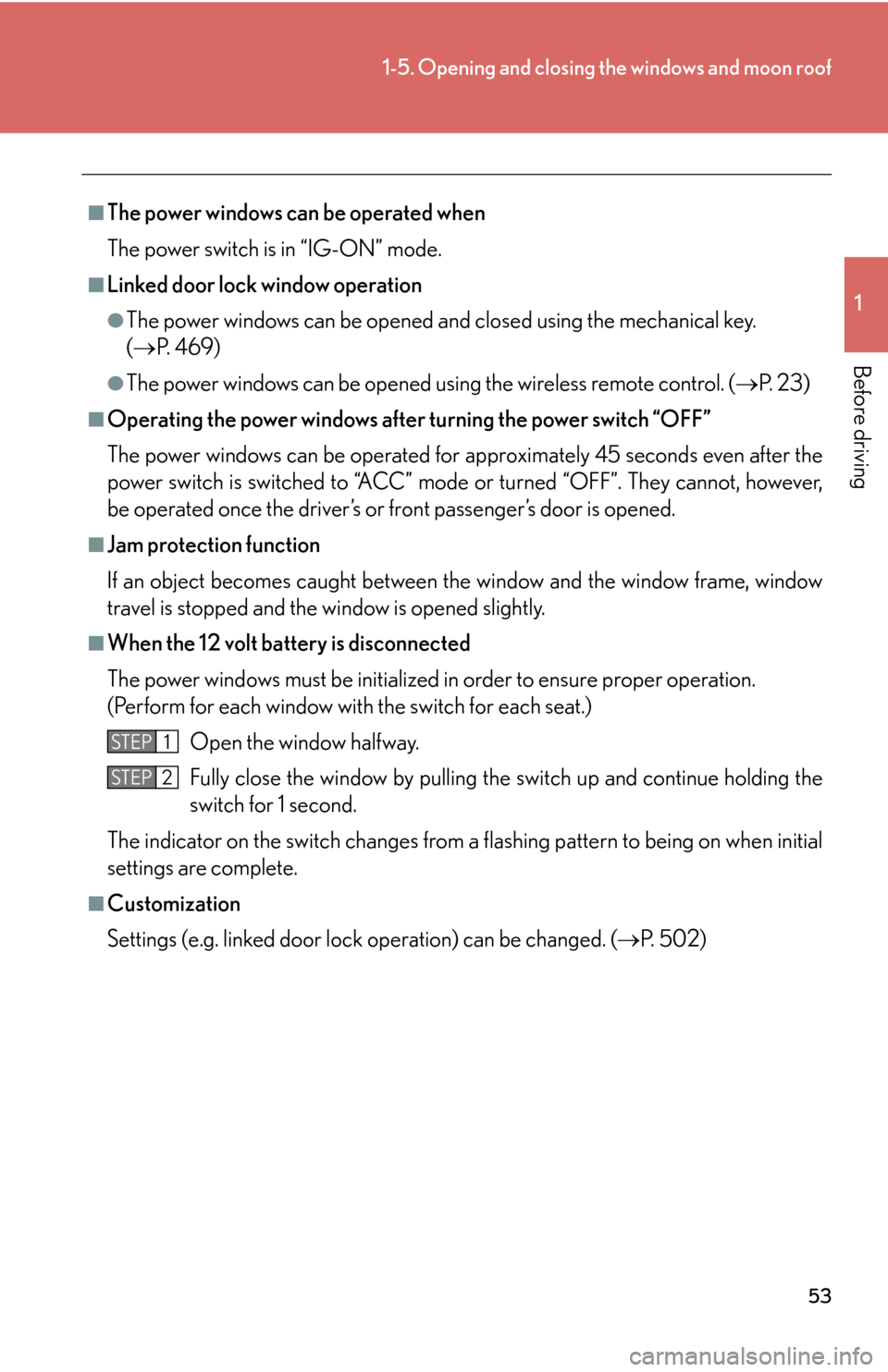

53
1-5. Opening and closing the windows and moon roof
1
Before driving
■The power windows can be operated when
The power switch is in “IG-ON” mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key. 
( P. 4 6 9 )
●The power windows can be opened using the wireless remote control. ( P. 2 3 )
■Operating the power windows after turning the power switch “OFF”
The power windows can be operated for ap pr
oximately 45 seconds even after the
power switch is switched to “ACC” mode or turned “OFF”. They cannot, however,
be operated once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object becomes caught between th e
window and the window frame, window
travel is stopped and the window is opened slightly.
■When the 12 volt battery is disconnected
The power windows must be initialized in order to ensure proper operation. 
(Perform for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the swi
tch up and continue holding the
switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on when initial
setting
s are complete.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P.
5 0 2 )
STEP1
STEP2

54
1-5. Opening and closing the windows and moon roof
CAUTION
■When closing the windows
Observe the following precautions. 
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows. 
Closing a power window on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.

55
1
1-5. Opening and closing the windows and moon roof
Before driving
Moon roof (if equipped)
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the switch
lightly.
■Tilt up and down
Ti l t u p
Tilt down
To stop partway, press the switch
lightly.

56
1-5. Opening and closing the windows and moon roof
■The moon roof can be operated when
The power switch is in “IG-ON” mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (P. 4 6 9 )
●The moon roof can be opened using the wireless remote control. ( P. 2 3 )
■Operating the moon roof after turning the power switch “OFF”
The moon roof can be operated for ap pr
oximately 45 seconds even after the
power switch is switched to “ACC” mode or turned “OFF”. It cannot, however, be
operated once the driv er’s door is opened.
■Jam protection function
If an object is detected between the moon r
oof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automati c
ally ( just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open a

utomatically when the moon roof is opened.
■When the 12 volt battery is disconnected
The moon roof must be initialized in order to ensure proper operation.
Close the moon roof fully.
Hold down “UP” switch during the following moon roof sequence:
Ti l t u pTi l t d o w n Slide open (fully open) Slide close (fully close)
To ensure the initialization is complete, make sure automatic opening and
closing functions work properly.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P.
5 0 2 )
STEP1
STEP2
STEP3

57
1-5. Opening and closing the windows and moon roof
1
Before driving
CAUTION
■When opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■When closing the moon roof
Observe the following precautions. 
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught wh en the moon roof is being operated.
●Do not allow children to operate the moon roof. 
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.

58
1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the power switch “OFF” and ensure that all the doors and win -
dows are closed.
■ Opening the fuel tank cap
Press the fuel filler door
opener switch.
The screen to the left is dis-
played for a short period. Wait
until “RE
FUEL READY” is dis -
played, then proceed to the next
step
.
Turn the fuel tank cap slowly to
ope
n.
STEP1
STEP2
STEP3

59
1-6. Refueling
1
Before driving
Closing the fuel tank cap
After refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
Hang the fuel tank cap on the
back of the fuel filler door.STEP4
■Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane Number
96
] or higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 Imp. gal.)
■Open fuel filler door warning
P. 4 5 0

60
1-6. Refueling
■When the fuel filler door opener switch is inoperable
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it. 
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully re moving the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel. 
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle. 
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch an y person or object that is statically
charged. 
This may cause static electricity to build up , resulting in a possible ignition hazard.
If the fuel filler door opener switch is inopera-
ble, contact your Lexus dealer to service the
vehicle. If you must refuel your vehicle, you
can open the fuel filler door manually as
shown. The system to lower internal pressure
may not be functioning so you must turn the
cap slowly as the pressure releases. In addi-
tion, fuel may spill out during refueling. Fill the
fuel tank carefully and slowly.
