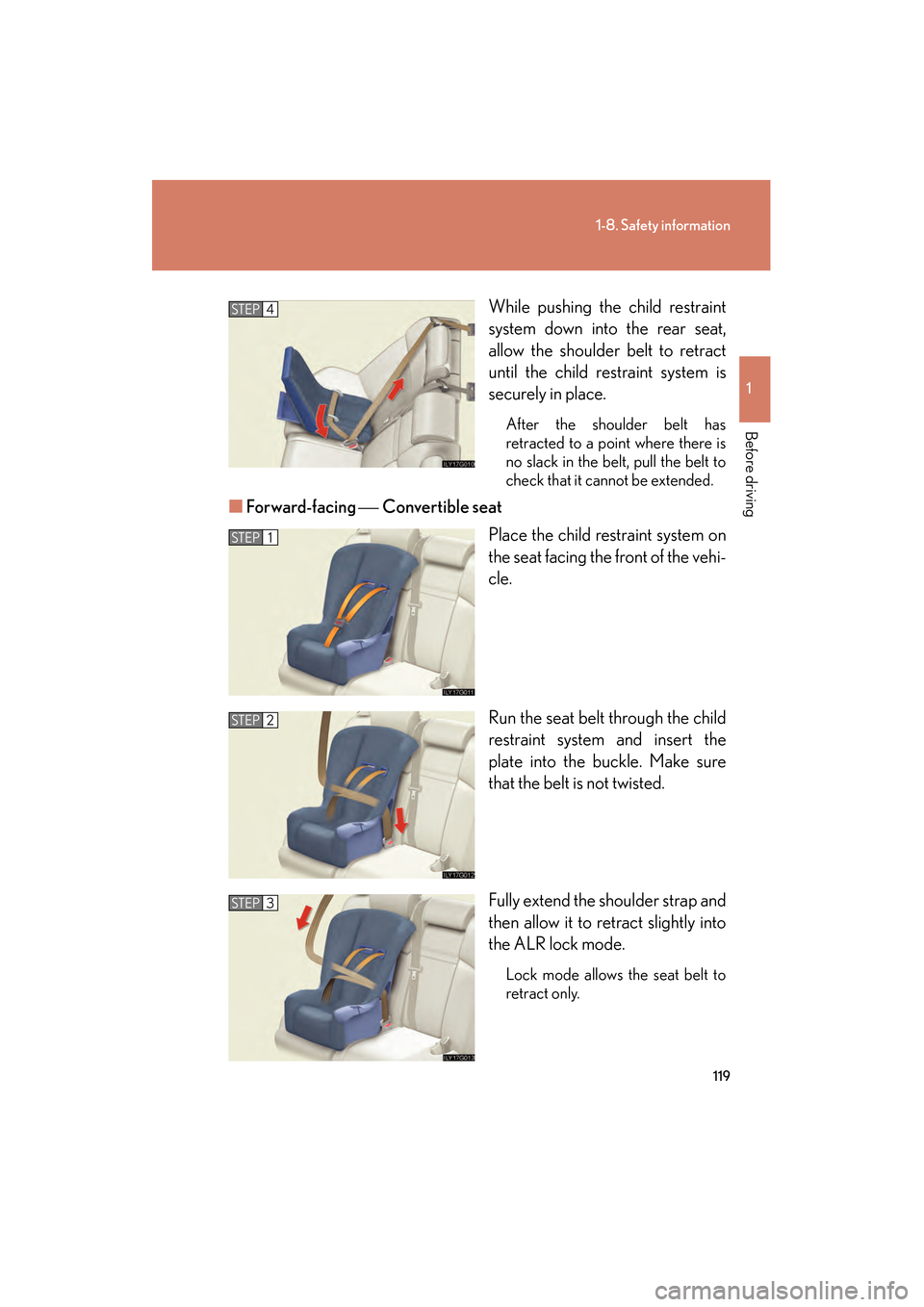

Lexus GS450h 2008 Owner's Manual

119
1-8. Safety information
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing  Convertible seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder strap and
then allow it to retract slightly into
the ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP4
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 119 Thursday, June 19, 2008 1:44 PM

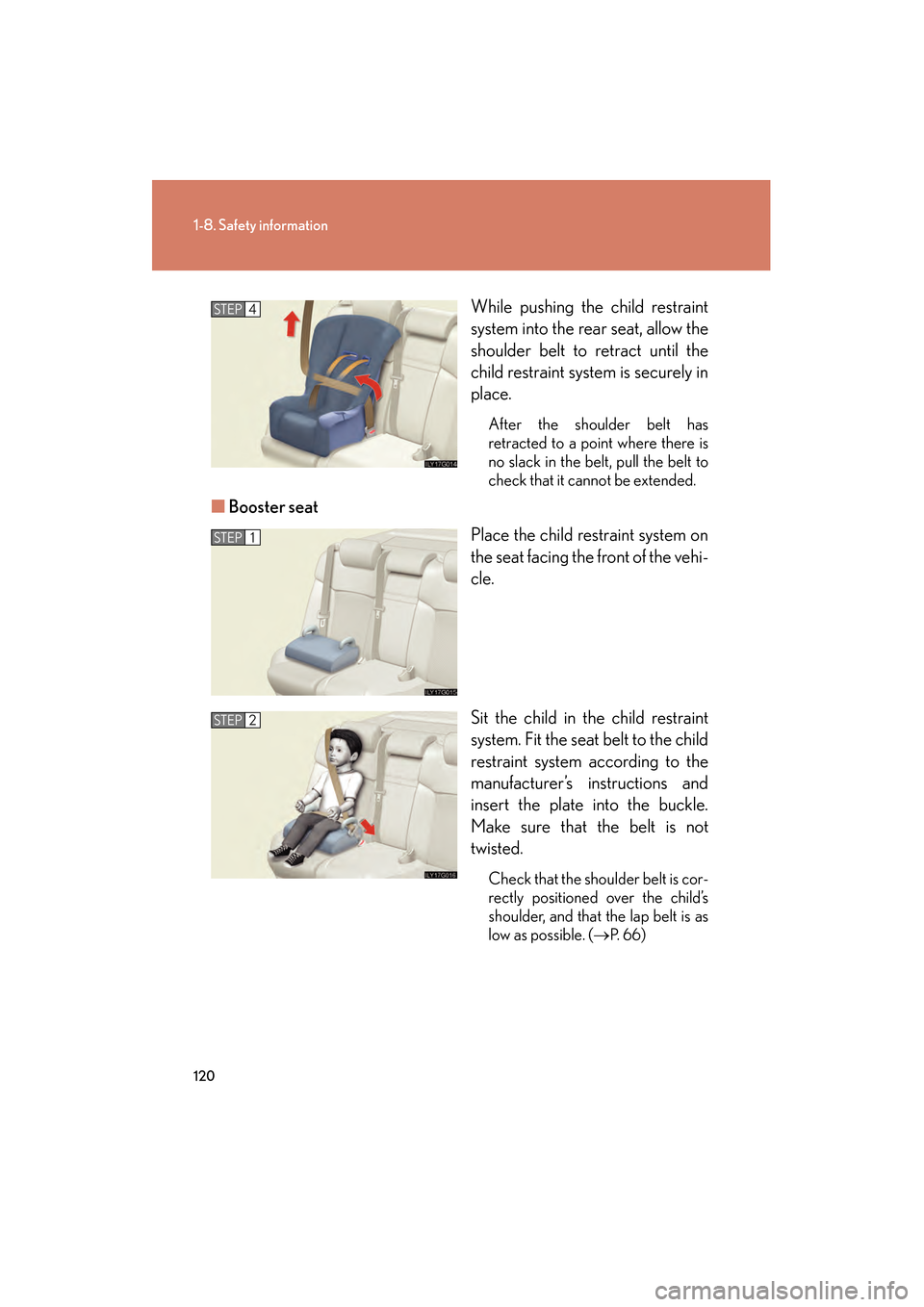

120
1-8. Safety information
GS_HV_U
June 19, 2008 1:15 pm
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Booster seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder, and that the lap belt is as
low as possible. (→
P. 6 6)
STEP4
STEP1
STEP2
GS450h_HV_U.book Page 120 Thursday, June 19, 2008 1:44 PM

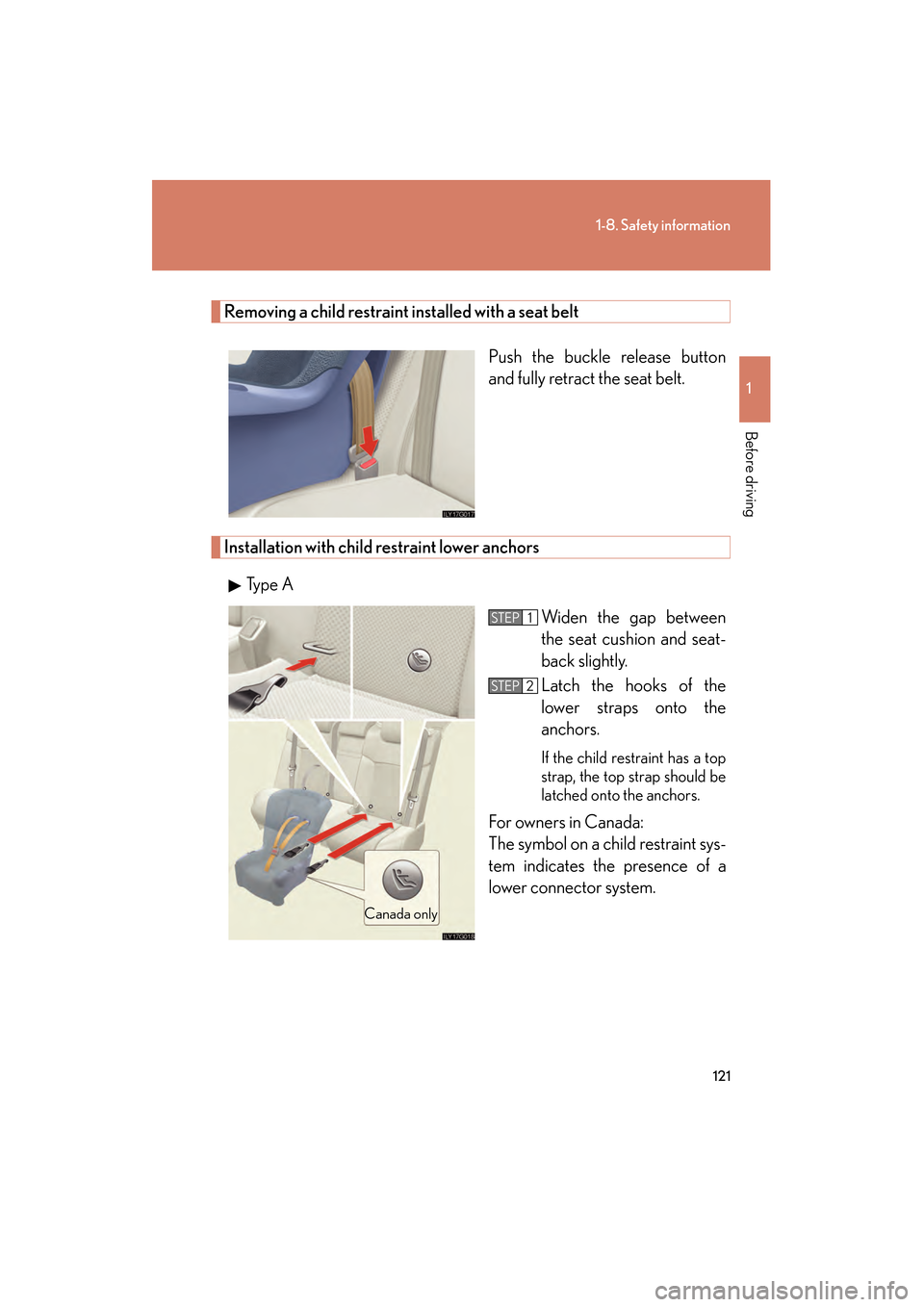

121
1-8. Safety information
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Installation with child restraint lower anchorsTy p e A Widen the gap between
the seat cushion and seat-
back slightly.
Latch the hooks of the
lower straps onto the
anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Canada only
STEP1
STEP2
GS450h_HV_U.book Page 121 Thursday, June 19, 2008 1:44 PM

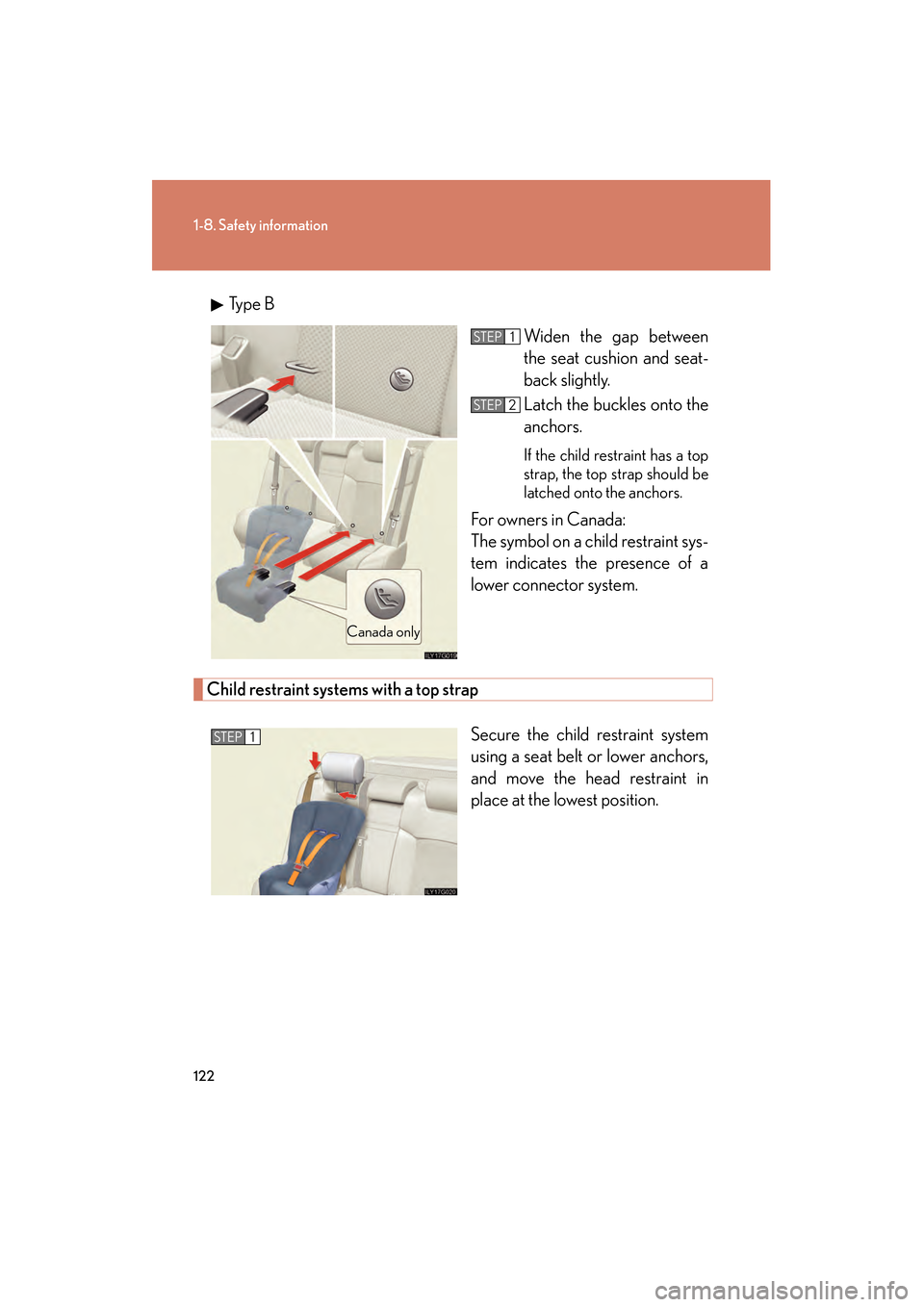

122
1-8. Safety information
GS_HV_U
June 19, 2008 1:15 pm
Type BWiden the gap between
the seat cushion and seat-
back slightly.
Latch the buckles onto the
anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Child restraint systems with a top strap
Secure the child restraint system
using a seat belt or lower anchors,
and move the head restraint in
place at the lowest position.
Canada only
STEP1
STEP2
STEP1
GS450h_HV_U.book Page 122 Thursday, June 19, 2008 1:44 PM

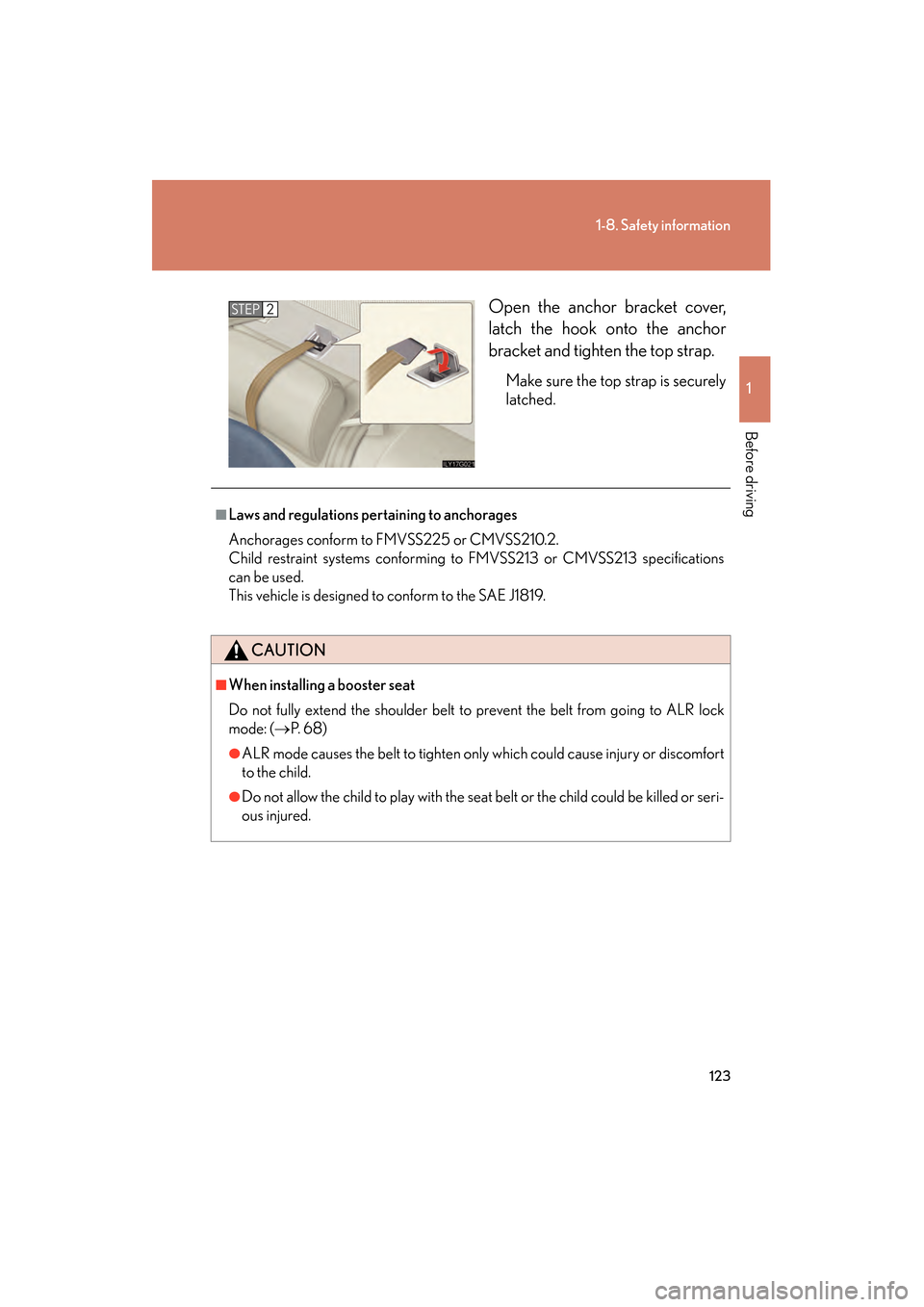

123
1-8. Safety information
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP2
■Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: ( →P. 6 8 )
●ALR mode causes the belt to tighten only which could cause injury or discomfort
to the child.
●Do not allow the child to play with the seat belt or the child could be killed or seri-
ous injured.
GS450h_HV_U.book Page 123 Thursday, June 19, 2008 1:44 PM

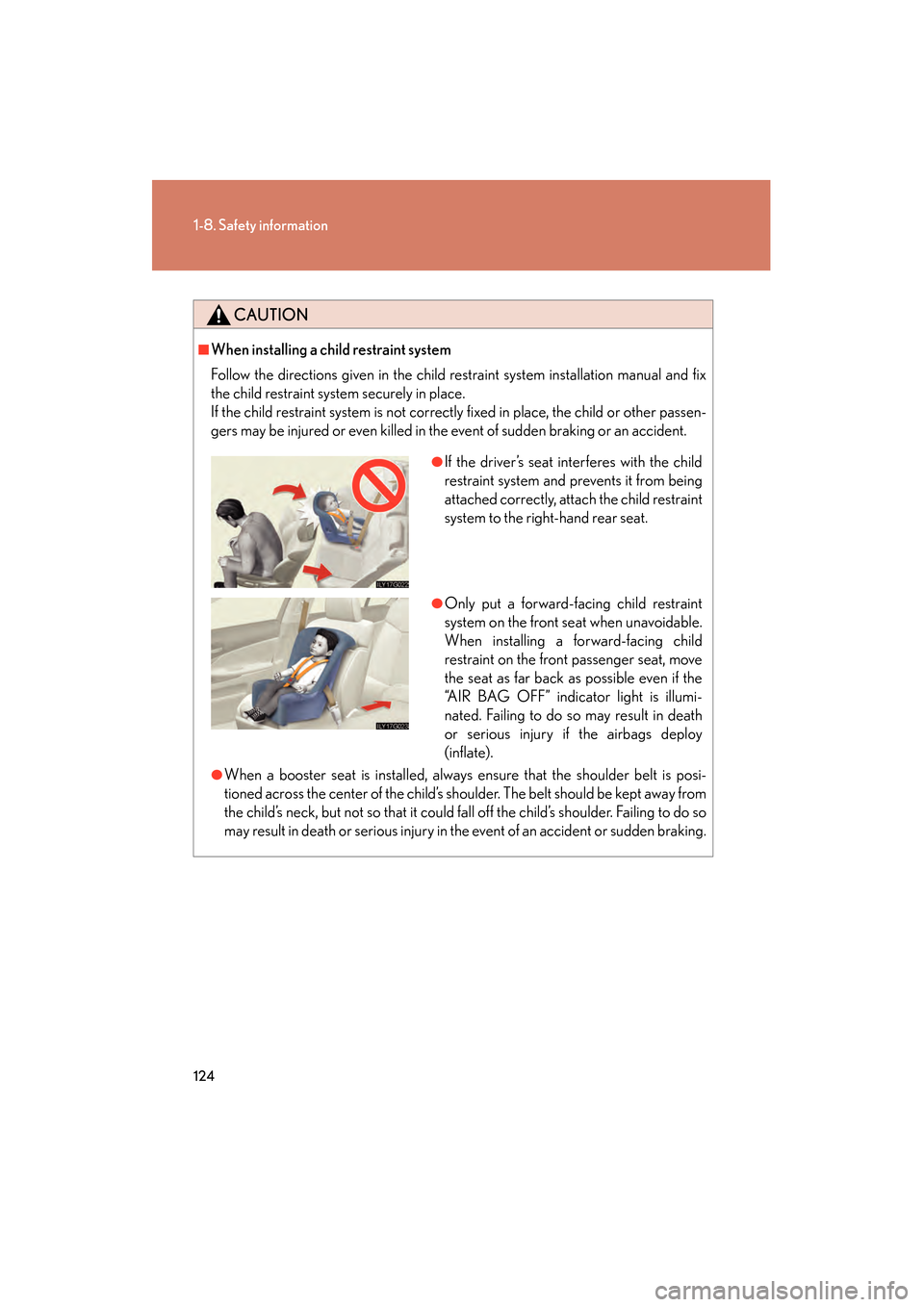

124
1-8. Safety information
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of an accident or sudden braking.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint on the front passenger seat, move
the seat as far back as possible even if the
“AIR BAG OFF” indicator light is illumi-
nated. Failing to do so may result in death
or serious injury if the airbags deploy
(inflate).
GS450h_HV_U.book Page 124 Thursday, June 19, 2008 1:44 PM

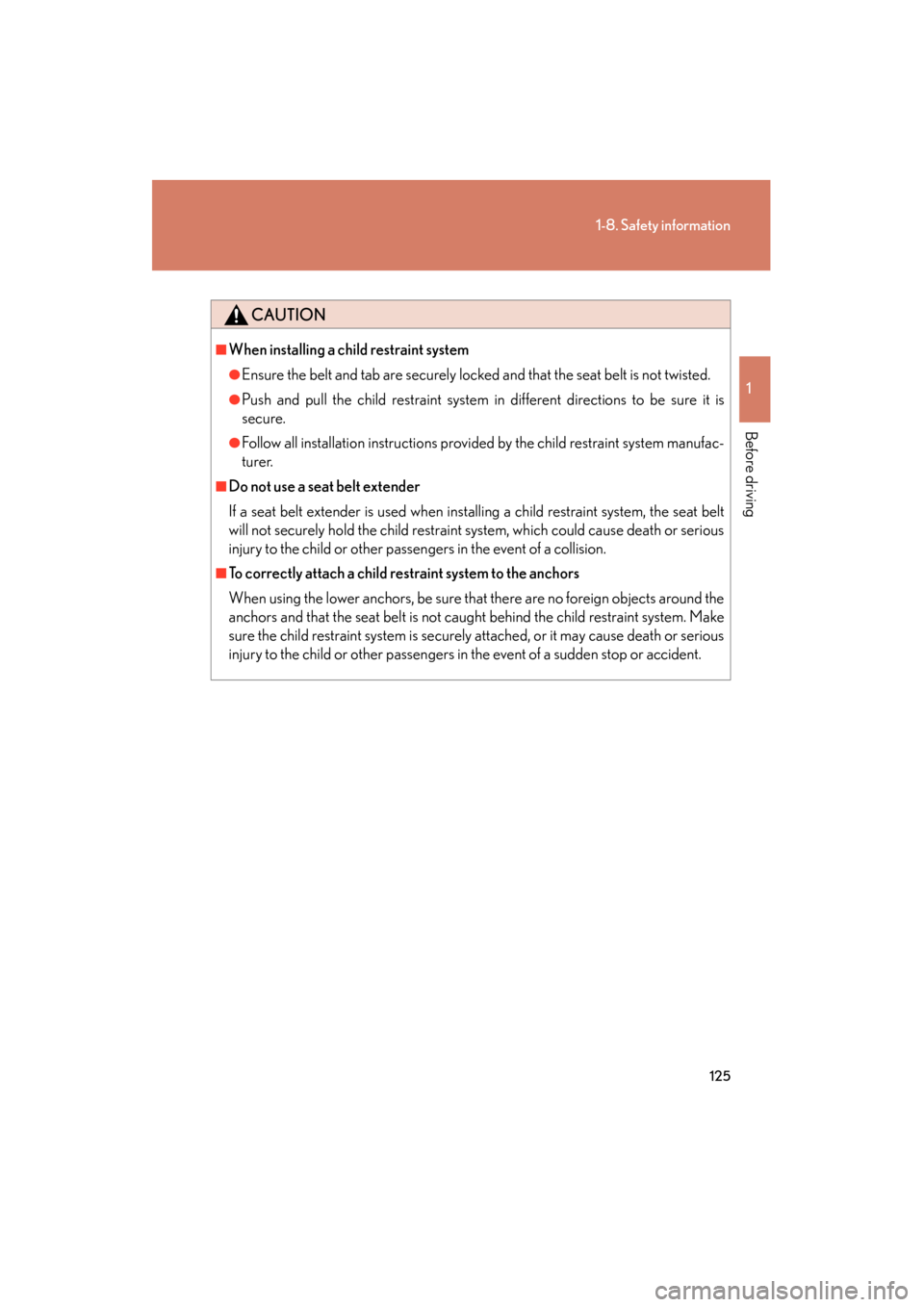

125
1-8. Safety information
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When installing a child restraint system
●Ensure the belt and tab are securely locked and that the seat belt is not twisted.
●Push and pull the child restraint system in different directions to be sure it is
secure.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of a collision.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system. Make
sure the child restraint system is securely attached, or it may cause death or serious
injury to the child or other passengers in the event of a sudden stop or accident.
GS450h_HV_U.book Page 125 Thursday, June 19, 2008 1:44 PM

126
1-8. Safety information
GS_HV_U
June 19, 2008 1:15 pm
GS450h_HV_U.book Page 126 Thursday, June 19, 2008 1:44 PM

When driving2
127
GS_HV_U
December 12, 2007 3:33 pm
2-1. Driving procedures ........ 128Driving the vehicle.................. 128
Power (ignition) switch .......... 138
Transmission.............................. 142
Turn signal lever ....................... 146
Parking brake ........................... 147
2-2. Instrument cluster ......... 148 Gauges and meters ................ 148
Indicators and warning lights ......................................... 152
Multi-information display ..... 155 2-3. Operating the lights and
windshield wipers ........ 158
Headlight switch ..................... 158
Fog light switch .......................... 161
Windshield wipers and washer ...................................... 162
Headlight cleaner switch ..... 165
2-4. Using other driving systems .......................... 166
Cruise control.......................... 166
Dynamic radar cruise control ...................................... 169
Intuitive parking assist ........... 180
Rear view monitor system ...................................... 195
AVS (Adaptive Variable Suspension System) ............ 199
Driving assist systems ........... 200
PCS (Pre-Collision System) .................................. 206
2-5. Driving information........ 210 Cargo and luggage ................ 210
Vehicle load limits ................... 214
Winter driving tips .................. 215
Trailer towing .......................... 220
Dinghy towing.......................... 221
GS450h_HV_U.book Page 127 Thursday, June 19, 2008 1:44 PM

128
GS_HV_U
June 19, 2008 1:15 pm
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■Starting the hybrid system ( →P. 1 3 8 )
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. (→P. 142)
Release the parking brake. (→ P. 147)
Gradually release the brake pedal and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P”. (
→P. 1 4 2 )
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (→ P. 147)
Shift the shift lever to “P”. ( →P. 142)
Stop the hybrid system.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 128 Thursday, June 19, 2008 1:44 PM
