Lexus GS450h 2008 Manual Online

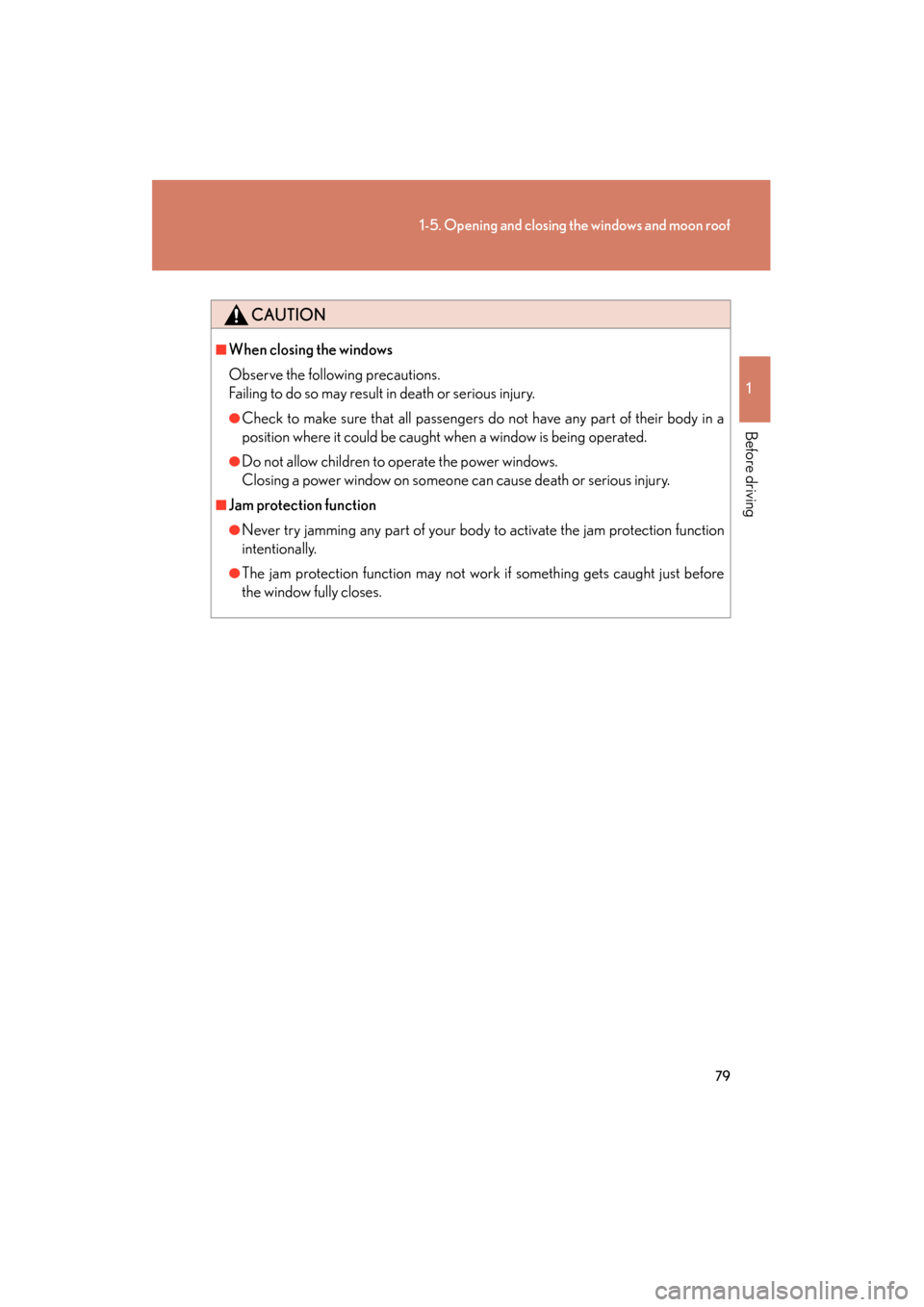

79
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.
GS450h_HV_U.book Page 79 Thursday, June 19, 2008 1:44 PM

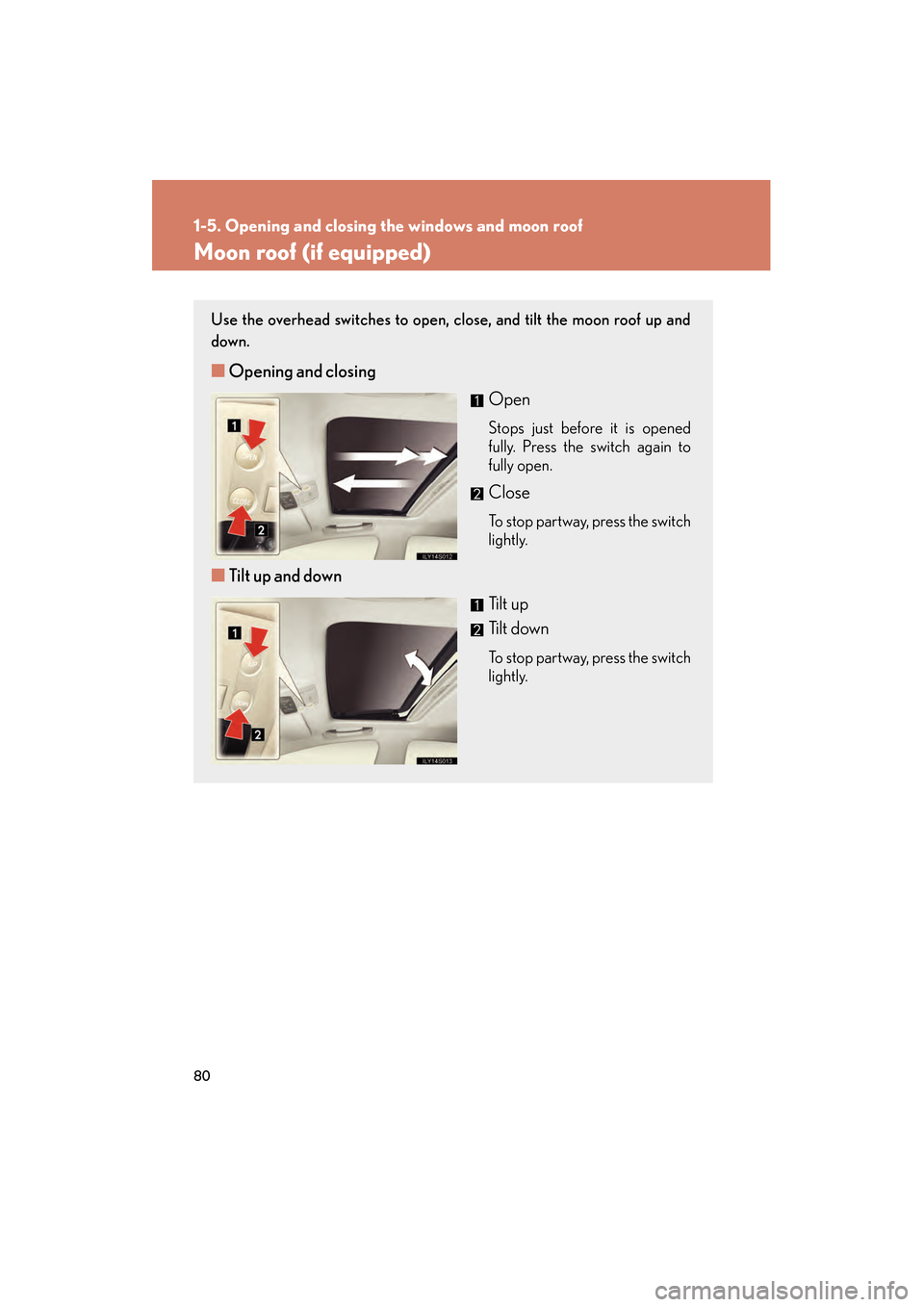

80
1-5. Opening and closing the windows and moon roof
GS_HV_U
June 19, 2008 1:15 pm
Moon roof (if equipped)
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the switch
lightly.
■Tilt up and down
Tilt up
Tilt down
To stop partway, press the switch
lightly.
GS450h_HV_U.book Page 80 Thursday, June 19, 2008 1:44 PM

81
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■The moon roof can be operated when
The “POWER” switch is in ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 3 1 )
●The moon roof can be opened using the wireless remote control. ( →P. 4 7 )
●The moon roof can be closed using the smart access system with push-button
start. ( →P. 3 5 )
■Operating the moon roof after turning the “POWER” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. It cannot,
however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS450h_HV_U.book Page 81 Thursday, June 19, 2008 1:44 PM

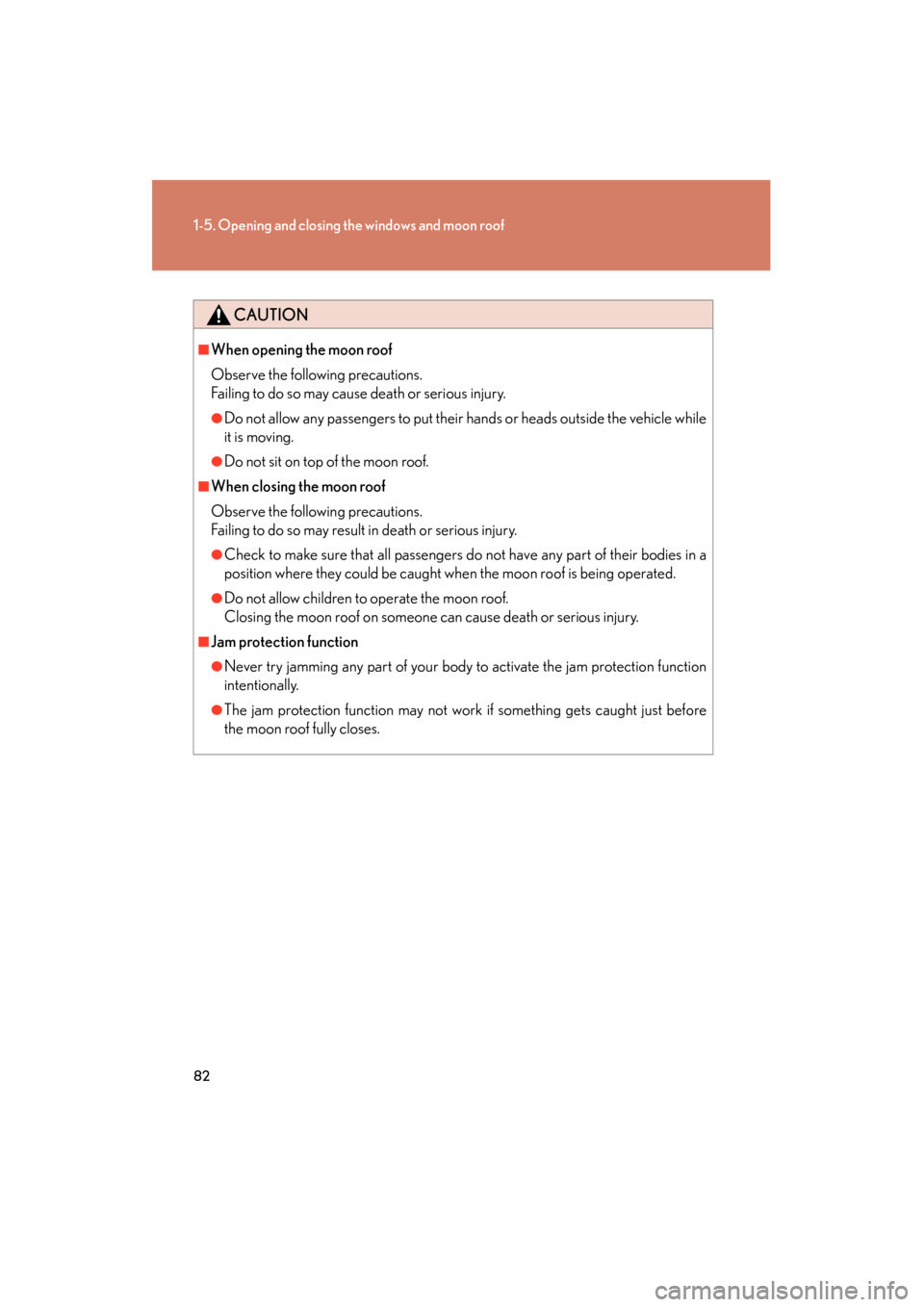

82
1-5. Opening and closing the windows and moon roof
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■When closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.
GS450h_HV_U.book Page 82 Thursday, June 19, 2008 1:44 PM

83
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “POWER” switch OFF and ensure that all the doors and
windows are closed.
■ Opening the fuel tank cap
Press the fuel filler door opener
switch.
The screen to the left is dis-
played for a short period. Wait
until “REFUEL READY” is dis-
played, then proceed to the next
step.
Turn the fuel tank cap slowly to
open.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 83 Thursday, June 19, 2008 1:44 PM

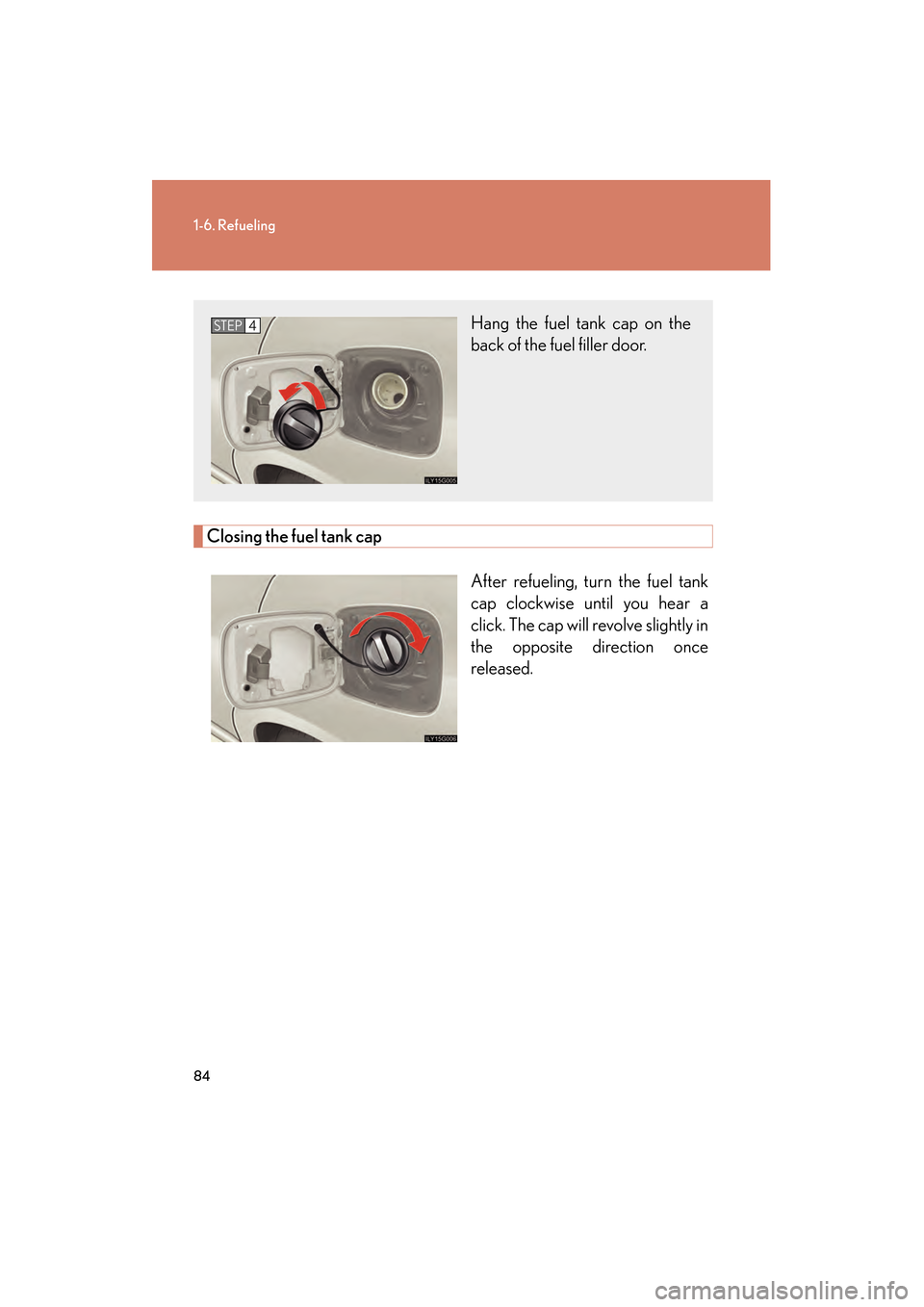

84
1-6. Refueling
GS_HV_U
June 19, 2008 1:15 pm
Closing the fuel tank capAfter refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
Hang the fuel tank cap on the
back of the fuel filler door.STEP4
GS450h_HV_U.book Page 84 Thursday, June 19, 2008 1:44 PM

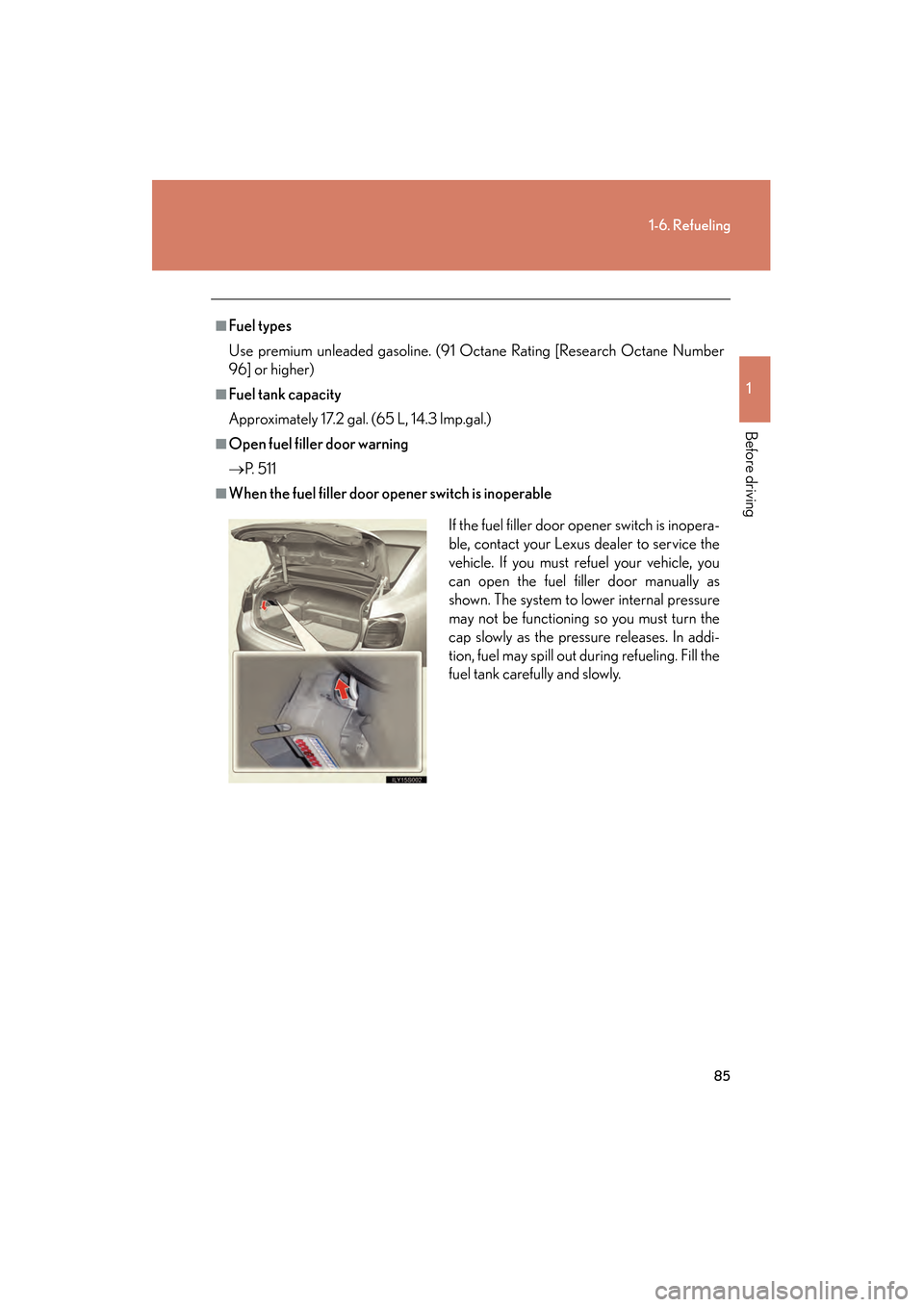

85
1-6. Refueling
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 lmp.gal.)
■Open fuel filler door warning
→P. 5 1 1
■When the fuel filler door opener switch is inoperable
If the fuel filler door opener switch is inopera-
ble, contact your Lexus dealer to service the
vehicle. If you must refuel your vehicle, you
can open the fuel filler door manually as
shown. The system to lower internal pressure
may not be functioning so you must turn the
cap slowly as the pressure releases. In addi-
tion, fuel may spill out during refueling. Fill the
fuel tank carefully and slowly.
GS450h_HV_U.book Page 85 Thursday, June 19, 2008 1:44 PM

86
1-6. Refueling
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
GS450h_HV_U.book Page 86 Thursday, June 19, 2008 1:44 PM

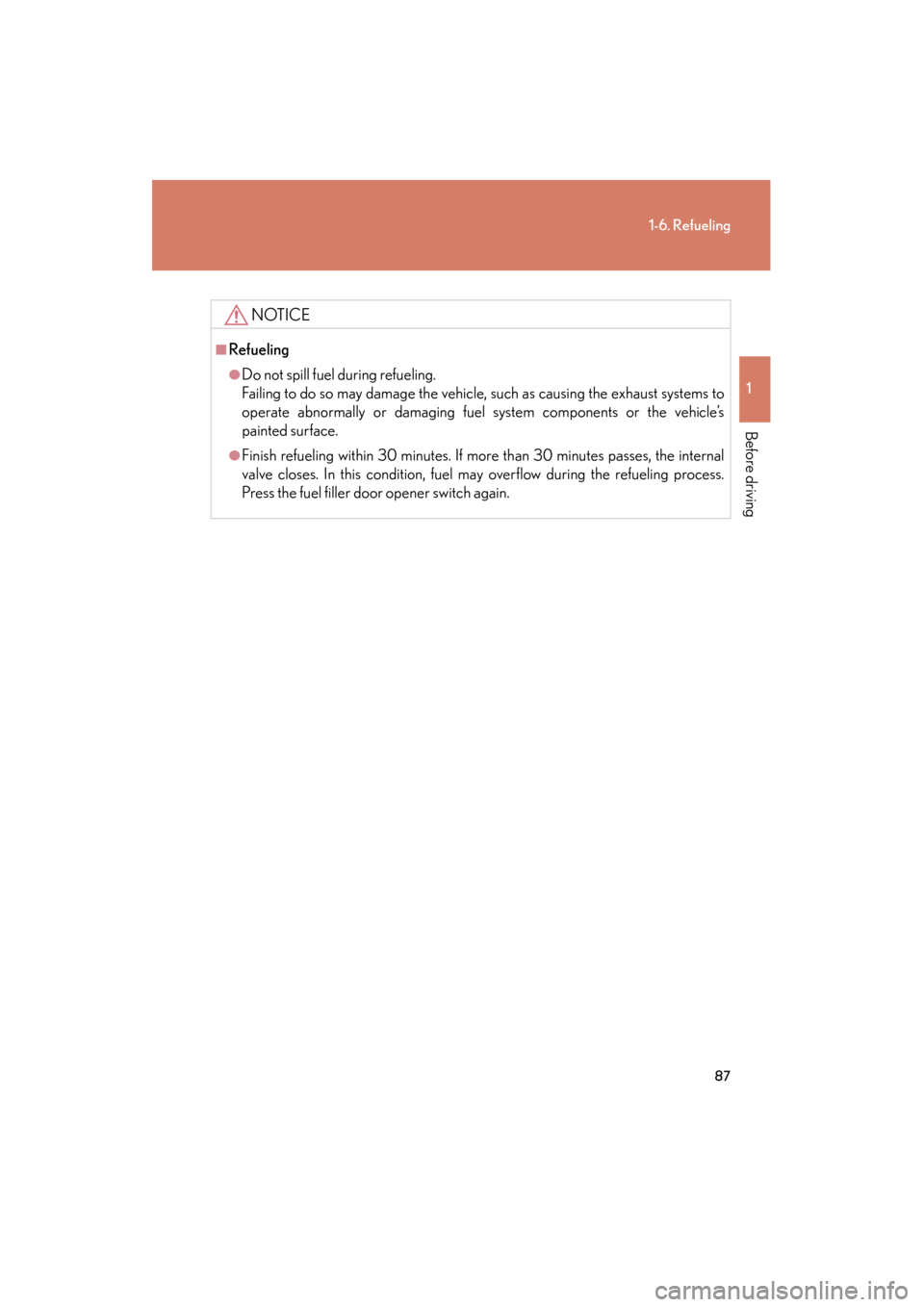

87
1-6. Refueling
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
NOTICE
■Refueling
●Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle’s
painted surface.
●Finish refueling within 30 minutes. If more than 30 minutes passes, the internal
valve closes. In this condition, fuel may overflow during the refueling process.
Press the fuel filler door opener switch again.
GS450h_HV_U.book Page 87 Thursday, June 19, 2008 1:44 PM

88
GS_HV_U
December 12, 2007 3:30 pm
1-7. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type of immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The vehicle’s keys have built-in transponder chips that prevent the hybrid
system from starting if the key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “POWER” switch has been
turned OFF to indicate that the
system is operating.
FCC ID: NI4TMIMB-1
GS450h_HV_U.book Page 88 Thursday, June 19, 2008 1:44 PM
