Lexus GS450h 2008 Owner's Guide

19
GS_HV_U
December 12, 2007 3:33 pm

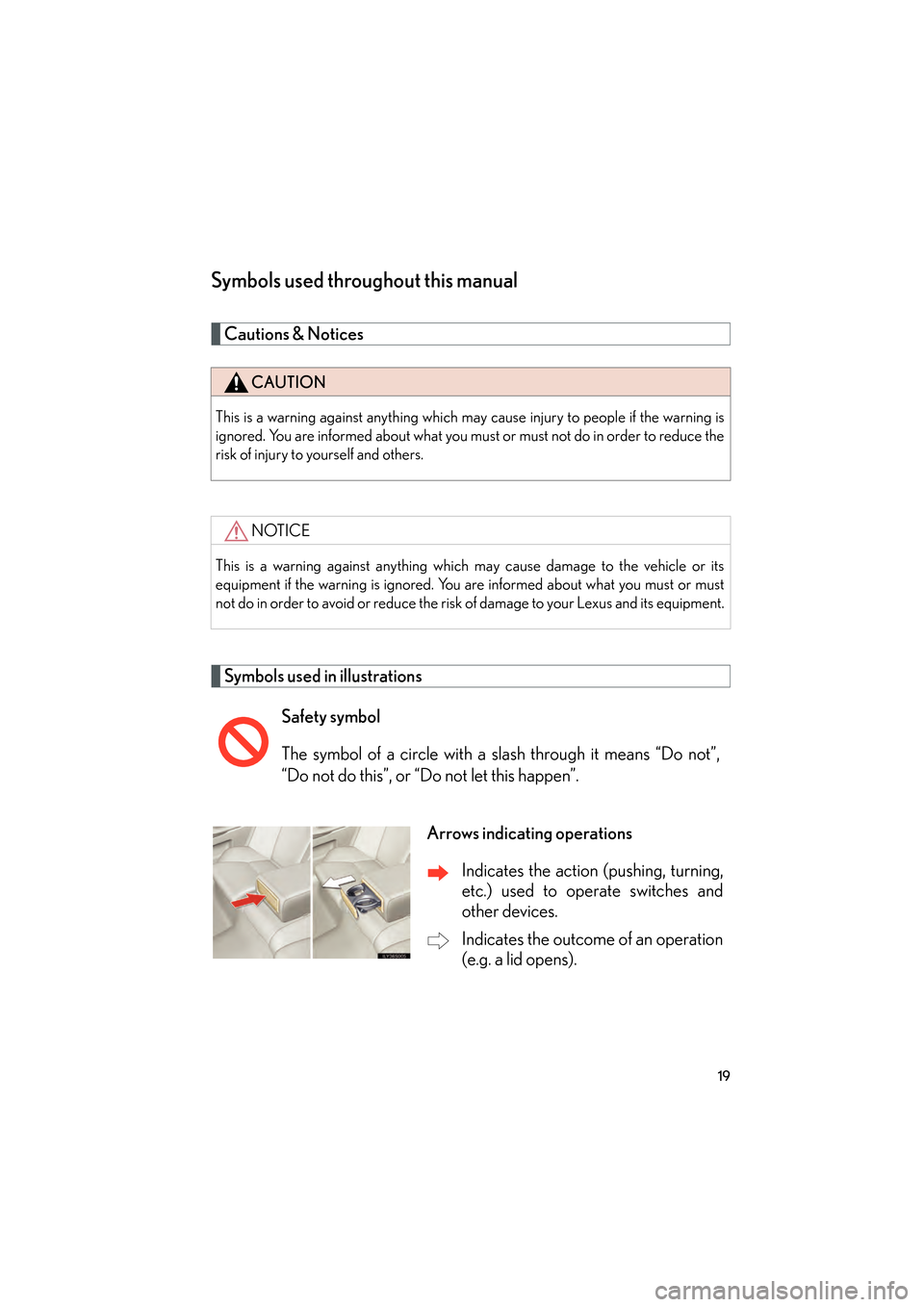

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations Indicates the action (pushing, turning,etc.) used to operate switches and
other devices.
Indicates the outcome of an operation (e.g. a lid opens).
GS450h_HV_U.book Page 19 Thursday, June 19, 2008 1:44 PM

20
GS_HV_U
December 12, 2007 3:33 pm
GS450h_HV_U.book Page 20 Thursday, June 19, 2008 1:44 PM

Before driving1
21
GS_HV_U
December 12, 2007 3:30 pm
1-1. Hybrid system .................. 22Hybrid system ............................ 22
1-2. Key information ............... 33 Keys .............................................. 33
1-3. Opening, closing and locking the doors
and trunk........................ 35
Smart access system with push-button start .................... 35
Wireless remote control ......... 47
Doors ........................................... 50
Trunk ............................................. 55
1-4. Adjustable components (seats, mirrors,
steering wheel) .............. 58
Front seats .................................. 58
Driving position memory system ........................................ 60
Head restraints .......................... 64
Seat belts ..................................... 66
Steering wheel ........................... 73
Inside rear view mirror ............ 74
Outside rear view mirrors ...... 75 1-5. Opening and closing
the windows and
moon roof ........................ 77
Power windows .......................... 77
Moon roof ................................... 80
1-6. Refueling .......................... 83 Opening the fuel tank cap ..... 83
1-7. Theft deterrent system ... 88 Immobilizer system .................. 88
Alarm............................................ 90
Theft prevention labels (U.S.A.)...................................... 92
1-8. Safety information........... 93 Correct driving posture ......... 93
SRS airbags ................................ 95
Front passenger occupant classification system............ 107
Child restraint systems .......... 113
Installing child restraints......... 117
GS450h_HV_U.book Page 21 Thursday, June 19, 2008 1:44 PM

22
GS_HV_U
June 19, 2008 1:15 pm

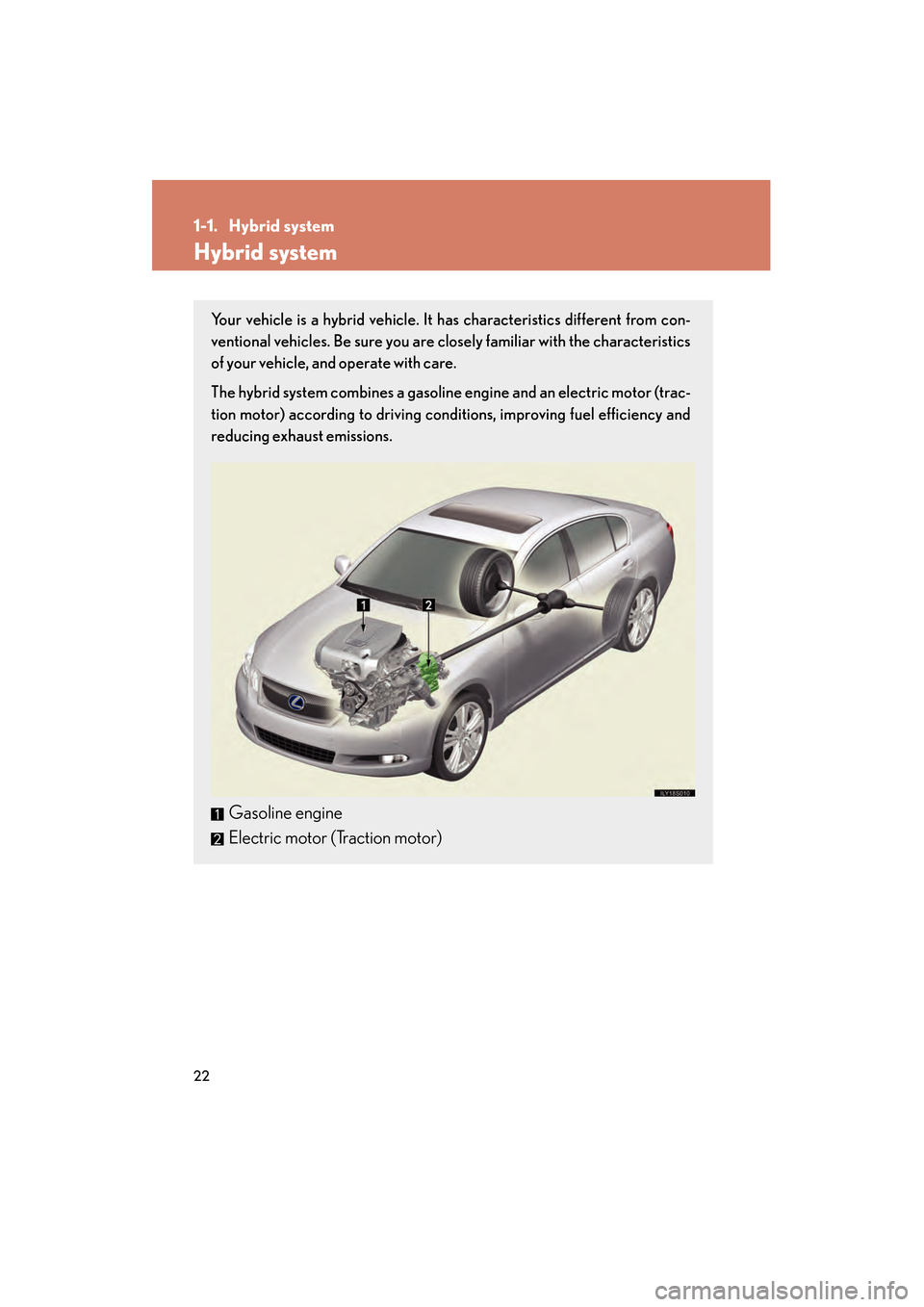

1-1. Hybrid system
Hybrid system
Your vehicle is a hybrid vehicle. It has characteristics different from con-
ventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate with care.
The hybrid system combines a gasoline engine and an electric motor (trac-
tion motor) according to driving conditions, improving fuel efficiency and
reducing exhaust emissions.
Gasoline engine
Electric motor (Traction motor)
GS450h_HV_U.book Page 22 Thursday, June 19, 2008 1:44 PM

23
1-1. Hybrid system
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Regenerative braking
The motor generator converts kinetic energy to electric energy when:
●The accelerator pedal is released.
●The brake pedal is depressed with the shift lever in “D” or “S”.
■When stopped/during take-off
The gasoline engine stops when the vehicle is stopped. During take-
off, the electric motor (traction motor) drives the vehicle. At slow
speeds or when traveling down a gentle slope, the engine is stopped
and the motor is used.
■ During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery as necessary.
■ When accelerating sharply
The power of the hybrid battery (traction battery) is added via elec-
tric motor (traction motor) to that of the gasoline engine.
■ When braking (Regenerative brake)
The electric motor (traction motor) charges the hybrid battery
(traction battery).
GS450h_HV_U.book Page 23 Thursday, June 19, 2008 1:44 PM

24
1-1. Hybrid system
GS_HV_U
June 19, 2008 1:15 pm
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop auto-
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●During low or high hybrid battery (traction battery) temperature
■Charging the battery
●As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is
left parked for a long time the hybrid battery will slowly discharge. For this rea-
son, be sure to drive the vehicle at least once every few months for at least 30
minutes or 10 miles (16 km). If the hybrid battery becomes fully discharged and
you are unable to jump-start the vehicle with the 12 volt battery, contact your
Lexus dealer.
●If the shift lever is in “N”, the hybrid battery (traction battery) will not be
charged. When driving in heavy traffic, operate the vehicle with the shift lever in
“D” or “S” to avoid discharging the battery.
■After the 12 volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact your Lexus dealer.
GS450h_HV_U.book Page 24 Thursday, June 19, 2008 1:44 PM

25
1-1. Hybrid system
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able to
move. Always put the shift lever in “P” when parked.
The following sounds or vibrations may occur when the hybrid system is operating,
and are not a malfunction.
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear
seat when the hybrid system starts or stops.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the transmission when the hybrid system starts or
stops.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard from the regenerative brake when you press the brake
pedal.
●Vibration may be felt when the gasoline engine starts or stops.
●You may hear cooling fan sounds coming from the air intake vents behind the
rear seat.
■Maintenance, repair, recycling, and disposal
Contact your Lexus dealer regarding maintenance, repair, recycling and disposal.
Do not dispose of the vehicle yourself.
GS450h_HV_U.book Page 25 Thursday, June 19, 2008 1:44 PM

26
1-1. Hybrid system
GS_HV_U
June 19, 2008 1:15 pm

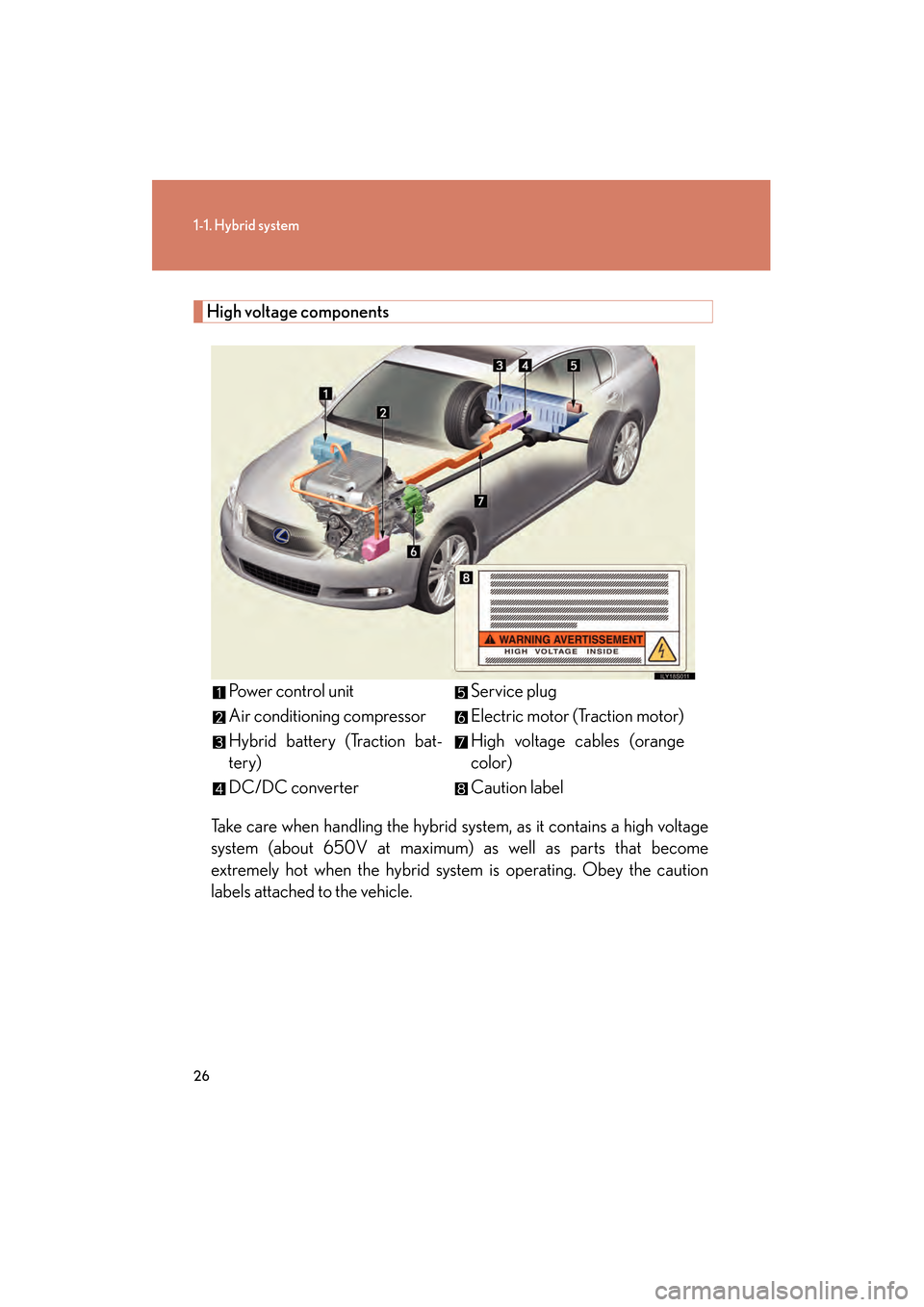

High voltage componentsTake care when handling the hybrid system, as it contains a high voltage
system (about 650V at maximu m) as well as parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle. Power control unit
Air conditioning compressor
Hybrid battery (Traction bat-
tery)
DC/DC converter
Service plug
Electric motor (Traction motor)
High voltage cables (orange
color)
Caution label
GS450h_HV_U.book Page 26 Thursday, June 19, 2008 1:44 PM

27
1-1. Hybrid system
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Hybrid battery air vent
Hybrid battery air vent
There is an air intake vent on the
package tray for the purpose of
cooling the hybrid battery (trac-
tion battery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
Emergency shut off system
The emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel leakage
when a certain level of impact is detected by the impact sensor. If the
emergency shut off system activates, your vehicle will not restart. To
restart the hybrid system, contact your Lexus dealer.
Energy monitor/consumption screenYou can view the status of your hybrid system on the multi-information
display ( →P. 155) and the touch screen ( →P. 224). The following images
are examples only, and may vary slightly from actual conditions.
■ Energy monitor
● How to display on the touch screen:
Press .
Touch on the “Information” screen.
If the “Consumption” screen is displayed, touch .
● How to display on the multi-information display:
Push the “DISP” switch on the steering wheel several times to
select the energy monitor display.
STEP1
STEP2
STEP1
GS450h_HV_U.book Page 27 Thursday, June 19, 2008 1:44 PM

28
1-1. Hybrid system
GS_HV_U
July 3, 2008 11:32 am
To u c h s c r e e nMulti-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both the
gasoline engine and the
electric motor (traction
motor)
When the vehicle is
charging the hybrid
battery (traction
battery)
When there is no
energy flow
Hybrid battery
(traction battery) statusLowFullLowFull
