Lexus GS450h 2008 Repair Manual

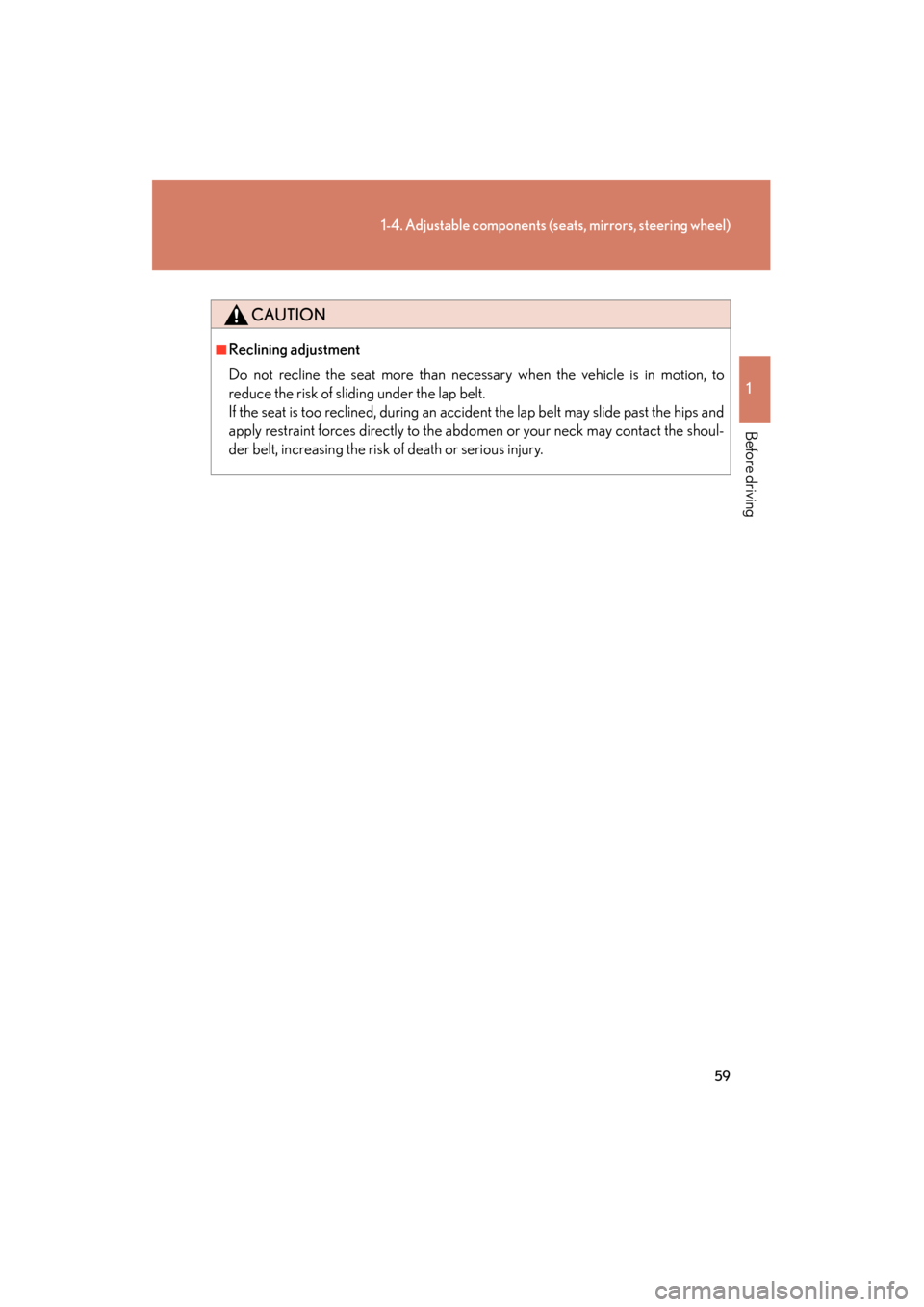

59
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury.
GS450h_HV_U.book Page 59 Thursday, June 19, 2008 1:44 PM

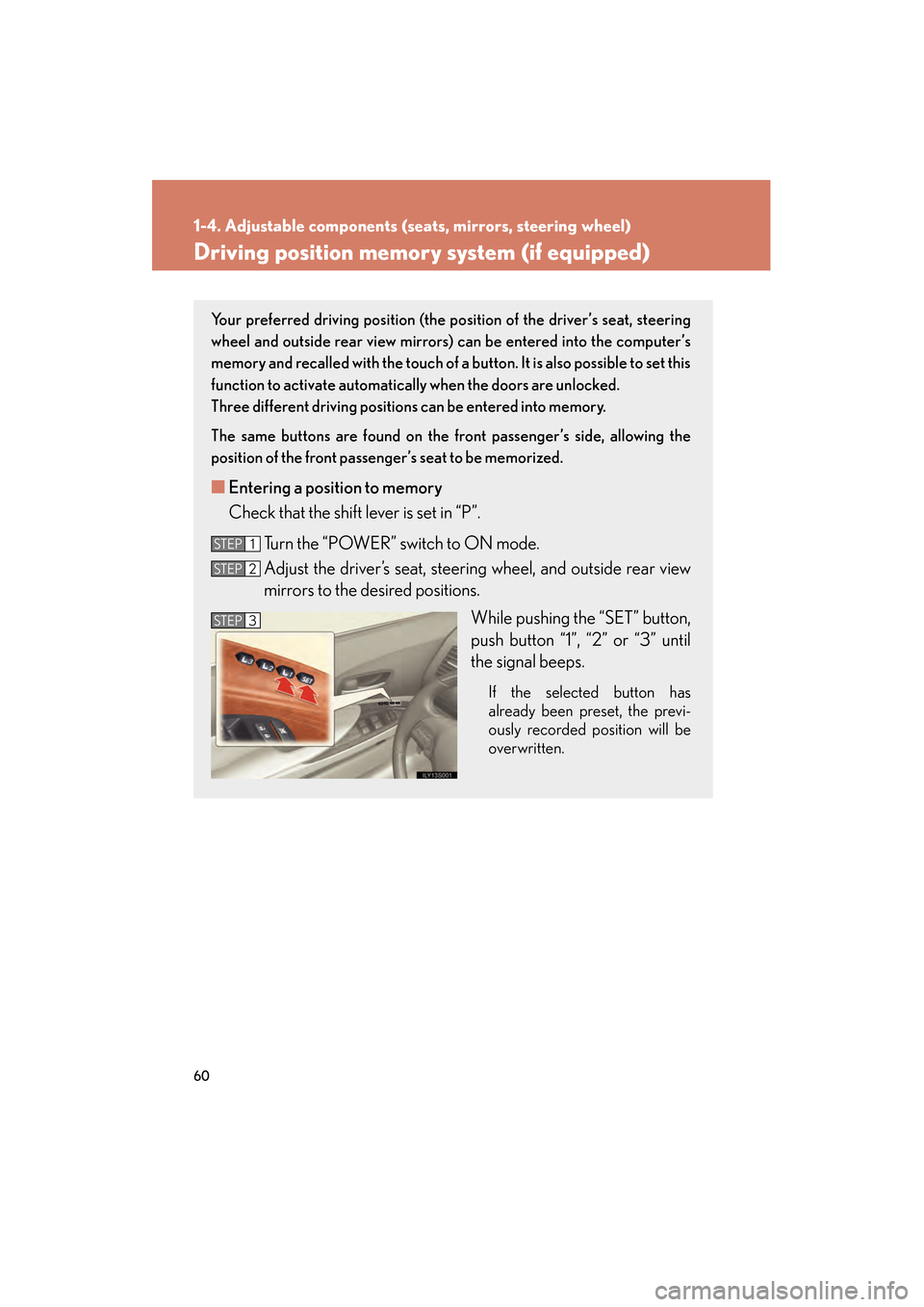

60
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passen ger’s seat to be memorized.
■Entering a position to memory
Check that the shift lever is set in “P”.
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
GS450h_HV_U.book Page 60 Thursday, June 19, 2008 1:44 PM

61
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Linking driving position memory with door unlock operation (driver
side only)Memorized driving positions can be recalled when you unlock the
driver’s door using the entry function or wireless remote control and
open the driver’s door. Steering wheel position is recalled when the
“POWER” switch is set to the ON mode.
■ Setting the linked do or unlock operation
Set the driving positions into the memory system using the “1”, “2”
or “3” buttons on the driver’s side. ( →P. 6 0 )
Turn the “POWER” switch to the OFF, then close the driver’s
door.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “POWER” switch to ON mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 61 Thursday, June 19, 2008 1:44 PM

62
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Push the “1”, “2” or “3” button on
the driver’s side and the button
on the wireless remote control at
the same time for about 1 second
until you hear a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(→ P. 9 0 )STEP3
■Canceling the linked door unlock operation
Close the driver’s door with the “POWER” switch set to the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the corresponding side door is opened, even if
the “POWER” switch is in the OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the system, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the battery is disconnected.
STEP4
STEP1
STEP2
GS450h_HV_U.book Page 62 Thursday, June 19, 2008 1:44 PM

63
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another driving position
memory button.
GS450h_HV_U.book Page 63 Thursday, June 19, 2008 1:44 PM

64
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Head restraints
■Vertical adjustment
Driver’s seat
Head restraint height can be
adjusted automatically along
with the seat position adjust-
ment. (→P. 58)
Front passenger’s and rear seats Grip head restraint and move
it up or down.
Push and hold the lock release
button when lowering the head
restraint.
Grip head restraint and
remove while holding the
lock release button.
■ Horizontal adjustment
Front and outboard rear seats
Grip head restraint and twist to
tilt forward or backward.
Lock
release
button
GS450h_HV_U.book Page 64 Thursday, June 19, 2008 1:44 PM

65
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Adjusting the height of the driver’s head restraint manually
■Removing the driver’s seat head restraint
For removal and installation, ask your Lexus dealer.
■Adjusting the height of the head restraints
■Adjusting the center rear seat head restraint
Always raise the head restraint one level from the stowed position when using.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraint designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●Do not drive with the head restraints removed.
Push and hold the lock release button when
lowering or raising the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
GS450h_HV_U.book Page 65 Thursday, June 19, 2008 1:44 PM

66
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
Position the lap belt as low as
possible over the hips.
Adjust the position of the
seatback. Sit up straight and
well back in the seat.
Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle until
a clicking sound is heard.
Releasing the belt
Press the release button.
Release button
GS450h_HV_U.book Page 66 Thursday, June 19, 2008 1:44 PM

67
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Seat belt comfort guide (outboard rear seats)If the shoulder belt fits close to a
person’s neck, slide the seat belt
comfort guide forward.
Seat belt pretensioners (front and outboard rear seats)The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli-
sion.
The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
■Adjusting the height of the belt (front seats)
Up
Down
Move the height adjuster up and
down as needed until you hear a
click.
GS450h_HV_U.book Page 67 Thursday, June 19, 2008 1:44 PM

68
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U
June 19, 2008 1:15 pm
Pre-collision seat belts (front seats of vehicles with pre-collision system)
When the pre-collision sensor detects an obstacle and determines that a
collision is unavoidable, the seat belts lessen collision injury by retracting
the slack in the front seat belts before the collision, thus restraining the
driver and passenger at an earlier stage.
The seat belts will also operate in the event of sudden braking. ( →P. 2 0 6 )
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend, and
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( →P. 117)
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (→P. 6 6 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking or a collision.
GS450h_HV_U.book Page 68 Thursday, June 19, 2008 1:44 PM
