1-1. Hybrid system
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■Consumption
Press .
Touch on the “Information” screen.
If the “Energy Monitor” screen is displayed, touch .
Fuel consumption in the past 30
minutes
Regenerated energy in the past
30 minutes
One symbol indicates 50 Wh. Up
to 4 symbols are shown.
Best past fuel consumption
Average fuel consumption
Cruising range
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted. If a warning message is shown on
the multi-information display and
the touch screen, read the mes-
sage and follow the instructions.
(→P. 500)
STEP1
STEP2
■Resetting the consumption data
Touching will reset the “Average fuel consumption”. Touching
will reset all the data (except the “Cruising Range”) on the “Consumption” screen.
GS450h_HV_U.book Page 29 Thursday, June 19, 2008 1:44 PM

30
1-1. Hybrid system
GS_HV_U
June 19, 2008 1:15 pm
■If a warning light comes on or a warning message is displayed, or the 12 volt bat-
tery is disconnected
The hybrid system may not start. In that case, try to start the system again. If the
“READY” light does not come on, contact your Lexus dealer.
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12 volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables and
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
●Never try to open the service plug access hole located in the luggage compart-
ment. The service plug is used only when the vehicle is serviced and is subject to
high voltage.
■Nickel-metal hydride battery
Your vehicle contains a sealed nickel-metal hydride battery. If disposed of improp-
erly, it is hazardous to the environment and there is a risk of severe burns and elec-
trical shock that may result in death or serious injury.
GS450h_HV_U.book Page 30 Thursday, June 19, 2008 1:44 PM

31
1-1. Hybrid system
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■Road accident cautions
Observe the following precautions to reduce the risk of injury.
●Pull your vehicle off the road, put the shift lever in “P”, apply the parking brake,
turn the hybrid system off.
●Do not touch the high voltage parts, cables and connectors.
●If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch it as it may be strong alkaline electrolyte from
the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or if possible, boric
acid solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never
use a fire extinguisher that is not meant for electric fires. Using even a small
amount of water may be dangerous.
●If your vehicle needs to be towed, do so with the rear wheels raised. If the wheels
with the electric motor (traction motor) are on the ground when towing, the
motor may continue to generate electricity. This may cause an electricity leakage
leading to a fire. (
→P. 4 8 2 )
●Carefully inspect the ground under the vehicle. If you find that liquid has leaked
onto the ground, the fuel system may have been damaged. Leave the vehicle as
soon as possible.
GS450h_HV_U.book Page 31 Thursday, June 19, 2008 1:44 PM

32
1-1. Hybrid system
GS_HV_U
June 19, 2008 1:15 pm
NOTICE

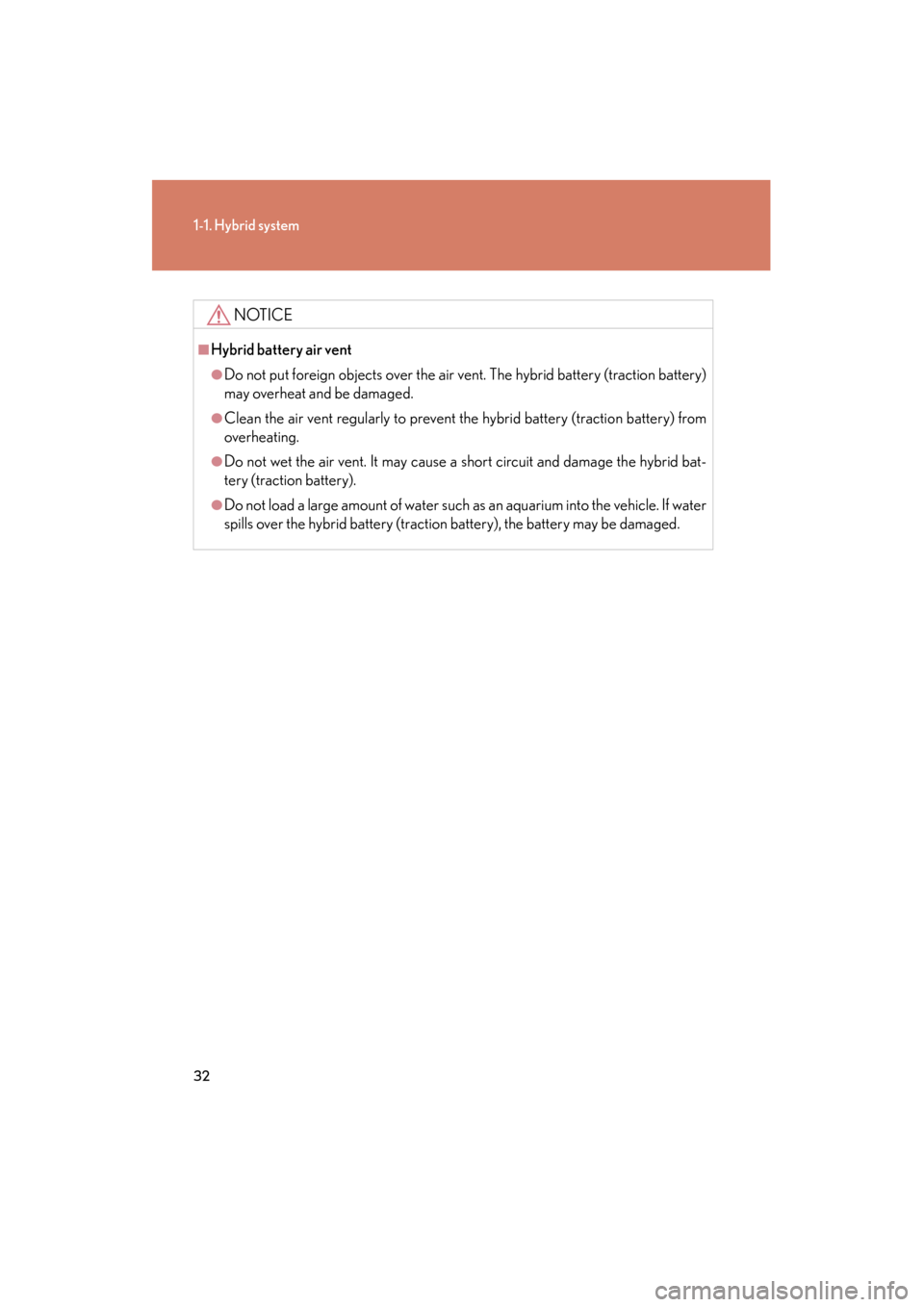

■Hybrid battery air vent
●Do not put foreign objects over the air vent. The hybrid battery (traction battery)
may overheat and be damaged.
●Clean the air vent regularly to prevent the hybrid battery (traction battery) from
overheating.
●Do not wet the air vent. It may cause a short circuit and damage the hybrid bat-
tery (traction battery).
●Do not load a large amount of water such as an aquarium into the vehicle. If water
spills over the hybrid battery (traction battery), the battery may be damaged.
GS450h_HV_U.book Page 32 Thursday, June 19, 2008 1:44 PM

33
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
1-2. Key information
Keys
Using the mechanical keyTake out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the smart
access system with push-button
start does not operate properly,
you will need the mechanical key.
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 3 5 )
• Operating the wireless remote control function
(→ P. 4 7 )
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF and lock the glove box as circumstances
demand. ( →P. 5 5 , 3 5 6 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
GS450h_HV_U.book Page 33 Thursday, June 19, 2008 1:44 PM

34
1-2. Key information
GS_HV_U
June 19, 2008 1:15 pm
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. (→P. 5 3 0 )
NOTICE
■To prevent key damage
●Do not disassemble the electronic key.
●Do not subject the keys to strong shocks, expose them to high temperatures by
placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any material that
blocks electromagnetic waves to the key surface.
GS450h_HV_U.book Page 34 Thursday, June 19, 2008 1:44 PM

35
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
1-3. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 36)
Unlocks the trunk ( →P. 36)
Starts and stops the hybrid system ( →P. 1 3 8 )
GS450h_HV_U.book Page 35 Thursday, June 19, 2008 1:44 PM

36
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
Locking and unlocking the doorsPress the lock button to lock the
door.
Pressing and holding the button
closes the windows and moon roof.
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for 3
seconds after the door is locked.
Unlocking the trunkPress the button to unlock the
trunk.
GS450h_HV_U.book Page 36 Thursday, June 19, 2008 1:44 PM

37
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm

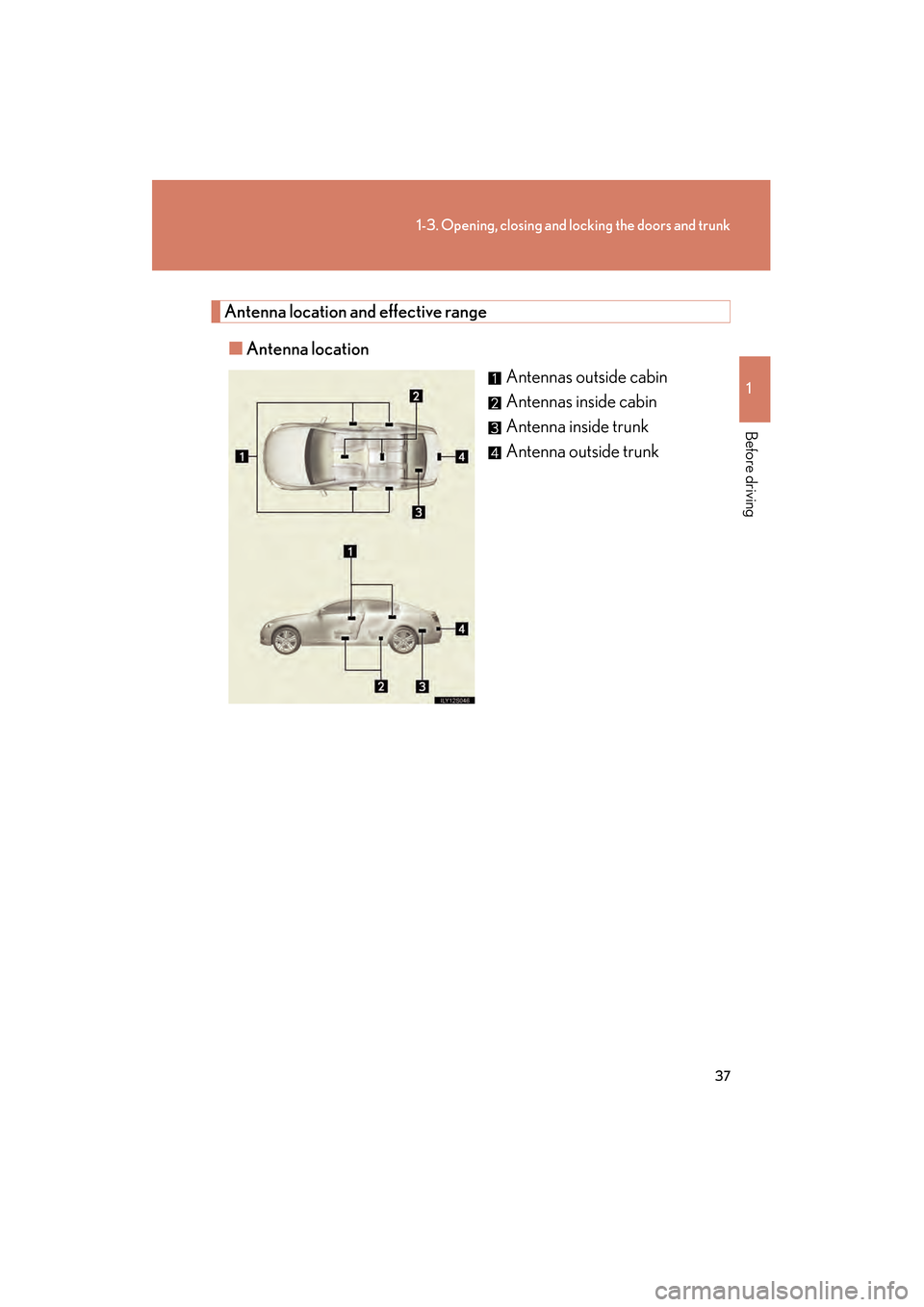

Antenna location and effective range■ Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna inside trunk
Antenna outside trunk
GS450h_HV_U.book Page 37 Thursday, June 19, 2008 1:44 PM

38
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
■Effective range (areas within wh ich the electronic key is detected)
When locking or unlock-
ing the doors
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(70 cm) of an outside door
handle. (Only the doors
detecting the key can be
operated.)
When unlocking the trunk
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(70 cm) of the trunk
release button.
When starting the hybrid
system or changing modes
The system can be oper-
ated when the electronic
key is inside the vehicle.
