Lexus GS450h 2009 Owner's Manual

240
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
3-1. Using the touch screen
Touch screen
By touching the screen with your finger, you can control the audio system
and air conditioning, adjust the screen display etc.
With navigation system
Without navigation system
The “Information” screen shown in the above illustration is displayed when is pressed.
GS450h_HV_U.book Page 240 Monday, April 27, 2009 10:10 AM

241
3-1. Using the touch screen
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
SwitchesPa g e
“CLIMATE”P. 2 4 8
“A U D I O ”P. 2 5 8
“INFO” (Displaying the “Informa-
tion” screen)P. 2 4 0
“DISP” (Adjusting the display)P. 2 4 4
Trip information (Displaying the
“Energy Monitor/Consumption”
screen)
P. 2 9
MaintenanceNavigation System Owner’s Manual
Te l e p h o n eP. 3 2 8
CalendarNavigation System Owner’s Manual
“LEXUS Park Assist”P. 2 0 4
LanguageP. 2 4 3
Screen SettingP. 2 4 6
Beep OffP. 2 4 3
Adjust ClockP. 3 8 1 /
Navigation System Owner’s Manual
GS450h_HV_U.book Page 241 Monday, April 27, 2009 10:10 AM

242
3-1. Using the touch screen
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
The initial screenIf the “POWER” switch is set to
ACCESSORY or ON mode, the
initializing screen will be displayed
for a few seconds as the system
starts up.
■To avoid damaging the touch screen
●Touch the screen lightly with your finger. If there is no response, remove your fin-
ger from the screen and try again.
●Remove any dirt on the screen by wiping with a soft cloth. Do not use detergent.
■When using the touch screen
●If the screen is cold, the display may be dark, or the system may seem to be
operating slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses.
Change your angle of viewing, adjust the display on the “Display” screen or
remove your sunglasses.
GS450h_HV_U.book Page 242 Monday, April 27, 2009 10:10 AM

243
3-1. Using the touch screen
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

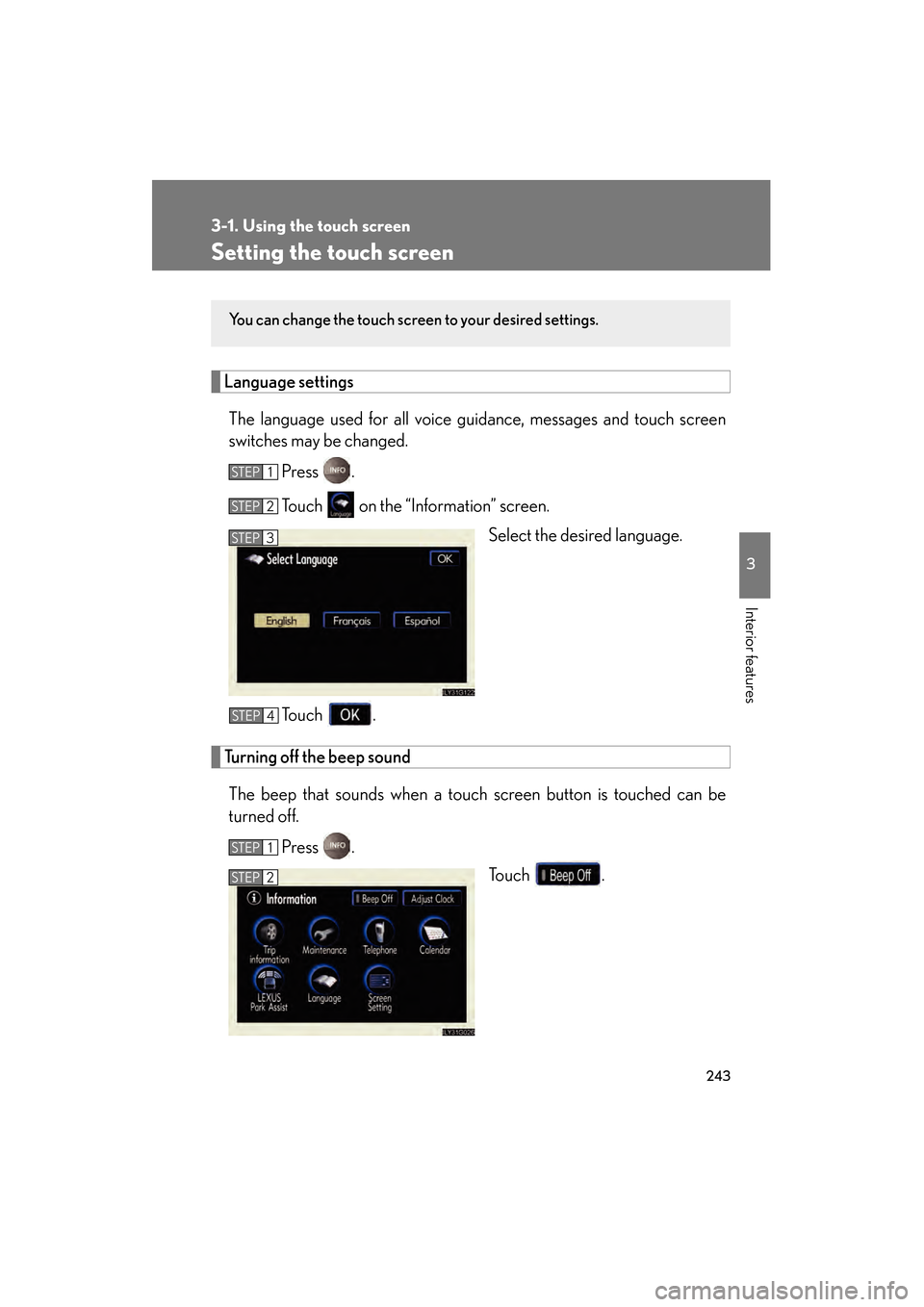

Setting the touch screen
Language settingsThe language used for all voice guidance, messages and touch screen
switches may be changed. Press .
Touch on the “Information” screen. Select the desired language.
To u c h .
Turning off the beep sound The beep that sounds when a touch screen button is touched can be
turned off. Press . To u c h .
You can change the touch screen to your desired settings.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
GS450h_HV_U.book Page 243 Monday, April 27, 2009 10:10 AM

244
3-1. Using the touch screen
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Adjusting the displayPress .
Adjust the display as desired using / and / .
If you do not touch the screen for 20 seconds, the system will return to
the previous screen.
With CD player
With DVD player
STEP1
STEP2
/ /
ColorRedGreen
To n eLighterDarker
ContrastWe a k e rStronger
BrightnessDarkerBrighter
GS450h_HV_U.book Page 244 Monday, April 27, 2009 10:10 AM

245
3-1. Using the touch screen
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■“Day Mode”
■To turn off the picture display
If is touched, the screen display is turned off, and guidance is by voice only.When the headlights are turned on, the
screen dims. However the screen can be
switched to “Day Mode”.
The screen will stay in “Day Mode” when
the headlights are turned on until is
touched again.
If the instrument panel light control is set to
“MAX”, “Day Mode” is not displayed.
GS450h_HV_U.book Page 245 Monday, April 27, 2009 10:10 AM

246
3-1. Using the touch screen
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Screen settingsPress .
Touch on the “Information” screen.
The following screen settings can be changed.
Automatic transition
20 seconds after air conditioning
or audio system use, the system will
return the display to the previous
screen.
Switch color
You can select the switch color.
Delete personal data
The following personal data is
deleted:
• User selection settings
• Phone book data
• Dialed numbers and receivedcalls
• Speed dial
• Bluetooth
® phone data
•Security code
• Maintenance conditions*
• Maintenance information off setting*
•Memory points*
• Areas to avoid*
•Previous points*
• Route trace*
*: If the navigation system is equipped
STEP1
STEP2
GS450h_HV_U.book Page 246 Monday, April 27, 2009 10:10 AM

247
3-1. Using the touch screen
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Setting automatic transition
To u c h o r .
To u c h .
■ Setting the switch color
Touch or .
To u c h .
■ To delete personal data
To u c h .
To u c h .
Check carefully beforehand, as
data cannot be retrieved once ini-
tialized.
STEP1
STEP2
STEP1
STEP4STEP2
STEP1
STEP2
■When deleting personal data
Data can only be deleted when the vehicle is stopped.
■When selling the vehicle
Be sure to initialize both the call history and personal data. ( →P. 2 4 6 )
■If you touch
The display returns to the previous screen.
GS450h_HV_U.book Page 247 Monday, April 27, 2009 10:10 AM

248
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
3-2. Using the air conditioning system and defogger
Automatic air conditioning system
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
Press
to display the air conditioning operation screen.
The above illustration is for a vehicle equipped with the navigation sys-
tem. The position of is slightly different for vehicles not equipped
with the navigation system.
Automatic mode
Driver’s side
temperature display
Fan speed display
Off Airflow display
Air conditioning operation
screen display button
Passenger’s side
temperature
display
Micro dust and pollen filter
Driver’s side
temperature control
Air conditioning
ON/OFF switch
Outside air or recirculated mode
Windshield defogger Passenger’s side
temperature control
Dual operation switch
GS450h_HV_U.book Page 248 Monday, April 27, 2009 10:10 AM

249
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

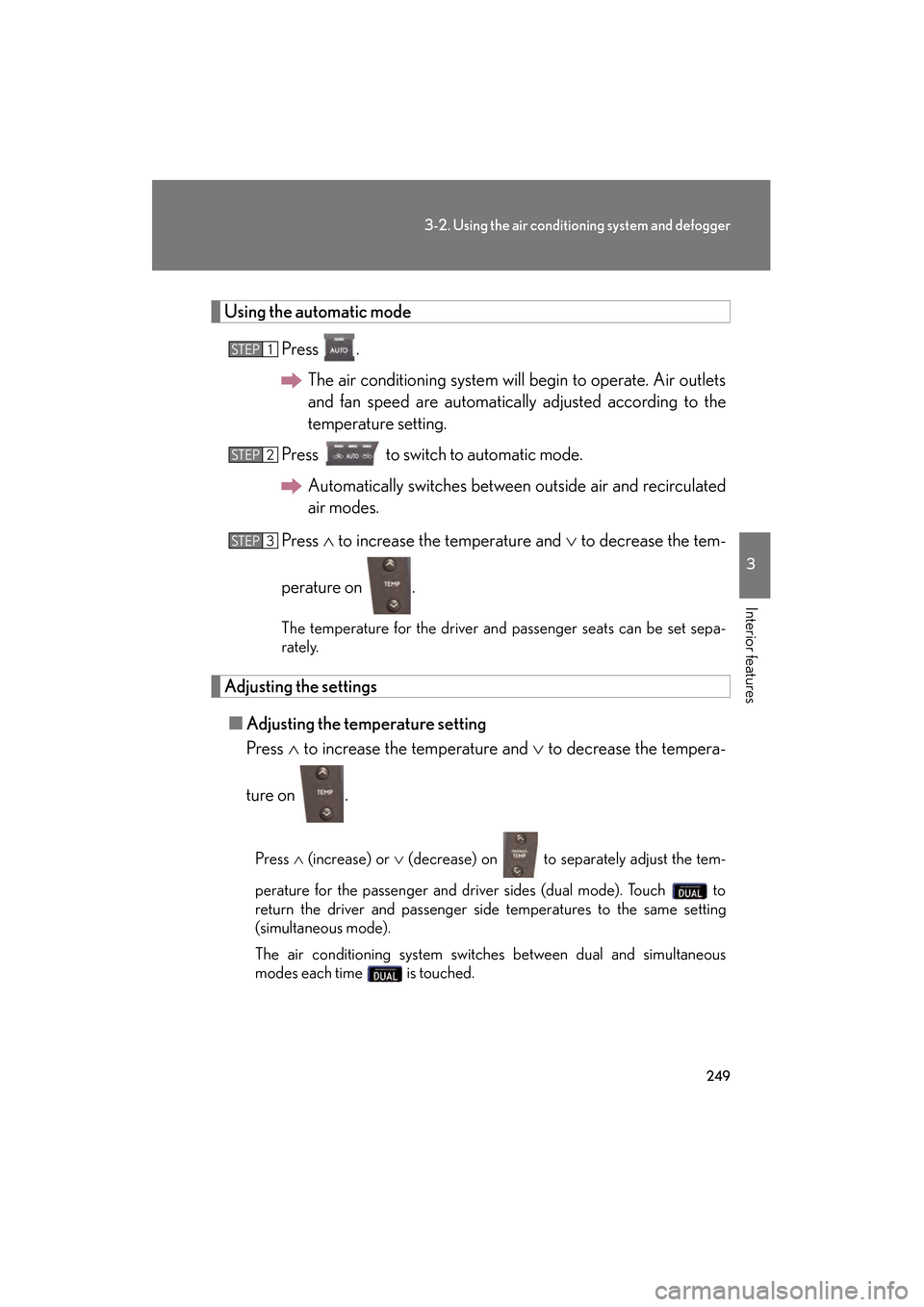

Using the automatic modePress .The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Press to switch to automatic mode. Automatically switches between outside air and recirculated
air modes.
Press ∧ to increase the temperature and ∨ to decrease the tem-
perature on .
The temperature for the driver and passenger seats can be set sepa-
rately.
Adjusting the settings ■ Adjusting the temperature setting
Press ∧ to increase the temperature and ∨ to decrease the tempera-
ture on .
Press ∧ (increase) or ∨ (decrease) on to separately adjust the tem-
perature for the passenger and driver sides (dual mode). Touch to
return the driver and passenger side temperatures to the same setting
(simultaneous mode).
The air conditioning system switches between dual and simultaneous
modes each time is touched.
STEP1
STEP2
STEP3
