Lexus GS450h 2009 Owner's Manual

250
3-2. Using the air conditioning system and defogger
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

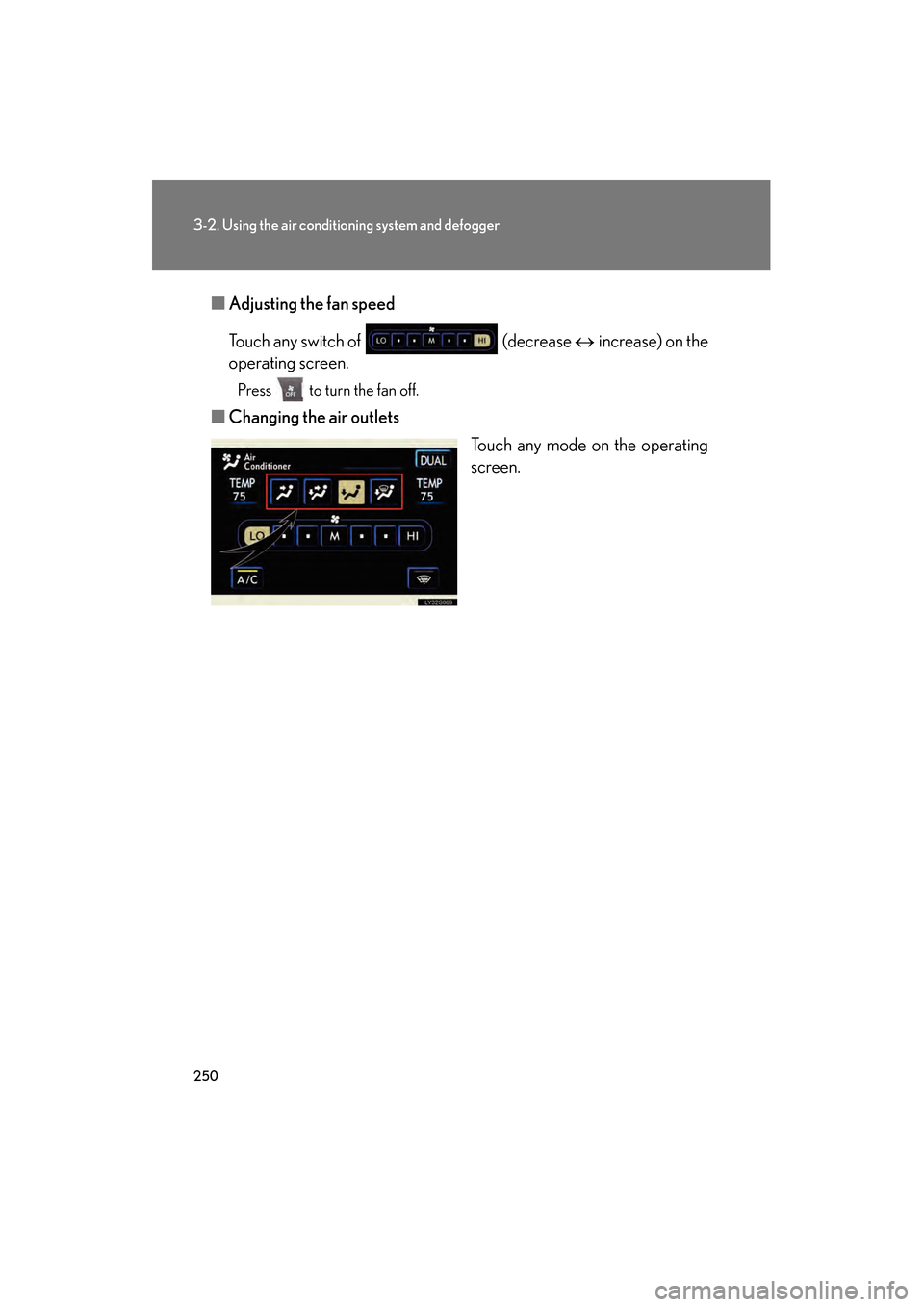

■Adjusting the fan speed
Touch any switch of (decrease ↔ increase) on the
operating screen.
Press to turn the fan off.
■ Changing the air outlets
Touch any mode on the operating
screen.
GS450h_HV_U.book Page 250 Monday, April 27, 2009 10:10 AM

251
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

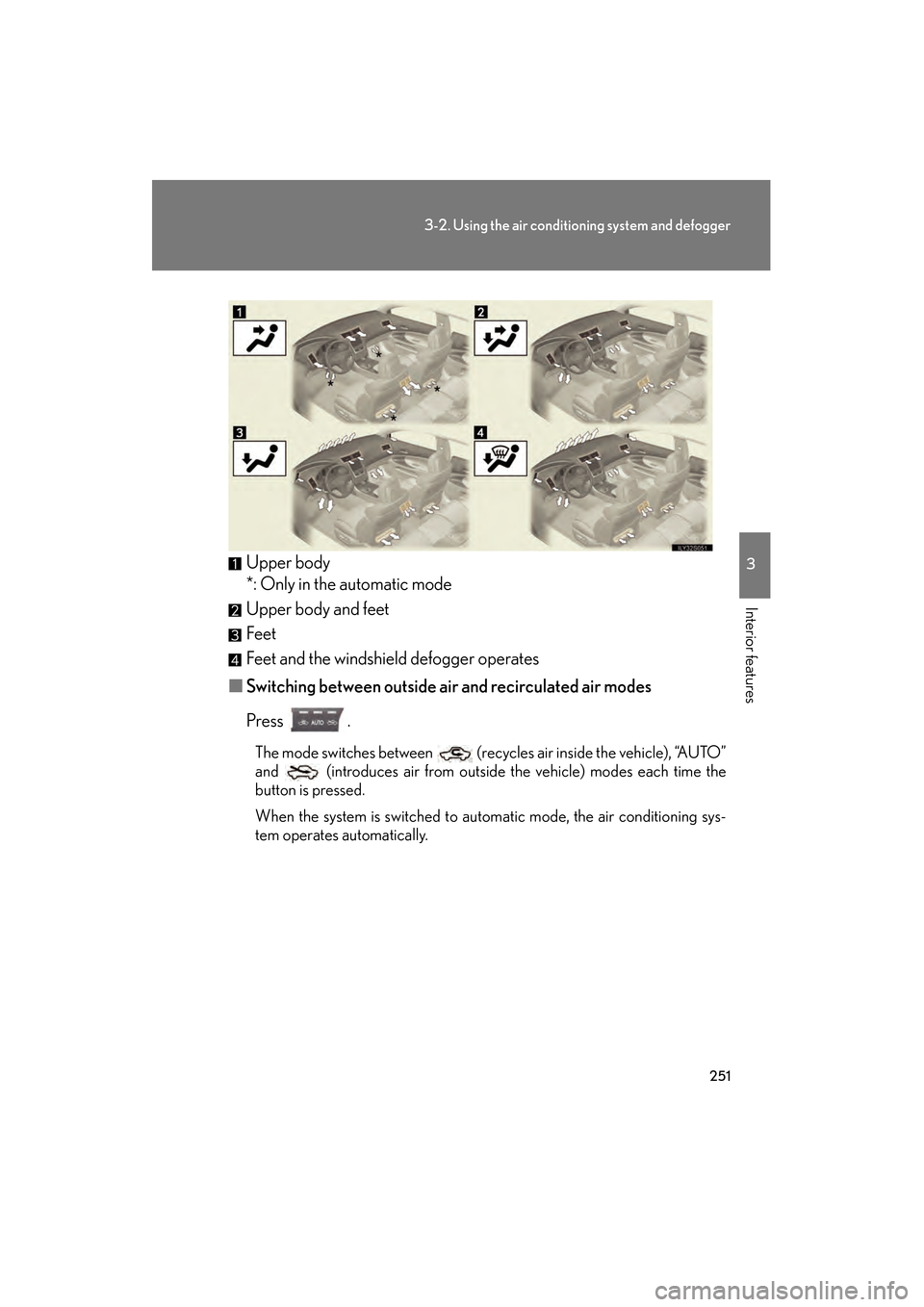

Upper body
*: Only in the automatic mode
Upper body and feet
Feet
Feet and the windshield defogger operates
■ Switching between outside air and recirculated air modes
Press .
The mode switches between (recycles air inside the vehicle), “AUTO”
and (introduces air from outside the vehicle) modes each time the
button is pressed.
When the system is switched to automatic mode, the air conditioning sys-
tem operates automatically.
GS450h_HV_U.book Page 251 Monday, April 27, 2009 10:10 AM

252
3-2. Using the air conditioning system and defogger
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

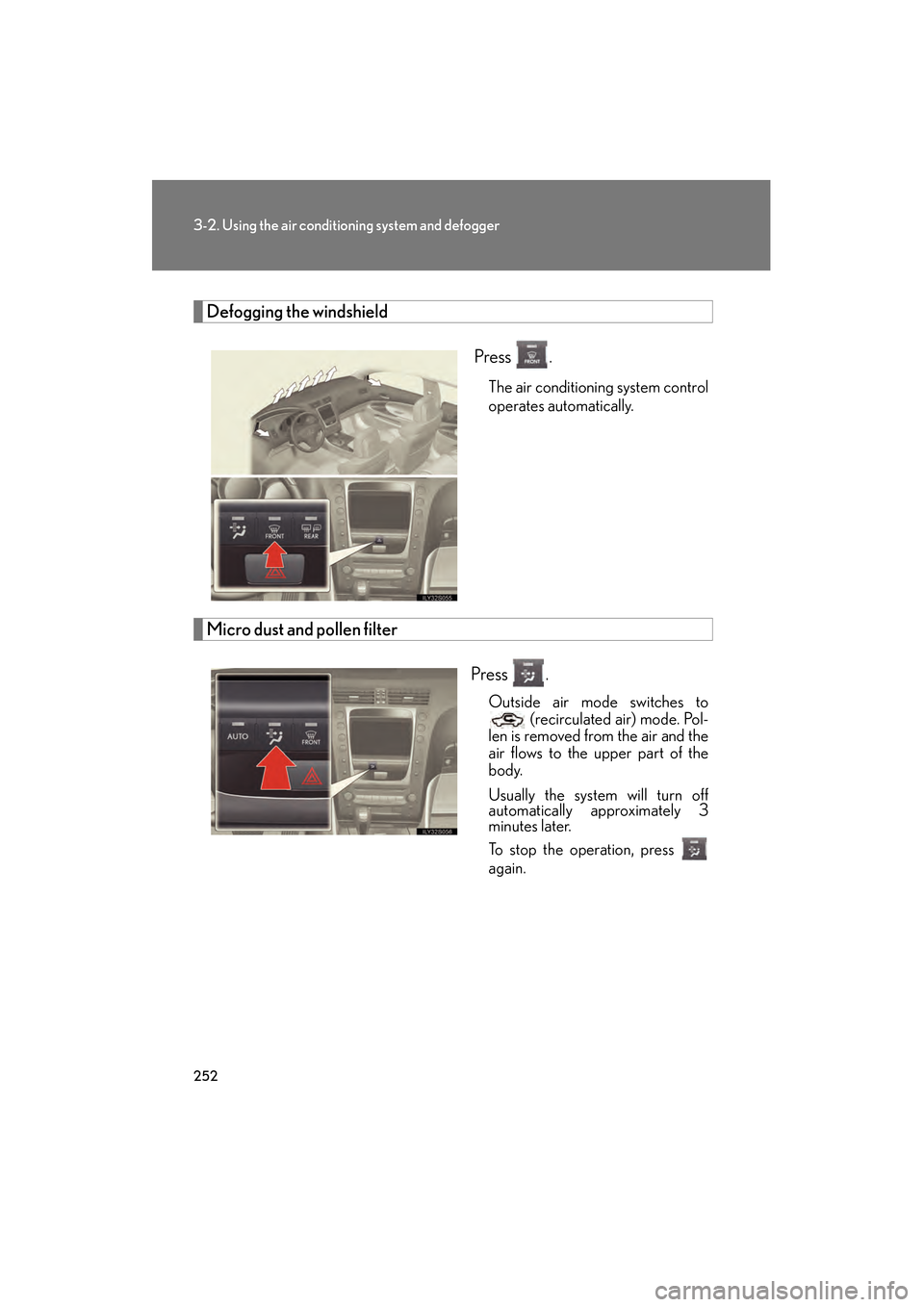

Defogging the windshield Press
.
The air conditioning system control
operates automatically.
Micro dust and pollen filter
Press .
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically approximately 3
minutes later.
To stop the operation, press
again.
GS450h_HV_U.book Page 252 Monday, April 27, 2009 10:10 AM

253
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Adjusting the sensitivity of the air intake control in automatic mode
Press until the smog sensor screen appears while the
vehicle is stopped. Touch any switch of (lower sensi-
tivity ↔ higher sensitivity) on the
operating screen.
Adjusting the position of and op ening and closing the air outlets
Front outlets Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
STEP1
STEP2
GS450h_HV_U.book Page 253 Monday, April 27, 2009 10:10 AM

254
3-2. Using the air conditioning system and defogger
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

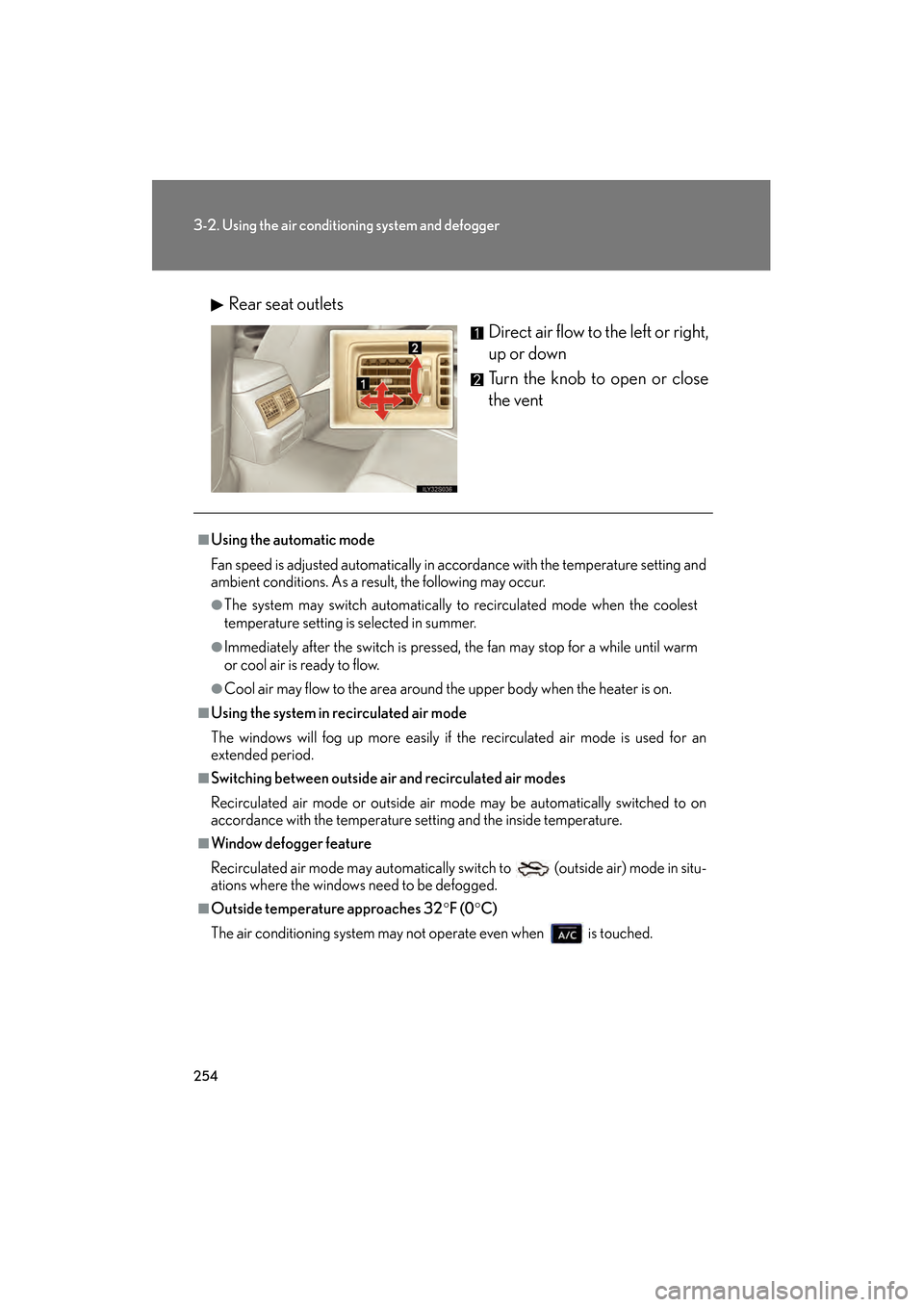

Rear seat outletsDirect air flow to the left or right,
up or down
Turn the knob to open or close
the vent
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the coolest
temperature setting is selected in summer.
●Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to on
accordance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■Outside temperature approaches 32 °F (0 °C)
The air conditioning system may not operate even when is touched.
GS450h_HV_U.book Page 254 Monday, April 27, 2009 10:10 AM

255
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

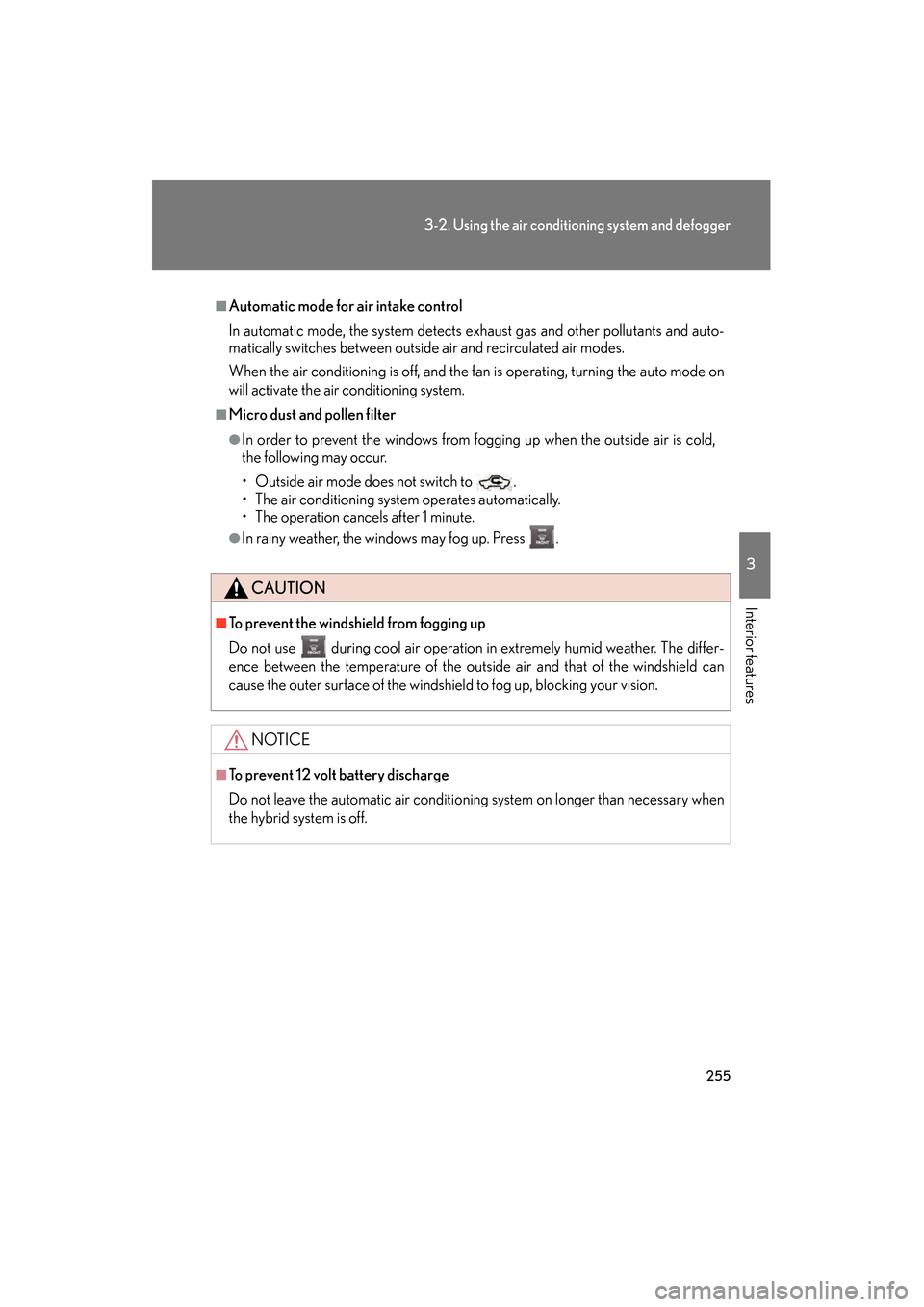

■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the air conditioning is off, and the fan is operating, turning the auto mode on
will activate the air conditioning system.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the automatic air conditioning system on longer than necessary when
the hybrid system is off.
GS450h_HV_U.book Page 255 Monday, April 27, 2009 10:10 AM

256
3-2. Using the air conditioning system and defogger
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

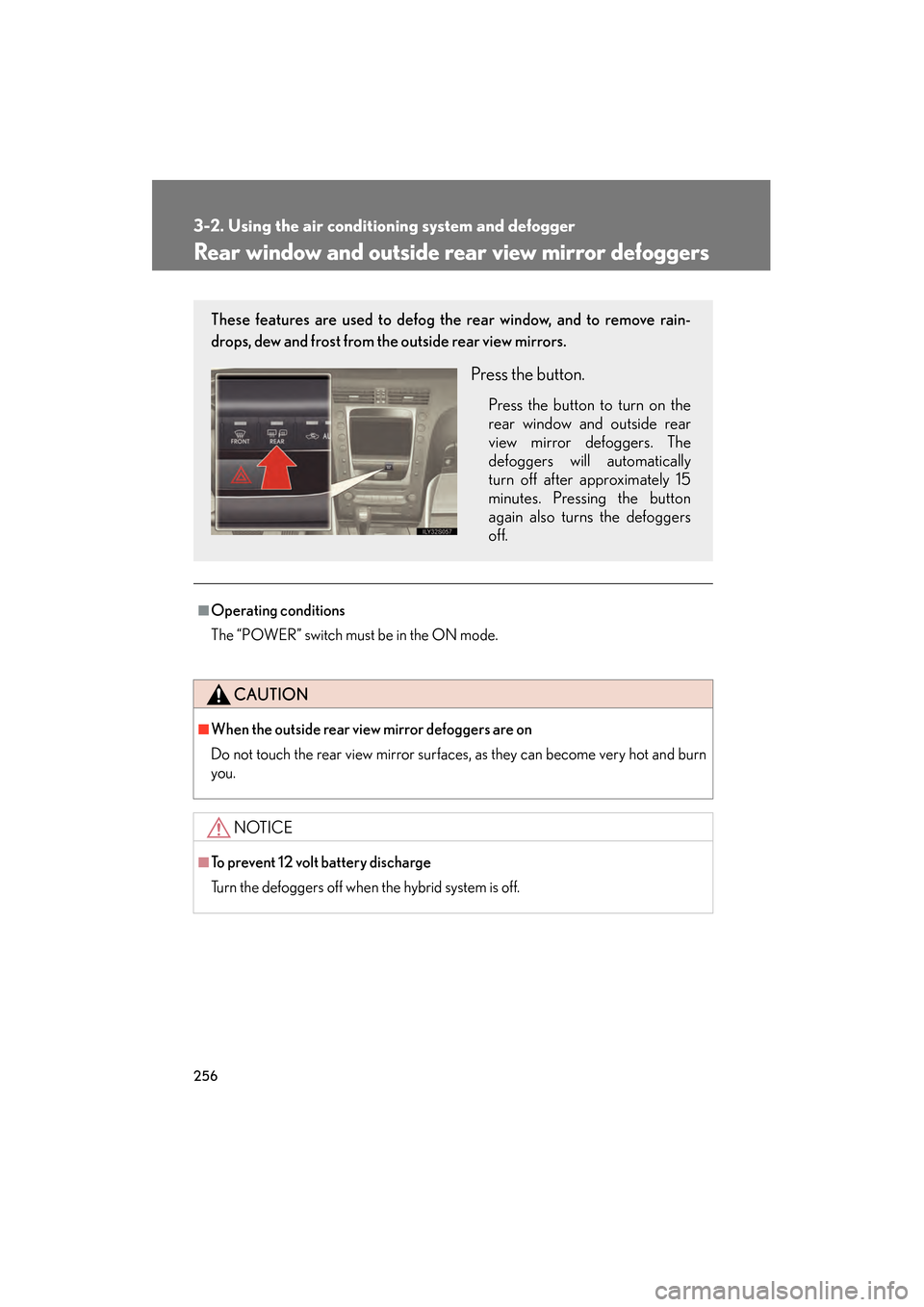

Rear window and outside rear view mirror defoggers
■Operating conditions
The “POWER” switch must be in the ON mode.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent 12 volt battery discharge
Turn the defoggers off when the hybrid system is off.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press the button.
Press the button to turn on the
rear window and outside rear
view mirror defoggers. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
GS450h_HV_U.book Page 256 Monday, April 27, 2009 10:10 AM

257
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

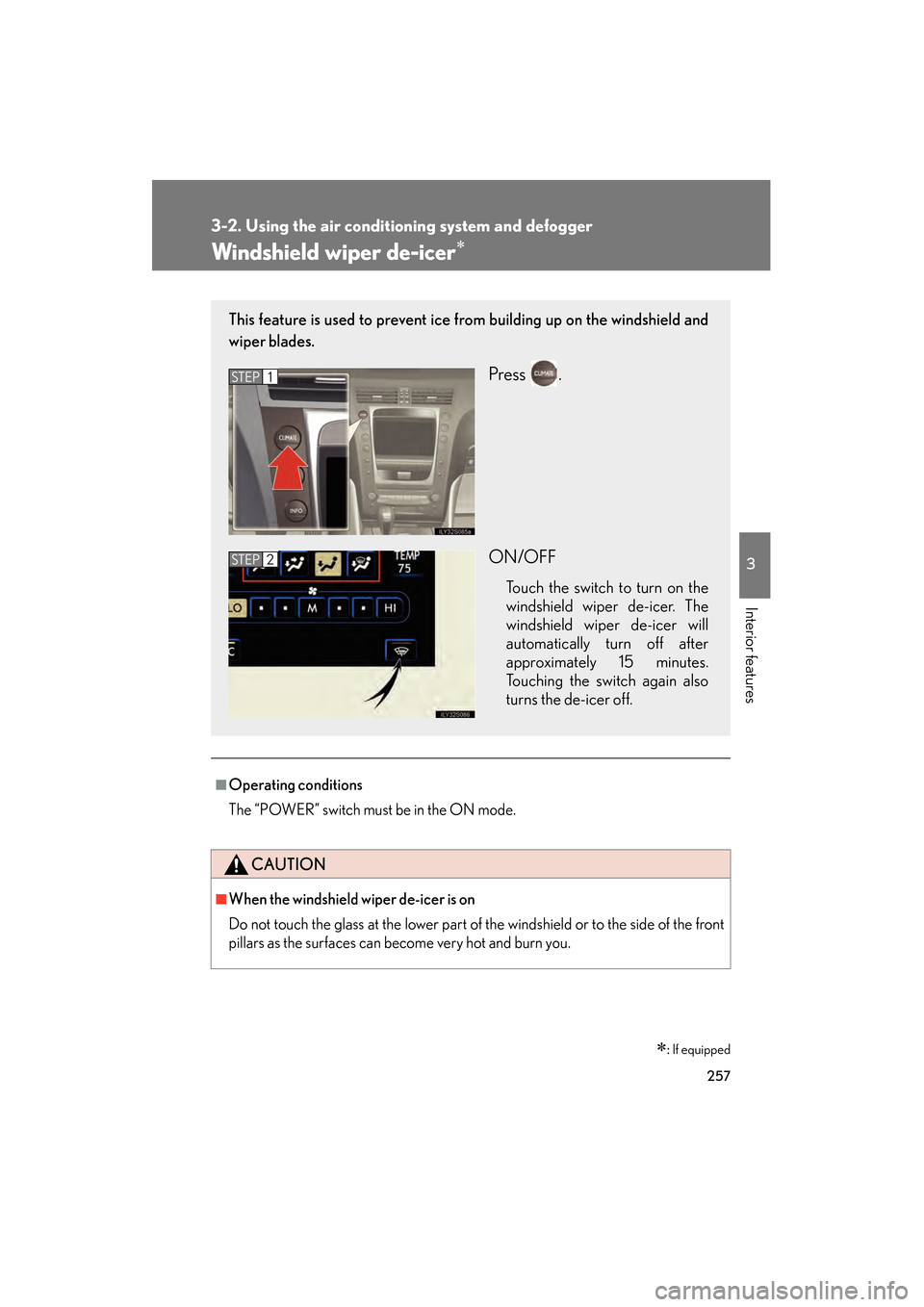

Windshield wiper de-icer∗
■Operating conditions
The “POWER” switch must be in the ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.
∗: If equipped
This feature is used to prevent ice from building up on the windshield and
wiper blades.
Press .
ON/OFF
Touch the switch to turn on the
windshield wiper de-icer. The
windshield wiper de-icer will
automatically turn off after
approximately 15 minutes.
Touching the switch again also
turns the de-icer off.
STEP1
STEP2
GS450h_HV_U.book Page 257 Monday, April 27, 2009 10:10 AM

258
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
3-3. Using the audio system
Audio system type
CD and (optional) DVD player with changer, cassette player, and AM/FM
radio
This illustration below is for a vehicle equipped with the DVD player.
The audio system appearance and screen may differ slightly for vehi-
cles not equipped with the DVD player. In addition, the position of
is slightly different for vehicles not equipped with the navigation sys-
tem.
GS450h_HV_U.book Page 258 Monday, April 27, 2009 10:10 AM

259
3-3. Using the audio system
3
Interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CD player: Plays audio CDs, CD text, MP3 discs and WMA discs.
DVD player: Plays audio CDs, CD text, video CDs, MP3 discs,WMA discs, DVD video discs and DVD audio discs.
Ti t l ePa g e
Using the radioP. 2 6 1
Using the cassette playerP. 2 7 0
Using the CD playerP. 2 74
Playing MP3 and WMA discsP. 2 7 9
Using the DVD playerP. 2 8 3
Playing DVD video/audioP. 2 8 6
Playing video CDP. 2 9 8
CD/DVD player and DVD video disc informationP. 3 0 2
Optimal use of the audio/video systemP. 3 1 4
Using the AUX adapterP. 3 1 9
Using the steering switchesP. 3 2 0
