Lexus GS450h 2009 Owner's Manual

590
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

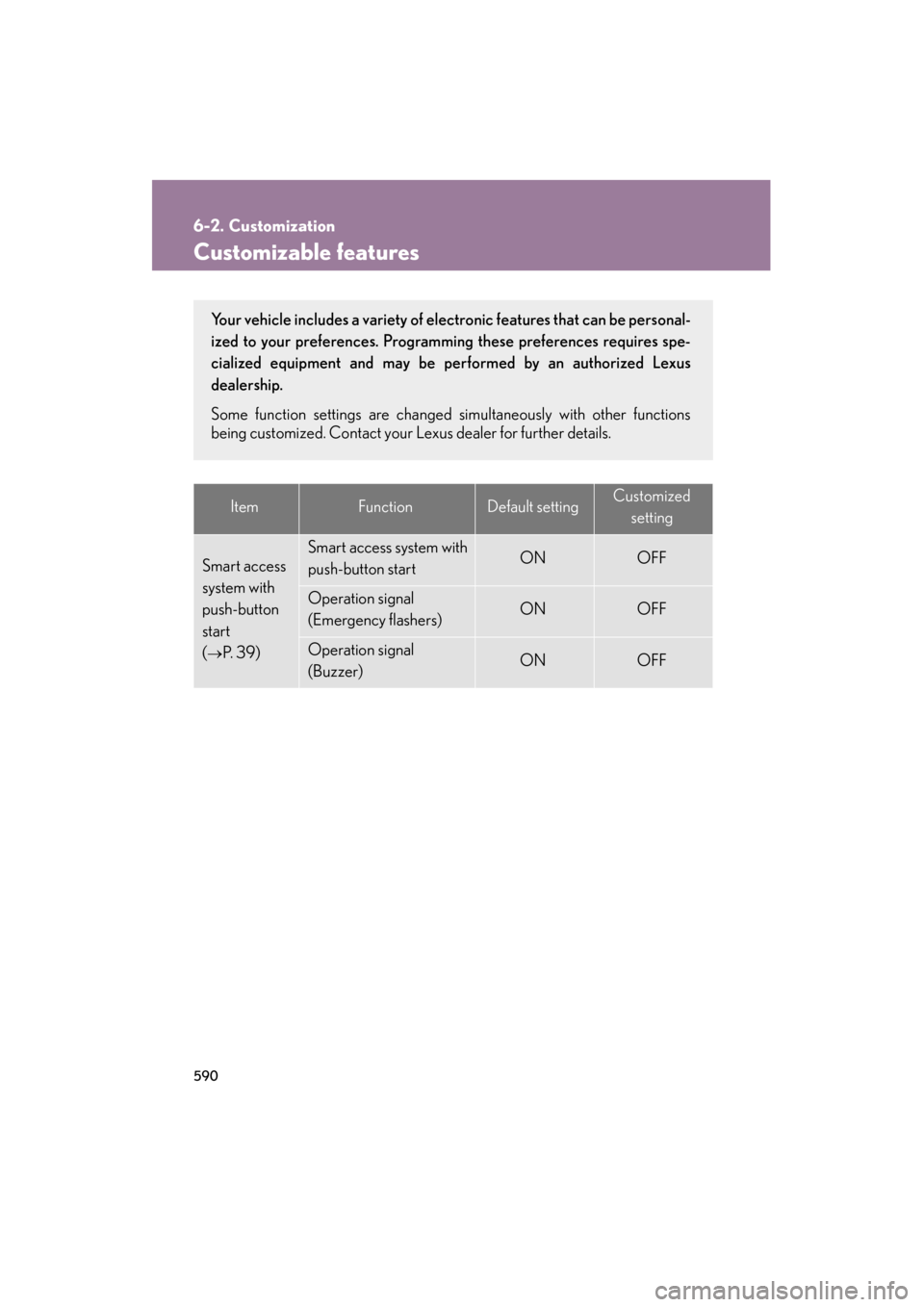

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
→P. 3 9 )
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Your vehicle includes a variety of electr onic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
GS450h_HV_U.book Page 590 Monday, April 27, 2009 10:10 AM

591
6-2. Customization
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

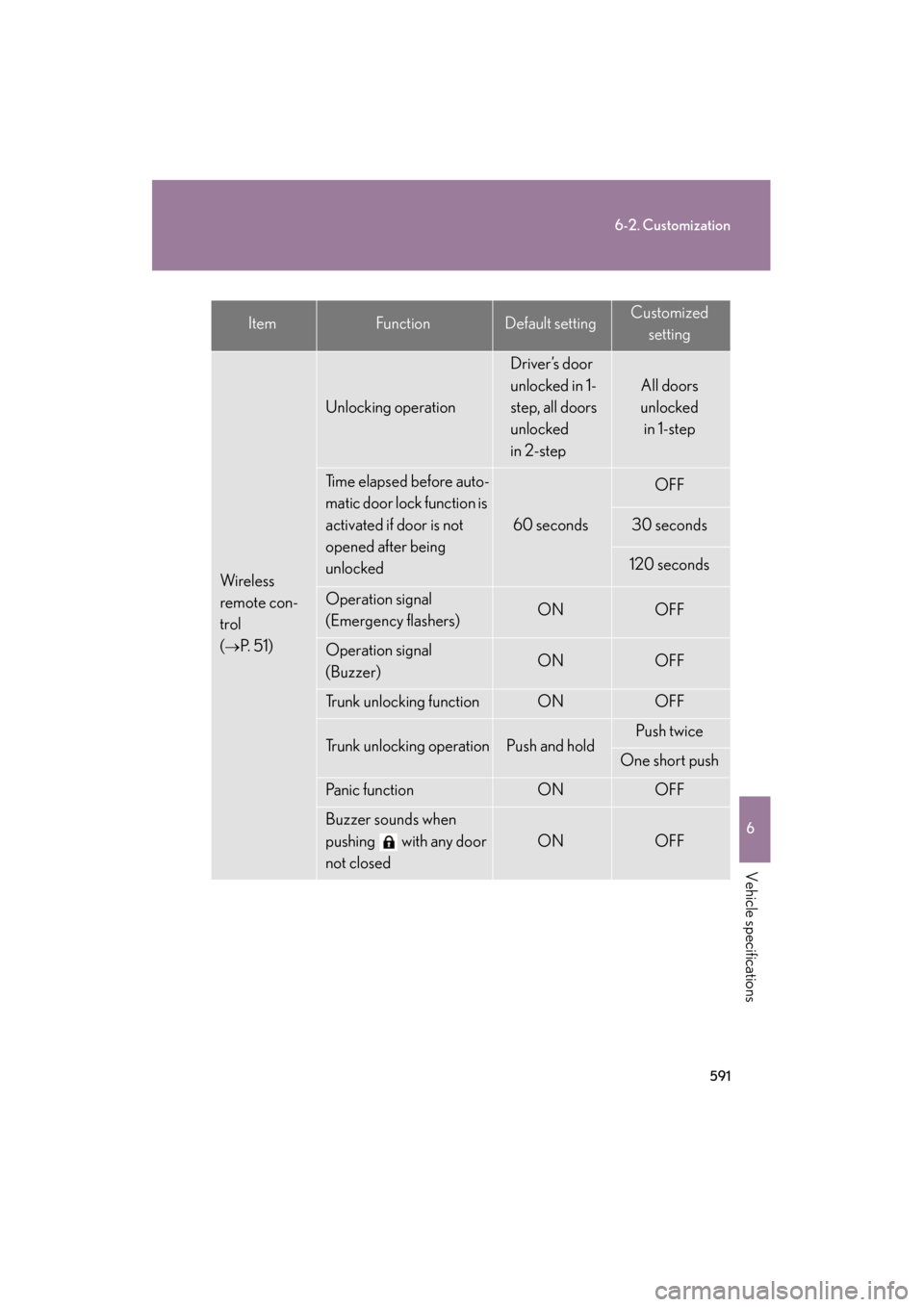

ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol
(
→P. 5 1 )
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Pa n i c f u n c t i o nONOFF
Buzzer sounds when
pushing with any door
not closed
ONOFF
GS450h_HV_U.book Page 591 Monday, April 27, 2009 10:10 AM

592
6-2. Customization
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

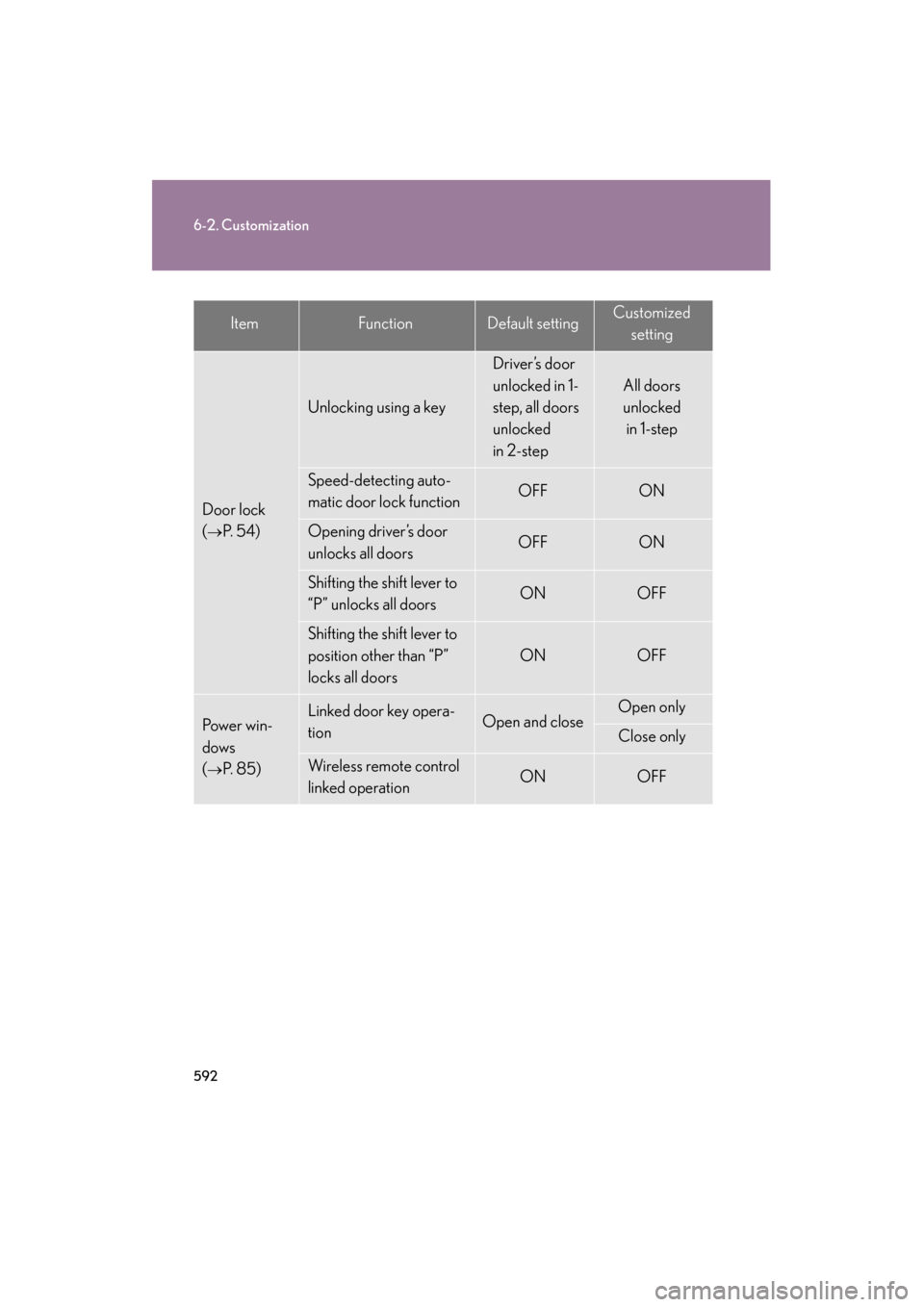

ItemFunctionDefault settingCustomizedsetting
Door lock
(
→P. 5 4 )
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver’s door
unlocks all doors OFFON
Shifting the shift lever to
“P” unlocks all doorsONOFF
Shifting the shift lever to
position other than “P”
locks all doors
ONOFF
Power win-
dows
(
→P. 8 5 )
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
GS450h_HV_U.book Page 592 Monday, April 27, 2009 10:10 AM

593
6-2. Customization
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Moon roof
(
→P. 8 8 )
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system
(
→P. 1 6 9 )
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*
Windshield
wipers and
washer
(
→P. 1 7 3 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
GS450h_HV_U.book Page 593 Monday, April 27, 2009 10:10 AM

594
6-2. Customization
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

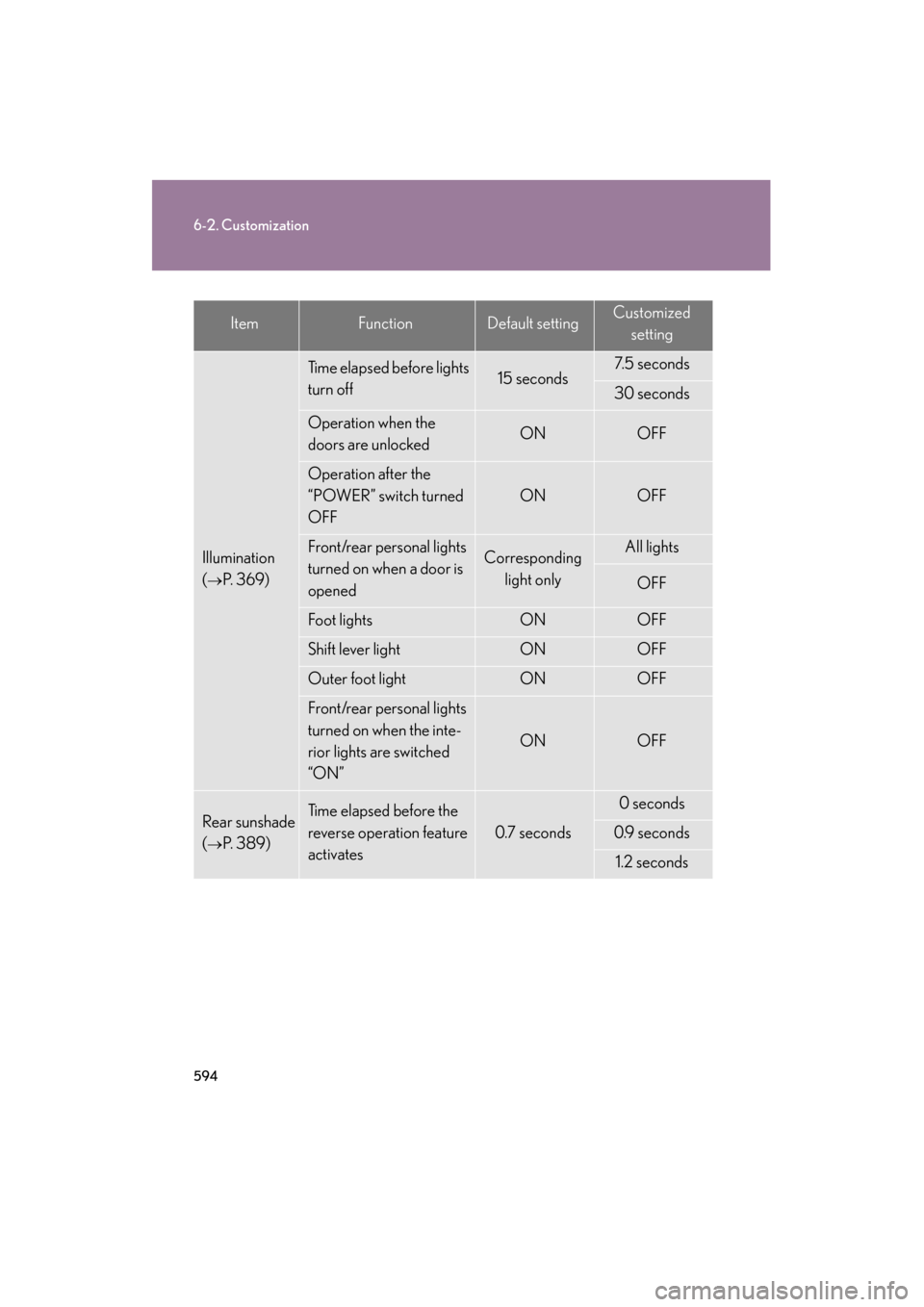

ItemFunctionDefault settingCustomizedsetting
Illumination
(
→P. 3 6 9 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“POWER” switch turned
OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Front/rear personal lights
turned on when the inte-
rior lights are switched
“ON”
ONOFF
Rear sunshade
(
→P. 3 8 9 )
Ti m e e l a p s e d b e f o r e t h e
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
GS450h_HV_U.book Page 594 Monday, April 27, 2009 10:10 AM

595
6-2. Customization
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Multi-information display (→P. 166)
CountryAv a i l a b l e l a n g u a g e
CanadaEnglish and French
GS450h_HV_U.book Page 595 Monday, April 27, 2009 10:10 AM

596
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

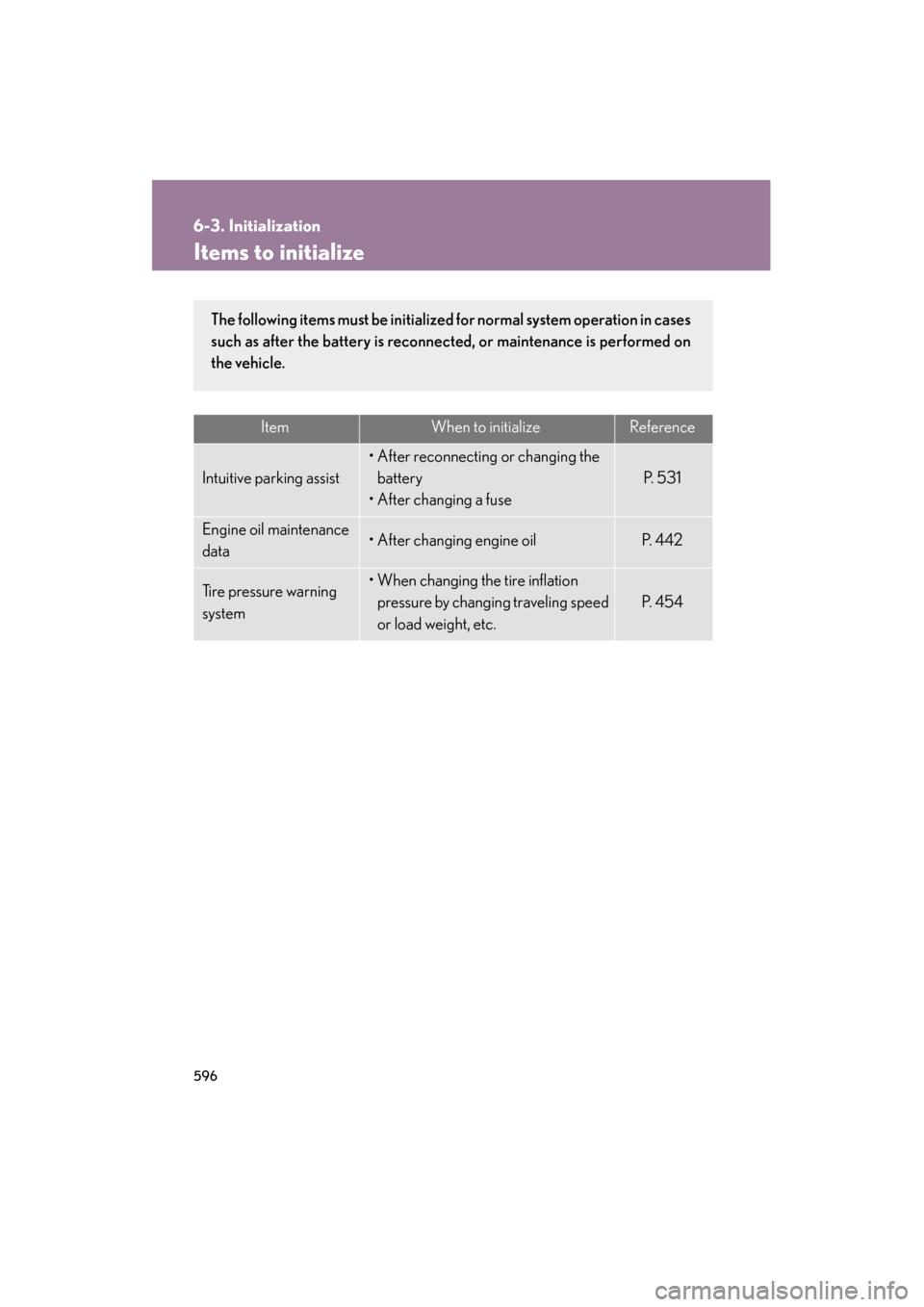

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Intuitive parking assist
• After reconnecting or changing the battery
• After changing a fuse
P. 5 3 1
Engine oil maintenance
data•After changing engine oilP. 4 4 2
Ti r e p r e s s u r e w a r n i n g
system• When changing the tire inflation pressure by changing traveling speed
or load weight, etc.
P. 4 5 4
The following items must be initialized for normal system operation in cases
such as after the battery is reconnected, or maintenance is performed on
the vehicle.
GS450h_HV_U.book Page 596 Monday, April 27, 2009 10:10 AM

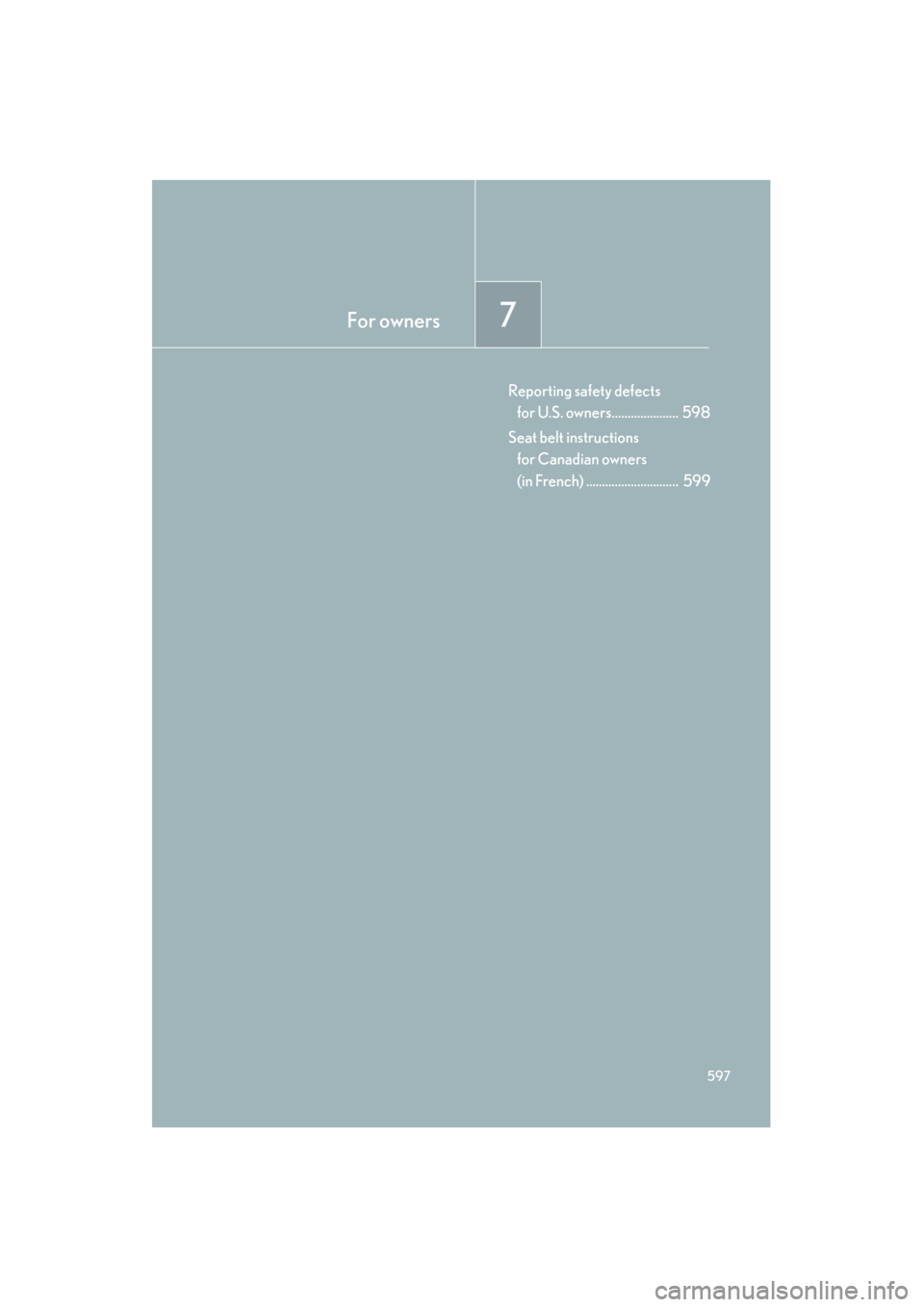

For owners7
597
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Reporting safety defects for U.S. owners..................... 598
Seat belt instructions for Canadian owners
(in French) ............................. 599
GS450h_HV_U.book Page 597 Monday, April 27, 2009 10:10 AM

598
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

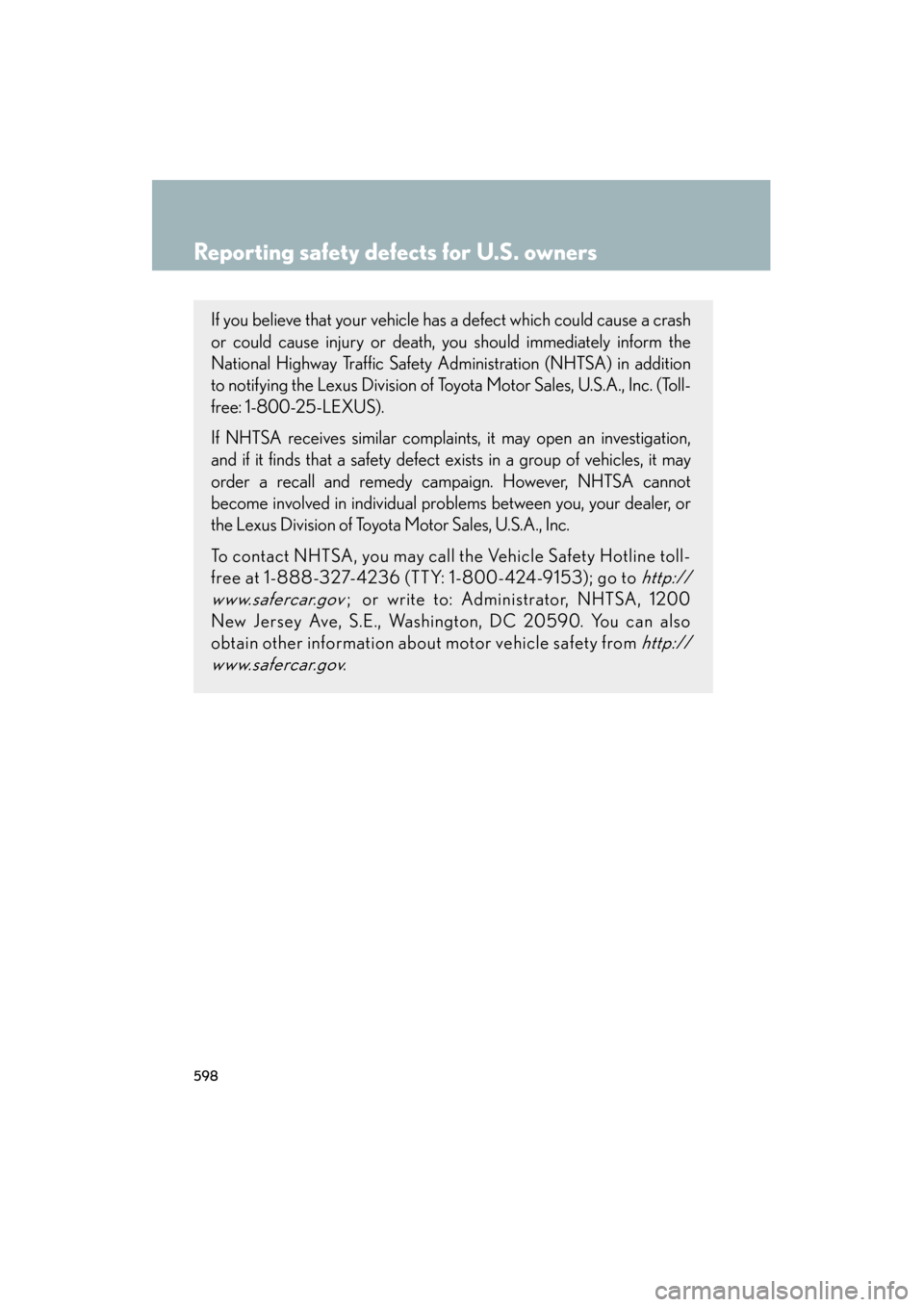

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
the Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-
free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200
New Jersey Ave, S.E., Washington, DC 20590. You can also
obtain other information about motor vehicle safety from
http://
www.safercar.gov
.
GS450h_HV_U.book Page 598 Monday, April 27, 2009 10:10 AM

599
7
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
For owners

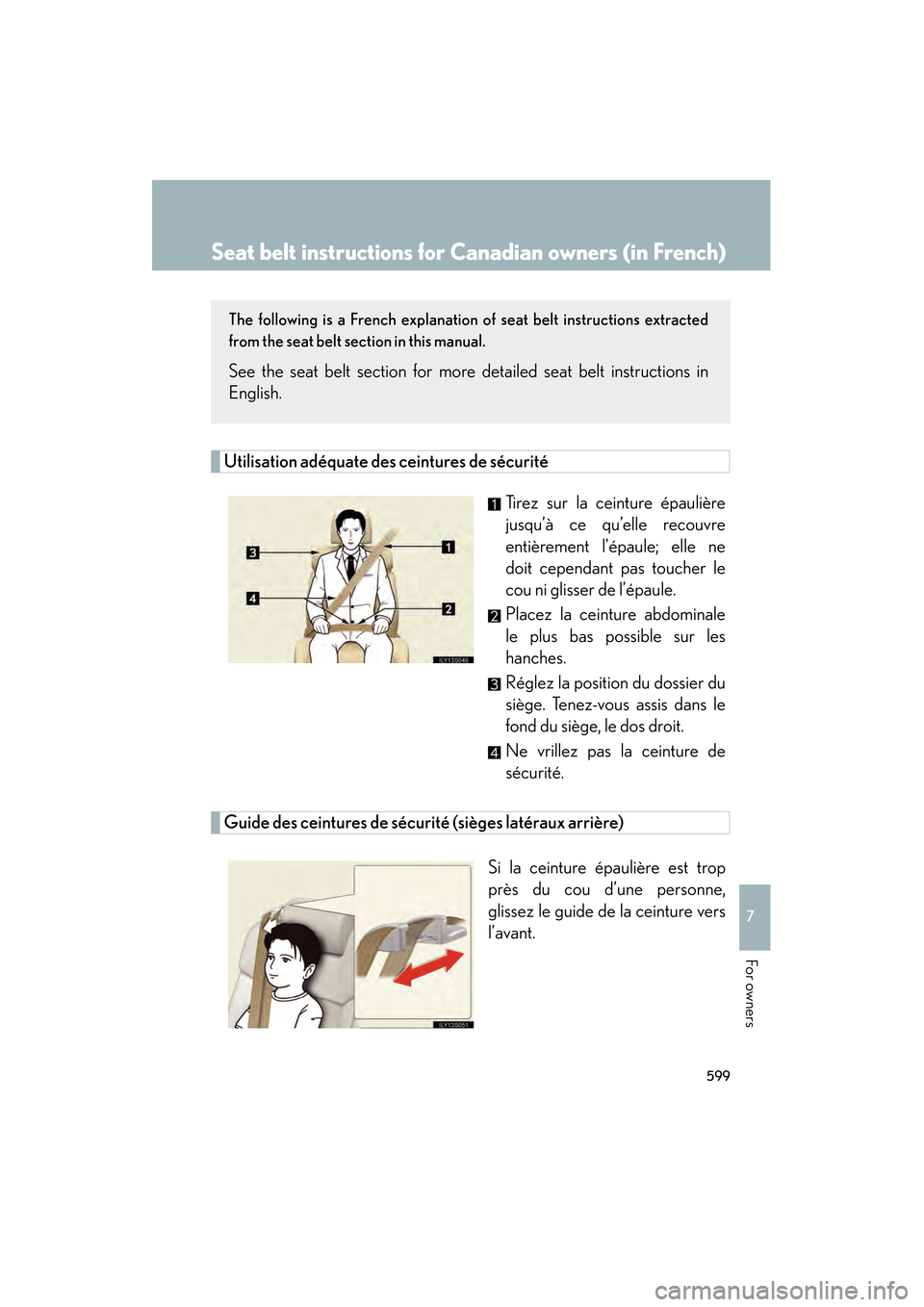

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions extracted
from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécuritéTirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
Placez la ceinture abdominale
le plus bas possible sur les
hanches.
Réglez la position du dossier du
siège. Tenez-vous assis dans le
fond du siège, le dos droit.
Ne vrillez pas la ceinture de
sécurité.
Guide des ceintures de sécurité (sièges latéraux arrière)
Si la ceinture épaulière est trop
près du cou d’une personne,
glissez le guide de la ceinture vers
l’avant.
GS450h_HV_U.book Page 599 Monday, April 27, 2009 10:10 AM
