If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.

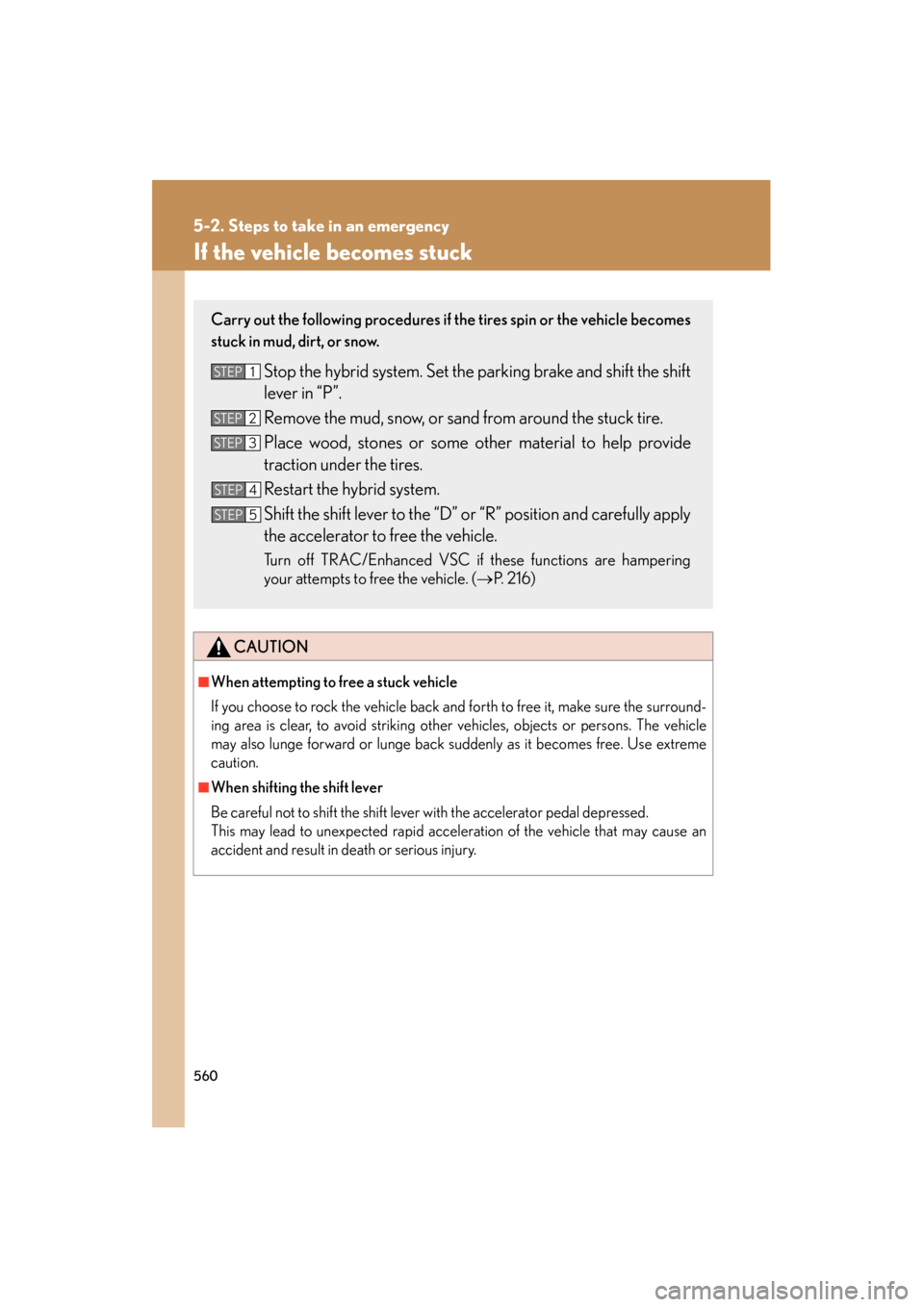

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the hybrid system. Set the parking brake and shift the shift
lever in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the hybrid system.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/Enhanced VSC if these functions are hampering
your attempts to free the vehicle. (→P. 2 1 6 )
STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 560 Monday, April 27, 2009 10:10 AM

5
When trouble arises
561
5-2. Steps to take in an emergency
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

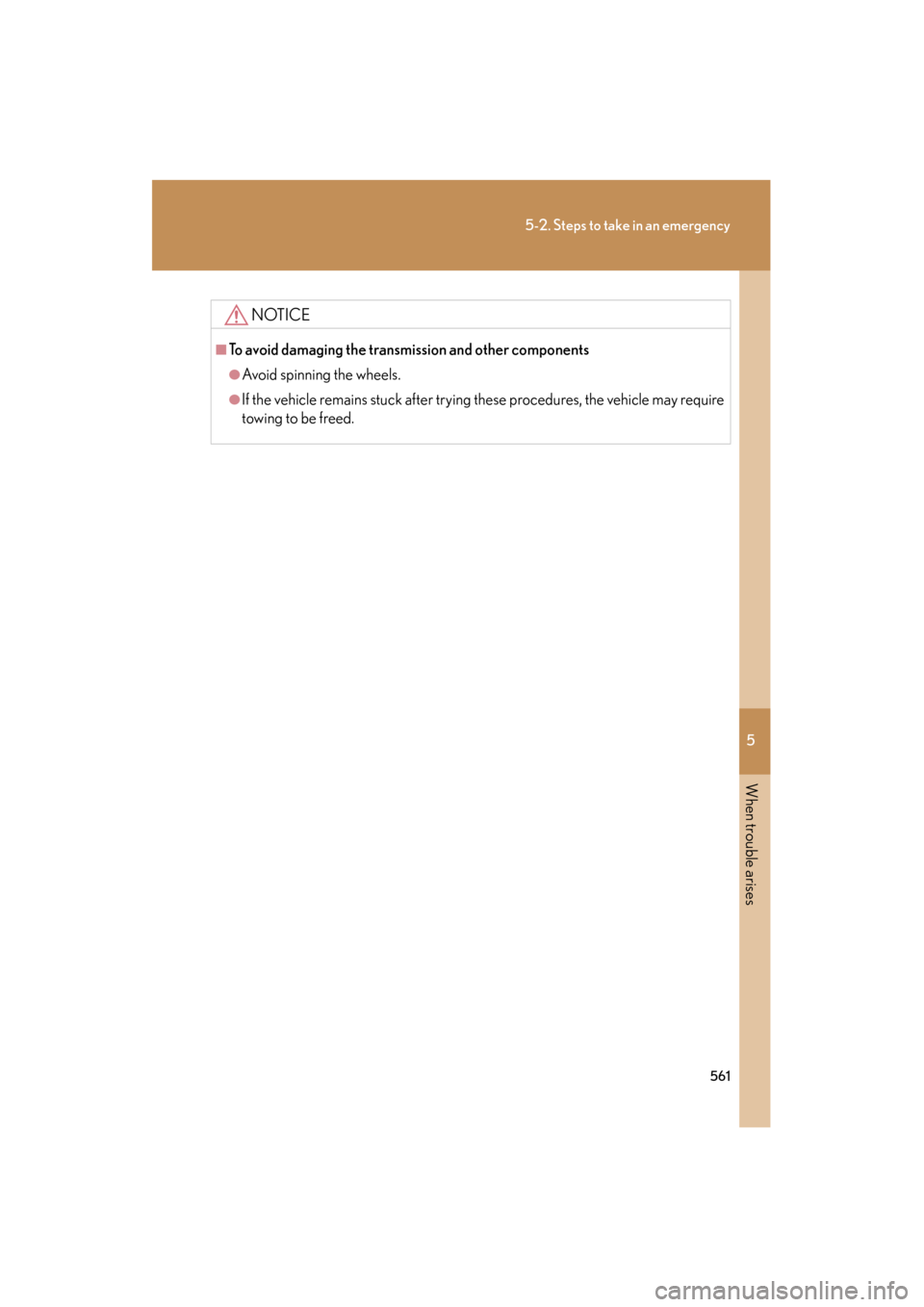

NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
GS450h_HV_U.book Page 561 Monday, April 27, 2009 10:10 AM

562
5-2. Steps to take in an emergency
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
GS450h_HV_U.book Page 562 Monday, April 27, 2009 10:10 AM

Vehicle specifications6
563
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

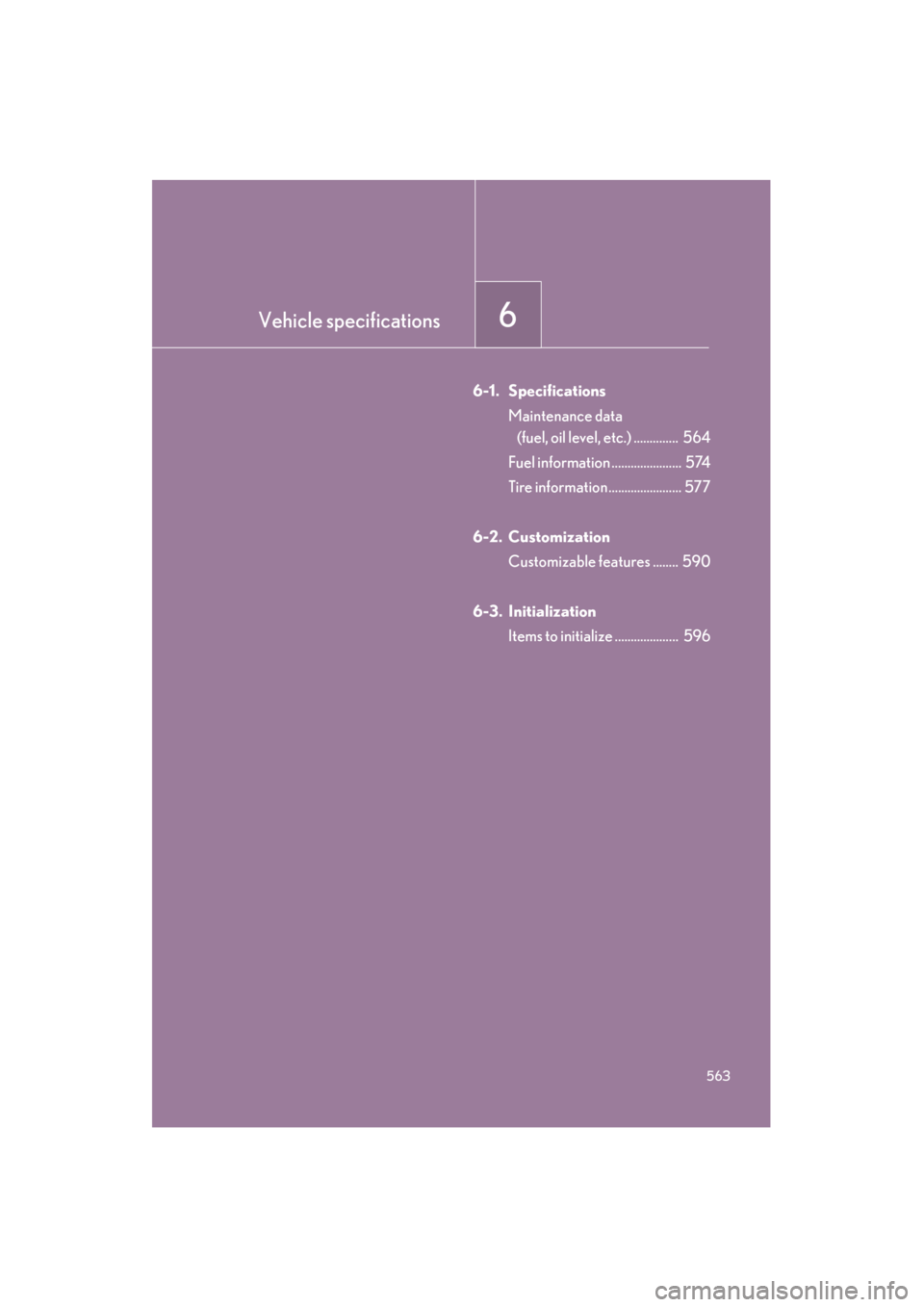

6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 564
Fuel information ...................... 574
Tire information....................... 577
6-2. Customization Customizable features ........ 590
6-3. Initialization Items to initialize .................... 596
GS450h_HV_U.book Page 563 Monday, April 27, 2009 10:10 AM

564
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length190.7 in. (4845 mm)
Overall width71.6 in. (1820 mm)
Overall height *56.1 in. (1425 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a dFront60.4 in. (1535 mm)
Rear60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)815 lb. (370 kg)
GS450h_HV_U.book Page 564 Monday, April 27, 2009 10:10 AM

565
6-1. Specifications
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

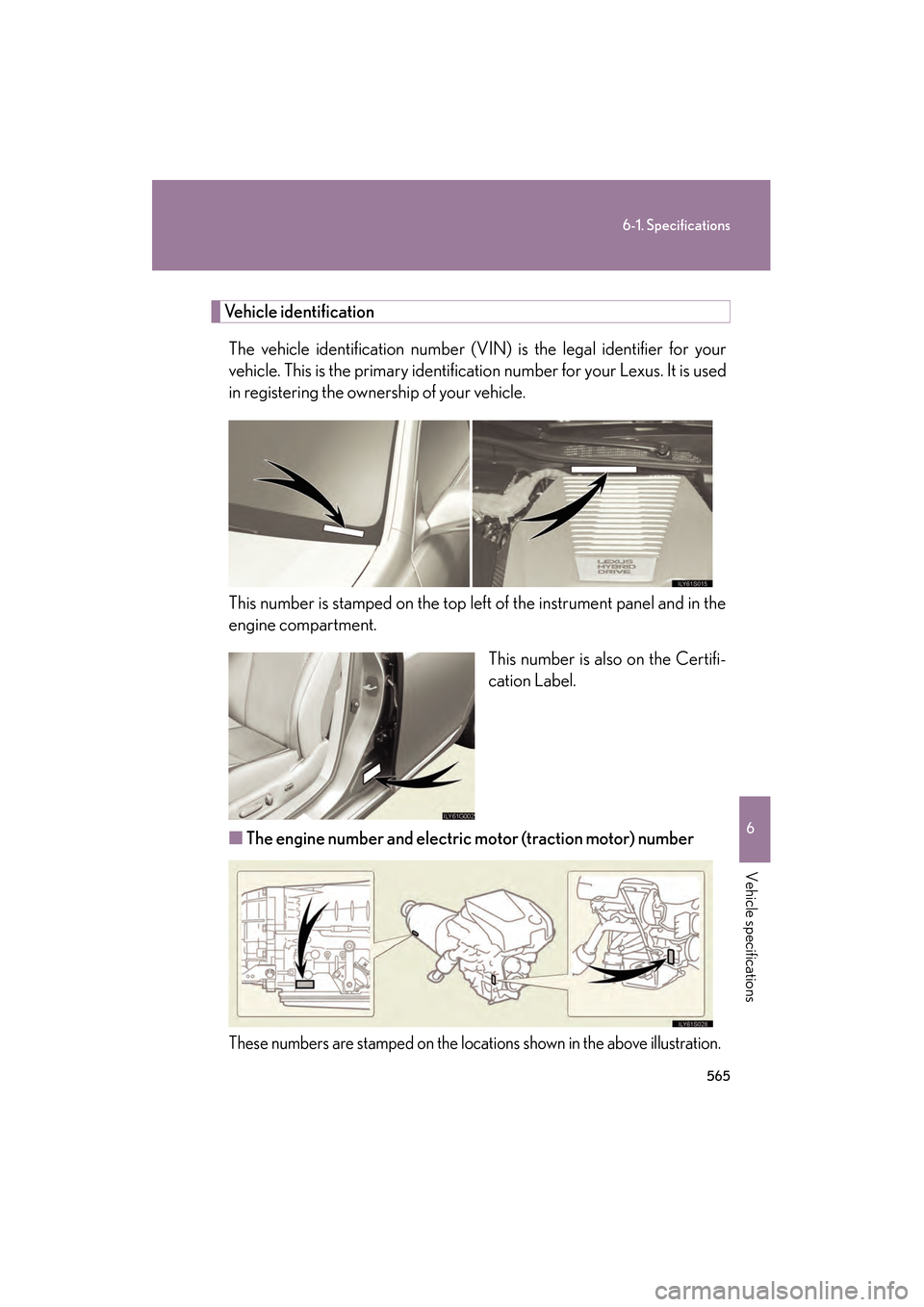

Vehicle identificationThe vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.
■ The engine number and electric motor (traction motor) number
These numbers are stamped on the locations shown in the above illustration.
GS450h_HV_U.book Page 565 Monday, April 27, 2009 10:10 AM

566
6-1. Specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

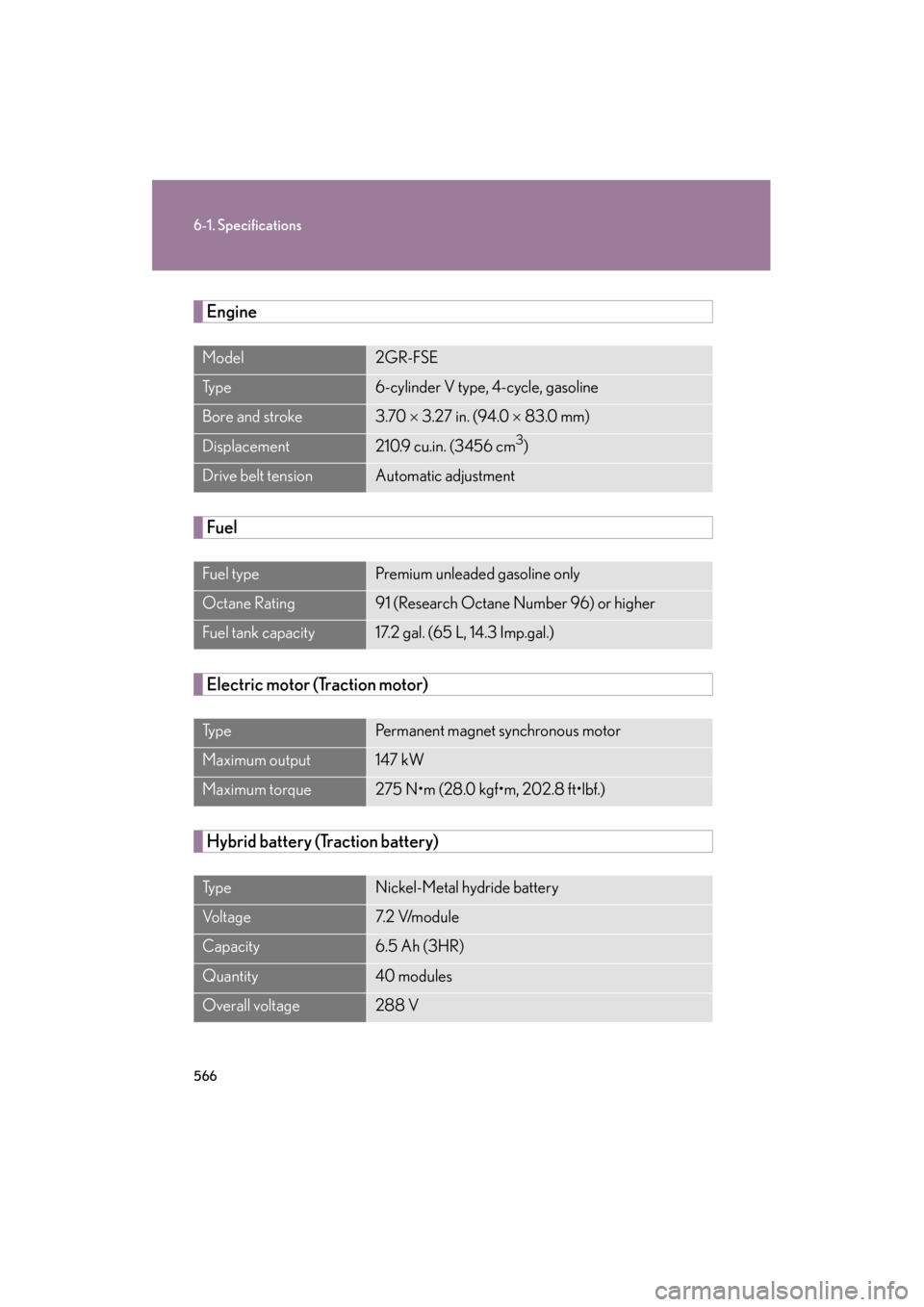

Engine
