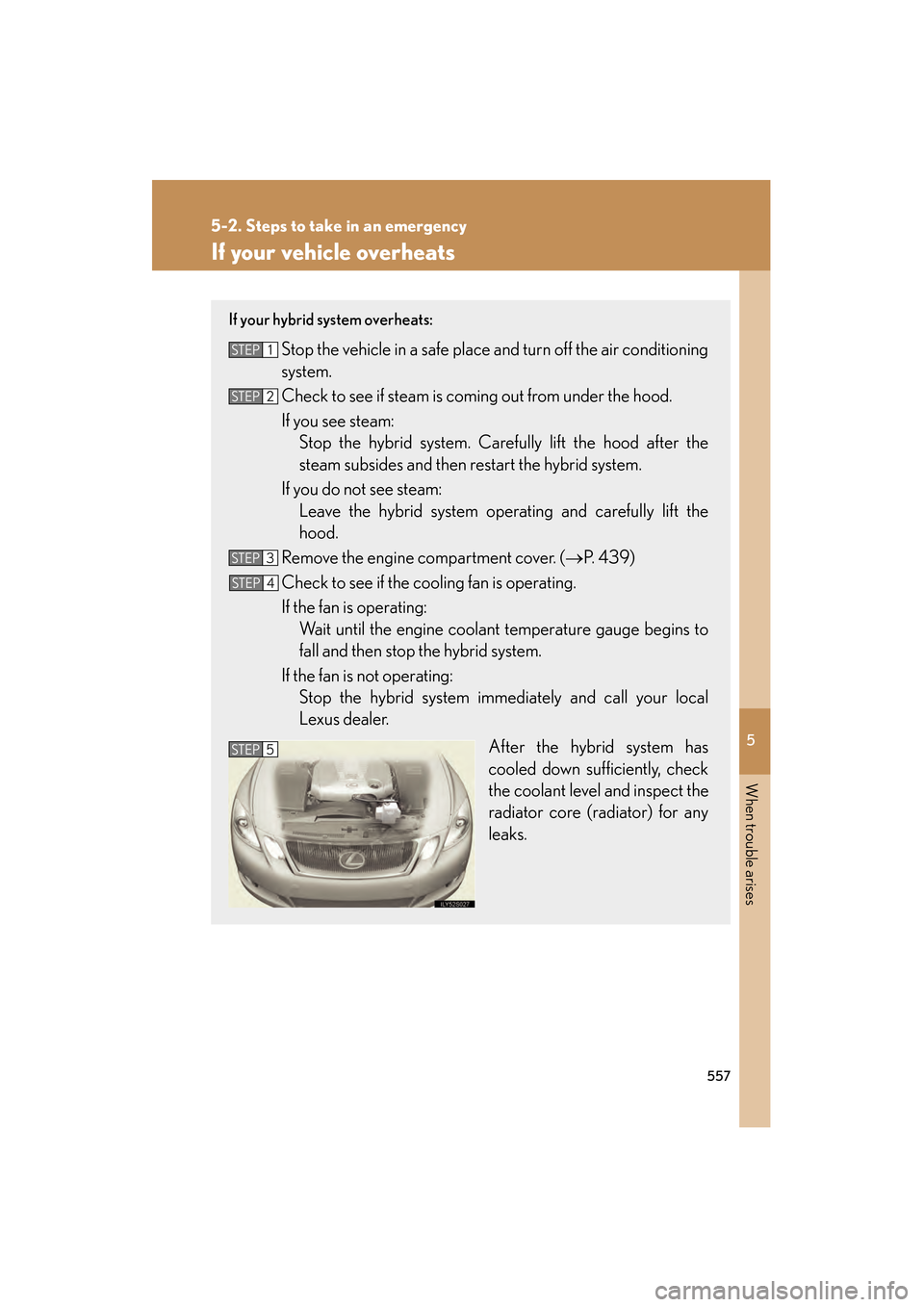

If your vehicle overheats
If your hybrid system overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the hybrid system. Carefully lift the hood after the
steam subsides and then restart the hybrid system.
If you do not see steam: Leave the hybrid system operating and carefully lift the
hood.
Remove the engine compartment cover. ( →P. 4 3 9 )
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the hybrid system.
If the fan is not operating: Stop the hybrid system immediately and call your local
Lexus dealer.
After the hybrid system has
cooled down sufficiently, check
the coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 557 Monday, April 27, 2009 10:10 AM

558
5-2. Steps to take in an emergency
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the food, do not open the food until the steam
has subsided. The engine compartment may be very hot, causing serious injury
such as burns.
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is operating.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 569)
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS450h_HV_U.book Page 558 Monday, April 27, 2009 10:10 AM

605
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CareExterior ................................................... 420
Interior..................................................... 423
Seat belts ................................................424
Cargo capacity ...................................... 227
Cargo hooks .......................................... 392
CD player/changer ............................. 274
Chains....................................................... 233
Child-protectors ..................................... 55
Child restraint system Definition.................................................... 121
Installation................................................ 125
Installing CRS with lower anchors ................................................. 126
Installing CRS with seatbelts ......... 128
Installing CRS with top straps ....... 133
Child safety Airbag precautions ............................. 110
Battery precautions..............449, 556
Child restraint system ......................... 121
Child-protectors................................... 55
How your child should wear
the seatbelt ............................................ 77
Installing child restraints ................... 125
Moon roof precautions ..................... 90
Power window lock switch ............. 85
Power window precautions............ 87
Removed electronic key battery
precautions ........................................473
Seat belt comfort guide......................75
Seat belt precautions.......................... 78
Seat heater precautions ................ 387
Trunk precautions .................................. 61
Cigarette lighter ................................... 384 Cleaning
Exterior....................................................420
Interior ..................................................... 423
Seat belts ................................................ 424
Clock .......................................................... 381
Coin holder ............................................. 377
Compass ................................................. 400
Condenser .............................................. 445
Console box ........................................... 374
Cooling system Engine overheating...........................557
Cruise control
Cruise control........................................179
Dynamic radar cruise control....... 183
Cup holders ............................................ 377
Curtain shield airbags.......................... 103
Customizable features ...................... 590
Daytime running light system ........... 170
Defogger Rear window ........................................256
Side mirror.............................................256
Dimension................................................ 564
Dinghy towing ........................................ 237
Display Energy flow .............................................. 29
Multi-information display ................ 166
Touch screen .......................................240
Trip information ....................................167
Warning message.............................. 519
Do-it-yourself maintenance ............. 432
Door courtesy lights ............................ 369
Door pocket............................................ 378C
D
GS450h_HV_U.book Page 605 Monday, April 27, 2009 10:10 AM

606
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
DoorsDoor lock.................................. 39, 51, 54
Rear door child protector ................ 55
Driver’s seat belt reminder light ...... 512
Driver’s seat position memory ........... 66
Driving
Correct posture .................................... 101
Procedures ............................................ 138
DVD player/changer..........................283
Electric power steering ....................... 214
Electronic key If the electronic key does not operate properly ................... 550
Replacing battery ...............................472
Emergency, in case of
If a warning light turns on ............... 510
If a warning message is displayed ............................................. 519
If the electronic key does
not operate properly ................... 550
If the hybrid system
will not start ....................................... 547
If the shift lever cannot be
shifted from “P”................................548
If the 12 volt battery is
discharged .......................................553
If you have a flat tire ............ 536, 546
If you lose your keys.........................549
If you think something is
wrong ................................................... 507
If your vehicle becomes stuck.... 560
If your vehicle needs to be towed .................................................... 501
If your vehicle overheats ................ 557
Energy monitor......................................... 29 Engine
ACCESSORY mode .....................149
Compartment ..................................... 438
Hood ....................................................... 435
How to start the hybrid system..................................... 148
If the hybrid system will not start ........................................547
Overheating ........................................ 557
Power (ignition) switch .................... 148
Engine compartment cover ............. 439
Engine coolant temperature gauge ...................................................... 159
Engine/power control unit coolant
Capacity ................................................ 569
Checking................................................444
Preparing and checking before winter..................................... 232
Engine oil Capacity ................................................ 567
Checking............................................... 440
Preparing and checking
before winter..................................... 232
Engine oil maintenance data ........... 442
Enhanced vehicle stability control .....................................................214
Event data recorder ............................508
First-aid kit storage belt ..................... 392
Floor mats ..................................................391
Fluid Brake ....................................................... 446
Washer..................................................... 451
Fog lights
Switch .........................................................172
Wattage ..................................................573
E
F
GS450h_HV_U.book Page 606 Monday, April 27, 2009 10:10 AM

608
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror ..........................82
Instrument panel light control........... 160
Interior lightsInterior lights......................................... 370
Wattage.................................................. 573
Intuitive parking assist .......................... 195
Jack
Positioning a floor jack.................... 436
Vehicle-equipped jack ...................536
Jack handle ..............................................536
Keyless entry............................................... 51
Keys If the electronic key does not operate properly ................... 550
If you lose your keys.........................549
Key number plate ................................. 35
Keys ............................................................. 35
Mechanical key...................................... 35
Power (ignition) switch.................... 148
Wireless remote control key ............ 51
Lexus Link System ................................404
Light bulbs Replacing ............................................... 492
Wattage.................................................. 573
Light sensitive optitron meter .............161
Lights Fog light switch..................................... 172
Headlights switch ................................169
Interior lights list.................................. 369
Replacing light bulbs........................ 492
Turn signal lever .................................. 156
Vanity lights ......................................... 380
Wattage.................................................. 573 Maintenance
Do-it-yourself ma intenance..........432
General maintenance..................... 428
Maintenance data ............................. 564
Maintenance requirements...........426
Meter
Instrument panel light control .......160
Meters....................................................... 159
Micro dust and pollen filter .............. 252
Mirrors Inside rear view mirror .......................82
Side mirror heater............................. 256
Side mirrors............................................. 83
Vanity mirrors .....................................380
Moon roof...................................................88
MP3 disc.................................................. 279
Multi-information display ....................166
Noise from under the vehicle...............18
Odometer ................................................ 159
Oil Engine oil............................................... 440
Opener
Fuel filler door .......................................... 91
Hood ....................................................... 435
Trunk........................................................... 59
Outer foot lights.................................... 369
Outside rear view mirrors Adjusting and folding ......................... 83
Mirror position memory ....................66
Outside temperature
display .................................................... 382
Overhead console ............................... 375
Overheating, Engine .......................... 557
J
K
L
M
N
O
GS450h_HV_U.book Page 608 Monday, April 27, 2009 10:10 AM

614
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

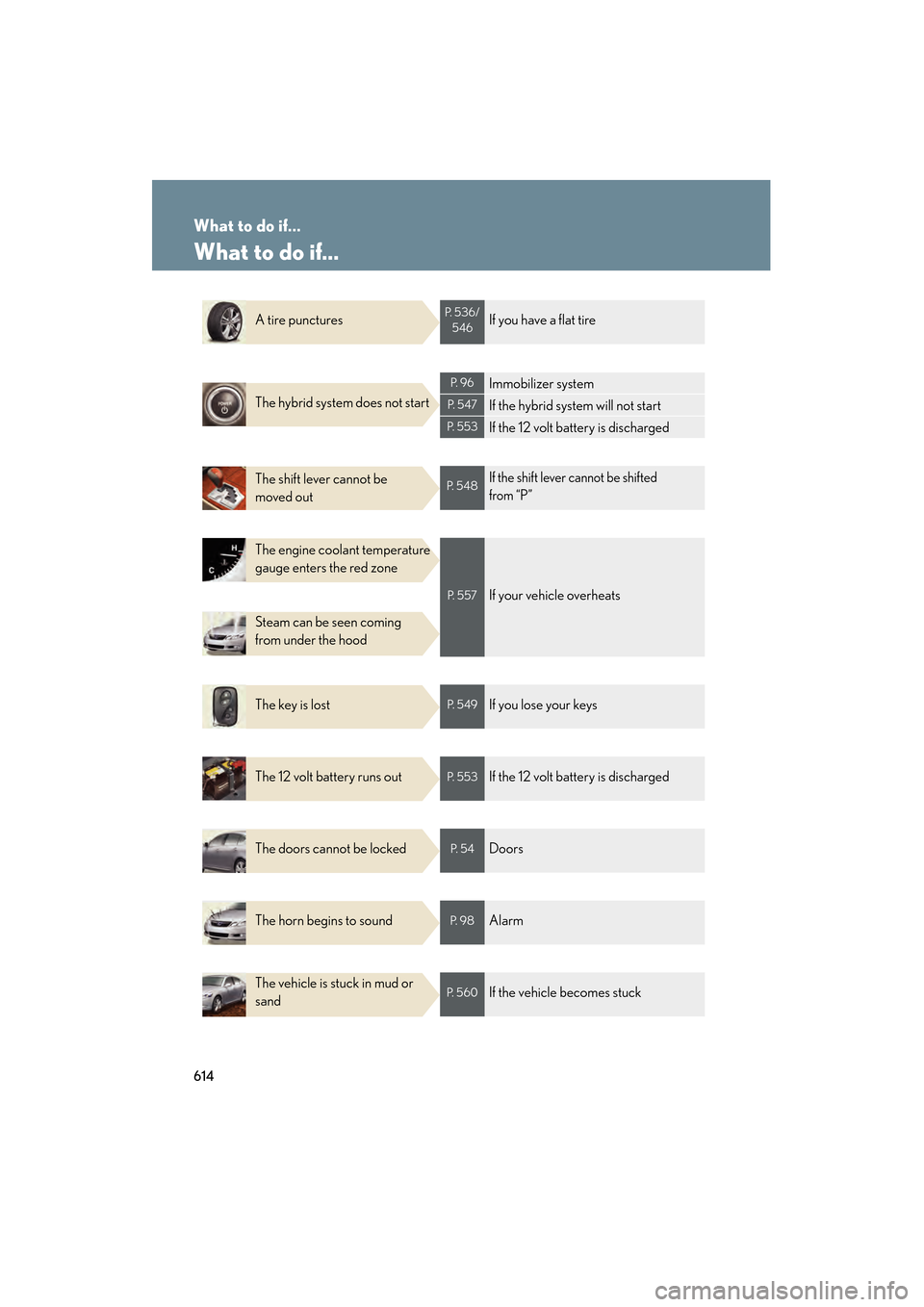

What to do if...
What to do if...
A tire puncturesP. 5 3 6 /546If you have a flat tire
The hybrid system does not start
P. 9 6Immobilizer system
P. 5 4 7If the hybrid system will not start
P. 5 5 3If the 12 volt battery is discharged
The shift lever cannot be
moved outP. 5 4 8If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 5 5 7If your vehicle overheats
The key is lostP. 5 4 9If you lose your keys
The 12 volt battery runs outP. 5 5 3If the 12 volt battery is discharged
The doors cannot be lockedP. 5 4Doors
The horn begins to soundP. 9 8Alarm
The vehicle is stuck in mud or
sandP. 5 6 0If the vehicle becomes stuck
GS450h_HV_U.book Page 614 Monday, April 27, 2009 10:10 AM
