Lexus GS450h 2014 Owner's Manual

470
GS450h_OM_OM30D52U_(U)
5-3. Using the audio system

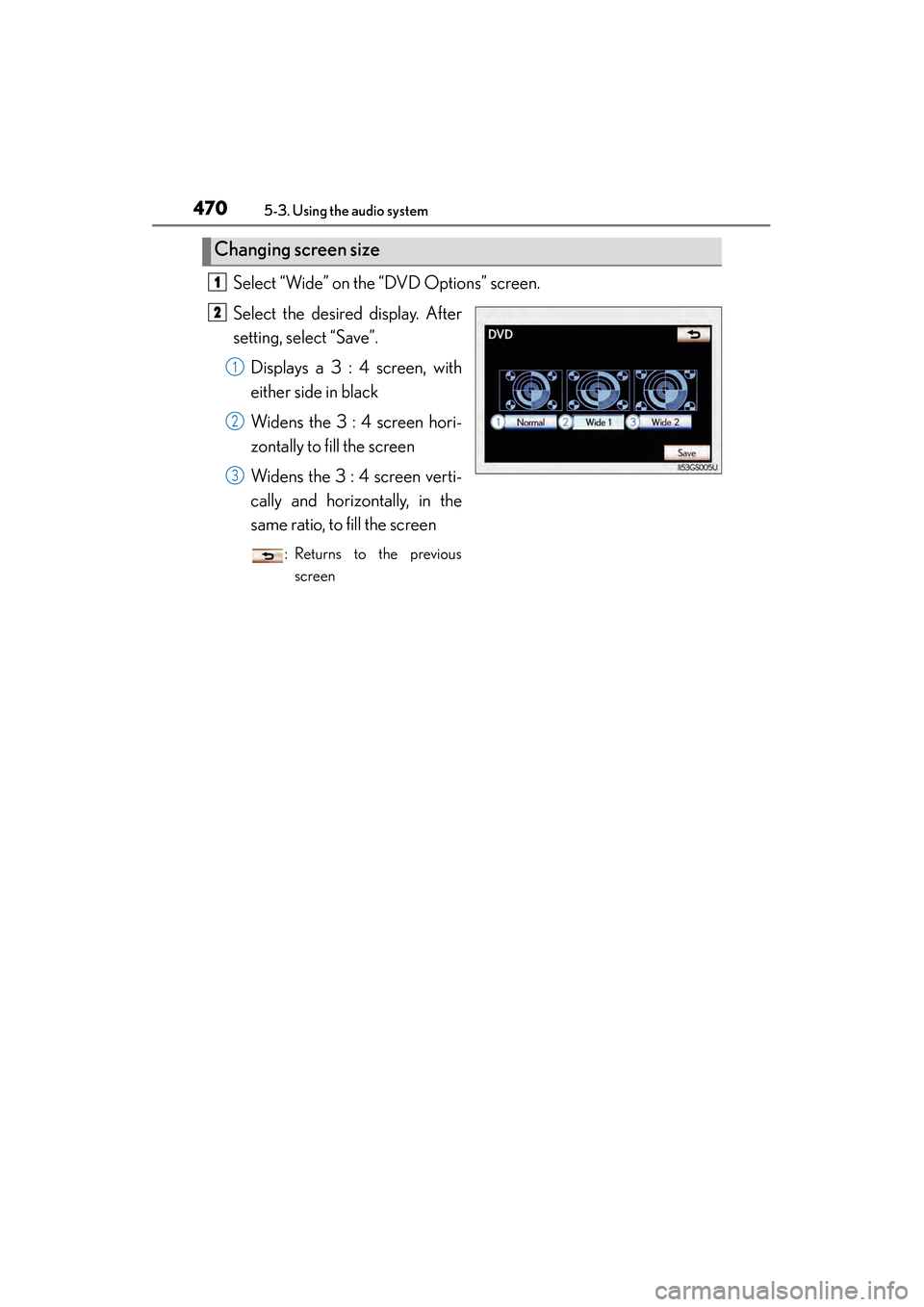

Select “Wide” on the “DVD Options” screen.
Select the desired display. After
setting, select “Save”.Displays a 3 : 4 screen, with
either side in black
Widens the 3 : 4 screen hori-
zontally to fill the screen
Widens the 3 : 4 screen verti-
cally and horizontally, in the
same ratio, to fill the screen
: Returns to the previousscreen
Changing screen size
1
2
1
2
3
GS450h_OM_OM30D52U_(U).book Page 470 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
4715-3. Using the audio system
5
Interior features

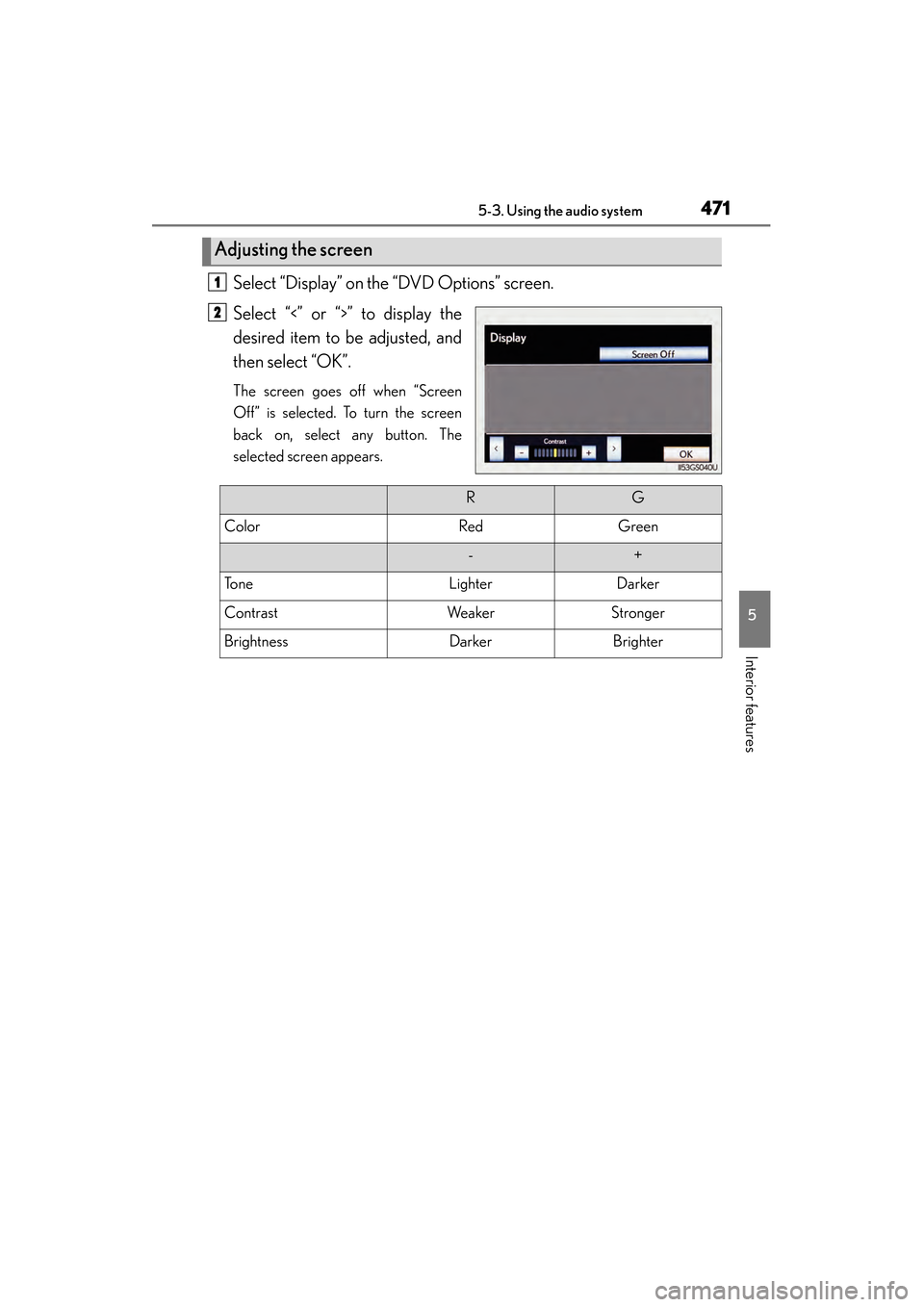

Select “Display” on the “DVD Options” screen.
Select “<” or “>” to display the
desired item to be adjusted, and
then select “OK”.
The screen goes off when “Screen
Off” is selected. To turn the screen
back on, select any button. The
selected screen appears.
Adjusting the screen
1
2
RG
ColorRedGreen
-+
To n eLighterDarker
ContrastWeakerStronger
BrightnessDarkerBrighter
GS450h_OM_OM30D52U_(U).book Page 471 Monday, July 29, 2013 12:07 PM

472
GS450h_OM_OM30D52U_(U)
5-3. Using the audio system

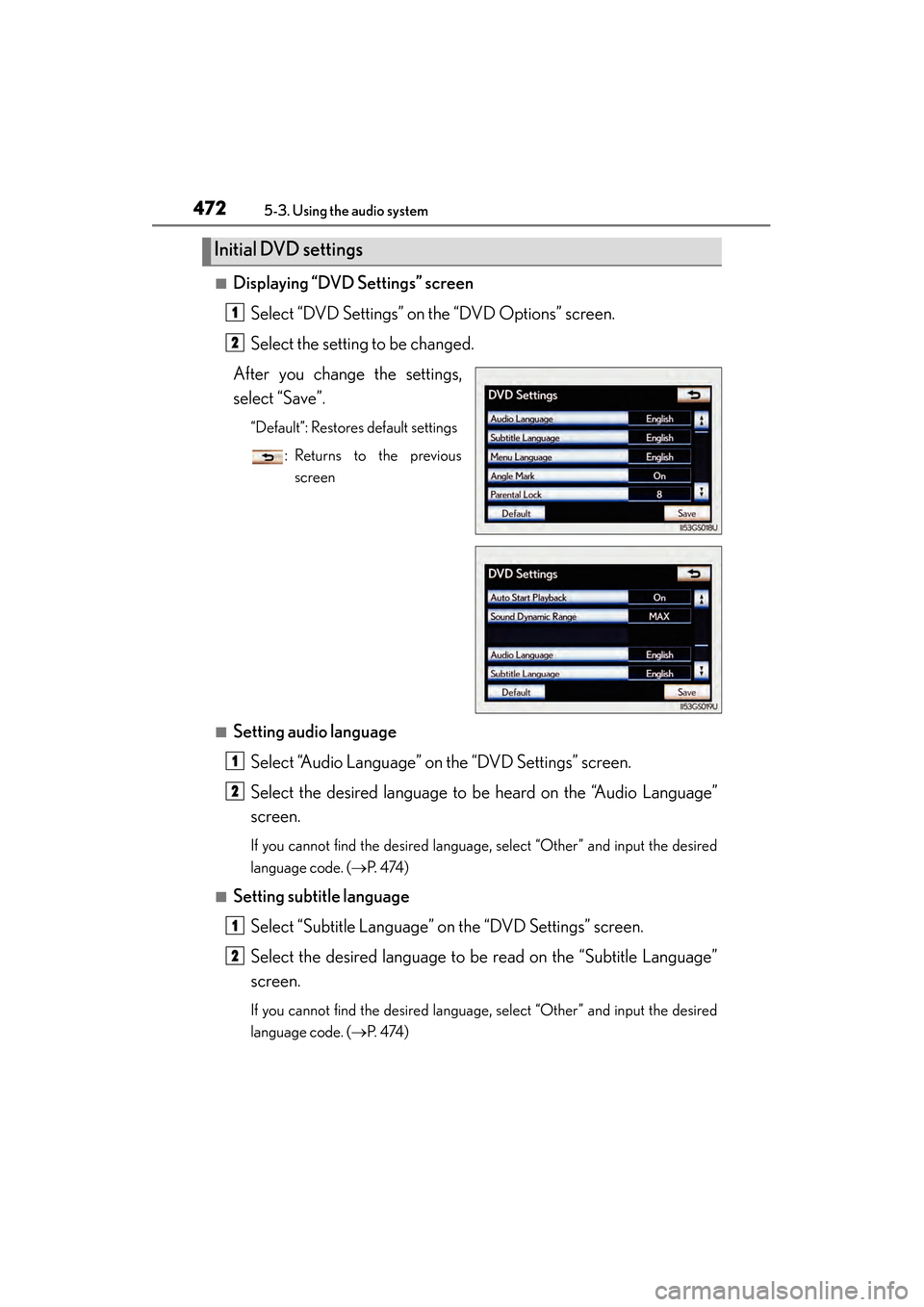

■Displaying “DVD Settings” screenSelect “DVD Settings” on the “DVD Options” screen.
Select the setting to be changed.
After you change the settings,
select “Save”.
“Default”: Restores default settings
: Returns to the previousscreen
■Setting audio language
Select “Audio Language” on the “DVD Settings” screen.
Select the desired language to be heard on the “Audio Language”
screen.
If you cannot find the desired language, select “Other” and input the desired
language code. ( →P. 4 74 )
■Setting subtitle language
Select “Subtitle Language” on the “DVD Settings” screen.
Select the desired language to be read on the “Subtitle Language”
screen.
If you cannot find the desired language, select “Other” and input the desired
language code. ( →P. 4 74 )
Initial DVD settings
1
2
1
2
1
2
GS450h_OM_OM30D52U_(U).book Page 472 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
4735-3. Using the audio system
5
Interior features

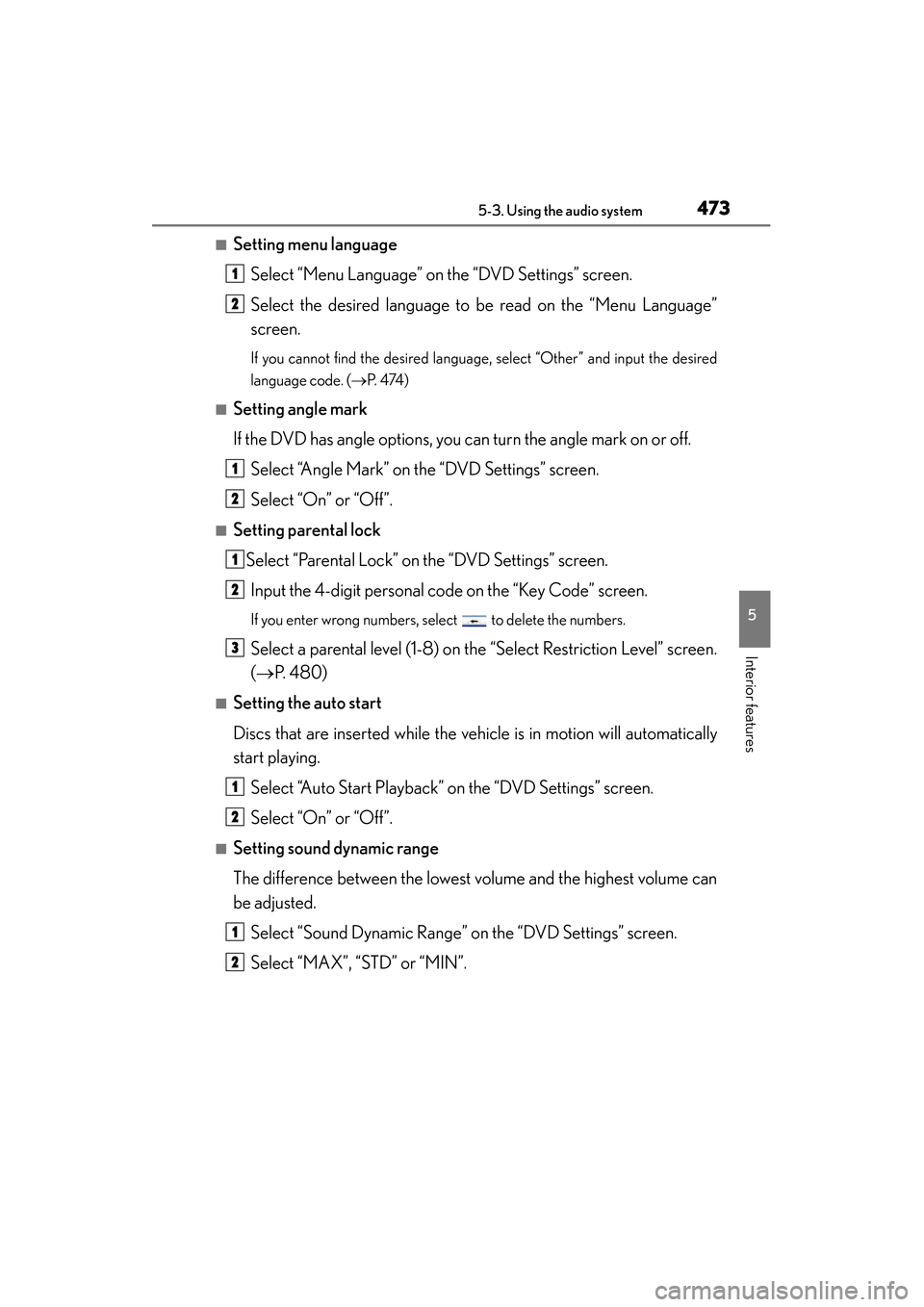

■Setting menu languageSelect “Menu Language” on the “DVD Settings” screen.
Select the desired language to be read on the “Menu Language”
screen.
If you cannot find the desired language, select “Other” and input the desired
language code. ( →P. 4 74 )
■Setting angle mark
If the DVD has angle options, you can turn the angle mark on or off.
Select “Angle Mark” on the “DVD Settings” screen.
Select “On” or “Off”.
■Setting parental lock
Select “Parental Lock” on the “DVD Settings” screen.Input the 4-digit personal code on the “Key Code” screen.
If you enter wrong numbers, select to delete the numbers.
Select a parental level (1-8) on the “Select Restriction Level” screen.
(→P. 4 8 0 )
■Setting the auto start
Discs that are inserted while the vehicle is in motion will automatically
start playing.
Select “Auto Start Playback” on the “DVD Settings” screen.
Select “On” or “Off”.
■Setting sound dynamic range
The difference between the lowest volume and the highest volume can
be adjusted.Select “Sound Dynamic Range” on the “DVD Settings” screen.
Select “MAX”, “STD” or “MIN”.
1
2
1
2
1
2
3
1
2
1
2
GS450h_OM_OM30D52U_(U).book Page 473 Monday, July 29, 2013 12:07 PM

474
GS450h_OM_OM30D52U_(U)
5-3. Using the audio system

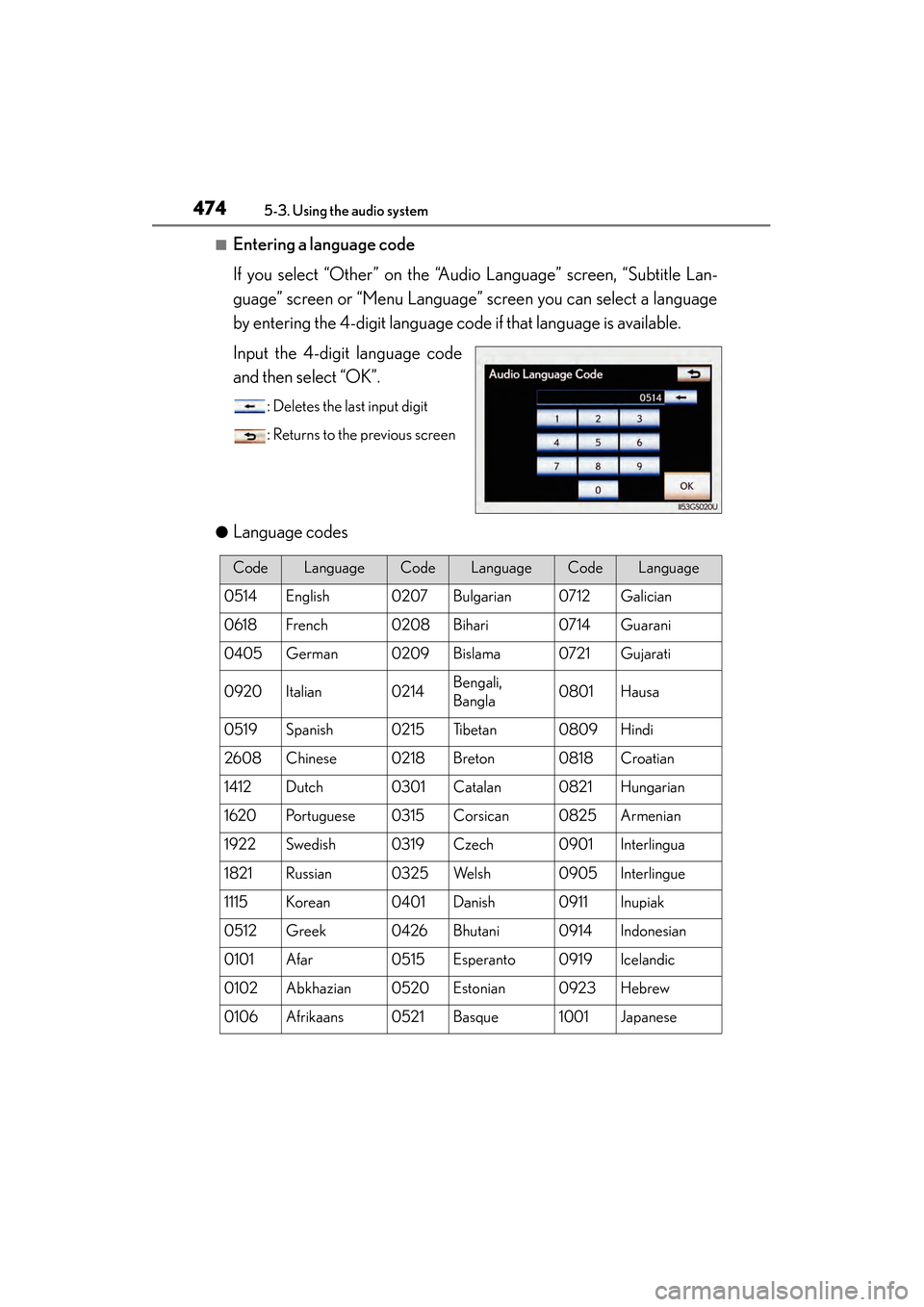

■Entering a language code
If you select “Other” on the “Audio Language” screen, “Subtitle Lan-
guage” screen or “Menu Language” screen you can select a language
by entering the 4-digit language code if that language is available.
Input the 4-digit language code
and then select “OK”.
: Deletes the last input digit
: Returns to the previous screen
●
Language codes
CodeLanguageCodeLanguageCodeLanguage
0514English0207Bulgarian0712Galician
0618French0208Bihari0714Guarani
0405German0209Bislama0721Gujarati
0920Italian0214Bengali,
Bangla0801Hausa
0519Spanish0215Ti b e t a n0809Hindi
2608Chinese0218Breton0818Croatian
1412Dutch0301Catalan0821Hungarian
1620Portuguese0315Corsican0825Armenian
1922Swedish0319Czech0901Interlingua
1821Russian0325We l s h0905Interlingue
1115Korean0401Danish0911Inupiak
0512Greek0426Bhutani0914Indonesian
0101Afar0515Esperanto0919Icelandic
0102Abkhazian0520Estonian0923Hebrew
0106Afrikaans0521Basque1001Japanese
GS450h_OM_OM30D52U_(U).book Page 474 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
4755-3. Using the audio system
5
Interior features

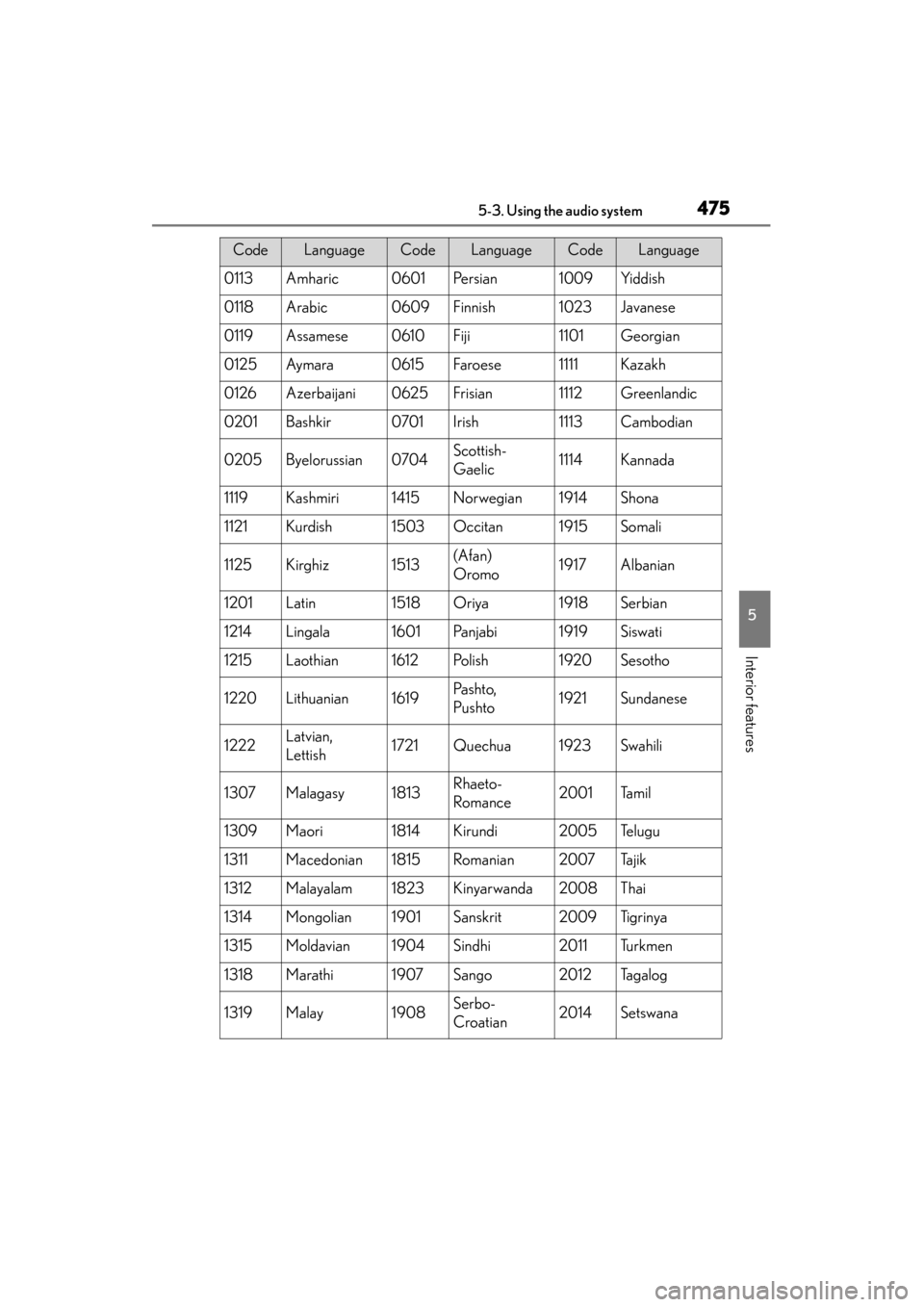

0113Amharic0601Pe r s i a n1009Yi d d i s h
0118Arabic0609Finnish1023Javanese
0119Assamese0610Fiji1101Georgian
0125Ay ma ra0615Faroese1111Kazakh
0126Azerbaijani0625Frisian1112Greenlandic
0201Bashkir0701Irish1113Cambodian
0205Byelorussian0704Scottish-
Gaelic1114Kannada
1119Kashmiri1415Norwegian1914Shona
1121Kurdish1503Occitan1915Somali
1125Kirghiz1513(Afan)
Oromo1917Albanian
1201Latin1518Oriya1918Serbian
1214Lingala1601Pa n j a b i1919Siswati
1215Laothian1612Polish1920Sesotho
1220Lithuanian1619Pa s h t o,
Pushto1921Sundanese
1222Latvian,
Lettish1721Quechua1923Swahili
1307Malagasy1813Rhaeto-
Romance2001Ta m i l
1309Maori1814Kirundi2005Te l u g u
1311Macedonian1815Romanian2007Ta j i k
1312Malayalam1823Kinyarwanda2008Thai
1314Mongolian1901Sanskrit2009Ti g r i n y a
1315Moldavian1904Sindhi2011Tu r k m e n
1318Marathi1907Sango2012Ta g a l o g
1319Malay1908Serbo-
Croatian2014Setswana
CodeLanguageCodeLanguageCodeLanguage
GS450h_OM_OM30D52U_(U).book Page 475 Monday, July 29, 2013 12:07 PM

476
GS450h_OM_OM30D52U_(U)
5-3. Using the audio system

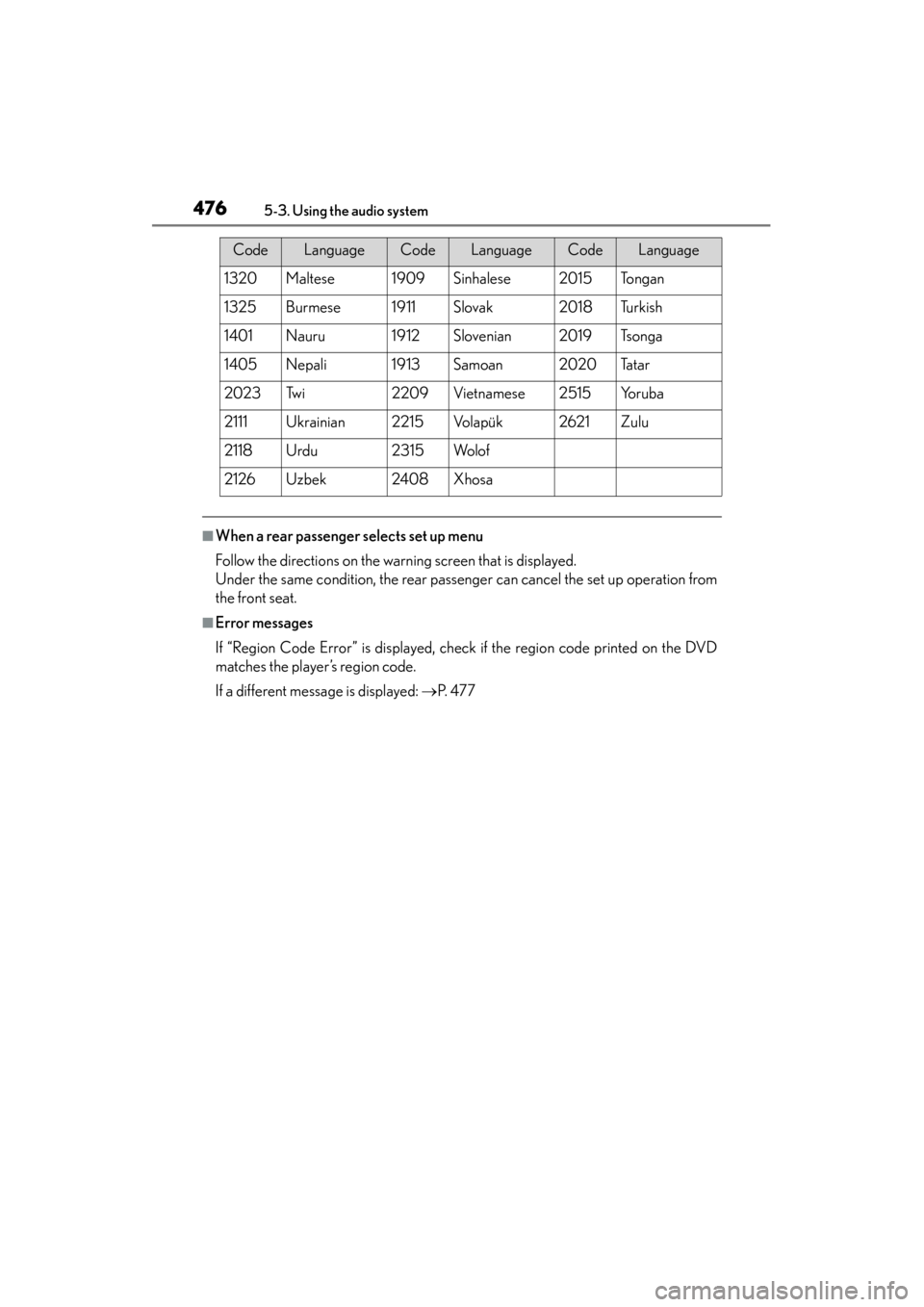

■When a rear passenger selects set up menu
Follow the directions on the warning screen that is displayed.
Under the same condition, the rear passenger can cancel the set up operation from
the front seat.
■Error messages
If “Region Code Error” is displayed, check if the region code printed on the DVD
matches the player’s region code.
If a different message is displayed: →P. 4 7 7
1320Maltese1909Sinhalese2015To n g a n
1325Burmese1911Slovak2018Tu r k i s h
1401Nauru1912Slovenian2019Ts o n g a
1405Nepali1913Samoan2020Ta t a r
2023Tw i2209Vietnamese2515Yo r u b a
2111Ukrainian2215Vo l a p ü k2621Zulu
2118Urdu2315Wo l o f
2126Uzbek2408Xhosa
CodeLanguageCodeLanguageCodeLanguage
GS450h_OM_OM30D52U_(U).book Page 476 Monday, July 29, 2013 12:07 PM

477
GS450h_OM_OM30D52U_(U)5-3. Using the audio system
5
Interior features

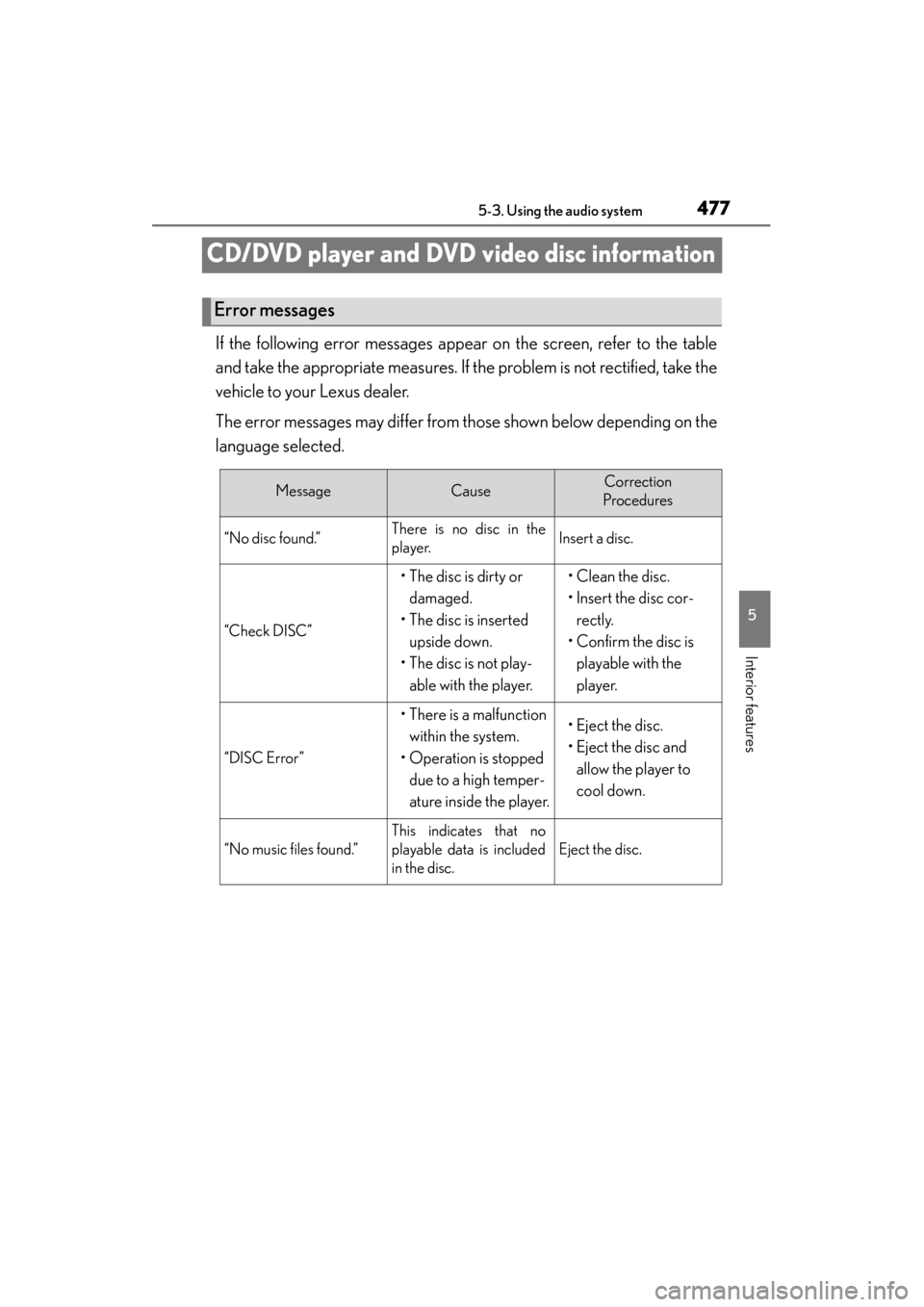

CD/DVD player and DVD video disc information
If the following error messages appear on the screen, refer to the table
and take the appropriate measures. If the problem is not rectified, take the
vehicle to your Lexus dealer.
The error messages may differ from those shown below depending on the
language selected.
Error messages
MessageCauseCorrection
Procedures
“No disc found.”There is no disc in the
player.Insert a disc.
“Check DISC”
• The disc is dirty or
damaged.
• The disc is inserted upside down.
• The disc is not play-
able with the player.•Clean the disc.
• Insert the disc cor-rectly.
•Confirm the disc is playable with the
player.
“DISC Error”
• There is a malfunction
within the system.
• Operation is stopped due to a high temper-
ature inside the player.• Eject the disc.
• Eject the disc and
allow the player to
cool down.
“No music files found.”
This indicates that no
playable data is included
in the disc.
Eject the disc.
GS450h_OM_OM30D52U_(U).book Page 477 Monday, July 29, 2013 12:07 PM

478
GS450h_OM_OM30D52U_(U)
5-3. Using the audio system

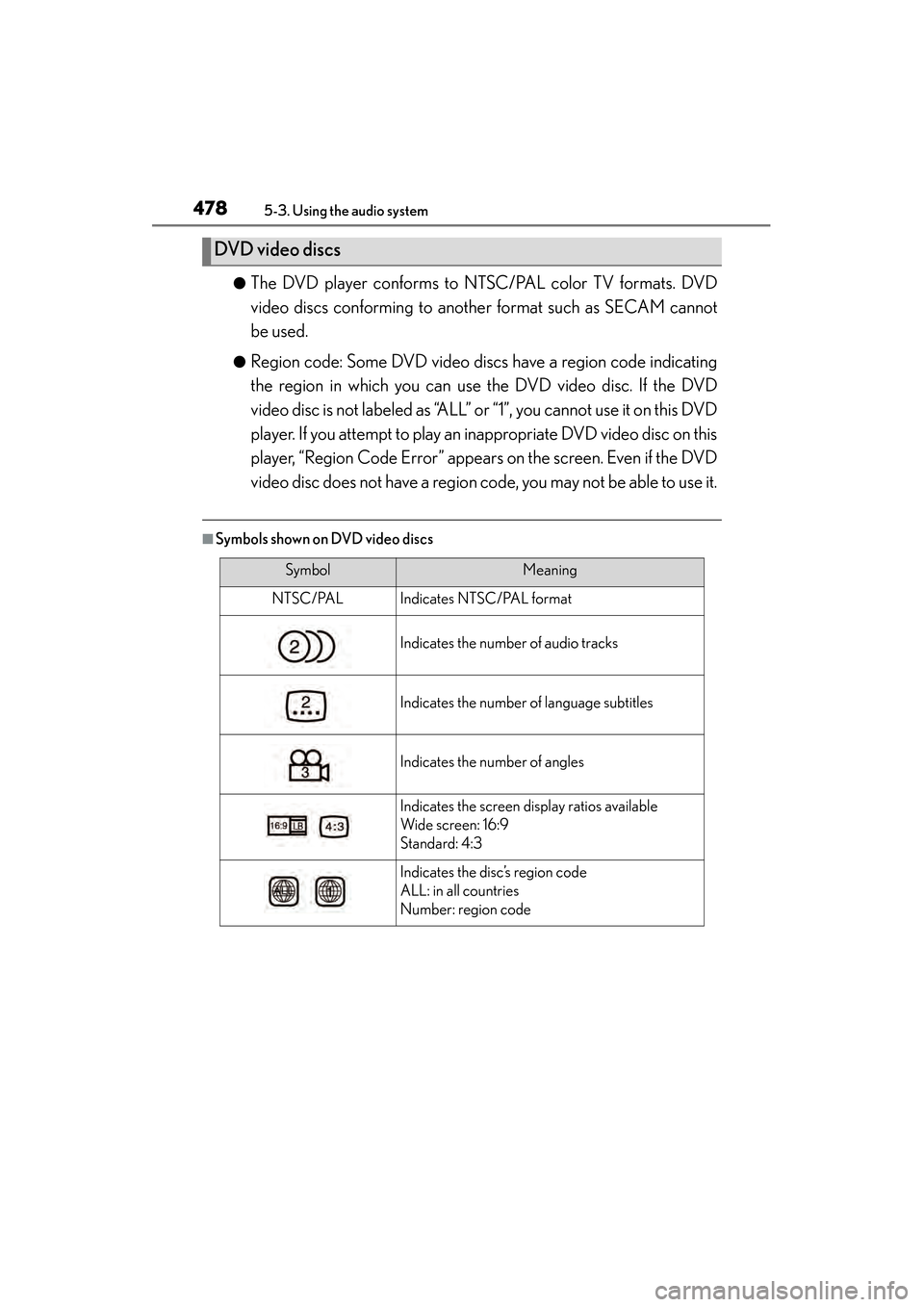

●The DVD player conforms to NTSC/PAL color TV formats. DVD
video discs conforming to another format such as SECAM cannot
be used.
●Region code: Some DVD video discs have a region code indicating
the region in which you can use the DVD video disc. If the DVD
video disc is not labeled as “ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate DVD video disc on this
player, “Region Code Error” appears on the screen. Even if the DVD
video disc does not have a region code, you may not be able to use it.
■Symbols shown on DVD video discs
DVD video discs
SymbolMeaning
NTSC/PALIndicates NTSC/PAL format
Indicates the number of audio tracks
Indicates the number of language subtitles
Indicates the number of angles
Indicates the screen display ratios available
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code
ALL: in all countries
Number: region code
GS450h_OM_OM30D52U_(U).book Page 478 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
4795-3. Using the audio system
5
Interior features
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
Use only discs marked as shown above. The following products may not be playable
on your player:
●SACD
●dts CD
●Copy-protected CD
●DVD audio
●Video CD
●DVD-R
●DVD+R
●DVD-RW
●DVD+RW
●DVD-RAM
■CD/DVD player protection feature
To protect the internal components, playback is automatically stopped when a prob-
lem is detected.
■If discs are left inside the CD/DVD player or in the ejected position for extended
periods
Discs may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD/DVD player.
GS450h_OM_OM30D52U_(U).book Page 479 Monday, July 29, 2013 12:07 PM
