7-2. Steps to take in an emergency

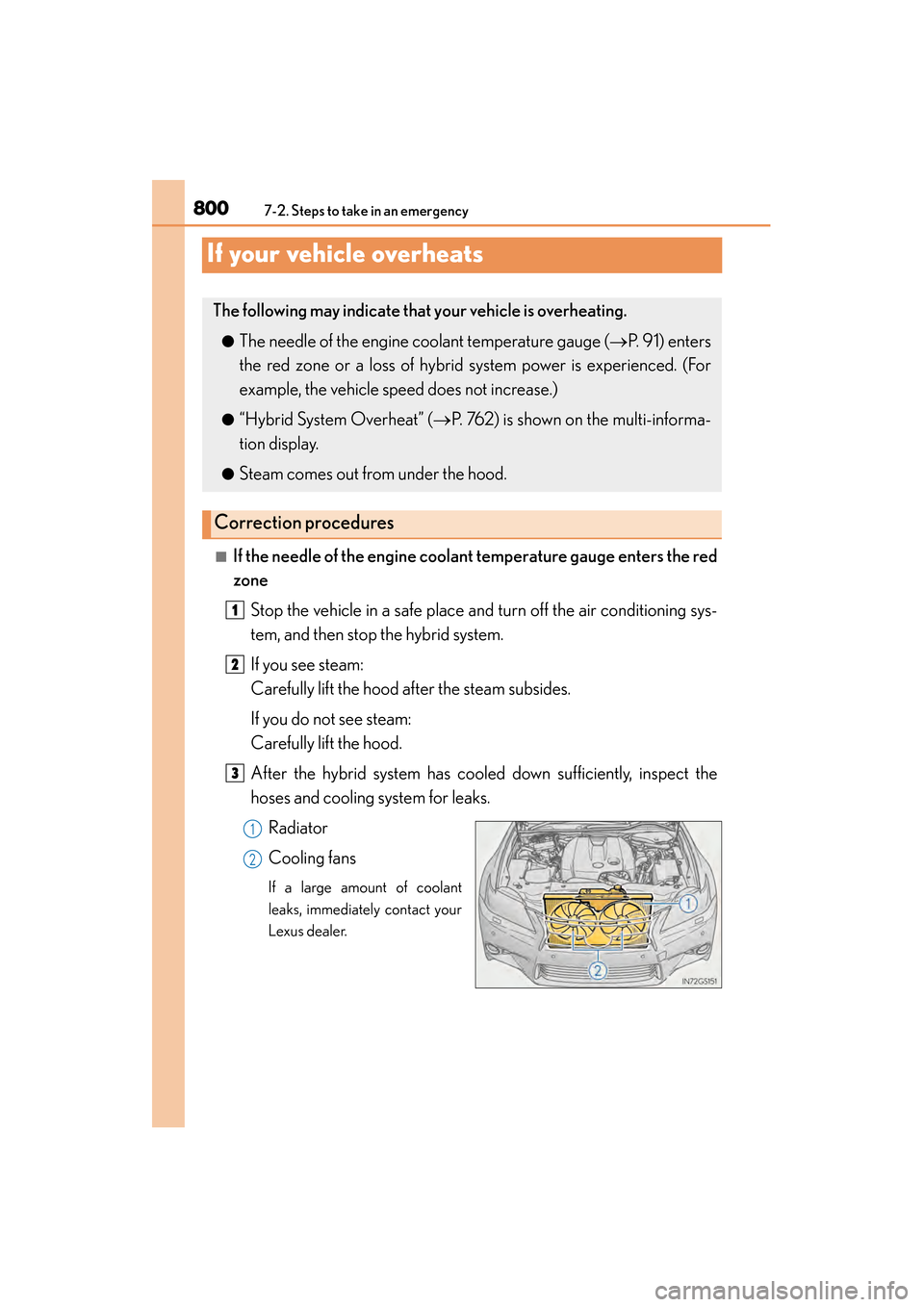

If your vehicle overheats
■If the needle of the engine coolant temperature gauge enters the red
zone
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
hoses and cooling system for leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact your
Lexus dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( →P. 91) enters
the red zone or a loss of hybrid system power is experienced. (For
example, the vehicle speed does not increase.)
●“Hybrid System Overheat” ( →P. 762) is shown on the multi-informa-
tion display.
●Steam comes out from under the hood.
Correction procedures
1
2
3
1
2
GS450h_OM_OM30D52U_(U).book Page 800 Monday, July 29, 2013 12:07 PM

8017-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises

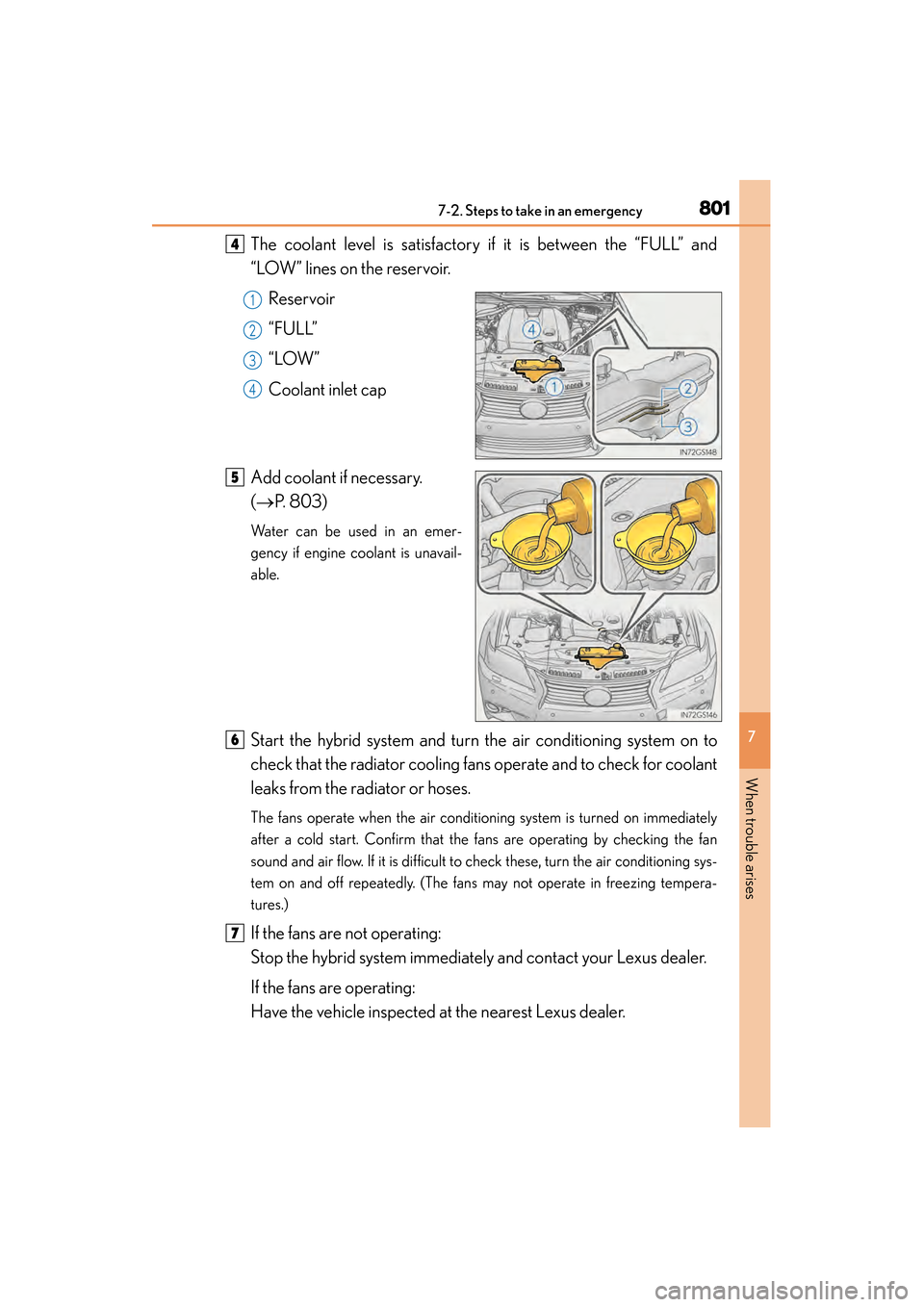

The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.Reservoir
“FULL”
“LOW”
Coolant inlet cap
Add coolant if necessary.
(→ P. 803)
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately
after a cold start. Confirm that the fans are operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning sys-
tem on and off repeatedly. (The fans may not operate in freezing tempera-
tures.)
If the fans are not operating:
Stop the hybrid system immediatel y and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7
GS450h_OM_OM30D52U_(U).book Page 801 Monday, July 29, 2013 12:07 PM

8027-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)

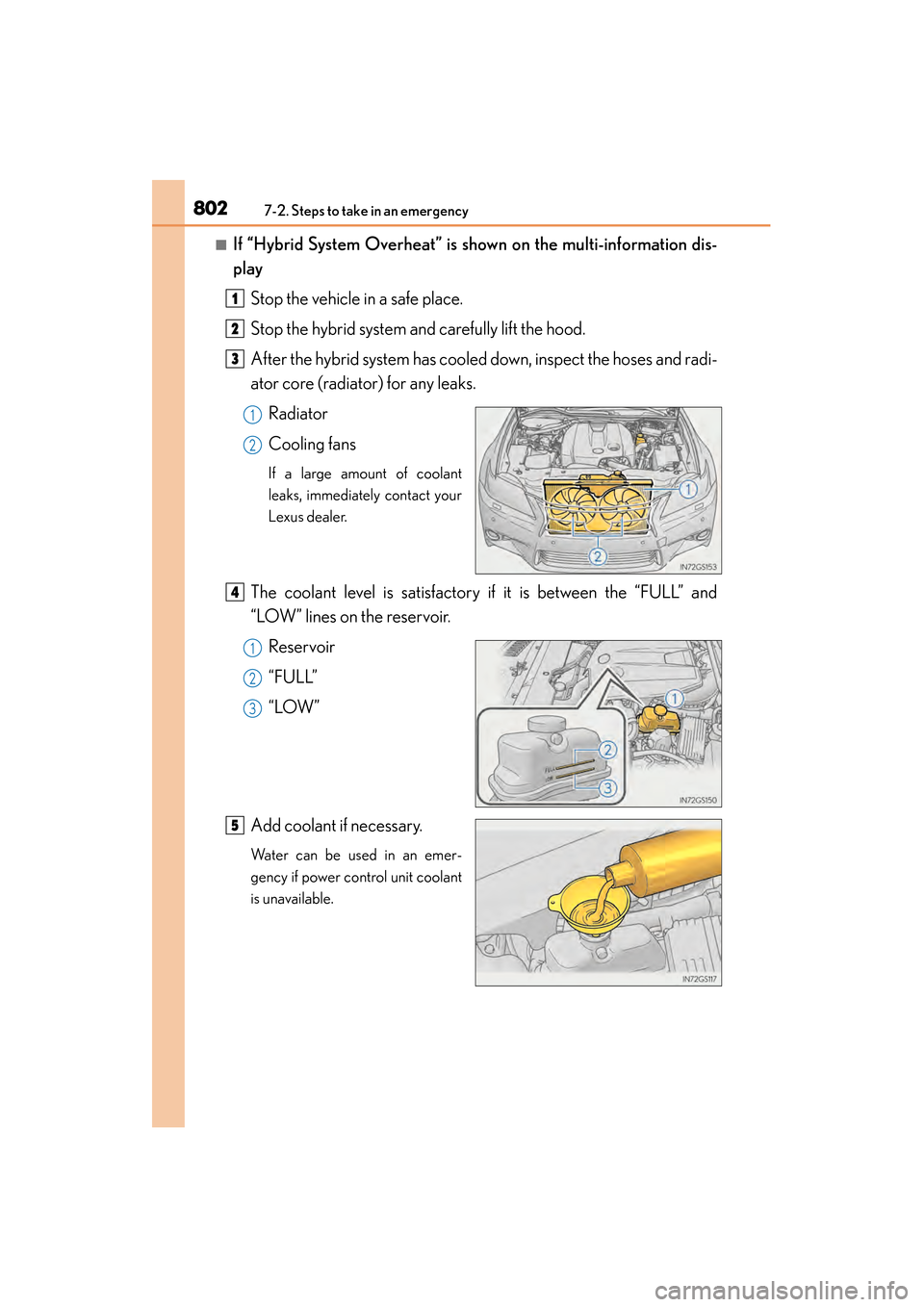

■If “Hybrid System Overheat” is shown on the multi-information dis-
play
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radi-
ator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact your
Lexus dealer.
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if power control unit coolant
is unavailable.
1
2
3
1
2
4
1
2
3
5
GS450h_OM_OM30D52U_(U).book Page 802 Monday, July 29, 2013 12:07 PM

8037-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.

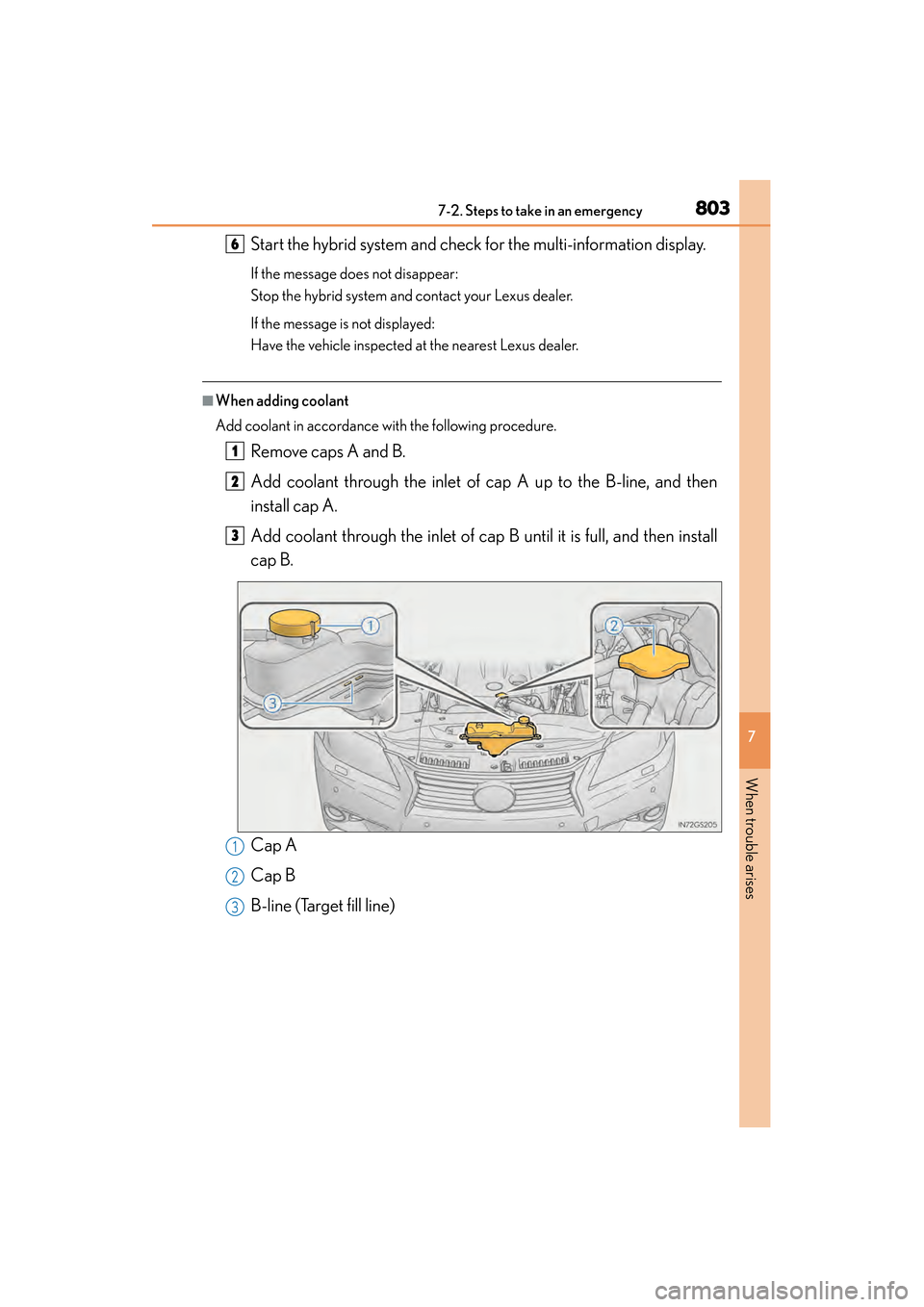

■When adding coolant
Add coolant in accordance with the following procedure.
Remove caps A and B.
Add coolant through the inlet of cap A up to the B-line, and then
install cap A.
Add coolant through the inlet of cap B until it is full, and then install
cap B.
Cap A
Cap B
B-line (Target fill line)
6
1
2
3
1
2
3
GS450h_OM_OM30D52U_(U).book Page 803 Monday, July 29, 2013 12:07 PM

8047-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)

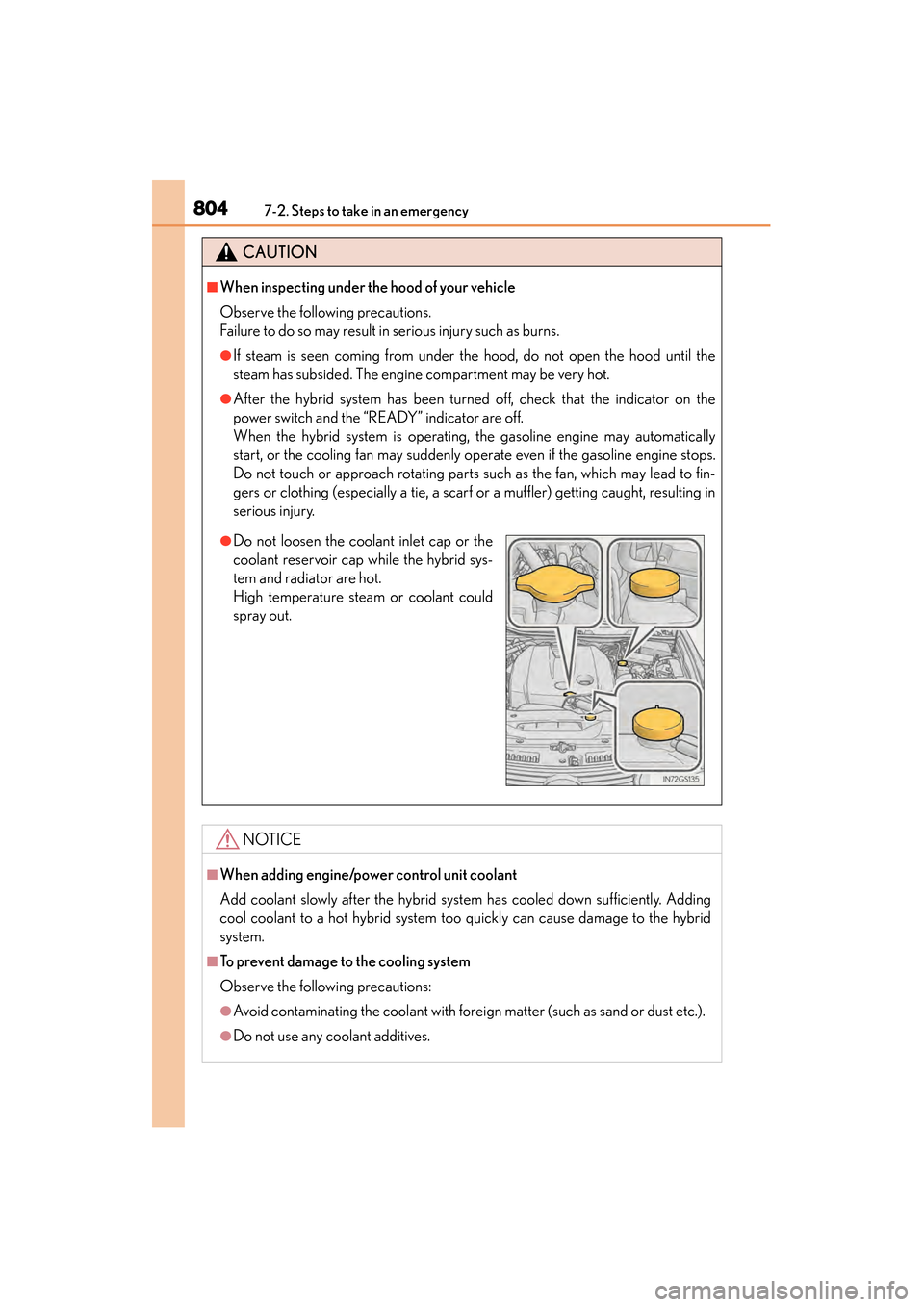

CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
●Do not loosen the coolant inlet cap or the
coolant reservoir cap while the hybrid sys-
tem and radiator are hot.
High temperature steam or coolant could
spray out.
GS450h_OM_OM30D52U_(U).book Page 804 Monday, July 29, 2013 12:07 PM

805
GS450h_OM_OM30D52U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

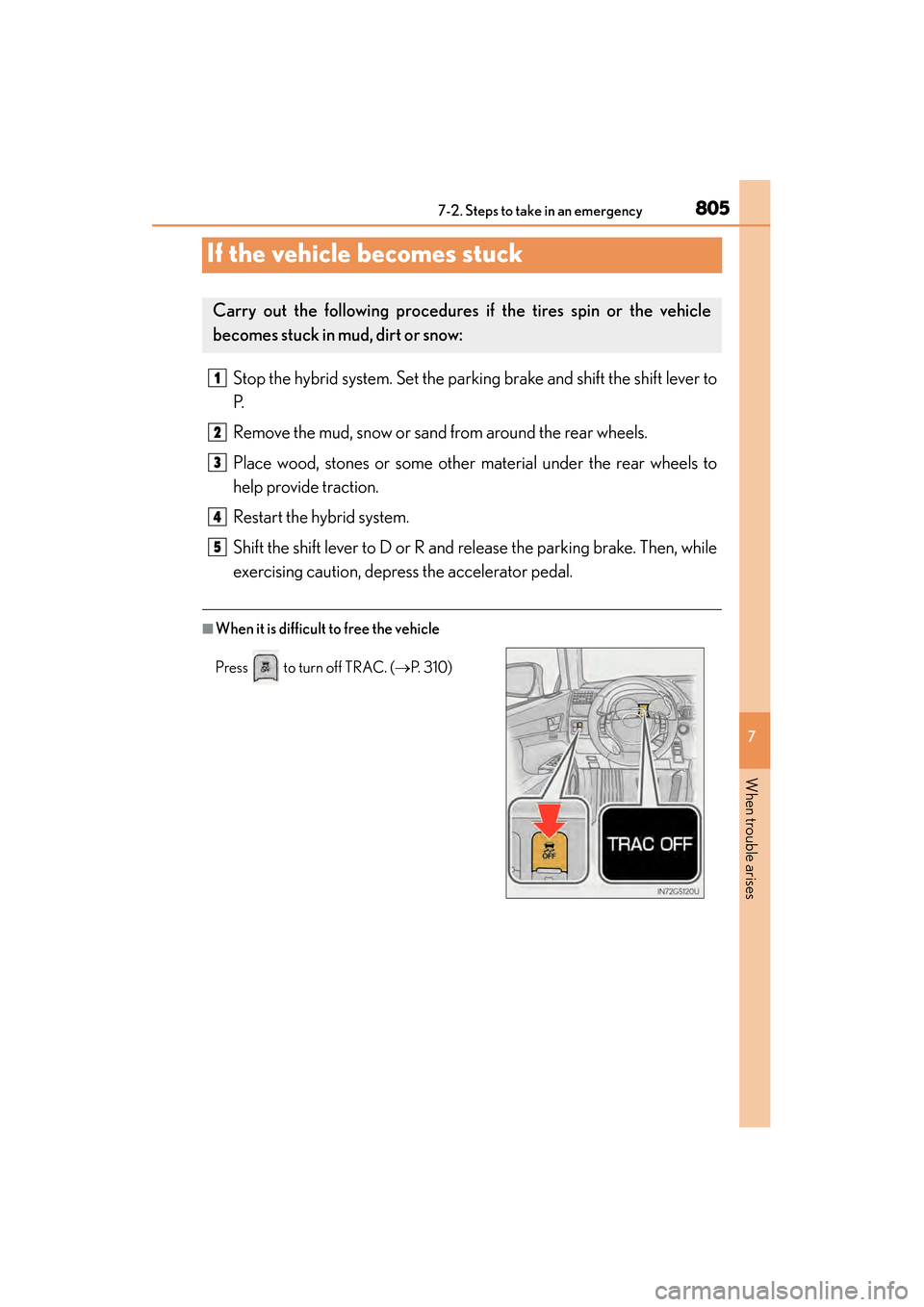

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 3 1 0 )
1
2
3
4
5
GS450h_OM_OM30D52U_(U).book Page 805 Monday, July 29, 2013 12:07 PM

8067-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)

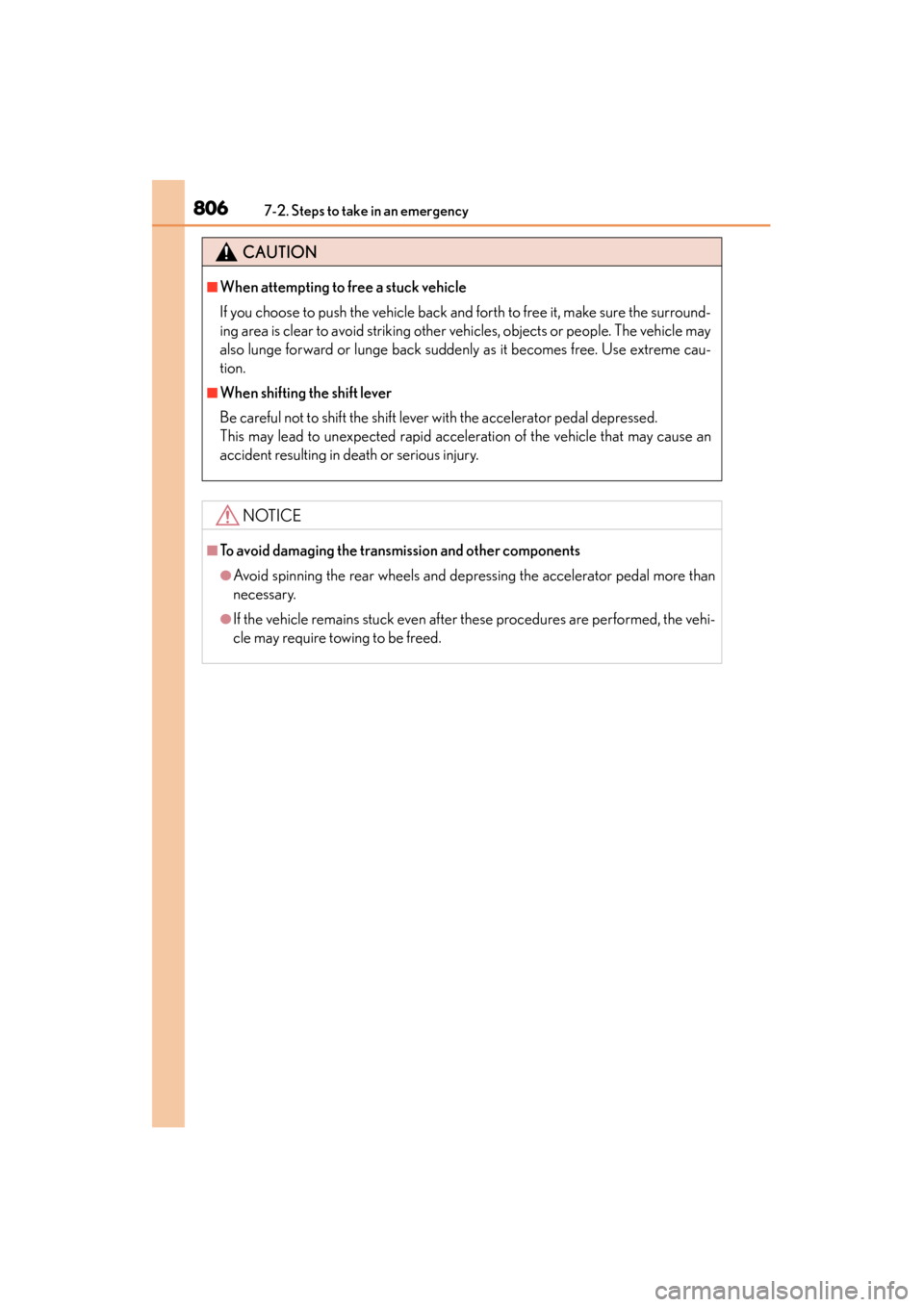

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
GS450h_OM_OM30D52U_(U).book Page 806 Monday, July 29, 2013 12:07 PM

807
GS450h_OM_OM30D52U_(U)
8Vehicle specifications
8-1. Specifications Maintenance data (fuel, oil level, etc.).................. 808
Fuel information........................... 818
Tire information ............................ 821
8-2. Customization Customizable features ............833
8-3. Items to initialize Items to initialize ......................... 844
GS450h_OM_OM30D52U_(U).book Page 807 Monday, July 29, 2013 12:07 PM

808
GS450h_OM_OM30D52U_(U)
8-1. Specifications

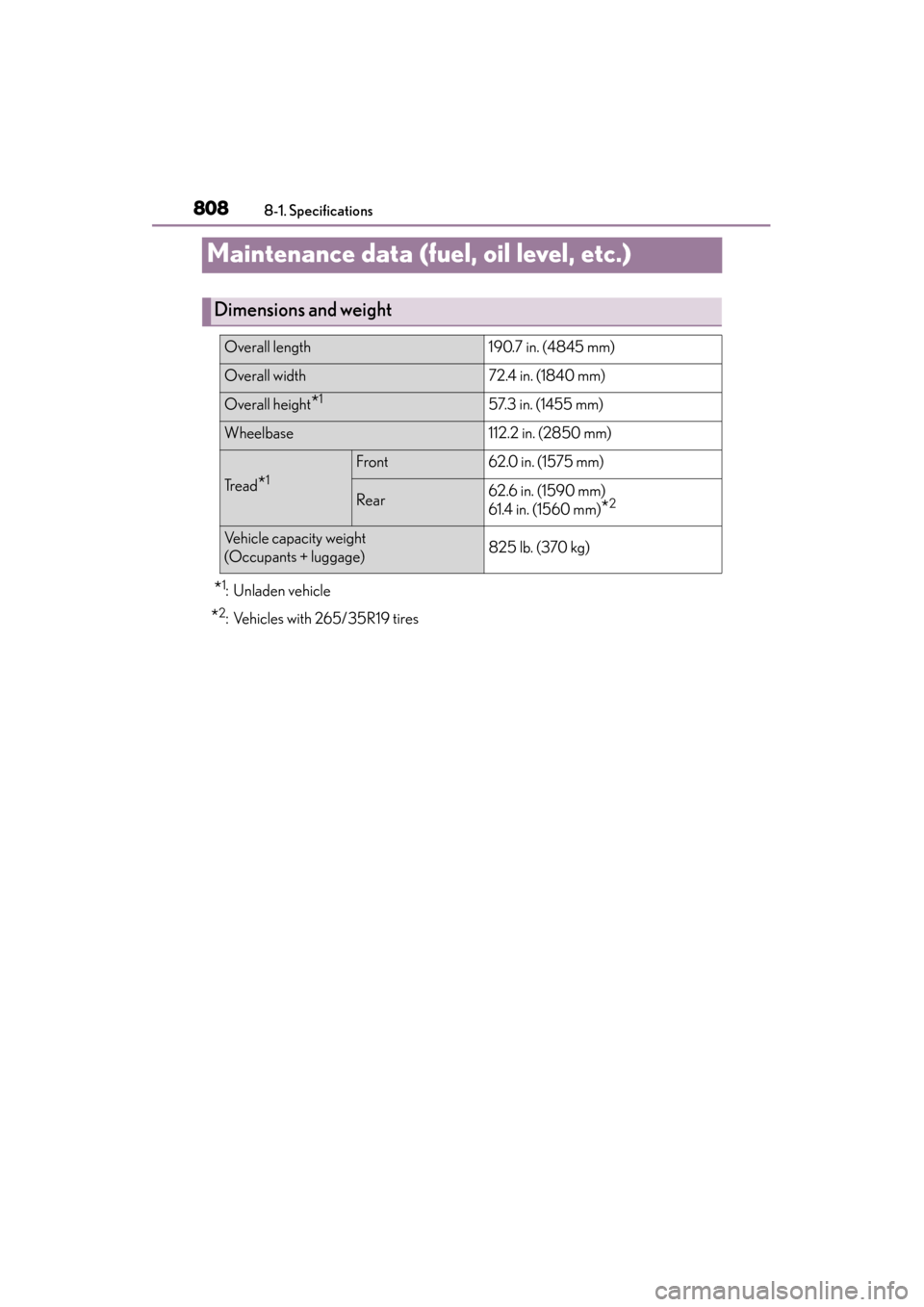

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Dimensions and weight
Overall length190.7 in. (4845 mm)
Overall width72.4 in. (1840 mm)
Overall height*157.3 in. (1455 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
GS450h_OM_OM30D52U_(U).book Page 808 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8098-1. Specifications
8
Vehicle specifications

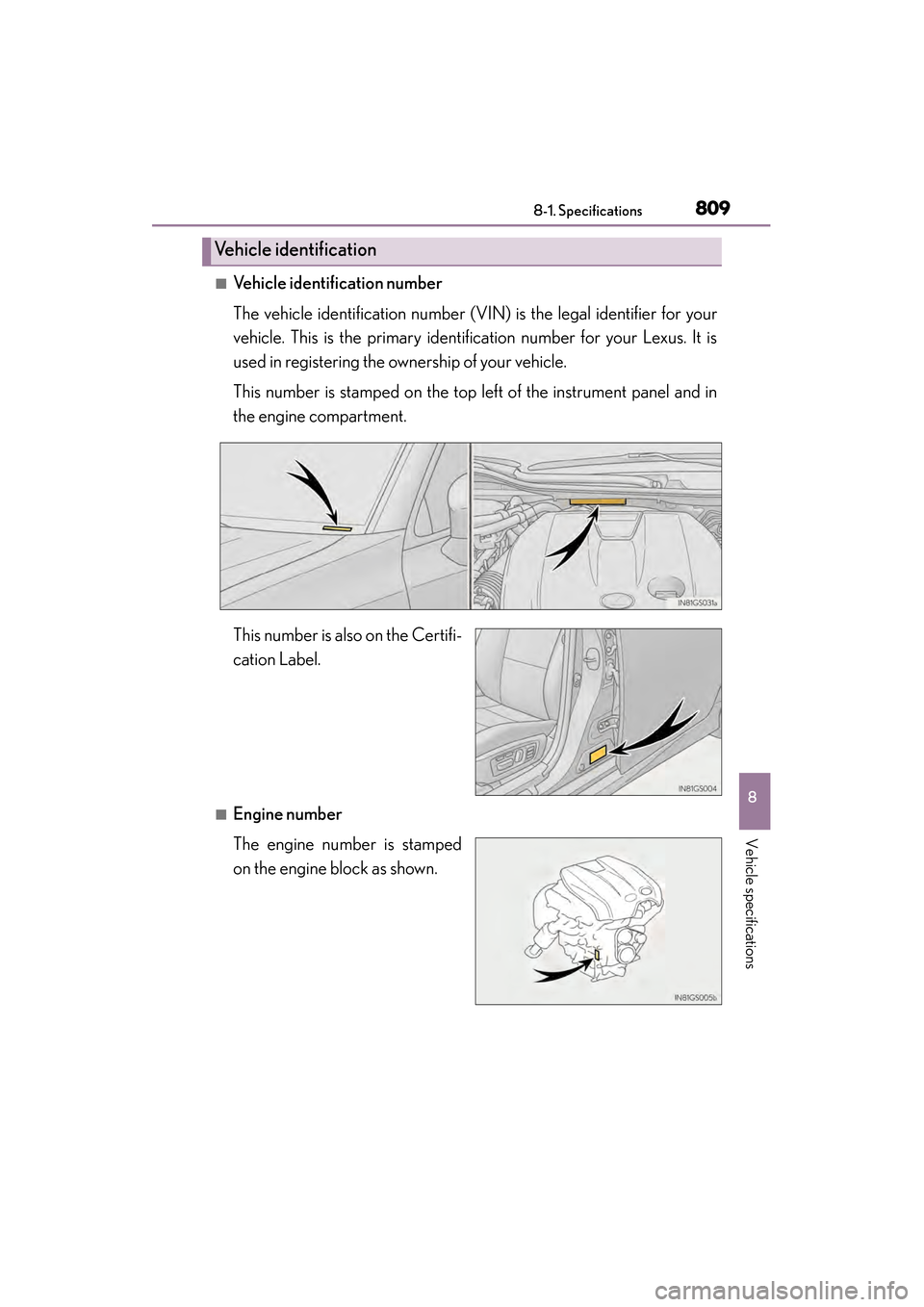

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
