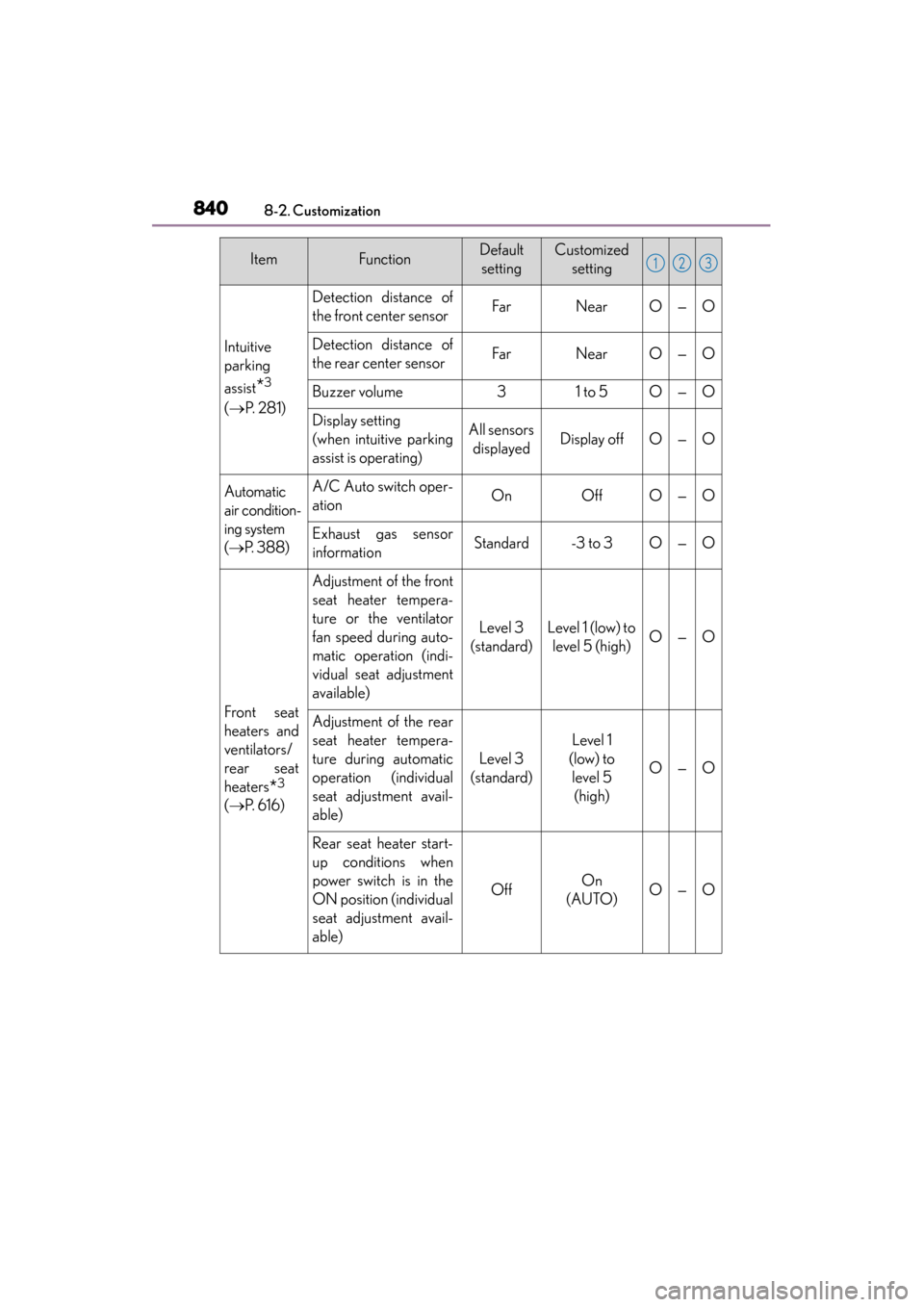

Lexus GS450h 2014 Owner's Manual

840
GS450h_OM_OM30D52U_(U)
8-2. Customization
Intuitive
parking
assist
*3
(→ P. 2 8 1 )
Detection distance of
the front center sensorFarNearO—O
Detection distance of
the rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking
assist is operating)All sensors
displayedDisplay offO—O
Automatic
air condition-
ing system
(→ P. 388)A/C Auto switch oper-
ationOnOffO—O
Exhaust gas sensor
informationStandard-3 to 3O—O
Front seat
heaters and
ventilators/
rear seat
heaters
*3
( → P. 6 1 6 )
Adjustment of the front
seat heater tempera-
ture or the ventilator
fan speed during auto-
matic operation (indi-
vidual seat adjustment
available)
Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the rear
seat heater tempera-
ture during automatic
operation (individual
seat adjustment avail-
able)
Level 3
(standard)
Level 1
(low) to level 5 (high)
O—O
Rear seat heater start-
up conditions when
power switch is in the
ON position (individual
seat adjustment avail-
able)
OffOn
(AUTO)O—O
ItemFunctionDefault settingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 840 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)

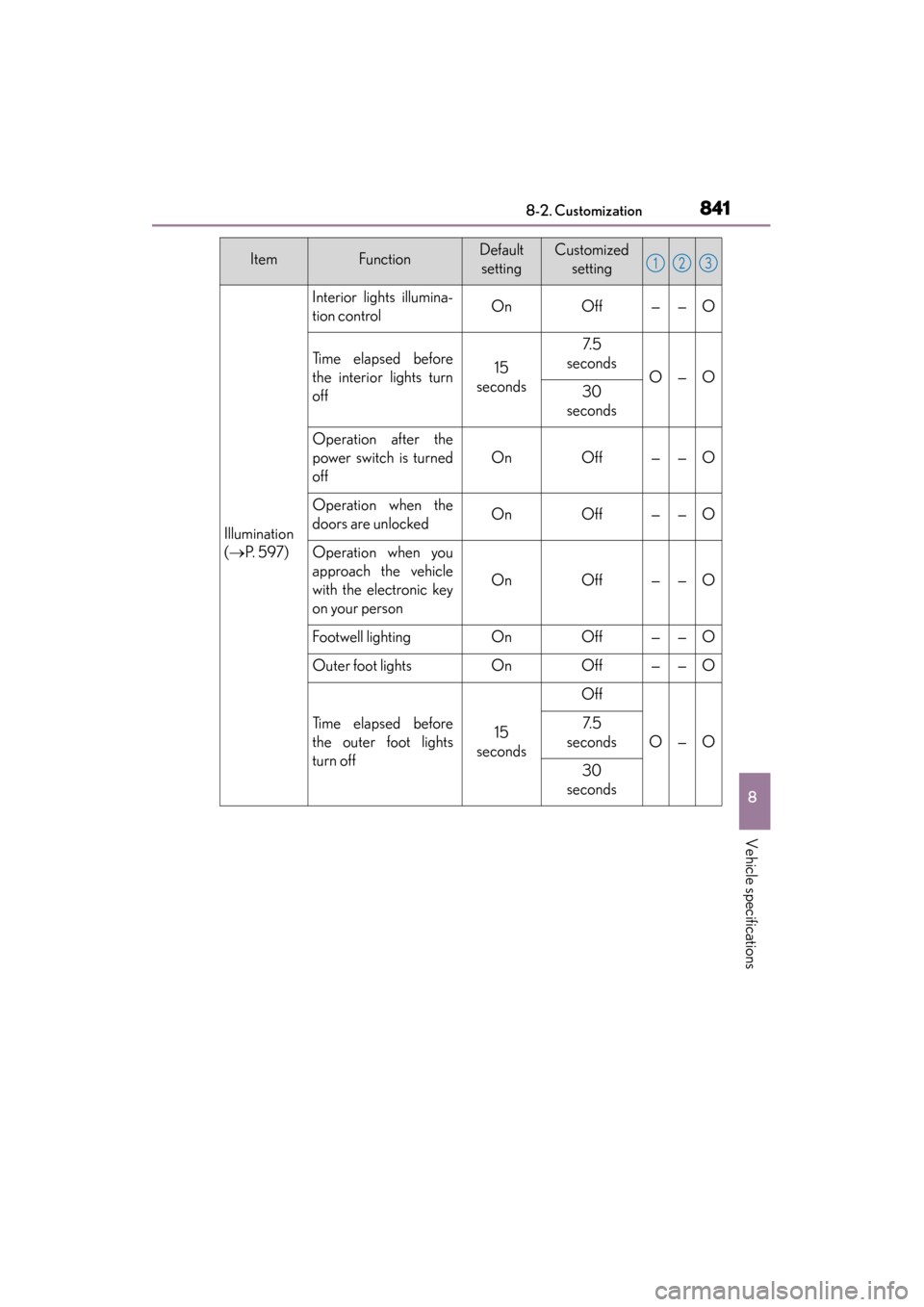

8418-2. Customization
8
Vehicle specifications
Illumination
(→ P. 5 9 7 )
Interior lights illumina-
tion controlOnOff——O
Time elapsed before
the interior lights turn
off15
seconds
7. 5
seconds
O—O30
seconds
Operation after the
power switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before
the outer foot lights
turn off15
seconds
Off
O—O
7. 5
seconds
30
seconds
ItemFunctionDefault settingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 841 Monday, July 29, 2013 12:07 PM

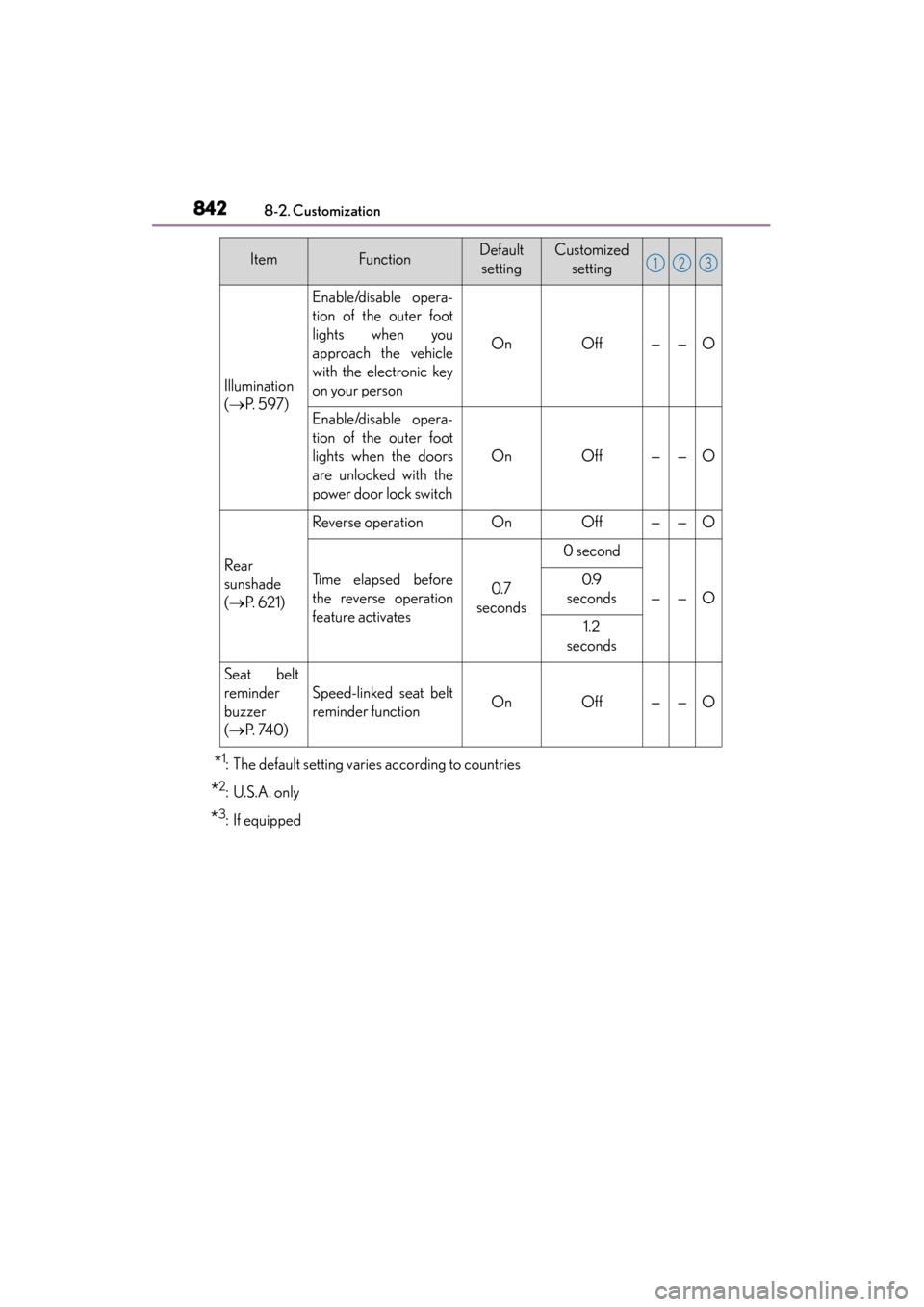

842
GS450h_OM_OM30D52U_(U)
8-2. Customization
*1: The default setting varies according to countries
*2: U.S.A. only
*3: If equipped
Illumination
(→ P. 5 9 7 )
Enable/disable opera-
tion of the outer foot
lights when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Enable/disable opera-
tion of the outer foot
lights when the doors
are unlocked with the
power door lock switch
OnOff——O
Rear
sunshade
(→ P. 6 2 1 )
Reverse operationOnOff——O
Time elapsed before
the reverse operation
feature activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
Seat belt
reminder
buzzer
( → P. 74 0 )
Speed-linked seat belt
reminder functionOnOff——O
ItemFunctionDefault
settingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 842 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
8438-2. Customization
8
Vehicle specifications

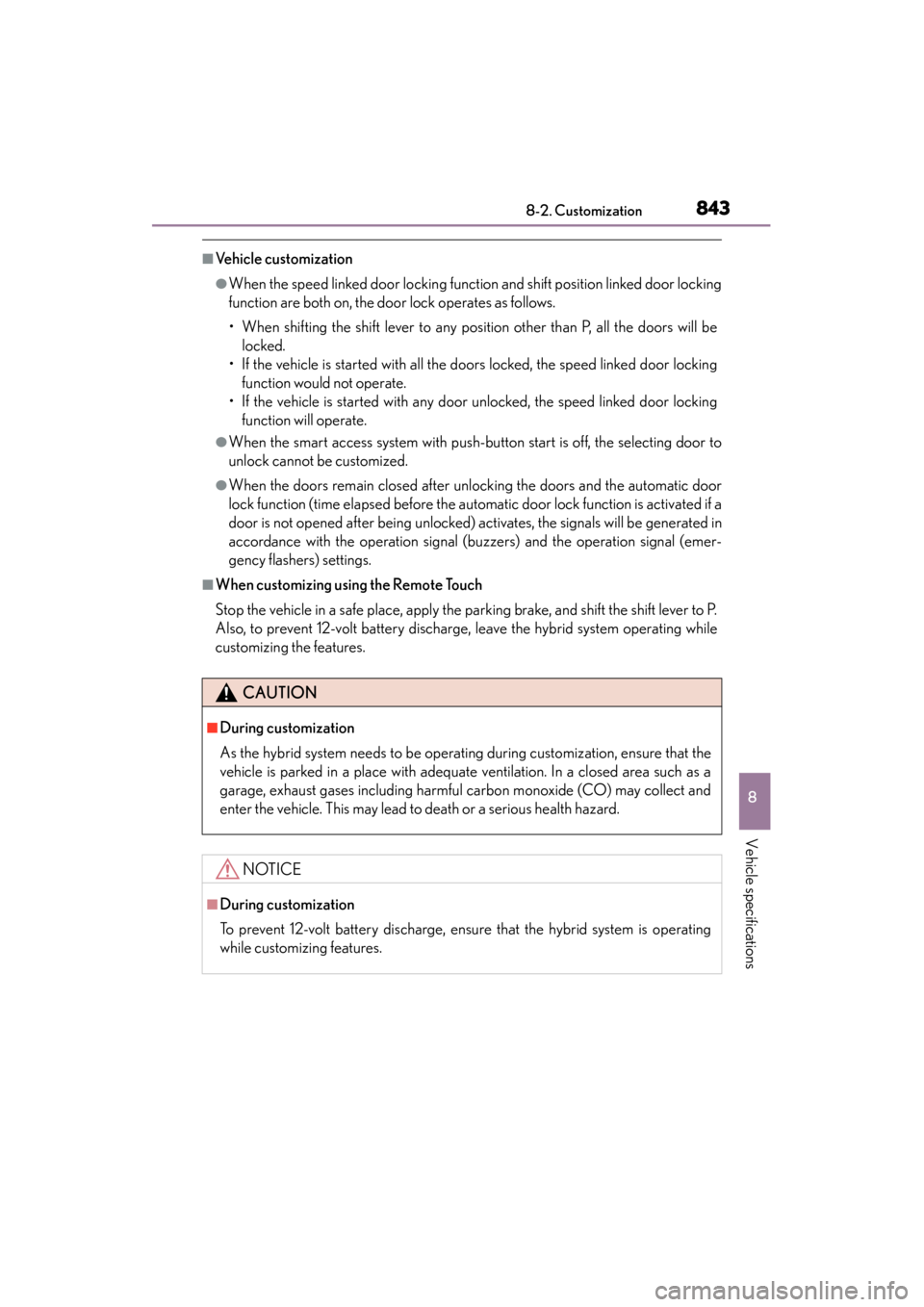

■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will belocked.
• If the vehicle is started with all the doors locked, the speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking function will operate.
●When the smart access system with push-button start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unlocking the doors and the automatic door
lock function (time elapsed before the automatic door lock function is activated if a
door is not opened after being unlocked) activates, the signals will be generated in
accordance with the operation signal (buzzers) and the operation signal (emer-
gency flashers) settings.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent 12-volt battery discharge, leave the hybrid system operating while
customizing the features.
CAUTION
■During customization
As the hybrid system needs to be operating during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while customizing features.
GS450h_OM_OM30D52U_(U).book Page 843 Monday, July 29, 2013 12:07 PM

844
GS450h_OM_OM30D52U_(U)
8-3. Items to initialize

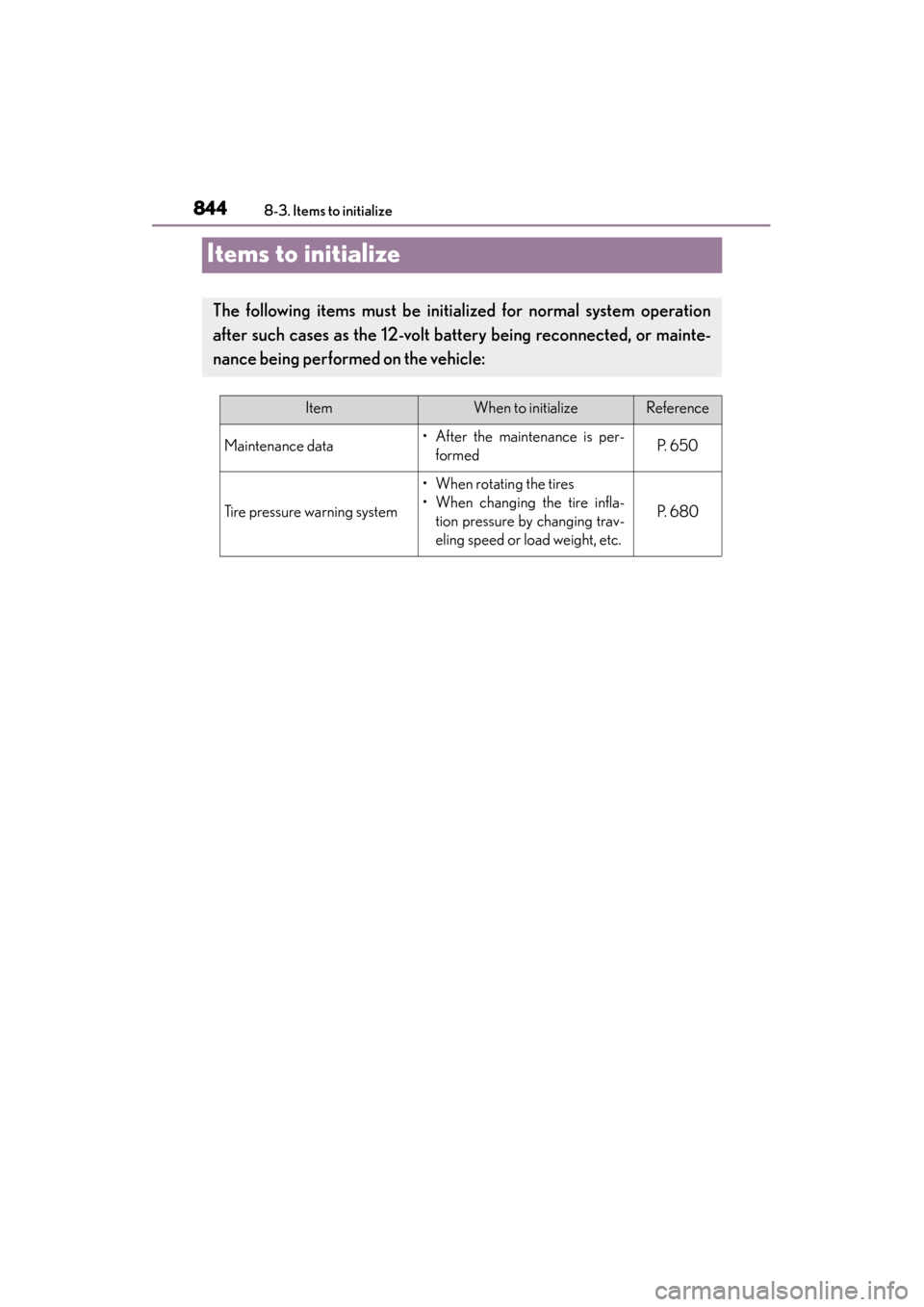

Items to initialize
The following items must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or mainte-
nance being performed on the vehicle:
ItemWhen to initializeReference
Maintenance data• After the maintenance is per- formedP. 6 5 0
Tire pressure warning system
• When rotating the tires
• When changing the tire infla-tion pressure by changing trav-
eling speed or load weight, etc.
P. 6 8 0
GS450h_OM_OM30D52U_(U).book Page 844 Monday, July 29, 2013 12:07 PM

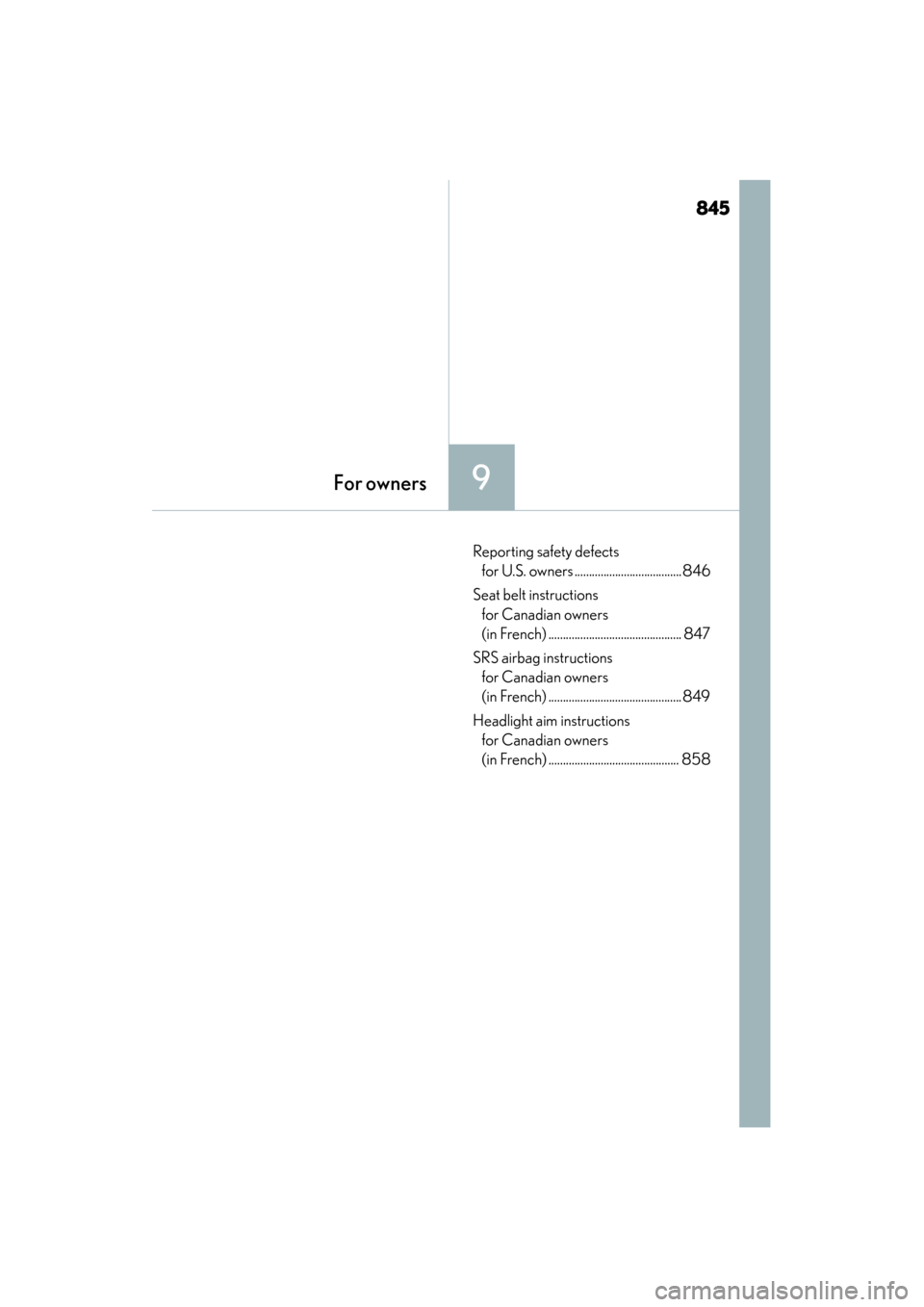

845
GS450h_OM_OM30D52U_(U)
9For owners
Reporting safety defects for U.S. owners .....................................846
Seat belt instructions for Canadian owners
(in French) .............................................. 847
SRS airbag instructions for Canadian owners
(in French) .............................................. 849
Headlight aim instructions for Canadian owners
(in French) ............................................. 858
GS450h_OM_OM30D52U_(U).book Page 845 Monday, July 29, 2013 12:07 PM

846
GS450h_OM_OM30D52U_(U)

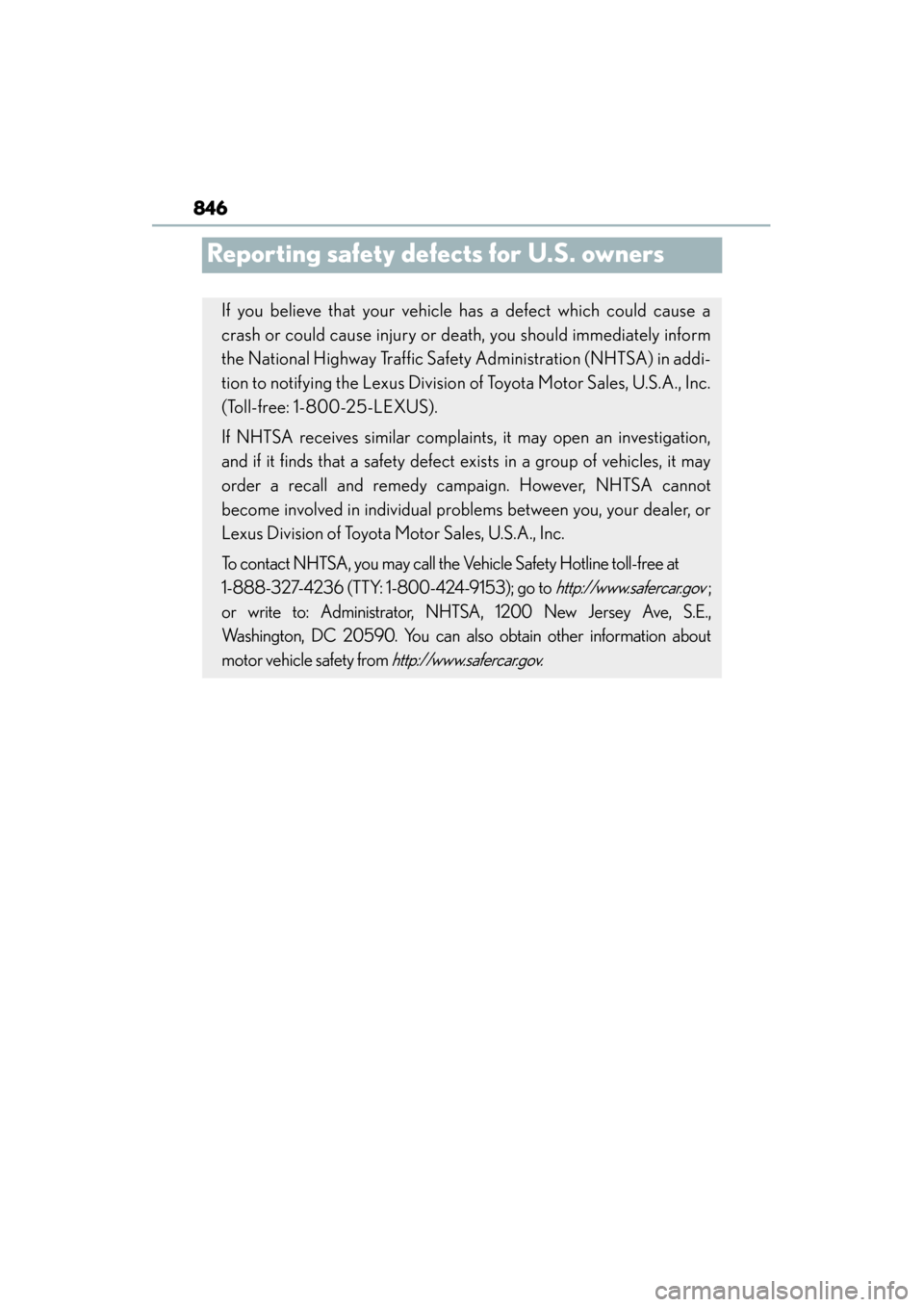

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.
GS450h_OM_OM30D52U_(U).book Page 846 Monday, July 29, 2013 12:07 PM

847
GS450h_OM_OM30D52U_(U)
9
For owners

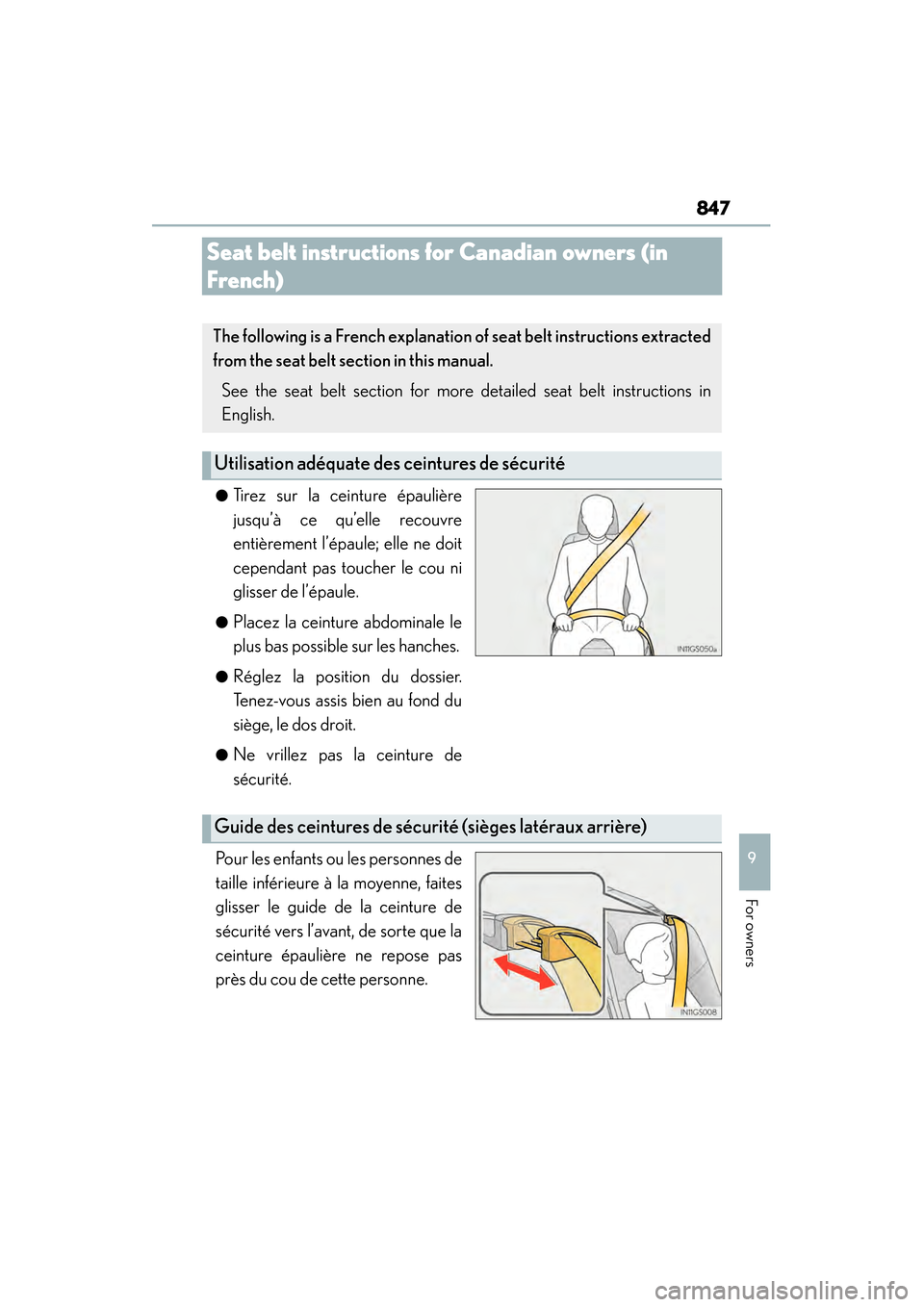

Seat belt instructions for Canadian owners (in
French)
●Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne doit
cependant pas toucher le cou ni
glisser de l’épaule.
●Placez la ceinture abdominale le
plus bas possible sur les hanches.
●Réglez la position du dossier.
Tenez-vous assis bien au fond du
siège, le dos droit.
●Ne vrillez pas la ceinture de
sécurité.
Pour les enfants ou les personnes de
taille inférieure à la moyenne, faites
glisser le guide de la ceinture de
sécurité vers l’avant, de sorte que la
ceinture épaulière ne repose pas
près du cou de cette personne.
The following is a French explanatio n of seat belt instructions extracted
from the seat belt s ection in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité
Guide des ceintures de sécuri té (sièges latéraux arrière)
GS450h_OM_OM30D52U_(U).book Page 847 Monday, July 29, 2013 12:07 PM

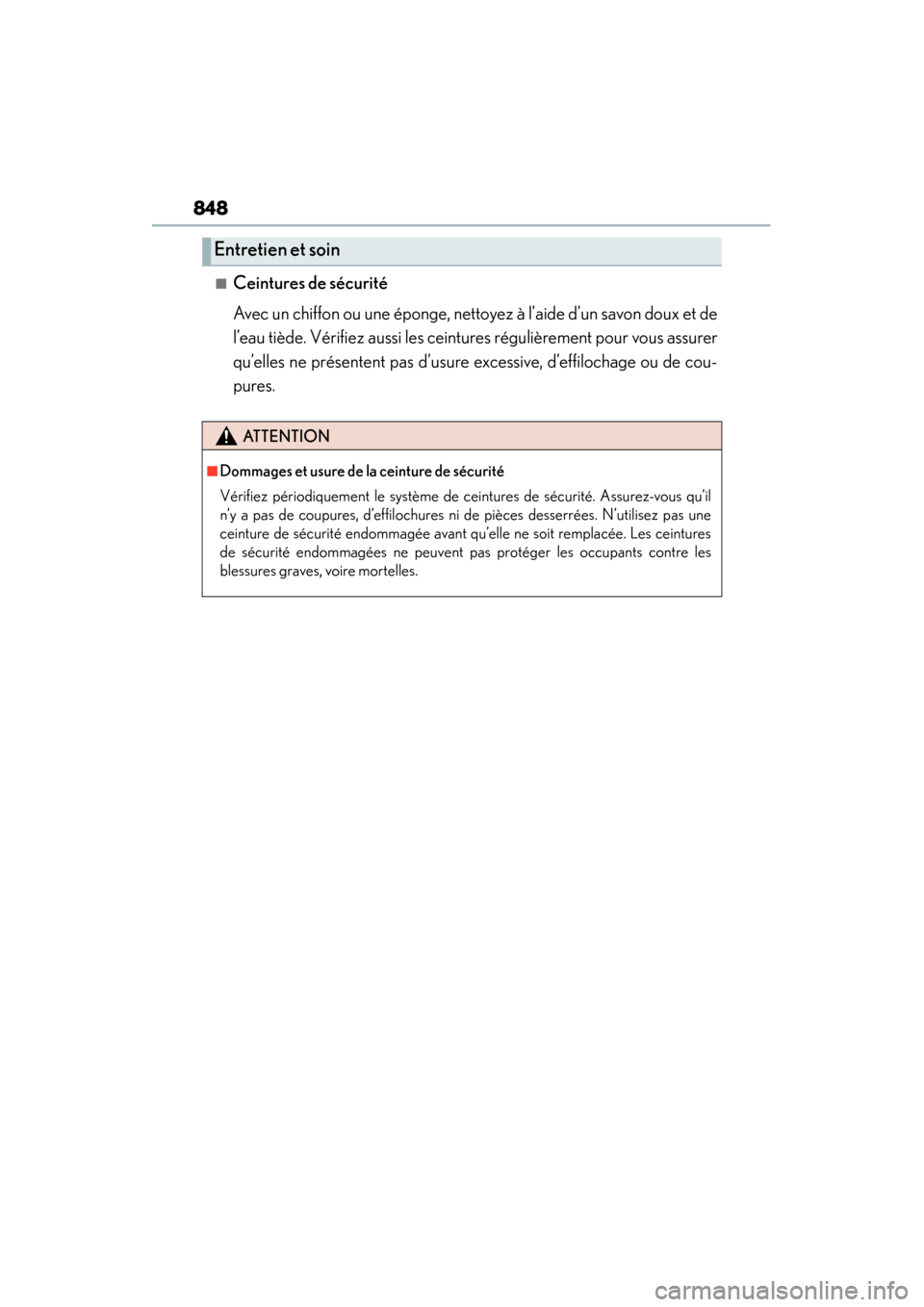

848
GS450h_OM_OM30D52U_(U)
■Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux et de
l’eau tiède. Vérifiez aussi les ceintures régulièrement pour vous assurer
qu’elles ne présentent pas d’usure excessive, d’effilochage ou de cou-
pures.
Entretien et soin
ATTENTION
■Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Assurez-vous qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas une
ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les ceintures
de sécurité endommagées ne peuvent pas protéger les occupants contre les
blessures graves, voire mortelles.
GS450h_OM_OM30D52U_(U).book Page 848 Monday, July 29, 2013 12:07 PM

849
GS450h_OM_OM30D52U_(U)
9
For owners

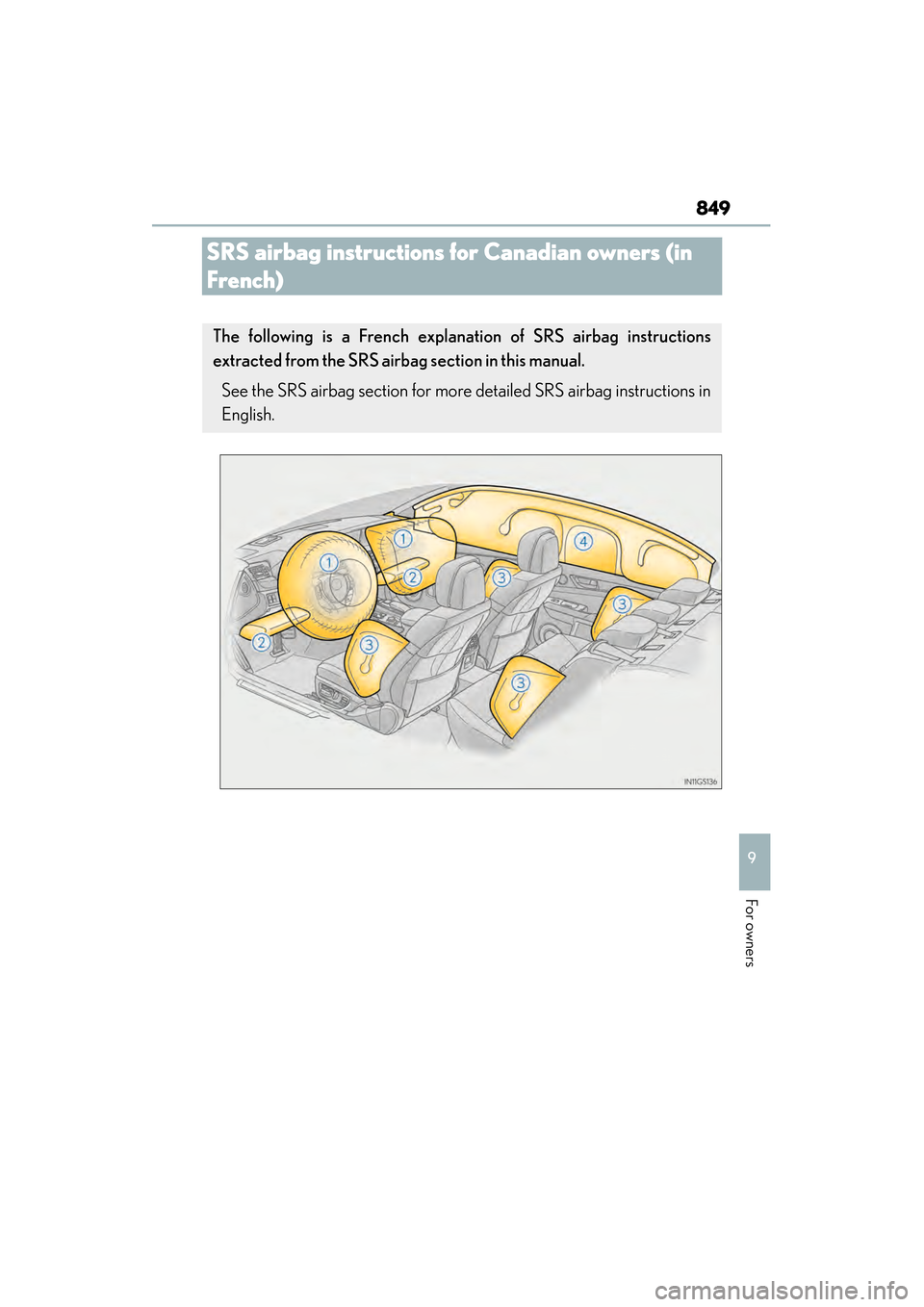

SRS airbag instructions for Canadian owners (in
French)
The following is a Fren ch explanation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instructions in
English.
GS450h_OM_OM30D52U_(U).book Page 849 Monday, July 29, 2013 12:07 PM
