Lexus GS450h 2014 Owner's Manual

830
GS450h_OM_OM30D52U_(U)

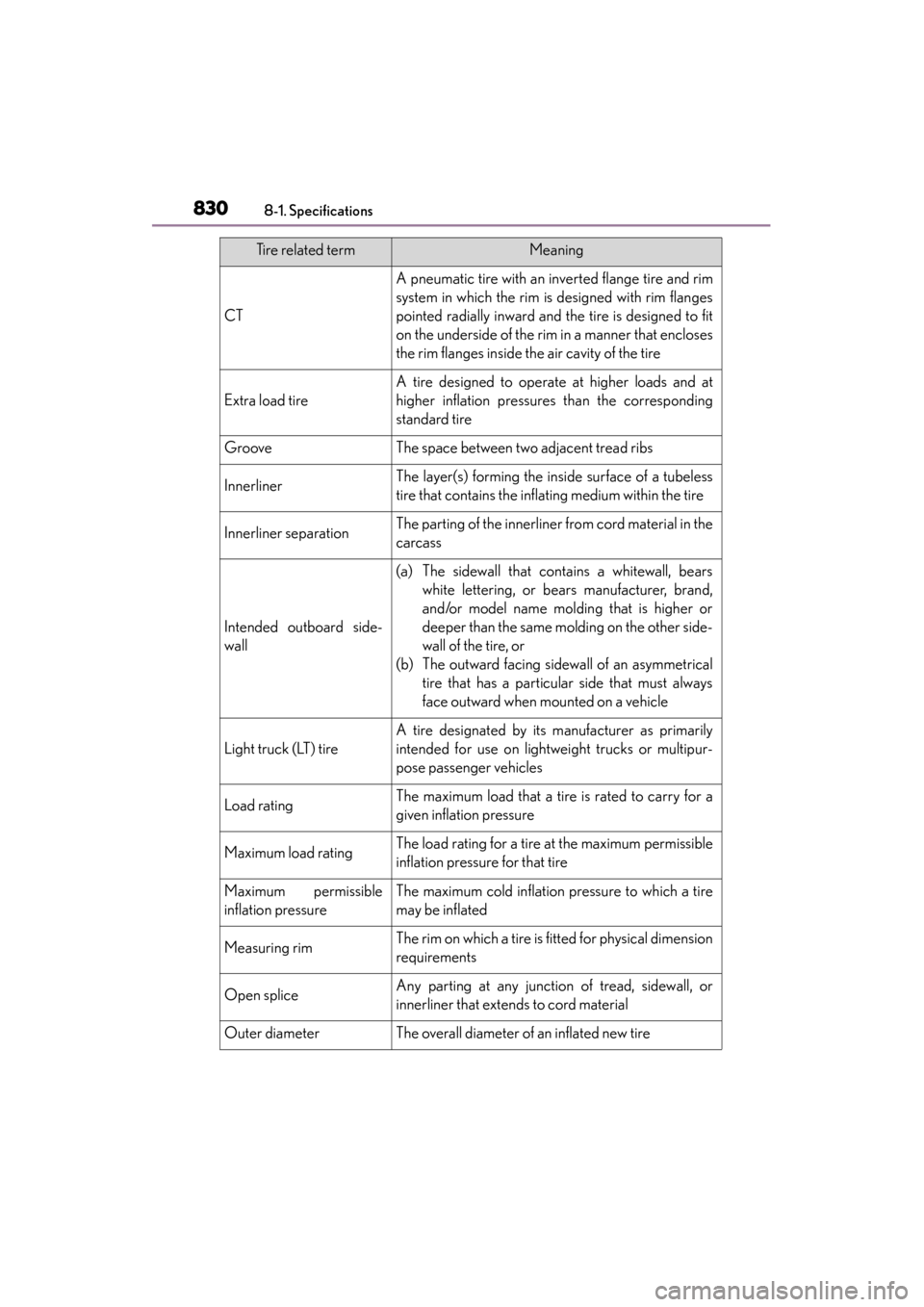

8-1. Specifications
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit
on the underside of the rim in a manner that encloses
the rim flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bearswhite lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always
face outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning
GS450h_OM_OM30D52U_(U).book Page 830 Monday, July 29, 2013 12:07 PM

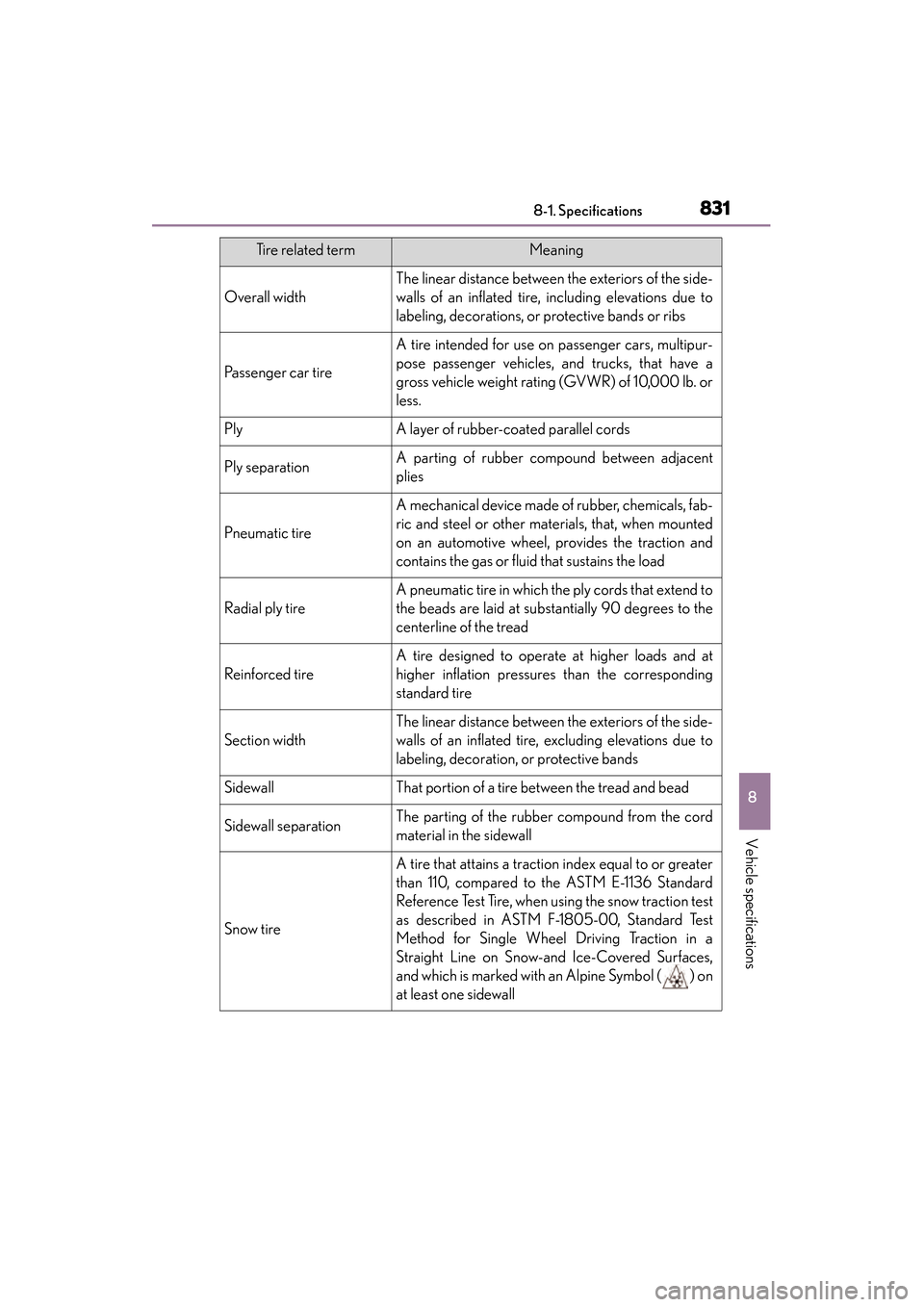

GS450h_OM_OM30D52U_(U)
8318-1. Specifications
8
Vehicle specifications
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fab-
ric and steel or other materials, that, when mounted
on an automotive wheel, provides the traction and
contains the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction test
as described in ASTM F-1805-00, Standard Test
Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( ) on
at least one sidewall
Tire related termMeaning
GS450h_OM_OM30D52U_(U).book Page 831 Monday, July 29, 2013 12:07 PM

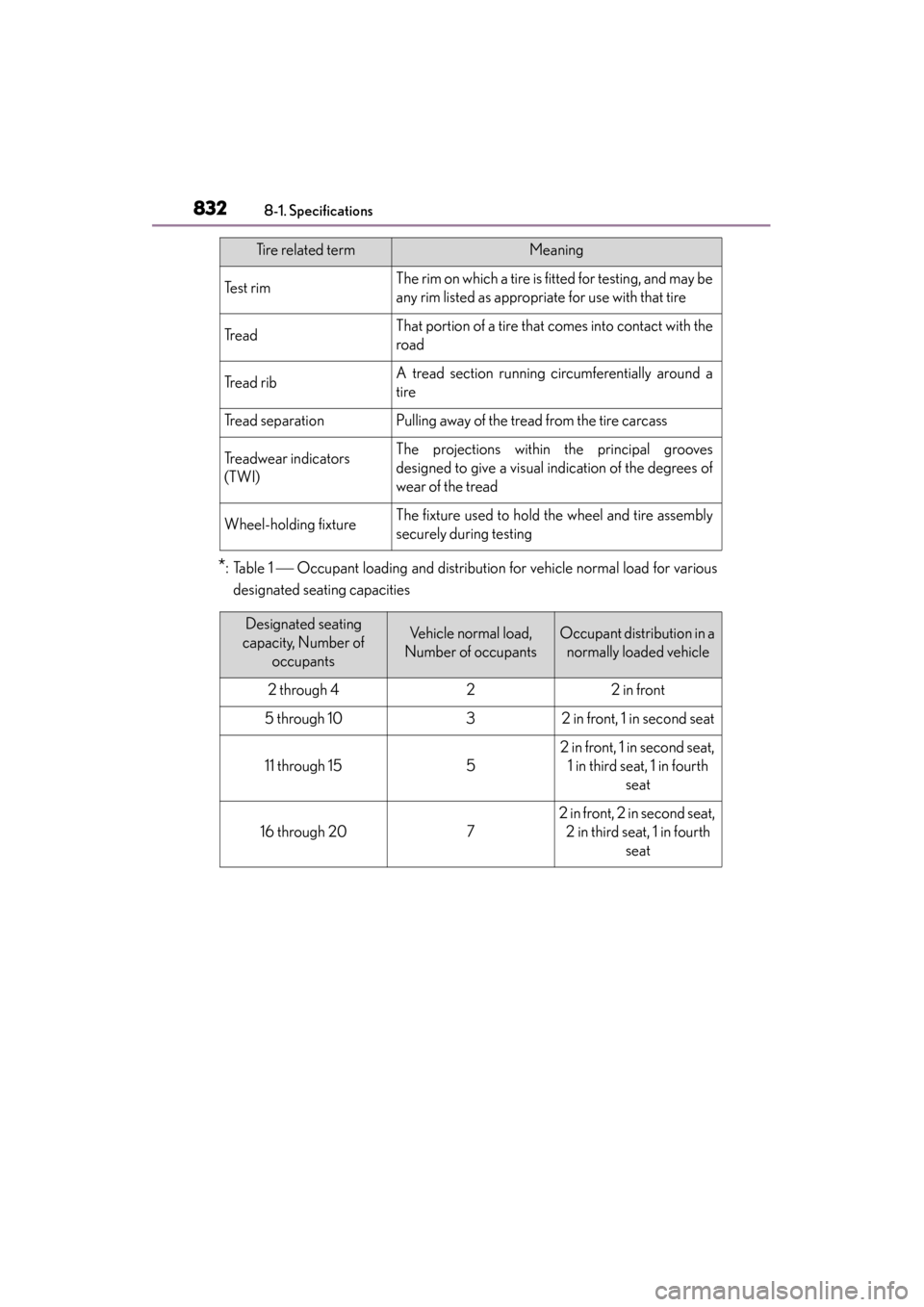

832
GS450h_OM_OM30D52U_(U)
8-1. Specifications
*:Table 1  Occupant loading and distribution for vehicle normal load for various
designated seating capacities
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
TreadThat portion of a tire that comes into contact with the
road
Tread ribA tread section running circumferentially around a
tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat
GS450h_OM_OM30D52U_(U).book Page 832 Monday, July 29, 2013 12:07 PM

833
GS450h_OM_OM30D52U_(U)8-2. Customization
8
Vehicle specifications

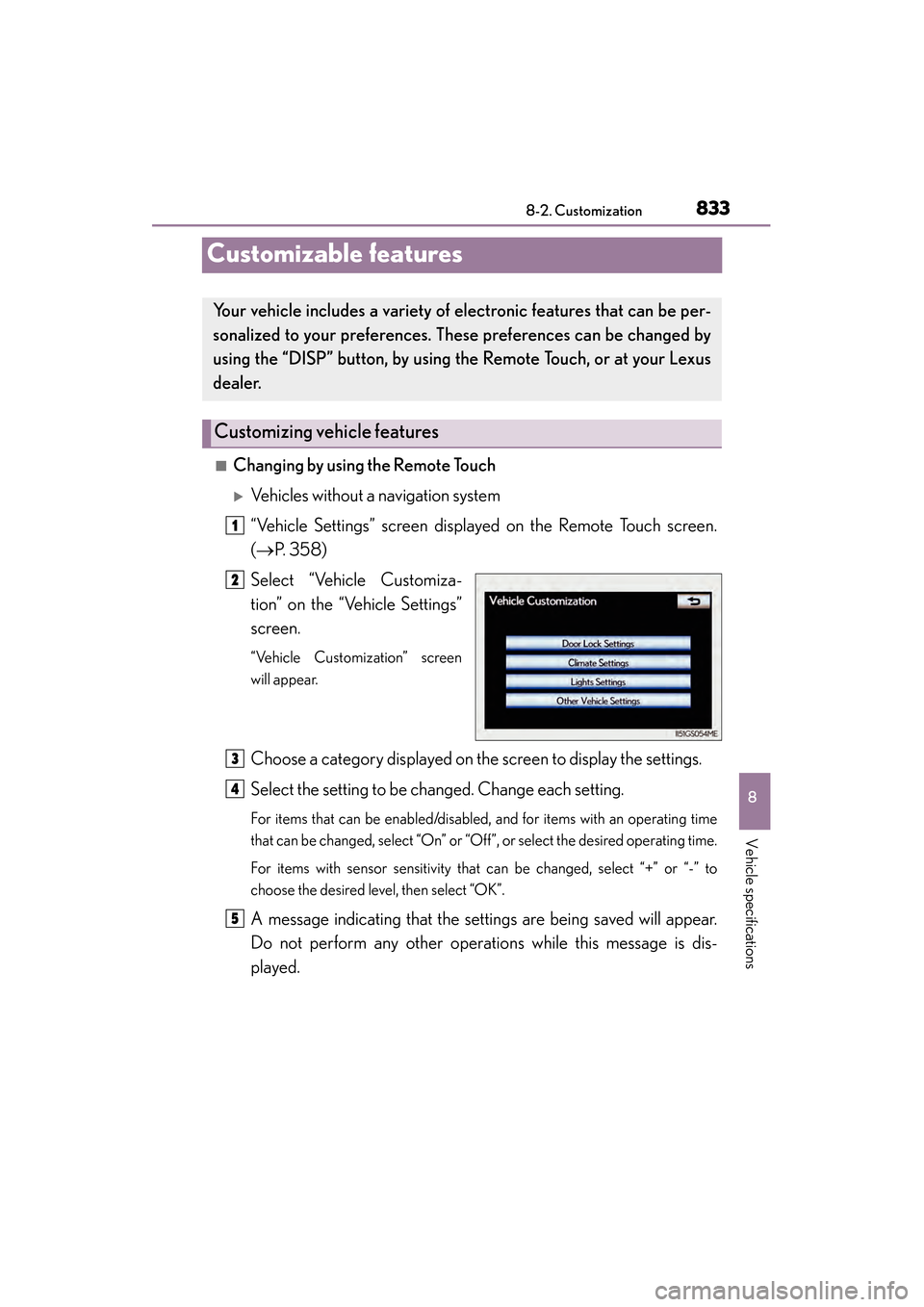

Customizable features
■Changing by using the Remote Touch
XVehicles without a navigation system
“Vehicle Settings” screen displayed on the Remote Touch screen.
(→ P. 3 5 8 )
Select “Vehicle Customiza-
tion” on the “Vehicle Settings”
screen.
“Vehicle Customization” screen
will appear.
Choose a category displayed on the screen to display the settings.
Select the setting to be changed. Change each setting.
For items that can be enabled/disabled, and for items with an operating time
that can be changed, select “On” or “Off”, or select the desired operating time.
For items with sensor sensitivity that can be changed, select “+” or “-” to
choose the desired level, then select “OK”.
A message indicating that the settings are being saved will appear.
Do not perform any other operations while this message is dis-
played.
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. These preferences can be changed by
using the “DISP” button, by using th e Remote Touch, or at your Lexus
dealer.
Customizing vehicle features
1
2
3
4
5
GS450h_OM_OM30D52U_(U).book Page 833 Monday, July 29, 2013 12:07 PM

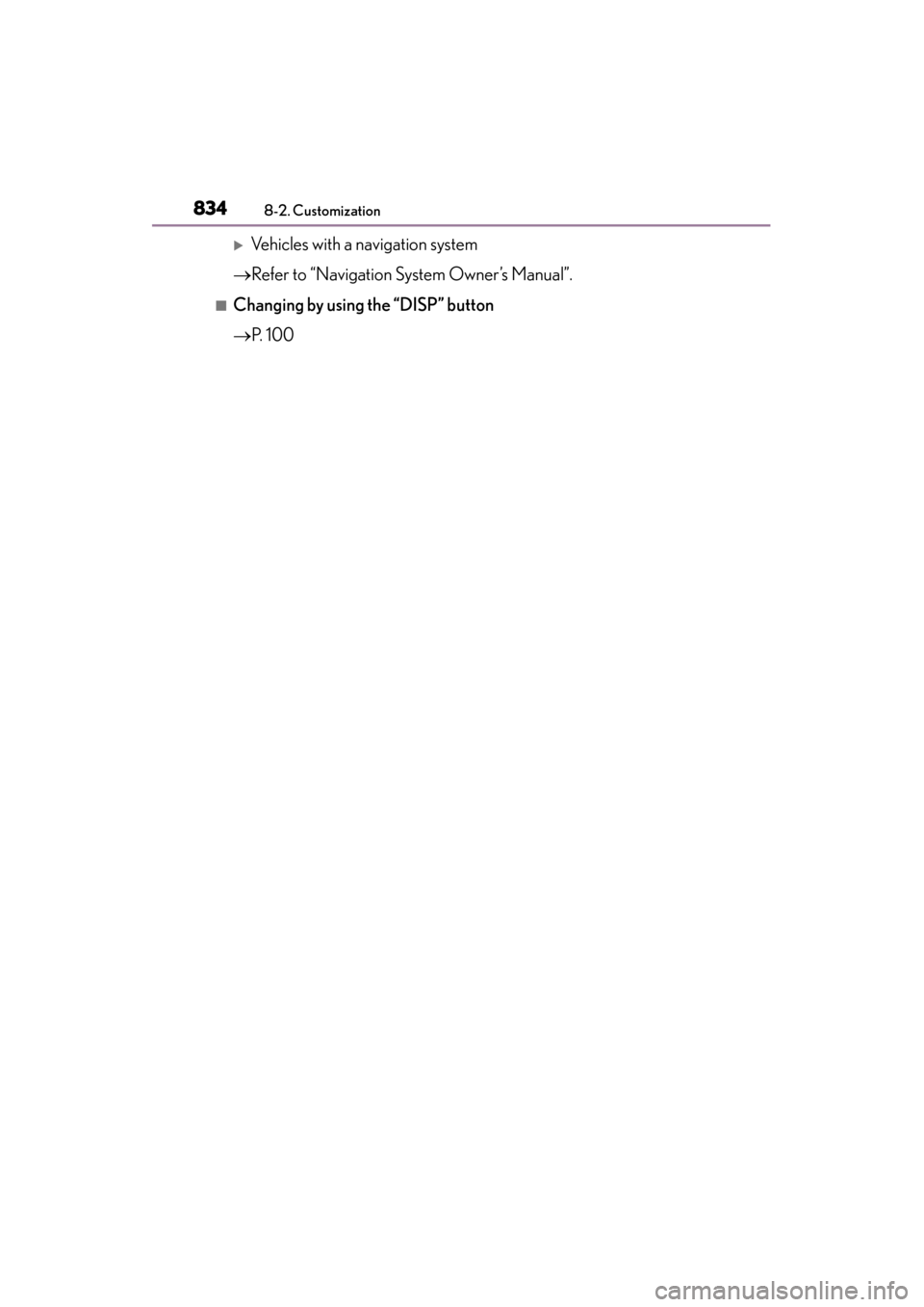

834
GS450h_OM_OM30D52U_(U)
8-2. Customization
XVehicles with a navigation system
→ Refer to “Navigation System Owner’s Manual”.
■Changing by using the “DISP” button
→P. 1 0 0
GS450h_OM_OM30D52U_(U).book Page 834 Monday, July 29, 2013 12:07 PM

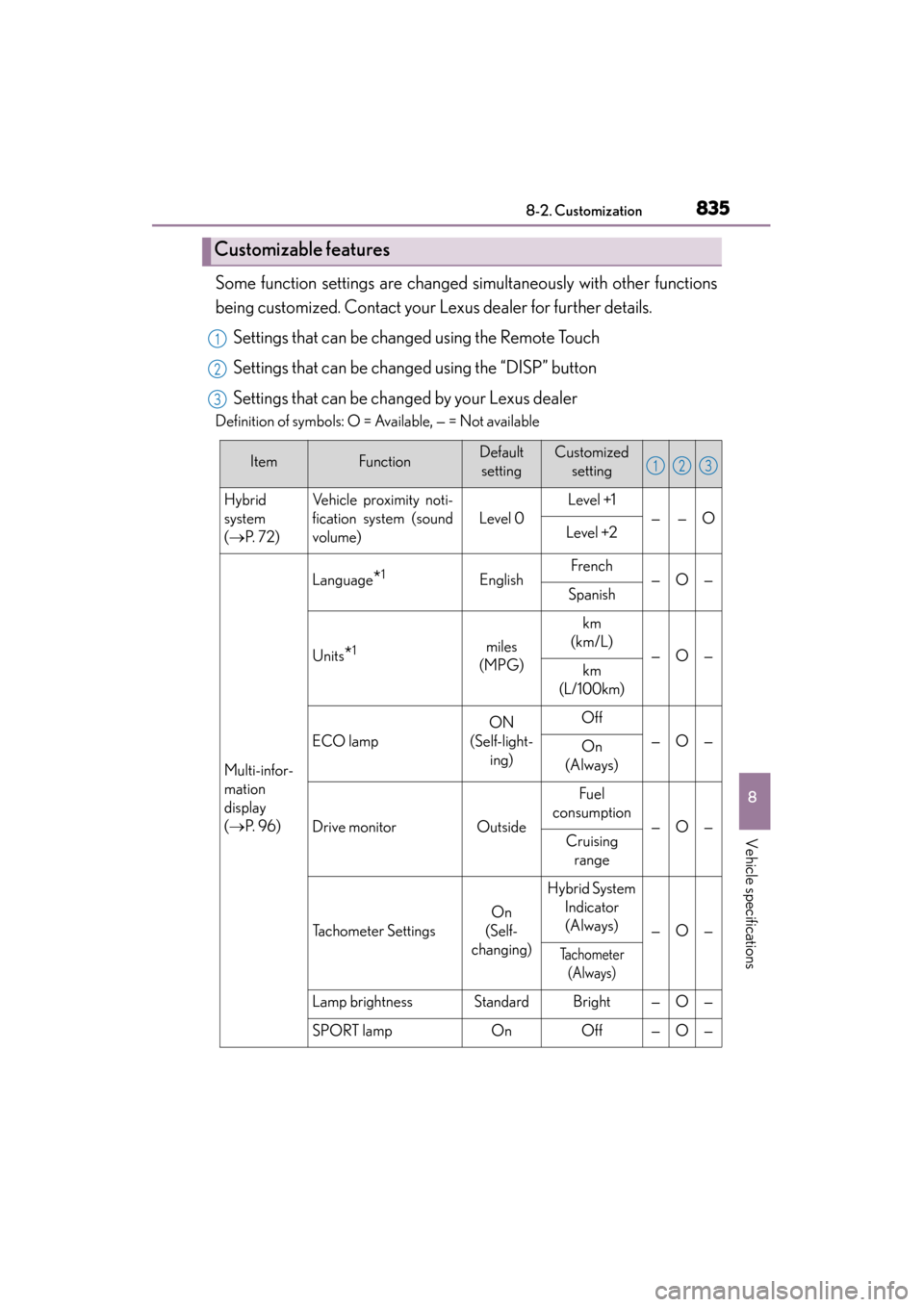

GS450h_OM_OM30D52U_(U)
8358-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the “DISP” button
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
ItemFunctionDefaultsettingCustomized setting
Hybrid
system
(→ P. 7 2 )Vehicle proximity noti-
fication system (sound
volume)
Level 0
Level +1
——OLevel +2
Multi-infor-
mation
display
(→ P. 9 6 )
Language*1EnglishFrench—O—Spanish
Units*1miles
(MPG)
km
(km/L)
—O—km
(L/100km)
ECO lamp
ON
(Self-light- ing)Off
—O—On
(Always)
Drive monitorOutside
Fuel
consumption
—O—Cruising range
Tachometer Settings
On
(Self-
changing)
Hybrid System Indicator (Always)
—O—
Tachometer (Always)
Lamp brightnessStandardBright—O—
SPORT lampOnOff—O—
123
GS450h_OM_OM30D52U_(U).book Page 835 Monday, July 29, 2013 12:07 PM

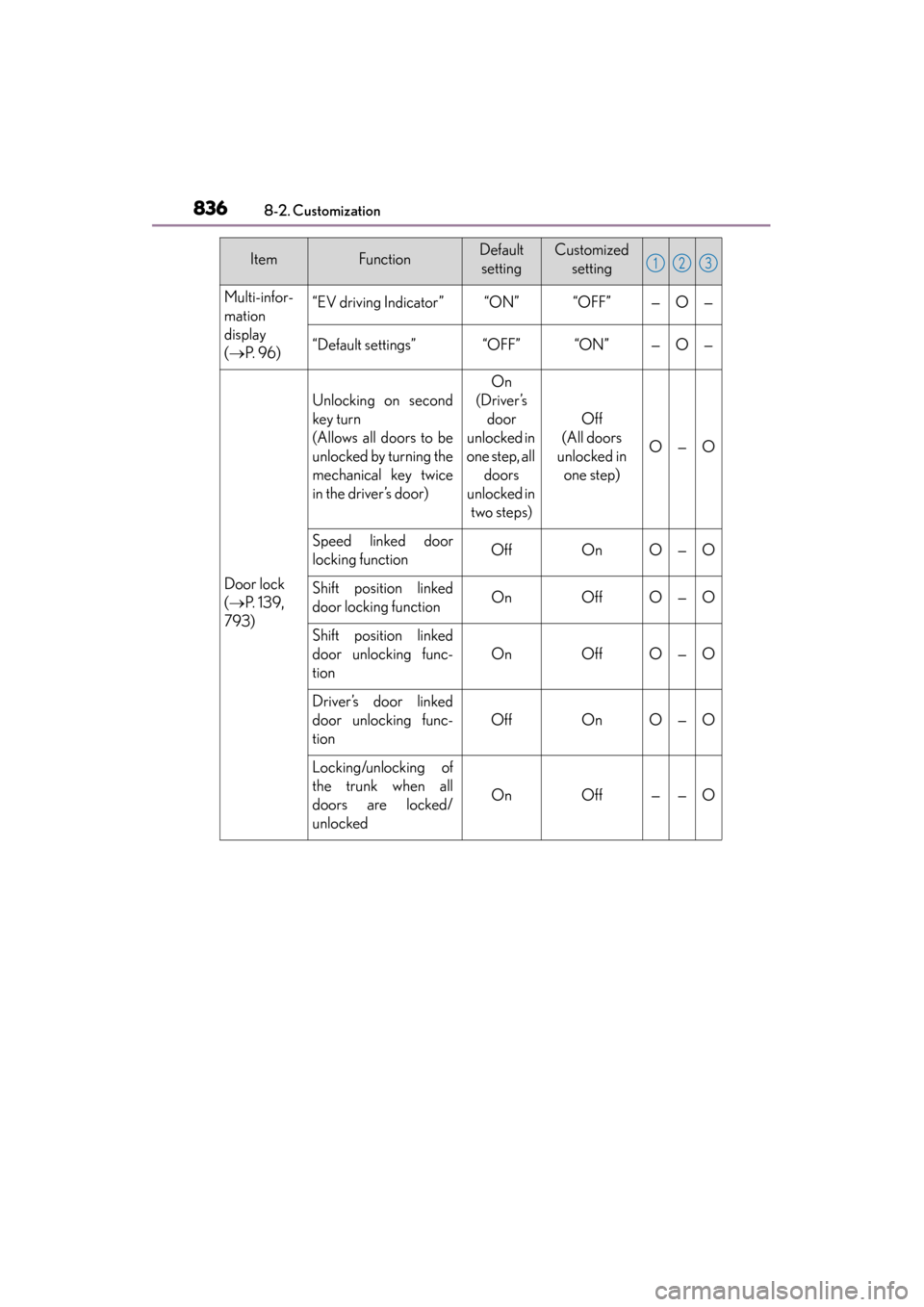

836
GS450h_OM_OM30D52U_(U)
8-2. Customization
Multi-infor-
mation
display
(→ P. 9 6 )“EV driving Indicator”“ON”“OFF”—O—
“Default settings”“OFF”“ON”—O—
Door lock
(→ P. 1 3 9 ,
793)
Unlocking on second
key turn
(Allows all doors to be
unlocked by turning the
mechanical key twice
in the driver’s door)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Speed linked door
locking functionOffOnO—O
Shift position linked
door locking functionOnOffO—O
Shift position linked
door unlocking func-
tion
OnOffO—O
Driver’s door linked
door unlocking func-
tion
OffOnO—O
Locking/unlocking of
the trunk when all
doors are locked/
unlocked
OnOff——O
ItemFunctionDefaultsettingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 836 Monday, July 29, 2013 12:07 PM

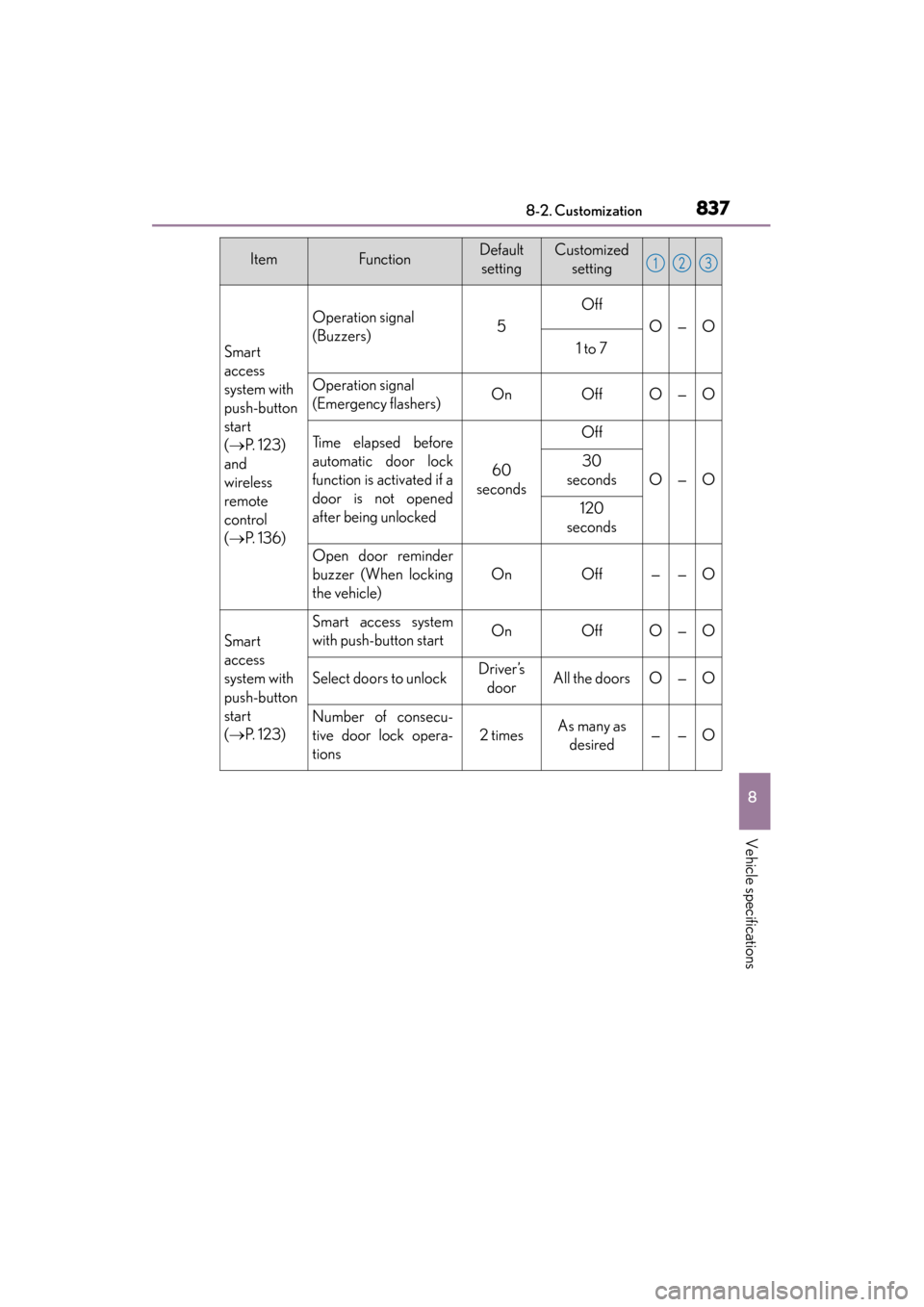

GS450h_OM_OM30D52U_(U)
8378-2. Customization
8
Vehicle specifications
Smart
access
system with
push-button
start
(→ P. 1 2 3 )
and
wireless
remote
control
( → P. 1 3 6 )
Operation signal
(Buzzers)5
Off
O—O
1 to 7
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock
function is activated if a
door is not opened
after being unlocked
60
seconds
Off
O—O
30
seconds
120
seconds
Open door reminder
buzzer (When locking
the vehicle)
OnOff——O
Smart
access
system with
push-button
start
( → P. 1 2 3 )
Smart access system
with push-button startOnOffO—O
Select doors to unlockDriver’s
doorAll the doorsO—O
Number of consecu-
tive door lock opera-
tions
2 timesAs many as desired——O
ItemFunctionDefaultsettingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 837 Monday, July 29, 2013 12:07 PM

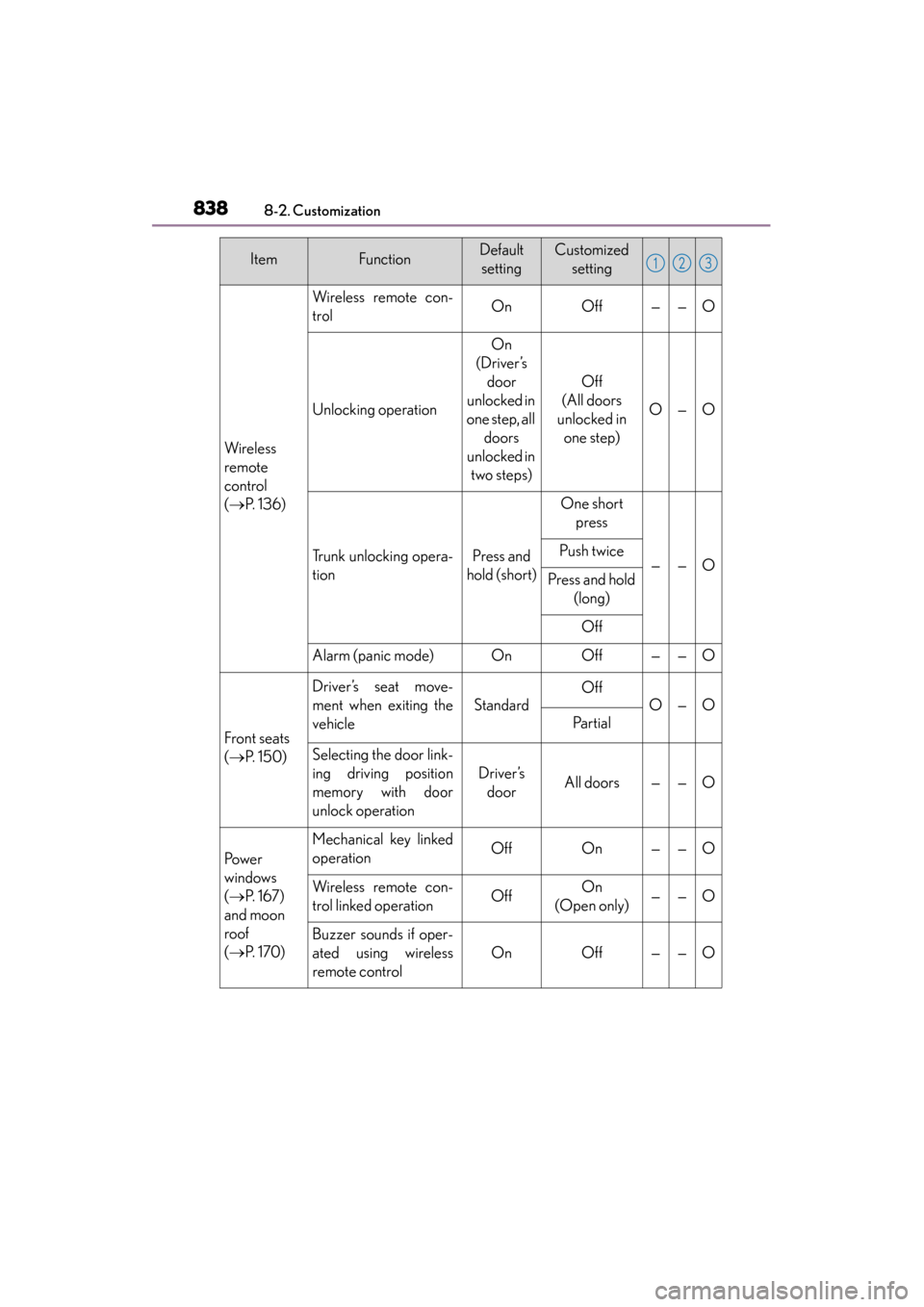

838
GS450h_OM_OM30D52U_(U)
8-2. Customization
Wireless
remote
control
(→ P. 1 3 6 )
Wireless remote con-
trolOnOff——O
Unlocking operation
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Trunk unlocking opera-
tionPress and
hold (short)
One short press
——OPush twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
Front seats
(→ P. 1 5 0 )
Driver’s seat move-
ment when exiting the
vehicle
Standard
Off
O—O
Pa r t i a l
Selecting the door link-
ing driving position
memory with door
unlock operation
Driver’s
doorAll doors——O
Po we r
windows
(→ P. 1 6 7 )
and moon
roof
( → P. 1 7 0 )
Mechanical key linked
operationOffOn——O
Wireless remote con-
trol linked operationOffOn
(Open only)——O
Buzzer sounds if oper-
ated using wireless
remote control
OnOff——O
ItemFunctionDefault settingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 838 Monday, July 29, 2013 12:07 PM

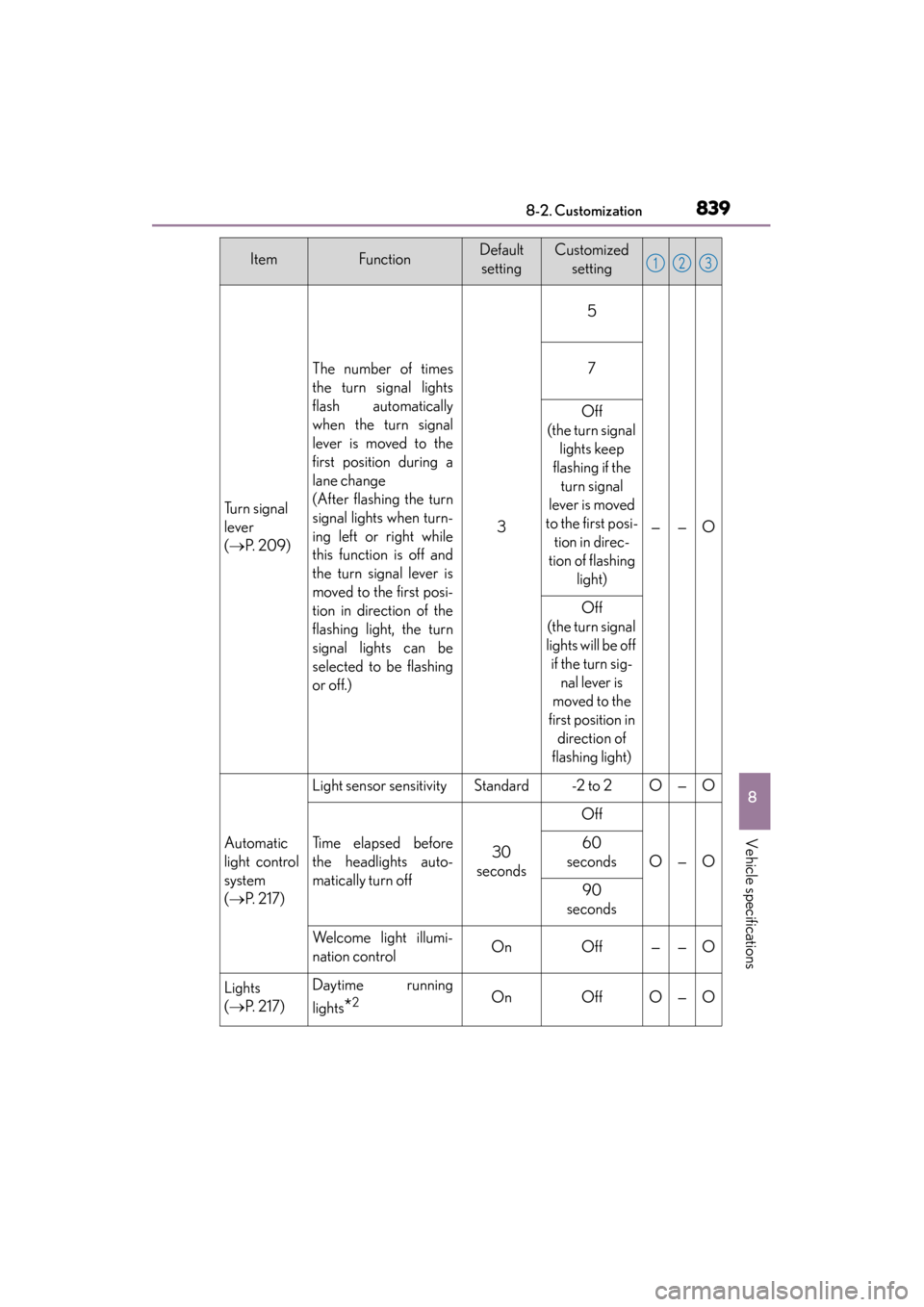

GS450h_OM_OM30D52U_(U)
8398-2. Customization
8
Vehicle specifications
Tu r n s i g n a l
lever
(→ P. 209)
The number of times
the turn signal lights
flash automatically
when the turn signal
lever is moved to the
first position during a
lane change
(After flashing the turn
signal lights when turn-
ing left or right while
this function is off and
the turn signal lever is
moved to the first posi-
tion in direction of the
flashing light, the turn
signal lights can be
selected to be flashing
or off.)
3
5
——O
7
Off
(the turn signal lights keep
flashing if the turn signal
lever is moved
to the first posi- tion in direc-
tion of flashing light)
Off
(the turn signal
lights will be off if the turn sig- nal lever is
moved to the
first position in direction of
flashing light)
Automatic
light control
system
( → P. 2 1 7 )
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
the headlights auto-
matically turn off30
seconds
Off
O—O
60
seconds
90
seconds
Welcome light illumi-
nation controlOnOff——O
Lights
( → P. 2 1 7 )Daytime running
lights
*2OnOffO—O
ItemFunctionDefault
settingCustomized setting123
GS450h_OM_OM30D52U_(U).book Page 839 Monday, July 29, 2013 12:07 PM
