Lexus GS450h 2016 Owner's Manual / LEXUS 2016 GS450H OWNERS MANUAL (OM30E99U)

GS450h_OM_OM30E99U_(U)
5018-2. Customization
8
Vehicle specifications

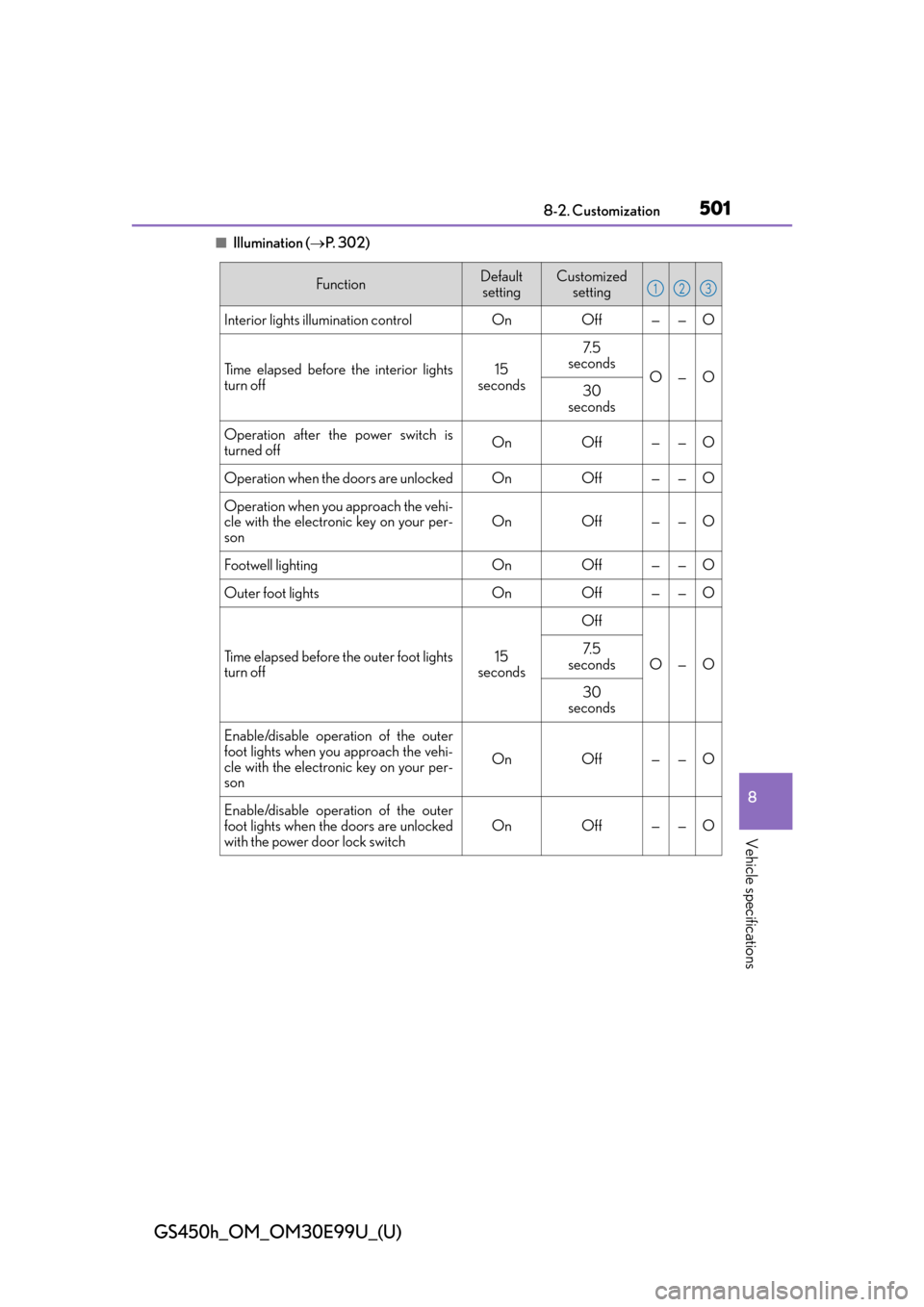

■Illumination (P. 3 0 2 )
FunctionDefault
settingCustomized setting
Interior lights illumination controlOnOff——O
Time elapsed before the interior lights
turn off15
seconds
7. 5
seconds
O—O30
seconds
Operation after the power switch is
turned offOnOff——O
Operation when the doors are unlockedOnOff——O
Operation when you approach the vehi-
cle with the electronic key on your per-
son
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the outer foot lights
turn off15
seconds
Off
O—O
7. 5
seconds
30
seconds
Enable/disable operation of the outer
foot lights when you approach the vehi-
cle with the electronic key on your per-
son
OnOff——O
Enable/disable operation of the outer
foot lights when the doors are unlocked
with the power door lock switchOnOff——O
123

502
GS450h_OM_OM30E99U_(U)
8-2. Customization

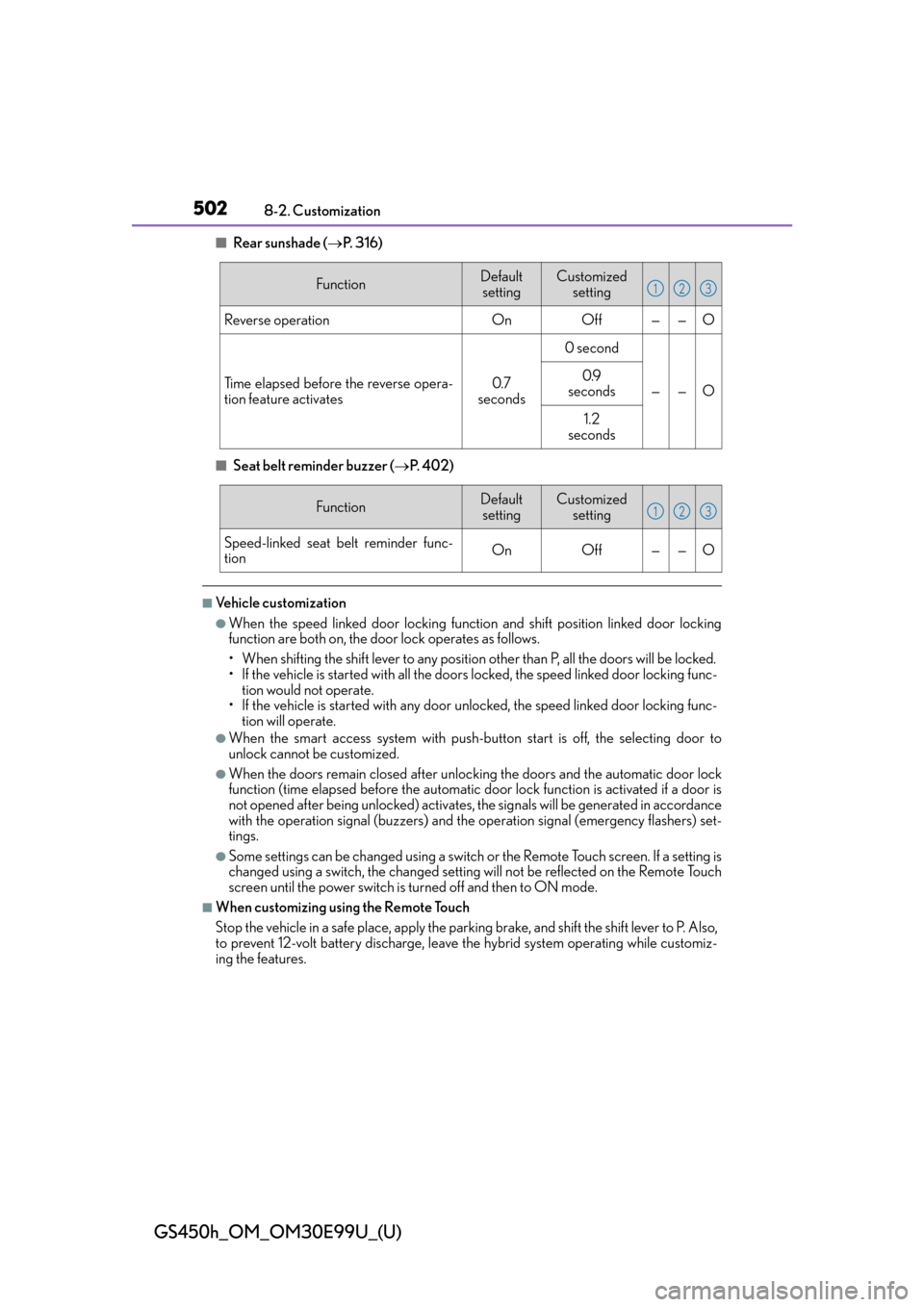

■Rear sunshade (P. 3 1 6 )
■Seat belt reminder buzzer ( P. 4 0 2 )
■Vehicle customization
●When the speed linked door locking functi on and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all th e doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart access system with push-but ton start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unloc king the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlocked) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch, the ch anged setting will not be reflected on the Remote Touch
screen until the power switch is turned off and then to ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent 12-volt battery discharge, leave the hybrid system operating while customiz-
ing the features.
FunctionDefault settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the reverse opera-
tion feature activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
123
FunctionDefault
settingCustomized setting
Speed-linked seat belt reminder func-
tionOnOff——O
123

GS450h_OM_OM30E99U_(U)
5038-2. Customization
8
Vehicle specifications

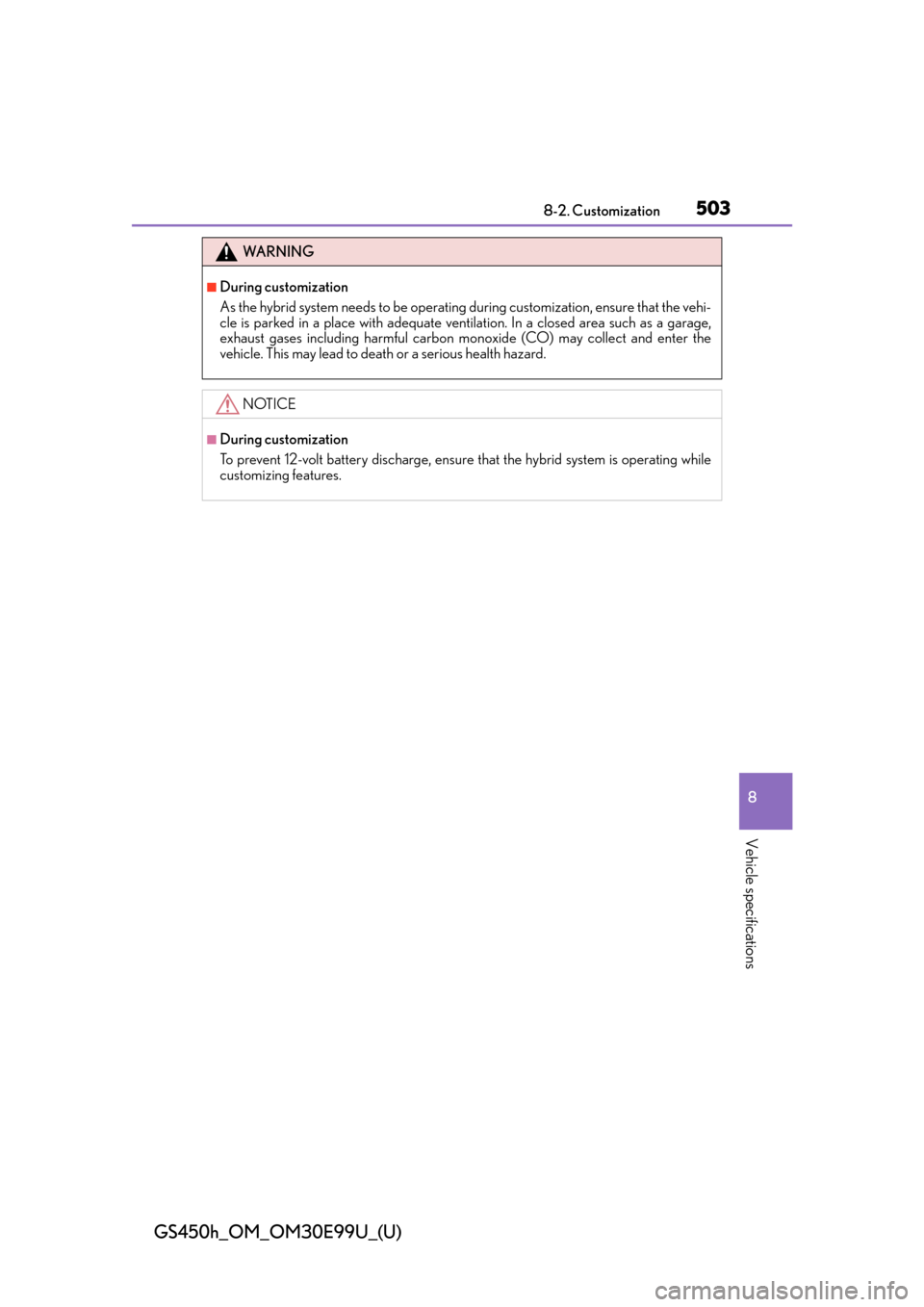

WA R N I N G
■During customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.

504
GS450h_OM_OM30E99U_(U)
8-3. Initialization

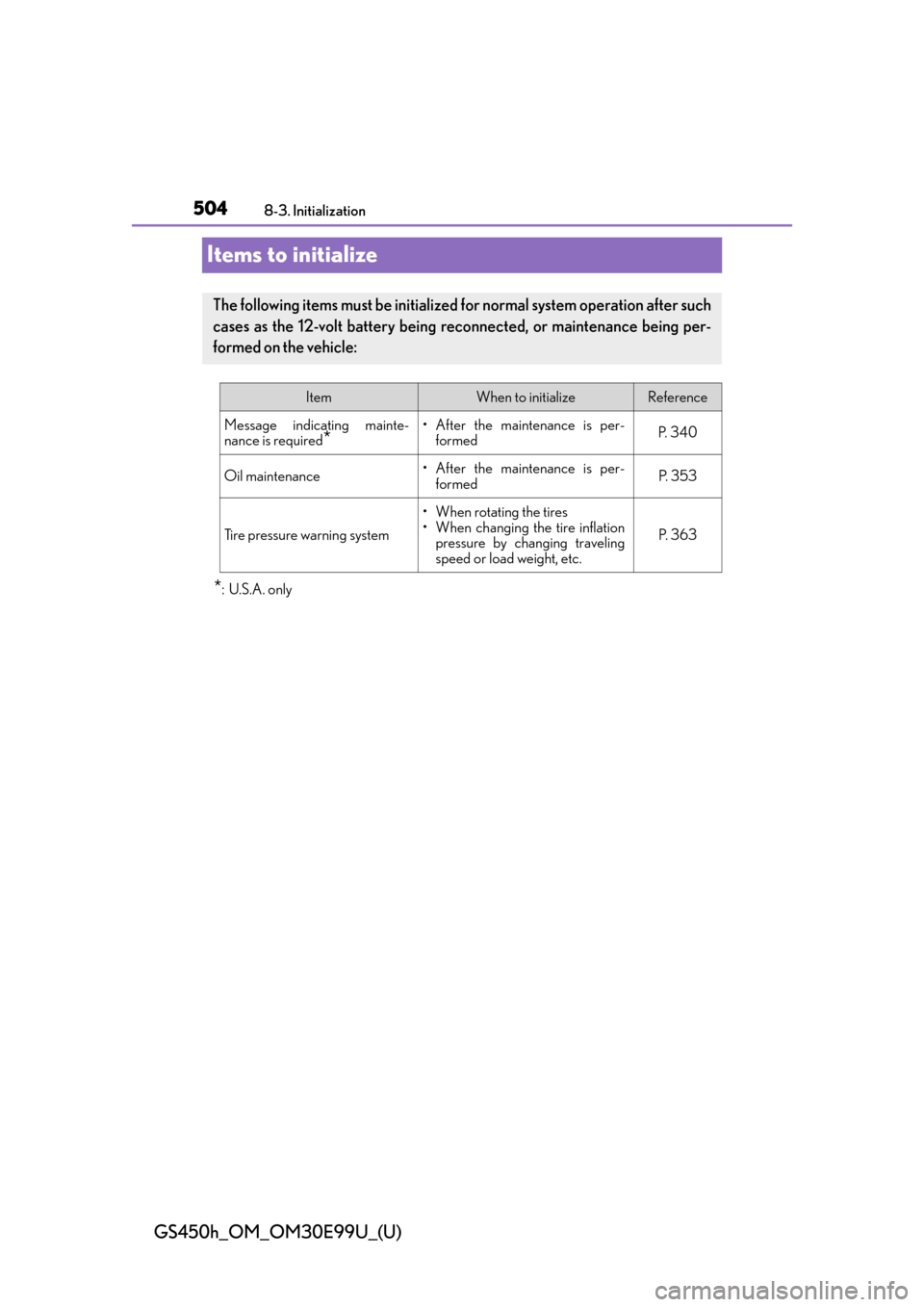

Items to initialize
*: U.S.A. only
The following items must be initialized for normal system operation after such
cases as the 12-volt battery being reconnected, or maintenance being per-
formed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required*• After the maintenance is per- formedP. 3 4 0
Oil maintenance• After the maintenance is per-
formedP. 3 5 3
Tire pressure warning system
• When rotating the tires
• When changing the tire inflationpressure by changing traveling
speed or load weight, etc.
P. 3 6 3

505
GS450h_OM_OM30E99U_(U)

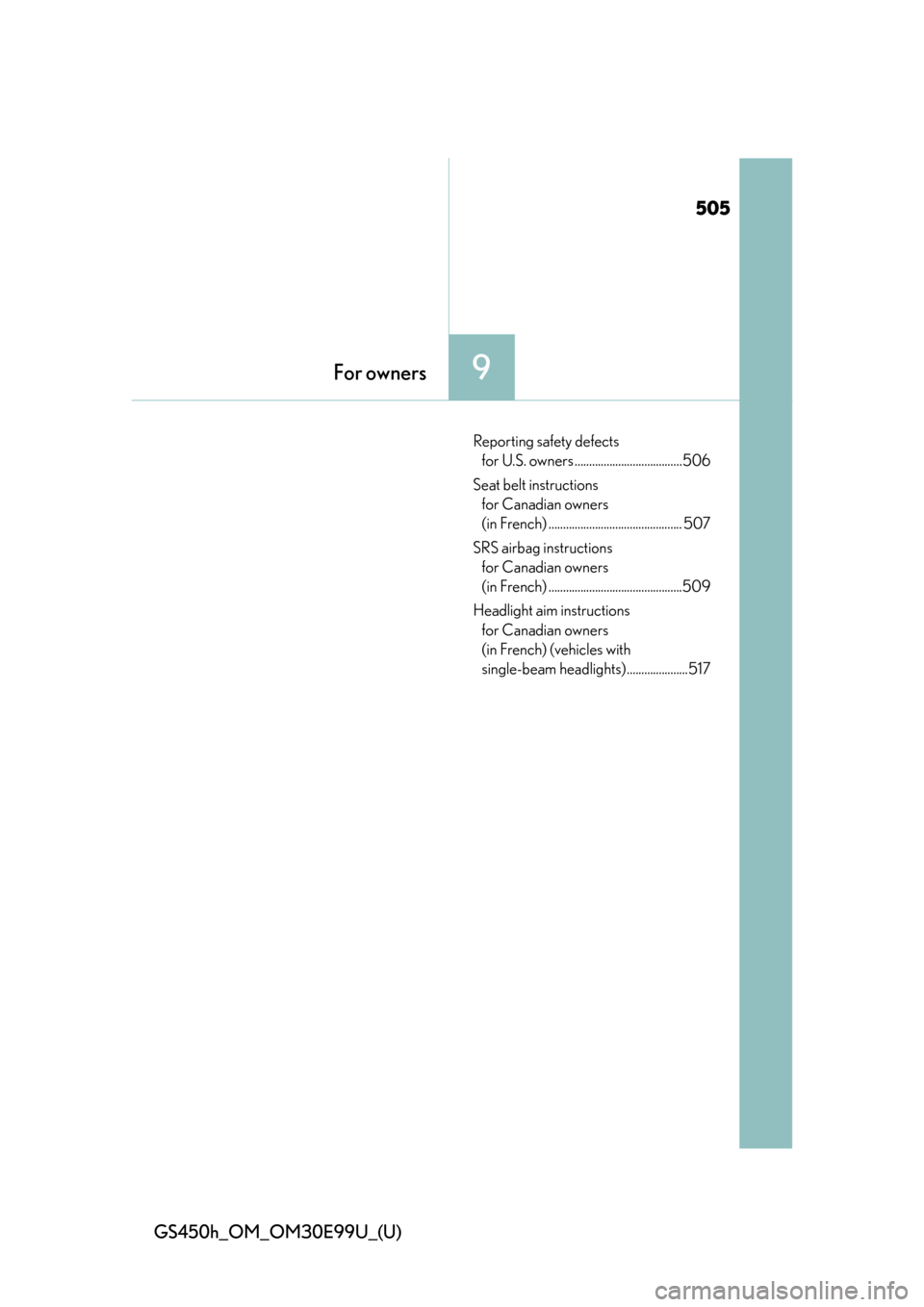

9For owners
Reporting safety defects for U.S. owners .....................................506
Seat belt instructions for Canadian owners
(in French) .............................................. 507
SRS airbag instructions for Canadian owners
(in French) ..............................................509
Headlight aim instructions for Canadian owners
(in French) (vehicles with
single-beam headlights).....................517

506
GS450h_OM_OM30E99U_(U)

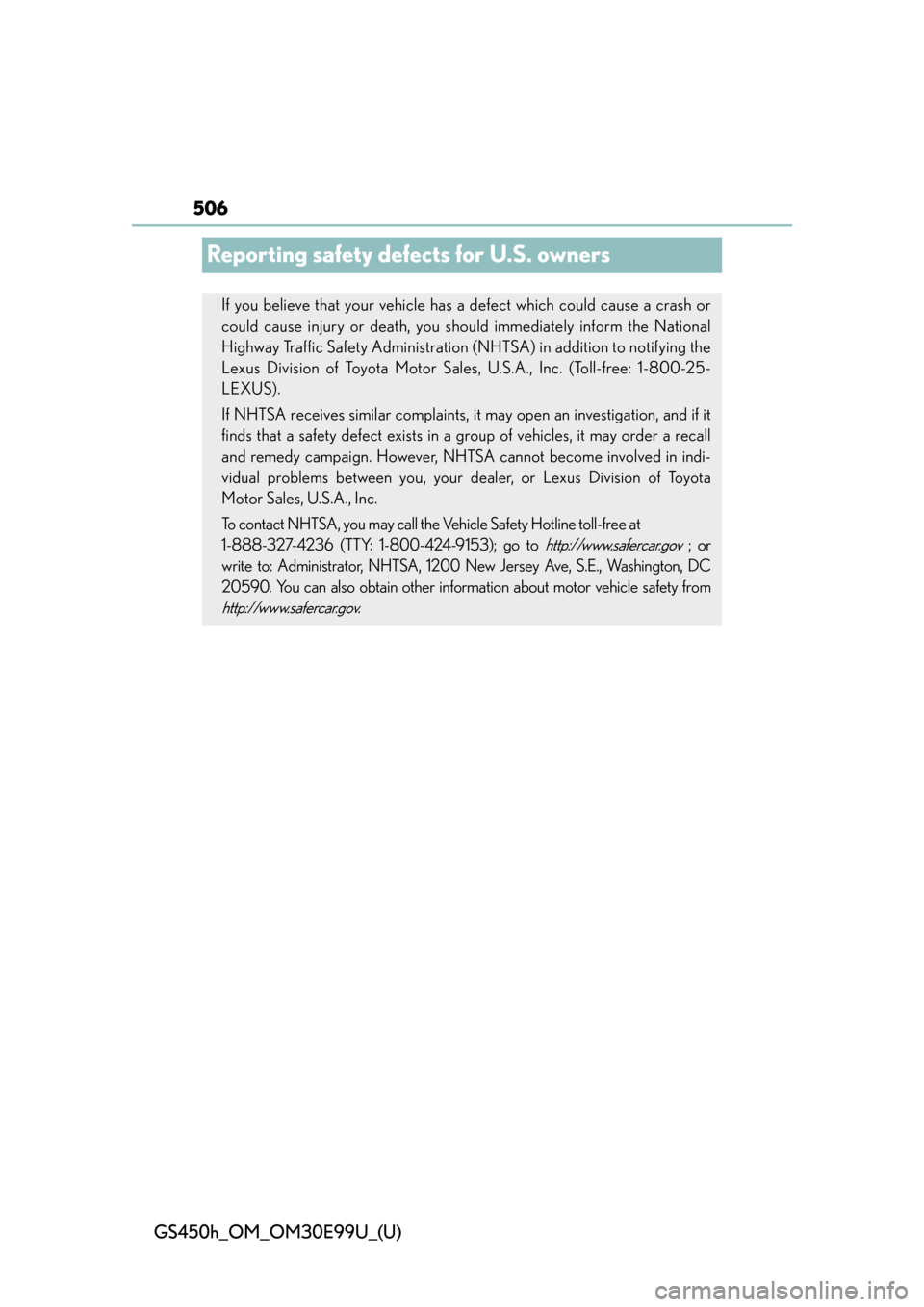

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying the
Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-25-
LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot become involved in indi-
vidual problems between you, your dealer, or Lexus Division of Toyota
Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or
write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.

507
GS450h_OM_OM30E99U_(U)
9
For owners

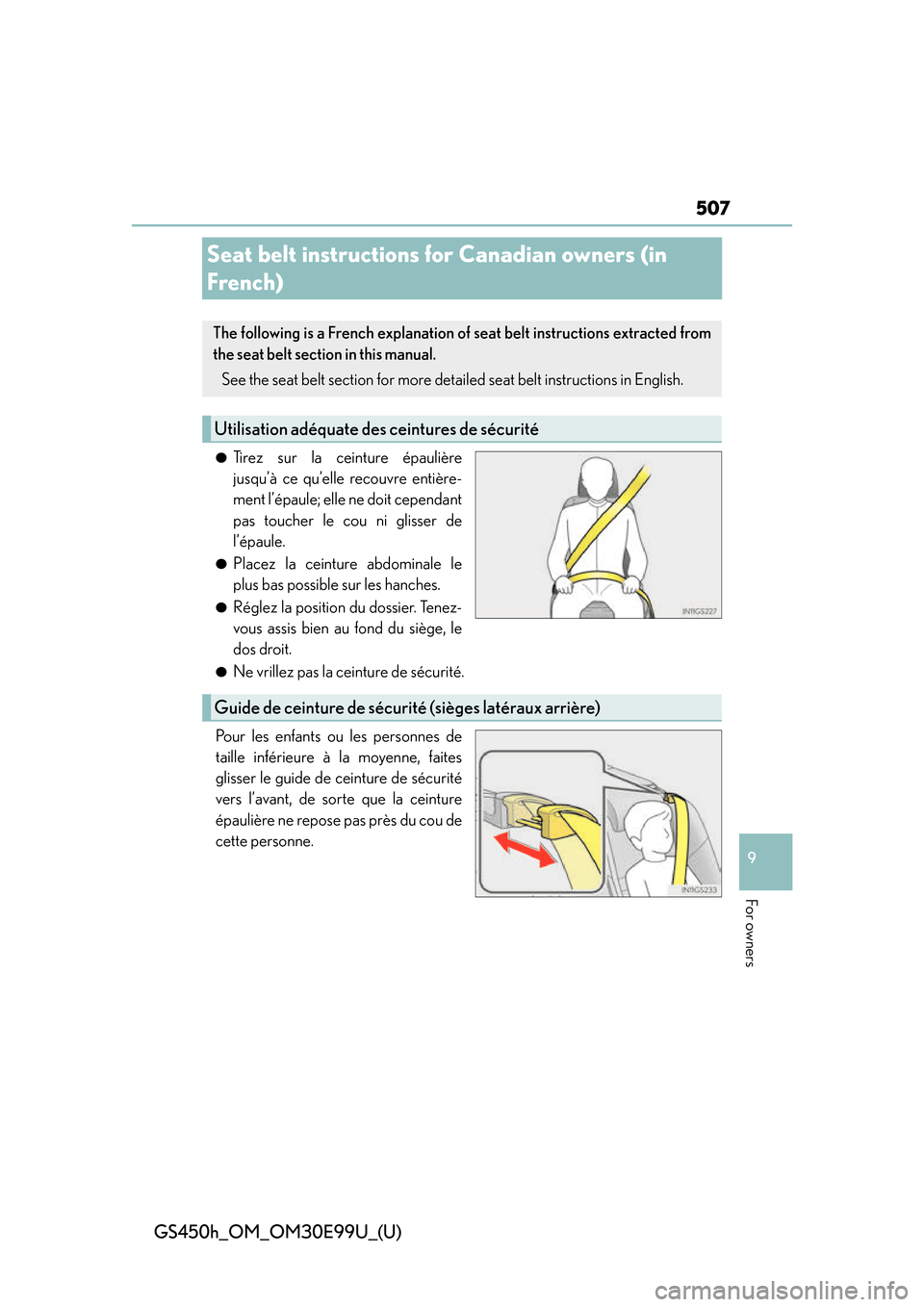

Seat belt instructions for Canadian owners (in
French)
●Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre entière-
ment l’épaule; elle ne doit cependant
pas toucher le cou ni glisser de
l’épaule.
●Placez la ceinture abdominale le
plus bas possible sur les hanches.
●Réglez la position du dossier. Tenez-
vous assis bien au fond du siège, le
dos droit.
●Ne vrillez pas la ceinture de sécurité.
Pour les enfants ou les personnes de
taille inférieure à la moyenne, faites
glisser le guide de ceinture de sécurité
vers l’avant, de sorte que la ceinture
épaulière ne repose pas près du cou de
cette personne.
The following is a French explanation of seat belt instructions extracted from
the seat belt section in this manual. See the seat belt section for more deta iled seat belt instructions in English.
Utilisation adéquate des ceintures de sécurité
Guide de ceinture de sécurité (sièges latéraux arrière)

508
GS450h_OM_OM30E99U_(U)

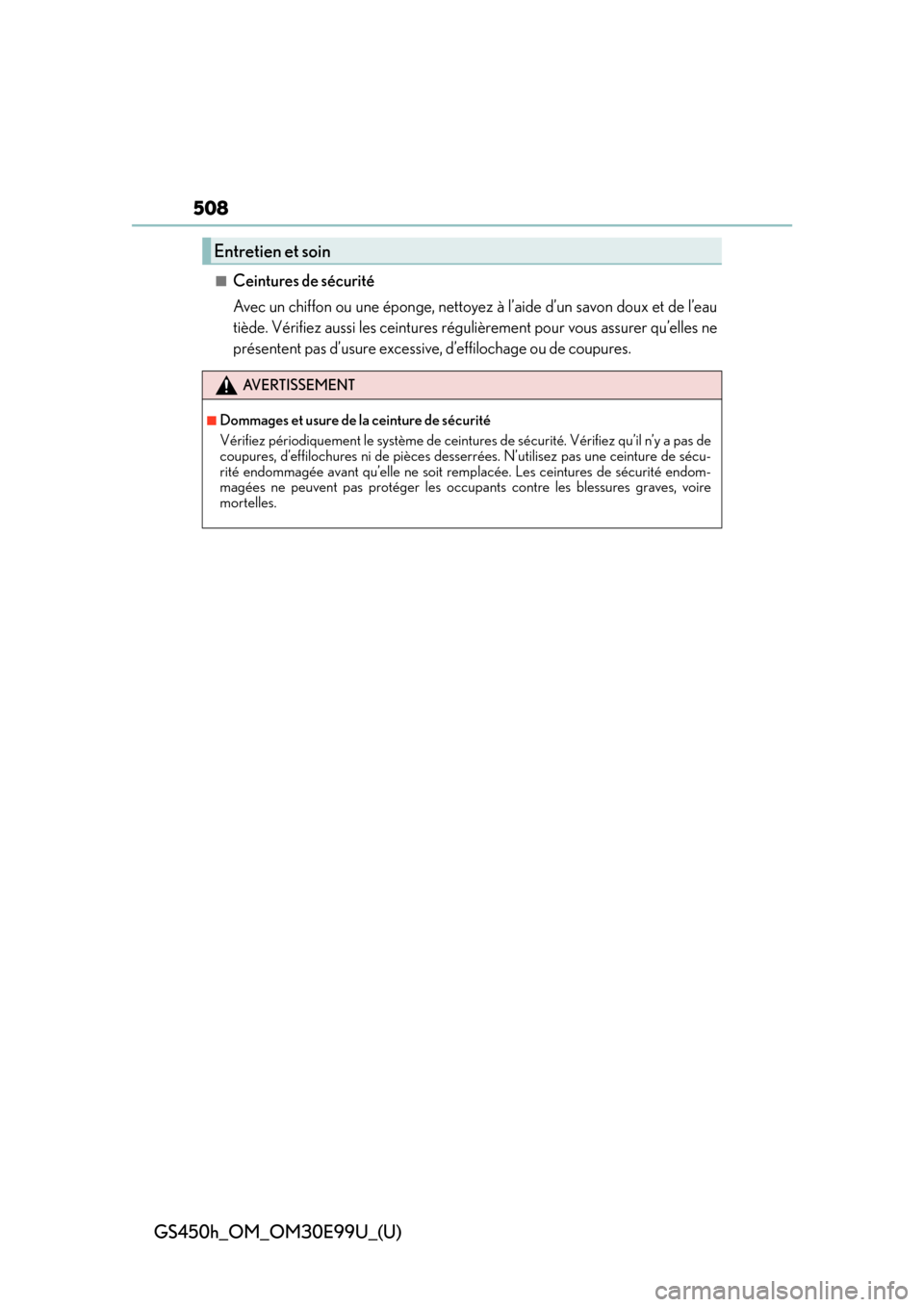

■Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux et de l’eau
tiède. Vérifiez aussi les ceintures régulièrement pour vous assurer qu’elles ne
présentent pas d’usure excessive, d’effilochage ou de coupures.
Entretien et soin
AVERTISSEMENT
■Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il n’y a pas de
coupures, d’effilochures ni de pièces desserrées. N’utilisez pas une ceinture de sécu-
rité endommagée avant qu’elle ne soit remp lacée. Les ceintures de sécurité endom-
magées ne peuvent pas protéger les occu pants contre les blessures graves, voire
mortelles.

509
GS450h_OM_OM30E99U_(U)
9
For owners

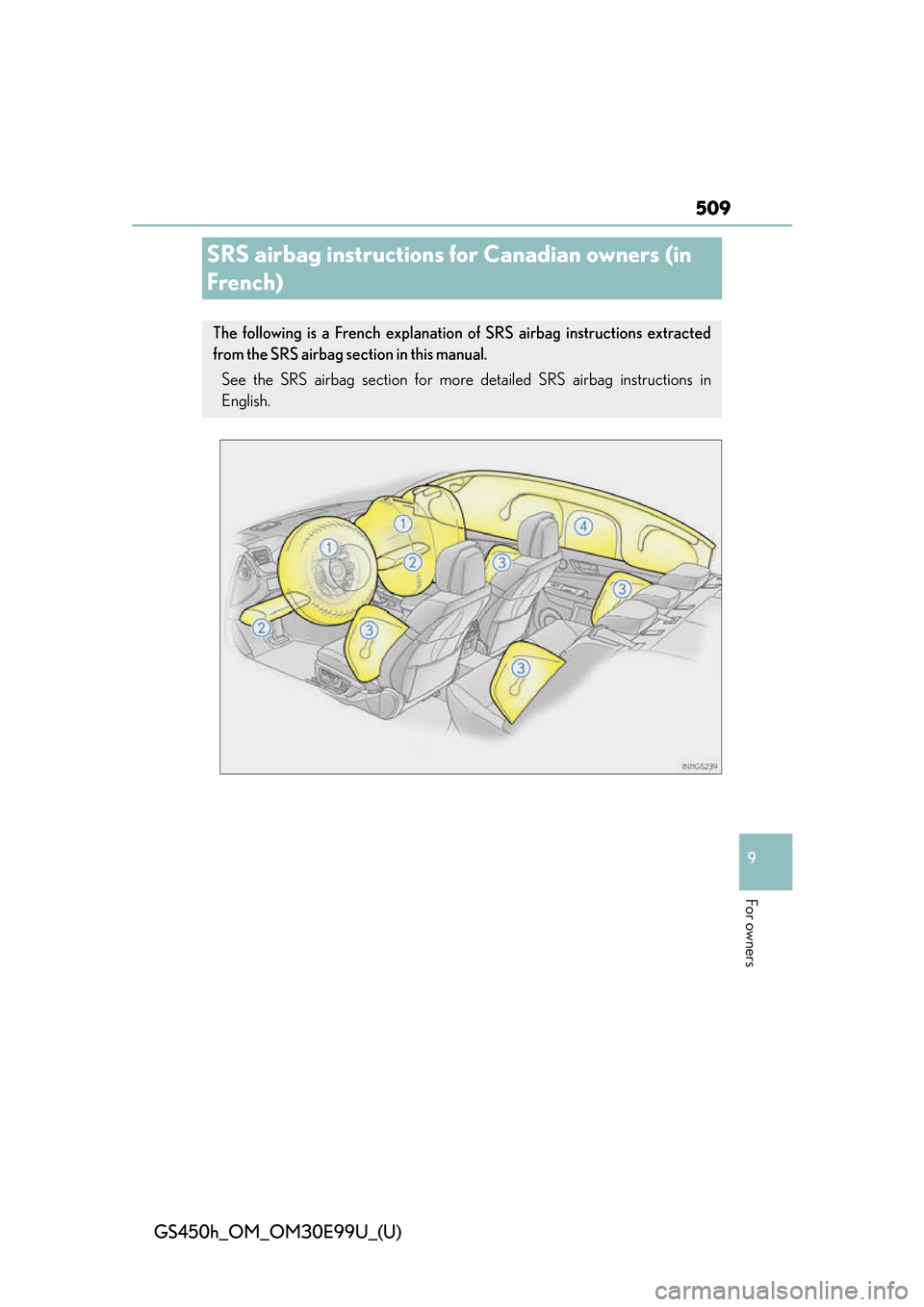

SRS airbag instructions for Canadian owners (in
French)
The following is a French explanation of SRS airbag instructions extracted
from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instructions in
English.

510
GS450h_OM_OM30E99U_(U)

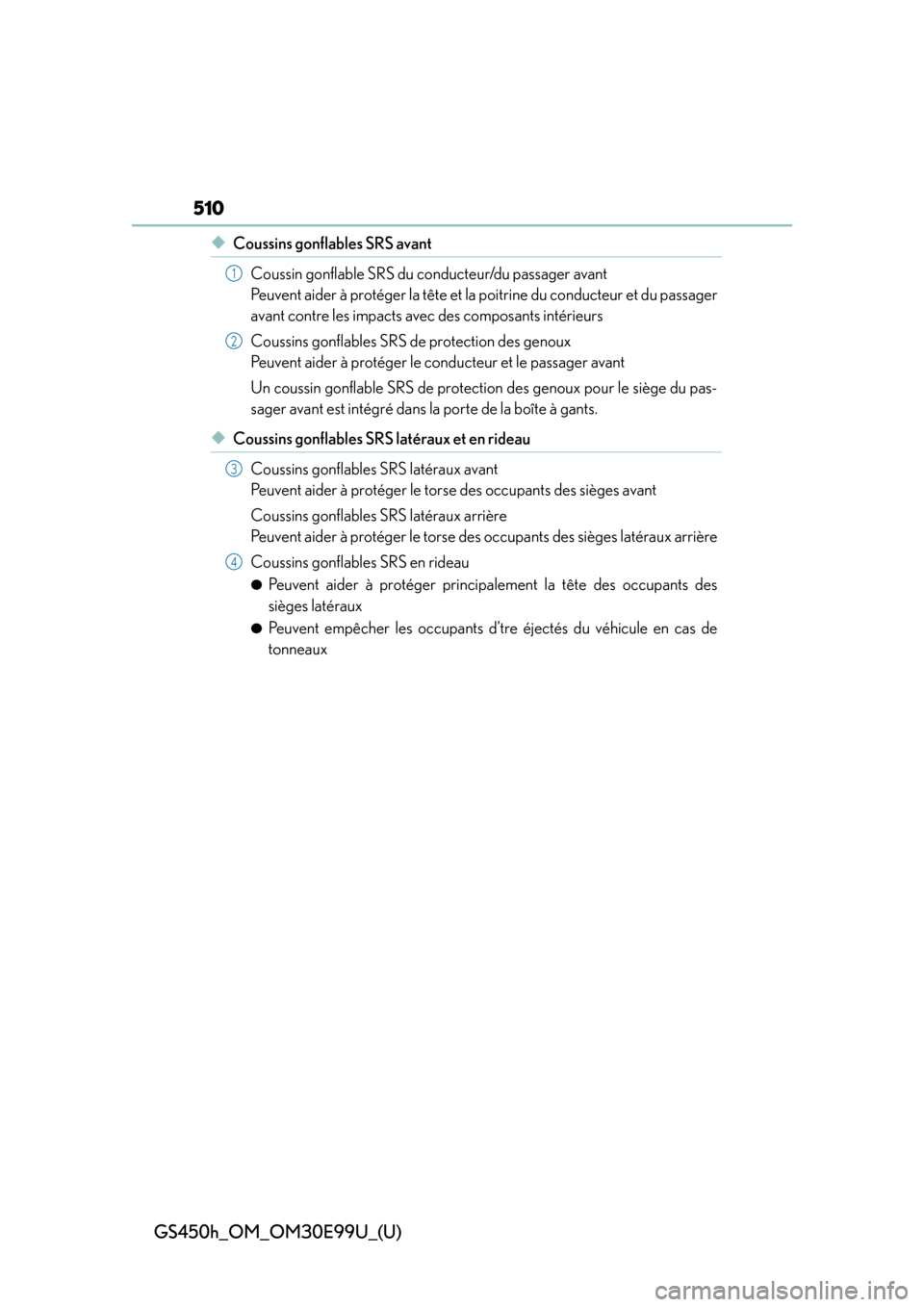

◆Coussins gonflables SRS avantCoussin gonflable SRS du conducteur/du passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du passager
avant contre les impacts avec des composants intérieurs
Coussins gonflables SRS de protection des genoux
Peuvent aider à protéger le conducteur et le passager avant
Un coussin gonflable SRS de protection des genoux pour le siège du pas-
sager avant est intégré dans la porte de la boîte à gants.
◆Coussins gonflables SRS latéraux et en rideau
Coussins gonflables SRS latéraux avant
Peuvent aider à protéger le torse des occupants des sièges avant
Coussins gonflables SRS latéraux arrière
Peuvent aider à protéger le torse des occupants des sièges latéraux arrière
Coussins gonflables SRS en rideau
●Peuvent aider à protéger principalement la tête des occupants des
sièges latéraux
●Peuvent empêcher les occupants d’tre éjectés du véhicule en cas de
tonneaux
1
2
3
4
