15Pictorial index
GS450h_OM_OM30G62U_(U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 207
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
To prevent freezing (windshield wiper de-icer)
*. . . . . . . . . . . . . . . . . . . . . . . P. 293
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 472
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 365
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 477
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 27 6
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . P. 365
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 441
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 351
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46 1
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 12
Headlights/front side marker lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Parking lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Tail lights/rear side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Stop lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Back-up light
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
4
5
6
7
Light bulbs of the exte rior lights for driving
(Replacing method: P. 391, Watts: P. 480)
*: If equipped
8
9
10
11
12

195
GS450h_OM_OM30G62U_(U)4-2. Driving procedures
4
Driving
Turn signal lever
The lever will return to its original position immediately after operation. Right turn
Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
Left turn
■If the turn signals do not stop flashing af ter turning left or right, or if you want
to stop them flashing
Operate the lever in the opposite direct ion to either position or . If you
move the lever to either position or , the selected turn signals will flash.
■Turn signals can be operated when
The power switch is in ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing befo re a lane change has been performed
Operate the lever again.
Operating instructions
1
2
3
4
23
14

391
GS450h_OM_OM30G62U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. ( →P. 480)
→ P. 354
Front turn signal light (vehicles with single-beam headlights)
You may replace the following bulbs by yo urself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
1

392
GS450h_OM_OM30G62U_(U)
6-3. Do-it-yourself maintenance
■Front turn signal light (vehicles with single-beam headlights)For the left side only: Remove the
bolt and move the washer fluid
filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Replacing light bulbs
1
2
3

GS450h_OM_OM30G62U_(U)
3936-3. Do-it-yourself maintenance
6
Maintenance and care
When installing, reverse the steps listed.
After installing the bulb base, secure the cord with the clips and if replacing the left
side bulb, make sure to install the bolt for the washer fluid fille r opening in its origi-
nal position.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlights
●Parking lights/daytime running lights
●Front side marker lights
●Front turn signal lights (vehic les with triple-beam headlights)
●Side turn signal lights
●Stop/tail lights
●Stop lights
●Rear side marker lights
●Rear turn signal lights
●Back-up lights
●High mounted stoplight
●License plate lights
●Outer foot lights
4
Right sideLeft side

394
GS450h_OM_OM30G62U_(U)
6-3. Do-it-yourself maintenance
■LED Lights
The lights other than the front turn signal light (vehicles with single-beam headlights) and
outer foot lights each consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→P. 388
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replac e the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bu lb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is sc ratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering th e headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

480
GS450h_OM_OM30G62U_(U)
8-1. Specifications

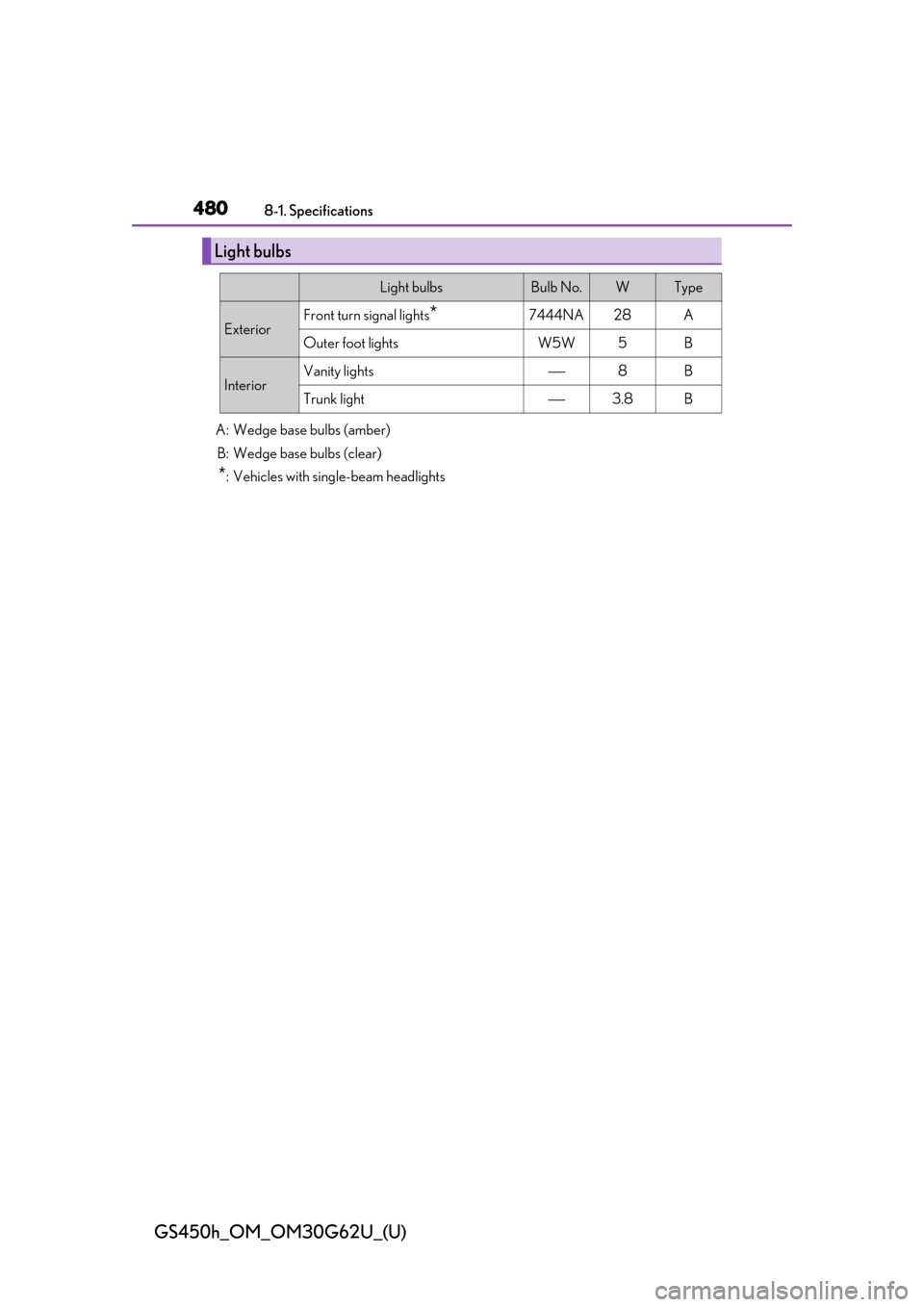

Light bulbs
Light bulbsBulb No.WType
ExteriorFront turn signal lights*7444NA28A
Outer foot lightsW5W5B
InteriorVanity lights⎯8B
Trunk light⎯3.8B
A: Wedge base bulbs (amber)B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

533Alphabetical index
GS450h_OM_OM30G62U_(U)
Engine switch .......................................... 182Auto power off function................... 184
Changing the power switch modes ................................................... 183
If your vehicle has to be stopped in an emergency .............................397
Starting the hybrid system .............. 182
EPS (Electric Power Steering) ....... 269 Function ..................................................269
Warning light ...................................... 405
Warning message .............................. 410
EV drive mode.........................................187
Event data recorder (EDR) ...................10
First-aid kit storage net ........................313
Flat tire ........................................................441
Floor mats ................................................... 26
Fluid Brake ........................................................ 477
Hybrid transmission.......................... 476
Washer .................................................... 361
Footwell light .......................................... 304
Front passenger occupant classification system ............................ 46
Front personal lights............................305
Front seats .................................................143 Adjustment ............................................. 143
Cleaning ................................................ 340
Correct driving posture .................... 28
Driving position memory ................ 145
Head restraints ..................................... 150
Power easy access system ............ 145
Seat heaters ......................................... 302
Seat position memory....................... 145
Seat ventilators ................................... 302 Front side marker lights..................... 200
Light switch...........................................200
Replacing light bulbs ....................... 393
Welcome light illumination control.................................................... 123
Front turn signal lights .......................... 195 Replacing light bulbs ........... 392, 393
Turn signal lever ...................................195
Wattage ................................................ 480
Fuel............................................................... 213 Capacity..................................................472
Fuel gauge ...............................................88
Information..............................................481
Refueling .................................................. 213
Type...........................................................472
Warning light .......................................406
Warning messages ............................410
Fuel consumption Average fuel consumption ...............97
Average fuel consumption after refueling .......................................97
Current fuel consumption.................97
Fuel filler door.......................................... 213 Refueling .................................................. 213
When the fuel filler door cannot be opened ........................... 215
Fuses.......................................................... 384
Garage door opener............................ 321
Gauges........................................................ 88
Glove box ............................................... 308
Glove box light...................................... 308
F
G

536Alphabetical index
GS450h_OM_OM30G62U_(U)
Language (multi-information display) ............ 495
LATCH anchors ...................................... 58
LDH (Lexus Dynamic Handling system) .............................. 269
Lever Auxiliary catch lever .......................... 351
Hood lock release lever .................. 351
Internal trunk release lever............... 131
Shift lever ................................................. 189
Turn signal lever .................................. 195
Wiper lever ...........................................207
Lexus Dynamic Handling system (LDH)...................................... 269
Lexus Enform
*
Lexus Enform Safety Connect........ 329
Lexus parking assist monitor
*
Lexus Safety System+........................... 217 Automatic High Beam ................... 203
Dynamic radar cruise control with full-speed range .................... 243
LKA (Lane-Keeping Assist) ......... 234
PCS (Pre-Collision System) ........ 223
License plate lights...............................200 Light switch .......................................... 200
Replacing light bulbs ........................393
Welcome light illumination cont rol ..........................123
Light bulbs Replacing .................................. 392, 393
Wattage ................................................. 480 Lights
Headlight switch ................................200
Illuminated entry system.................306
Interior light...........................................305
Interior lights list..................................304
Personal lights .....................................305
Replacing light bulbs ........... 392, 393
Trunk light............................................... 130
Turn signal lever ...................................195
Vanity lights ............................................ 314
Wattage ................................................ 480
Welcome light illumination control.................................................... 123
LKA (Lane-Keeping Assist) .............234 Operation.............................................. 238
Warning messages ............................410
Load capacity .......................................... 179
Lock steering column........................... 184
Low profile tire ...................................... 368
Luggage hook ......................................... 312
Luggage security system ....................130
Main display ........................................... 285
Maintenance Do-it-yourself maintenance ......... 349
General maintenance ..................... 345
Maintenance data.............................. 470
Maintenance requirements .......... 343
L
M

539Alphabetical index
GS450h_OM_OM30G62U_(U)
Radar cruise control (dynamic radar cruise control with
full-speed range) ............................... 243
Radiator .................................................... 359
Radio
*
RBDS (Radio Broadcast Data Systems)
*
Rear air conditioning system ........... 298
Rear door sunshades ........................... 318
Rear personal lights.............................305
Rear side marker lights ......................200 Light switch .......................................... 200
Replacing light bulbs ........................393
Welcome light illumination cont rol ..........................123
Rear seat heaters.................................. 302
Rear sunshade ........................................ 318 Operation ............................................... 318
Reverse operation feature.............. 319
Rear turn signal lights .......................... 195 Replacing light bulbs ........................393
Turn signal lever .................................. 195
Rear view mirror Inside rear view mirror ..................... 154
Outside rear view mirrors .............. 156
Rear view monitor system
*
Rear window defoggers .................... 293
Refueling ....................................................213 Capacity ................................................. 472
Fuel types ............................................... 472
Opening the fuel tank cap...............214
When the fuel filler door cannot be opened .......................... 215 Regenerative braking............................. 67
Remote Touch
*.................................... 282
Replacing Electronic key battery ..................... 382
Fuses ........................................................384
Light bulbs...............................................391
Tires ............................................................ 441
Reporting safety defects for U.S. owners ....................................510
Resetting the message indicating maintenance is required .................344
Rev indicator ............................................. 90
Rev peak ..................................................... 90
Road accident cautions ......................... 72
Seat belts .................................................... 30 Adjusting the seat belt........................ 30
Automatic Locking Retractor .......... 31
Child restraint system installation ............................................. 59
Cleaning and maintaining the seat belt ......................................... 341
Emergency Locking Retractor (ELR) ................................... 31
How to wear your seat belt............. 30
How your child should wear the seat belt ...........................................32
Pregnant women, proper seat belt use ......................................... 33
Reminder light and buzzer ...........406
Seat belt extender .................................32
Seat belt pretensioners........................ 31
SRS warning light .............................. 404
R
S
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
