LEXUS ENFORM WITH SAFETY CONNECT

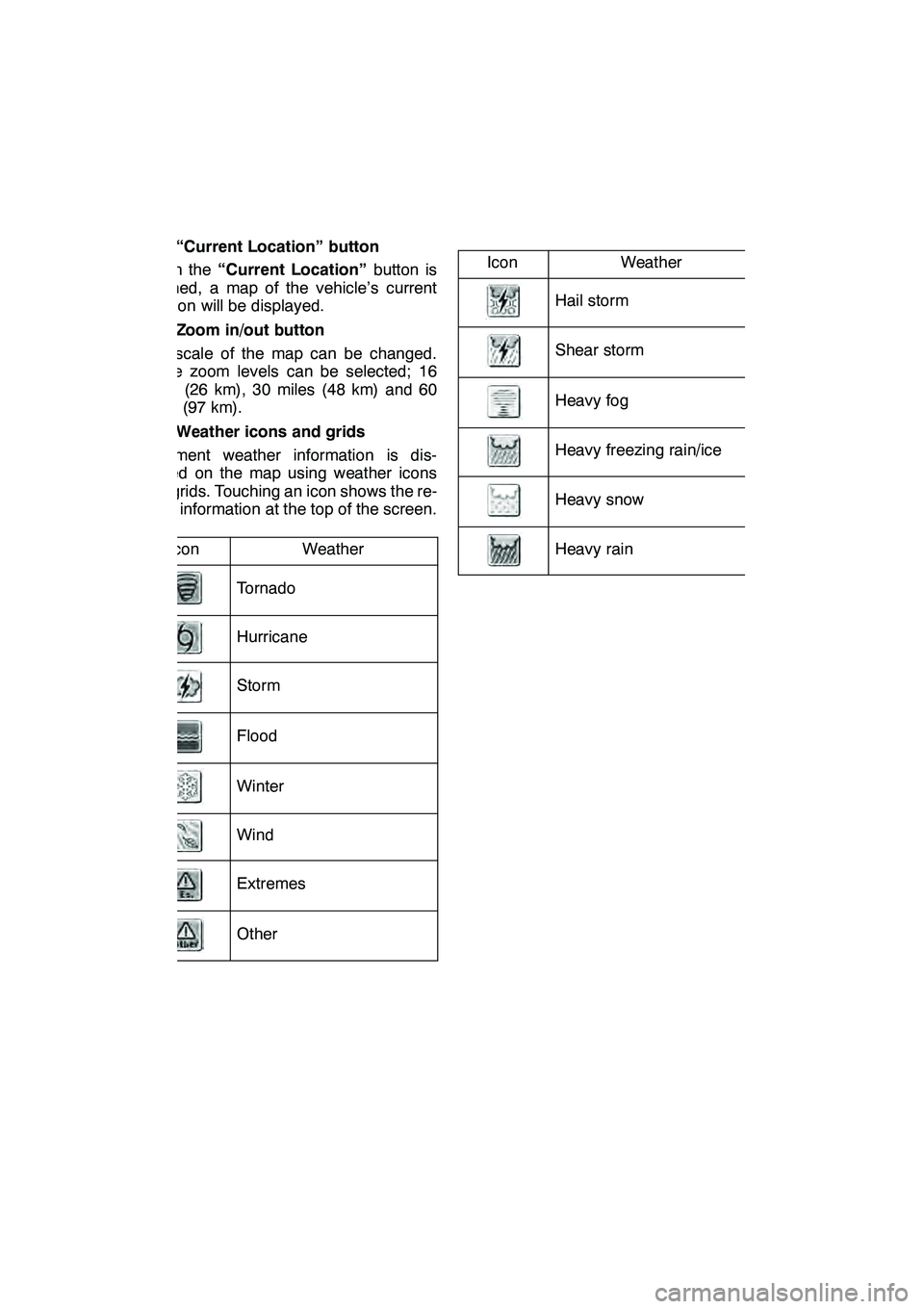

170
4“Current Location” button
When the “Current Location” button is
touched, a map of the vehicle’s current
location will be displayed.
5Zoom in/out button
The scale of the map can be changed.
Three zoom levels can be selected; 16
miles (26 km), 30 miles (48 km) and 60
miles (97 km).
6Weather icons and grids
Inclement weather information is dis-
played on the map using weather icons
and grids. Touching an icon shows the re-
lated information at the top of the screen.
Icon
Weather
Tornado
Hurricane
Storm
Flood
Winter
Wind
Extremes
Other
IconWeather
Hail storm
Shear storm
Heavy fog
Heavy freezing rain/ice
Heavy snow
Heavy rain
GX460 Navi (U)
OM60E73U
Finish
09.09.24

LEXUS ENFORM WITH SAFETY CONNECT
171
D

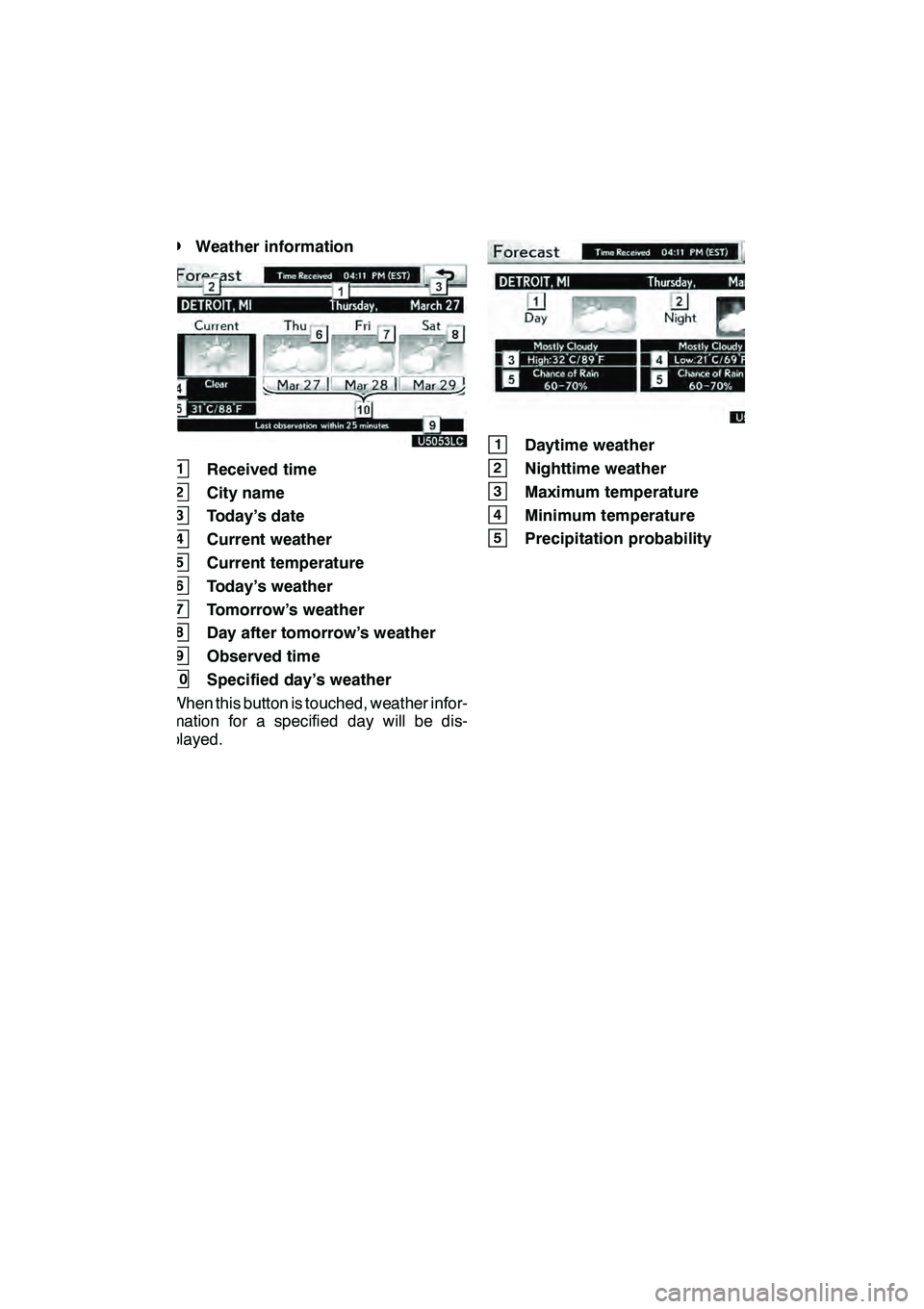

Weather information
U5053LC
1Received time
2City name
3Today’s date
4Current weather
5Current temperature
6Today’s weather
7Tomorrow’s weather
8Day after tomorrow’s weather
9Observed time
10Specified day’s weather
When this button is touched, weather infor-
mation for a specified day will be dis-
played.
U5054LC
1Daytime weather
2Nighttime weather
3Maximum temperature
4Minimum temperature
5Precipitation probability
GX460 Navi (U)
OM60E73U
Finish
09.09.24
66

LEXUS ENFORM WITH SAFETY CONNECT
172 D
Weather warnings
Weather warnings issued with in an
approximately 15.5 miles (25 km) radius
around the vehicle are displayed on the
warning screen.
U5055LC
“Show Map”: When this button is tou-
ched, the “XM NavWeather” screen will be
displayed.
“OK”: When this button is touched, the
screen will return to the map of the current
location.
This severe weather warning will display
again if the severe weather is within an
approximate 7.8 miles (12.5 km) radius
around the vehicle.
DXM NavWeather tindicator
U5056LC
When an XM NavWeather tWarning is is-
sued within the vicinity, the XM NavWeath-
er t indicator will appear on the screen.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

LEXUS ENFORM WITH SAFETY CONNECT
173
The subscription−based XM rNavTraffic
service allows the navigation system to
display traffic information on the map.
See page155 for subscription information.
The following operations can be per-
formed.
DShow XM rNavTraffic Information
Traffic information is displayed on the map.
(See page 173.)
DAuto Avoid Traffic
If any heavy congestion or moderate traffic
has been detected on the guidance route,
it may be possible for you to select another
route offered by the system. (See page
343.)
DTraffic Voice Guidance
Traffic information is provided using voice
guidance. (See page 339.)
DShow Free Flowing Traffic
Freely flowing traffic is shown by the arrow
on the map. (See page 344.)
INFORMATION
D Traffic voice guidance is available
only in English. To select English,
see “
DSelecting a language” on
page 331.
D When the “Traffic Information” in-
dicator is dimmed, “Auto Avoid
Traffic”, “Traffic Voice Guidance”
and “Show Free Flowing Traffic”
will not operate.
DShow XM rNavTraffic information
U3076LC
1. Touch “Show on Map”.
2. Touch “Traffic Information”.
“Traffic Information” indicator is high-
lighted.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
XM
rNavTraffic
66

LEXUS ENFORM WITH SAFETY CONNECT
174

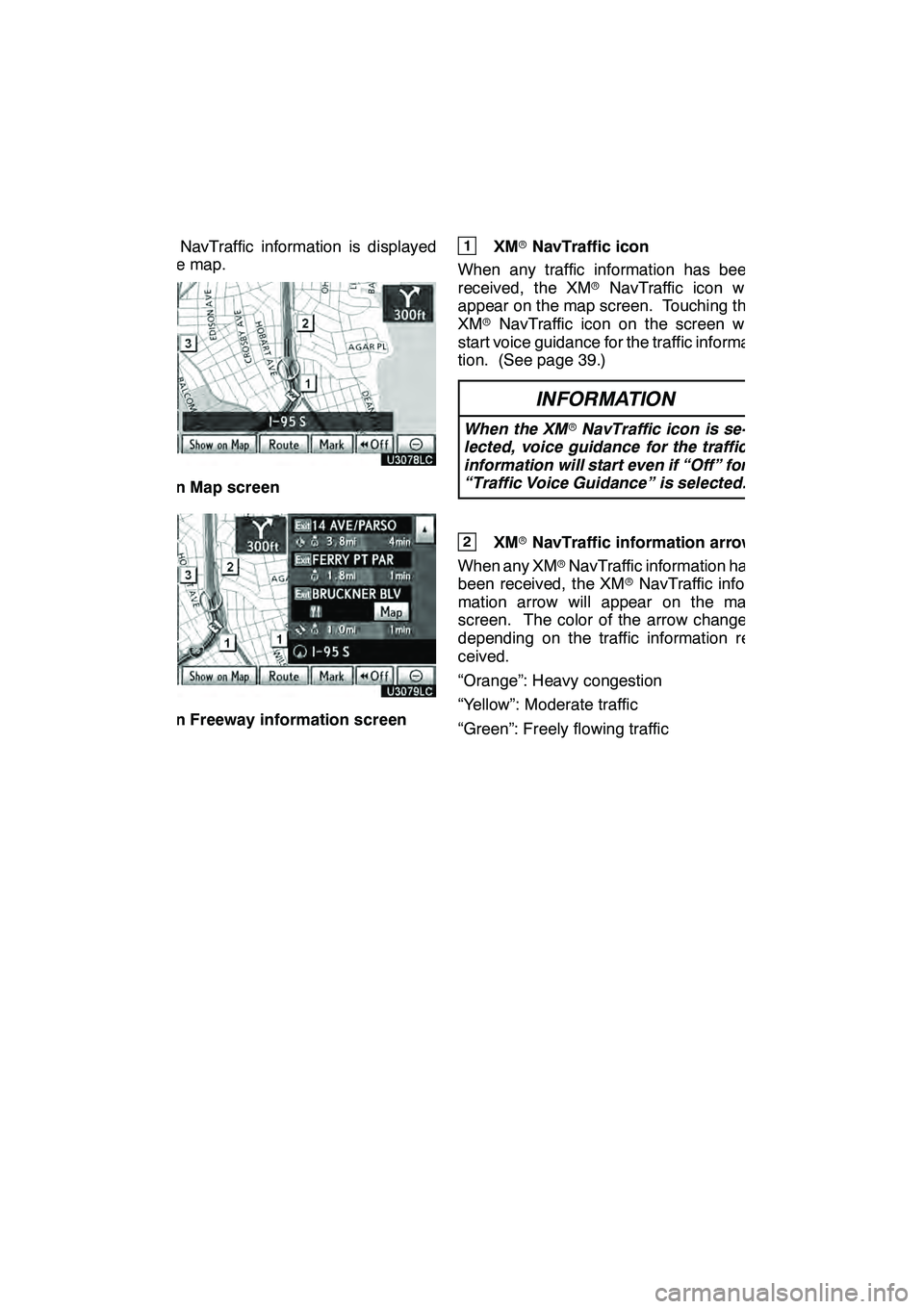

XMrNavTraffic information is displayed
on the map.
U3078LC
" On Map screen
U3079LC
"On Freeway information screen
1XM rNavTraffic icon
When any traffic information has been
received, the XM rNavTraffic icon will
appear on the map screen. Touching the
XM rNavTraffic icon on the screen will
start voice guidance for the traffic informa-
tion. (See page 39.)
INFORMATION
When the XM rNavTraffic icon is se-
lected, voice guidance for the traffic
information will start even if “Off” for
“Traffic Voice Guidance” is selected.
2XM rNavTraffic information arrow
When any XM rNavTraffic information has
been received, the XM rNavTraffic infor-
mation arrow will appear on the map
screen. The color of the arrow changes
depending on the traffic information re-
ceived.
“Orange”: Heavy congestion
“Yellow”: Moderate traffic
“Green”: Freely flowing traffic
GX460 Navi (U)
OM60E73U
Finish
09.09.24

LEXUS ENFORM WITH SAFETY CONNECT
175
3XMrNavTraffic indicator
When any XM rNavTraffic information has
been received, the XM rNavTraffic indica-
tor will appear on the screen. The color of
the indicator changes depending on the
traffic information received.
“White”: Traffic information has been re-
ceived.
“Yellow”: Traffic restriction information on
the guidance route has been received
(screen button
∗).
“Orange”: Congestion information on the
guidance route has been received (screen
button
∗).∗: Touching the XM rNavTraffic indicator
will start voice guidance. Lexus Insider is an optional service that
can send audio messages, or articles, to
participating owners’ vehicles via the navi-
gation system. Potential Lexus Insider
subjects might include, for example, Lexus
vehicle technology tips, updates on re-
gional Lexus events, or audio excerpts
from Lexus Magazine articles. Up to 20 ar-
ticles can be stored at a time.
You may opt out of receiving Lexus Insider
messages at any time. (See page 178.)
GX460 Navi (U)
OM60E73U
Finish
09.09.24
6
Lexus Insider
6

LEXUS ENFORM WITH SAFETY CONNECT
176 D
View and play received Lexus Insid-
er messages
1. Push the “INFO/PHONE” button.
2. Touch “LEXUS Insider”.
“LEXUS Insider” screen is displayed on
the screen.
U12012LS
3. Touch the desired article title from
the Lexus Insider menu to play that
broadcast or touch “Read All” to listen
to all stored Lexus Insider broadcasts.
To disrupt the audio read of Lexus Insider,
push the“MODE” switch on the steering
wheel or push the “AM·FM”,“SAT” ,
“DISC” or“AUX·USB” button on the au-
dio system.
GX460 Navi (U)
OM60E73U
Finish
09.09.30

LEXUS ENFORM WITH SAFETY CONNECT
177
Icons appear at the left of the Lexus Insider
story titles and indicate the following:Icon
Article
Unread article
Previously read article
Article with downloadable
Point of Interest (POI)
U12013LS
After selecting an individual article, you
can then touch “Next Article”or“Pre-
vious Article” to listen to another article.
You can also use the “
”or“” switch on
the steering wheel to move to the previous
or next article. Some Lexus Insider stories will contain a
downloadable POI relevant to the content.
If it contains a POI, you can touch
“Enter
”to download it to the navigation sys-
tem.
U12047LS
You can touch the “Go to”button to set
the POI as a destination with route direc-
tions.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
6

LEXUS ENFORM WITH SAFETY CONNECT
178
DELETE LEXUS INSIDER ARTICLE
U12012LS
1. Touch “Delete” on the “LEXUS In-
sider” screen.
U12015LS
2. Touch the individual article title that
you would like to delete or “Select All”.
3. Touch “Delete” on the screen.
DNew article notification
When the vehicle is first powered on and a
new Lexus Insider article is available, a no-
tification will appear on the navigation
screen.
The notice will appear for only approxi-
mately 6 seconds unless you choose one
of the options listed.
U12016LS
When the new article notification appears,
you can select any of the following options.
“Listen Now”:
Plays newly received Lexus Insider ar-
ticle(s).
“Ignore”:
Removes notification screen without play-
ing new articles.
“Remind Me Later”:
Removes notification screen without play-
ing articles. Notification will be displayed
again when the vehicle is next powered on.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

LEXUS ENFORM WITH SAFETY CONNECT
179
D

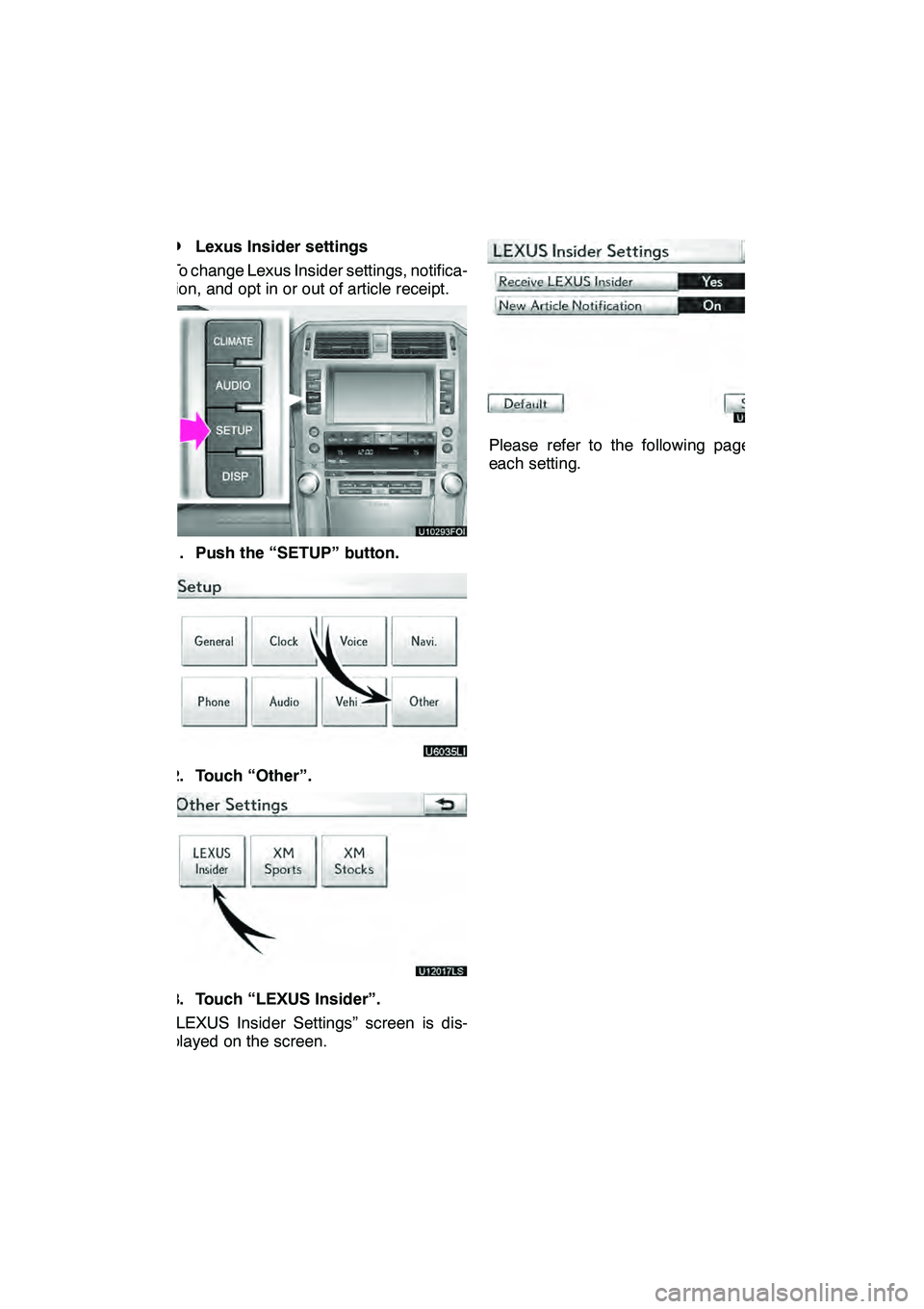

Lexus Insider settings
To change Lexus Insider settings, notifica-
tion, and opt in or out of article receipt.
1. Push the “SETUP” button.
2. Touch “Other”.
U12017LS
3. Touch “LEXUS Insider”.
“LEXUS Insider Settings” screen is dis-
played on the screen.
U12018LS
Please refer to the following pages for
each setting.
