NAVIGATION SYSTEM: DESTINATION SEARCH
83
The system searches for the guidance
route again, and displays the entire route.
INFORMATION
Set destinations can also be deleted
by touching “Route”. (See “ — Delet-
ing destinations” on page 95.)
After inputting the destination, the screen
changes and displays the map location of
the selected destination and the route pref-
erence.
1. Scroll the map to the desired point.
“Adjust Location”:To adjust the position
in smaller increments.
When an arrow facing the desired point
is touched, the map scrolls in that di-
rection.
The scroll stops when the selection of the
arrow is released.
2. Touch “Go to
”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Go to
”and “Add to Route” are displayed.
“Go to
”: To delete the existing destina-
tions and set a new one.
“Add to Route”: To add a destination.
“Info.”: If this button is displayed on the
top of the screen, touch it to view items
such as name, address, and phone num-
ber.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Starting route guidance
2

NAVIGATION SYSTEM: DESTINATION SEARCH
84
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “OK”.
“Turn List”: The following screen displays
the list of the roads up to the destination.
“3 Routes”: To select the desired route
from 3 possible routes. (See page 85.)
“Edit Route”: To change the route. (See
page 86.)
INFORMATION
D Guidance can be paused or re-
sumed. (See “— Pausing and re-
suming guidance” on page 101.)
D If “OK” is touched until a beep
sounds, demo mode will start.
Push the “MAP/VOICE” button to
finish Demo mode.
D The route for returning may not be
the same as that for going.
D The route guidance to the destina-
tion may not be the shortest route
nor a route without traffic conges-
tion.
D Route guidance may not be avail-
able if there is no road data for the
specified location.
D When setting the destination on a
map with a scale larger than 0.5
miles (800 m), the map scale
changes to 0.5 miles (800 m) auto-
matically. Set the destination
again.
D If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations
and keep road conditions in mind
while driving. If a traffic sign on the
road has been changed, the route
guidance may not indicate such
changed information.
GX460 Navi (U)
OM60E73U
Finish
09.09.24

NAVIGATION SYSTEM: DESTINATION SEARCH
85

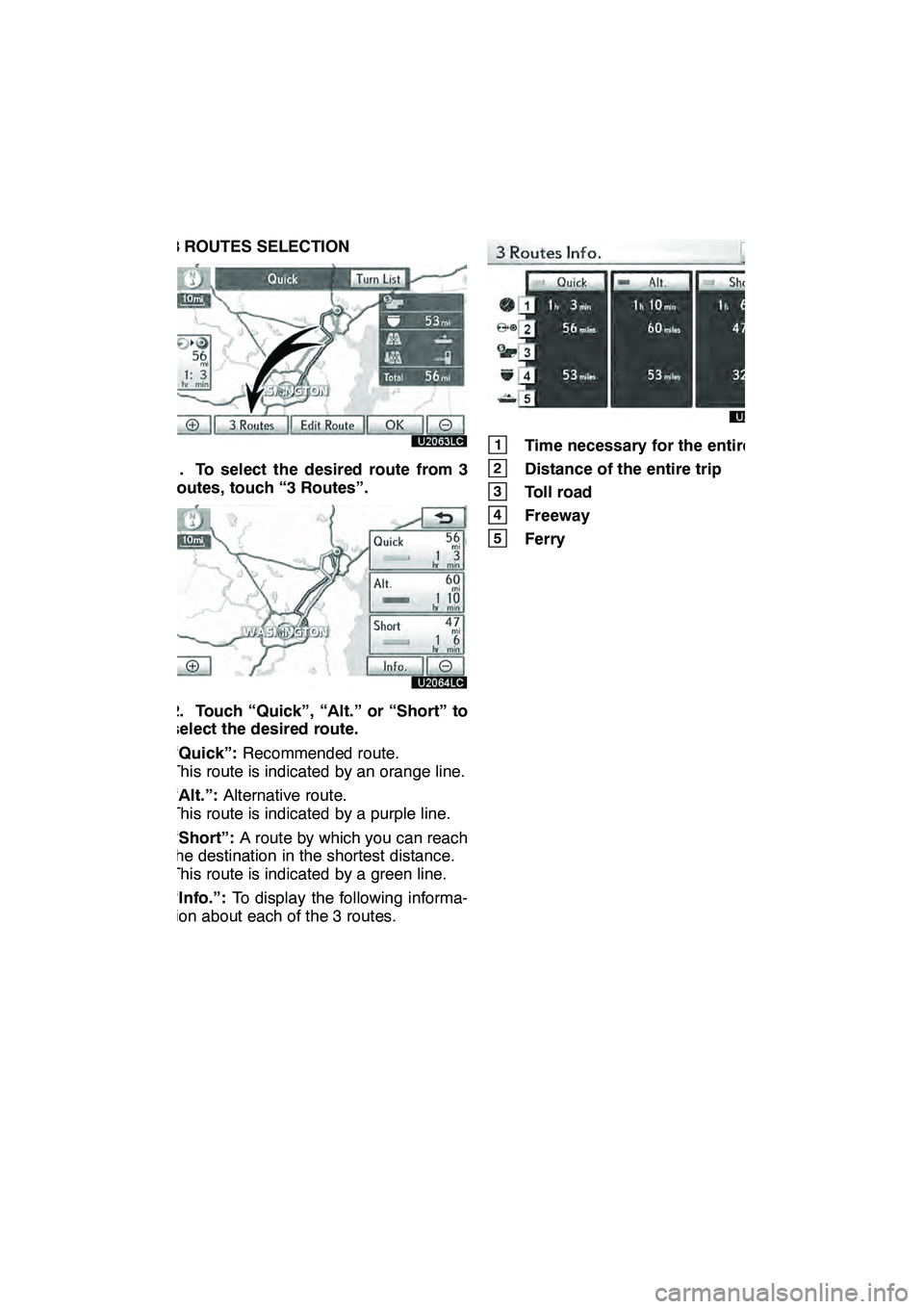

3 ROUTES SELECTION
1. To select the desired route from 3
routes, touch “3 Routes”.
2. Touch “Quick”, “Alt.” or “Short” to
select the desired route.
“Quick”:Recommended route.
This route is indicated by an orange line.
“Alt.”: Alternative route.
This route is indicated by a purple line.
“Short”: A route by which you can reach
the destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following informa-
tion about each of the 3 routes.
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry
GX460 Navi (U)
OM60E73U
Finish
09.09.24
2

SECTION3
NAVIGATION SYSTEM: ROUTE GUIDANCE
87
NAVIGATION SYSTEM:
ROUTE GUIDANCE
DRoute guidance screen 88 ..................................
D Typical voice guidance prompts 91 ...........................
D Distance and time to destination 93 ..........................
D Setting and deleting destinations 94
.......................
Adding destinations 94 ...................................
Reordering destinations 94 ...............................
Deleting destinations 95 ..................................
D Setting route 96
..........................................
Detour setting 96 ........................................
Route overview 97 ......................................
Route preference 99 .....................................
Pausing and resuming guidance 101 .......................
D Show on map 102
........................................
Display POI
∗icons 102
...................................
Route trace 106
.........................................
∗: Point of Interest
GX460 Navi (U)
OM60E73U
Finish
09.09.24
3

NAVIGATION SYSTEM: ROUTE GUIDANCE
88

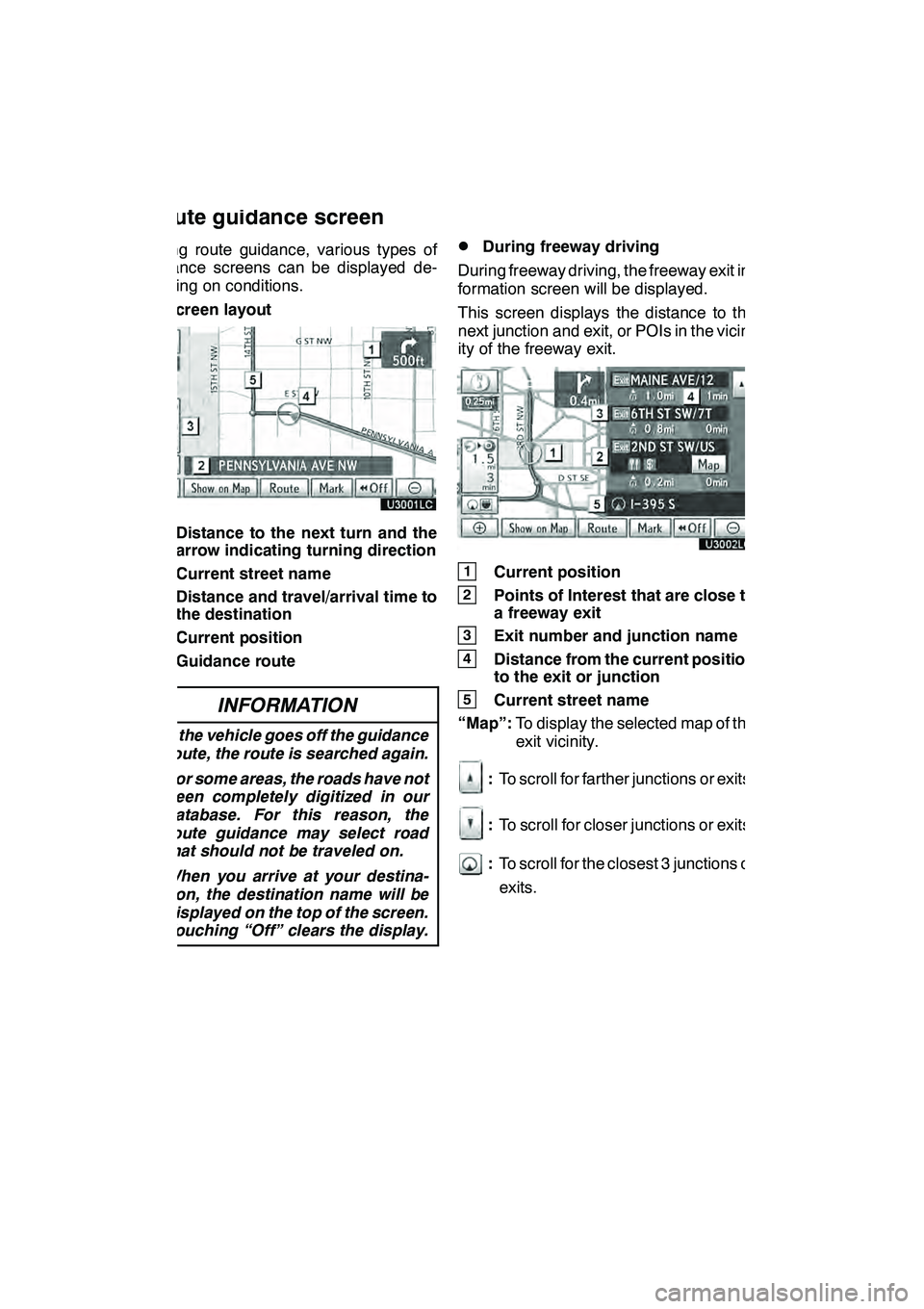

During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
DScreen layout
1Distance to the next turn and the
arrow indicating turning direction
2Current street name
3Distance and travel/arrival time to
the destination
4Current position
5Guidance route
INFORMATION
DIf the vehicle goes off the guidance
route, the route is searched again.
D For some areas, the roads have not
been completely digitized in our
database. For this reason, the
route guidance may select road
that should not be traveled on.
D When you arrive at your destina-
tion, the destination name will be
displayed on the top of the screen.
Touching “Off” clears the display.
DDuring freeway driving
During freeway driving, the freeway exit in-
formation screen will be displayed.
This screen displays the distance to the
next junction and exit, or POIs in the vicin-
ity of the freeway exit.
1Current position
2Points of Interest that are close to
a freeway exit
3Exit number and junction name
4Distance from the current position
to the exit or junction
5Current street name
“Map”: To display the selected map of the
exit vicinity.
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest 3 junctions or
exits.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Route guidance screen

NAVIGATION SYSTEM: ROUTE GUIDANCE
89

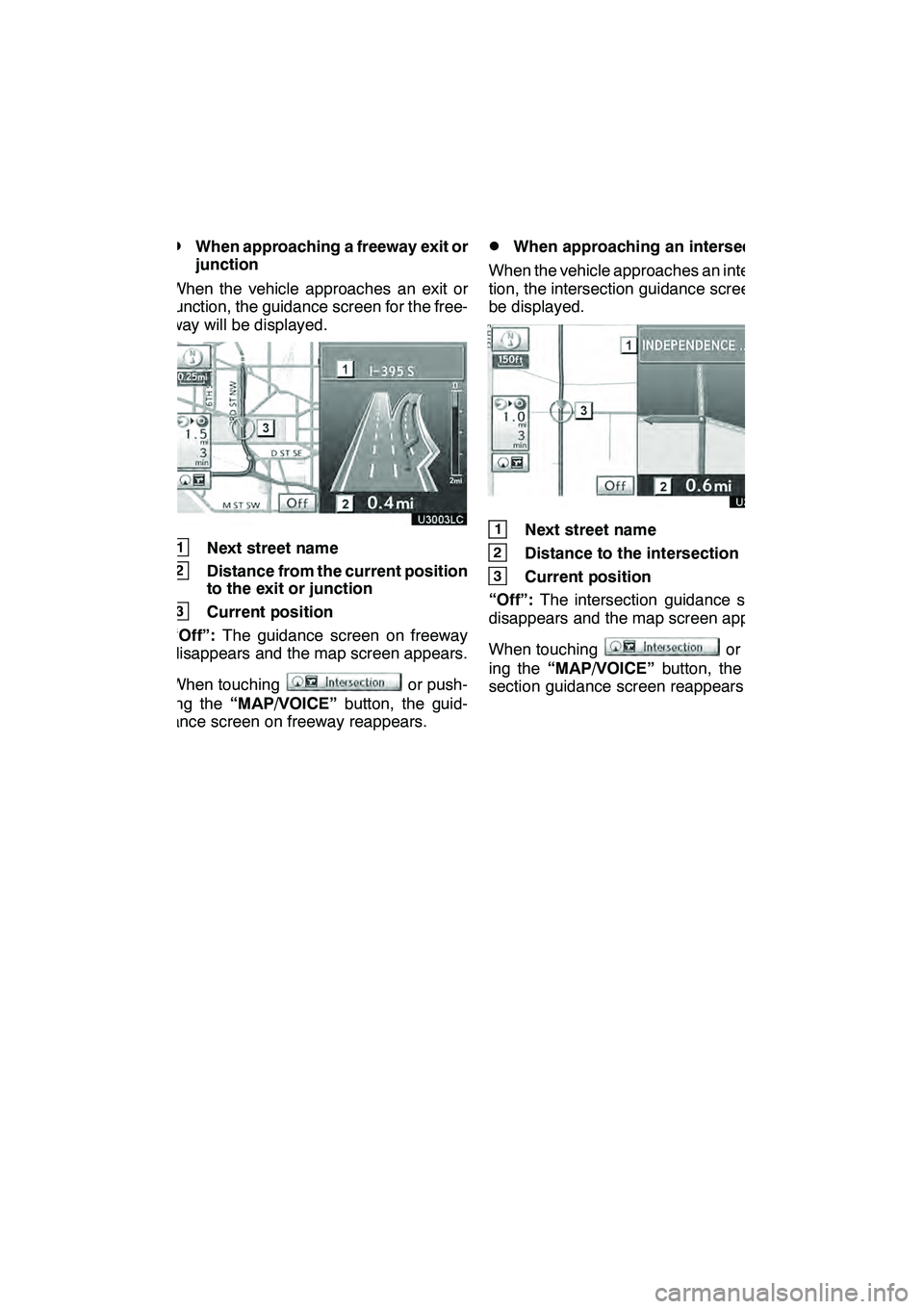

D
When approaching a freeway exit or
junction
When the vehicle approaches an exit or
junction, the guidance screen for the free-
way will be displayed.
1Next street name
2Distance from the current position
to the exit or junction
3Current position
“Off”: The guidance screen on freeway
disappears and the map screen appears.
When touching
or push-
ing the “MAP/VOICE” button, the guid-
ance screen on freeway reappears.
DWhen approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will
be displayed.
1Next street name
2Distance to the intersection
3Current position
“Off”: The intersection guidance screen
disappears and the map screen appears.
When touching
or push-
ing the “MAP/VOICE” button, the inter-
section guidance screen reappears.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
3

NAVIGATION SYSTEM: ROUTE GUIDANCE
90 D

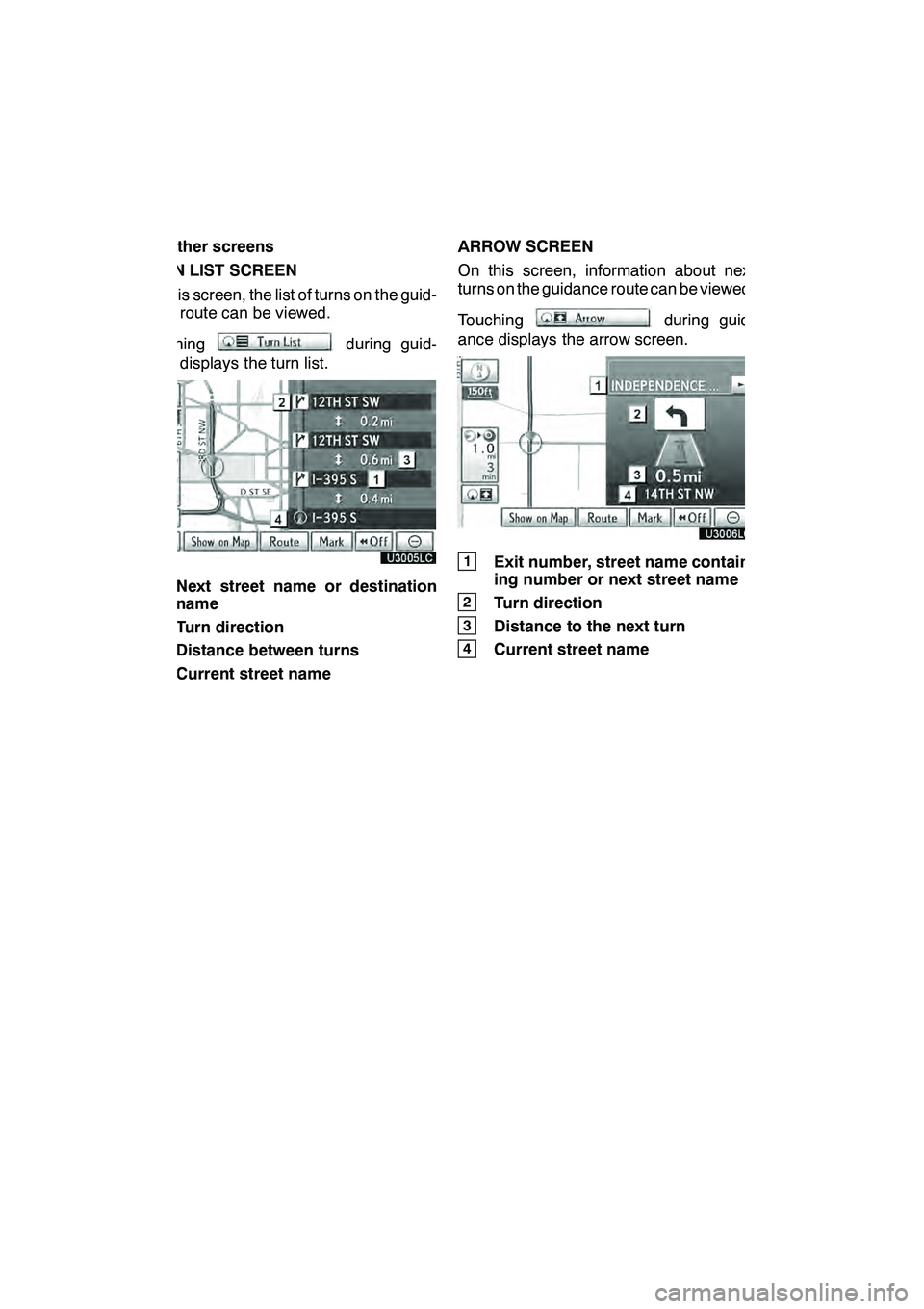

Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guid-
ance displays the turn list.
1Next street name or destination
name
2Turn direction
3Distance between turns
4Current street name ARROW SCREEN
On this screen, information about next
turns on the guidance route can be viewed.
Touching
during guid-
ance displays the arrow screen.
1Exit number, street name contain-
ing number or next street name
2Turn direction
3Distance to the next turn
4Current street name
GX460 Navi (U)
OM60E73U
Finish
09.09.24

NAVIGATION SYSTEM: ROUTE GUIDANCE
93

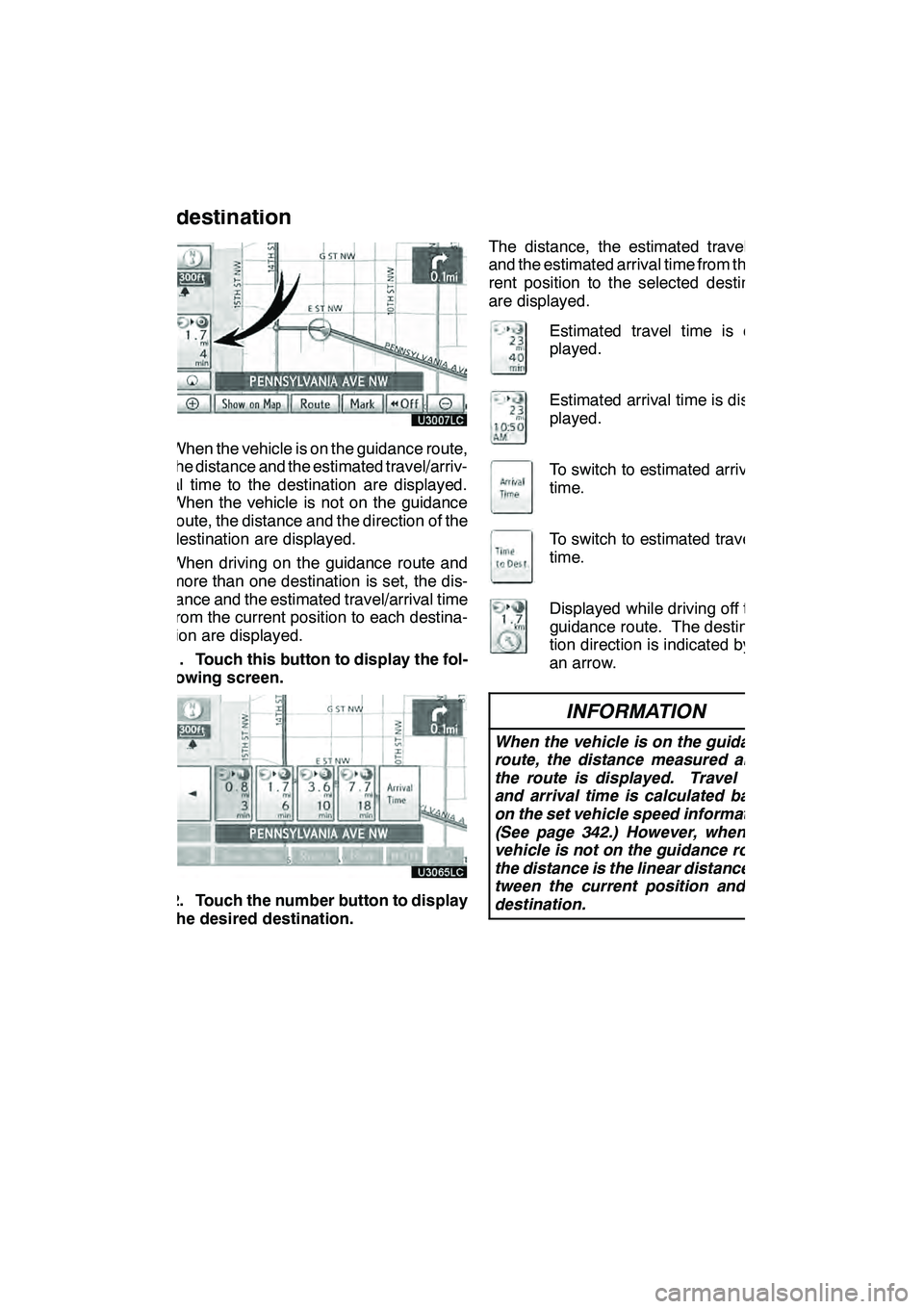

When the vehicle is on the guidance route,
the distance and the estimated travel/arriv-
al time to the destination are displayed.
When the vehicle is not on the guidance
route, the distance and the direction of the
destination are displayed.
When driving on the guidance route and
more than one destination is set, the dis-
tance and the estimated travel/arrival time
from the current position to each destina-
tion are displayed.
1. Touch this button to display the fol-
lowing screen.
2. Touch the number button to display
the desired destination.The distance, the estimated travel time
and the estimated arrival time from the cur-
rent position to the selected destination
are displayed.
Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel
time.
Displayed while driving off the
guidance route. The destina-
tion direction is indicated by
an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along
the route is displayed. Travel time
and arrival time is calculated based
on the set vehicle speed information.
(See page 342.) However, when the
vehicle is not on the guidance route,
the distance is the linear distance be-
tween the current position and the
destination.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Distance and time to
destination
3

NAVIGATION SYSTEM: ROUTE GUIDANCE
94

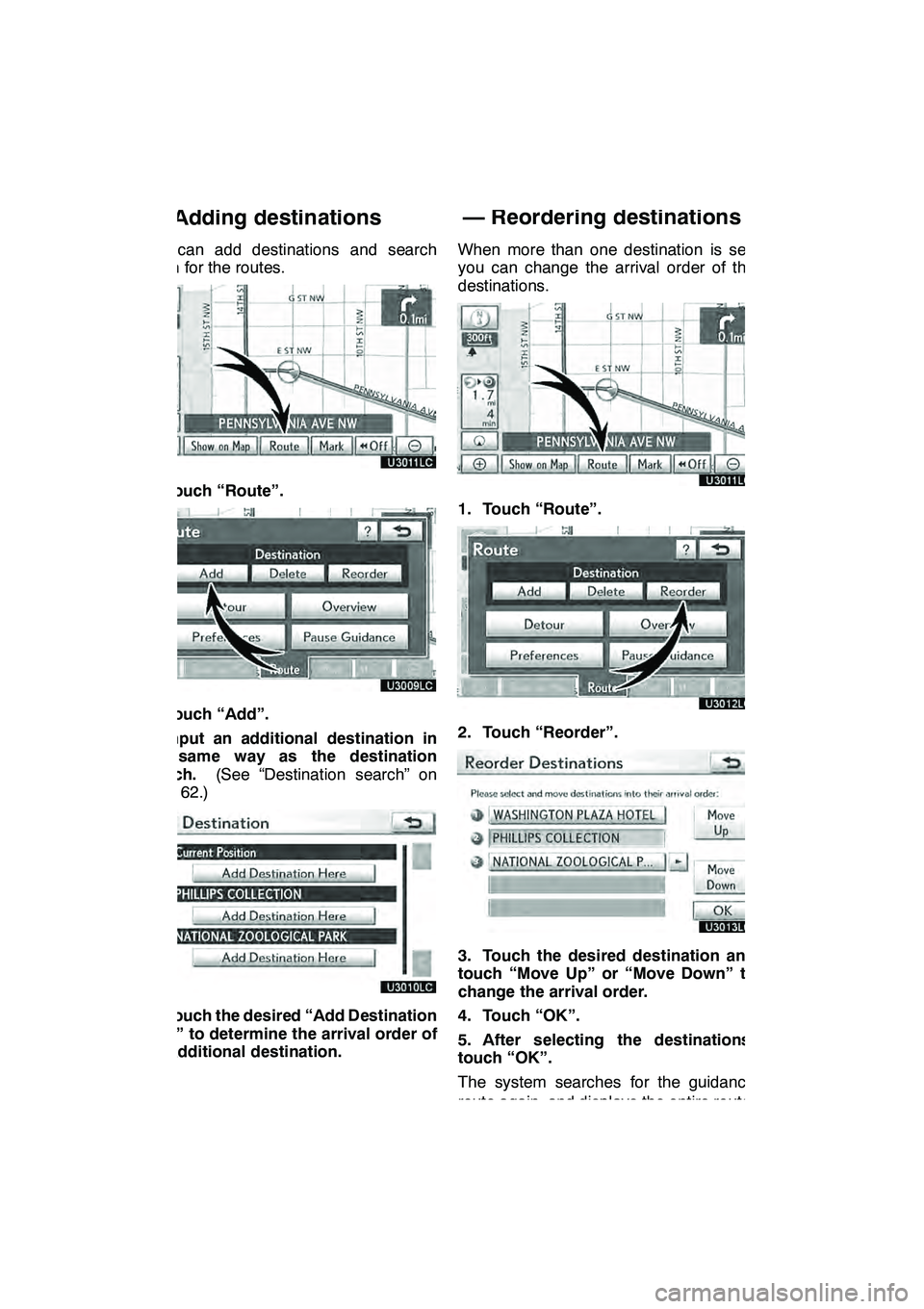

You can add destinations and search
again for the routes.
1. Touch “Route”.
2. Touch “Add”.
3. Input an additional destination in
the same way as the destination
search.(See “Destination search” on
page 62.)
4. Touch the desired “Add Destination
Here” to determine the arrival order of
the additional destination. When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch “Route”.
2. Touch “Reorder”.
3. Touch the desired destination and
touch “Move Up” or “Move Down” to
change the arrival order.
4. Touch “OK”.
5. After selecting the destinations,
touch “OK”.
The system searches for the guidance
route again, and displays the entire route.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Setting and deleting
destinations —
— Adding destinations — Reordering destinations

NAVIGATION SYSTEM: ROUTE GUIDANCE
95

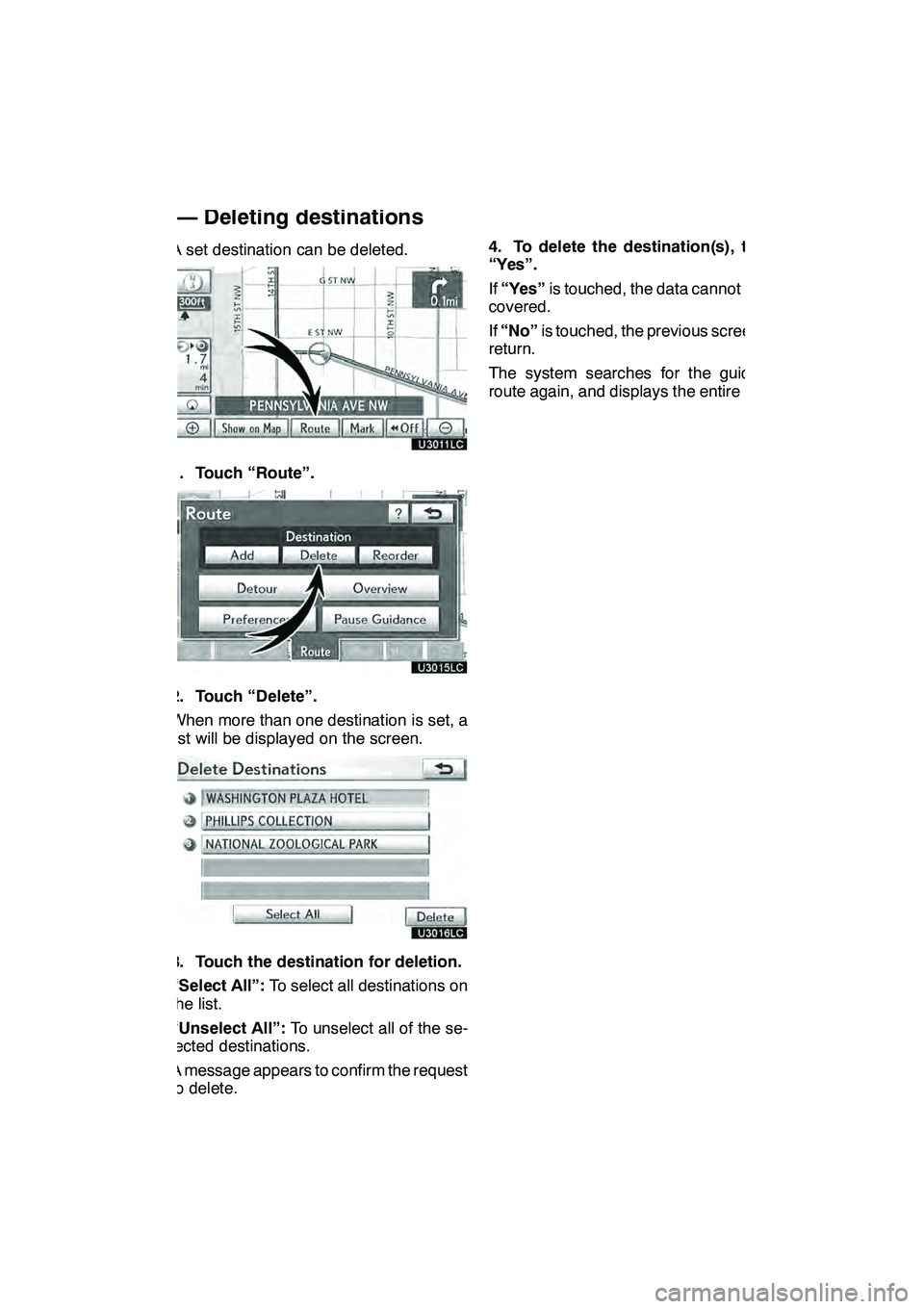

A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete”.
When more than one destination is set, a
list will be displayed on the screen.
3. Touch the destination for deletion.
“Select All”:To select all destinations on
the list.
“Unselect All”: To unselect all of the se-
lected destinations.
A message appears to confirm the request
to delete. 4. To delete the destination(s), touch
“Yes”.
If
“Yes” is touched, the data cannot be re-
covered.
If “No” is touched, the previous screen will
return.
The system searches for the guidance
route again, and displays the entire route.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
— Deleting destinations
