Page 551 of 830
550
3-7. Other interior features
GX460_CANADA (OM60F29U)

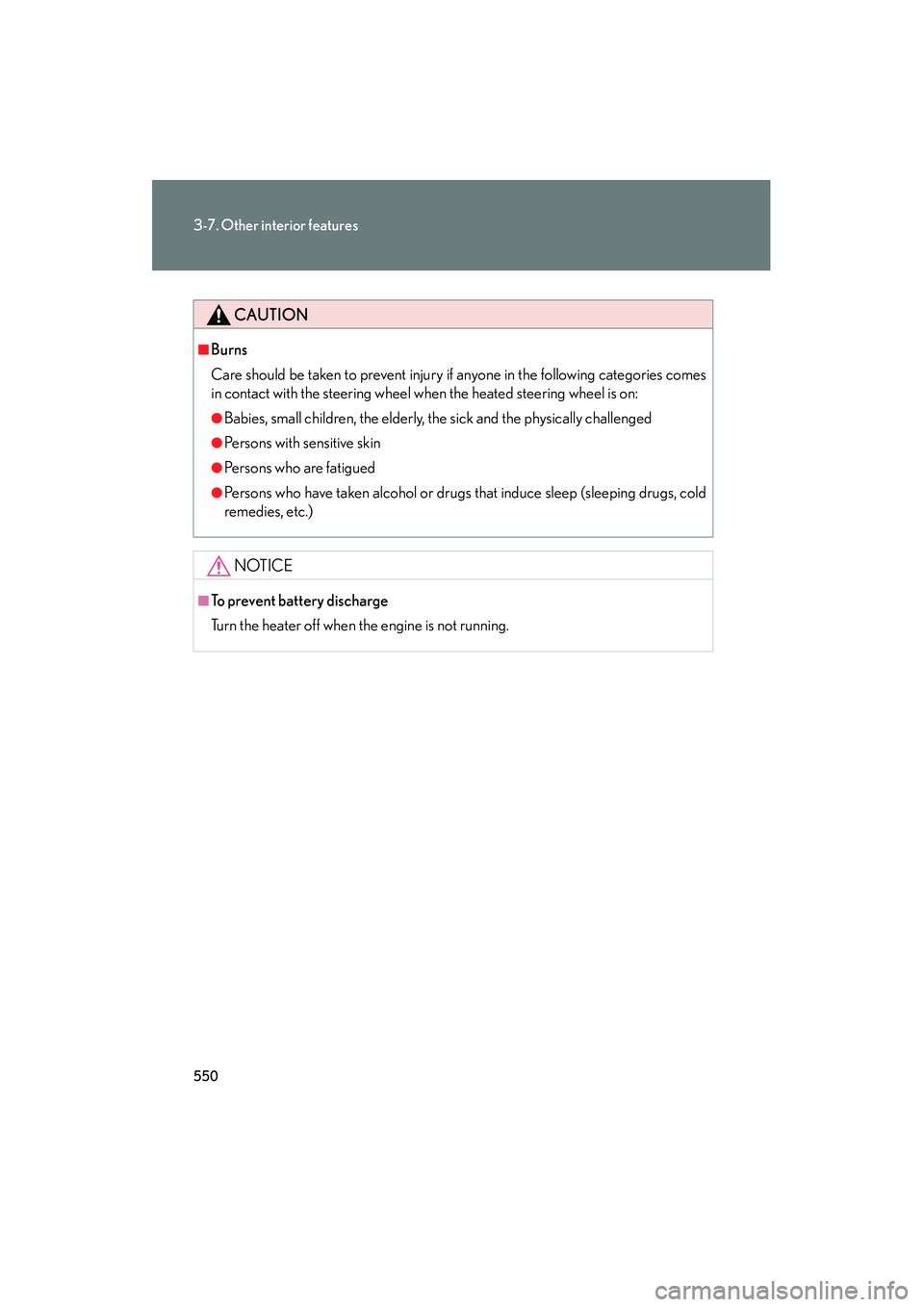

CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent battery discharge
Turn the heater off when the engine is not running.
GX460_CANADA.book Page 550 Thursday, February 4, 2010 11:54 AM
Page 552 of 830
551
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

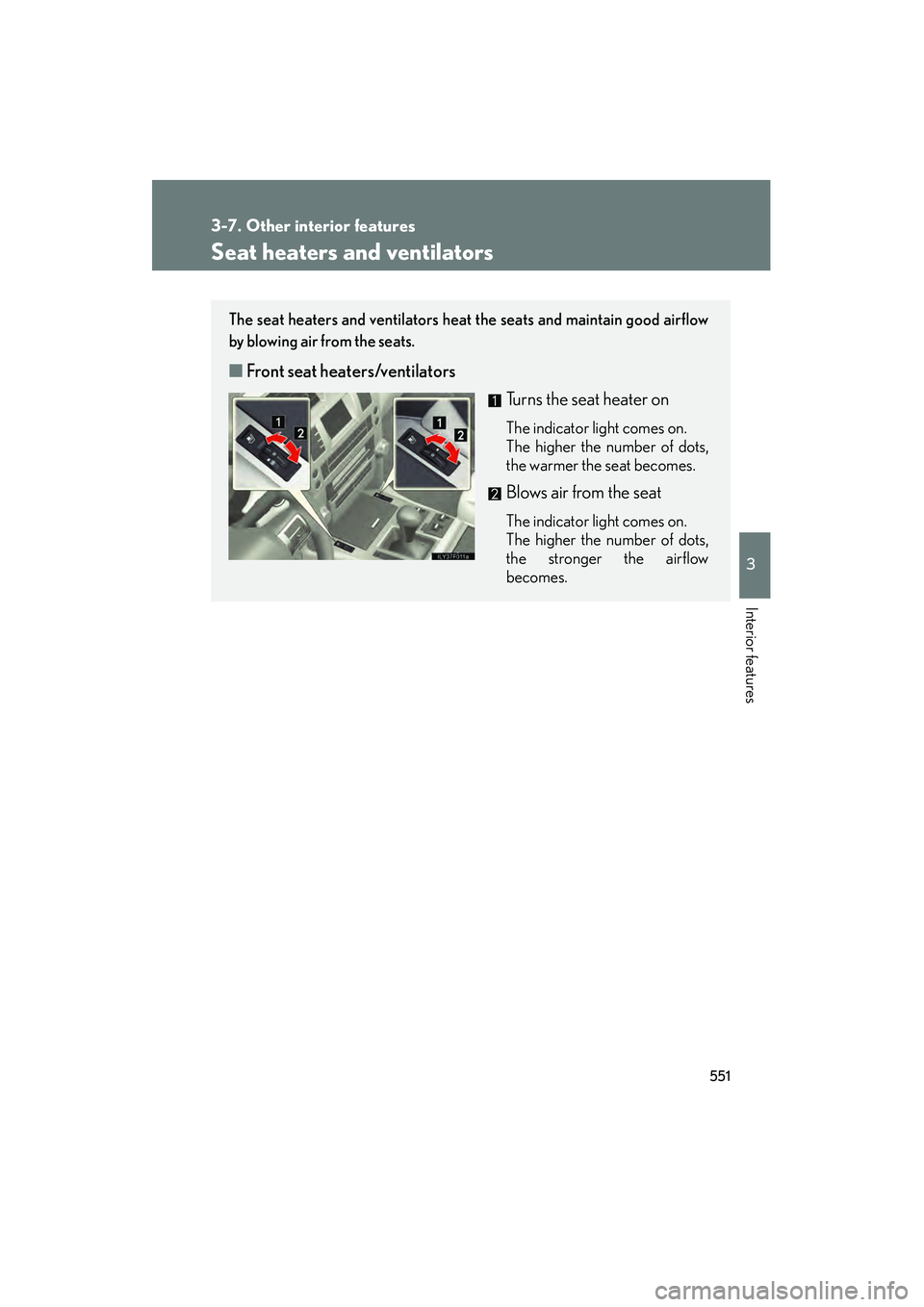

Seat heaters and ventilators
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
■Front seat heaters/ventilators
Turns the seat heater on
The indicator light comes on.
The higher the number of dots,
the warmer the seat becomes.
Blows air from the seat
The indicator light comes on.
The higher the number of dots,
the stronger the airflow
becomes.
GX460_CANADA.book Page 551 Thursday, February 4, 2010 11:54 AM
Page 553 of 830
552
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The seat heaters/ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Turn the dial until the indicator light turns off.
■Outer second seat heaters (if equipped)
For left second seat
For right second seat
High heating temperature
Low heating temperature
To turn on the seat heater, press
“HI” or “LO”.
The indicator light on “HI” or
“LO” switch indicates that the
seat heater is on.
Off
To turn off, press “OFF”.
GX460_CANADA.book Page 552 Thursday, February 4, 2010 11:54 AM
Page 554 of 830

553
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use the seat heater more than necessary. Doing so may cause minor
burns or overheating.
NOTICE
■To prevent damage to the seat heaters and ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the seat heaters and ventilators off when the engine is not running.
GX460_CANADA.book Page 553 Thursday, February 4, 2010 11:54 AM
Page 555 of 830
554
3-7. Other interior features
GX460_CANADA (OM60F29U)

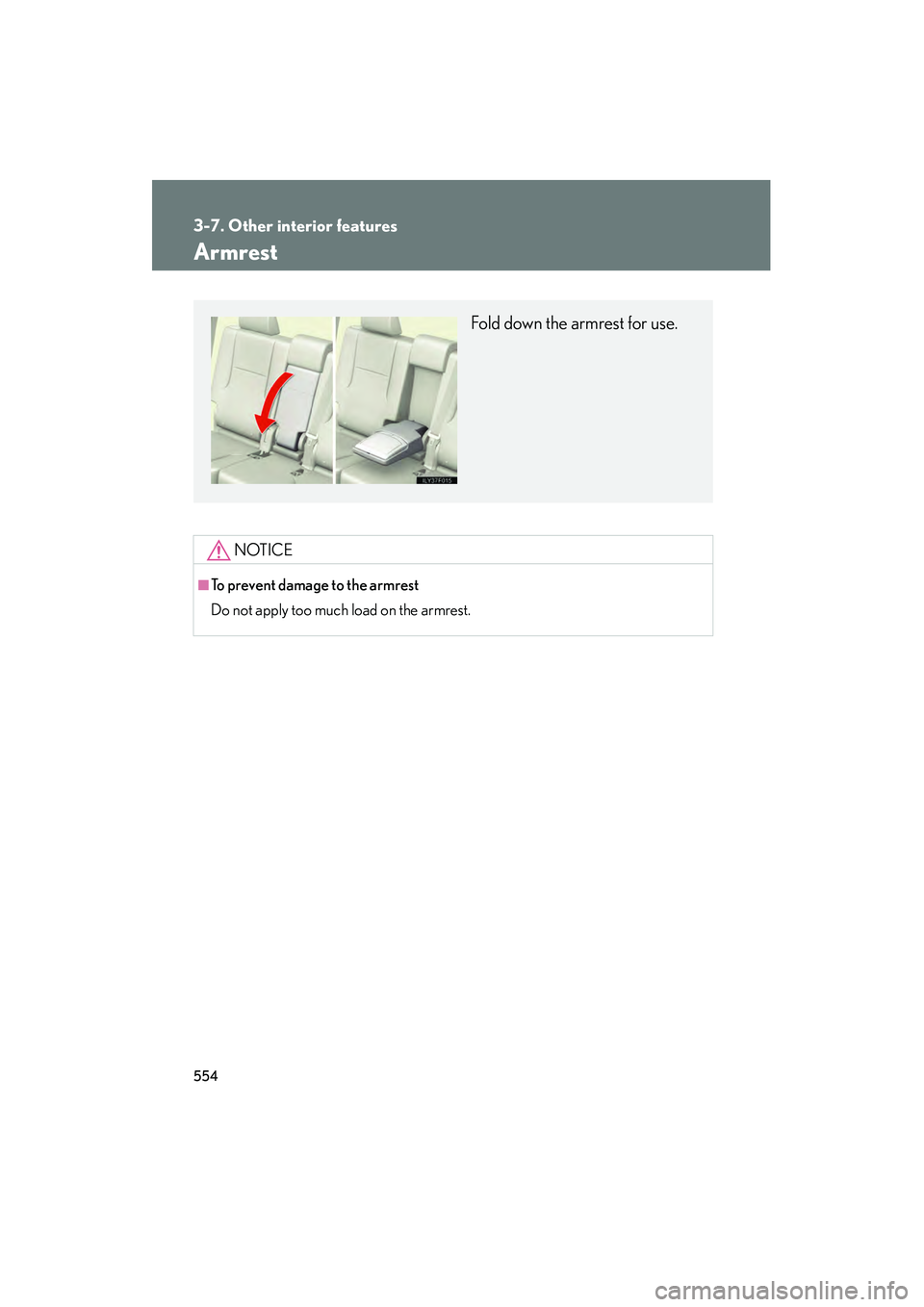

Armrest
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.
Fold down the armrest for use.
GX460_CANADA.book Page 554 Thursday, February 4, 2010 11:54 AM
Page 556 of 830
555
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

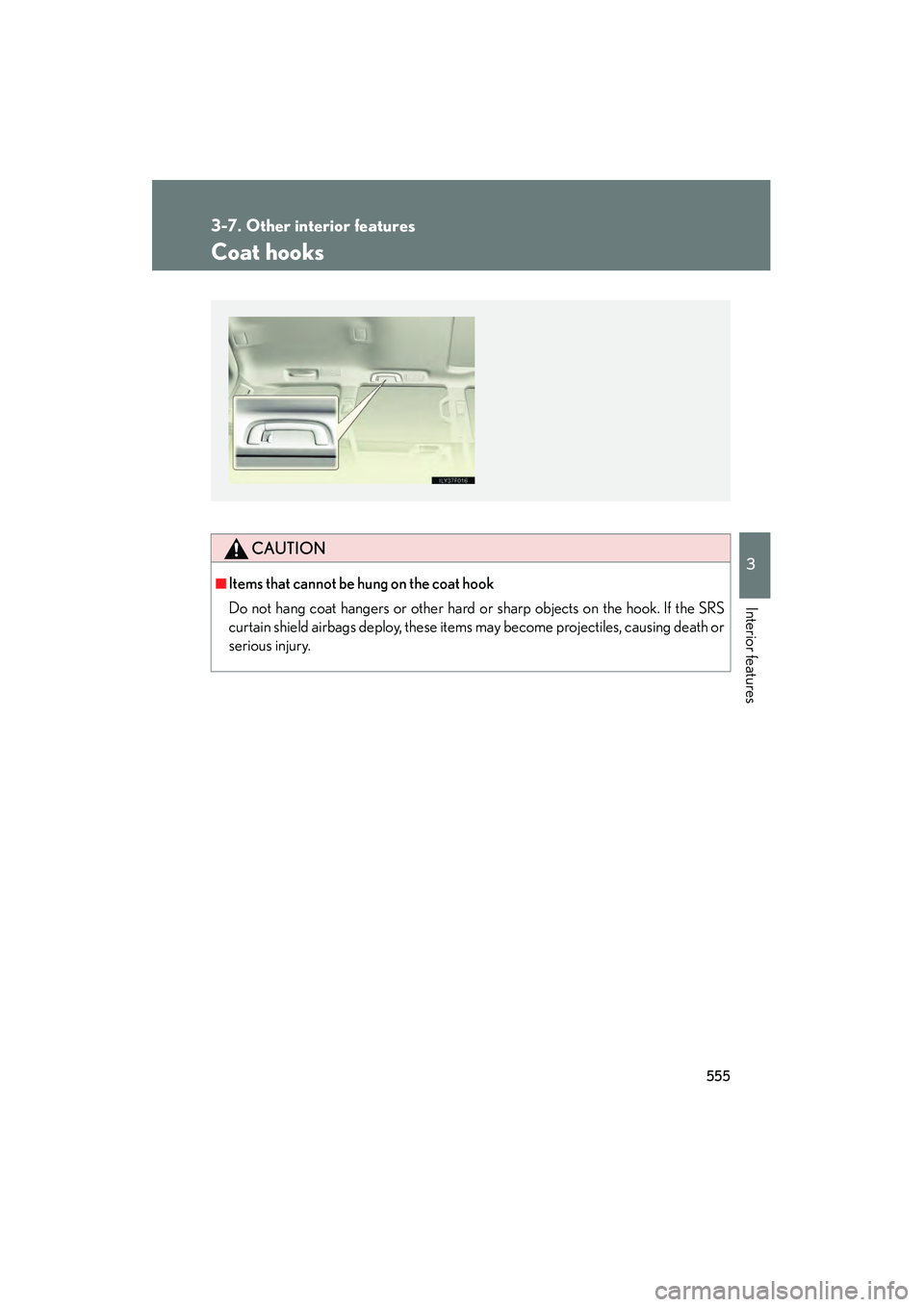

Coat hooks
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles, causing death or
serious injury.
GX460_CANADA.book Page 555 Thursday, February 4, 2010 11:54 AM
Page 557 of 830

556
3-7. Other interior features
GX460_CANADA (OM60F29U)
Floor mats
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
For details, refer to the floor mat
retention clip installation
instructions supplied with the
clips.
sec_03_07.fm Page 556 Monday, February 15, 2010 10:35 AM
Page 558 of 830
557
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
CAUTION
■Before driving
●Check that the floor mat is securely fixed in the right place with all the provided
retaining hooks (clips). Be especially careful to perform this check after cleaning
the floor.
●With the engine stopped and the shift lever in P, fully depress each pedal to the
floor to make sure it does not interfere with the floor mat.
sec_03_07.fm Page 557 Monday, February 8, 2010 11:31 AM
Page 559 of 830
558
3-7. Other interior features
GX460_CANADA (OM60F29U)
Luggage compartment features
■Cargo hooks
Vehicles without third seats
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
Vehicles with third seatsRaise the hook to use.
The cargo hooks are provided
for securing loose items.
When using the deck hooks, the
third seat must be fold down.
(→ P. 7 3 )
■Warning reflector holder
Turn the knob clockwise.
Open the lid.
STEP1
GX460_CANADA.book Page 558 Thursday, February 4, 2010 11:54 AM
Page 560 of 830
559
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Secure the warning reflector.
The warning reflector itself is not
included as an original equip-
ment.
■Cargo net hooks
Vehicles without third seats
Vehicles with third seats
To hang the cargo net, use the
cargo net hooks.
The cargo net itself is not
included as an original equip-
ment.
STEP2
GX460_CANADA.book Page 559 Thursday, February 4, 2010 11:54 AM
