Page 531 of 830
530
3-7. Other interior features
GX460_CANADA (OM60F29U)

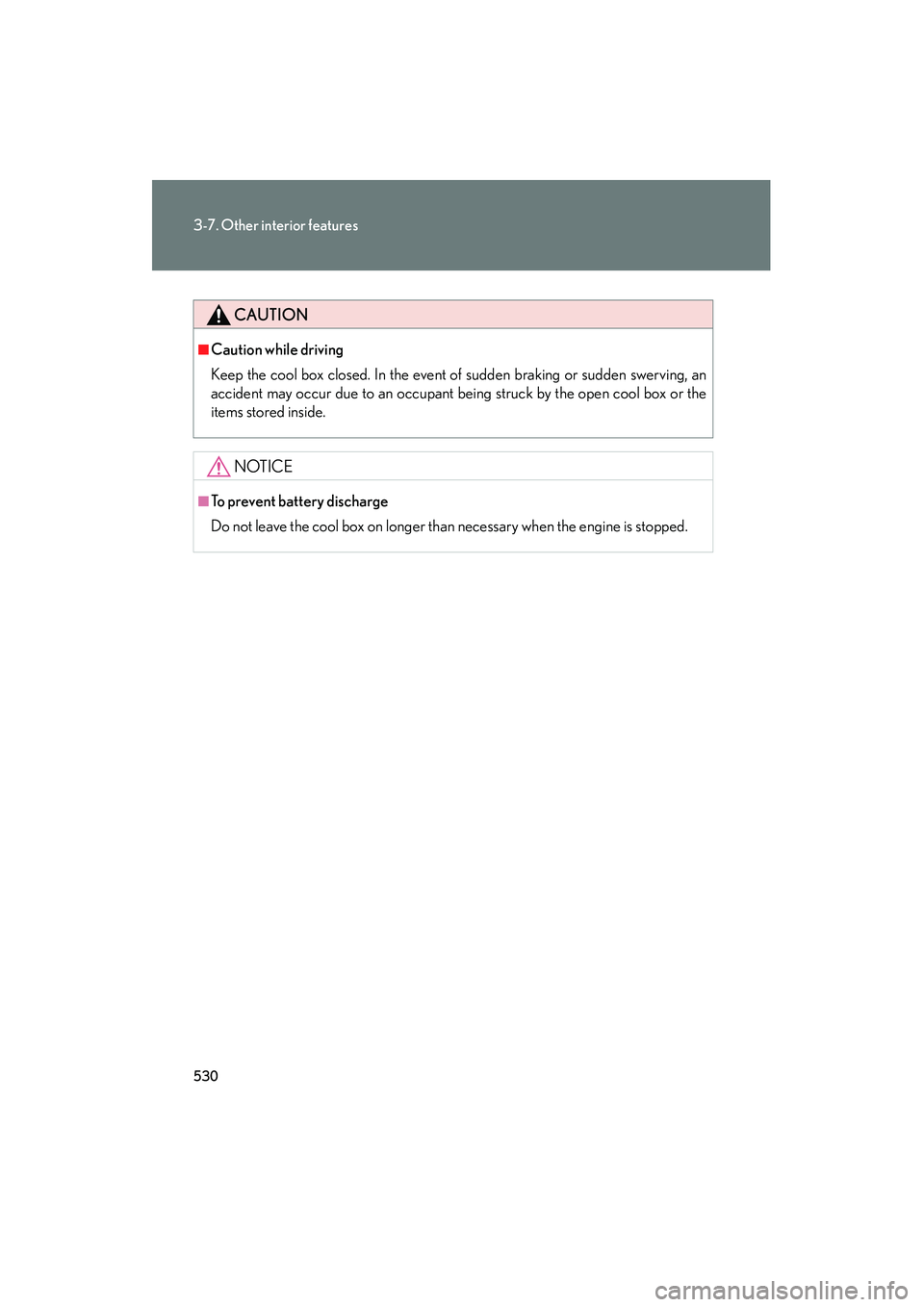

CAUTION
■Caution while driving
Keep the cool box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open cool box or the
items stored inside.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is stopped.
GX460_CANADA.book Page 530 Thursday, February 4, 2010 11:54 AM
Page 532 of 830
531
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

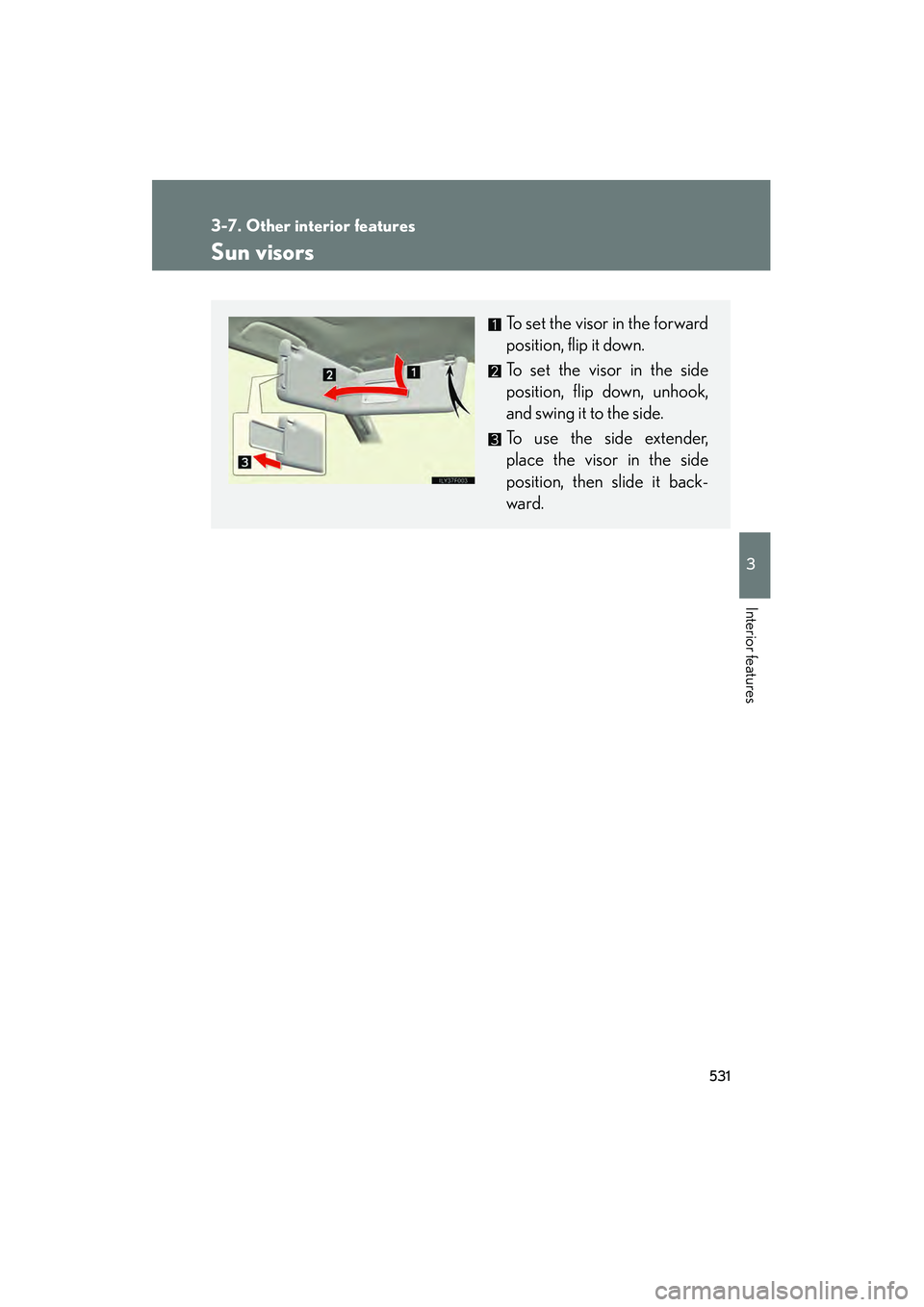

Sun visors
To set the visor in the forward
position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
To use the side extender,
place the visor in the side
position, then slide it back-
ward.
GX460_CANADA.book Page 531 Thursday, February 4, 2010 11:54 AM
Page 533 of 830
532
3-7. Other interior features
GX460_CANADA (OM60F29U)

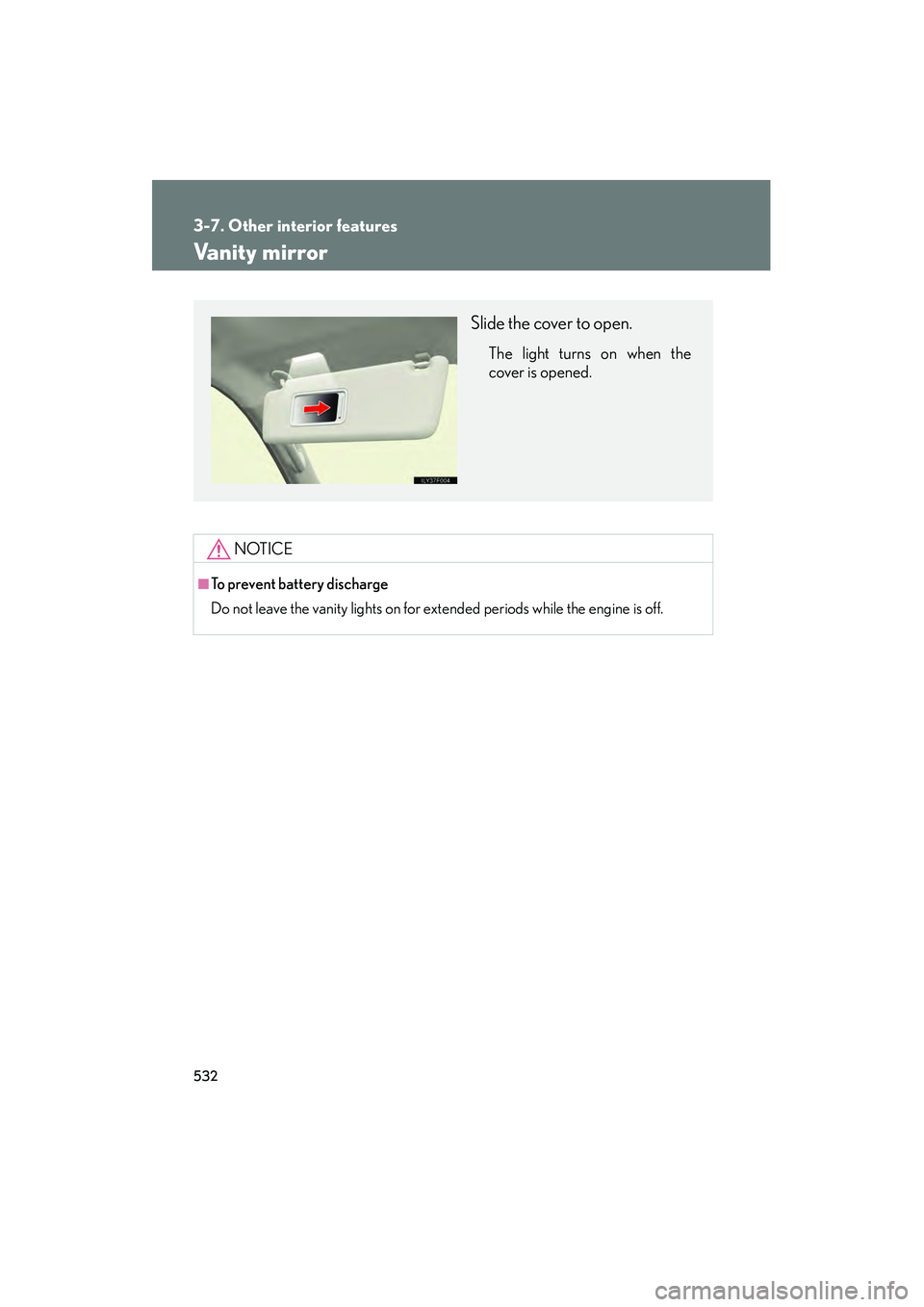

Vanity mirror
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.
Slide the cover to open.
The light turns on when the
cover is opened.
GX460_CANADA.book Page 532 Thursday, February 4, 2010 11:54 AM
Page 534 of 830
533
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemAdjusts the hours
Adjusts the minutes
GX460_CANADA.book Page 533 Thursday, February 4, 2010 11:54 AM
Page 535 of 830
534
3-7. Other interior features
GX460_CANADA (OM60F29U)
Conversation mirror
■To use the overhead console from the conversation mirror state
Pull down the lid. (→P. 5 2 5 )
The conversation mirror can provide the driver and the front passenger
with a view of the rear seat area without the need to turn around.
Press in the button.
GX460_CANADA.book Page 534 Thursday, February 4, 2010 11:54 AM
Page 536 of 830
535
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

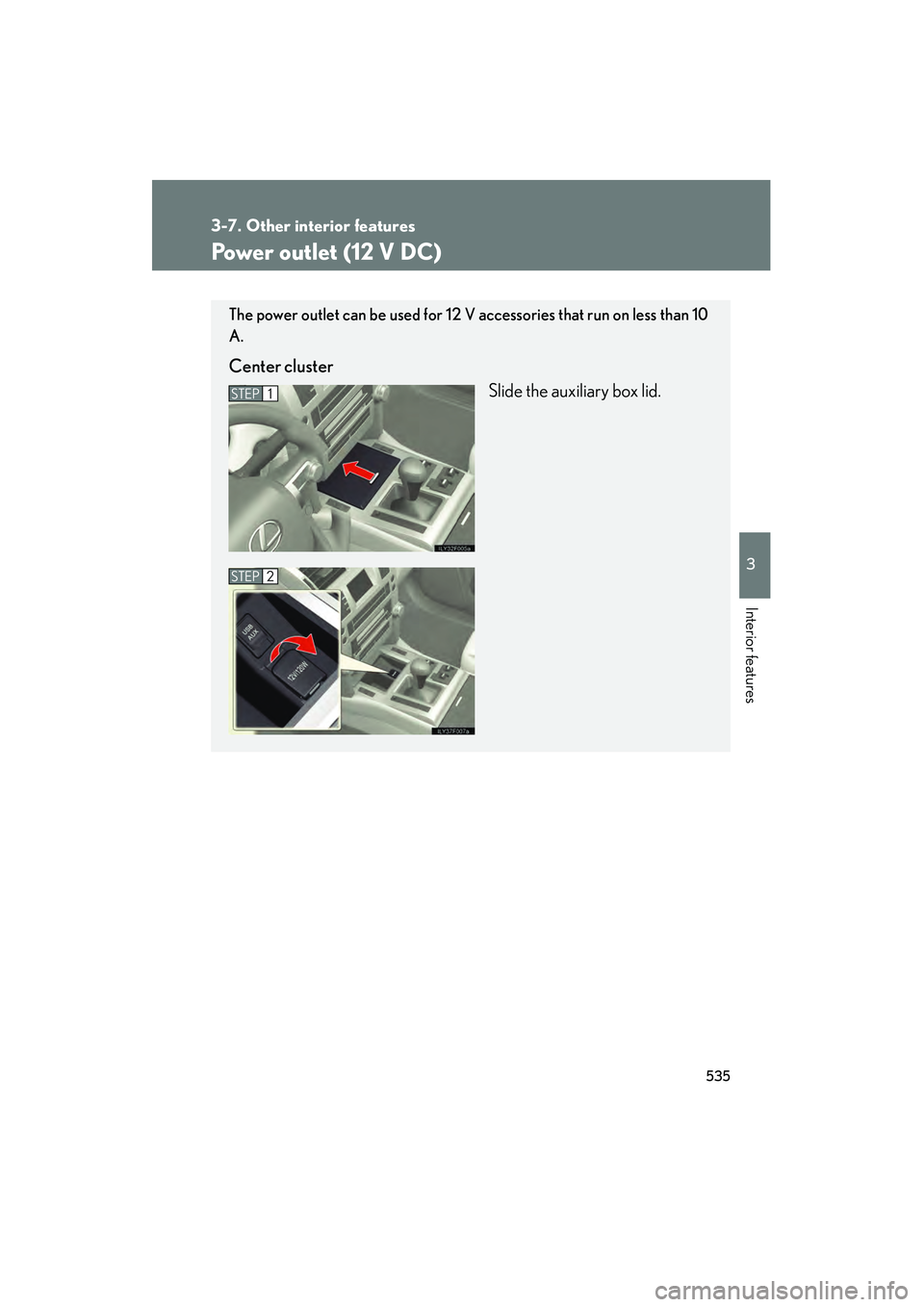

Power outlet (12 V DC)
The power outlet can be used for 12 V accessories that run on less than 10
A.
Center clusterSlide the auxiliary box lid.
STEP1
STEP2
GX460_CANADA.book Page 535 Thursday, February 4, 2010 11:54 AM
Page 537 of 830
536
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
GX460_CANADA.book Page 536 Thursday, February 4, 2010 11:54 AM
Page 538 of 830
537
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

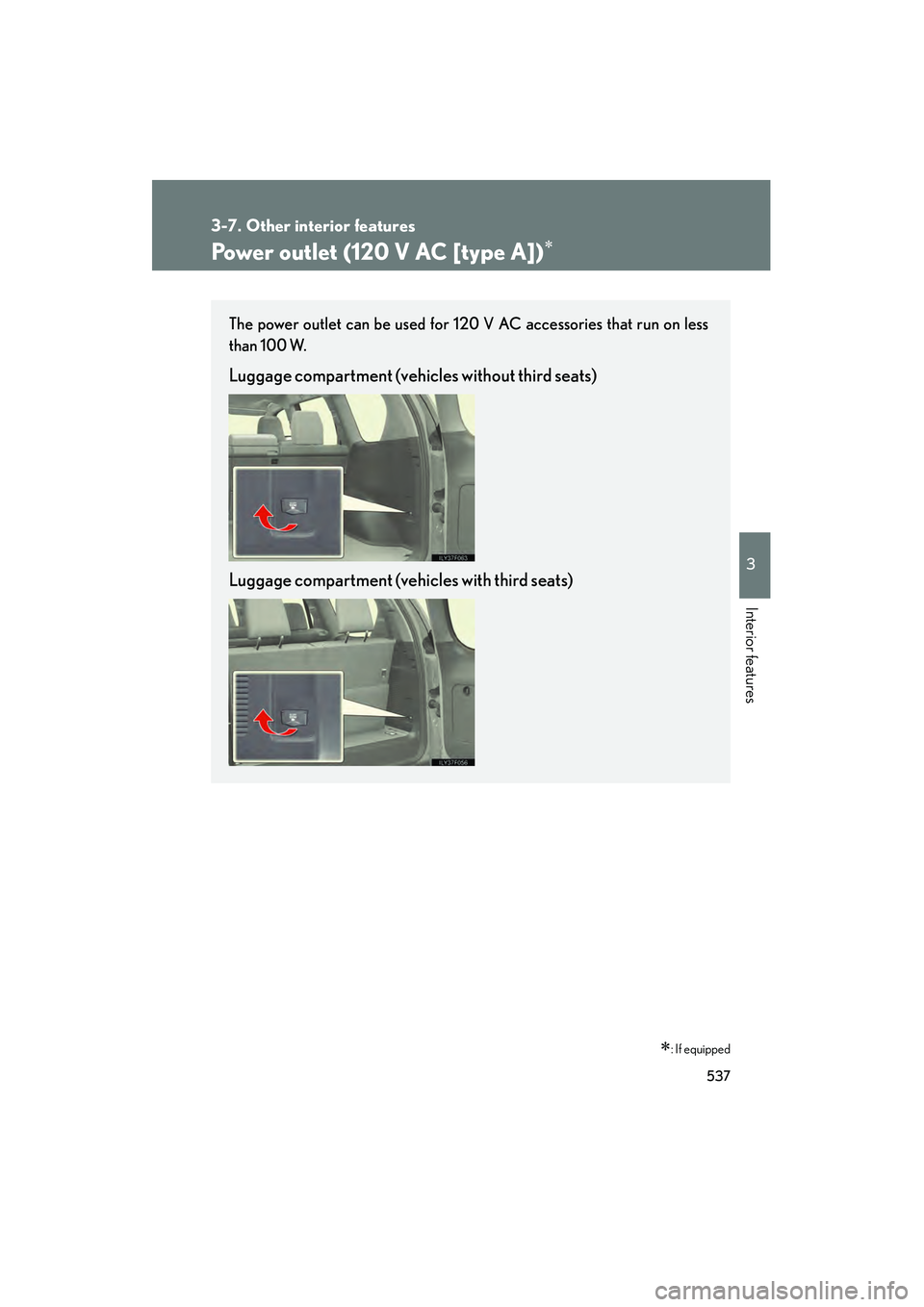

Power outlet (120 V AC [type A])∗
∗: If equipped
The power outlet can be used for 120 V AC accessories that run on less
than 100 W.
Luggage compartment (vehicles without third seats)
Luggage compartment (vehicles with third seats)
GX460_CANADA.book Page 537 Thursday, February 4, 2010 11:54 AM
Page 539 of 830

538
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The power outlet can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■The protection circuit may be activated to cut the power supply if any of the fol-
lowing conditions apply:
●Use of electrical appliances exceeding 100 W is attempted.
A sound may be heard when the protection circuit is activated. This is normal
and does not indicate a malfunction.
●The total power usage by all electrical features (headlights, air conditioning,
etc.) has exceeded the total vehicle maximum for an extended period of time.
■If the protection circuit is activated and the power supply is cut, conduct the fol-
lowing procedure:Park the vehicle in a safe place, and then securely apply the parking brake.
Make sure that the power consumption of the electric appliance is within
the maximum capacity of the power outlet and the appliance is not bro-
ken.
Turn the “ENGINE START STOP” switch to IGNITION ON mode again.
When the cabin temperature is high, open the windows to cool the temperature
down. Once it reaches the normal temperature, turn the “ENGINE START STOP”
switch to IGNITION ON mode again.
If the power supply does not resume even after the above procedure has been per-
formed, have the vehicle inspected by your Lexus dealer.
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
GX460_CANADA.book Page 538 Thursday, February 4, 2010 11:54 AM
Page 540 of 830

539
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
CAUTION
■Using a power outlet
Observe the following precautions to reduce the risk of injury.
●Use of the power outlet when it is wet with water or snow may result in electrical
shocks and is extremely dangerous. The power outlet must be thoroughly dried
before use.
●Do not allow children to use or play with the power outlet.
●Be careful not to get any part of your body caught in the power outlet lid.
●When using electrical appliances, strictly follow any cautions and notices written
on their labels and in the manufacturers’ instruction manuals.
●Do not modify, disassemble or repair the power outlet or its inverter in any way.
Doing so may result in unexpected malfunctions or accidents, which could cause
serious damage or injuries. Contact your Lexus dealer for any necessary repairs.
■To prevent injuries and accidents, secure all electric appliances before use and
do not use any appliances that may do any of the following:
●Distract the driver while driving, or hamper safe driving.
●Result in a fire or burn injuries due to the appliance rolling, falling or overheating
while driving.
●Emit steam while the windows of the cabin are closed.
GX460_CANADA.book Page 539 Thursday, February 4, 2010 11:54 AM
