70
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
Folding down the second seatbacks (without third seats)■ Before folding down the second seatbacks
Stow the center seat belt buckle
with the hook-and-loop fastener
and lower the head restraints to
the lowest position.
■ Folding down second seatbacks
Pull the lever and fold down the
outer seat head restraint.
Swing the bottom cushion up by
pulling the lock release strap.
STEP1
STEP2
GX460_CANADA.book Page 70 Thursday, February 4, 2010 11:54 AM

71
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)Push the seatback lock release
button and fold them down.
To return the second seatbacks to
their original positions, lift them up
until they lock.
Folding down the second seatbacks (with third seats)
■ Before folding down the second seatbacks
Lower the head restraints to the
lowest position.
■ Folding down second seatbacks
Pull the seatback lock release
lever and fold them down.
To return the second seatbacks to
their original positions, lift them up
until they lock.
STEP3
GX460_CANADA.book Page 71 Thursday, February 4, 2010 11:54 AM

72
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)

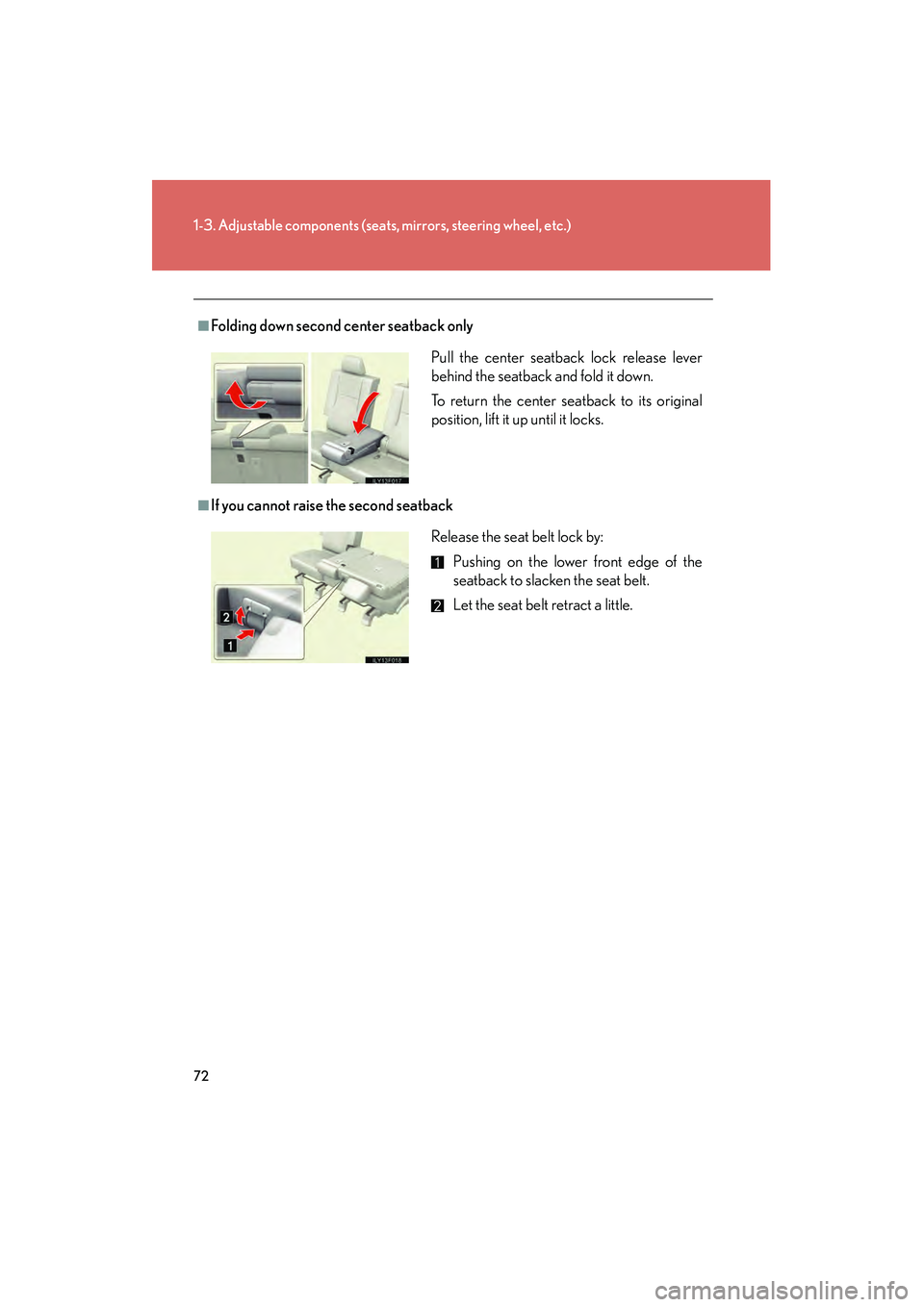

■Folding down second center seatback only
■If you cannot raise the second seatbackPull the center seatback lock release lever
behind the seatback and fold it down.
To return the center seatback to its original
position, lift it up until it locks.
Release the seat belt lock by:
Pushing on the lower front edge of the
seatback to slacken the seat belt.
Let the seat belt retract a little.
GX460_CANADA.book Page 72 Thursday, February 4, 2010 11:54 AM

73
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)
Folding down the third seatsR: Right seat return switch
R: Right seat fold switch
L: Left seat return switch
L: Left seat fold switch
The switches can be operated from
both the rear door side and the
back door side.
■Before folding down the third seats
Use the seat belt hangers to pre-
vent the belts from being tangled.
GX460_CANADA.book Page 73 Thursday, February 4, 2010 11:54 AM

74
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)■
Folding down the third seats
Press and hold . Two beeps
sound and the seatback will rise.
When operating is completed, two
beeps sound again.
Press and hold again. Two
beeps sound, the head restraints
will fold forward, and the seat will
be stowed.
When operating is completed, two
beeps sound again.
STEP1
STEP2
GX460_CANADA.book Page 74 Thursday, February 4, 2010 11:54 AM

75
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)■
Returning the third seats
Press and hold .
Two beeps sound and seatback
and seat cushion begin to move.
When operating is completed, two
beeps sound again.
Lift the head restraints up until they
lock.
STEP1
STEP2
■The third power seats can be operated when
●The “ENGINE START STOP” switch is off.
●The shift lever is in P position with the “ENGINE START STOP” switch in IGNI-
TION ON mode.
■During third power seat stowing operation
Do not remove your hand from the switch until the operation stops automatically. If
you remove your hand from the switch, th e operation will stop and the buzzer will
sound continuously. The seat cannot be used in this state. The buzzer will stop when
the switch is pressed again.
GX460_CANADA.book Page 75 Thursday, February 4, 2010 11:54 AM

76
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
■Enlarging the luggage compartment (vehicles with third seats)
The third seat can be used for sitting when it is in the position shown in of
the folding down the third seats. (→P. 7 3 )
This can be convenient for enlarging the luggage compartment, for instance when
the luggage is against the back of the seatback.
■If the warning buzzer sounds continuously (vehicles with third seats)
If there is an abnormality in the system, the warning buzzer will sound continuously
while the “ENGINE START STOP” switch is in IGNITION ON mode. In this case,
take the following operations:
Press and hold .
Press and hold to stow the seat.
For each step, wait until the seat movement stops automatically and the two beeps
sound twice before removing your hand from the switch.
If the warning buzzer does not stop even after performing the above procedure
correctly, perform the following operations:
Press and hold on the rear door side.
While holding , press forward on 5 times within 10 seconds
and keep holding until 3 beeps sound. The beep will then sound
continuously again.
Repeat and .
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5STEP1STEP2
GX460_CANADA.book Page 76 Thursday, February 4, 2010 11:54 AM

77
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift lever to
P.
●Do not allow anyone to sit on a folded seatback or in the luggage compartment
while driving.
●Do not allow children to enter the luggage compartment.
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
●Be careful not to get hands or feet pinched between the rear console box and the
second seat when folding down the rear seatback.
GX460_CANADA.book Page 77 Thursday, February 4, 2010 11:54 AM

78
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
CAUTION
■When stowing the third seats
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Check that there is no luggage and that there are no other people around the
seat before stowing operation.
●Do not insert hands or feet into the moving parts of the seat.
●Do not allow children to operate the seat.
■After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Make sure the seatback is securely locked by pushing it forward and rearward on
the top.
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■When returning the third seat (vehicles with a luggage cover)
If the luggage cover is installed in the luggage compartment, make sure you remove
it before returning the third seat. (→P. 561) The luggage cover may be damaged by
the seat.
GX460_CANADA.book Page 78 Thursday, February 4, 2010 11:54 AM

79
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_CANADA (OM60F29U)
Driving position memory (driver’s seat)
Your preferred driving position (the po sition of the driver’s seat, steering
wheel and angle of the outside rear view mirrors) can be memorized and
recalled with the touch of a button. It is also possible to set this function to
activate automatically when the driver’s door is unlocked.
Two different driving positions can be entered into memory.
■ Entering a positi on into memory
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
STEP4
