Lexus GX460 2012 Owner's Manual

219
2
When driving
GX460_U.S.A. (OM60J00U)
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e AThe daytime running
lights turn off.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.

220
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
Ty p e BThe daytime running
lights turn off.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.

221
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)
Ty p e CThe daytime running
lights turn on.
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
lights listed above
turn on.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).

222
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
Turning on the high beam headlightsWith the headlights on, push the
lever away from you to turn on
the high beams.
When the light switch is in “AUTO”
position, the Automatic High Beam
system will be activated.
(→ P. 2 2 6 )
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with
the headlights on or off.

223
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)

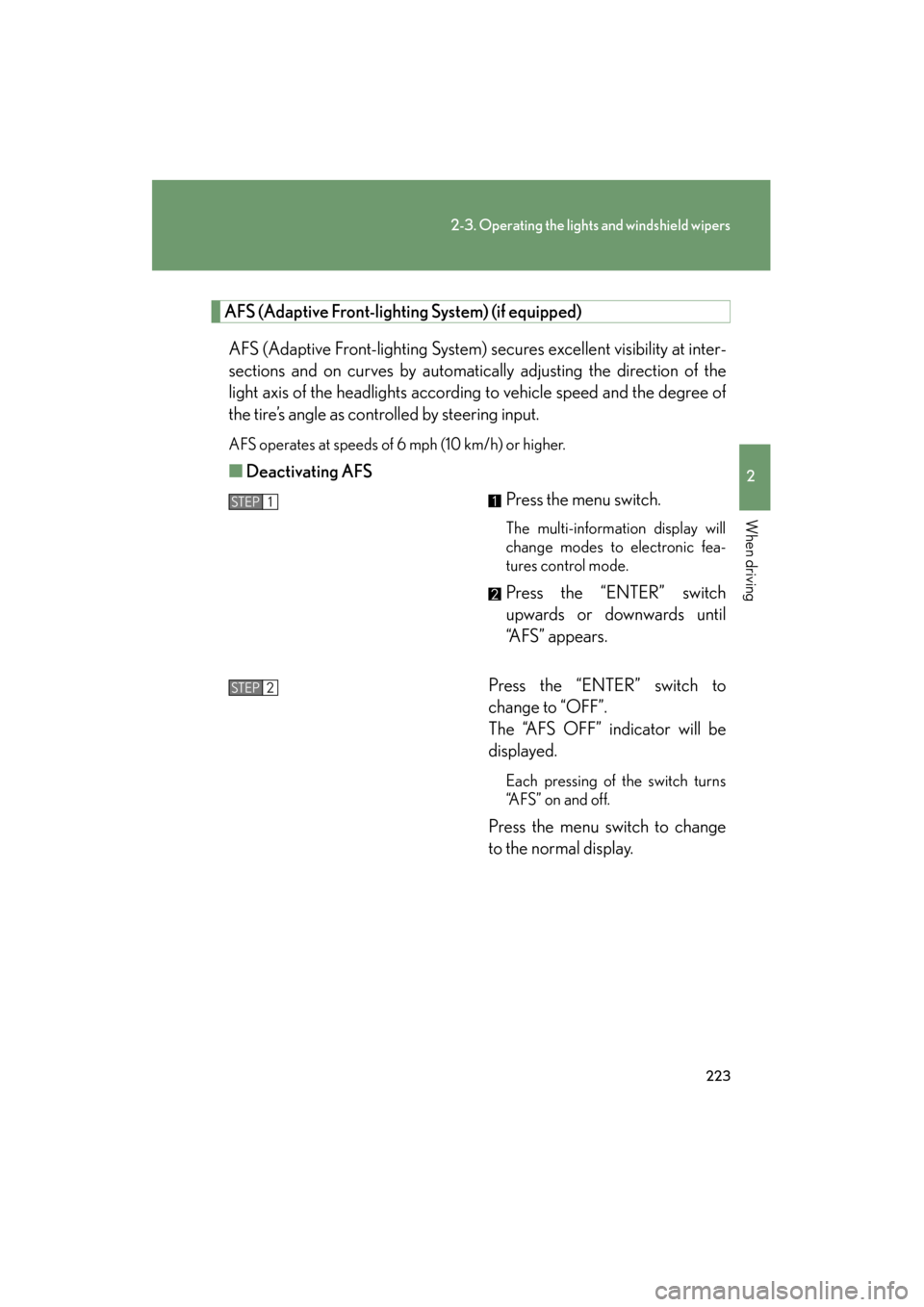

AFS (Adaptive Front-lighting System) (if equipped)AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the
light axis of the headlights according to vehicle speed and the degree of
the tire’s angle as controlled by steering input.
AFS operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch
upwards or downwards until
“AFS” appears.
Press the “ENTER” switch to
change to “OFF”.
The “AFS OFF” indicator will be
displayed.
Each pressing of the switch turns
“AFS” on and off.
Press the menu switch to change
to the normal display.
STEP1
STEP2

224
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
■Daytime running light system
●To make your vehicle more visible to other drivers, the headlights turn on auto-
matically (at a reduced intensity) whenever the engine is started and the parking
brake is released. Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
●Compared to the headlights, the daytime running light system offers greater
durability and consumes less electricity, so it can help fuel economy.
■Headlight control sensor
■Automatic light off system
●When only the tail lights come on: The parking/front side marker, tail, license
plate and fog lights turn off if the “ENGINE START STOP” switch is turned to
ACCESSORY mode or turned off and the driver’s door is opened.
●When the headlights come on: The headlights, parking/front side marker, tail,
license plate and fog lights turn off 30 seconds after a door or the glass hatch is
opened and closed. (The lights turn off immediately if on the key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNITION
ON mode, or turn the light switch off once and then back to
or .
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

225
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the “AFS OFF” indicator flashes (if equipped)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 7 8 2 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

226
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
Automatic High Beam∗
∗: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of oncoming and preceding vehicles,
etc., and automatically turns high beam on or off as necessary.
■ Activating the Automatic High Beam system
Turn the headlight switch to the
“AUTO” position.
Push the lever away from you.
The Automatic High Beam indi-
cator will come on when the
headlights are turned on auto-
matically to indicate that the sys-
tem is active.
STEP1
STEP2

227
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)
■Turning the high beam on/off manually
Switching to low beam Pull the lever to original posi-
tion.
Switching to high beam Turn the light switch to
position.

228
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
■High beam automatic turn ing on or off conditions
When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
● Vehicle speed is above approximately 20 mph (32 km/h).
● The area ahead of the vehicle is dark.
● There are no oncoming or preceding vehicles with headlights or
tail lights turned on.
If any of the following conditions are fulfilled, high beam will be auto-
matically turned off:
● Vehicle speed drops below approximately 20 mph (32 km/h).
● The area ahead of the vehicle is not dark.
● Oncoming or preceding vehicles have headlights or tail lights
turned on.
