Lexus GX460 2013 Owner's Manual

570
3-7. Other interior features
GX460_OM_OM60J63U_(U)Stow the hooks.
Fold over the sub cover.
Extending the case
Push the lock release button.
STEP5
STEP6
STEP1
Lock release button
GX460_OM_OM60J63U_(U).book Page 570 Thursday, March 29, 2012 9:10 AM

571
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)Pull the case until it locks.
Check that the lock release button
can be seen.
STEP2
Lock release button
■Adjusting the sub cover (vehicles with third seats)
Fasten the button when the second seats are
in the rear-most position.
Unfasten the buttons before sliding the sec-
ond seats forward.
GX460_OM_OM60J63U_(U).book Page 571 Thursday, March 29, 2012 9:10 AM

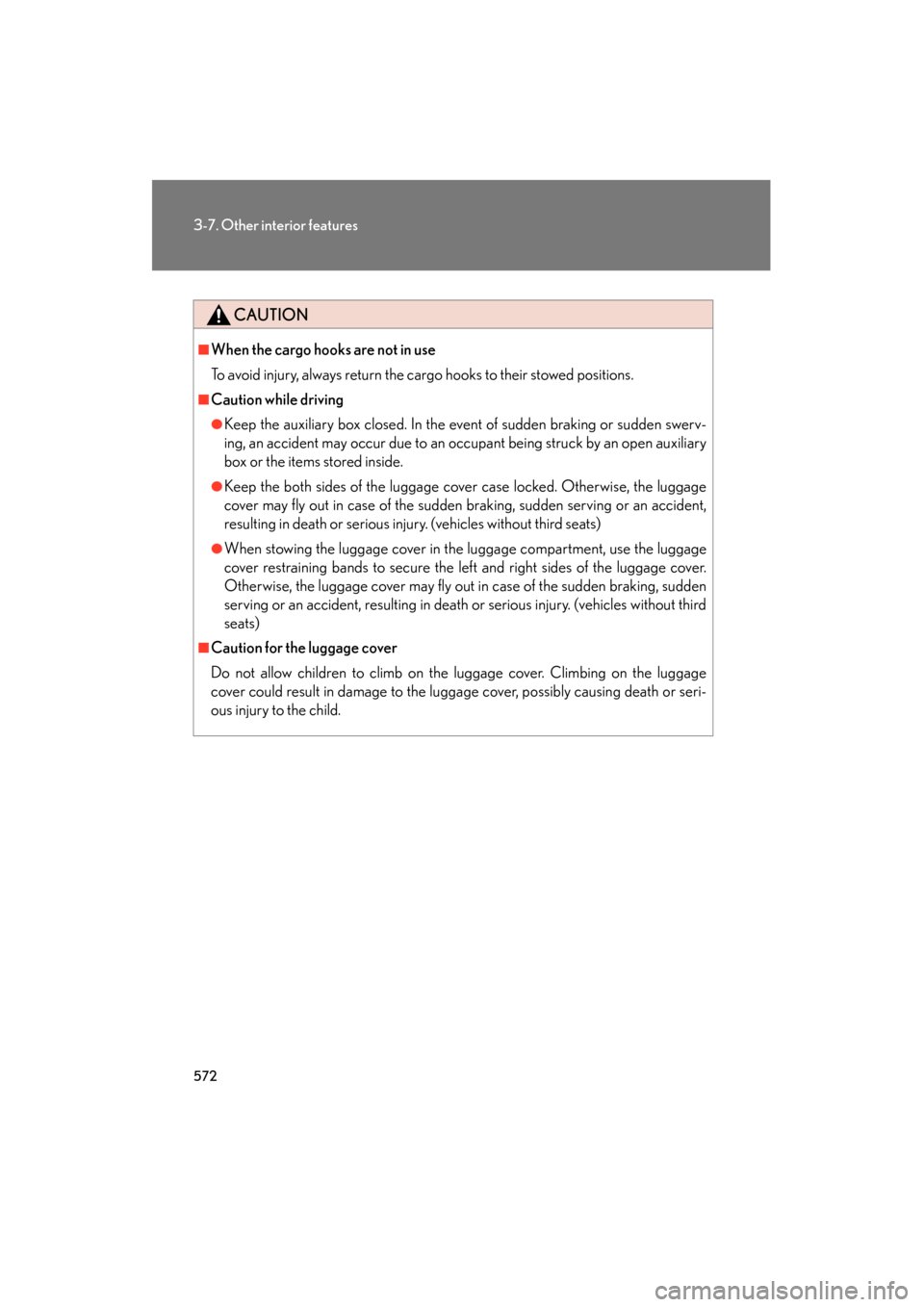

572
3-7. Other interior features
GX460_OM_OM60J63U_(U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■Caution while driving
●Keep the auxiliary box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by an open auxiliary
box or the items stored inside.
●Keep the both sides of the luggage cover case locked. Otherwise, the luggage
cover may fly out in case of the sudden braking, sudden serving or an accident,
resulting in death or serious injury. (vehicles without third seats)
●When stowing the luggage cover in the luggage compartment, use the luggage
cover restraining bands to secure the left and right sides of the luggage cover.
Otherwise, the luggage cover may fly out in case of the sudden braking, sudden
serving or an accident, resulting in death or serious injury. (vehicles without third
seats)
■Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or seri-
ous injury to the child.
GX460_OM_OM60J63U_(U).book Page 572 Thursday, March 29, 2012 9:10 AM

573
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent damage to the luggage cover (vehicles without third seats)
●When stowing the luggage cover, do not put luggage on the luggage cover.
●Do not use the luggage cover restraining bands for anything other than securing
the luggage cover.
●Do not insert coins etc. into the area shown
in the illustration.
GX460_OM_OM60J63U_(U).book Page 573 Thursday, March 29, 2012 9:10 AM

574
3-7. Other interior features
GX460_OM_OM60J63U_(U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
GX460_OM_OM60J63U_(U).book Page 574 Thursday, March 29, 2012 9:10 AM

575
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)■
Programming HomeLink
®
Point the remote control transmit-
ter for the device 1 in. (25 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the trans-
mitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
® button”
instructions. ( →P. 5 7 9 )
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 575 Thursday, March 29, 2012 9:10 AM

576
3-7. Other interior features
GX460_OM_OM60J63U_(U)Te s t t h e H o m e L i n k
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 576 Thursday, March 29, 2012 9:10 AM

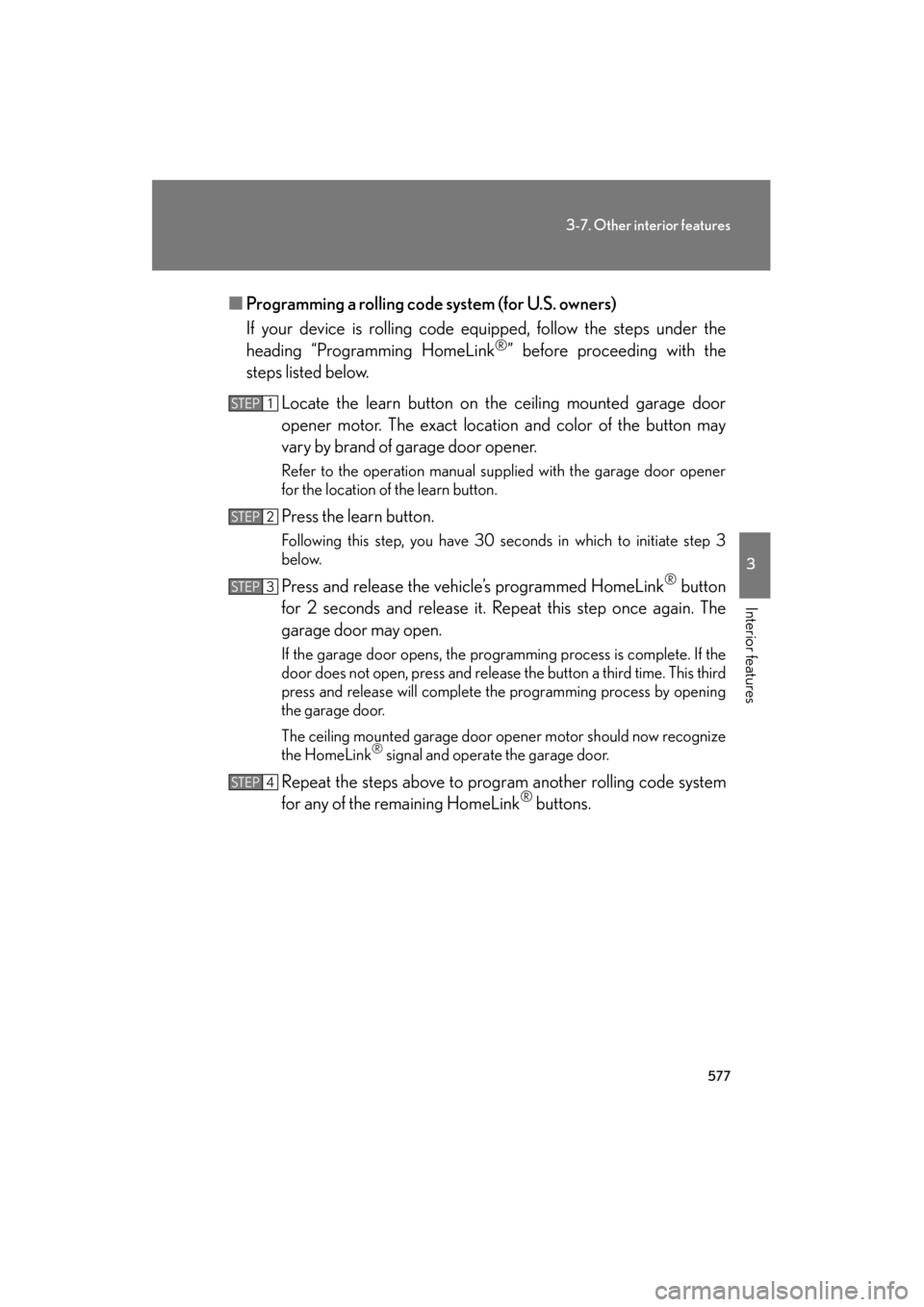

577
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)■
Programming a rolling code system (for U.S. owners)
If your device is rolling code equipped, follow the steps under the
heading “Programming HomeLink
®” before proceeding with the
steps listed below.
Locate the learn button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and release the vehicle’s programmed HomeLink® button
for 2 seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
® signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink® buttons.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 577 Thursday, March 29, 2012 9:10 AM

578
3-7. Other interior features
GX460_OM_OM60J63U_(U)■
Programming an entry gate (for U.S. owners)/Programming a
device in the Canadian market
Place the remote control transmitter 1 in. (25 mm) away from the
HomeLink
® buttons.
Keep the HomeLink® indicator light in view while programming.
Press and hold the selected HomeLink® button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
® indicator light starts to flash rapidly,
release the buttons.
Te s t t h e H o m e L i n k
® operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
® buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
® buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
® button” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GX460_OM_OM60J63U_(U).book Page 578 Thursday, March 29, 2012 9:10 AM

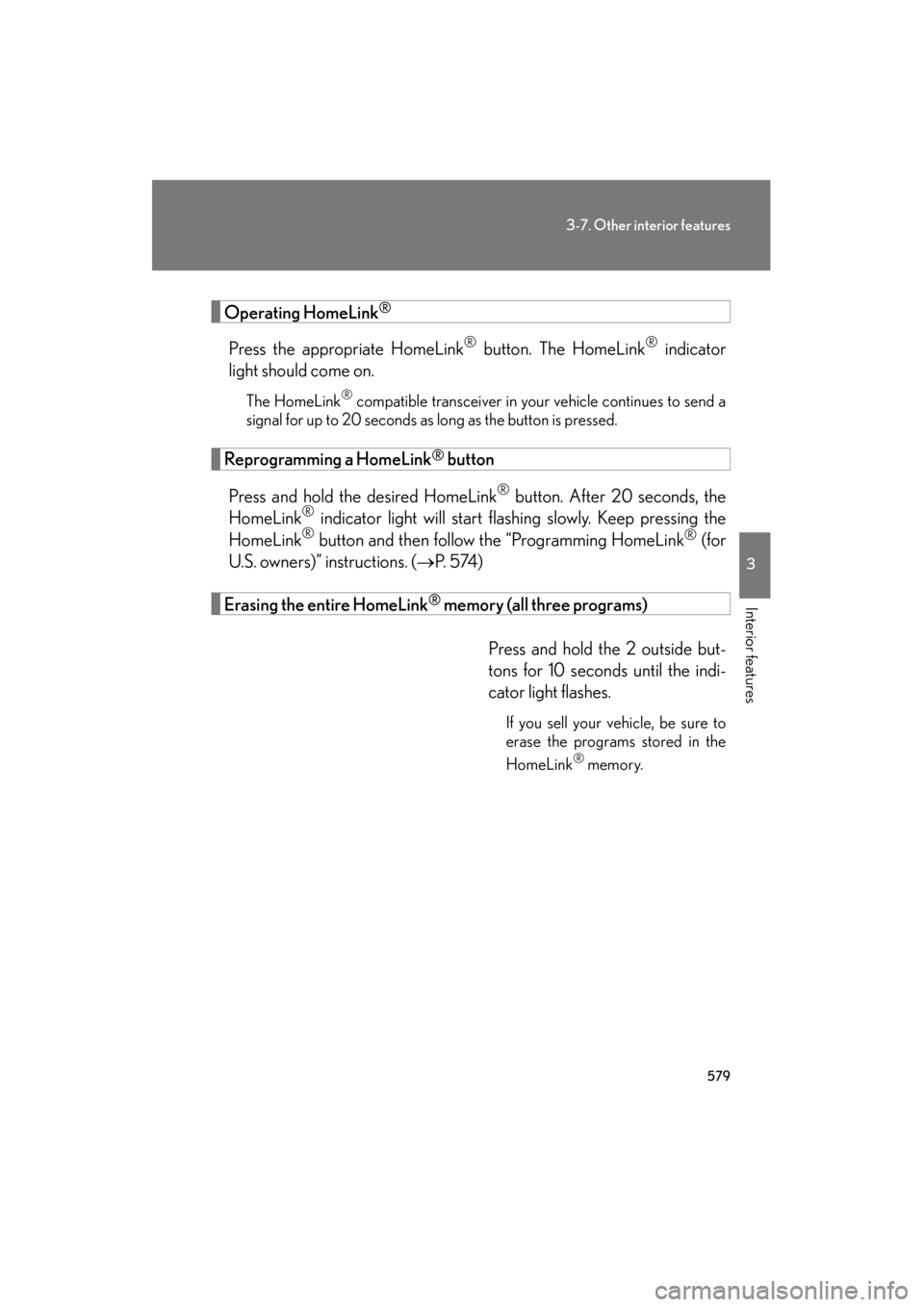

579
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
Operating HomeLink®
Press the appropriate HomeLink® button. The HomeLink® indicator
light should come on.
The HomeLink® compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink® button
Press and hold the desired HomeLink
® button. After 20 seconds, the
HomeLink® indicator light will start flashing slowly. Keep pressing the
HomeLink® button and then follow the “Programming HomeLink® (for
U.S. owners)” instructions. ( →P. 5 74 )
Erasing the entire HomeLink® memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
