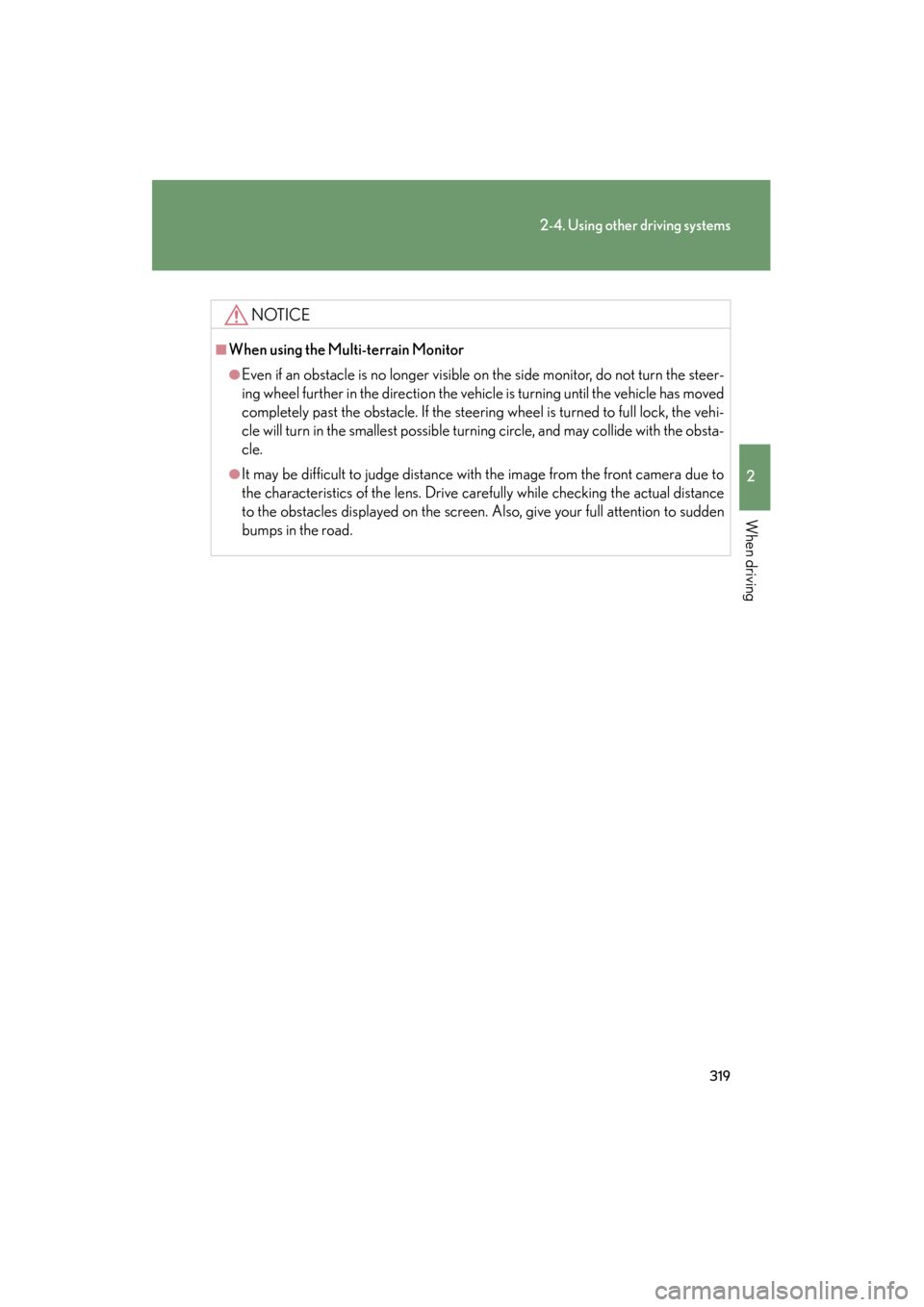

2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
NOTICE
■When using the Multi-terrain Monitor
●Even if an obstacle is no longer visible on the side monitor, do not turn the steer-
ing wheel further in the direction the vehicle is turning until the vehicle has moved
completely past the obstacle. If the steering wheel is turned to full lock, the vehi-
cle will turn in the smallest possible turning circle, and may collide with the obsta-
cle.
●It may be difficult to judge distance with the image from the front camera due to
the characteristics of the lens. Drive carefully while checking the actual distance
to the obstacles displayed on the screen. Also, give your full attention to sudden
bumps in the road.
GX460_OM_OM60J63U_(U).book Page 319 Thursday, March 29, 2012 9:10 AM

320
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Rear height control air suspension∗
Selecting vehicle heightOperating the switch changes vehicle rear height as follows: Higher
Lower
Vehicle height can be adjusted
only when the engine is running.
The selected height mode will be
shown on the rear height control
air suspension display.
The selected mode will flash while
the height mode is being changed.
∗: If equipped
The rear height control air suspension allows the driver to control vehicle
rear height in order to adjust driving conditions. Select the desired height
with the height control switch.
Height control OFF switch
Height control switch
GX460_OM_OM60J63U_(U).book Page 320 Thursday, March 29, 2012 9:10 AM

323
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■When lowering the vehicle
In order to prevent the vehicle height from rising as occupants leave the vehicle,
lowering control will occur for a short while after the engine has been stopped.
■The rear height control air suspension failure warning
●If a malfunction occurs in the rear height control air suspension, N mode is auto-
matically selected. However, the system may not switch to N mode depending
on the location of the malfunction.
●The warning message is displayed on the multi-information display, and the rear
height control air suspension cannot be activated until the malfunction is cor-
rected.
Stop the engine and start it again. If the warning message turns off, the system is
operating correctly. If the warning message continues to be displayed, have
your vehicle inspected by your Lexus dealer as soon as possible.
CAUTION
■The rear height control air suspension must be turned off
Be sure to observe the following precautions. Otherwise, the automatic leveling
function may cause vehicle height to change, and you may catch part of your body
in the vehicle, resulting in an accident:
●When jacking up the vehicle, installing tire chains or tying the vehicle with chains/
wires for transportation via flat bed truck, turn off the rear height control air sus-
pension and stop the engine.
●When the vehicle must be towed or disconnecting a trailer, put the vehicle height
in N mode and turn off the rear height control air suspension.
●When the vehicle is stuck, turn off the rear height control air suspension.
GX460_OM_OM60J63U_(U).book Page 323 Thursday, March 29, 2012 9:10 AM

332
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Crawl Control∗
∗: If equipped
Allows travel on extremely rough off-road surfaces at a fixed low speed
without pressing the accelerator or brake pedal. Minimizes loss of traction
or vehicle slip when driving on sli ppery road surfaces, helping for stable
driving.
■ Crawl Control switch
ON/OFF switch
Speed selection switch
■ System operation
On/off
The Crawl Control indicator is
lit and the slip indicator flashes
when operating.
Also, the operating status and
speed select status of the Crawl
Control are shown on the multi-
information display.
Higher
Lower
GX460_OM_OM60J63U_(U).book Page 332 Thursday, March 29, 2012 9:10 AM

334
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
■Automatic system cancelation
In the following situations, the system is canceled automatically:
At that time, the buzzer will sound, the slip indicator turns off, and the Crawl Con-
trol indicator flashes.
A notification will be displayed on the multi-information display for several seconds.
(→ P. 7 0 5 )
●When the shift lever is moved to P or N.
●When the four-wheel drive control switch is in H4.
●When the driver’s door is opened.
When turning off Crawl Control while traveling, stop the vehicle before the Crawl
Control indicator turns off, or drive extremely carefully.
■Function limit
●In the following situations, you will be able to use brake control to drive downhill
at a fixed low speed, but you will be unable to use engine control to drive uphill
at a fixed low speed.
• When the driving mode is set to second start mode.
• When the vehicle speed is higher than 6 mph (10 km/h).
●In the following situation, engine control and brake control will stop temporarily:
At that time, the Crawl Control indicator flashes.
When the vehicle speed is higher than 15 mph (25 km/h).
■When the Crawl Control system is operated continuously
This may cause the brake actuator to overheat. In this case, the Crawl Control sys-
tem will stop operating, a buzzer will sound, the Crawl Control indicator will turn off
after flashing and the TRAC OFF will be shown on the multi-information display. In
this case, quickly stop the vehicle in a safe place and give the actuator adequate
time to cool off. Refrain from using the system until the message goes off. (The vehi-
cle can be driven normally during this time.)
GX460_OM_OM60J63U_(U).book Page 334 Thursday, March 29, 2012 9:10 AM

335
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■If the automatic transmission system overheats
The system will cease operation, a buzzer will sound and a warning message will be
displayed to alert the driver. Stop the vehicle in a safe place until the warning mes-
sage turns off. (→P. 7 0 5 )
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in Crawl Control system.
●Either of the following conditions may occur when the Crawl Control system is
operating. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Consult your Lexus dealer.
CAUTION
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to maintain a
fixed low speed, which may result in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.
GX460_OM_OM60J63U_(U).book Page 335 Thursday, March 29, 2012 9:10 AM

337
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Operating tips
The system will operate when the shift lever is in a position other than P, however to
make effective use of the system it is recommended that the shift lever be shifted to
2 or 1 range of S mode.
■If the four-wheel drive control switch is in H4
The system does not operate.
■When the downhill assist control system is operated continuously
This may cause the brake actuator to overheat. In this case, the downhill assist con-
trol system will stop operating, a buzzer will sound and the DAC indicator will start
flashing, and the TRAC OFF will be shown on the multi-information display. Refrain
from using the system until the DAC indicator stays on and the message goes off.
(The vehicle can be driven normally during this time.)
■Sounds and vibrations caused by the DAC
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in DAC.
●Either of the following conditions may occur when the DAC is operating. None
of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■System malfunction
●The DAC indicator does not come on when the “ENGINE START STOP”
switch is turned to IGNITION ON mode.
●The “DAC” indicator does not come on when the “DAC” switch is pressed.
●The slip indicator comes on.
In the above cases, have your vehicle checked by your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 337 Thursday, March 29, 2012 9:10 AM

342
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Disabling the TRAC or Active TRAC/VSC systems
If the vehicle gets stuck in fresh snow or mud, the TRAC or Active TRAC/
VSC systems may reduce power from the engine to the wheels. You may
need to turn the system off to enable you to rock the vehicle in order to
free it.
■ Turning off TRAC or Active TRAC system only
To turn the TRAC or Active TRAC
system off, quickly press and
release the button.
The TRAC OFF will be shown on
the multi-information display.
Press the button again to turn the
system back on.
■Turning off both TRAC or Active TRAC and VSC systems
To turn the TRAC or Active TRAC
and VSC systems off, press and
hold the button for 3 seconds and
more while the vehicle is stopped.
The VSC OFF indicator light will
come on and the TRAC OFF will
be shown on the multi- information
display.
Press the button again to turn the
system back on.
GX460_OM_OM60J63U_(U).book Page 342 Thursday, March 29, 2012 9:10 AM

343
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■When the TRAC OFF is displayed on the multi-information display even if the
VSC OFF switch has not been pressed
TRAC/Active TRAC, hill-start assist control, downhill assist control and Crawl
Control cannot be operated. Contact your Lexus dealer.
■Hill-start assist control operation conditions
●The shift lever is in D or S.
●The brake pedal is not depressed.
■Sounds and vibrations caused by the ABS/Multi Terrain ABS, brake assist, VSC,
TRAC/Active TRAC and hill-start assist control systems
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in any of these systems.
●Any of the following conditions may occur when the above systems are operat-
ing. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS/Multi Terrain ABS is acti-vated.
• The brake pedal may move down slightly after the ABS/Multi Terrain ABS is
activated.
■Reactivation of the TRAC or Active TRAC/VSC systems after turning off the
engine
Turning off the engine after turning off the TRAC or Active TRAC/VSC systems
will automatically reactivate them.
■Reactivation of the TRAC or Active TRAC system linked to vehicle speed
When only the TRAC or Active TRAC system is turned off, the TRAC or Active
TRAC system will turn on when vehicle speed increases. However, when both
TRAC or Active TRAC and VSC systems are turned off, the systems will not turn on
even when vehicle speed increases.
GX460_OM_OM60J63U_(U).book Page 343 Thursday, March 29, 2012 9:10 AM

344
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
■When the brake system operates continuously
The brake actuator may overheat. In this case, the TRAC or Active TRAC and hill-
start assist control systems will stop operating, a buzzer will sound and the TRAC
OFF will be shown on the multi-information display. Refrain from using the system
until the message goes off. (There is no problem with continuing normal driving.)
■If the slip indicator comes on...
It may indicate a malfunction in the VSC, TRAC/Active TRAC or hill-start assist
control system. Consult your Lexus dealer.
CAUTION
■The ABS/Multi Terrain ABS does not operate effectively when
●Tires with inadequate gripping ability are used (such as excessively worn tires on
a snow covered road).
●The vehicle hydroplanes while driving at high speed on wet or slick roads.
■Stopping distance when the ABS/Multi Terrain ABS is operating may exceed
that of normal conditions
The ABS/Multi Terrain ABS is not designed to shorten the vehicle’s stopping dis-
tance. Always maintain a safe distance from the vehicle in front of you in the follow-
ing situations:
●When driving on dirt, gravel or snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes or roads with uneven surfaces
GX460_OM_OM60J63U_(U).book Page 344 Thursday, March 29, 2012 9:10 AM
