Lexus GX460 2013 Specifications /

141
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)
Deactivating the curtain shield airbags in a vehicle rolloverON/OFF (Hold for a few seconds)
The “RSCA OFF” indicator light
turns on. (only when the “ENGINE
START STOP” switch is in IGNI-
TION ON mode).
The roll sensing function for the
curtain shield airbags and seat belt
pretensioners will turn back on
automatically each time the
“ENGINE START STOP” switch is
turned to IGNITION ON mode.

142
1-7. Safety information
GX460_OM_OM60J63U_(U)
■The switch only should be used
In a situation where inflation is not desired (such as during extreme off-road driv-
ing).
■Operating conditions when the “RSCA OFF” indicator is on
●The curtain shield airbag and seat belt pretensioner will not activate in a vehicle
rollover.
●The curtain shield airbag will activate in a severe side impact.
●The seat belt pretensioner will activate in a severe frontal or side collision.
CAUTION
■For normal driving
Make sure the “RSCA OFF” indicator light is not turned on. If it is left on, the curtain
shield airbag will not activate in the event of an accident, which may result in death
or serious injury.

143
1
1-7. Safety information
Before driving
GX460_OM_OM60J63U_(U)

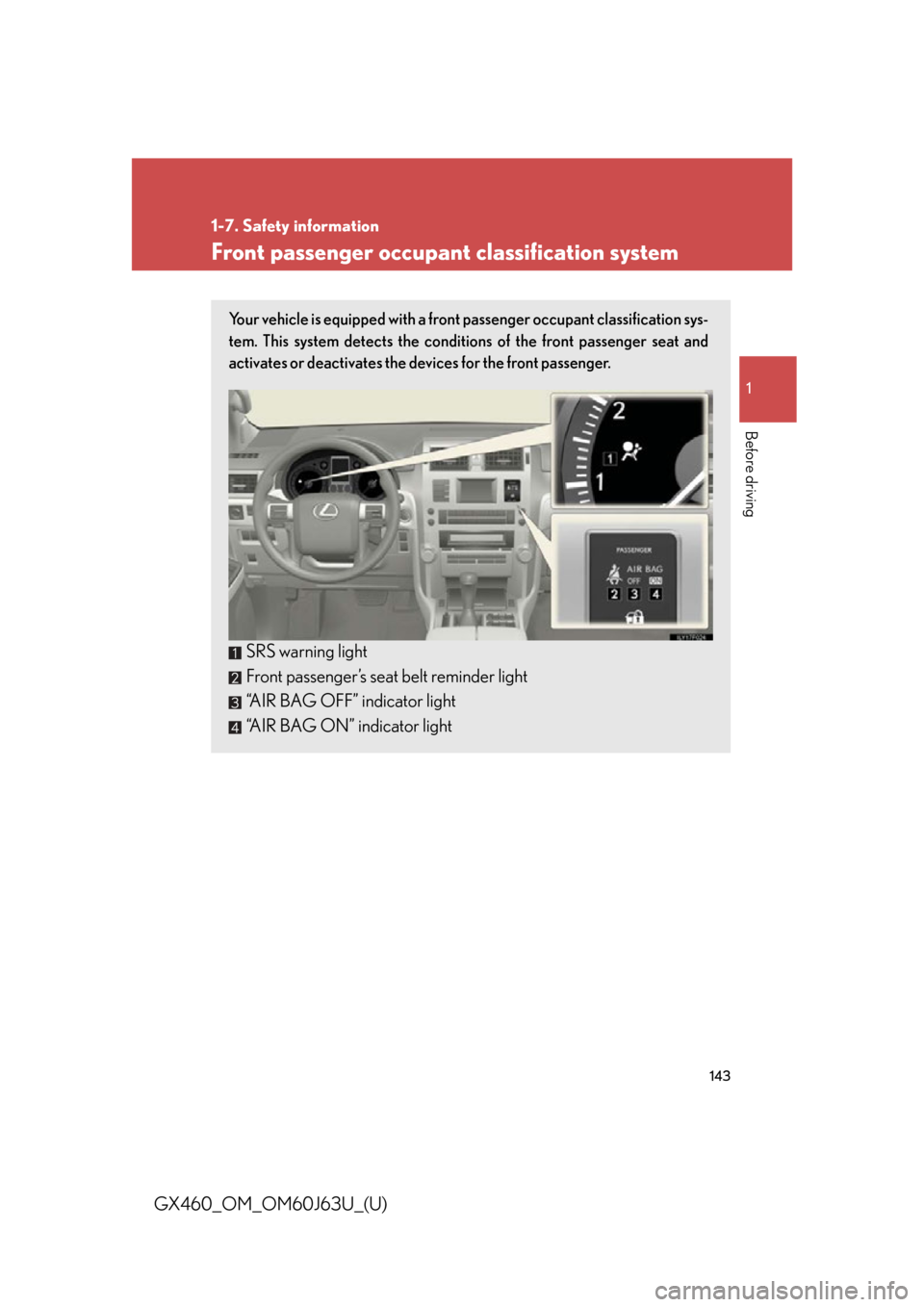

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for the front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

144
1-7. Safety information
GX460_OM_OM60J63U_(U)
Condition and operation in the front passenger occupant classification system
■Adult*1
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner

145
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)■
Child
*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

146
1-7. Safety information
GX460_OM_OM60J63U_(U)■
Unoccupied
■ There is a malfunction in the system
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not
illuminated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat Activated
Curtain shield airbag
in the front passenger side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

147
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)
*1: The system judges a person of adult size as an adult. When a smalleradult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt.
*3: When a large child who has outgrown a child restraint system sits in
the front passenger seat, the sy stem may recognize him/her as an
adult depending on his/her physique and posture.
*4: Never install a rear-facing child restraint system on the front passen-
ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
( P. 155)
*5: In case the indicator light is not illuminated, consult this manual on
how to installing the child restraint system properly. ( P. 150)
CAUTION
■Front passenger occupant classi fication system precautions
Observe the following precautions regarding the front passenger occupant classifi-
cation system.
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.

148
1-7. Safety information
GX460_OM_OM60J63U_(U)
CAUTION
■Front passenger occupant classification system precautions
●Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passen ger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extend er tongue from the seat belt buckle, and
reconnect the seat belt. Reconnect the seat belt extender after making sure the
“AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the front passenger airbag
and front passenger knee airbag may not activate correctly, which could cause
death or serious injury in the event of a collision.
●Do not apply a heavy load to the front passenger seat or equipment (e.g. seat-
back pocket).
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seat back from the second seat.
●Do not let a second seat passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
●Do not put objects under the front passenger seat.
●Do not recline the front passenger seatback so far that it touches a second seat.
This may cause the “AIR BAG OFF” indicato r light to be illuminated, which indi-
cates that the passenger’s airbags will not deploy in the event of a severe acci-
dent. If the seatback touche s the second seat, return the seatback to a position
where it does not touch the second seat. Keep the front passenger seatback as
upright as possible when the vehicle is moving. Reclining the seatback exces-
sively may lessen the effectiveness of the seat belt system.

149
1-7. Safety information
1
Before driving
GX460_OM_OM60J63U_(U)
CAUTION
■Front passenger occupant classification system precautions
●If an adult sits in the front passenger se at, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still remain illuminated, either ask the pas-
senger to move to the rear seat, or if th at is not possible, move the front passenger
seat fully rearward.
●When it is unavoidable to install a forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. ( P. 155)
●Do not modify or remove the front seat.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction in the detection sys-
tem. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the second seat should not contact the front
seatbacks.
●Do not use a seat accessory, such as a cushion and seat cover, that covers the
seat cushion surface.
●Do not modify or replace the upholstery of the front seat.

150
1-7. Safety information
GX460_OM_OM60J63U_(U)
Child restraint systems
Points to rememberStudies have shown that installing a ch ild restraint on a rear seat is much
safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropri-
ate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions ar e provided in this manual.
( P. 155)
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.
