Lexus GX460 2013 Specifications /

541
3
Interior features
GX460_OM_OM60J63U_(U)
3-7. Other interior features
Cool box
: If equipped
■The cool box can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When the cool box is turned on
Turning cool box on also turns on front air conditioning system.
Lift the lid while pulling up the
lower lever to release the lock.
Turns the cool box on/off
When on, the indicator light
comes on.
STEP1
STEP2

542
3-7. Other interior features
GX460_OM_OM60J63U_(U)
■Items unsuitable for the cool box
●Drinks in unsealed containers
●Fragile items, perishables or anything with strong odor
●Owner’s manual, electronic devices, CDs, etc.
■When the indicator light flashes
The cool box is not operated when an y of the following conditions occurs.
●When the air conditioning system is off
Turn the air conditioning system on also turns on the cool box.
●When outside air temperature is about 32 F (0 C) or below.
●When the “A/C ON” in the multi-information display (accessory meter)
( P. 398) also flashes
Press the “A/C” button to turn off the cooling and dehumidification function and
turn it on again.
If the indicator light continues to flash, there may be a malfunction in the system.
Turn the air conditioning system off and have it inspected by your Lexus dealer.
■When using the cool box lid as an armrest
Slide the cool box lid forward or backward as
needed. Slide the lid while pulling up the
upper lever to release the lock.

543
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
CAUTION
■Caution while driving
Keep the cool box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open cool box or the
items stored inside.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is stopped.

544
3-7. Other interior features
GX460_OM_OM60J63U_(U)

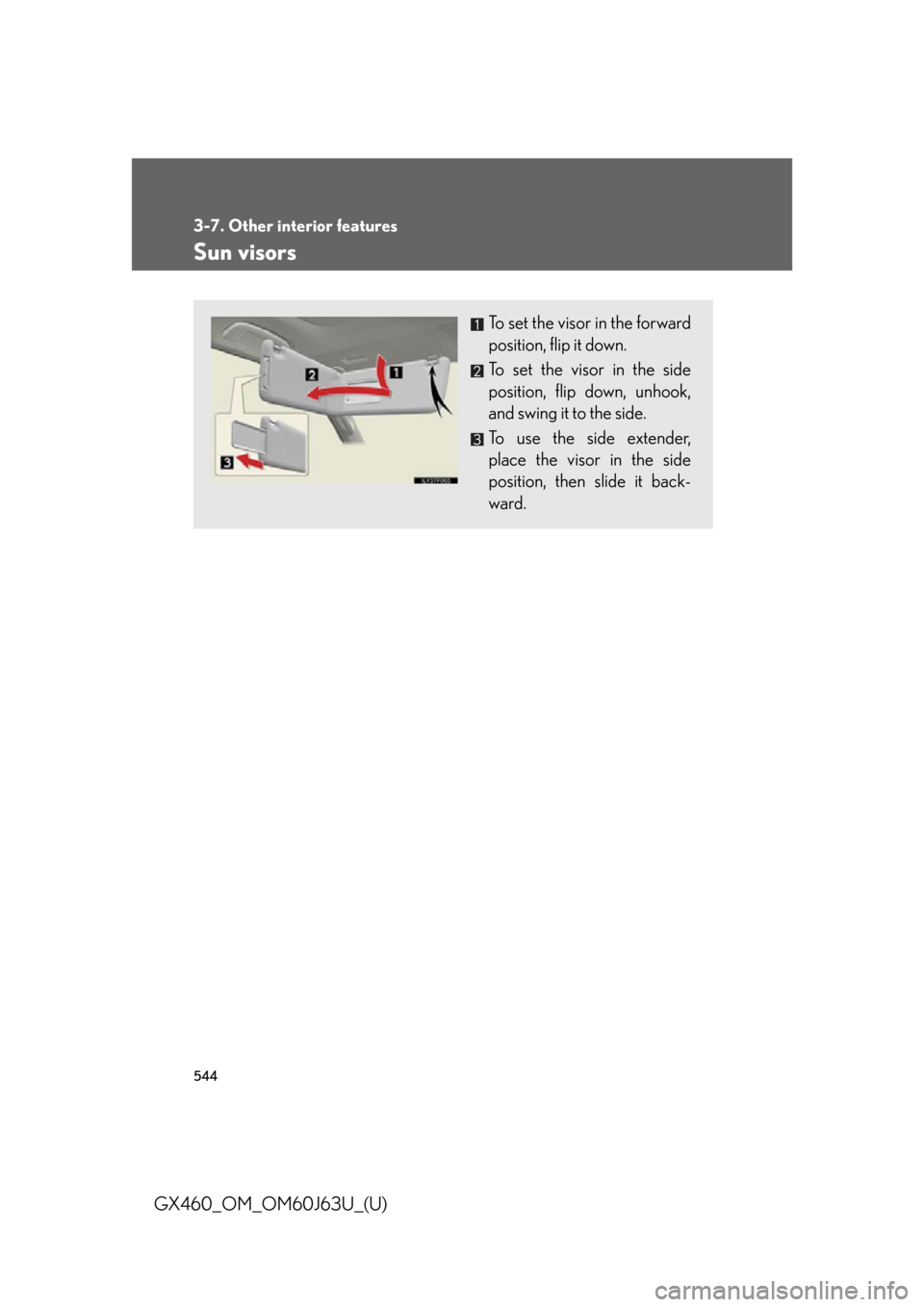

Sun visors
To set the visor in the forward
position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
To use the side extender,
place the visor in the side
position, then slide it back-
ward.

545
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
Vanity mirror
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.
Slide the cover to open.
The light turns on when the
cover is opened.

546
3-7. Other interior features
GX460_OM_OM60J63U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemAdjusts the hours
Adjusts the minutes

547
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
Conversation mirror
■To use the overhead console from the conversation mirror state
Pull down the lid. (P. 5 3 9 )
The conversation mirror can provide the driver and the front passenger
with a view of the rear seat area without the need to turn around.
Press in the button.

548
3-7. Other interior features
GX460_OM_OM60J63U_(U)

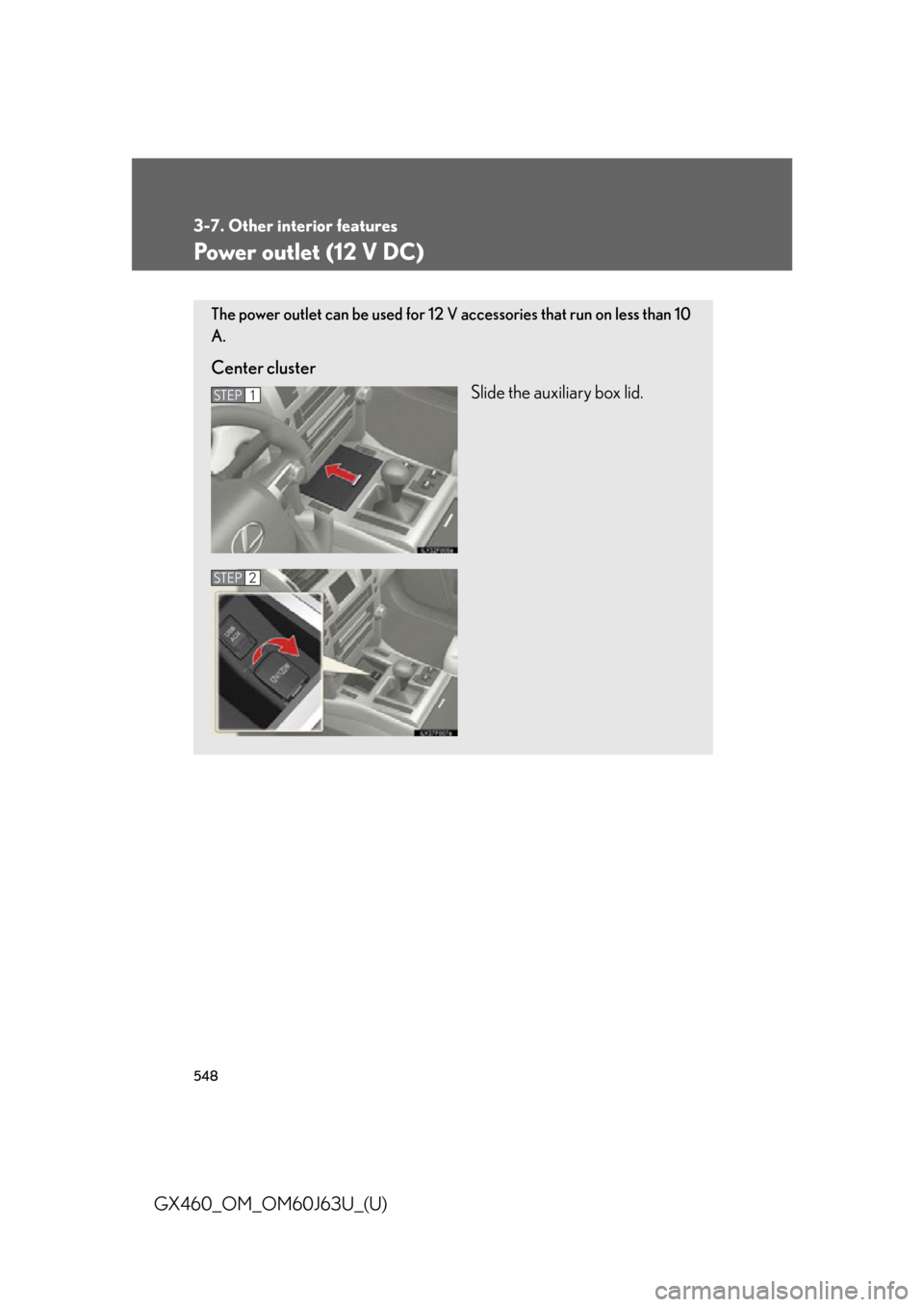

Power outlet (12 V DC)
The power outlet can be used for 12 V accessories that run on less than 10
A.
Center clusterSlide the auxiliary box lid.
STEP1
STEP2

549
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.

550
3-7. Other interior features
GX460_OM_OM60J63U_(U)

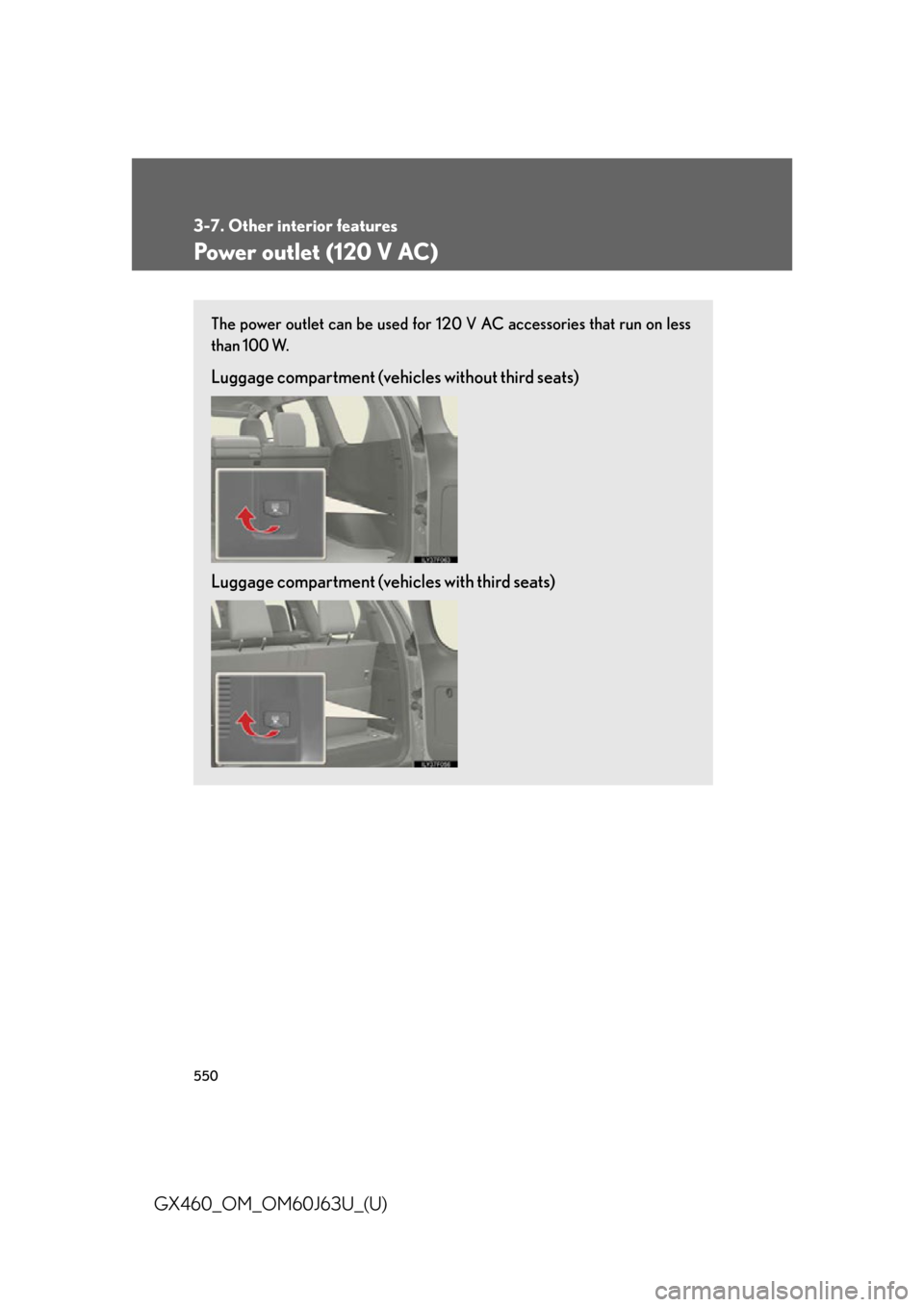

Power outlet (120 V AC)
The power outlet can be used for 120 V AC accessories that run on less
than 100 W.
Luggage compartment (vehicles without third seats)
Luggage compartment (vehicles with third seats)
