72
GX460_OM_OM60K80U_(U)2. Instrument cluster
Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the foll owing illustrations display all warning
lights and indicators illuminated.

77
GX460_OM_OM60K80U_(U)2. Instrument cluster
2
Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a va riety of driving-related dataP. 8 0 )
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Rear height control air suspension display
Displays the rear heig ht mode selected (P. 3 2 7 )
Shift position and shift range display
Displays the selected shift posi tion or selected shift range (P. 1 8 6 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
1
2
3
4
5
6
7
8

78

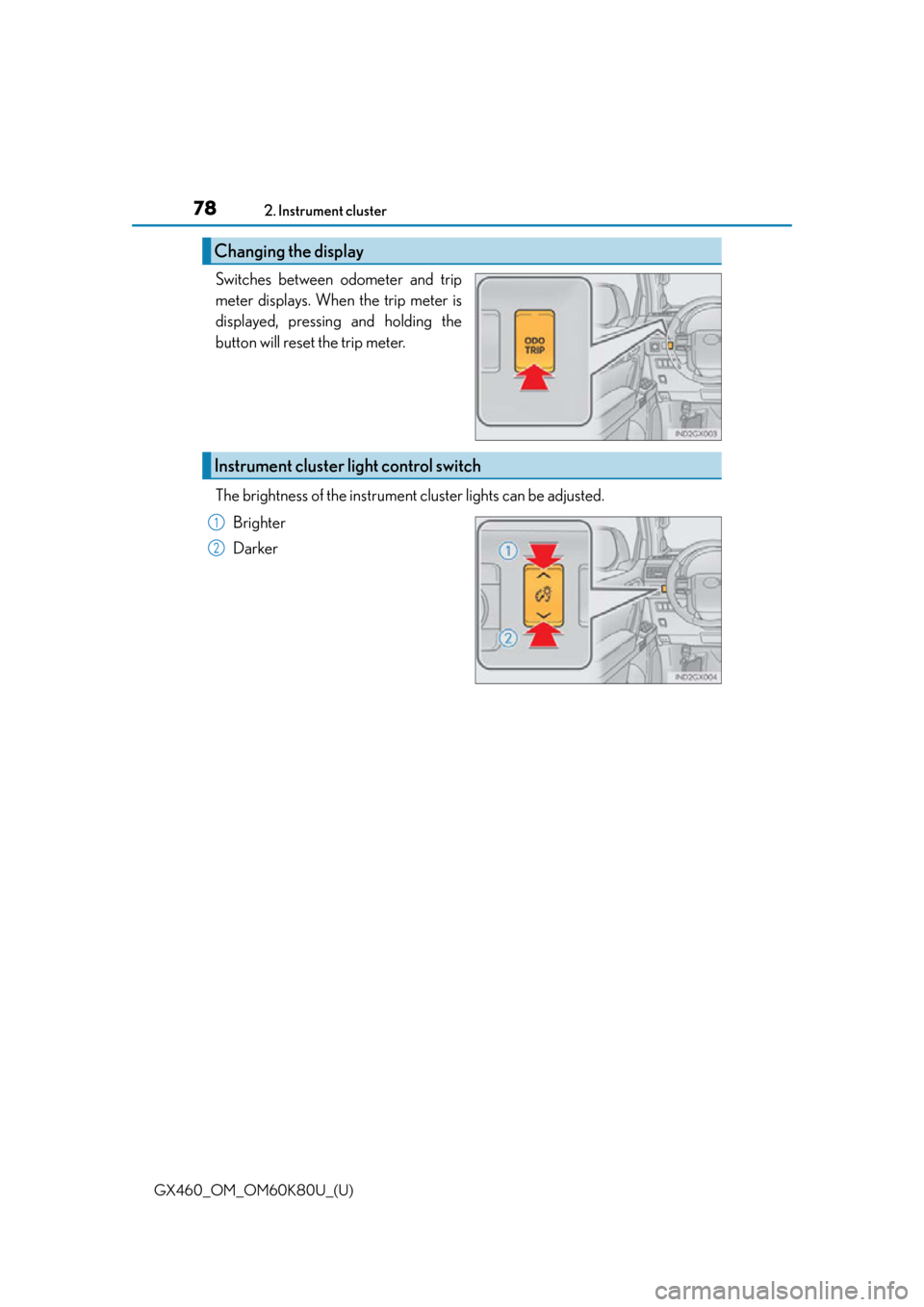

GX460_OM_OM60K80U_(U)2. Instrument cluster
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument
cluster lights can be adjusted.
Brighter
Darker
Changing the display
Instrument cluster light control switch
1
2

GX460_OM_OM60K80U_(U)
792. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the in strument cluster lights
When the tail lights are on, the brightness will change. However, when the surroundings
are bright (daytime, etc.) turn ing on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the odometer will be displayed after resetting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights can be
changed. (Customizable features P. 5 7 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 5 4 8 )

80

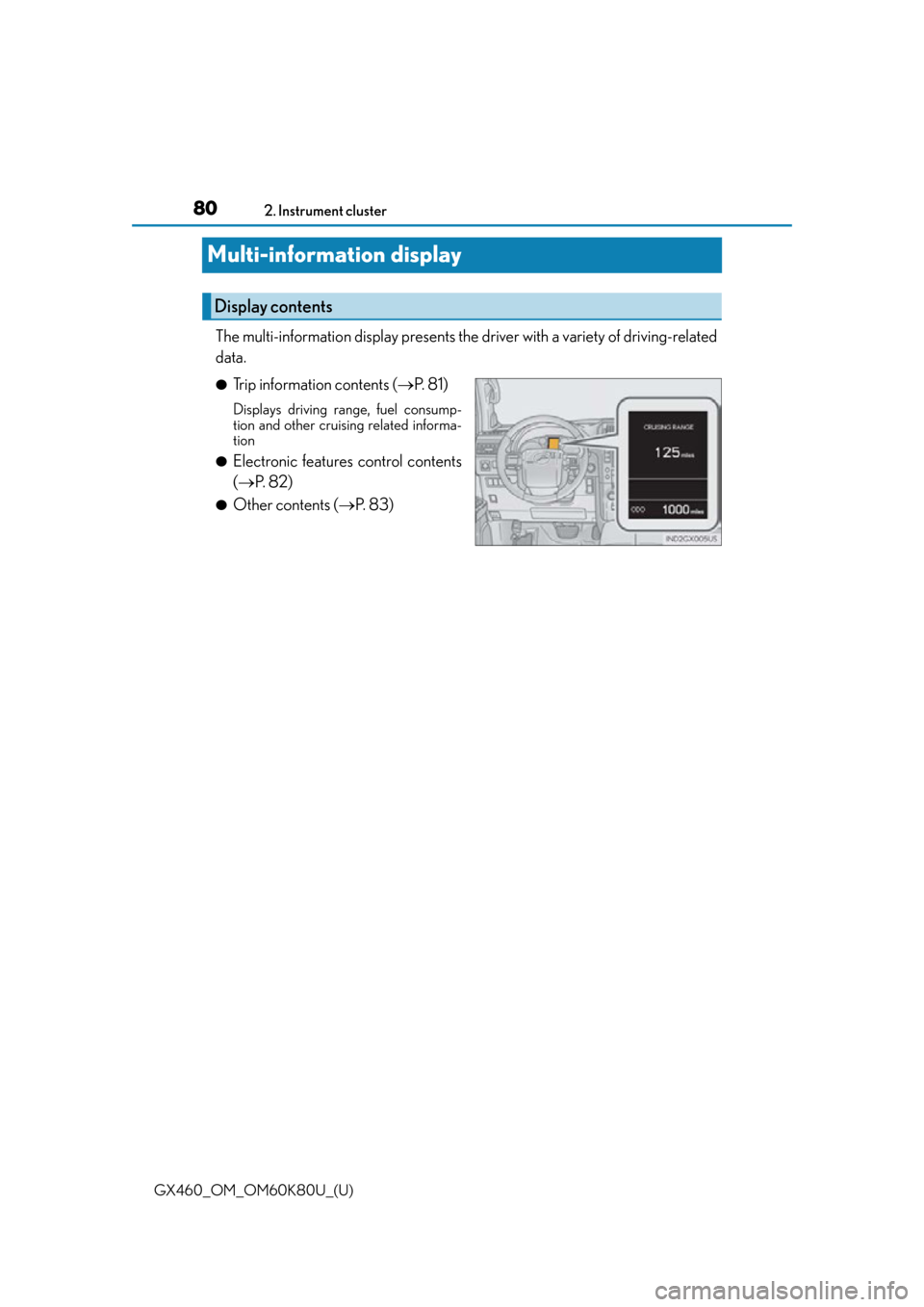

GX460_OM_OM60K80U_(U)2. Instrument cluster
Multi-information display
The multi-information display presents the
driver with a variety of driving-related
data.
●Trip information contents ( P. 8 1 )
Displays driving range, fuel consump-
tion and other cruising related informa-
tion
●Electronic features control contents
( P. 8 2 )
●Other contents ( P. 8 3 )
Display contents
