20Pictorial index
GX 460 _O M_ OM6 0L 72U _( U)
Front seat heater/ventilator switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Height control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Height control OFF button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
AV S s w i t c h
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Four-wheel drive control switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Crawl Control speed selection switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Crawl Control ON/OFF switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
“DAC” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
1
2
3
4
5
6
7
8
GX460_OM_OM60L72U_(U).book Page 20 Friday, May 16, 2014 3:03 PM
Page 22 of 634
21Pictorial index
GX 460 _O M_ OM6 0L 72U _( U)
■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 34
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 136
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Console box
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Cool box
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 413
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 402
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 04
Rear air conditioning system
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 390
Rear seat entertainment system
*1, 2
*1: If equipped
*2: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL” or “MULTIMEDIA OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11
12
GX460_OM_OM60L72U_(U).book Page 21 Friday, May 16, 2014 3:03 PM
Page 23 of 634
22Pictorial index
GX 460 _O M_ OM6 0L 72U _( U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 415
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 1 5
Personal/interior lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 149
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 04
“SOS” button
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Garage door opener buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
*1: The illustration shows the front, but they are also equipped in the rear.
*2: If equipped
1
2
3
4
5
6
7
8
GX460_OM_OM60L72U_(U).book Page 22 Friday, May 16, 2014 3:03 PM
Page 24 of 634
23
GX 460 _O M_ OM6 0L 72U _( U)
For safety and security1
1-1. For safe useBefore driving................................. 24
For safety drive............................... 26
Seat belts .......................................... 28
SRS airbags ..................................... 34
Front passenger occupant classification system.................. 46
Safety information for children .......................................... 52
Child restraint systems ............... 53
Installing child restraints ............. 57
Exhaust gas precautions .............67
1-2. Theft deterrent system Engine immobilizer system ....... 68
Alarm ................................................. 70
GX460_OM_OM60L72U_(U).book Page 23 Friday, May 16, 2014 3:03 PM
Page 25 of 634
241-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
Before driving
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Floor mat
1
*
2
GX460_OM_OM60L72U_(U).book Page 24 Friday, May 16, 2014 3:03 PM
Page 26 of 634
251-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpectedly high spee d may result or it may become difficult to
stop the vehicle, leading to an accident, or leading to death or a serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor.
●With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to
make sure it does not interfere with the floor
mat.
GX460_OM_OM60L72U_(U).book Page 25 Friday, May 16, 2014 3:03 PM
Page 27 of 634
261-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)

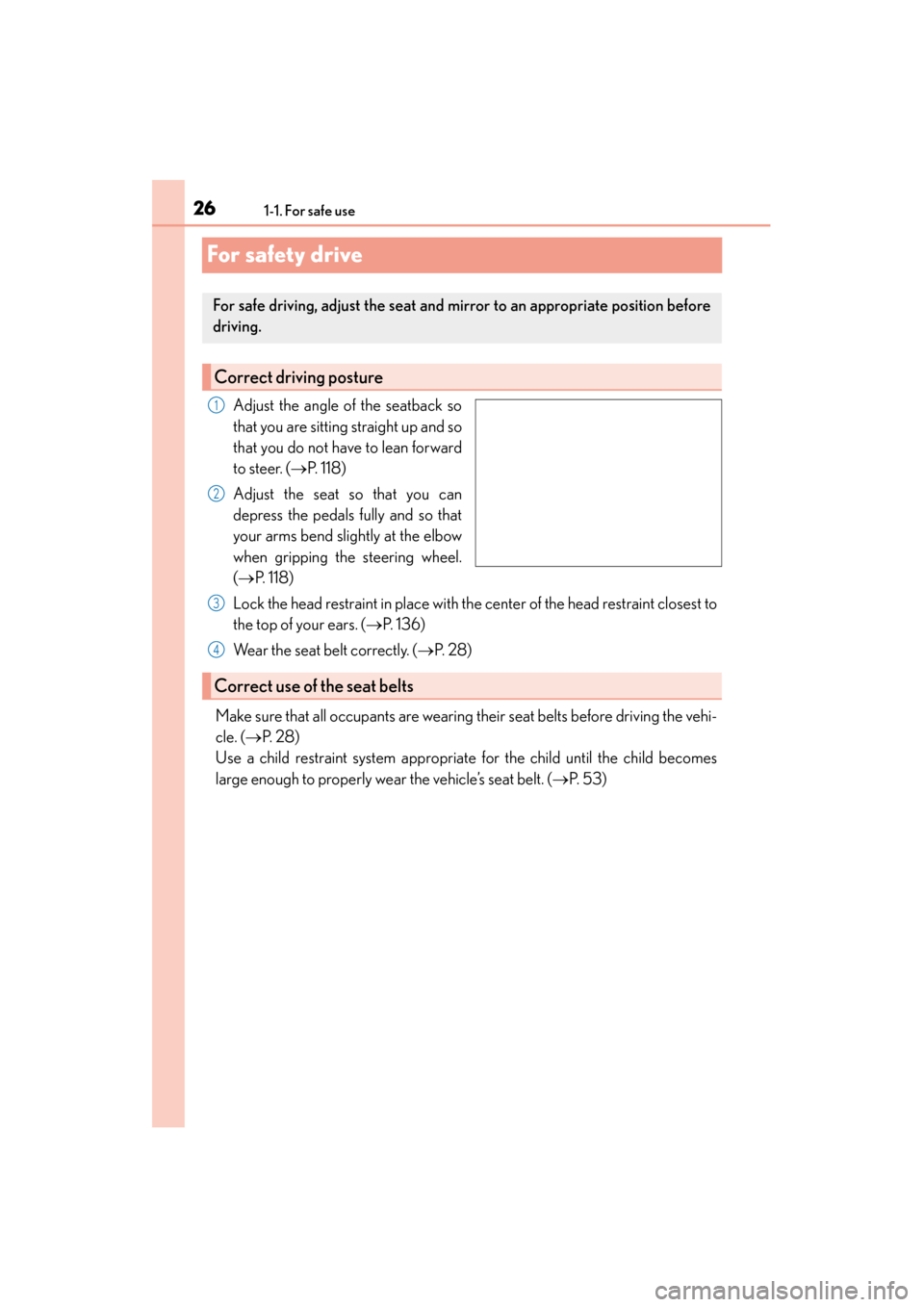

For safety drive
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 118)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( → P. 118)
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. ( →P. 136)
Wear the seat belt correctly. ( →P. 2 8 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( →P. 2 8 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( →P. 5 3 )
For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
GX460_OM_OM60L72U_(U).book Page 26 Friday, May 16, 2014 3:03 PM
Page 28 of 634
271-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( →P. 141, 143)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving
and take a break immediately.
GX460_OM_OM60L72U_(U).book Page 27 Friday, May 16, 2014 3:03 PM
Page 29 of 634
281-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)

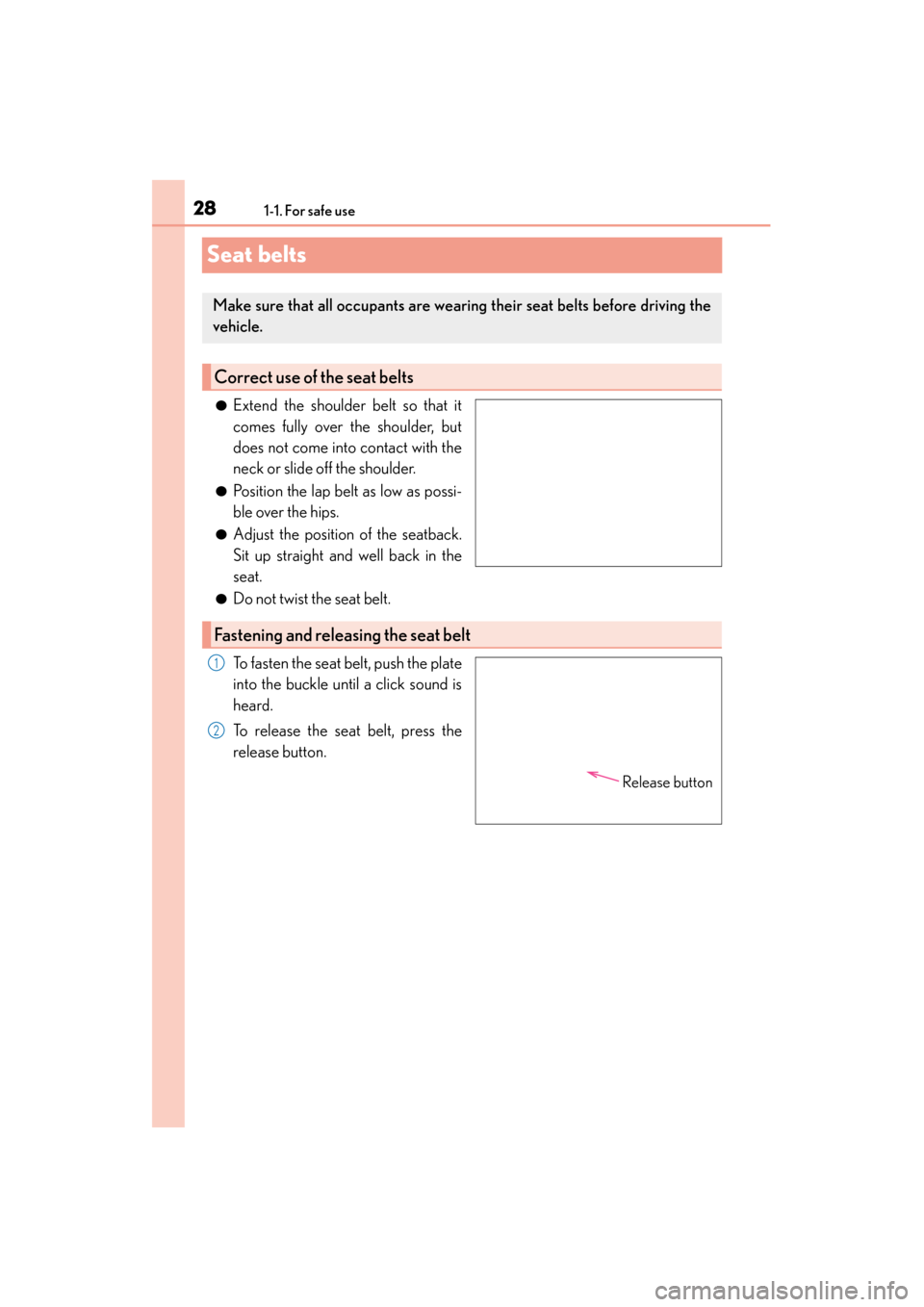

Seat belts
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
GX460_OM_OM60L72U_(U).book Page 28 Friday, May 16, 2014 3:03 PM
Page 30 of 634
291-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up.
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal or side collision or a vehi-
cle rollover.
The pretensioners do not activate in the
event of a minor frontal or side impact,
or a rear impact.
If the system determines that a collision is unavoidable, the front seat belts will
retract before the collision. ( →P. 3 6 2 )
Adjusting the seat belt shoulder anchor height (front and outer second
seats)
1
2
Seat belt pretensioners (fro nt and outer second seats)
Pre-collision seat belts (front seats of vehicles with pre-collision system)
GX460_OM_OM60L72U_(U).book Page 29 Friday, May 16, 2014 3:03 PM
