Lexus GX460 2017 Owner's Manual

499
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage and color of the light bulb being replaced. (
→P. 5 7 9 )
→ P. 4 6 4
■Front
You may replace the following bulbs yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
Front turn signal light
Headlight high beam1
2
GX460_OM_OM60F68U_(U).book Page 499 Wednesday, June 8, 2016 6:37 PM

500
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance

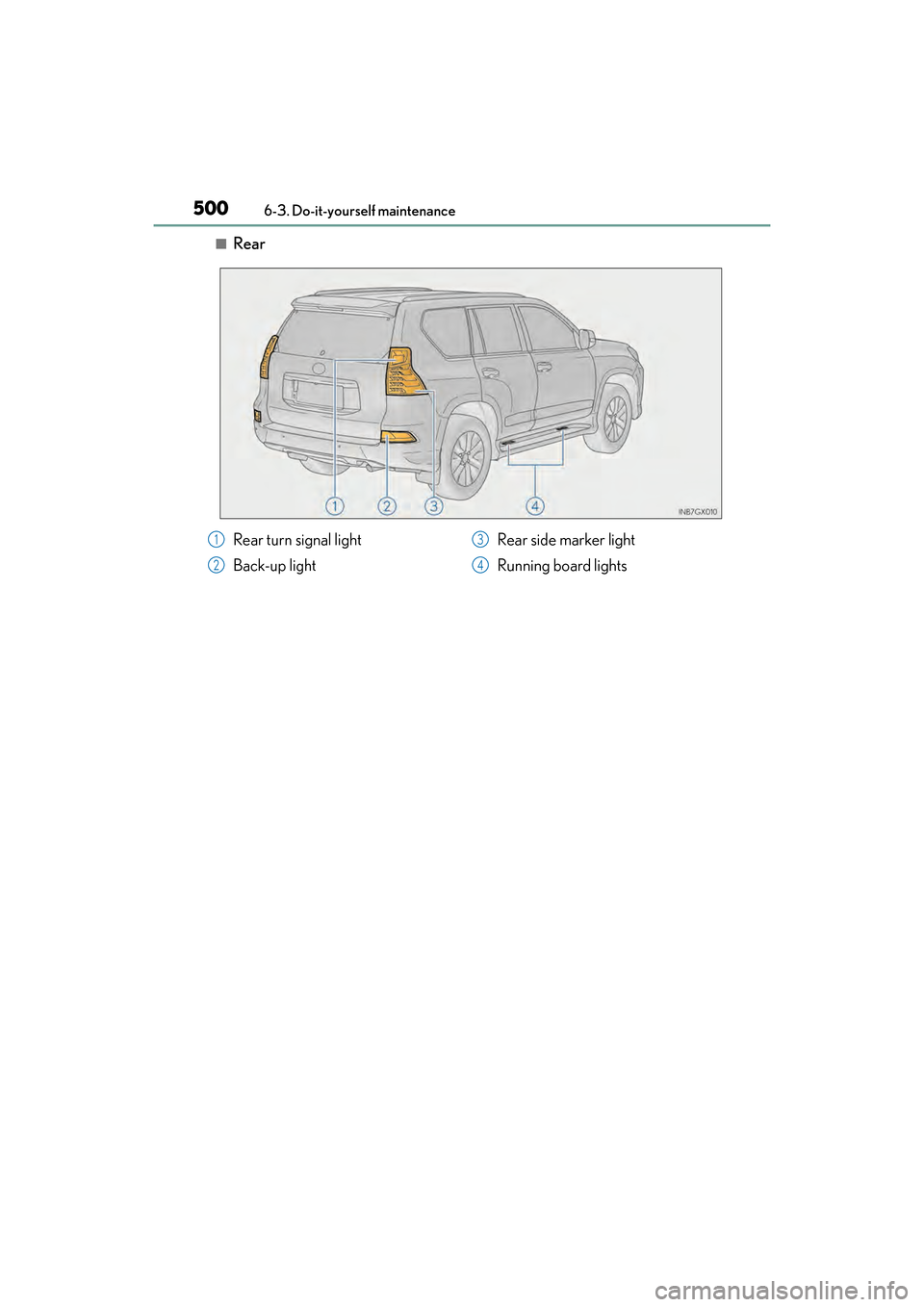

■Rear
Rear turn signal light
Back-up light
Rear side marker light
Running board lights1
2
3
4
GX460_OM_OM60F68U_(U).book Page 500 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5016-3. Do-it-yourself maintenance
6
Maintenance and care
■Headlight high beamsTurn the cover counterclockwise.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replacing light bulbs
1
2
3
GX460_OM_OM60F68U_(U).book Page 501 Wednesday, June 8, 2016 6:37 PM

502
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb with
the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to check
that it is not loose, turn the headlights
on once and visually confirm that no
light is leaking through the mounting.
When installing the cover, conduct in reverse.
4
5
61
GX460_OM_OM60F68U_(U).book Page 502 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5036-3. Do-it-yourself maintenance
6
Maintenance and care

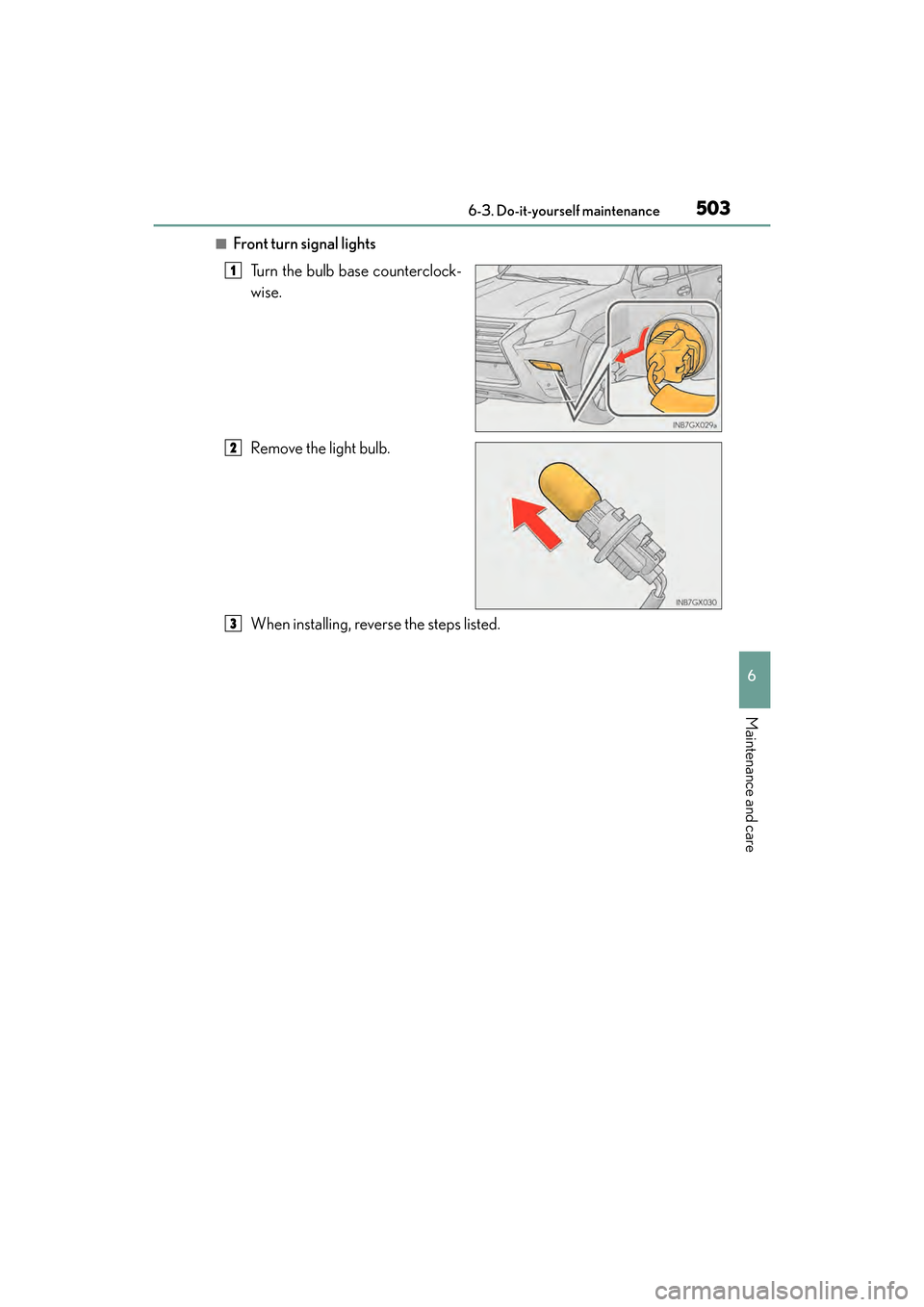

■Front turn signal lightsTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
GX460_OM_OM60F68U_(U).book Page 503 Wednesday, June 8, 2016 6:37 PM

504
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance

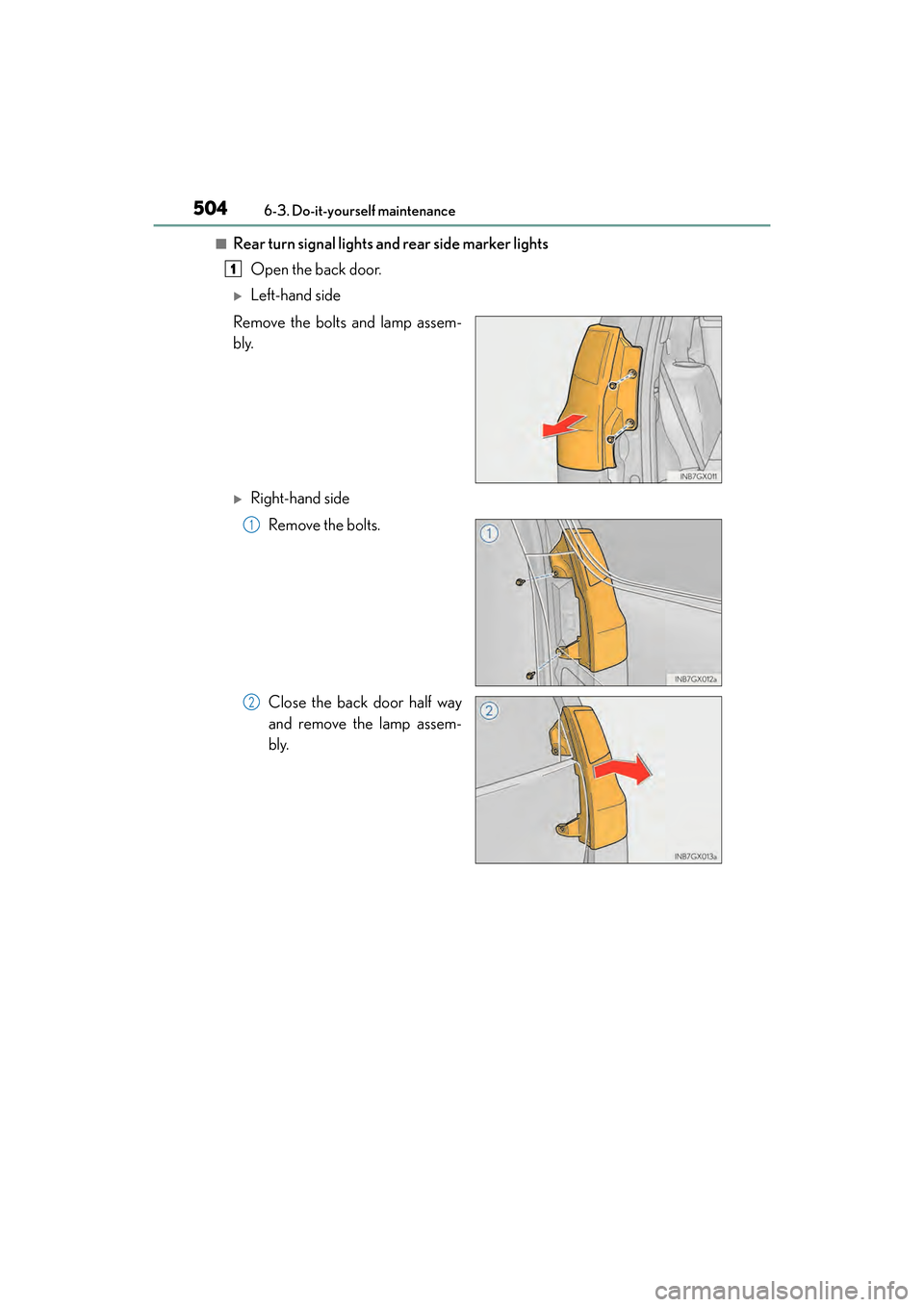

■Rear turn signal lights and rear side marker lights
Open the back door.
XLeft-hand side
Remove the bolts and lamp assem-
bly.
XRight-hand side Remove the bolts.
Close the back door half way
and remove the lamp assem-
bly.
1
1
2
GX460_OM_OM60F68U_(U).book Page 504 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5056-3. Do-it-yourself maintenance
6
Maintenance and care

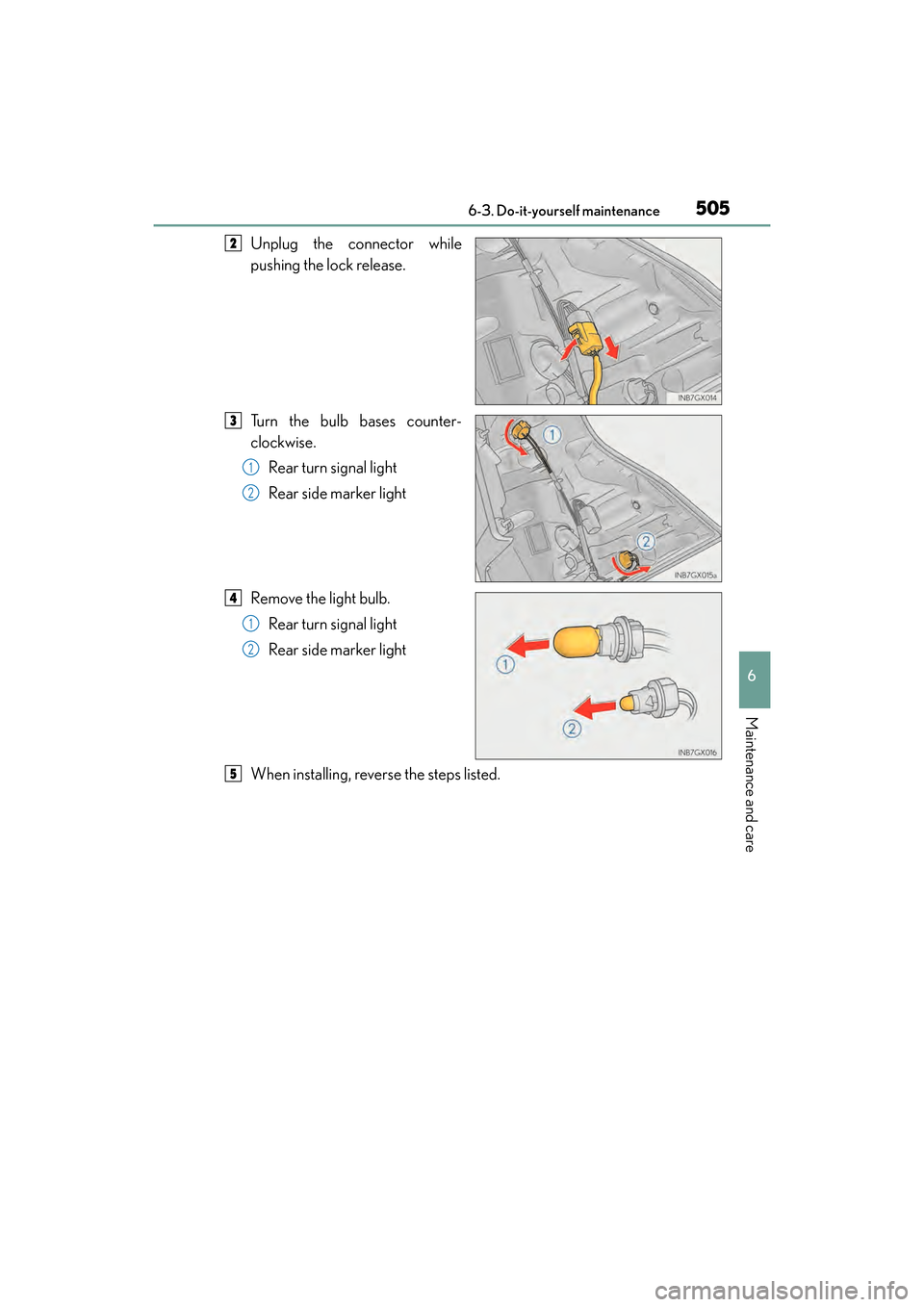

Unplug the connector while
pushing the lock release.
Turn the bulb bases counter-
clockwise.Rear turn signal light
Rear side marker light
Remove the light bulb. Rear turn signal light
Rear side marker light
When installing, reverse the steps listed.2
3
1
2
4
1
2
5
GX460_OM_OM60F68U_(U).book Page 505 Wednesday, June 8, 2016 6:37 PM

506
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance

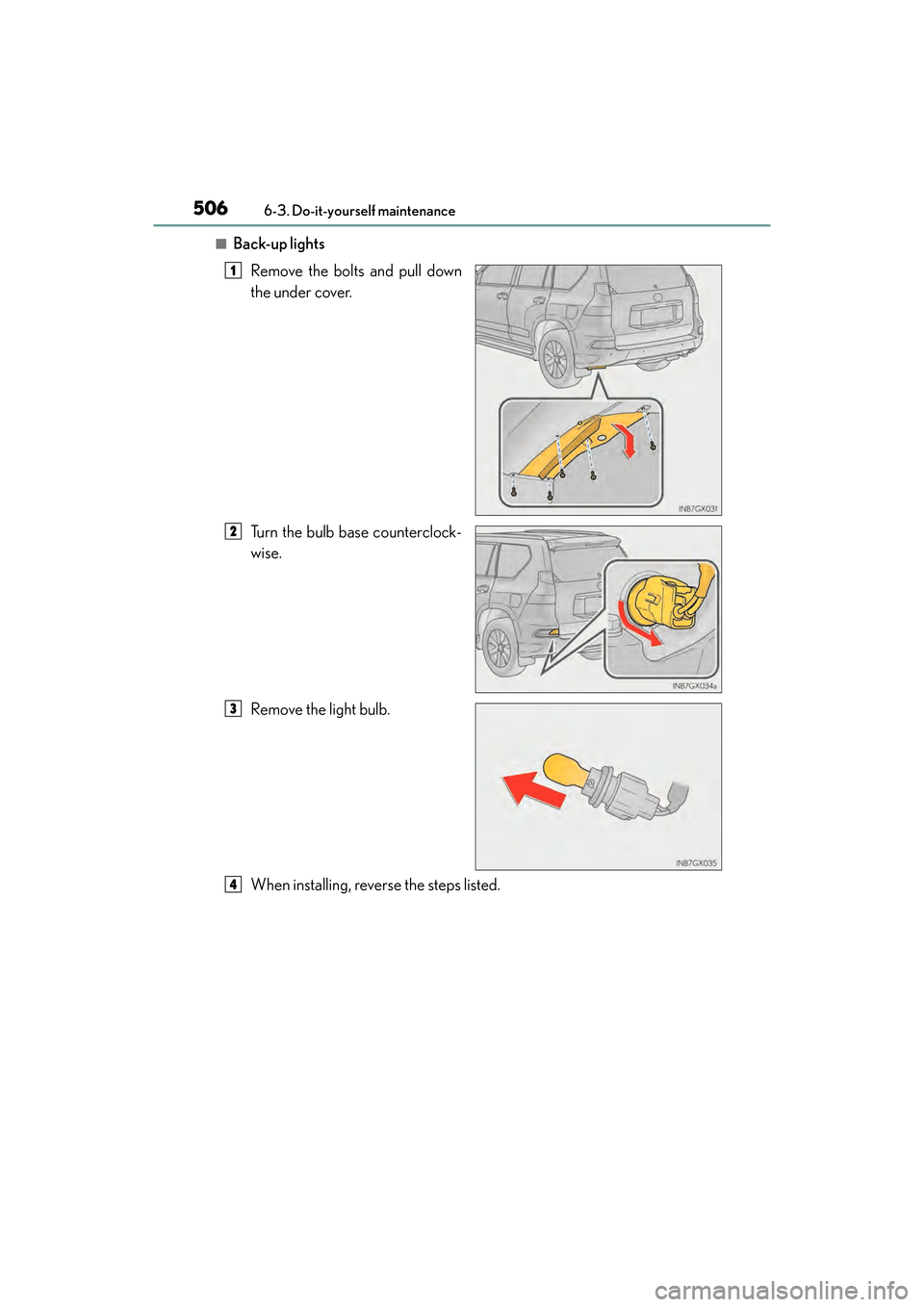

■Back-up lights
Remove the bolts and pull down
the under cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 506 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5076-3. Do-it-yourself maintenance
6
Maintenance and care
■Running board lightsTurn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlight low beams
●Parking lights/daytime running lights
●Front side marker lights
●Fog lights (if equipped)
●Side turn signal lights
●High mounted stoplight
●Stop/tail lights
●License plate lights
1
2
3
GX460_OM_OM60F68U_(U).book Page 507 Wednesday, June 8, 2016 6:37 PM

508
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
■LED lights
The headlight low beams, parking lights/daytime running lights, front side marker lights,
fog lights, side turn signal lights, high moun
ted stoplight, stop/tail lights and license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your
Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for more information in the following situations:
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turning
off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering th e headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
●Do not attempt to repair or disassemble light bulbs, connectors, electric circuits or
component parts.
Doing so may result in death or se rious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
