Lexus GX460 2017 Owner's Manual

509
GX 460 _O M_ OM6 0F 6 8U _(U )
7When trouble arises
7-1. Essential informationEmergency flashers ................... 510
If your vehicle has to be stopped in
an emergency.............................. 511
7-2. Steps to take in an emergency If your vehicle needs to be towed ................................. 512
If you think something is wrong ............................................ 518
Fuel pump shut off system ....... 519
If a warning light turns on or a warning buzzer
sounds.......................................... 520
If a warning message is displayed..................................... 528
If you have a flat tire................... 542
If the engine will not start ........ 556
If the electronic key does not operate properly .............558
If the vehicle battery is discharged ...................................561
If your vehicle overheats ......... 564
If the vehicle becomes stuck ............................................. 567
GX460_OM_OM60F68U_(U).book Page 509 Wednesday, June 8, 2016 6:37 PM

510
GX 460 _O M_ OM6 0F 6 8U _(U )7-1. Essential information
Emergency flashers
Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.
GX460_OM_OM60F68U_(U).book Page 510 Wednesday, June 8, 2016 6:37 PM

511
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
7-1. Essential information
If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lo st, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-
ble before turning off the engine.
5
GX460_OM_OM60F68U_(U).book Page 511 Wednesday, June 8, 2016 6:37 PM

512
GX 460 _O M_ OM6 0F 6 8U _(U )7-2. Steps to take in an emergency
If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact your
Lexus dealer or commercial towing service before towing.
●The engine is running but the vehicle does not move.
●The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing se
rvice, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Situations when it is necessary to contact dealers before towing
GX460_OM_OM60F68U_(U).book Page 512 Wednesday, June 8, 2016 6:37 PM

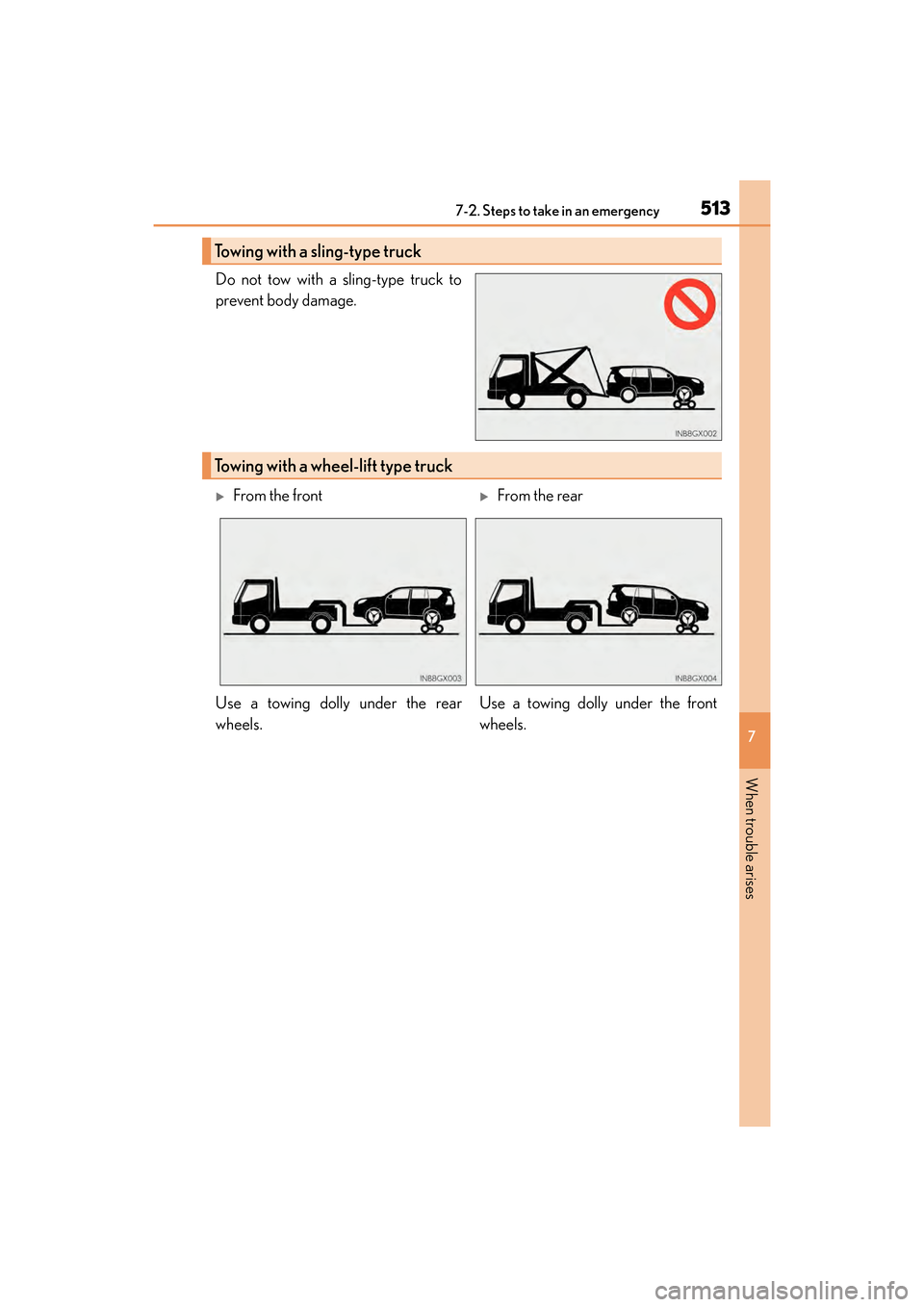

5137-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Use a towing dolly under the rear
wheels. Use a towing dolly under the front
wheels.
GX460_OM_OM60F68U_(U).book Page 513 Wednesday, June 8, 2016 6:37 PM

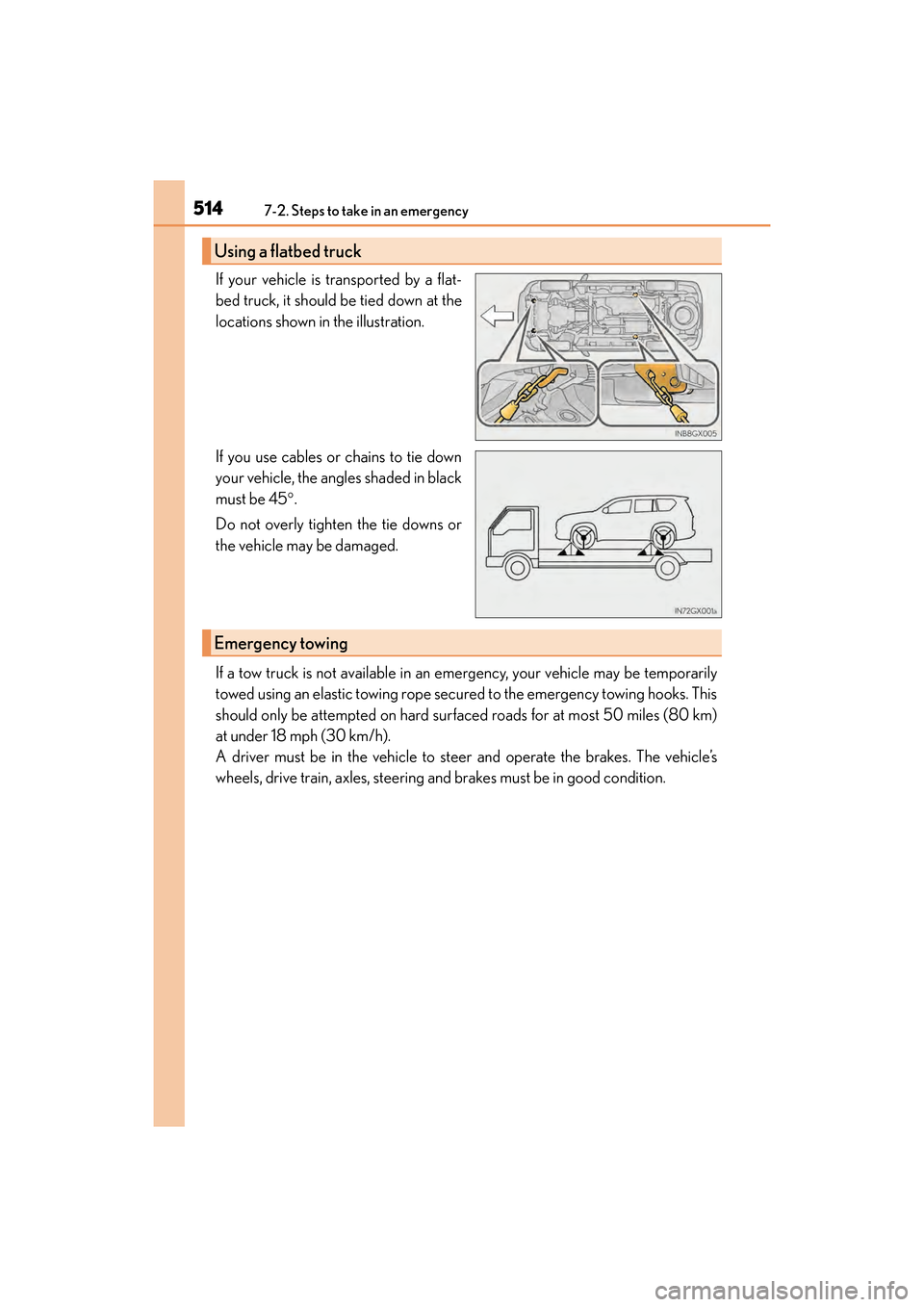

5147-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use cables or chains to tie down
your vehicle, the angles shaded in black
must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using an elastic towing rope secured to the emergency towing hooks. This
should only be attempted on hard surfaced roads for at most 50 miles (80 km)
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Using a flatbed truck
Emergency towing
GX460_OM_OM60F68U_(U).book Page 514 Wednesday, June 8, 2016 6:37 PM

5157-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Securely attach an elastic towing
rope to the towing hooks.
Take care not to damage the vehicle
body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Set the four-wheel drive control switch in H4 and push the center differential
lock/unlock switch to unlock the center differential. ( →P. 3 4 2 )
For models with the rear height control air suspension: Change the vehicle
height to N (normal) mode and end the vehicle height control operation.
( → P. 3 3 7 )
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: →P. 1 9 8
■While towing
If the engine is not running, the power assist for the brakes and steering will not function,
making steering and braking more difficult.
Emergency towing procedure
1
2
3
4
5
GX460_OM_OM60F68U_(U).book Page 515 Wednesday, June 8, 2016 6:37 PM

5167-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using an elastic towing rope, avoid sudden starts, etc. which place
excessive stress on the towing hooks, the elastic towing rope. The towing hooks, the
elastic towing rope may become damaged, broken debris may hit people and cause
serious damage.
●Do not turn the engine switch off.
There is a possibility that the steering wh eel is locked and cannot be operated.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the
drivetrain or related parts may be damaged,
the vehicle may fly off the truck.
GX460_OM_OM60F68U_(U).book Page 516 Wednesday, June 8, 2016 6:37 PM

5177-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
NOTICE
■To avoid serious damage to your vehicle
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the engine switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
●Do not use cables or chains.
●Do not secure the elastic towing rope to the suspension components.
Do not use the rear emergency towing hook.
GX460_OM_OM60F68U_(U).book Page 517 Wednesday, June 8, 2016 6:37 PM

518
GX 460 _O M_ OM6 0F 6 8U _(U )7-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms
GX460_OM_OM60F68U_(U).book Page 518 Wednesday, June 8, 2016 6:37 PM
