Maintenance and care
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the Owner’s
Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel wh ich is designed for a tubeless tire. Doing
so may result in an accident, causing death or serious injury.
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an accident.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves and
transmitters, make sure to have tires serviced by your Lexus dealer or other qualified
service shop. In addition, make sure to purchase your tire pressure warning valves
and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-genu-
ine wheels.
GX460_OM_OM60F68U_(U).book Page 489 Wednesday, June 8, 2016 6:37 PM

490
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Air conditioning filter
Turn the engine switch off.
Open the glove box and remove the
glove box cover.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
GX460_OM_OM60F68U_(U).book Page 490 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4916-3. Do-it-yourself maintenance
6
Maintenance and care

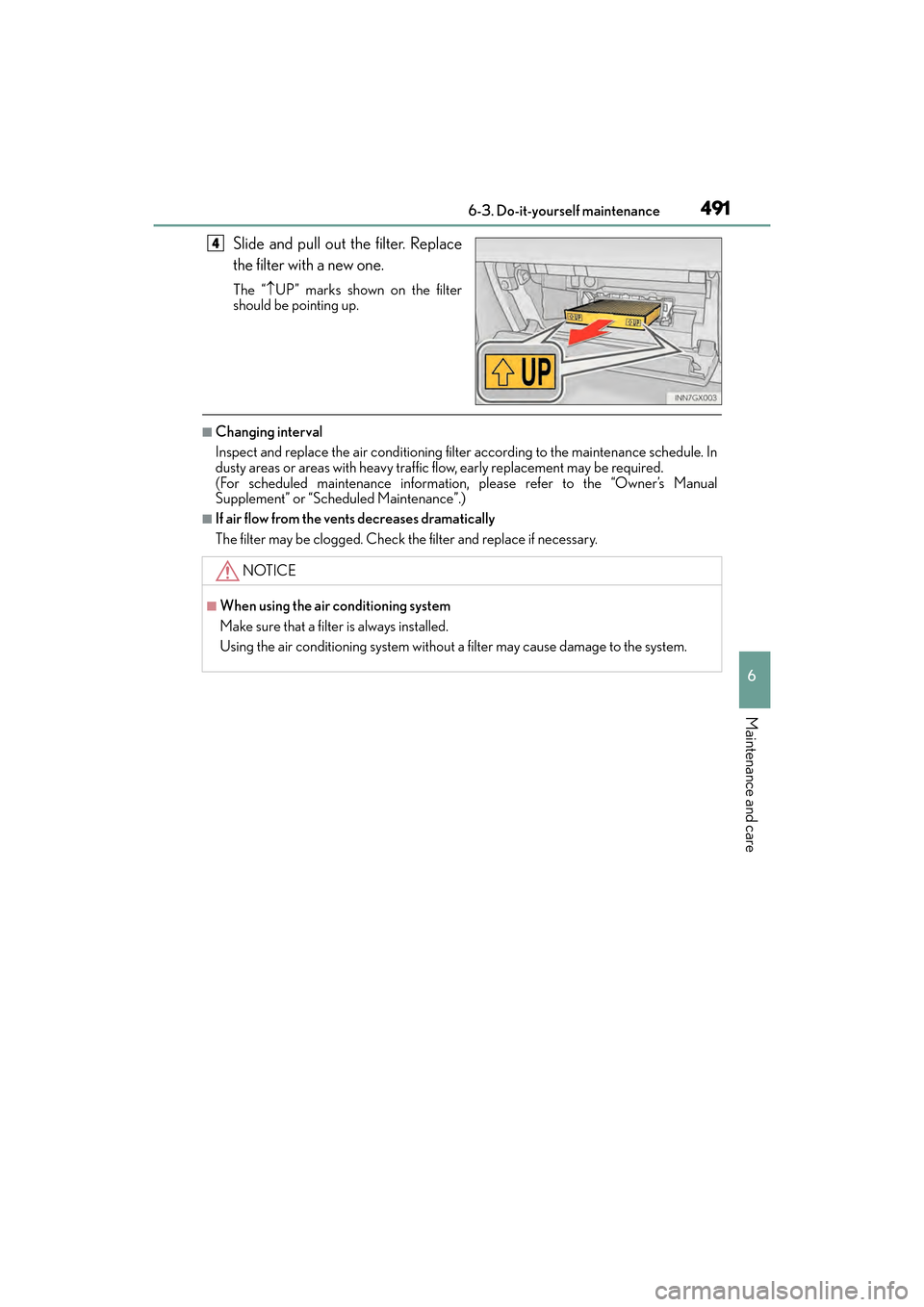

Slide and pull out the filter. Replace
the filter with a new one.
The “↑UP” marks shown on the filter
should be pointing up.
■Changing interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, early replacement may be required.
(For scheduled maintenance information, please refer to the “Owner’s Manual
Supplement” or “Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
4
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
GX460_OM_OM60F68U_(U).book Page 491 Wednesday, June 8, 2016 6:37 PM

492
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Electronic key battery
●Flathead screwdriver
●Small Phillips-head screwdriver
●Lithium battery (CR1632)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need th
e following items:
Replacing the battery
1
2
3
GX460_OM_OM60F68U_(U).book Page 492 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4936-3. Do-it-yourself maintenance
6
Maintenance and care
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
GX460_OM_OM60F68U_(U).book Page 493 Wednesday, June 8, 2016 6:37 PM

494
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Remove the fuse with the pull-out tool.
Only type A fuse can be removed using
the pull-out tool.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2
XEngine compartmentXDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3
GX460_OM_OM60F68U_(U).book Page 494 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4956-3. Do-it-yourself maintenance
6
Maintenance and care
Check if the fuse is blown.Normal fuse
Blown fuse
Ty p e A :
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Ty p e B , C a n d D :
Contact your Lexus dealer.
4
1
2
XTy p e AXTy p e B
XTy p e CXTy p e D
GX460_OM_OM60F68U_(U).book Page 495 Wednesday, June 8, 2016 6:37 PM

496
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (
→P. 4 9 9 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other object
in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or the fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer,
as soon as possible.
GX460_OM_OM60F68U_(U).book Page 496 Wednesday, June 8, 2016 6:37 PM

497
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
6
Maintenance and care

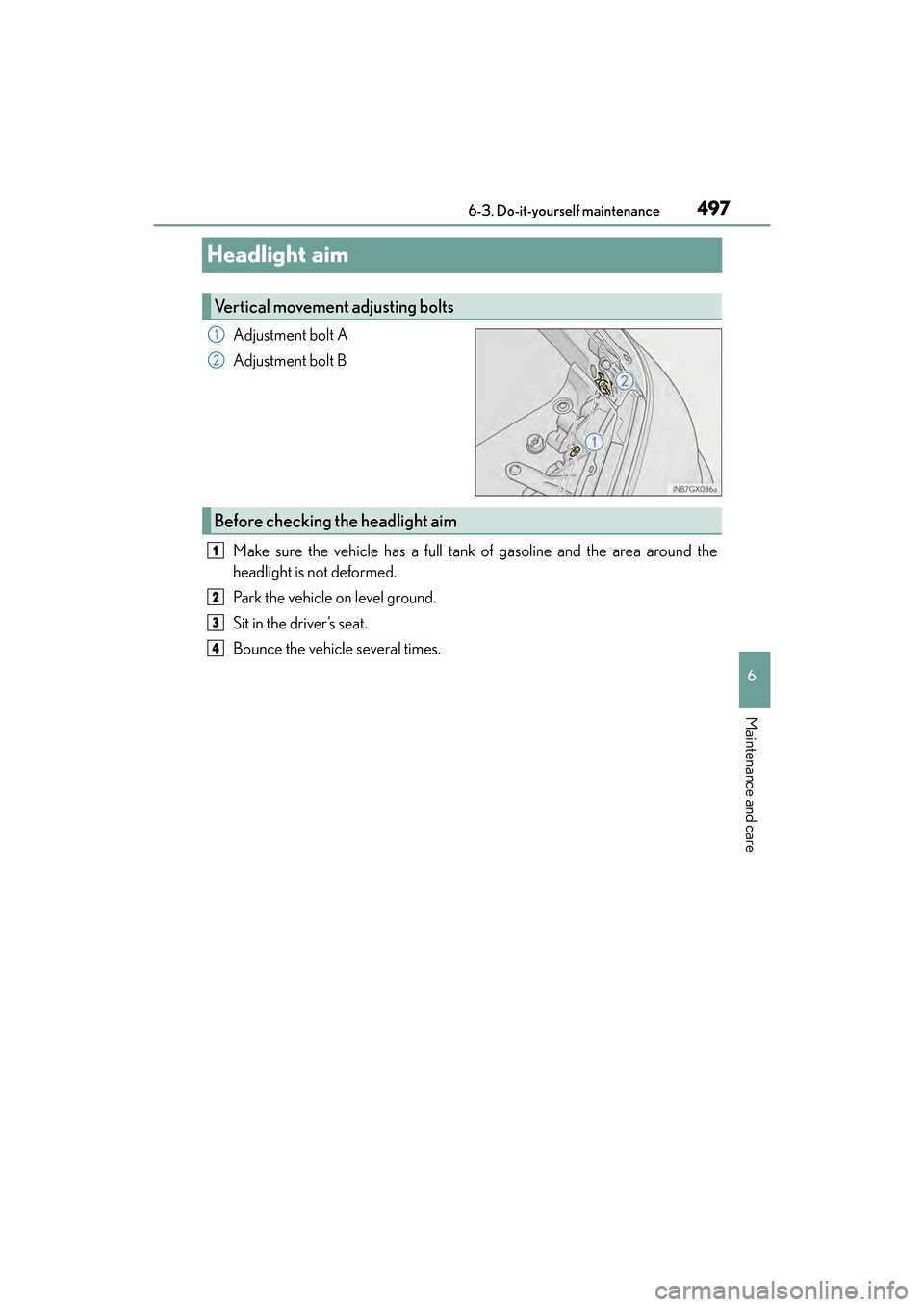

Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 497 Wednesday, June 8, 2016 6:37 PM

498
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning direction and the number of turns.
Turn bolt B the same number of turns
and in the same direction as step .
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.

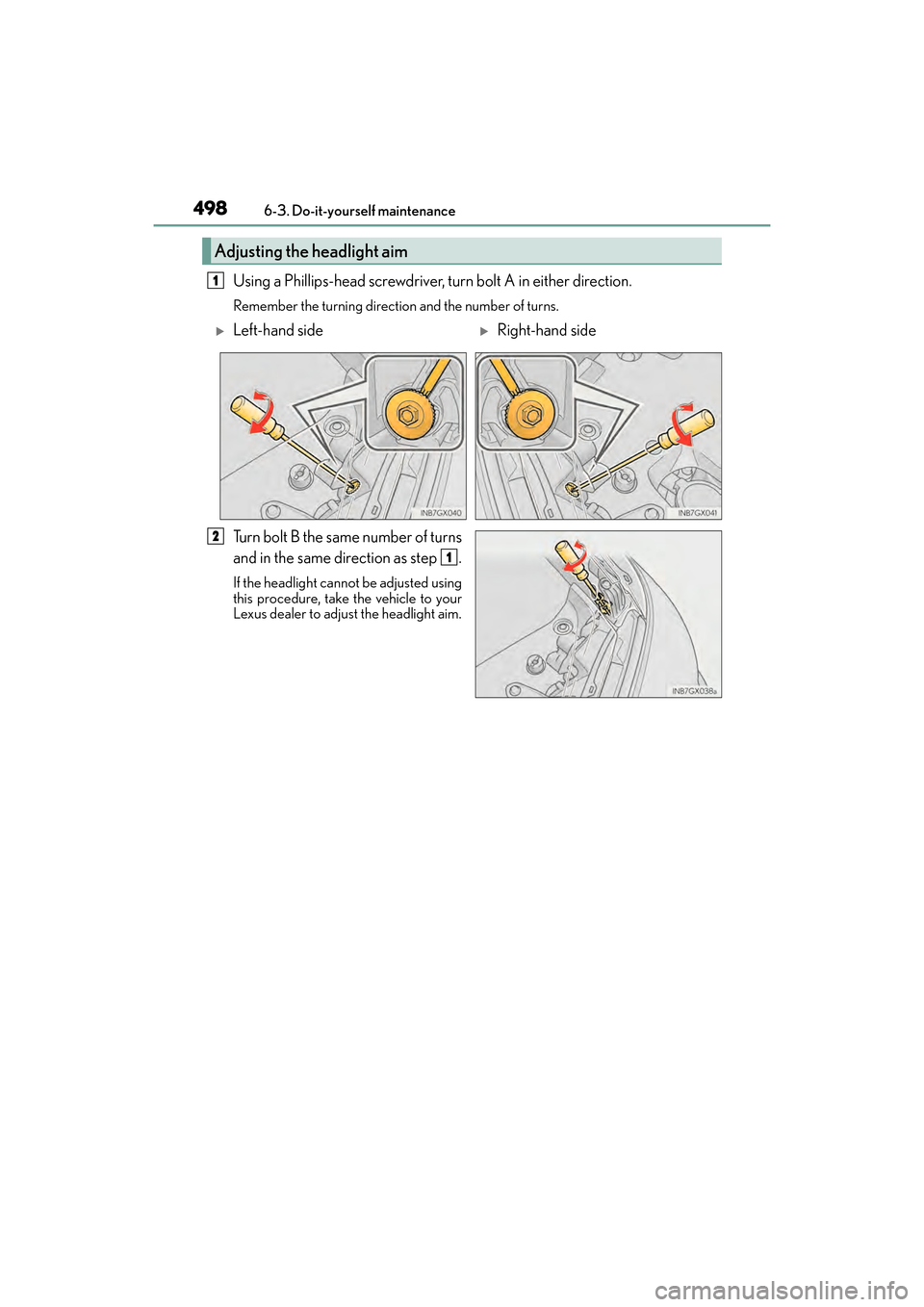

Adjusting the headlight aim
1
XLeft-hand sideXRight-hand side
2
1
