Lexus GX460 2018 / LEXUS 2018 GX460 MULTIMEDIA SYSTEM (OM60Q14U) Workshop Manual

3
51
1
2
3
4
5
6
GX460_MM_OM60Q14U_(U)17.05.09 14:47
7
1. CD.................................................................... 76
OVERVIEW.................................................................. 76
PLAYING AN AUDIO CD .................................. 78
PLAYING AN MP3/WMA/AAC DISC ....... 78
2. USB MEMORY........................................... 79
OVERVIEW.................................................................. 79
PLAYING A USB AUDIO ................................... 82
3. iPod .................................................................. 83
OVERVIEW................................................................. 83
iPod AUDIO ................................................................ 88
iPod VIDEO ................................................................. 88
4. Bluetooth® AUDIO ................................... 89
OVERVIEW................................................................. 89
CONNECTING A Bluetooth® DEVICE ....... 94
LISTENING TO Bluetooth® AUDIO ............... 94
5.AUX ..................................................................... 95
OVERVIEW................................................................. 95
6. VTR .................................................................. 97
OVERVIEW.................................................................. 97
1. STEERING SWITCHES ........................... 99
1. AUDIO SETTINGS .................................. 102
AUDIO SETTINGS SCREEN ............................ 102
1. OPERATING INFORMATION.......... 105
RADIO.......................................................................... 105
CD PLAYER AND DISC...................................... 106
iPod................................................................................. 108
FILE INFORMATION ............................................ 109
TERMS ............................................................................ 112
ERROR MESSAGES ............................................... 113
3MEDIA OPERATION4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM

52
GX460_MM_OM60Q14U_(U)17.06.15 12:38

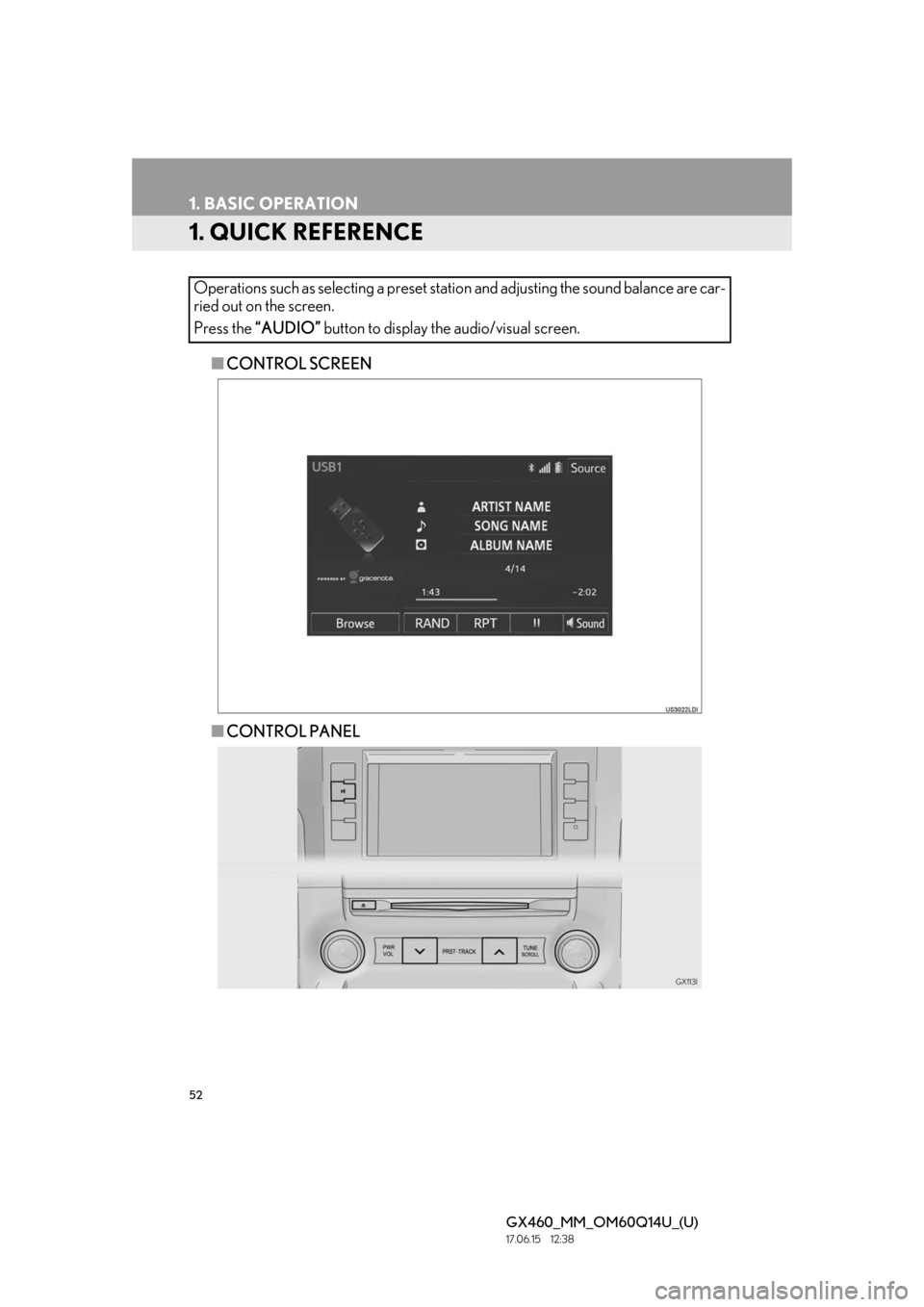

1. BASIC OPERATION
1. QUICK REFERENCE
■CONTROL SCREEN
■ CONTROL PANEL
Operations such as selecting a preset stat
ion and adjusting the sound balance are car-
ried out on the screen.
Press the “AUDIO” button to display the audio/visual screen.

53
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60Q14U_(U)17.06.15 12:38
FunctionPage
Using the radio60
Playing an audio CD or MP3/WMA/AAC disc76
Playing a USB memory79
Playing an iPod83
Playing a Bluetooth® device89
Using the AUX port95
Playing the VTR97
Using the steering wheel audio switches99
Audio system settings102
INFORMATION
●The display and button positions will differ depending on the type of the system.

54
1. BASIC OPERATION
GX460_MM_OM60Q14U_(U)17.06.15 12:38
2. SOME BASICS
“PWR/VOL” knob: Press to turn the audio/
visual system on and off. The system turns
on in the last mode used. Turn this knob to
adjust the volume.
“AUDIO” button: Press to display screen
buttons for the audio/visual system.
This section describes some of the basic
features of the audio/visual system.
Some information may not pertain to
your system.
Your audio/visual system works when
the engine switch is turned to ACCES-
SORY or IGNITION ON mode.
CAUTION
●For vehicles sold in U.S.A.:
Part 15 of the FCC Rules
FCC WARNING: Changes or
modifications not expressly approved by
the party responsible for compliance
could void the user’s authority to operate
the equipment.
●Laser products
• USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
• THE USE OF OPTICAL INSTRUMENTS WITH THIS
PRODUCT WILL INCREASE EYE
HAZARD.
NOTICE
●To prevent the battery from being dis-
charged, do not leave the audio/visual
system on longer than necessary when
the engine is not running.
TURNING THE SYSTEM ON
AND OFF
 A function that enables automatic return
to the home screen from the audio/visual
screen can be selected. ( →P.44)

55
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60Q14U_(U)17.06.15 12:38

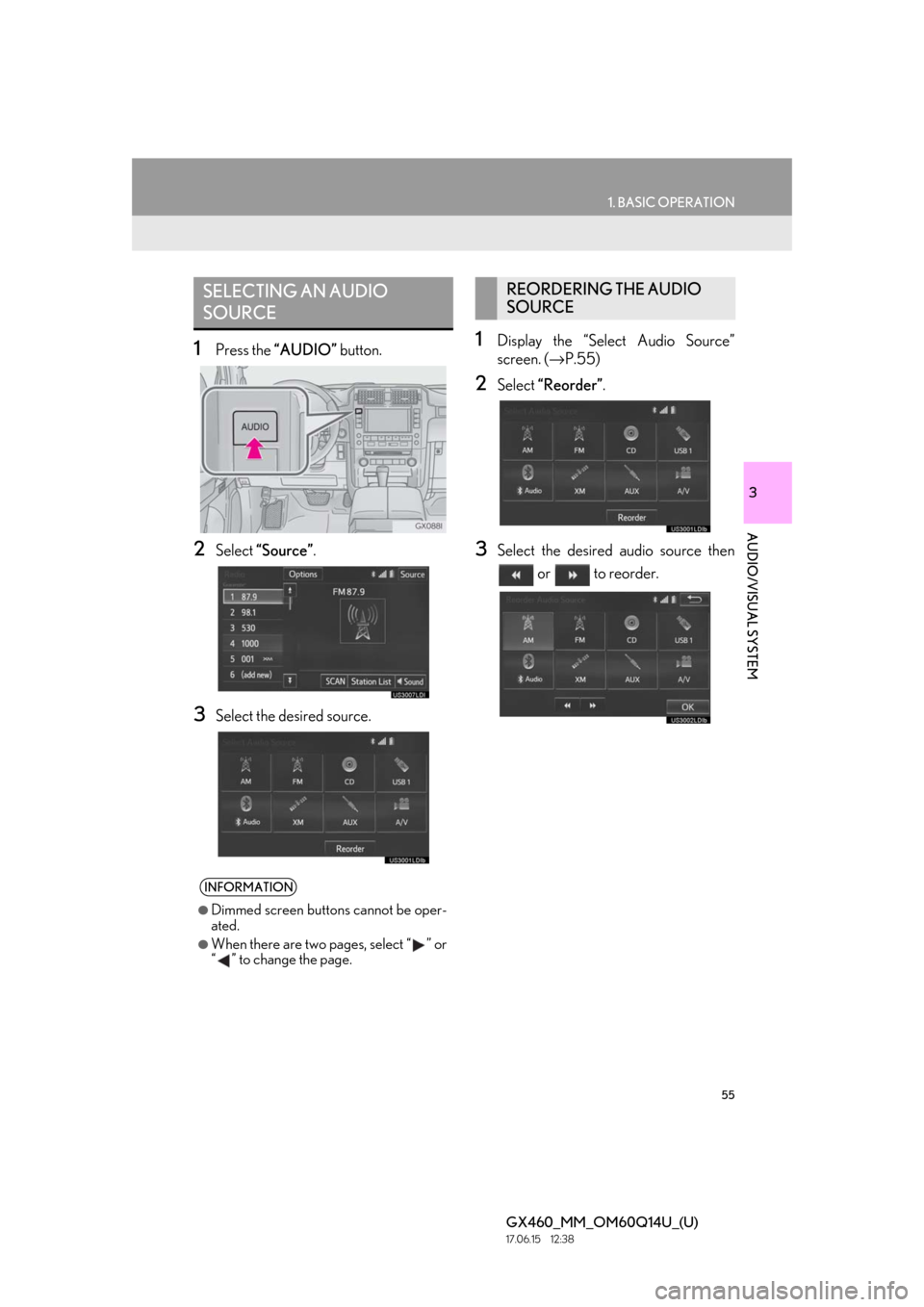

1Press the “AUDIO” button.
2Select “Source”.
3Select the desired source.
1Display the “Select Audio Source”
screen. ( →P.55)
2Select “Reorder”.
3Select the desired audio source then
or to reorder.
SELECTING AN AUDIO
SOURCE
INFORMATION
●Dimmed screen buttons cannot be oper-
ated.
●When there are two pages, select “ ” or
“ ” to change the page.
REORDERING THE AUDIO
SOURCE

56
1. BASIC OPERATION
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1Insert a disc into the disc slot.
After insertion, the disc is automatically
loaded.
1Press the “ ” button and remove the
disc.
1Slide the auxiliary box lid.
2Open the cover and connect a device.
 Turn on the power of the device if it is not
turned on.
DISC SLOT
INSERTING A DISC
EJECTING A DISC
NOTICE
●Never try to disassemble or oil any part of
the CD player. Do not insert anything
other than a disc into the slot.
INFORMATION
●The player is intended for use with 4.7 in.
(12 cm) discs only.
●When inserting a disc, gently insert the
disc with the label facing up.
USB/AUX PORT
There are 2 USB ports and an AUX port
in the auxiliary box.

57
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60Q14U_(U)17.06.15 12:38
When using an iPod video, a cable that has
a 4-pole AUX plug and a USB connector is
necessary. Connect the plug and connec-
tor to the AUX and USB ports.
INFORMATION
●Up to two portable players can be con-
nected to the USB port at the same time.
●Even if a USB hub is used to connect
more than two USB devices, only the first
two connected devices will be recog-
nized.
USING A 4-POLE AUX CABLE
To view a video on an iPod video or
VTR, it is necessary to use a 4-pole
AUX cable to connect the portable au-
dio device.
When connecting a portable audio de-
vice to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact
layout shown in the illustration.
Connected device
(portable audio
device, etc.)
Left
audio Right
audioGround Video
INFORMATION
●If a 4-pole AUX cable with a different lay-
out is used, audio and/or video may not
be output properly.

58
1. BASIC OPERATION
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1Select “Sound” .
2Select the desired screen button.

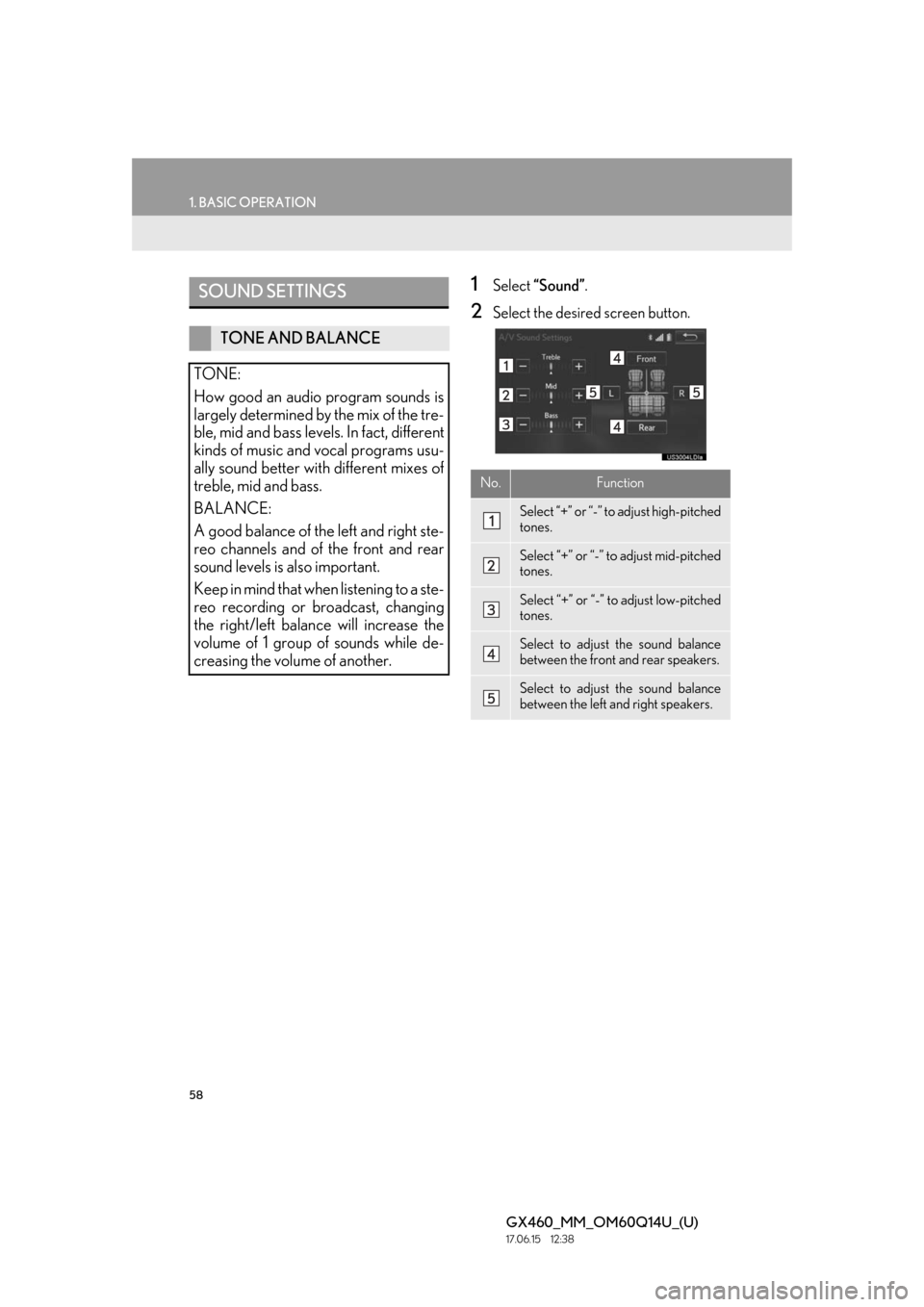

SOUND SETTINGS
TONE AND BALANCE
TONE:
How good an audio program sounds is
largely determined by the mix of the tre-
ble, mid and bass levels. In fact, different
kinds of music and vocal programs usu-
ally sound better wi th different mixes of
treble, mid and bass.
BALANCE:
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that when listening to a ste-
reo recording or broadcast, changing
the right/left balance will increase the
volume of 1 group of sounds while de-
creasing the volume of another.
No.Function
Select “+” or “-” to adjust high-pitched
tones.
Select “+” or “-” to adjust mid-pitched
tones.
Select “+” or “-” to adjust low-pitched
tones.
Select to adjust the sound balance
between the front and rear speakers.
Select to adjust the sound balance
between the left and right speakers.

59
1. BASIC OPERATION
3
AUDIO/VISUAL SYSTEM
GX460_MM_OM60Q14U_(U)17.06.15 12:38
iPod video/VTR
1Select “Screen Format” on the control
screen.
2Select the desired item to be adjusted.
1Press this switch to operate the voice
command system.

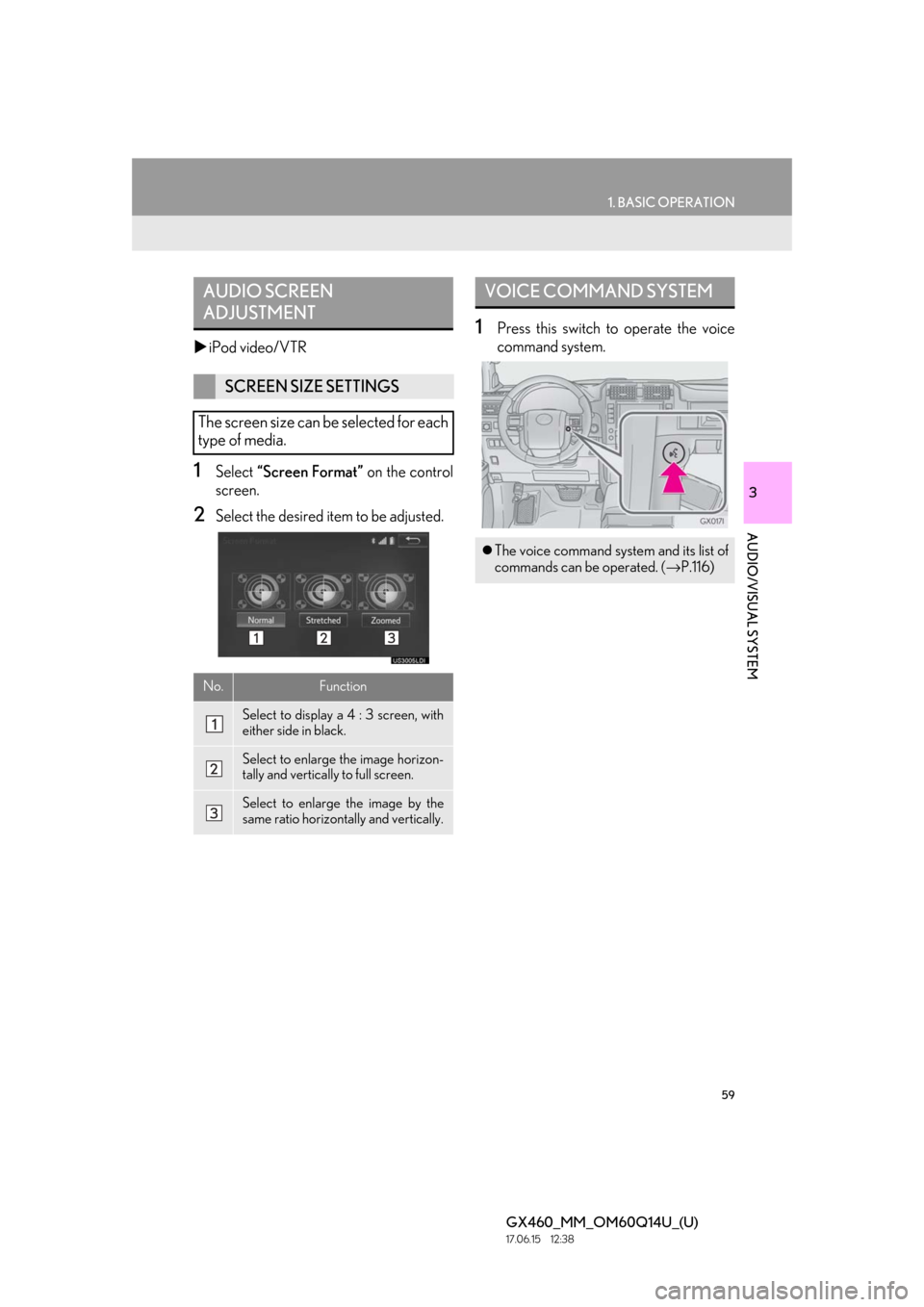

AUDIO SCREEN
ADJUSTMENT
SCREEN SIZE SETTINGS
The screen size can be selected for each
type of media.
No.Function
Select to display a 4 : 3 screen, with
either side in black.
Select to enlarge the image horizon-
tally and vertically to full screen.
Select to enlarge the image by the
same ratio horizontal ly and vertically.
VOICE COMMAND SYSTEM
The voice command system and its list of
commands can be operated. ( →P.116)

60
GX460_MM_OM60Q14U_(U)17.06.15 12:38

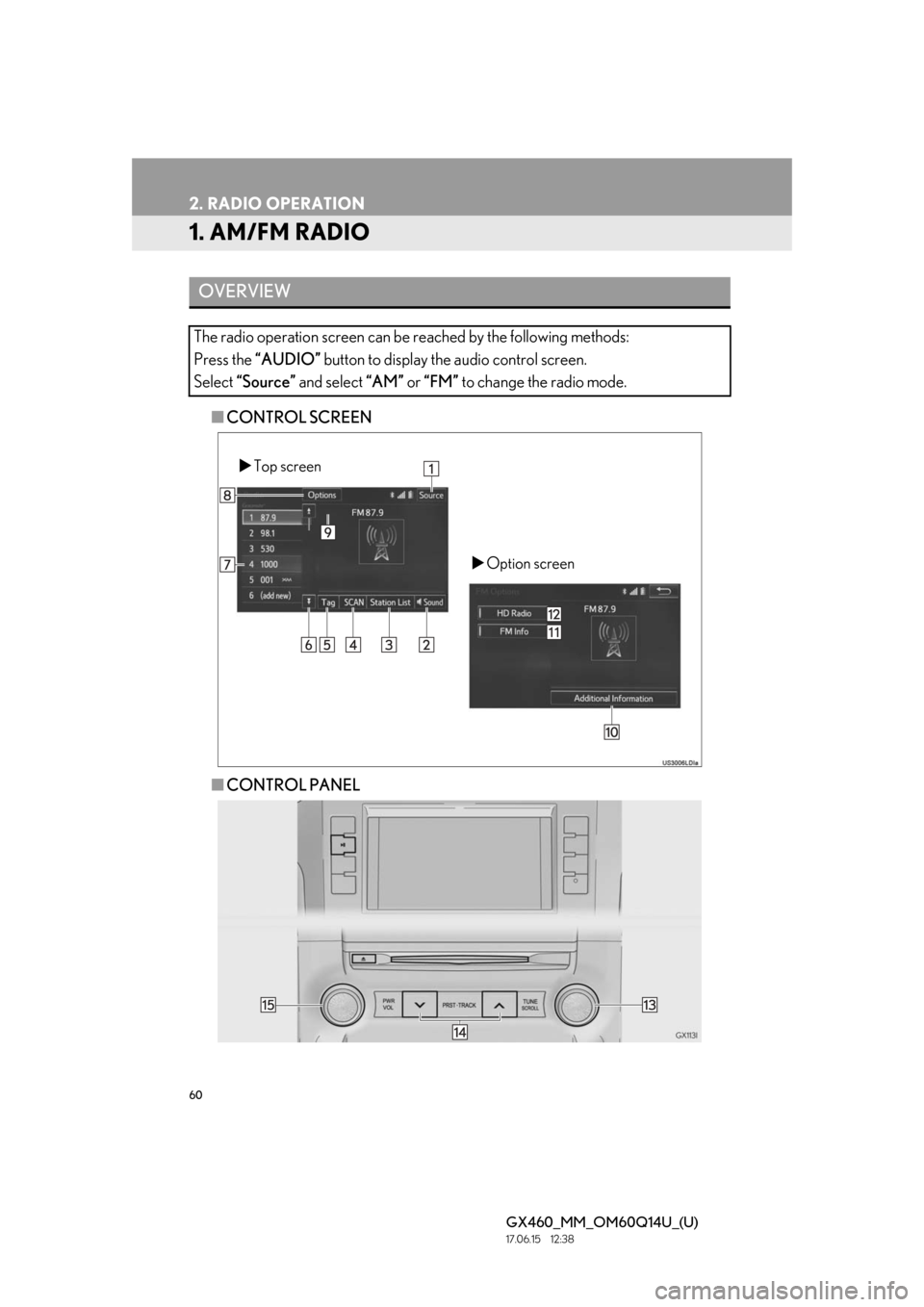

2. RADIO OPERATION
1. AM/FM RADIO
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The radio operation screen can be reached by the following methods:
Press the “AUDIO” button to display the audio control screen.
Select “Source” and select “AM” or “FM” to change the radio mode.
Top screen
Option screen
