audio Lexus GX460 2018 Owner's Manual / LEXUS 2018 GX460 MULTIMEDIA SYSTEM OWNER'S MANUAL (OM60Q14U)

11
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1QUICK GUIDE9
2 BASIC FUNCTION21
3 AUDIO/VISUAL SYSTEM51
4VOICE COMMAND SYSTEM115
5 INFORMATION127
6PHONE131
7LEXUS Enform Remote173
INDEX177
TABLE OF CONTENTS

TABLE OF CONTENTS
6
GX460_MM_OM60Q14U_(U)17.06.15 12:38
1. BASIC FUNCTION......................................... 10
BUTTONS OVERVIEW ..................................... 10
“Apps” SCREEN...................................................... 12
HOME SCREEN .................................................... 14
2. QUICK REFERENCE ................................... 18
“Setup” SCREEN..................................................... 18
1. BASIC INFORMATION BEFORE OPERATION ............................................... 22
INITIAL SCREEN .................................................. 22
TOUCH SCREEN GESTURES ..................... 23
TOUCH SCREEN OPERATION ................. 24
“Apps” SCREEN OPERATION ..................... 25
HOME SCREEN OPERATION .................... 26
ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION ....................... 27
SCREEN ADJUSTMENT .................................. 29
2. Bluetooth® SETTINGS.................................. 31
REGISTERING/CONNECTING Bluetooth® DEVICE .......................................... 31
SETTING Bluetooth® DETAILS ..................... 36
3. OTHER SETTINGS ....................................... 44
GENERAL SETTINGS ....................................... 44
VOICE SETTINGS ............................................... 49
1. BASIC OPERATION..................................... 52
QUICK REFERENCE......................................... 52
SOME BASICS ...................................................... 54
2. RADIO OPERATION.................................. 60
AM/FM RADIO..................................................... 60
XM Satellite Radio................................................. 68
3. MEDIA OPERATION...................................76
CD .................................................................................76
USB MEMORY.......................................................79
iPod .............................................................................. 83
Bluetooth
® AUDIO ............................................. 89
AUX ..................................................................................95
VTR................................................................................97
4. AUDIO/VISUAL REMOTE CONTROLS ................................................. 99
STEERING SWITCHES ..................................... 99
5. SETUP .............................................................. 102
AUDIO SETTINGS ............................................ 102
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ................... 105
OPERATING INFORMATION .................. 105
1QUICK GUIDE
2BASIC FUNCTION
3AUDIO/VISUAL SYSTEM

1. BASIC FUNCTION
1
QUICK GUIDE
11
GX460_MM_OM60Q14U_(U)17.06.15 12:38

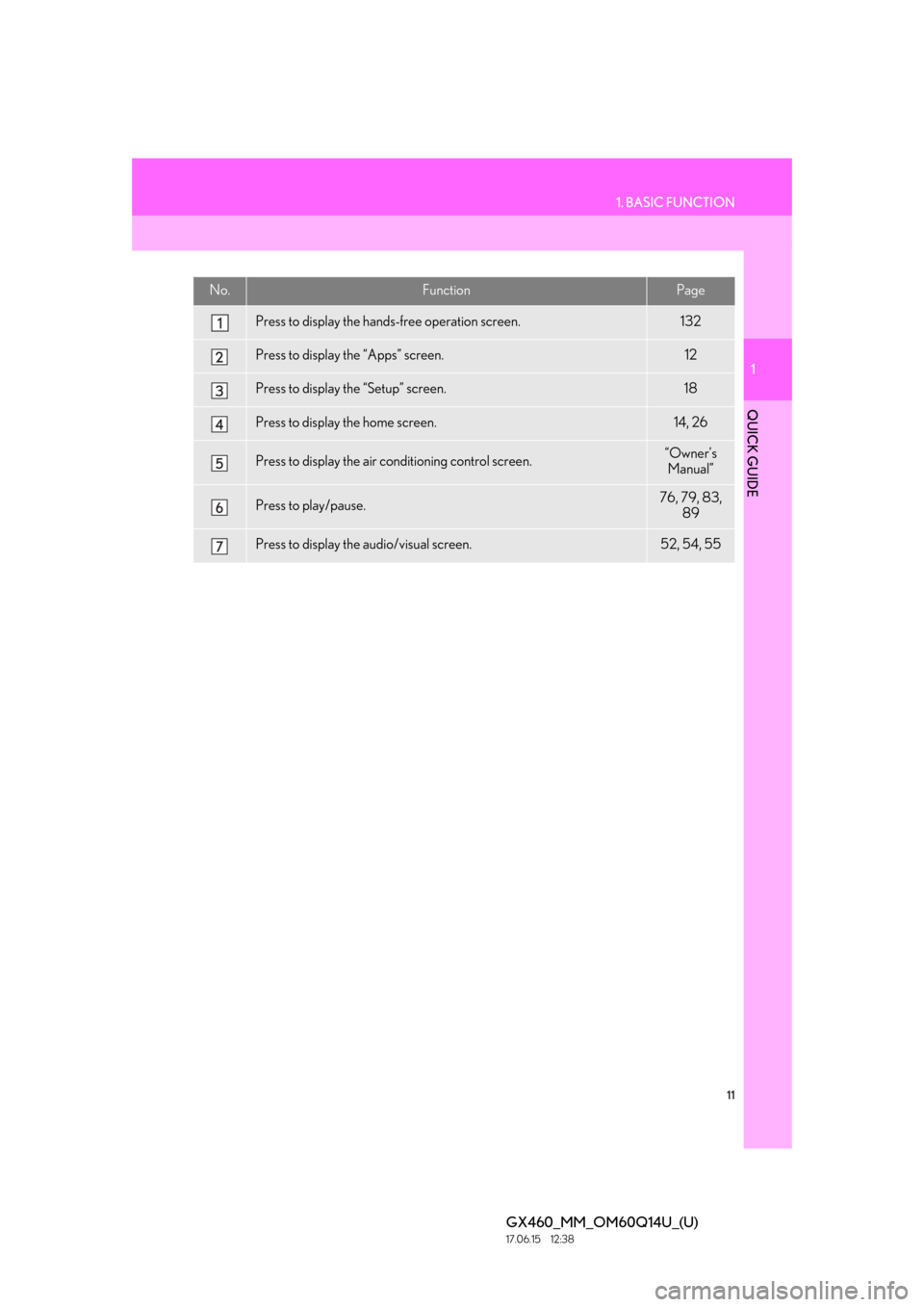

No.FunctionPage
Press to display the hands-free operation screen.132
Press to display the “Apps” screen.12
Press to display the “Setup” screen.18
Press to display the home screen.14, 26
Press to display the air conditioning control screen.“Owner’s
Manual”
Press to play/pause.76, 79, 83, 89
Press to display the audio/visual screen.52, 54, 55

1. BASIC FUNCTION
1
QUICK GUIDE
13
GX460_MM_OM60Q14U_(U)17.06.15 12:38

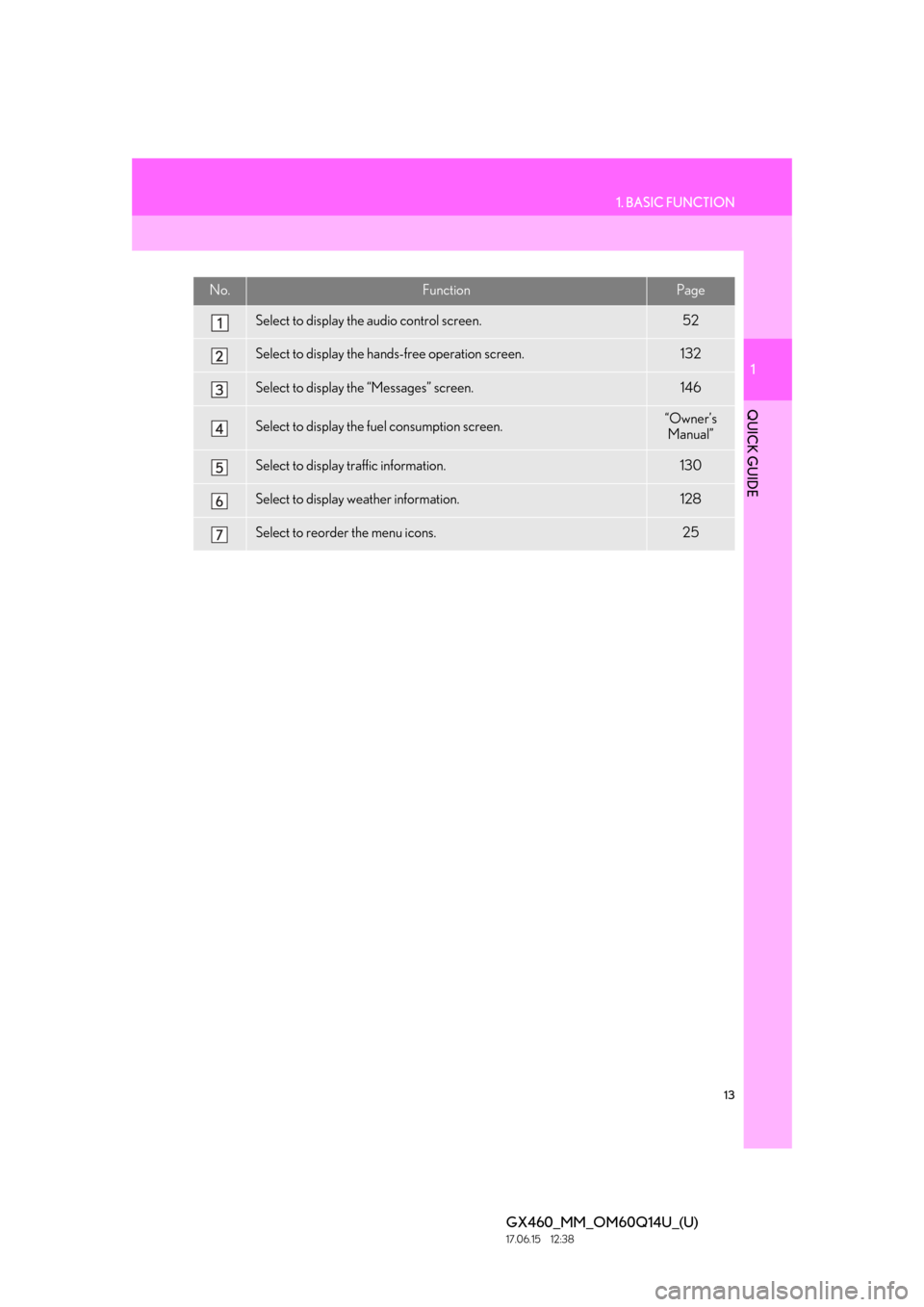

No.FunctionPage
Select to display the audio control screen.52
Select to display the hand s-free operation screen.132
Select to display the “Messages” screen.146
Select to display the fuel consumption screen.“Owner’s
Manual”
Select to display traffic information.130
Select to display weather information.128
Select to reorder the menu icons.25

14
1. BASIC FUNCTION
GX460_MM_OM60Q14U_(U)17.06.15 12:38

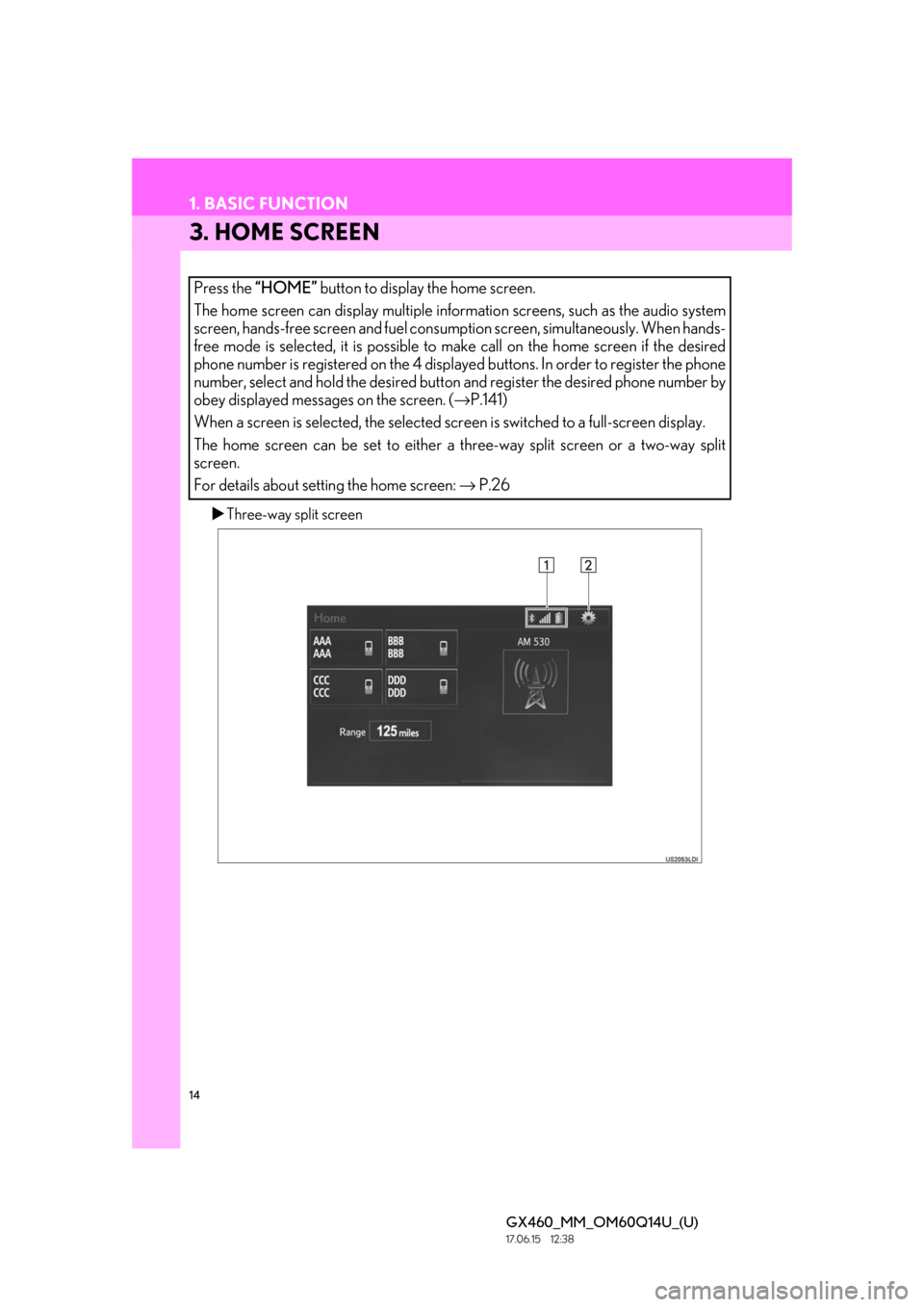

3. HOME SCREEN
Three-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple info rmation screens, such as the audio system
screen, hands-free screen and fuel consum ption screen, simultaneously. When hands-
free mode is selected, it is possible to ma ke call on the home screen if the desired
phone number is registered on the 4 displaye d buttons. In order to register the phone
number, select and hold the desired button and register the desired phone number by
obey displayed messages on the screen. (→ P.141)
When a screen is selected, the selected screen is switched to a full-screen display.
The home screen can be set to either a three-way split screen or a two-way split
screen.
For details about setting the home screen: → P.26

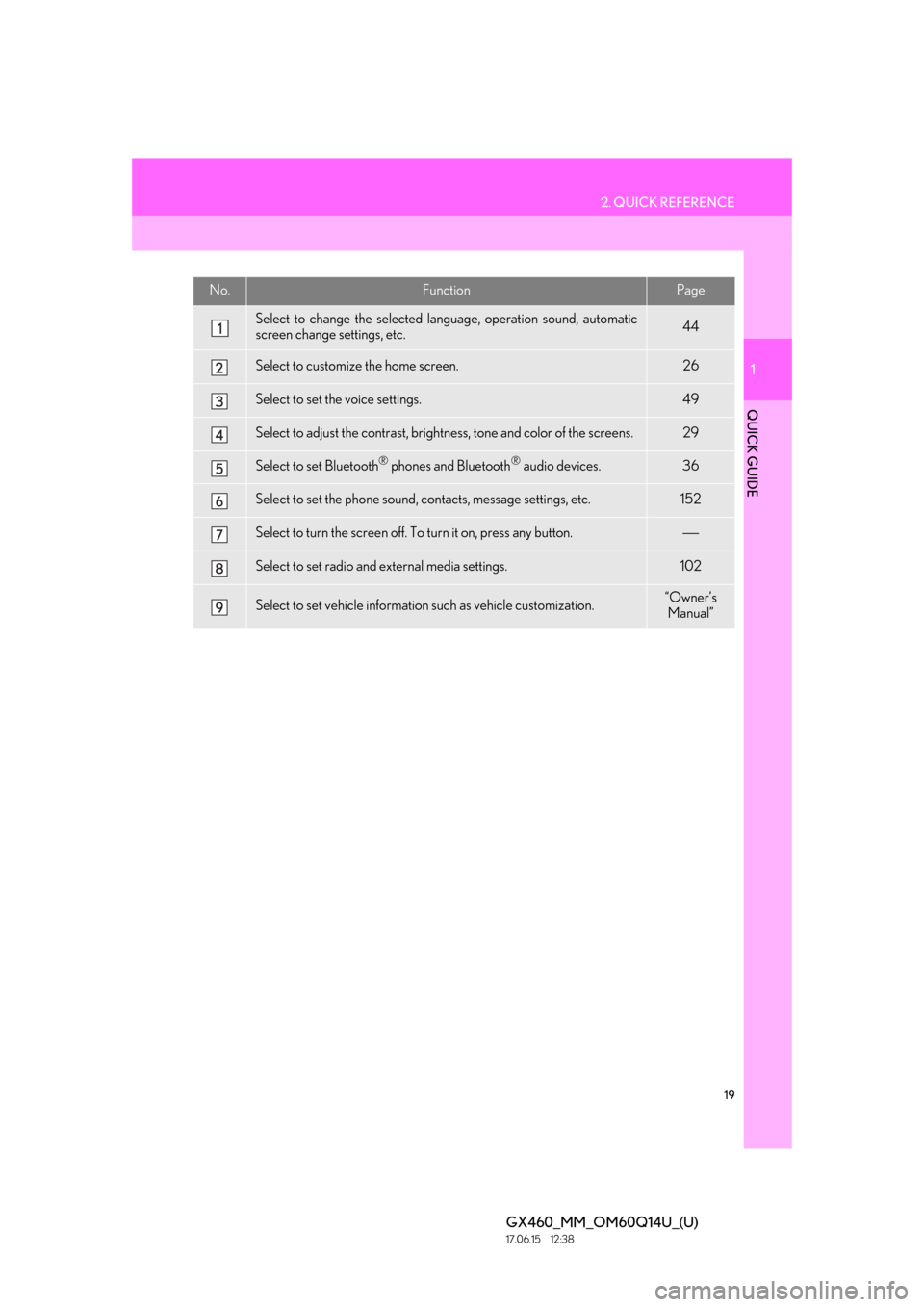

2. QUICK REFERENCE
1
QUICK GUIDE
19
GX460_MM_OM60Q14U_(U)17.06.15 12:38
No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.44
Select to customize the home screen.26
Select to set th e voice settings.49
Select to adjust the co ntrast, brightness, tone and color of the screens.29
Select to set Bluetooth® phones and Bluetooth® audio devices.36
Select to set the phone sound, contacts, message settings, etc.152
Select to turn the screen off. To turn it on, press any button.⎯
Select to set radio and external media settings.102
Select to set vehicle informatio n such as vehicle customization.“Owner’s
Manual”

1
2
3
4
5
6
2
21
GX460_MM_OM60Q14U_(U)17.05.09 14:47
7

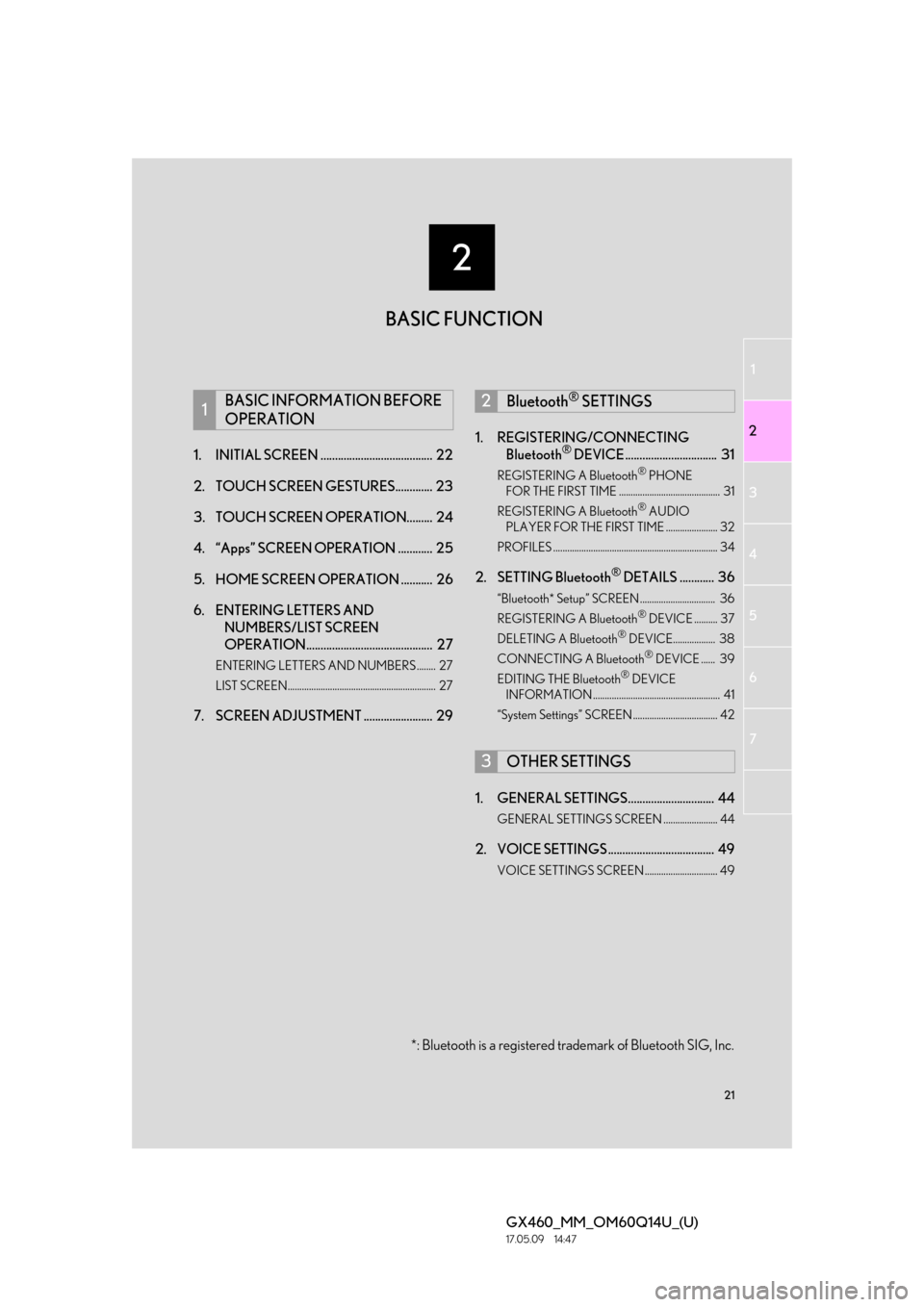

1. INITIAL SCREEN ....................................... 22
2. TOUCH SCREEN GESTURES............. 23
3. TOUCH SCREEN OPERATION......... 24
4. “Apps” SCREEN OPERATION ............ 25
5. HOME SCREEN OP ERATION ........... 26
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 27
ENTERING LETTERS AND NUMBERS ........ 27
LIST SCREEN............................................................... 27
7. SCREEN ADJUSTMENT ........................ 29 1. REGISTERING/CONNECTING
Bluetooth
® DEVICE ................................ 31
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ........................................... 31
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ...................... 32
PROFILES ...................................................................... 34
2. SETTING Bluetooth® DETAILS ............ 36
“Bluetooth* Setup” SCREEN ................................ 36
REGISTERING A Bluetooth® DEVICE .......... 37
DELETING A Bluetooth® DEVICE.................. 38
CONNECTING A Bluetooth® DEVICE ...... 39
EDITING THE Bluetooth® DEVICE
INFORMATION ...................................................... 41
“System Settings” SCREEN .................................... 42
1. GENERAL SETTINGS.............................. 44
GENERAL SETTINGS SCREEN ....................... 44
2. VOICE SETTINGS ..................................... 49
VOICE SETTINGS SCREEN ............................... 49
1BASIC INFORMATION BEFORE
OPERATION2Bluetooth® SETTINGS
3OTHER SETTINGS
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
BASIC FUNCTION

26
1. BASIC INFORMATION BEFORE OPERATION
GX460_MM_OM60Q14U_(U)17.06.15 12:38
5. HOME SCREEN OPERATION
1Press the “HOME” button.
2Check that the home screen is dis-
played.
When a desired screen is selected, the
selected screen will be displayed full
screen.
1Select .
2Select “Home Screen” .
Select “Two Panel” or “Three Panel” .
3Select the desired area.
4Select the desired item.
The home screen can display multiple
information screens, such as the audio
system screen and fuel consumption
screen, simultaneously. CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen can be changed.
INFORMATION
●When the selected it em is already being
displayed and another area is selected for
that item, the item that it is replacing will
be displayed in the original item’s loca-
tion.

32
2. Bluetooth® SETTINGS
GX460_MM_OM60Q14U_(U)17.06.15 12:38
6Check that the following screen is dis-
played when registration is complete.
 The system waits for connection requests
coming from the registered device.
 At this stage, the Bluetooth
® functions are
not yet available.
7Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
 If an error message is displayed, follow the
guidance on the screen to try again.
1Turn the Bluetooth® connection setting
of your audio player on.
 This function is not available when the
Bluetooth® connection setting of your
audio player is set to off.
2Press the “AUDIO” button.
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth
® Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.37

33
2. Bluetooth® SETTINGS
GX460_MM_OM60Q14U_(U)17.06.15 12:38
2
BASIC FUNCTION
3Select “ Audio” .
4Select “Select Device” .
5Select “Yes” to register a audio player.
6Follow the steps in “CONNECTING A
Bluetooth
® DEVICE” from “STEP 2”.
( → P.39)
